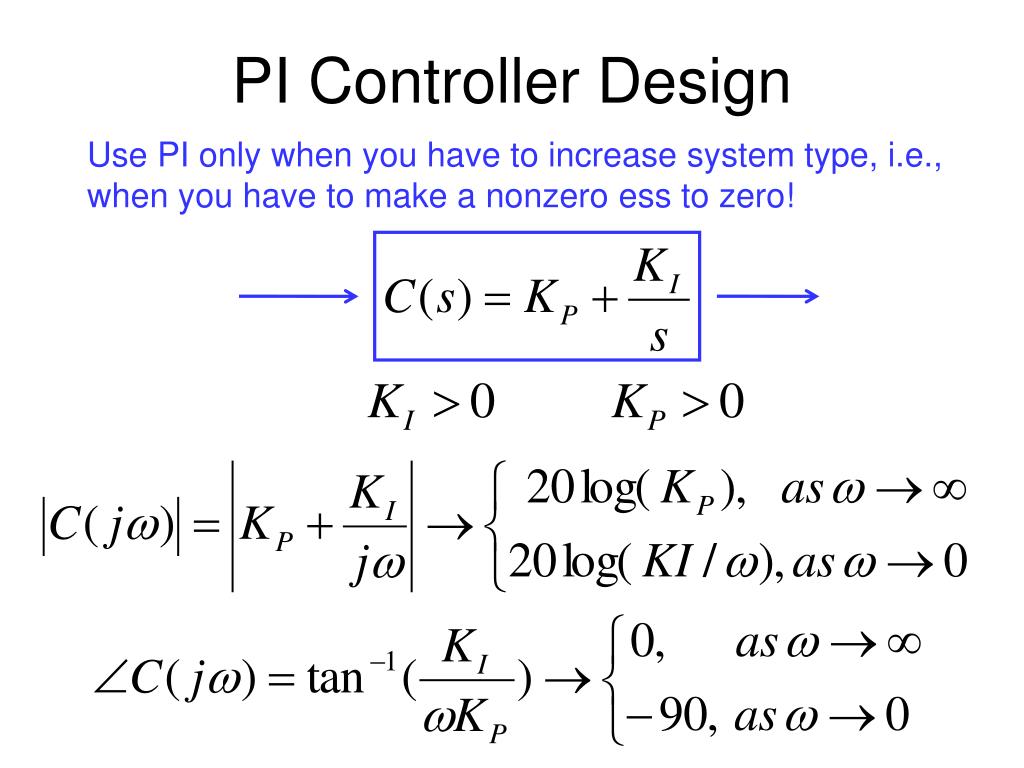

PI Controller Design. Use PI only when you have to increase system type, i.e., when you have to make a nonzero ess to zero!. KI/KP=1/2. KI/KP=1/5. KI/KP=1/10. Want these: DC gain boosting. KI/KP=1/20. w gcd. K P =1. KI/KP=1/40. -5.7. -1.4. -2.8. -11.3. -26. 6. Don’t want these:

garth-west
Télécharger la présentation

PI Controller Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PI Controller Design Use PI only when you have to increase system type, i.e., when you have to make a nonzero ess to zero!

  2. KI/KP=1/2 KI/KP=1/5 KI/KP=1/10 Want these: DC gain boosting KI/KP=1/20 wgcd KP=1 KI/KP=1/40 -5.7 -1.4 -2.8 -11.3 -26. 6 Don’t want these: PM reduction! Kill PM significantly

  3. Basic PI Design Steps • From plant, draw Bode plot • From specs => PMd and wgcd • If there is speed or BW req,  wgcd, • In this case, if PM not enough, design PD or lead • Otherwise, choose wgcd to have PM>PMd • Find K to enforce wgcd: • Let KP = K • And KI = KP wgcd/5~20, depending on extra PM room to spare When to use: Need to increase type to make a nonzero ess to be zero. But no requirement on ess after type increase.

  4. Example Want Mp <= 16% Steady state error = 0 when input is constant. Analysis: steady state error = 0 when input is constant means that ess to step must be 0; or the system type must be 1 or higher. Original system is type 0, so need PI control to increase the system type to 1.

  5. %PI control example n=[500]; d=[1 6 5]; figure(1); clf; margin(n,d); hold on; grid; V=axis; Mp = 16/100; zeta =sqrt((log(Mp))^2/(pi^2+(log(Mp))^2)); PMd = zeta*100+15; %put in a large extra PM, because PI kills PM semilogx(V(1:2),[PMd-180 PMd-180],':r');%draw PMd line x=ginput(1); w_gcd = x(1); %get desired w_gc KP = 1/abs(polyval(n,j*w_gcd)/polyval(d,j*w_gcd)); z = w_gcd/10; KI = z*KP; ngc = conv(n, [KP KI]); dgc = conv(d, [1 0]); figure(1); margin(ngc,dgc); grid; [ncl,dcl]=feedback(ngc,dgc,1,1); figure(2);step(ncl,dcl); grid; figure(3); margin(ncl*1.414,dcl); grid;

  6. Bode plot of original system PMd = 65 deg line

  7. Blue is original Green is with PI Controller

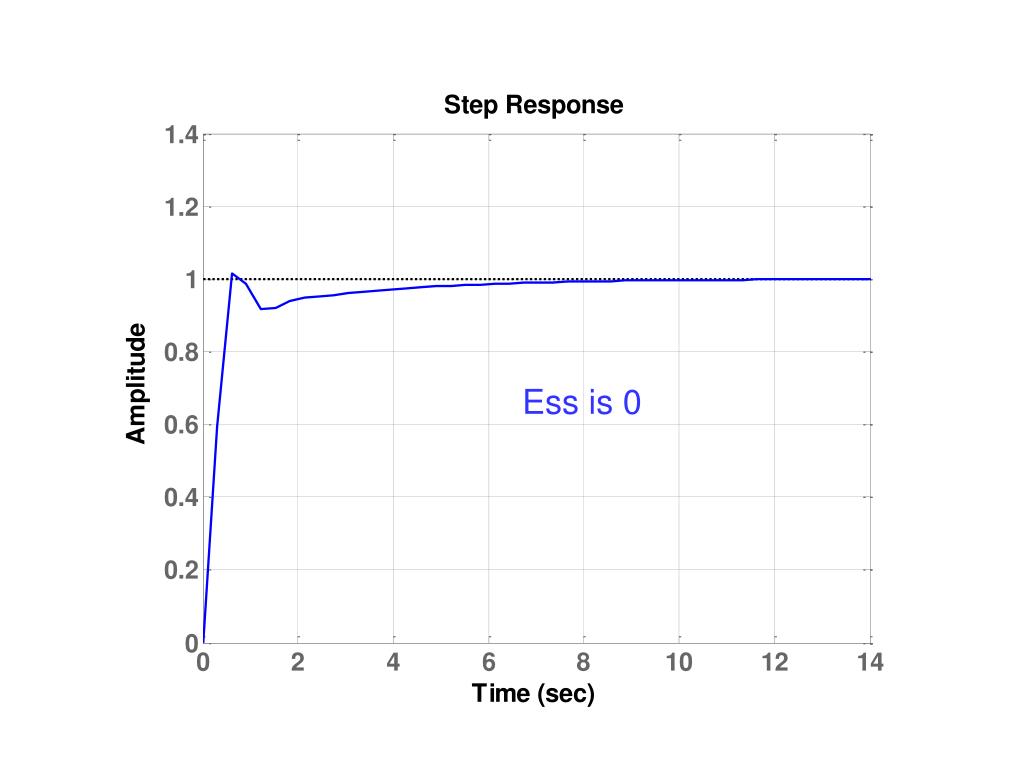

  8. Ess is 0

  9. Sluggish settling is typical of PI or lag controlled systems. Can reduce it by moving the p/z of controller to higher frequency. In this case, if we change the divide by 10 into divide by 5, the sluggish settling will improve.

  10. %PI control example n=[500]; d=[1 6 5]; figure(1); clf; margin(n,d); hold on; grid; V=axis; Mp = 16/100; zeta =sqrt((log(Mp))^2/(pi^2+(log(Mp))^2)); PMd = zeta*100+15; %put in a large extra PM, because PI kills PM semilogx(V(1:2), [PMd-180 PMd-180],':r'); x=ginput(1); w_gcd = x(1); %get desired w_gc KP = 1/abs(polyval(n,j*w_gcd)/polyval(d,j*w_gcd)); z = w_gcd/10; KI = z*KP; z = w_gcd/5; KI = z*KP; ngc = conv(n, [KP KI]); dgc = conv(d, [1 0]); figure(1); margin(ngc,dgc); [ncl,dcl]=feedback(ngc,dgc,1,1); figure(2);step(ncl,dcl); grid; figure(3); margin(ncl*1.414,dcl); grid;

  11. Notice the significant improvement of settling time

  12. PI Design with ess specs • From plant, draw Bode plot • From specs => Kv,a-des, PMd and wgcd • For required ess, Kv,a-des =1/ess • With C(s)=1/s, compute Kv,a-have • If there is speed or BW req,  wgcd, • In this case, if PM not enough, design PD or lead • Otherwise, choose wgcd to have PM>PMd • Find K to enforce wgcd: • Let KP = K, KIdes= Kv,a-des/Kv,a-have • If KIdes <= ~K * wgcd/5, done, let KI = KIdes • Else, let KI = KIdes and adjust KP to meet Mp specs Need to increase type by 1 to make a nonzero ess to be zero, and after type increase, there is further requirement on ess.

  13. Example Want Mp <= 16% Steady state error <= 0.1 for ramp input. Analysis: steady state error <= 0.1 for ramp implies that the system type must be 1 or higher. Original system is type 0, so need PI control. Ess to ramp <= 0.1 requires Kvd >= 10. Previous design leaves Kv = KI*500/5 = 100KI = 4.2

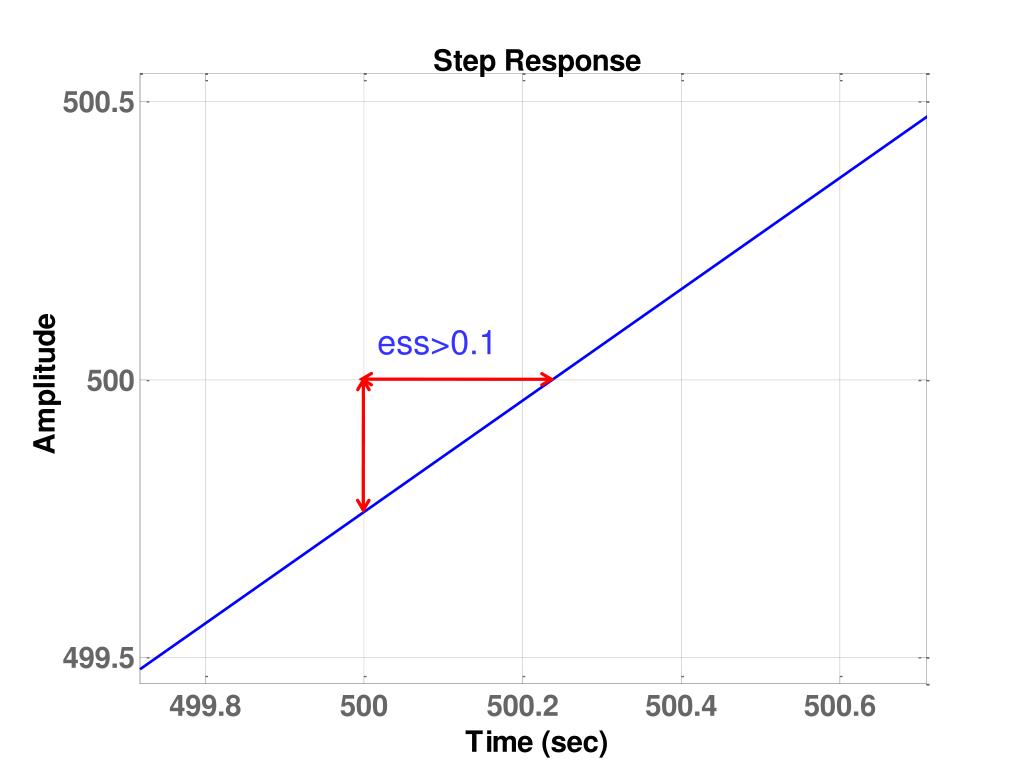

  14. ess>0.1

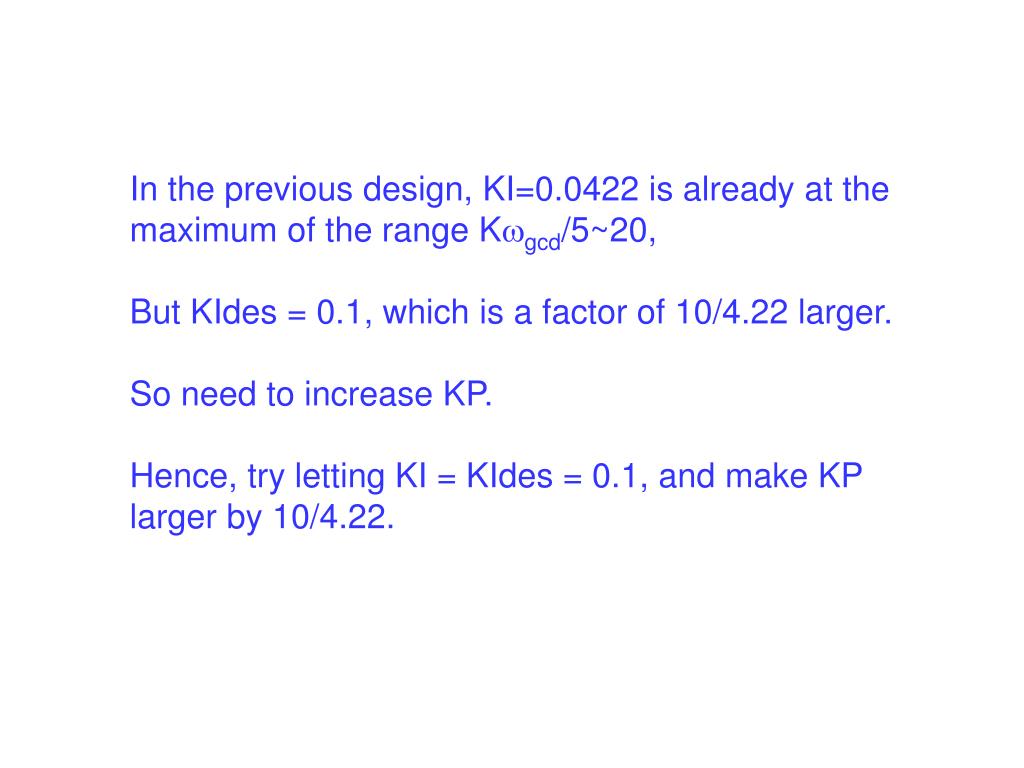

  15. In the previous design, KI=0.0422 is already at the maximum of the range Kwgcd/5~20, But KIdes = 0.1, which is a factor of 10/4.22 larger. So need to increase KP. Hence, try letting KI = KIdes = 0.1, and make KP larger by 10/4.22.

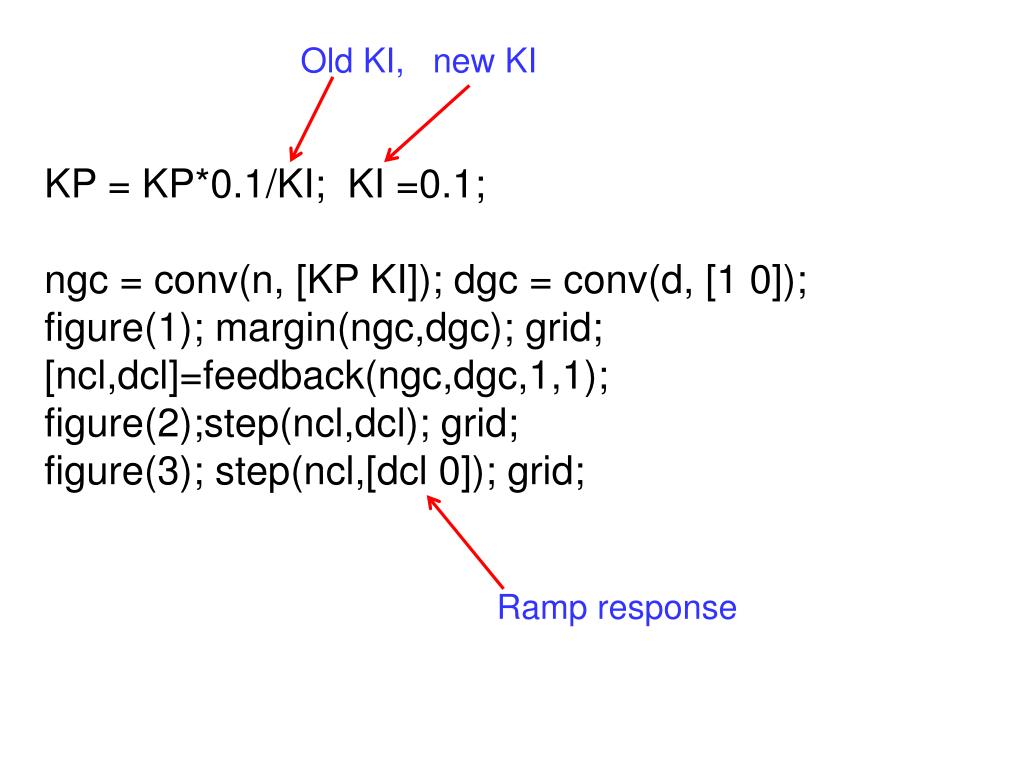

  16. Old KI, new KI KP = KP*0.1/KI; KI =0.1; ngc = conv(n, [KP KI]); dgc = conv(d, [1 0]); figure(1); margin(ngc,dgc); grid; [ncl,dcl]=feedback(ngc,dgc,1,1); figure(2);step(ncl,dcl); grid; figure(3); step(ncl,[dcl 0]); grid; Ramp response

  17. ess = 0.1

  18. Can play with KP, but difficult to achieve the best KP

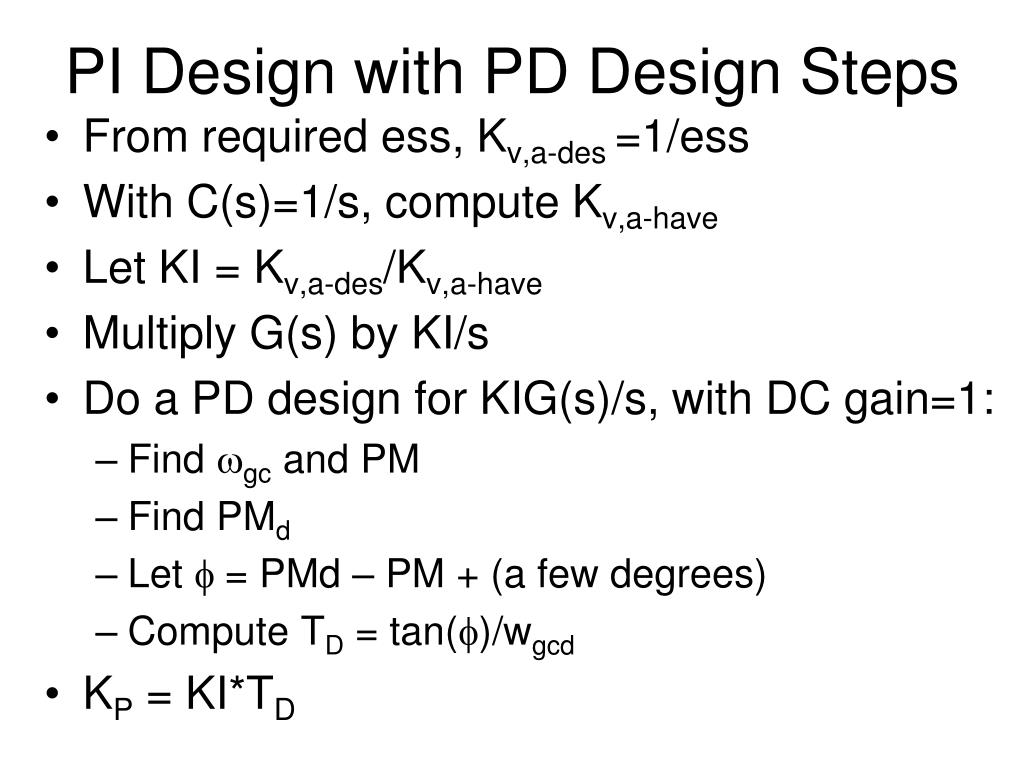

  19. PI Design with PD Design Steps • From required ess, Kv,a-des =1/ess • With C(s)=1/s, compute Kv,a-have • Let KI = Kv,a-des/Kv,a-have • Multiply G(s) by KI/s • Do a PD design for KIG(s)/s, with DC gain=1: • Find wgc and PM • Find PMd • Let f = PMd – PM + (a few degrees) • Compute TD = tan(f)/wgcd • KP = KI*TD

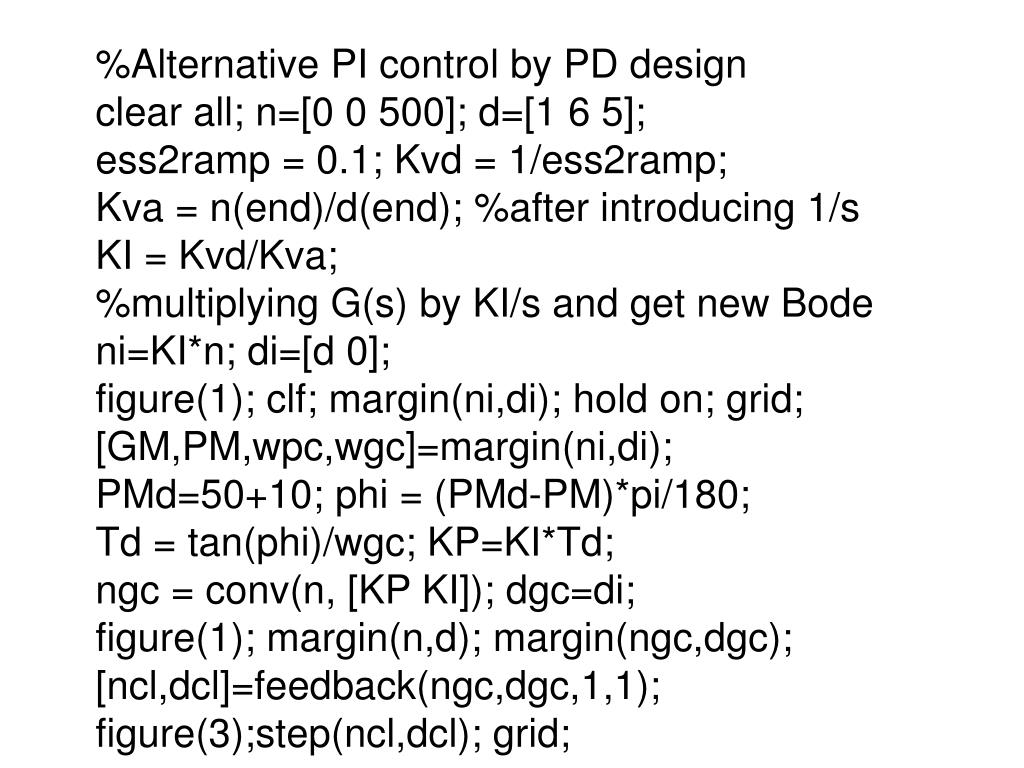

  20. %Alternative PI control by PD design clear all; n=[0 0 500]; d=[1 6 5]; ess2ramp = 0.1; Kvd = 1/ess2ramp; Kva = n(end)/d(end); %after introducing 1/s KI = Kvd/Kva; %multiplying G(s) by KI/s and get new Bode ni=KI*n; di=[d 0]; figure(1); clf; margin(ni,di); hold on; grid; [GM,PM,wpc,wgc]=margin(ni,di); PMd=50+10; phi = (PMd-PM)*pi/180; Td = tan(phi)/wgc; KP=KI*Td; ngc = conv(n, [KP KI]); dgc=di; figure(1); margin(n,d); margin(ngc,dgc); [ncl,dcl]=feedback(ngc,dgc,1,1); figure(3);step(ncl,dcl); grid;

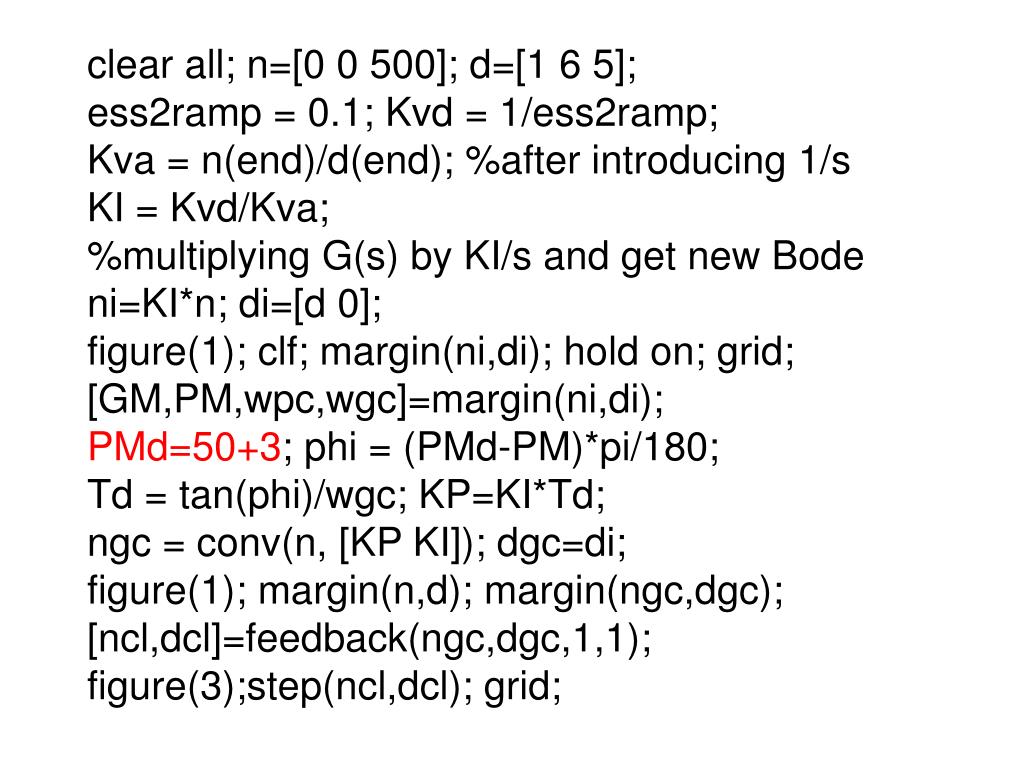

  21. clear all; n=[0 0 500]; d=[1 6 5]; ess2ramp = 0.1; Kvd = 1/ess2ramp; Kva = n(end)/d(end); %after introducing 1/s KI = Kvd/Kva; %multiplying G(s) by KI/s and get new Bode ni=KI*n; di=[d 0]; figure(1); clf; margin(ni,di); hold on; grid; [GM,PM,wpc,wgc]=margin(ni,di); PMd=50+3; phi = (PMd-PM)*pi/180; Td = tan(phi)/wgc; KP=KI*Td; ngc = conv(n, [KP KI]); dgc=di; figure(1); margin(n,d); margin(ngc,dgc); [ncl,dcl]=feedback(ngc,dgc,1,1); figure(3);step(ncl,dcl); grid;

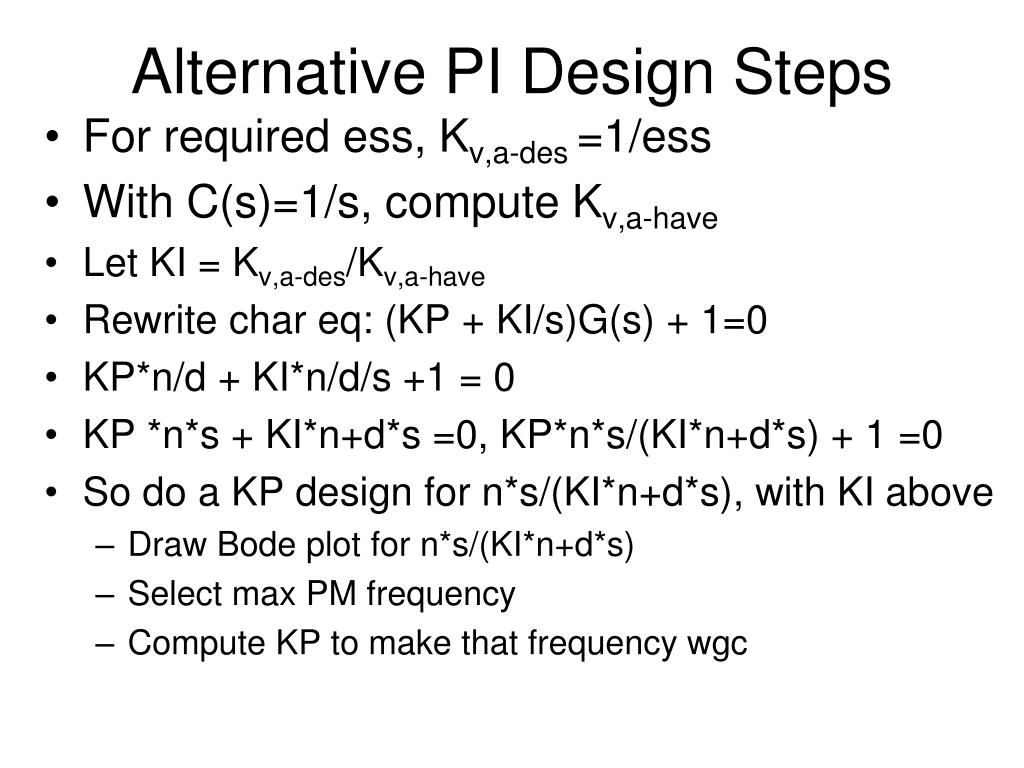

  22. Alternative PI Design Steps • For required ess, Kv,a-des =1/ess • With C(s)=1/s, compute Kv,a-have • Let KI = Kv,a-des/Kv,a-have • Rewrite char eq: (KP + KI/s)G(s) + 1=0 • KP*n/d + KI*n/d/s +1 = 0 • KP *n*s + KI*n+d*s =0, KP*n*s/(KI*n+d*s) + 1 =0 • So do a KP design for n*s/(KI*n+d*s), with KI above • Draw Bode plot for n*s/(KI*n+d*s) • Select max PM frequency • Compute KP to make that frequency wgc

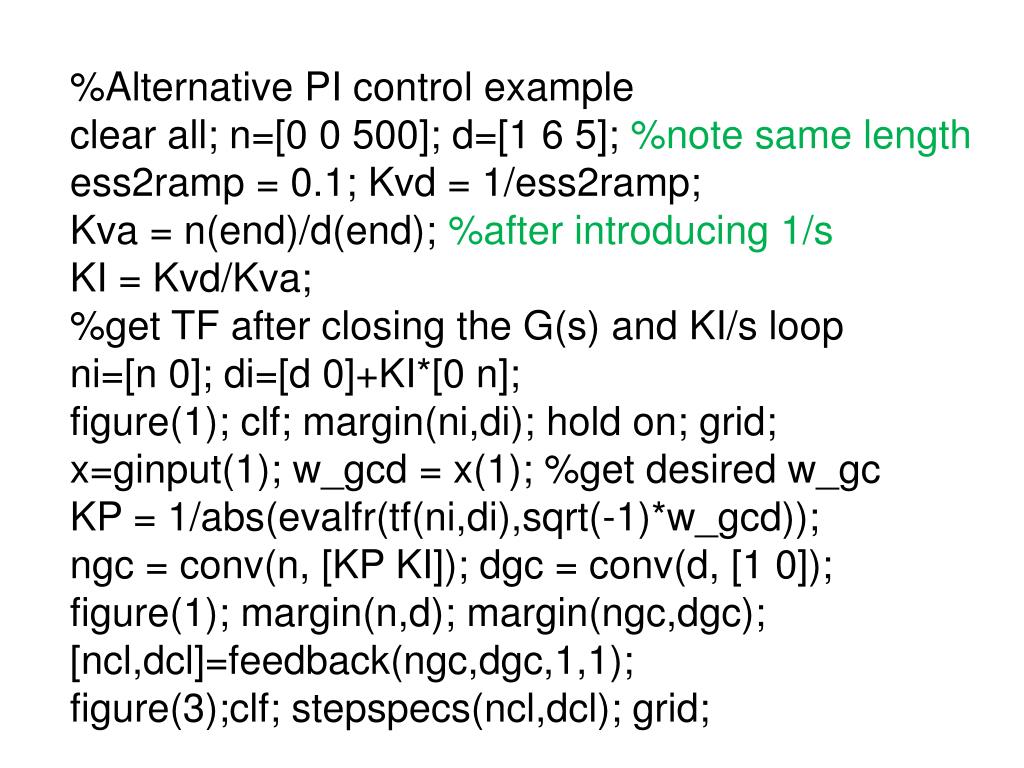

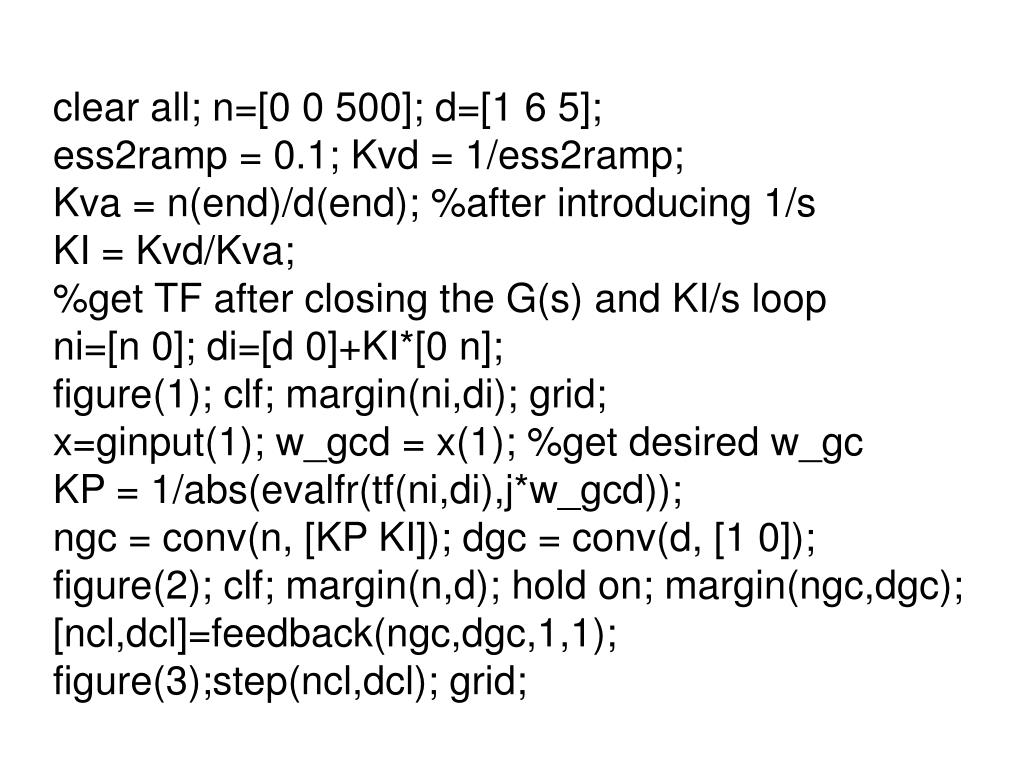

  23. %Alternative PI control example clear all; n=[0 0 500]; d=[1 6 5]; %note same length ess2ramp = 0.1; Kvd = 1/ess2ramp; Kva = n(end)/d(end); %after introducing 1/s KI = Kvd/Kva; %get TF after closing the G(s) and KI/s loop ni=[n 0]; di=[d 0]+KI*[0 n]; figure(1); clf; margin(ni,di); hold on; grid; x=ginput(1); w_gcd = x(1); %get desired w_gc KP = 1/abs(evalfr(tf(ni,di),sqrt(-1)*w_gcd)); ngc = conv(n, [KP KI]); dgc = conv(d, [1 0]); figure(1); margin(n,d); margin(ngc,dgc); [ncl,dcl]=feedback(ngc,dgc,1,1); figure(3);clf; stepspecs(ncl,dcl); grid;

  24. Pick wgc here

  25. Pick wgc here

  26. Pick wgc here

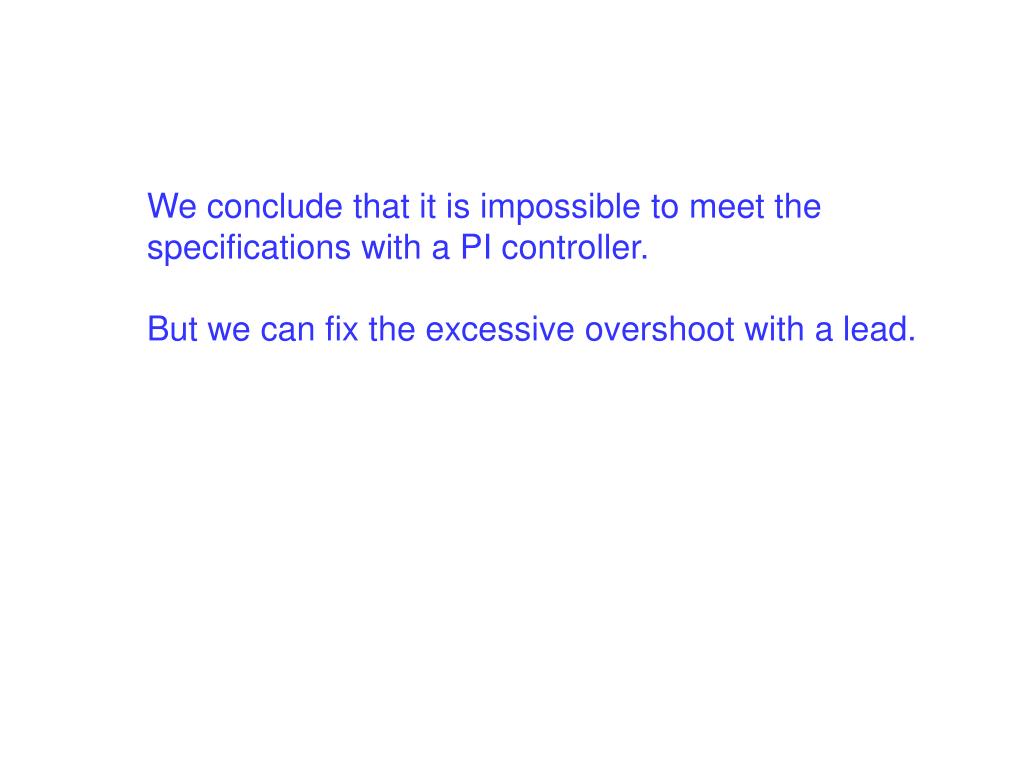

  27. We conclude that it is impossible to meet the specifications with a PI controller. But we can fix the excessive overshoot with a lead.

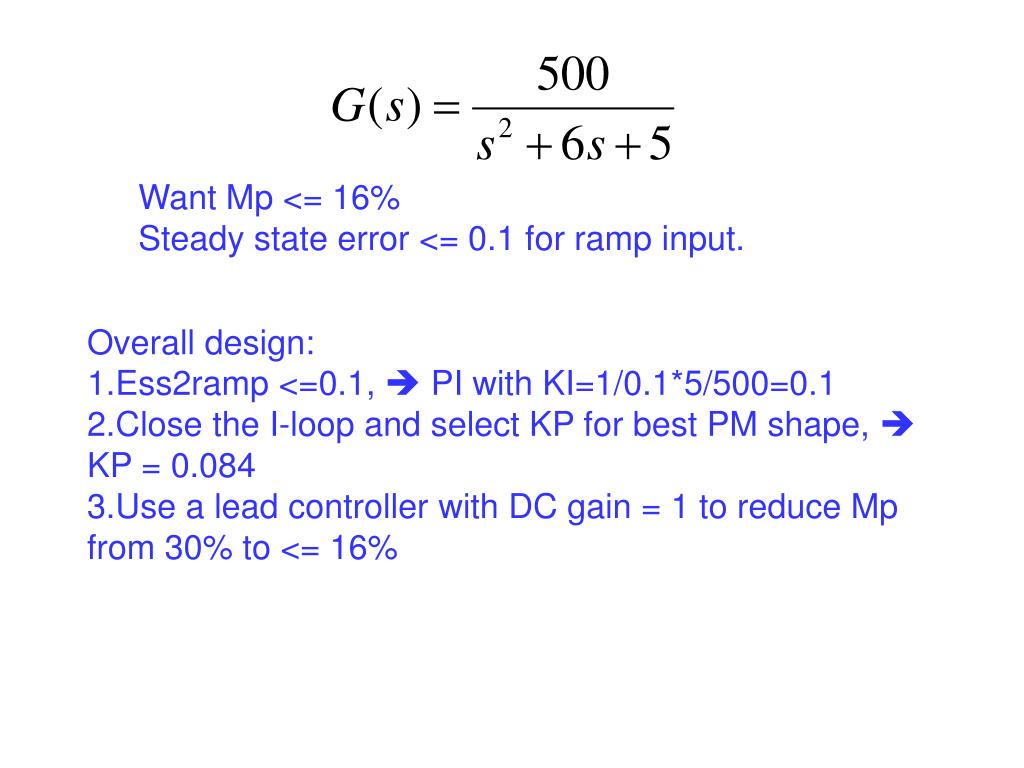

  28. Want Mp <= 16% Steady state error <= 0.1 for ramp input. • Overall design: • Ess2ramp <=0.1,  PI with KI=1/0.1*5/500=0.1 • Close the I-loop and select KP for best PM shape,  KP = 0.084 • Use a lead controller with DC gain = 1 to reduce Mp from 30% to <= 16%

  29. clear all; n=[0 0 500]; d=[1 6 5]; ess2ramp = 0.1; Kvd = 1/ess2ramp; Kva = n(end)/d(end); %after introducing 1/s KI = Kvd/Kva; %get TF after closing the G(s) and KI/s loop ni=[n 0]; di=[d 0]+KI*[0 n]; figure(1); clf; margin(ni,di); grid; x=ginput(1); w_gcd = x(1); %get desired w_gc KP = 1/abs(evalfr(tf(ni,di),j*w_gcd)); ngc = conv(n, [KP KI]); dgc = conv(d, [1 0]); figure(2); clf; margin(n,d); hold on; margin(ngc,dgc); [ncl,dcl]=feedback(ngc,dgc,1,1); figure(3);step(ncl,dcl); grid;

  30. %follow with a lead controller with DC gain =1 %to make Mp=30% ==> Mp<=16% [GM,PM,wpc,wgc]=margin(ngc,dgc); w_gcd=wgc; PMd=50+10; phimax = (PMd-PM)*pi/180; alpha=(1+sin(phimax))/(1-sin(phimax)); zlead=w_gcd/alpha^.25; plead=w_gcd*alpha^.75; ngcc = conv(ngc, alpha*[1 zlead]); dgcc = conv(dgc, [1 plead]); figure(2); margin(ngcc,dgcc); grid; [ncl,dcl]=feedback(ngcc,dgcc,1,1); figure(5);step(ncl,dcl); grid; figure(6);step(dcl-ncl,[dcl 0]); grid; %ramp response of e

  31. Original system After PI alone With PI and lead

  32. Mp <= 16% is met.
