Compact Infrared Projector with PowerLED Technology for Energy Efficiency

The COMPACT 100 infrared projector features advanced PowerLED technology, ensuring a high-efficiency output with energy savings of up to 90% compared to traditional lamp projectors. Designed with impact-resistant glass and stainless steel mounting accessories, it is durable and suitable for various installations. Offering both 850 nm and 940 nm wavelength options, this projector includes an automatic ON/OFF photosensor switch for convenient operation. With a compact size and robust aluminum body, it’s ideal for both indoor and outdoor use.

gavin-johnson
Télécharger la présentation

Compact Infrared Projector with PowerLED Technology for Energy Efficiency

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

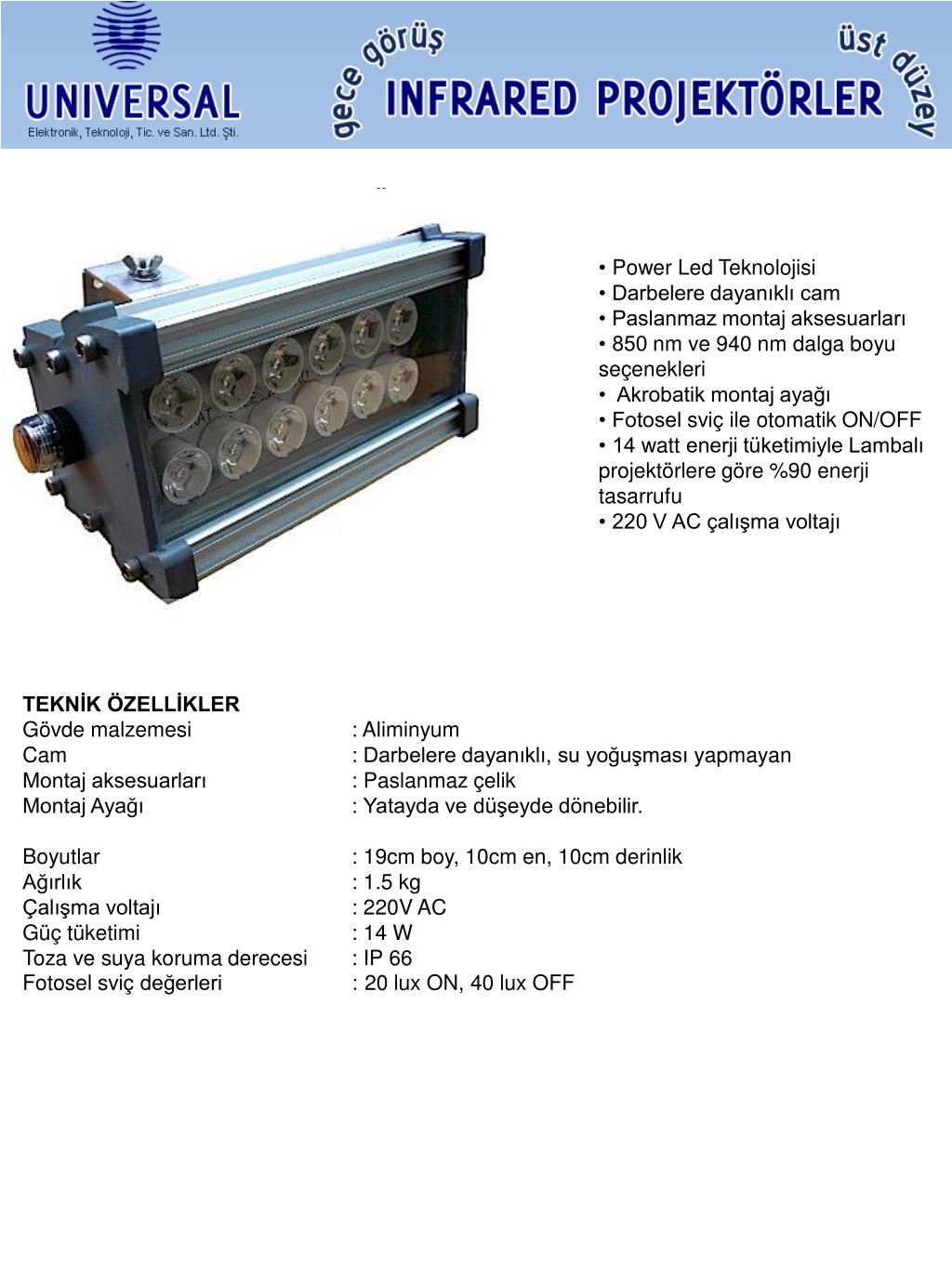

  1. COMPACT 100 INFRARED PROJEKTÖR • PowerLed Teknolojisi• Darbelere dayanıklı cam• Paslanmaz montaj aksesuarları• 850 nm ve 940 nm dalga boyu seçenekleri • Akrobatik montaj ayağı• Fotosel sviç ile otomatik ON/OFF • 14 watt enerji tüketimiyle Lambalı projektörlere göre %90 enerji tasarrufu • 220 V AC çalışma voltajı TEKNİK ÖZELLİKLERGövde malzemesi : AliminyumCam : Darbelere dayanıklı, su yoğuşması yapmayan Montaj aksesuarları : Paslanmaz çelik Montaj Ayağı : Yatayda ve düşeyde dönebilir. Boyutlar : 19cm boy, 10cm en, 10cm derinlik Ağırlık : 1.5 kgÇalışma voltajı : 220V AC Güç tüketimi : 14 W Toza ve suya koruma derecesi : IP 66 Fotosel sviç değerleri : 20 lux ON, 40 lux OFF

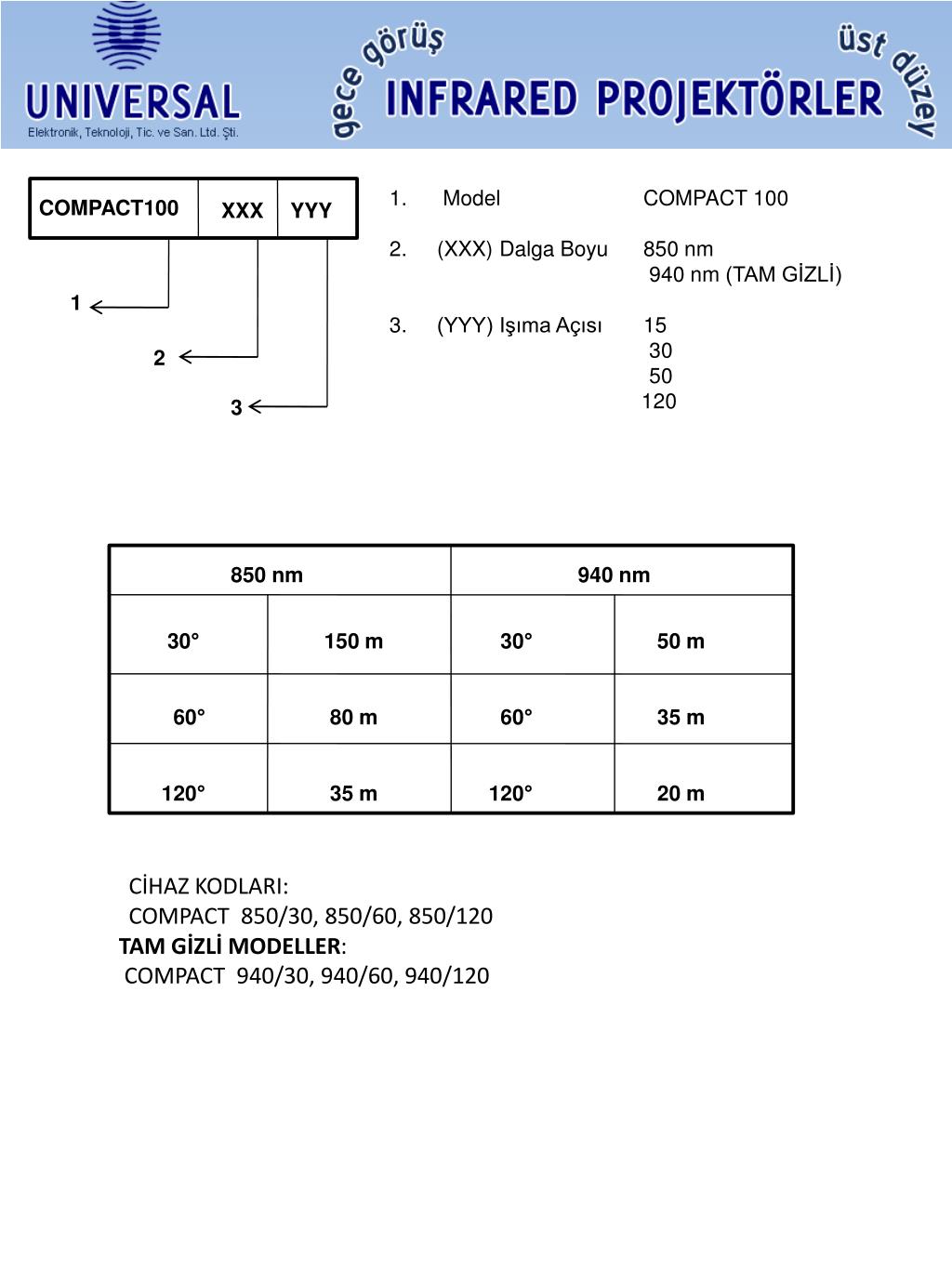

  2. Model COMPACT 100 • (XXX) Dalga Boyu 850 nm940 nm(TAM GİZLİ) • (YYY) Işıma Açısı 15 30 50 120 COMPACT100 XXX YYY 1 2 3 30° 150 m 60° 80m 120° 35 m 30° 50 m 60° 35 m 120° 20 m 850 nm 940 nm CİHAZ KODLARI: COMPACT 850/30, 850/60, 850/120 TAM GİZLİ MODELLER: COMPACT 940/30, 940/60, 940/120
