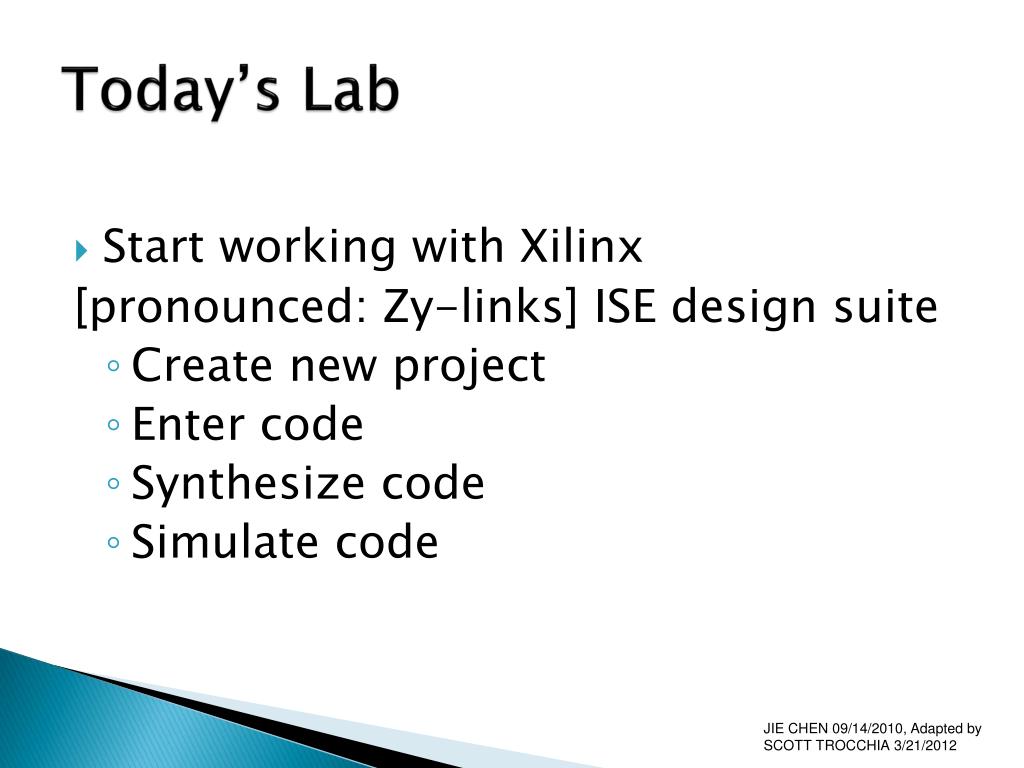

  1. Today’s Lab • Start working with Xilinx [pronounced: Zy-links] ISE design suite • Create new project • Enter code • Synthesize code • Simulate code

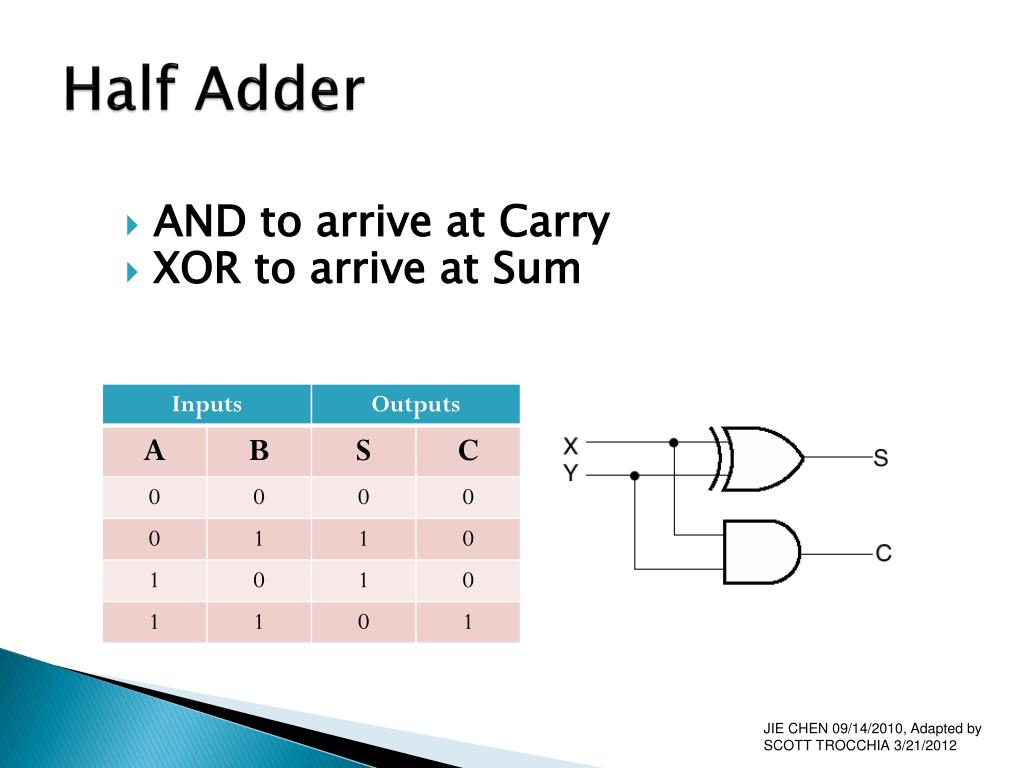

  2. Half Adder • AND to arrive at Carry • XOR to arrive at Sum

  3. Half Adder Verilog Code module half_adder (A, B, Sum, C_out); input A, B; output Sum, C_out; xor (Sum, A, B); and (C_out, A, B); endmodule

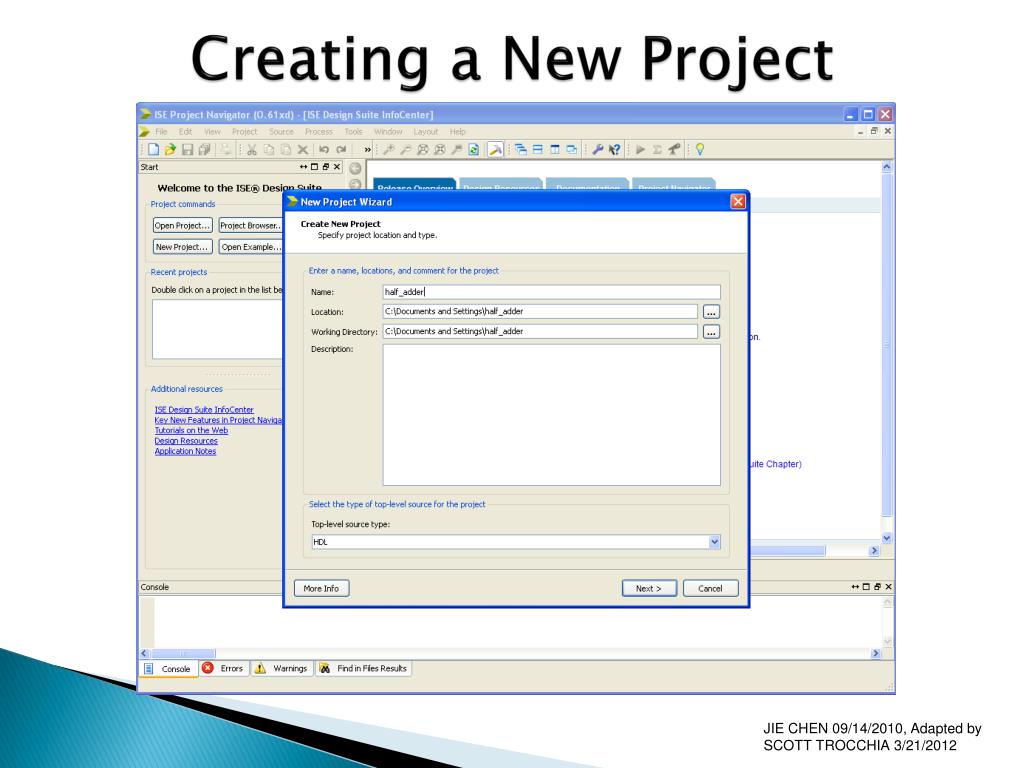

  4. Creating a New Project

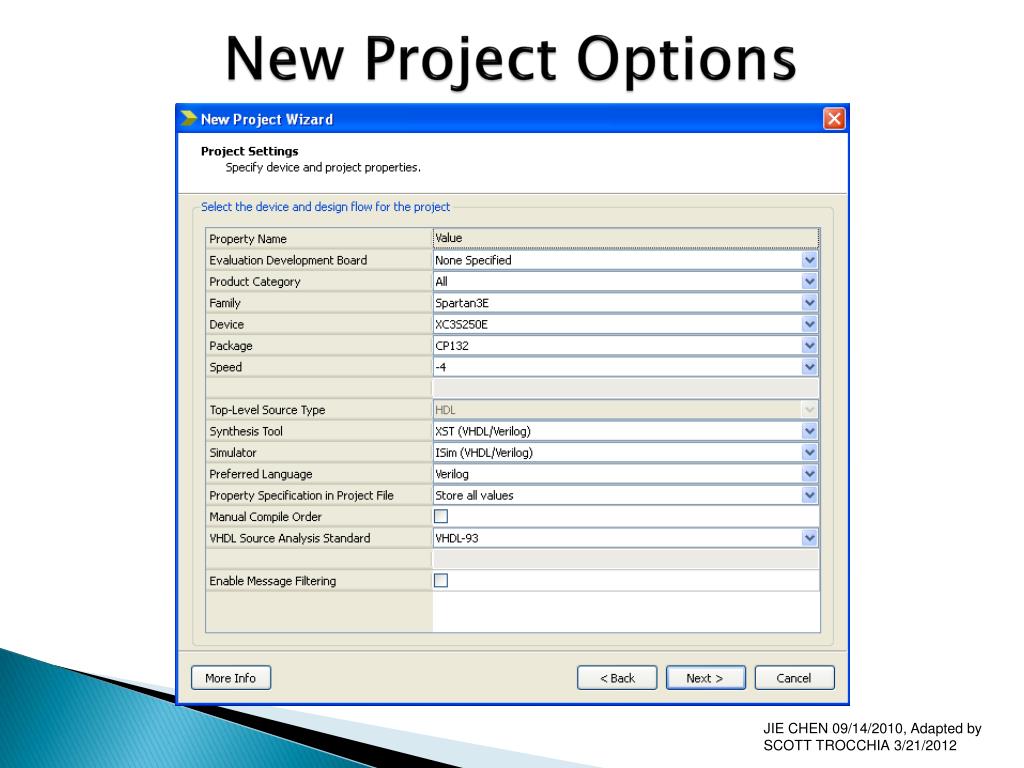

  5. New Project Options

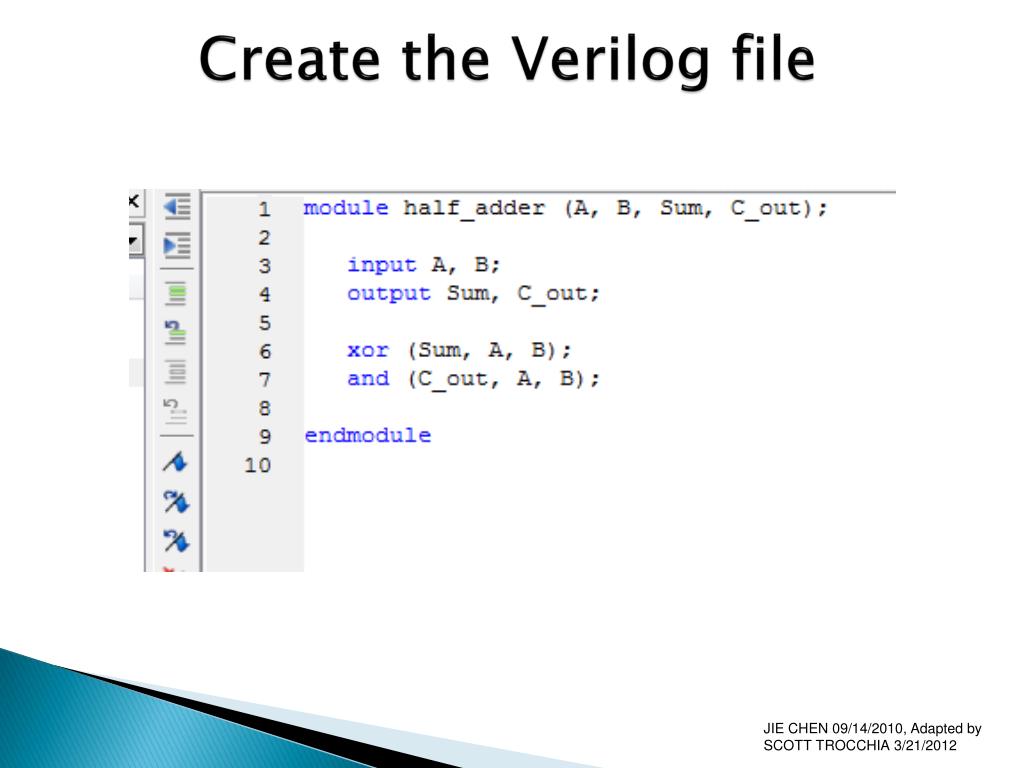

  6. Create the Verilog file

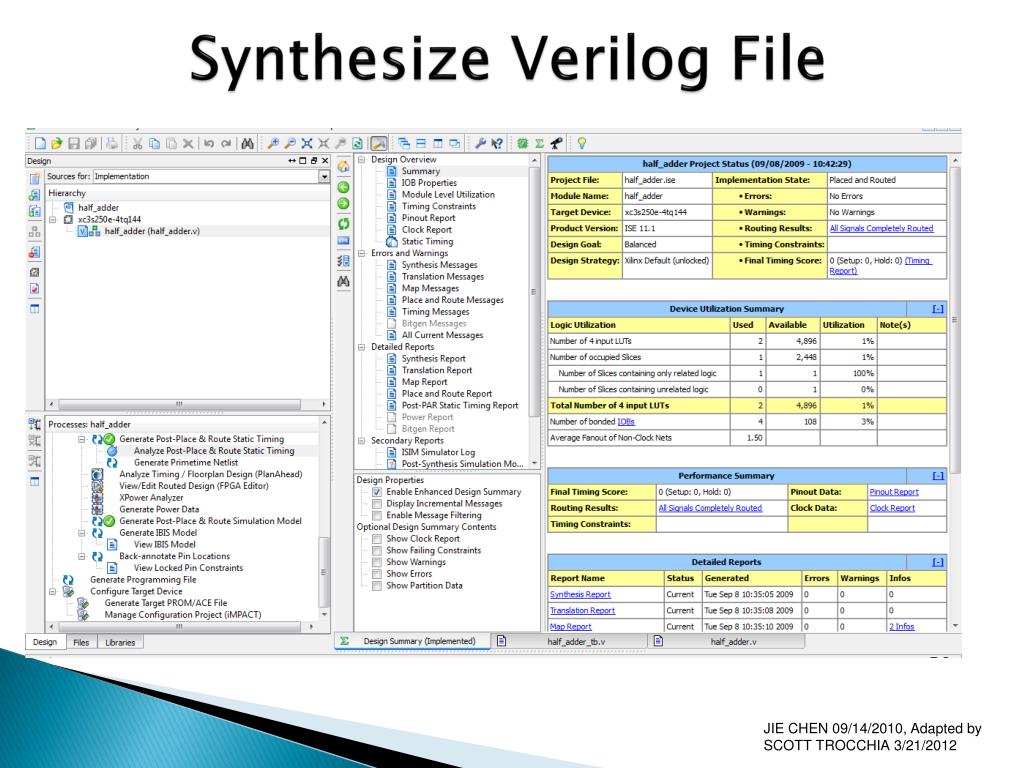

  7. Synthesize Verilog File

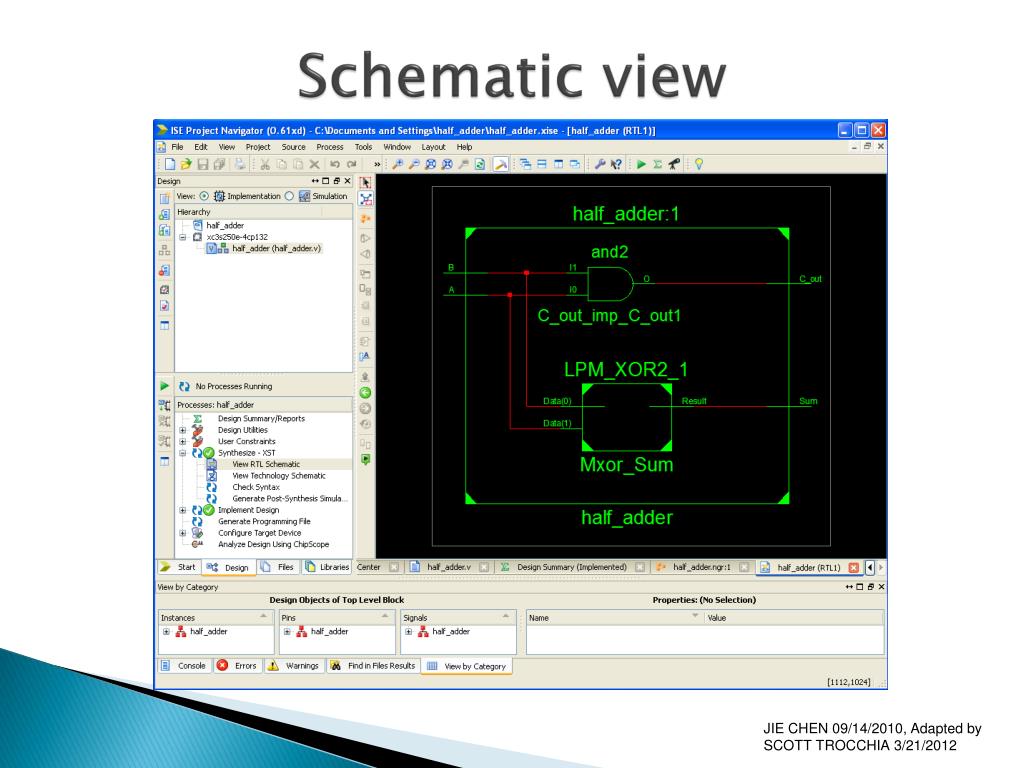

  8. Schematic view

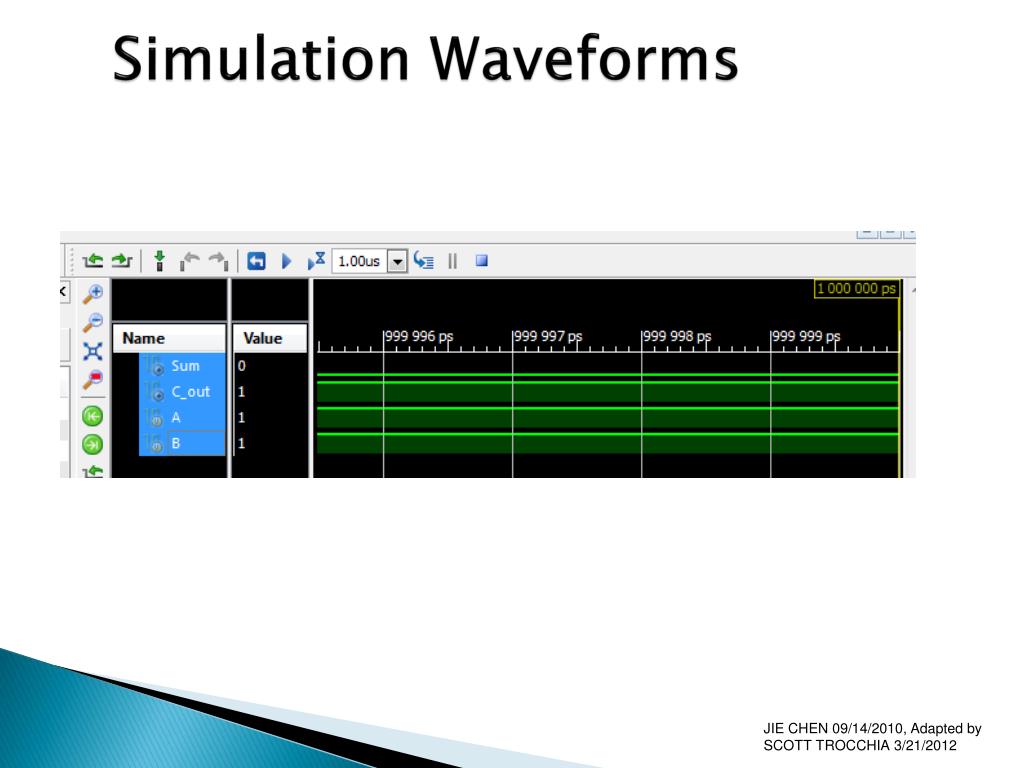

  9. Simulation Waveforms
