  1. UnManaged & Managed Switch Overview Pandu Sempana PT. Berca Computel

  2. Beda Hub & Switch HUB (100 Mbps) Eh port 19.. Speed lu berapa ? Sama gua juga 4,17 Mbps…. Speed gua Cuma 4,17 Mbps nihh !! Kalo lu berapa? Speed 4,17 Mbps didapat dari 100 Mbps dibagi dengan 24 port, maka 1 port mendapat speed 4,17 Mbps

  3. Beda Hub & Switch SWITCH (100 Mbps) Eh port 19.. Speed lu berapa ? Gua juga 100 Mbps dunkkk :-P Speed gua 100 Mbps dunkkk !! Kalo lu berapa? Switch memiliki dedicated bandwith, dalam arti setiap Switch mendapat speed yang sama sesuai dengan speed maksimalnya

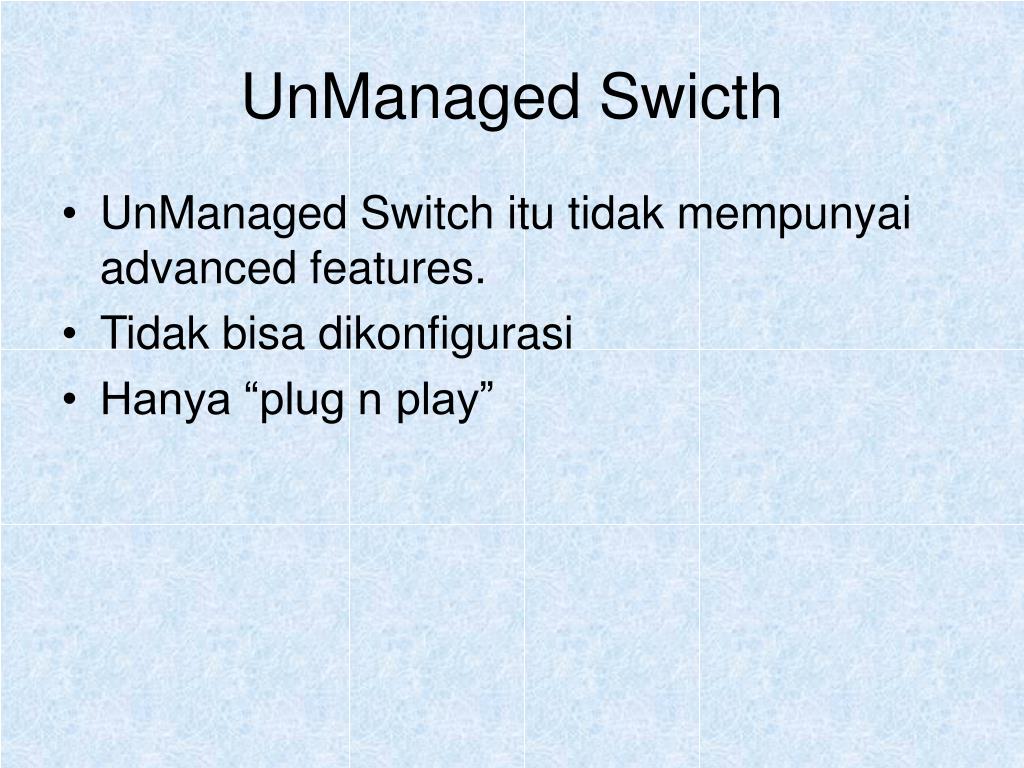

  4. UnManaged Swicth • UnManaged Switch itu tidak mempunyai advanced features. • Tidak bisa dikonfigurasi • Hanya “plug n play”

  5. Managed Switch • Mempunyai advanced features spt: VLAN, QoS, Inter-VLAN routing (Layer 3 Switch), dll. • Bisa dikonfigurasi • Bisa di-customize sesuai dengan kebutuhan

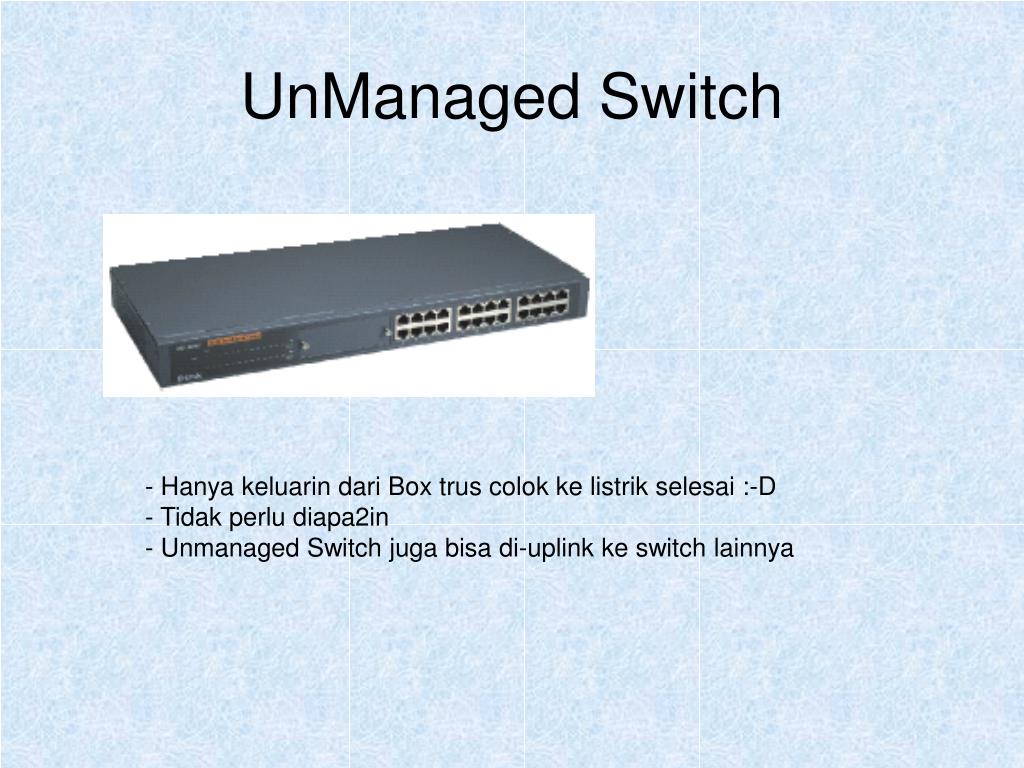

  6. UnManaged Switch • Hanya keluarin dari Box trus colok ke listrik selesai :-D • Tidak perlu diapa2in • Unmanaged Switch juga bisa di-uplink ke switch lainnya

  7. VLAN pada Managed Switch Layer 3 Layer 2 VLAN 2 (port 17-24) VLAN 1 (port 1-8) Hallo juga… port 1 Hallo… port 5 Hallo… port 17 …………….. Hallo juga… port 1

  8. Thanks
