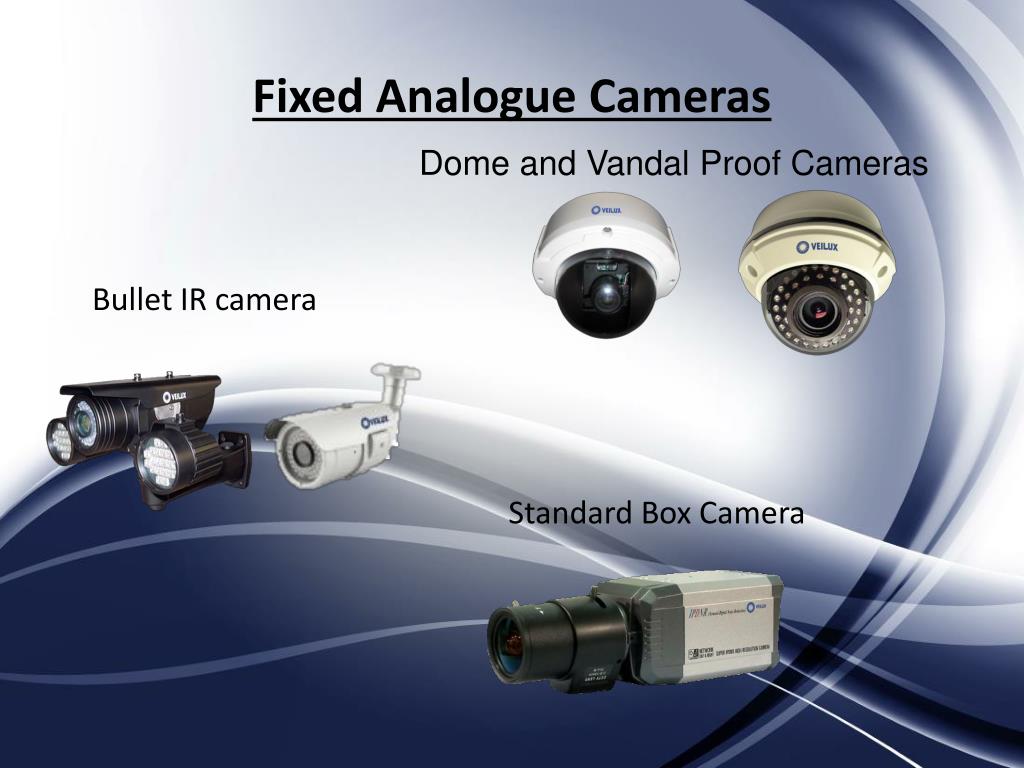

  1. Fixed Analogue Cameras Dome and Vandal Proof Cameras Standard Box Camera Bullet IR camera

  2. Old 600 TV Lines Camera • SVB-60IRC28L3516D • SVB-60IRC66L3516D • SVB-60IRC80L650D • SVD-60DNL2812D • SVD-60IR30L2812D • SVS-60CDNRD • SVV-60DNL2812D • SVV-60IRC40L2812D • 1/3” SONY SuperHAD CCD • High Resolution 600 TV Lines • WDR (Wide Dynamic Range) • 3D DNR (Digital Noise Reduction) • Zero Defect • Lens-Up Function (x512) • Eclipse Function • Digital Zoom (x1~x10) • Back Light Compensation • Day & Night Function • DIS (Digital Image Stabilization) • Motion Detection • LSC (Lens Shading Compensation) • Privacy Mask (Polygonal Mosaic) • O.S.D Menu Function

  3. Now 700 TV Lines Camera • VB-70IRC40L3516D • VB-70IRC66L3516D • VB-70IRC80L650D • VD-70DNL2812D • VD-70IR30L2812D • VS-70CDNRD • VV-70DNL2812D • VV-70IRC40L2812D • 1/3” SONY Super EX-VIEW HAD CCD II • High Resolution 700 TV Lines • WDR (Wide Dynamic Range) • 3D DNR (Digital Noise Reduction) • Zero Defect • Lens-Up Function (x512) • Eclipse Function • Digital Zoom (x1~x10) • Back Light Compensation • Day & Night Function • DIS (Digital Image Stabilization) • Motion Detection • LSC (Lens Shading Compensation) • Privacy Mask (Polygonal Mosaic) • O.S.D Menu Function • Smart IR • Defogging

  4. New 1100 TV Lines Camera • VB-11IRC68L2810D-HD • 2.2M 1080P Full HD 1/3” Panasonic CMOS • High Resolution 1100 TV Lines • WDR (Wide Dynamic Range) • Night View Distance Indoor 70m / Outdoor 60m • 3D DNR (Digital Noise Reduction) • Zero Defect • Lens-Up Function (x512) • Digital Noise Reduction • Digital Zoom (0~x32) • Intelligent Motion Detection • Intelligent Object Detection • Multi Protocol Support • Privacy Mask (Polygonal Mosaic) • O.S.D Menu Function • Smart IR • Defogging

  5. New 1100 TV Lines Camera • VS-11CDNRD-HD • 2.2M 1080P Full HD 1/3” Panasonic CMOS • High Resolution 1100 TV Lines • WDR (Wide Dynamic Range) • 3D DNR (Digital Noise Reduction) • Zero Defect • Lens-Up Function (x512) • Digital Noise Reduction • Digital Zoom (0~x32) • Day & Night Function • Intelligent Motion Detection • Intelligent Object Detection • Multi Protocol Support • Privacy Mask (Polygonal Mosaic) • O.S.D Menu Function • Smart IR • Defogging

  6. New 1100 TV Lines Camera • VV-11IRC35L2812D-HD • 2.2M 1080P Full HD 1/3” Panasonic CMOS • High Resolution 1100 TV Lines • WDR (Wide Dynamic Range) • 3D DNR (Digital Noise Reduction) • Zero Defect • Lens-Up Function (x512) • Digital Noise Reduction • Digital Zoom (0~x32) • Day & Night Function • Intelligent Motion Detection • Intelligent Object Detection • Multi Protocol Support • Privacy Mask (Polygonal Mosaic) • O.S.D Menu Function • Smart IR • Defogging

  7. WDR (Wide Dynamic Range) VX7-DSP delivers a powerful Wide Dynamic Range to the camera to provide the best pictures in interior and exterior conditions under extreme high contrasts between lightness and darkness and automatically compensates a necessary light level to get detailed information in the dark park without saturation from the bright part. Our WDXV7 technology enables the WDR function to be very efficient in normal CCD by using Dual Shutter (Long & Short shutter) algorithm and the specialized AE (Auto Exposure) and intelligent image processing.

  8. WDR (Wide Dynamic Range)

  9. 3D DNR (Digital Noise Reduction) VX7-DSP technology achieves a 3D-DNR (3 Dimensional-Digital Noise Reduction) function very excellently by using upgraded 3D filtering and enables to keep this function automatically while operating the camera to provide the clear and superior images in very low light luminance. Normally video noise is increased at low light condition while the gain level of amplifier expends. VX7-DSP compensates the dynamic noise by using the information of formal frame in no activity part.

  10. 3D DNR (Digital Noise Reduction)

  11. D-ZOOM (x1~x10) VX7-DSP technology enables a various magnification and helps to get the enlarging video image very conveniently. VX7-DSP has a remote control technology for a camera without physical control by a built-in fan & tilt function on the chip.

  12. D-ZOOM (x1~x10)

  13. DIS (Digital Image Stabilization) VX7-DSP delivers the digital image stabilization and the picture accuracy for anti-shaking compensation against the exterior influence such as wind and vibration after installing camera and permits more stable images in video output. VX7-DSP enables to get the moving direction information of the objects per field as the chip has a built-in image tracking module.

  14. DIS (Digital Image Stabilization)

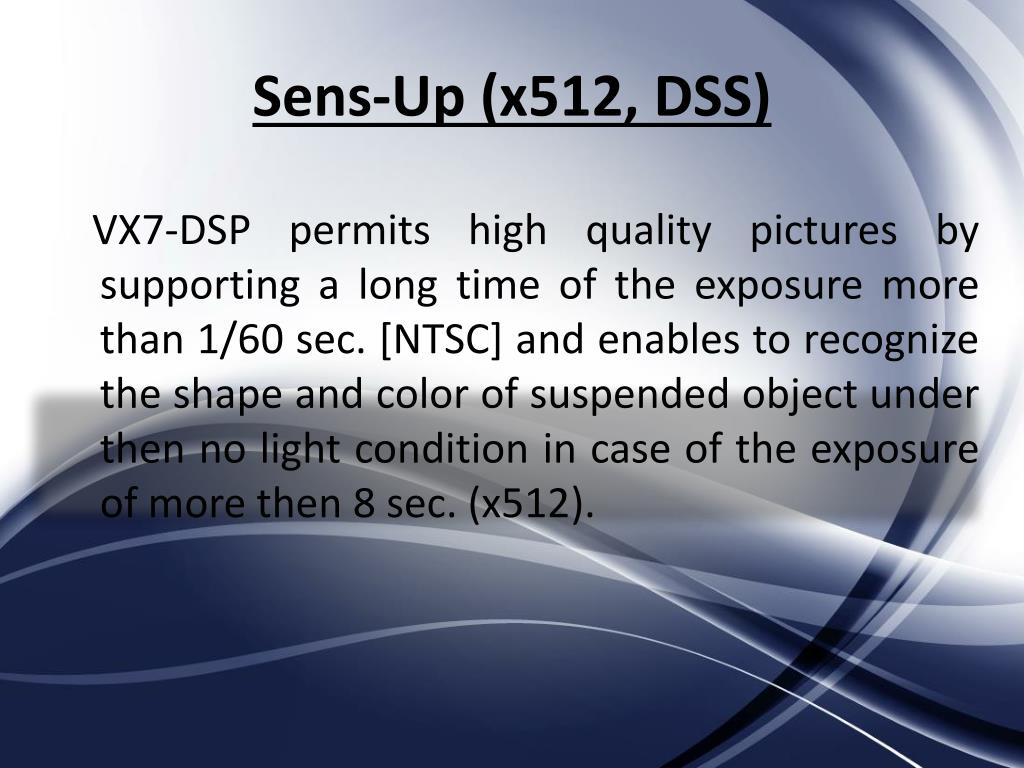

  15. Sens-Up (x512, DSS) VX7-DSP permits high quality pictures by supporting a long time of the exposure more than 1/60 sec. [NTSC] and enables to recognize the shape and color of suspended object under then no light condition in case of the exposure of more then 8 sec. (x512).

  16. Sens-Up (x512, DSS)

  17. Polygonal Privacy Masking (Polygonal, 8 Colors) VX7-DSP ensures to protect the privacy for the private and specific areas onto the video signal output by polygonal masking function very conveniently and exactly. WDXV7 allows the size and position of masking area to be controlled very easily and conveniently and 8 areas masking setting which is user programmable in color, brightness ad mosaic.

  18. Polygonal Privacy Masking (Polygonal, 8 Colors)

  19. Eclipse Function VX7-DSP technology enables to recognize a visible car license plate clearly by blocking unnecessary lights.

  20. High Sensitivity True Day & Night VX7-DSP loaded with Day & Night function delivers the high quality of the color image and performs while converting the color into monochrome automatically as under less than the specific level of the sensitivity. VX7-DSP is more superior in the Sens-up function with x512 and 3D-DNR very effectively to ensure a clear image in the darkness.

  21. High Sensitivity True Day & Night Day Night

  22. Setup Menu Flow
