  1. Sales Support Purpose EIN’s Modbus over ZigBee 2013/ 10/ 01 This document outlines EIN’s Modbus over ZigBee and how customers may seamlessly integrate ZigBee to easily extend their network and reduce their installation costs.

  2. Contents • Current Modbus Connection • Pure Modbus over ZigBee • Hybrid Modbus over ZigBee 1/4 EIN Strategic Planning Dept.

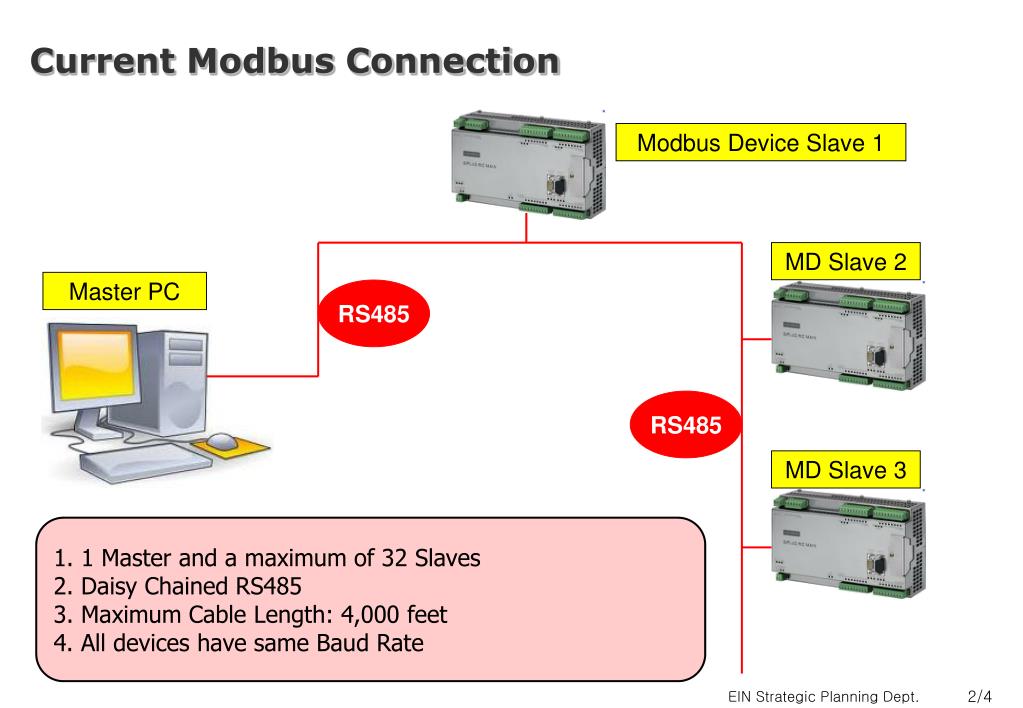

  3. Current Modbus Connection Modbus Device Slave 1 MD Slave 2 Master PC RS485 RS485 MD Slave 3 1. 1 Master and a maximum of 32 Slaves 2. Daisy Chained RS485 3. Maximum Cable Length: 4,000 feet 4. All devices have same Baud Rate 2/4 EIN Strategic Planning Dept.

  4. Pure Modbus over ZigBee Modbus Device Slave 1 MD Slave 2 Master 1: PC MD Slave 3 Master 2: Cellphone 1. Multi-Master 2. Up to 64 Slave Devices 3. Free Form Network Connections with the maximum distance of 100m per Hop and 15 Hops 4. Mixed Baud Rate available 5. Bluetooth based Masters may query Network in Parallel ZigBee Bridge Bluetooth ZigBee Router ZigBee Router 3/4 EIN Strategic Planning Dept.

  5. Hybrid Modbus over ZigBee Modbus Device Slave 1 MD Slave 2 Master 1: PC RS485 MD Slave 3 RS485 Master 2: Cellphone 1. Multi-Master 2. Up to 64 Slave Devices 3. Free Form Network Connections with the maximum distance of 100m per Hop and 15 Hops 4. Mixed Baud Rate available 5. Bluetooth based Masters may query Network in Parallel 6. Mixed Wired and Wireless Modbus 7. Multiple Slaves per Radio ZigBee Bridge Bluetooth ZigBee Router ZigBee Router 4/4 EIN Strategic Planning Dept.
