  1. Advanced DC Motor

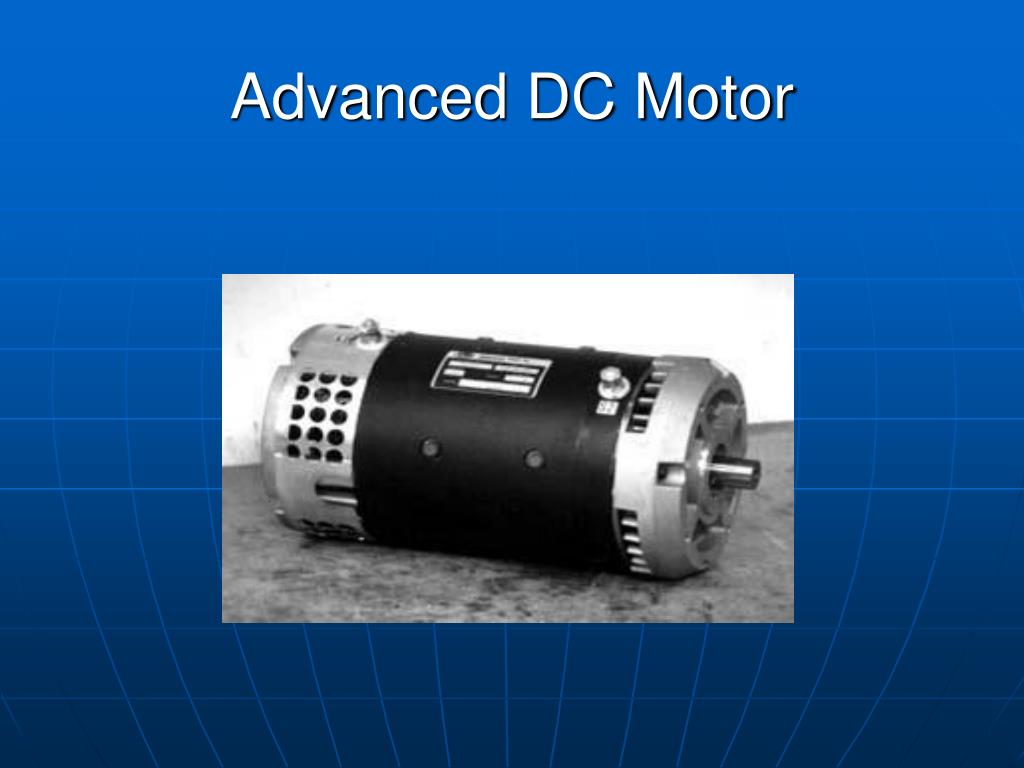

  2. Advanced DC Motor Info • Advanced D.C. Motors, Inc. combines years of DC motor building experience with tight quality control and a dedication to road-going electric vehicles that is unmatched by any other DC motor manufacturer. They are the most widely used DC motors in conversions, and for good reason. • Advanced D.C. motors feature: • Sealed bearings with high-temperature grease • Heavy-duty commutator construction • Heavy-duty brass brush boxes • Stainless steel brush springs • Brush life of approximately 80,000 miles • Easy brush replacement • 1 1/8" keyed drive shaft • High-temperature molded field insulator • High-efficiency high-flow die cast aluminum fan

  3. Advanced DC Motor Charts Length - 14.50“ Diameter- 8.0" Weight -107.0 lbs. Input Voltage -96-120 V Efficiency -89.0% Test Data @ 96 V Input Time on - VoltsAmpsRPMHPKW 5 min. - 86.0 322 3600 31.50 23.80 1 hr. - 90.0 190 4800 20.60 15.50 Continuous - 91.0 178 5000 19.00 14.40 Peak Horsepower- 68.00 Test Data @ 120 V Input Time on - VoltsAmpsRPMHPKW 5 min. - 111.0 300 4650 37.00 28.00 1 hr. - 114.0 180 6200 24.00 18.00 Continuous - 115.0 165 6500 21.70 16.30 Peak Horsepower- 83.00

  4. Scott Motor

  5. Scott Motor

  6. Scott Motor Info • Horsepower Rating- 1 • RPM- 2800 Voltage- 12-24 Amps- 41 • Weight- 15.2 lbs. With Base Mount (Can be removed) • These motors are ideal for Electric Vehicles up to 400 lbs. including Driver weight

  7. Etek Motor

  8. Etek Curve

  9. Etek Mechanical Dimensions

  10. Etek-R motor

  11. Etek-R Info • Power - 8 cont-- 15 pk hp • Voltage - 48V rated • Speed - 3700 rpm @ 48V unloaded • Size - 8" OD, 5.5" long (w/o shaft) • Shaft - 7/8"x 1-3/4", 3/16" key • Weight - 28 lbs. • Price - $450

  12. Mars motor

  13. Mars Motor

  14. Mars Brushless motor info. • Brushless Motor • 10 kw peak power • www.thunderstruck-ev.com

  15. Lemco Motor

  16. Lemco

  17. Lemco motor info.

  18. Lemco motor info.

  19. Perm motor PMG 132

  20. Perm 36V Curve

  21. Perm 48V Curve

  22. Perm 72V Curve

  23. Perm Mechanical Dimensions

  24. D&D Motor

  25. D&D Motor

  26. D&D Motor Info • These motors are designed and manufactured in Syracuse NY, USA, by 40 year professionals. Marketed as performance upgrades for golf cars, NEVs, and off-road buggies, Thunderstruck Motors sees their potential in a wide range of vehicle platforms. We've already put them in a large boat, an industrial truck, mountain climbing dune buggy, hot rod motorcycles. . . what's next?SepEx • <<What does the Separately Excited topology mean?>> • These motors are similar to the series wound ADC motors we've seen; they have the same dimensions and no permanent magnets. But instead of having the motor field in series with the armature (and carrying armature current), the field is a separate electric circuit that is controlled independently by the controller. This allows the controller to alter the field strength as needed by the load; so at low speed the field strength is stronger, providing maximum torque. Then, as speed increases and armature current falls, the field weakens to optimize efficiency and allow the top speed of the motor to increase. • As a bonus, the field is reversible, allowing re-gen braking! This reverse field then allows for reversing of the motor shaft without the need for external contactors or switches

  27. D&D Motor SepEx Output

  28. D&D Motor 72V Charts
