Contractile structure

Contractile structure. Sarcomere structure Contractile filament composition Myosin (thick) Actin (thin) Anchors and attachments Z-disk Titin/nebulin. Basic Structure. M. Z. 1 um. Striated muscle. “Light” and “dark” bands under visible light Birefringence (uniaxial anisotropy).

hang
Télécharger la présentation

Contractile structure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Contractile structure • Sarcomere structure • Contractile filament composition • Myosin (thick) • Actin (thin) • Anchors and attachments • Z-disk • Titin/nebulin

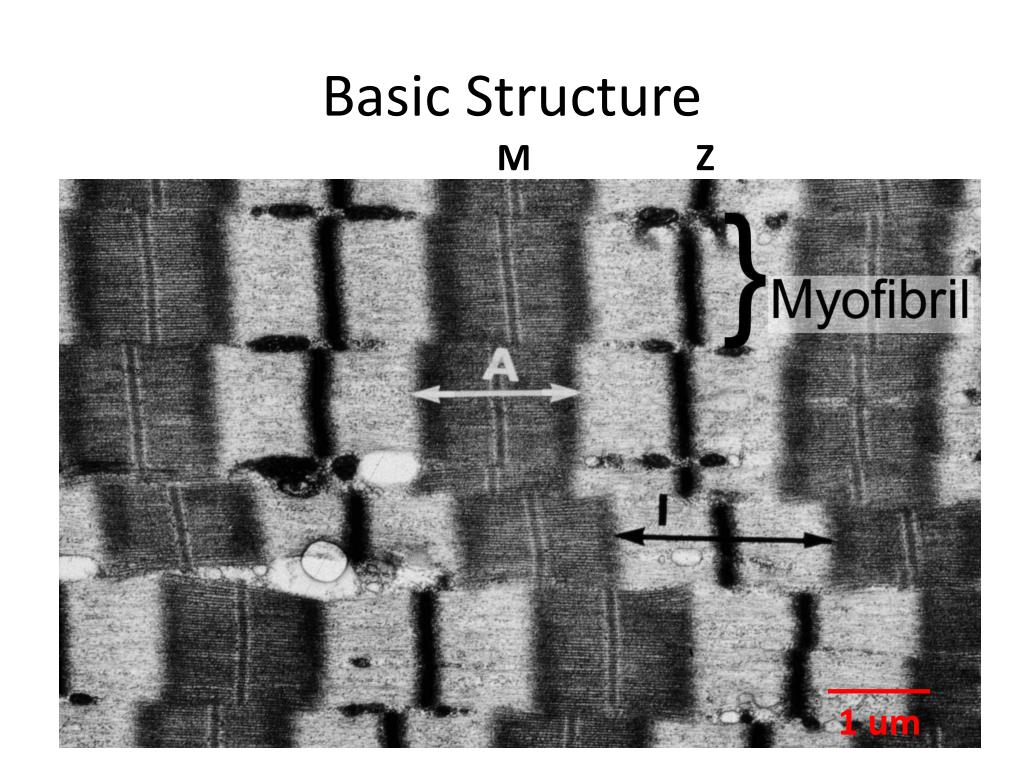

  2. Basic Structure M Z 1 um

  3. Striated muscle • “Light” and “dark” bands under visible light • Birefringence (uniaxial anisotropy)

  4. Birefringence • Light intensity due to refraction Focused over Focused under Light and dark bands swap

  5. Sources of striation • Darker and lighter material bands • Wavy or crimped filaments • Bands of different refractive index • Disappears during contraction • Disappears by soaking in salt Phase-contrast image of myofibril Directly broken-up muscle After extraction (Hanson & Huxley, 1953) 5 um

  6. Extractions • High salt extracts of muscle coagulate over time • Myosin+actin+ATPActomyosin + ADP • Seems to be the active stuff of muscle • Flow-induced birefringence • Time-varying viscosity • Contraction results from • Polymerization (fibrin) • Rod shaped particles

  7. X-ray Diffraction • 1-D diffraction • Constructive/destructive interference • ml = d sin q • Bragg diffraction • Reflection • nl = 2 d sin q • X-ray l~1-10Å (Soren Pedersen) d q d sin(q)

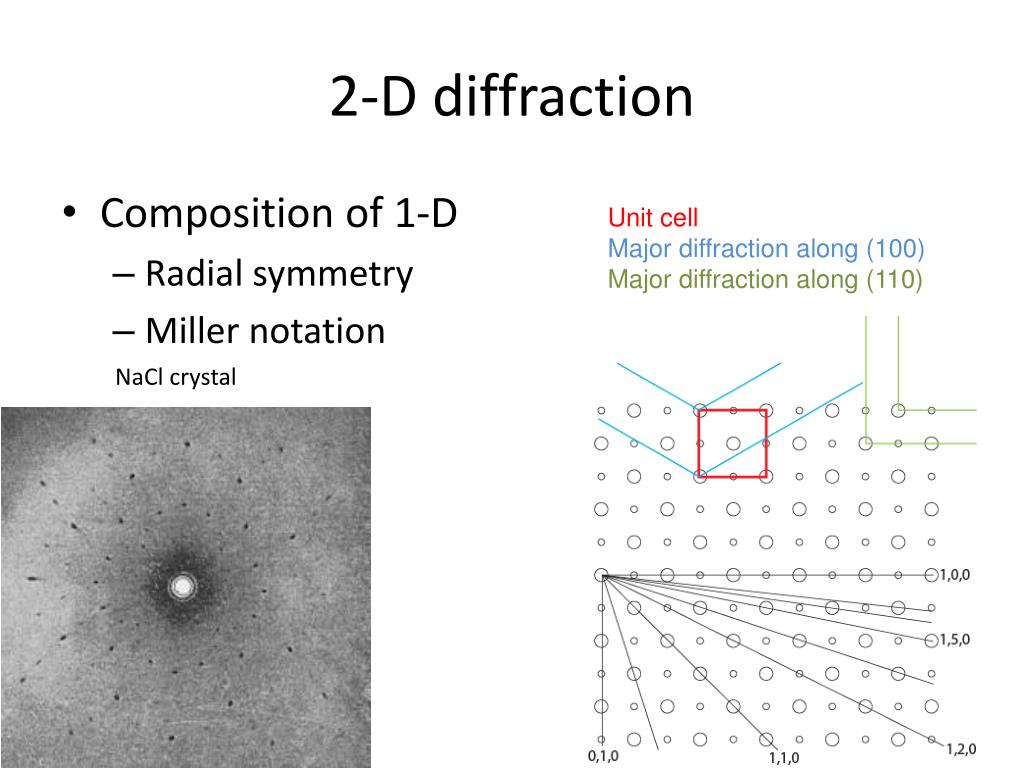

  8. 2-D diffraction • Composition of 1-D • Radial symmetry • Miller notation Unit cell Major diffraction along (100) Major diffraction along (110) NaCl crystal

  9. Anisotropic crystals • 2-D image (still some symmetry) • Depends on illumination window 1,1 1,0 Myofilament image Living 45 nm 3 axes of symmetry in point-illuminated image H.E. Huxley’s image, near the axis of living muscle fiber shows strong reflection @ 45nm & weak reflection 22.5 nm. In rigor, these intensities reverse. Rigor 22 nm Huxley, 1953

  10. Relaxed muscle Rigor muscle “End-on” diffraction pattern Intensity shifts toward thin filaments Fourier transformed data Huxley, 1953

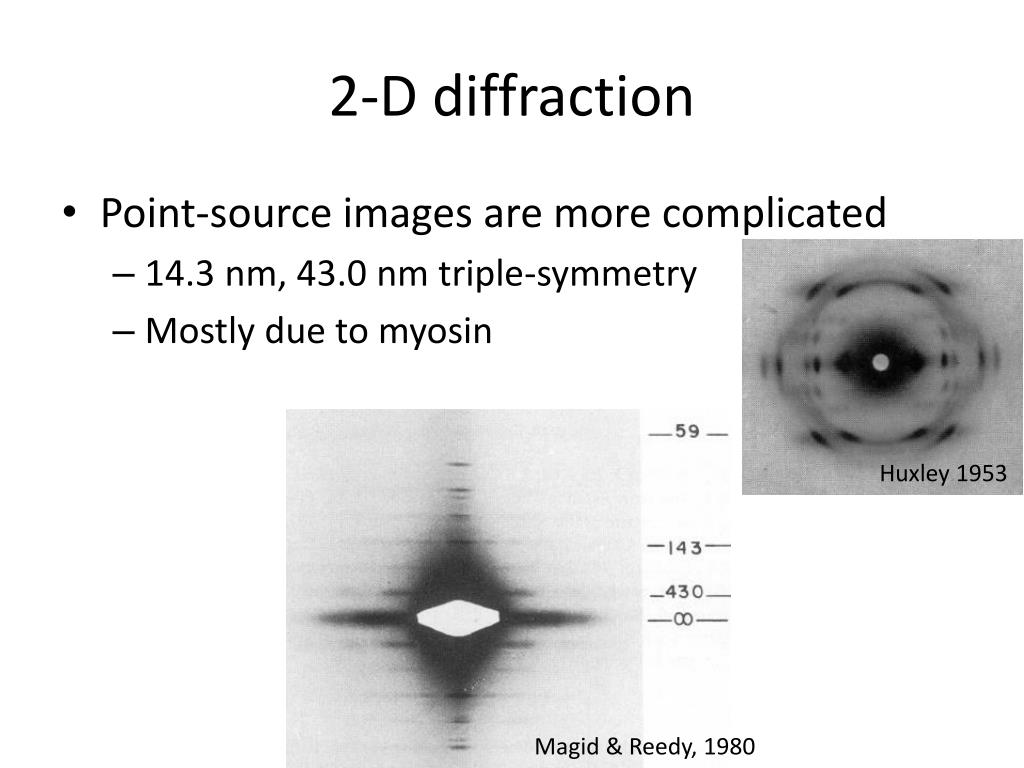

  11. 2-D diffraction • Point-source images are more complicated • 14.3 nm, 43.0 nm triple-symmetry • Mostly due to myosin Magid & Reedy, 1980 Huxley 1953

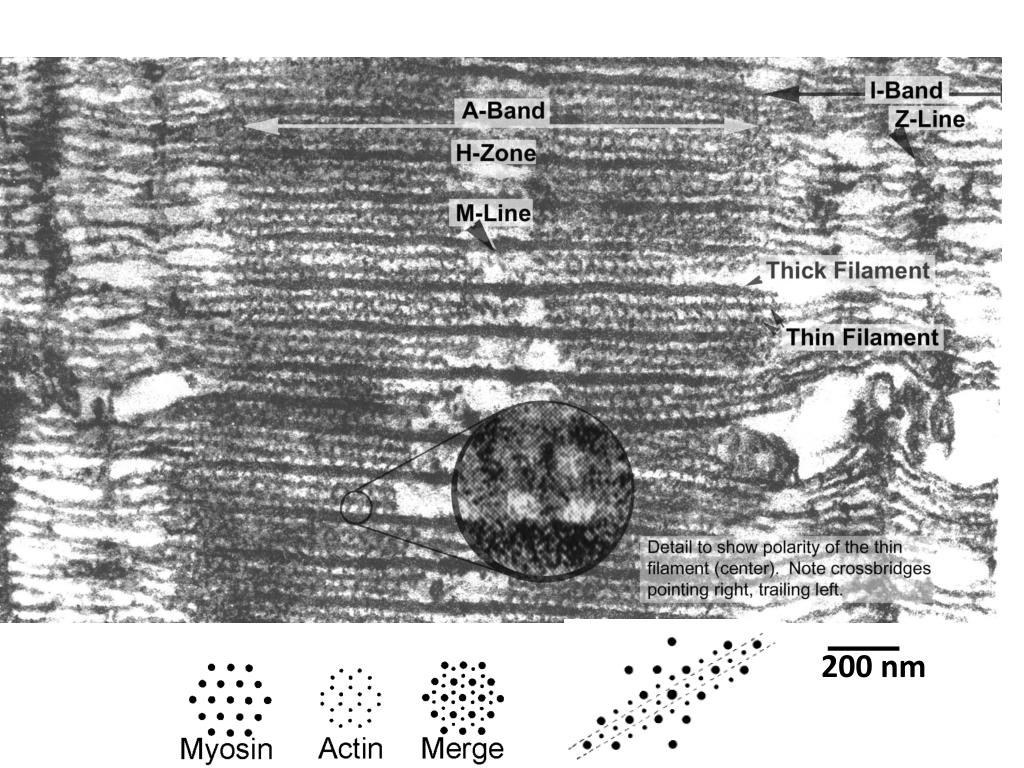

  12. High resolution TEM 200 nm Huxley, 1957

  13. Transverse TEM

  14. Myosin molecule • Native hexamer • 2 heavy chains 180 kD • 4 light chains • Domains • Globular head • Helical tail • Tryptic fragments

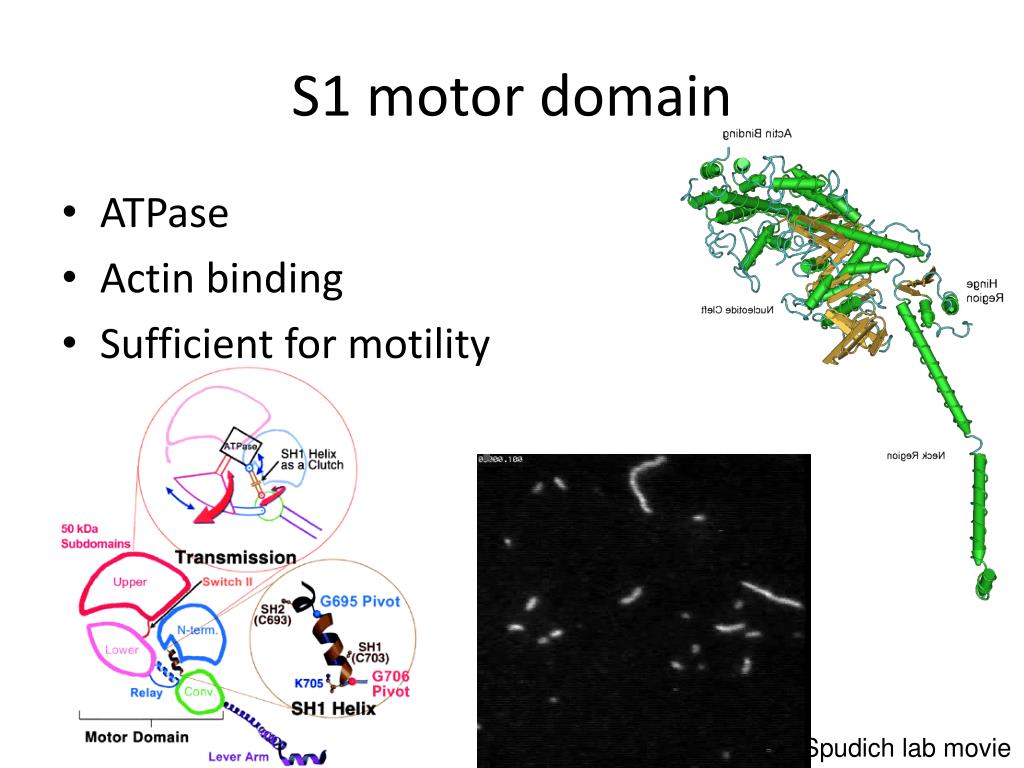

  15. S1 motor domain • ATPase • Actin binding • Sufficient for motility Spudich lab movie

  16. Actin filament points into page (Lower 50 kD) Holmes et al 2003

  17. 43 nm 14 nm 25 nm Myosin filament • Triple helix • Diffraction symmetry • 14.5 nm repeat • Cryo-EM Woodhead & al., 2005

  18. MHC1 MHC2 ELC1 ELC2 RLC1 RLC2

  19. M-line • Thick filaments anchored at M-line • Myomesin • Obscurin Thick Filament Myomesin Titin

  20. Actin • Disk shaped • Adenine nucleotide binding • ATPase activity • Nucleotide exchange • Promoted by Profilin • Inhibited by Cofilin • Filament formation • Barbed/Pointed end • Myosin S-1 “decoration” • ADP maturation

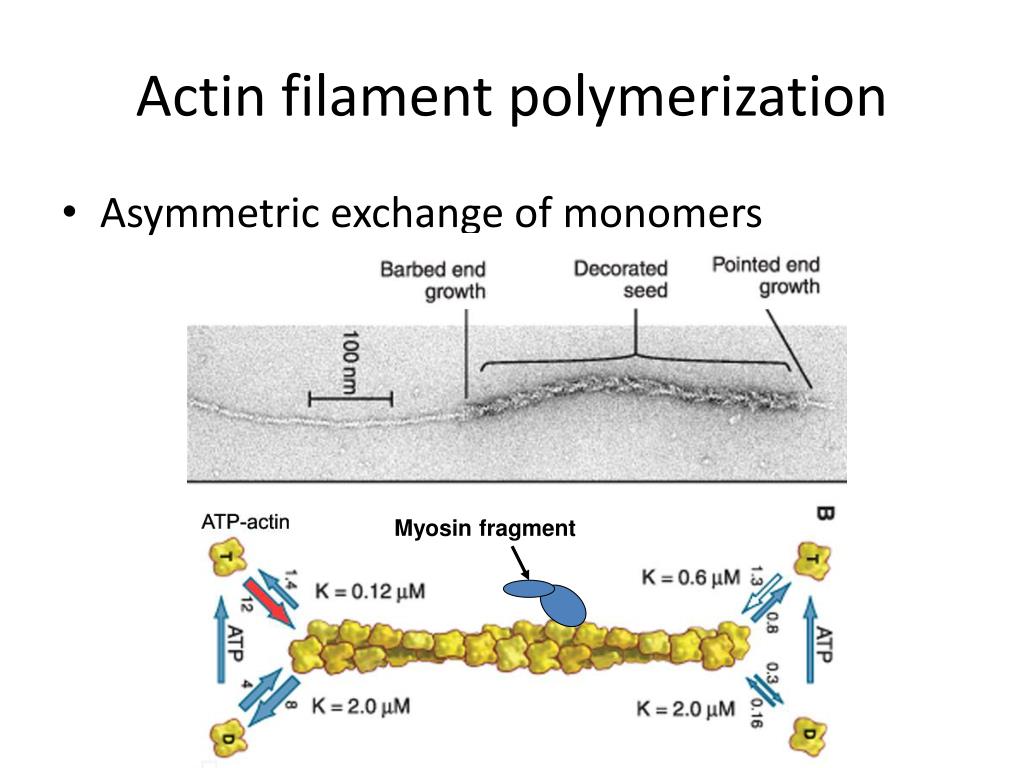

  21. Actin filament polymerization • Asymmetric exchange of monomers Myosin fragment

  22. Molecular Model S1 decoration Actin filament S-1 Fragments

  23. Actin filament regulation • Troponin/tropomyosin • Nebulin • CapZ (barbed) Weak myosin binding Strong myosin binding Actin Tropomyosin

  24. Extra-contractile support • Extract contractile proteins • Intermediate filament ring around Z-disk • External scaffold (desmin) • Z-disk ghost Wang & Ramirez-Mitchell, 1983

  25. Z-disk • Thin filament anchor Structural models Transverse TEM Long TEM Rowe, 1971 Luther, 2009

  26. Z-disk • a-actinin • Titin • F-actin

  27. Titin • Molecular ruler • 3-4 MD • 30,000 AA • Modular spring

  28. Titin • Modular spring • Fn repeats • Ig repeats • Kinase Hoshijima 2006 Labeit & al 2003

  29. Summary • Sarcomere • Z-I-A-I-Z • Interdigitating arrays of thick & thin filaments • Myosin motors • Actin rails • Z-disk anchors • Titin skeleton
