  1. IBM System Storage Product OverviewPart 3 This document is for IBM and IBM Business Partner use only. It is not intended for customer distribution or use with customers.

  2. Competitive Differentiation

  3. EMC Competitive Intelligence

  4. Compared to IBM Information Infrastructure, EMC has … • Less virtualization support for multi-vendor disk systems • Slower to market with Scale Out NAS • Slower storage software growth • Smaller storage services team • Limiting strategy.Says “tape is dead” • Smaller Information Management software portfolio

  5. HP Competitive Intelligence

  6. HP Key Strengths • FY08 revenue $118.2 Bill • CEO Mark Hurd: “Great companies excel in tough times, and in tough times, customers turn to great companies” • Strong focus on cost cutting • Acquired EDS to be integrated in Technology Solutions Group • Strenghthen HP’s services and outsourcing capabilities • Uncertaincy for EDS outsorcing customers without HP technology • Ron Rittenmeyer, former CEO of EDS, has retired • Acquisition of Left Hand in Oct. 2008 • To be integrated in future HP product releases • SAN Virtualization Services Platform (SVSP) released Nov 2008 • SVC competitor based on former StoreAge technology

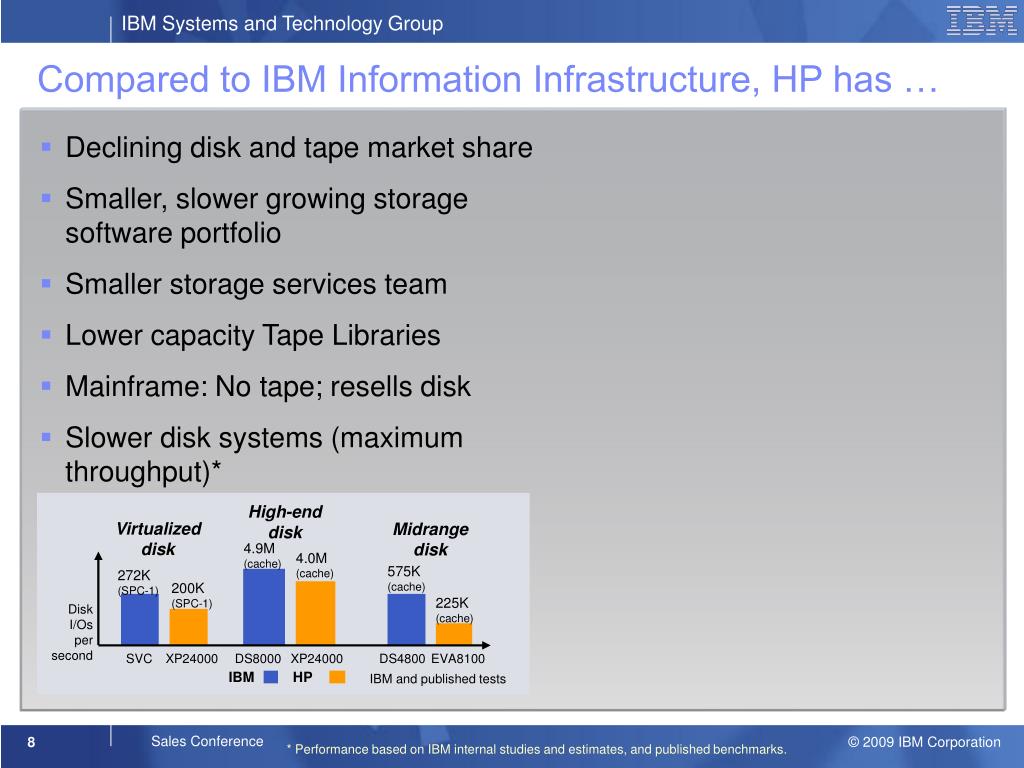

  7. High-end disk Virtualized disk Midrange disk 4.9M (cache) 4.0M (cache) 575K (cache) 272K (SPC-1) 200K (SPC-1) 225K (cache) Disk I/Os per second SVC XP24000 DS8000 XP24000 DS4800 EVA8100 IBM HP IBM and published tests Compared to IBM Information Infrastructure, HP has … • Declining disk and tape market share • Smaller, slower growing storage software portfolio • Smaller storage services team • Lower capacity Tape Libraries • Mainframe: No tape; resells disk • Slower disk systems (maximum throughput)* * Performance based on IBM internal studies and estimates, and published benchmarks.

  8. Review questions • The leading virtualization software in the industry is • EMC Invista • HDS Tagamastore • HP True Copy • IBM San Volume Controller • How can we attach the DS3000 series? • FC, iSCSI, and SAS. • FC, GX bus, iSCSI, and NAS • SATA, FATA, and FC • All the above • What is the key differentiating factor of the DS5000 product ? • An 8 gb/s transfer rate • SATA disk drives only • A 4 gb/s transfer rate and mixed SATA and FC drives • Dual p5 570 processors • What is a major unique function on the DS8000 series • Over 500 TB of capacity • Support for main frames and Power Systems for ibusiness • Logical partitions • 4 gb/s transfer rate

  9. Review questions • What is the key new function added to LTO 4 tape drives in addition to capacity and speed increases? • WORM • 19 “ rack support • Ability to read and write TS1120 tapes • Encryption • What 2 key value add facets to the DS6800 ? • Density of footprint and mainframe/Powers System i support • 4 gb transfer rate • SAS and FC attachment • All the above • What is the major application areas of Tivoli Storage Manager? • ERP, SCM, CRM, and Business Intelligence • Save/restore, archival, and space management • Business Intelligence • Engineering scientific applications • What is the major strength and weakness, respectively, of EMC? • High performance storage and weak sales force • Product breadth and low market share • Great sales force and lack of full service offerings • 8 gb/s transfer rate across the board and data retention systems

  10. Additional Information

  11. Open Systems (“Open Side”) Intel (Windows/Linux) UNIX (AIX/Solaris/HP-UX) Fibre (Optical) Data transfers using FCP (Fibre Channel Protocol) IBM switch (Brocade & ….Cisco) DS3000 DS4000 DS6000 DS8000 Hosts Storage

  12. System i (AS/400) Fibre (Optical) Data transfers using FCP (Fibre Channel Protocol) IBM switch (Brocade & ..Cisco) DS6000 DS8000 Hosts Storage

  13. Fibre (Optical) Data transfers using FCP (Fibre Channel Protocol) IBM switch/director (Brocade & cisco) System z (z/OS.) Hosts Storage DS6000 DS8000

  14. The IBM System Storage DR550- an Archive and Data Retention System • A purpose built, information archive for long term data retention and protection • Policy-based, non-erasable, non-rewriteable disk storage • Industry leading IBM advanced technology • Automatic policy-based tiered storage management • Data encryption – In flight and at rest • IBM dual processor Power5 technology for high performance (benchmarked at over 3x competition) • IBM SATA disk technology for low cost • Enablement of secondary storage, i.e. WORM Tape (optional) supporting very low TCO • Simple Network Management Protocol (SNMP) Monitoring – proactive system problem prevention and correction • High speed 10/100/1000 Ethernet connectivity • Disaster recovery options with synchronous and asynchronous replication • Deemed compliant with SEC 17a-4 by independent consultants

  15. IBM Information Infrastructure Manage Visibility, Control, Automation Virtualize Availability, Simplification Integrated Protect Security, Compliance, Recoverability Archive Active, Inactive (long term) Best Practices and Services IBM Information Infrastructure for ManageabilityImproved visibility, control, and automation • Visibility • TotalStorage Productivity Center (TPC) • N series Data ONTAP, FilerView • Control • Tivoli Storage Management • Tivoli Security Management • SAN Volume Controller • Geographically Disbursed Parallel Sysplex (GDPS) • General Parallel File System (GPFS) • N series Data ONTAP, FlexVol, Operations Manager • Automation • Global Mirror, Metro Mirror, • N series SnapManager, FlexClone, MetroCluster, SnapMover

  16. IBM Information Infrastructure Manage Visibility, Control, Automation Virtualize Availability, Simplification Integrated Protect Security, Compliance, Recoverability Archive Active, Inactive (long term) Best Practices and Services IBM Information Infrastructure for VirtualizationVirtualized disk, tape, SAN director, and file systems • Storage Virtualization • Virtual File System • SAN Volume Controller • Virtual Tape System • SAN Director with virtualization

  17. IBM Information Infrastructure Manage Visibility, Control, Automation Virtualize Availability, Simplification Integrated Protect Security, Compliance, Recoverability Archive Active, Inactive (long term) Best Practices and Services IBM Information Infrastructure for Data ProtectionLeading security, compliance, and recoverability solutions • Security • Encrypted Disk and Tape Media • Key Management • Tivoli Access Manager • Tivoli Identity Manager • zSecure Suite • Compliance • DR550 Data Retention system • N series SnapLock option • WORM tape • Protection • Tivoli Storage Manager • Flash Copy • N series SnapRestore • Continuous Data Protection

  18. IBM Information Infrastructure Manage Visibility, Control, Automation Virtualize Availability, Simplification Integrated Protect Security, Compliance, Recoverability Archive Active, Inactive (long term) Best Practices and Services IBM Information Infrastructure for ArchivingDisk, tape, network, and archive solutions • Disk Systems • Mid-Range: DS3000, DS4000 • Enterprise: DS8000 • Unified Storage: N series • Emerging Workloads: XIV • Tape Systems • Enterprise and Midrange • Tape drives • Tape Libraries • Virtual Tape • Integrated Solutions • eMail, SAP, Database, files, etc. • DR550 Data Retention System • System Storage Archive Manager • Grid Medical Archive Solution • Storage Networking • Brocade and Cisco Switches, Routers, Directors
