Presentation Transcript

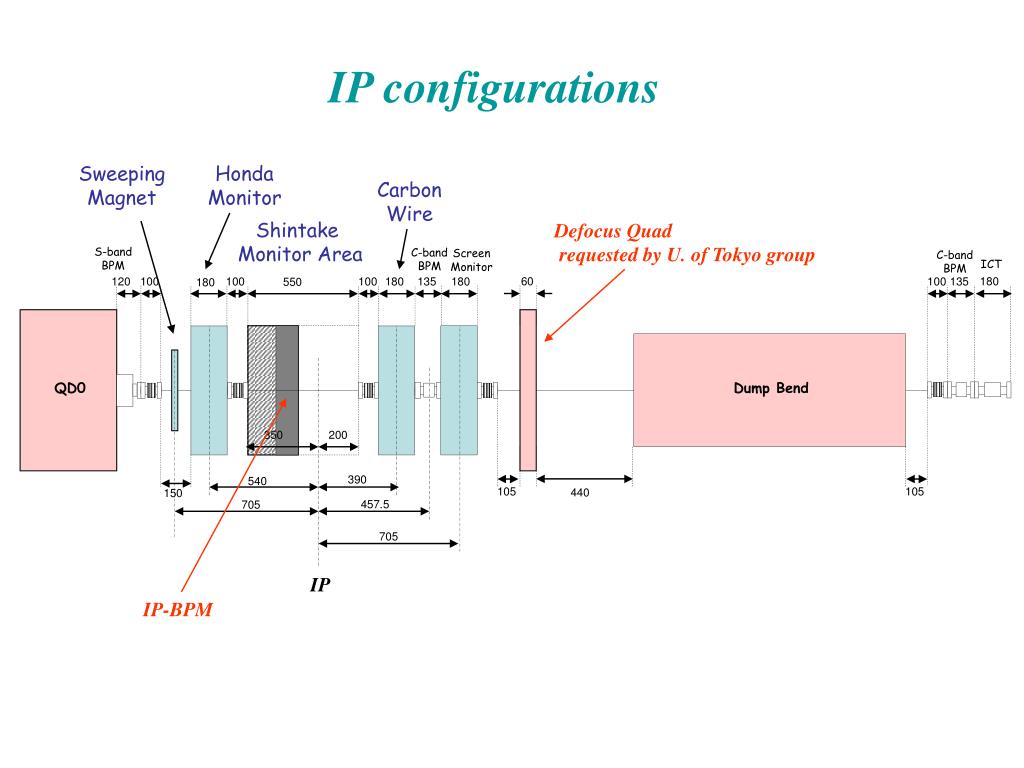

  1. IP configurations Sweeping Magnet Honda Monitor Carbon Wire Shintake Monitor Area Defocus Quad requested by U. of Tokyo group S-band BPM C-band BPM Screen Monitor C-band BPM ICT 60 180 135 120 100 100 100 180 135 180 100 550 180 QD0 Dump Bend 350 200 390 540 105 105 440 150 457.5 705 705 IP IP-BPM

  2. Beam Size at Dump Bend with Quadrupole Emittances were assumed to be 2e-9m for horizontal, 2e-11m for vertical.

  3. Magnetic Sweeping Magnets Magnet Material ; Silicon Steel Thickness ; 30 mm Gap ; 45 mm PS Requirement Amount of Minimum Change ; 0.0024 A ( 12bit digital control , 1bit for +/- ) Stability Requirement ; 200 ppm Vertical Direction Turn/pole ; 10 Kick Angle @ 0.0024A ; 7.2 nrad Hysteresis ; 0.52 A at Shintake Monitor Minimum Position Step ; 5.1 nm Dynamic Range ; +/- 10.5 mm Horizontal Direction Turn/pole ; 72 Kick Angle @ 0.0024A ; 52 nrad at Shintake Monitor Minimum Position Step ; 37 nm Dynamic Range ; +/- 76 mm Tokyo University Steering Magnet Made by Mitsubishi-denki

  4. Electrical Sweep Magnet Requirement of the kicker Electrode (Stripline Kicker) Length ; 50mm Gap ; 40mm Kick Angle ; 3.8nrad / V Power Supply Voltage ; +/- 100V -> Dynamic Range; +/- 270nm Stability ; 1 % It is easy to develop of the vertical kicker. There are no hysteresis . This kicker can be applicable to the IP feedback. But difficult to apply for horizontal direction.
