  1. Chapter 5 – Block Diagram Input Output Transfer Function General flow diagrams Control system: Feedback controller Control system: Feedforward controller

  2. Chapter 5 – Block Diagram System: CSTR Fin CA,in CA CA,r Tr Fin CA,out

  3. Chapter 5 – Block Diagram GTT GFC GS TT FC Thermocouple GFT GV FT Control Valve System: CSTR (temp. control) 1. Thermocouple: Resistance 2. Temperature Transmitter: standard signal: 0-5 V, 0-10 V, 4-20 mA 3. Flow control: calculated % open valve 4. Flow transmitter: %open valve to standard signal : 0-5 V, 0-10 V, 4-20 mA, 3-15 psi 5. Control valve: open valve as setting by driving motor

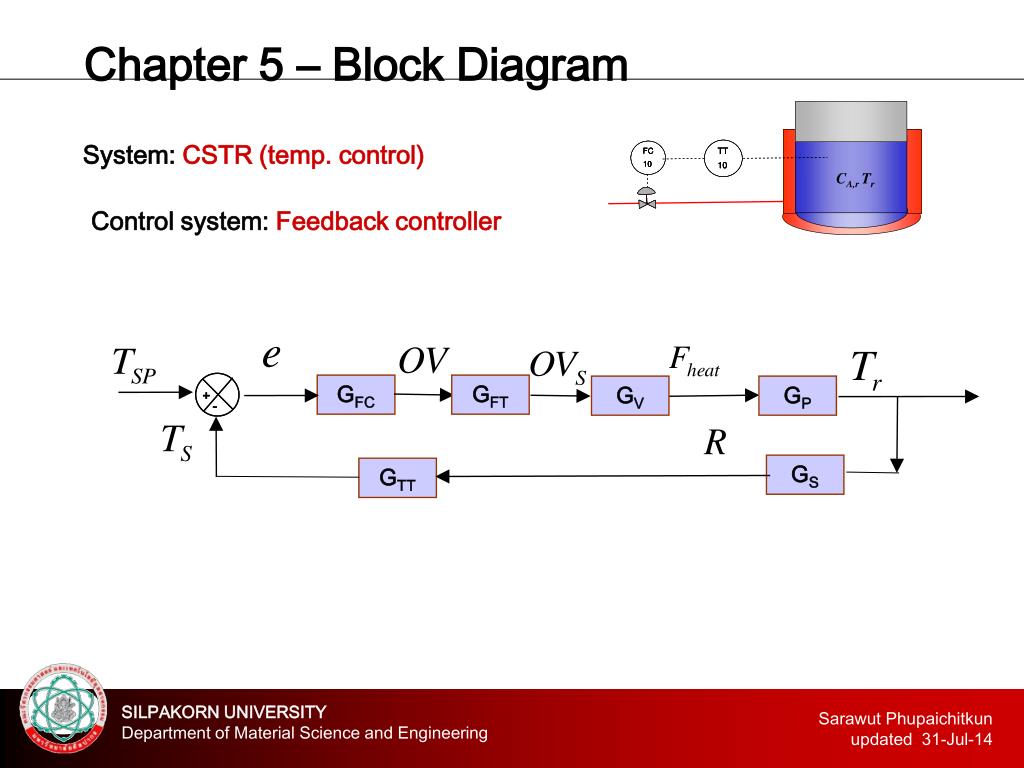

  4. Chapter 5 – Block Diagram System: CSTR (temp. control) Control system: Feedback controller GFC GFT GV GP GS GTT

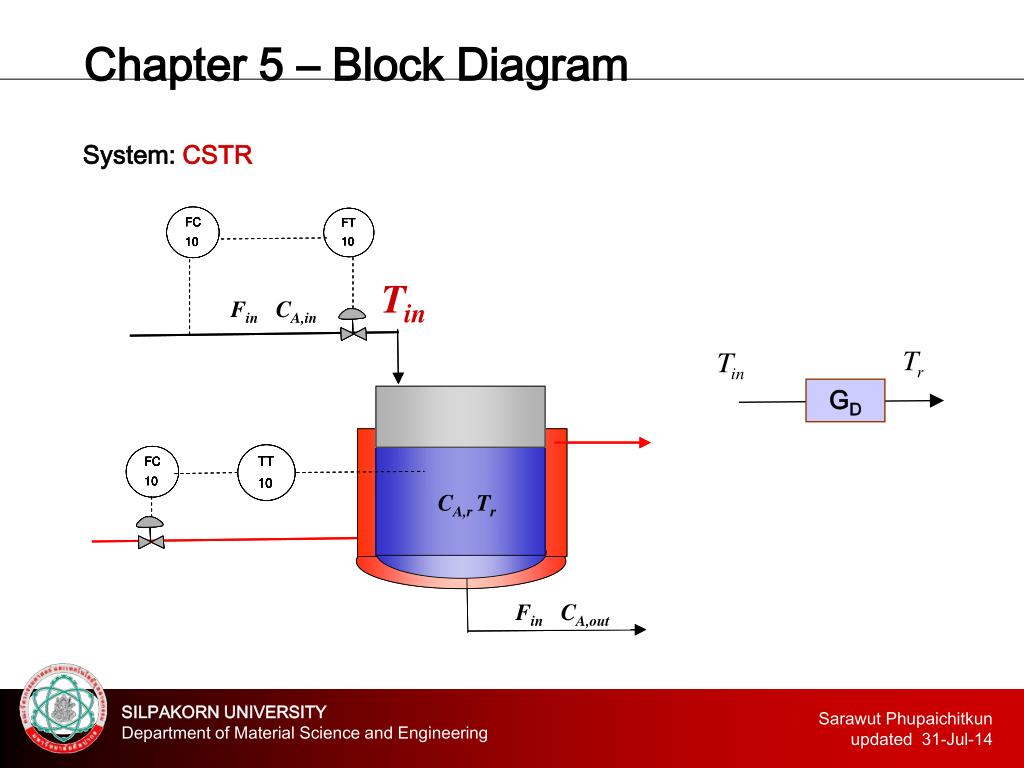

  5. Chapter 5 – Block Diagram System: CSTR Tin GD

  6. Chapter 5 – Block Diagram GD System: CSTR (temp. control) Control system: Feedback controller Disturbance GP GFC GFT GV GS GTT

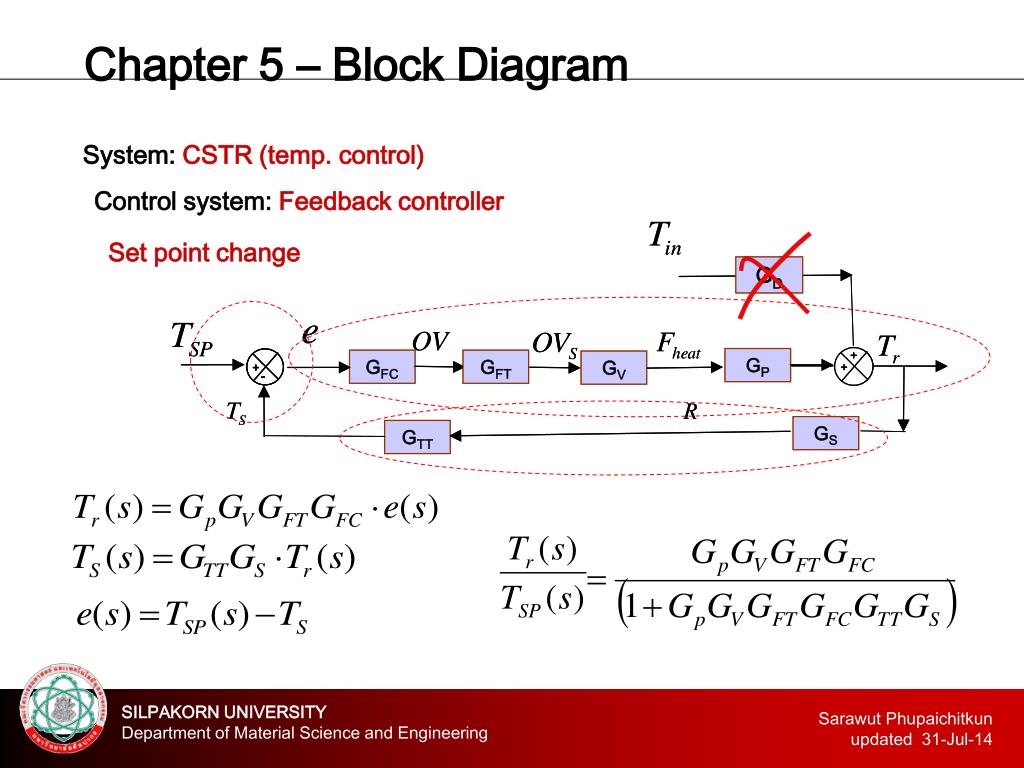

  7. Chapter 5 – Block Diagram System: CSTR (temp. control) Control system: Feedback controller Set point change

  8. Activity System: CSTR (temp. control) Control system: Feedback controller Disturbance change
