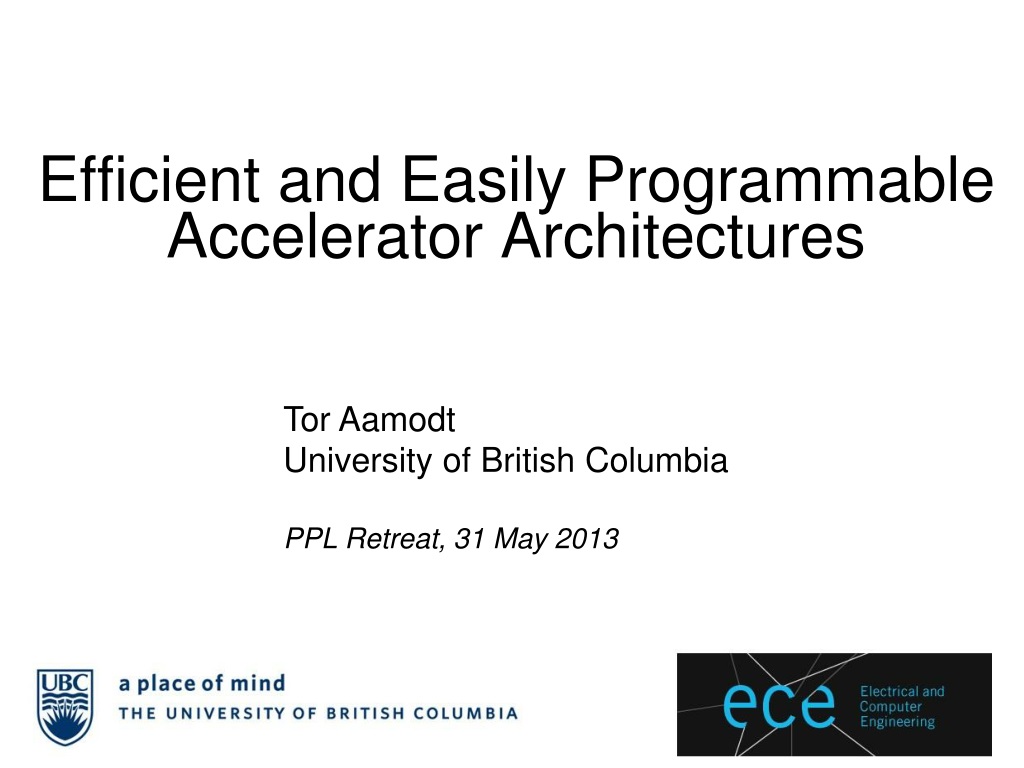

  1. Efficient and Easily Programmable Accelerator Architectures Tor Aamodt University of British Columbia PPL Retreat, 31 May 2013

  2. Decreasing cost per unit computation Advancing Computer Systems without Technology Progress DARPA/ISAT Workshop, March 26-27, 2012 Mark Hill & Christos Kozyrakis 1981: IBM 5150 2007: iPhone 2012: Datacenter 1971: Intel 4004

  3. Better (how to get here?) Single Core OoO Superscalar CPU Wimpy (In-order) Multicore Ease of Programming Brawny (OoO) Multicore 16K thread, SIMT Accelerator ASIC Hardware Efficiency

  4. Heterogeneity helps… Ease of Programming Hardware Efficiency

  5. Review: Amdahl’s Law Hard to accelerate Easy to accelerate

  6. What defines division between hard and easy? Fractionhard = f(problem, prog. model, SW budget)

  7. Goal: easy to accelerate (Acc. Arch1) easy to accelerate (Acc. Arch2)

  8. Better ? Ease of Programming Hardware Efficiency

  9. Increase Accelerator Efficiency (x-axis) • Control Flow • Memory Improve Accelerator Programmability (y-axis) • Easier coding • Fewer bugs • Easier debugging

  10. PC B Active Mask 1111 A 1 2 3 4 B 1 2 3 4 C -- -- 3 4 D 1 2 -- -- SIMT Execution (MIMD on SIMD)(Levinthal SIGGRAPH’84) foo[] = {4,8,12,16}; A: n = foo[tid.x]; B: if (n > 10) C: …; else D: …; E: … E D 1100 C 0011 Time Branch Divergence

  11. Warp 1 Warp 2 Warp 0 A 1 2 3 4 A 5 6 7 8 A 9 10 11 12 B 1 2 3 4 B 5 6 7 8 B 9 10 11 12 C 1 2 7 8 C 1 2 -- -- C 5 -- 7 8 C 5 -- 11 12 C -- -- 11 12 D -- -- 3 4 D -- 6 -- -- D 9 10 -- -- E 1 2 3 4 E 5 6 7 8 E 9 10 11 12 Dynamic Warp Formation (Fung: MICRO 2007, HPCA 2011) Reissue/Memory Latency SIMD Efficiency 58  88% Pack Time 22% average [HPCA’11]

  12. Memory

  13. Scheduler affects access pattern Greedy then Oldest Scheduler Round Robin Scheduler Warp0 Warp1 Warp0 Warp1 Warp Scheduler Warp Scheduler ld A ,B,C,D… ld Z,Y,X,W ld A,B,C,D… ... ... ... DC B A WX Y Z ld A,B,C,D ld Z,Y,X,W ld A,B,C,D… DC B A DC B A Cache Cache

  14. Use scheduler to shape access pattern Cache-Conscious Wavefront Scheduling (Rogers: MICRO 2012, Top Picks 2013) Greedy then Oldest Scheduler Warp0 Warp1 Warp Scheduler Warp Scheduler ld A,B,C,D ld Z,Y,X,W ... working set size per warp WX Y Z ld A,B,C,D 63% perf. improvement DC B A Cache Cache

  15. Easier coding

  16. Accelerator Coherence Challenges Challenges of introducing coherence messages on a GPU Traffic: transferring messages Storage: tracking message Complexity: managing races between messages GPU cache coherence without coherence messages? YES – using global time

  17. Global time Temporal Coherence (Singh: HPCA 2013) Related: Library Cache Coherence Local Timestamp > Global Time  VALID Core 1 Core 2 ▪▪▪ L1D L1D Global Timestamp < Global Time  NO L1 COPIES Interconnect L2 Bank ▪▪▪ 0 0 A=0 A=0

  18. Temporal Coherence Example T=0 T=11 T=15 Core 1 Core 2 L1D L1D No coherence messages Interconnect T=10 L2 Bank Load A Store A=1 ▪▪▪ 10 A=1 A=0 10 10 0 10 A=0 A=0 A=0 A=0

  19. Complexity MESI L2 States Non-Coherent L1 TC-Weak L1 MESI L1 States Non-Coherent L2 TC-Weak L2

  20. Interconnect Traffic Reduces traffic by 53% over MESI and 23% over GPU-VI Lower traffic than 16x-sized 32-way directory NO-COH MESI GPU-VI TC-Weak 2.3 1.50 1.25 Interconnect Traffic 1.00 0.75 0.50 0.25 Do not require coherence 0.00

  21. Performance TC-Weak with simple predictor performs 85% better than disabling L1 caches NO-L1 MESI GPU-VI TC-Weak 2.0 1.5 Speedup 1.0 0.5 Require coherence 0.0

  22. Fewer bugs

  23. Performance Functionality Time Fine-Grained Locking Transactional Memory Time Time • Lifetime of Accelerator Application Development ?

  24. Are TM and GPUs Incompatible? GPU uarch very different from multicore CPU. KILO TM [Fung MICRO’11, Top Picks’12] • Hardware TM for GPUs • Half performance of fine grained locking • Chip area overhead of 0.5% 24

  25. Aborted Committed T0 T0 T0 T1 T1 T1 T2 T2 T2 T3 T3 T3 Hardware TM for GPUs Challenge #1: SIMD Hardware • On GPUs, scalar threads in a warp/wavefront execute in lockstep A Warp with 4 Scalar Threads ... TxBegin LD r2,[B] ADD r2,r2,2 ST r2,[A] TxCommit ... Branch Divergence! 25

  26. KILO TM – Solution to Challenge #1: SIMD Hardware Transaction Abort Like a Loop Extend SIMT Stack Abort ... TxBegin LD r2,[B] ADD r2,r2,2 ST r2,[A] TxCommit ... 26 26

  27. GPU Core (SM) CPU Core 10s of Registers 32k Registers Register File Register File @ TX Entry @ TX Abort Checkpoint Register File Warp Warp Warp Warp Warp Warp Warp Warp Checkpoint? Hardware TM for GPUs Challenge #2: Transaction Rollback 2MB Total On-Chip Storage 27

  28. Overwritten Abort KILO TM – Solution toChallenge #2: Transaction Rollback • SW Register Checkpoint • Most TX: Reg overwritten first appearance (idempotent) • TX in Barnes Hut: Checkpoint 2 registers TxBegin LD r2,[B] ADD r2,r2,2 ST r2,[A] TxCommit 28

  29. Hardware TM for GPUs Challenge #3: Conflict Detection Existing HTMs use Cache Coherence Protocol • Not Available on (current) GPUs • No Private Data Cache per Thread Signatures? • 1024-bit / Thread • 3.8MB / 30k Threads 29

  30. Read-Log Read-Log Write-Log Write-Log TX2 atomic {A=B+2} Private Memory KILO TM: Value-Based Conflict Detection • Self-Validation + Abort: • Only detects existence of conflict (not identity) Global Memory A=1 A=1 TX1 atomic {B=A+1} Private Memory B=0 B=2 A=1 TxBegin LD r1,[A] ADD r1,r1,1 ST r1,[B] TxCommit B=2 B=2 TxBegin LD r2,[B] ADD r2,r2,2 ST r2,[A] TxCommit B=0 A=2 30

  31. Easier debugging

  32. V0 0 __global__ void BFS_step_kernel(...) { 1 if( active[tid] ) { 2 active[tid] = false; 3 visited[tid] = true; 4 foreach (int id = neighbour_nodes){ 5 if( visited[id] == false ){ 6 level[id] = level[tid] + 1; 7 active[id] = true; 8 … 9 } } } } V1 V2 level = 1 active = 1 level = 2 active = 1 BFS algorithm Published in HiPC 2007

  33. GPUDet (Jooybar: ASPLOS 2013) Read Only Global Memory Commit Reaching Quantum Boundary Load Op Atomic Op Store Buffers Wavefronts Instruction Count Atomic Operations Memory Fences Workgroup Barriers Execution Complete … Local Memory 2x Slowdown

  34. Summary • Start from efficient architecture and try to improve programmability • Get efficiency and keep programmers happy reasonably
