  1. VRF Applications in PNWRTF RTUG MeetingOctober 26, 2011Kevin CampbellReid Hart, PE Technical Research Group

  2. Modeled Office Building Basic Qualities Simulation Runs • RTU, no economizer • RTU, with Economizer and fan control • VRF, Heat Pump, no Economizer • VRF, Heat Recovery no Economizer

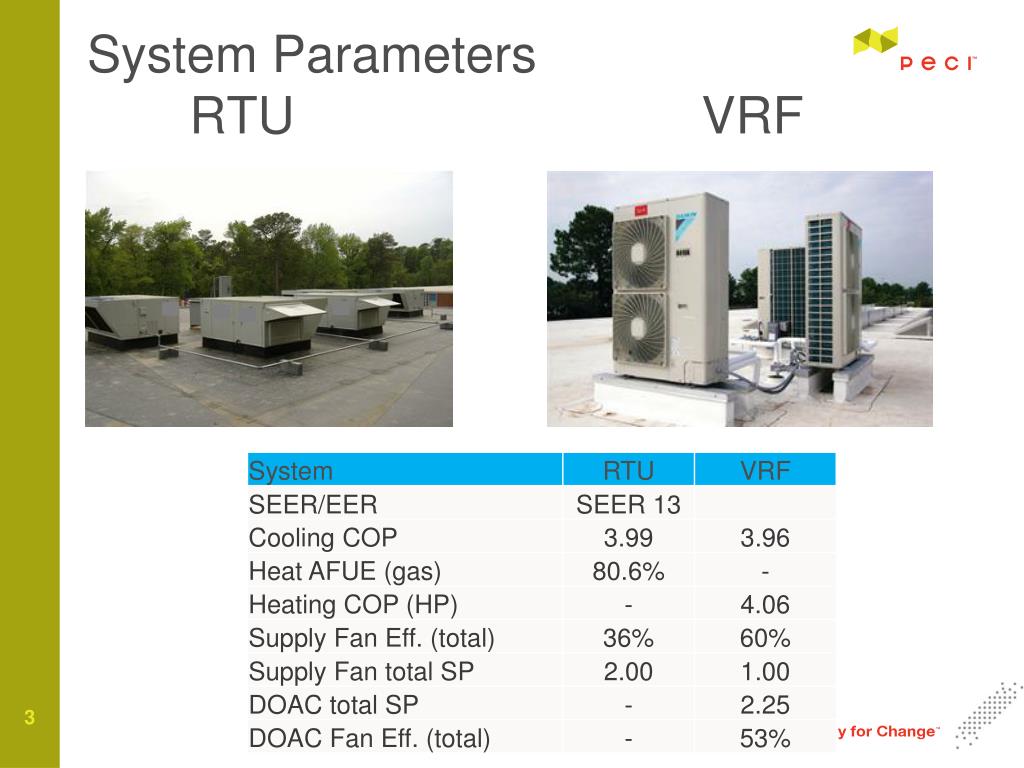

  3. System Parameters RTU VRF

  4. Impact of VRF on HVAC Energy • Fans have significant savings! (even more if no RTU fan control) • Heating savings in northern climates (switch gas to Electric) • Cooling savings except PNW where OSA economizer wins • Both cooling and heating benefit from variable compressor

  5. Small Office ComparisonTwo Models in PNW • Duct leakage: ES high; PECI none • Separate ventilation fan: PECI 2.5”’; ES ? • ES: refrigerant piping loss factor; PECI none

  6. PNW Office Energy End Use Comparison *PECI small office utilizes economizer and fan controls. Energy Solutions small office includes duct leakage.

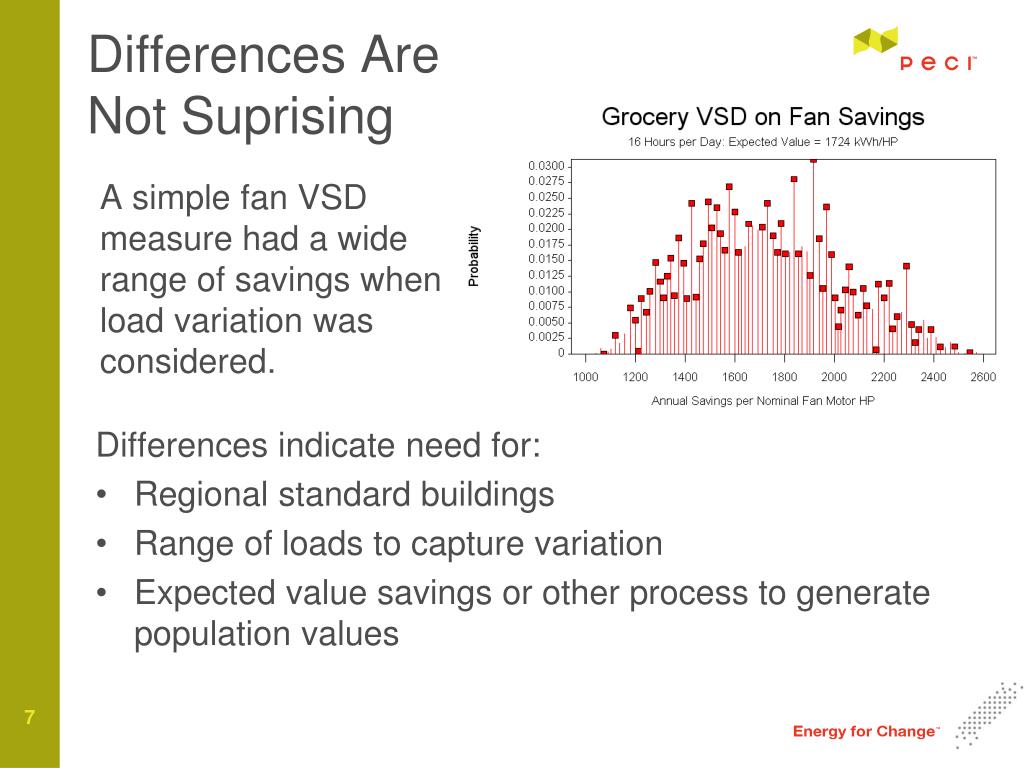

  7. Differences AreNot Suprising A simple fan VSD measure had a wide range of savings when load variation was considered. Differences indicate need for: • Regional standard buildings • Range of loads to capture variation • Expected value savings or other process to generate population values

  8. Modeled Medical Clinic Basic Qualities Simulation Runs • VAV (dX) Electric Reheat + Economizer + SAT reset • VRF Heat Pump • VRF Heat Recovery Building • Patient rooms with variable occupancy • More perimeter zones • Diagnostic equipment room

  9. Impact of VRF on HVAC Energy • Fans have significant savings! • Heating always savings since no reheat with VRF • Cooling savings due to improved part load efficiencies and high cooling requirements of VAV reheat

  10. Healthcare/Medium Office (VAV) Compare Two Models in PNW

  11. PNW Office VRF Energy Use per SF *PECI VAV with electric reheat and SAT reset. Energy Solutions VAV with electric reheat.

  12. Other Heat Recovery Options:Domestic Hot Water VRF Water Heater • Standard to 115°F • Booster to 160°F Applicable for buildings with both: • Heat rejection (server; equipment; kitchen; cooling) • Hot Water Load (Restaurants, Dorms, Hotel, Medical) Efficiency Improvement • VRF water heating percentage savings vs. gas

  13. Exhaust Air Heat Recovery Adapt the old run- around or loop heat pump concept • In heat mode, cool exhaust air • In cool mode, heat exhaust air • Feed general loop or pre conditioning at DOAC • Need to verify airside pressure tradeoffs • This strategy not in models

  14. Conclusions • Modeling tools and load/system assumptions have significant impact on predicted savings • VRF systems can provide significant HVAC savings with lower fan energy and better part load efficiencies • Buildings with low heating loads in economizer friendly climates have less significant savings • Exhaust and DHW heat recovery applicable Notes: • Proper control set-up & commissioning is important, as simulations are based on perfect control operation • Simulations are not monitored results

  15. Questions? Contact: Kevin Campbell PECI kcampbell@peci.org 503-575-4169
