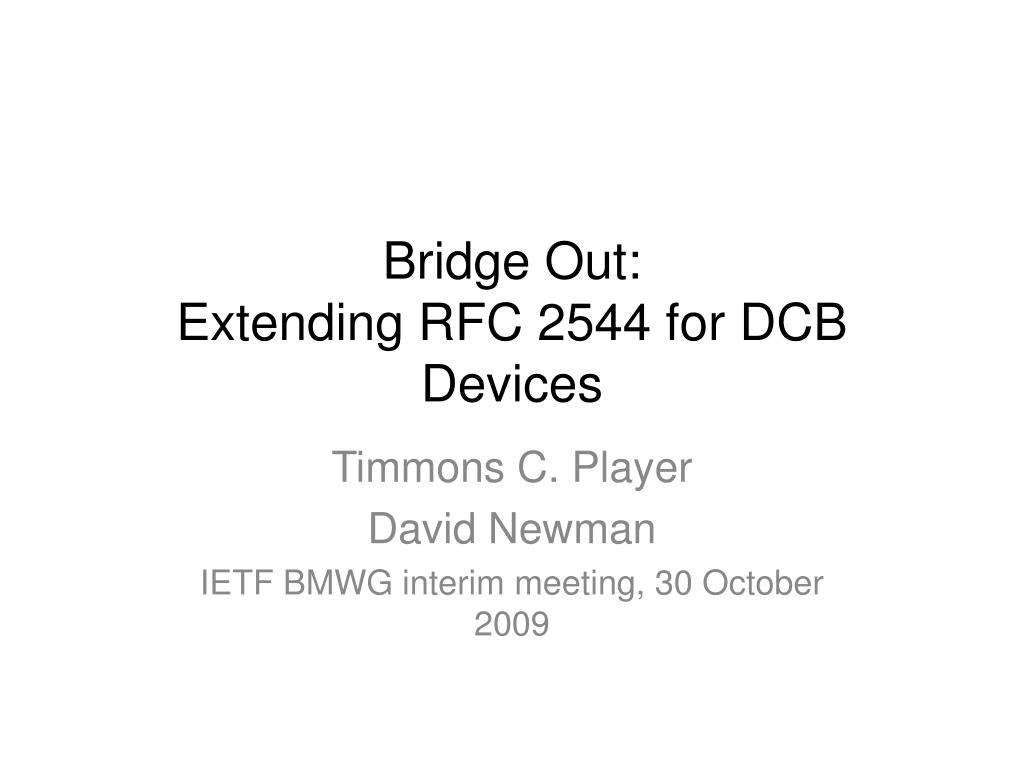

  1. Bridge Out:Extending RFC 2544 for DCB Devices Timmons C. Player David Newman IETF BMWG interim meeting, 30 October 2009

  2. Agenda • World’s shortest DCB intro • Limitations of throughput for DCB • Limitations of latency for DCB • Other problems • New metrics for DCB testing

  3. Introducing DCB • DCB (aka DCE, CEE) converges data, storage onto single network • IEEE 802.1Qbb (aka PFC) adds flow control per VLAN priority • Other DCB mechanisms for: • Capabilities exchange (DCBX) • Congestion notification (802.1Qau) • Shaping (802.1Qaz)

  4. What’s wrong with throughput? • RFC 1242 throughput is fine – for Ethernet • Canonical method: Measure oload with 0 loss, followed by oload with packet loss • Highest zero-drop rate is the throughput rate • This does not work for DCB

  5. What’s wrong with throughput? • Loss should never occur with DCB • Flow control throttles transmitters • Impossible to have success case, then fail case • No distinction between iload and oload • Device that forwards 0 packets could have “line-rate throughput” in DCB context • No distinction among traffic classes • Different classes may (and probably will) have different maximum forwarding rates

  6. What’s wrong with latency? • RFC 2544, section 26.2, requires measurement at throughput rate • Oops: There is no throughput rate • RFC 1242 uses different measurements for store-and-forward, bit-forwarding • Oops: DCB devices may alternate modes • RFC 2544 does not measure per class

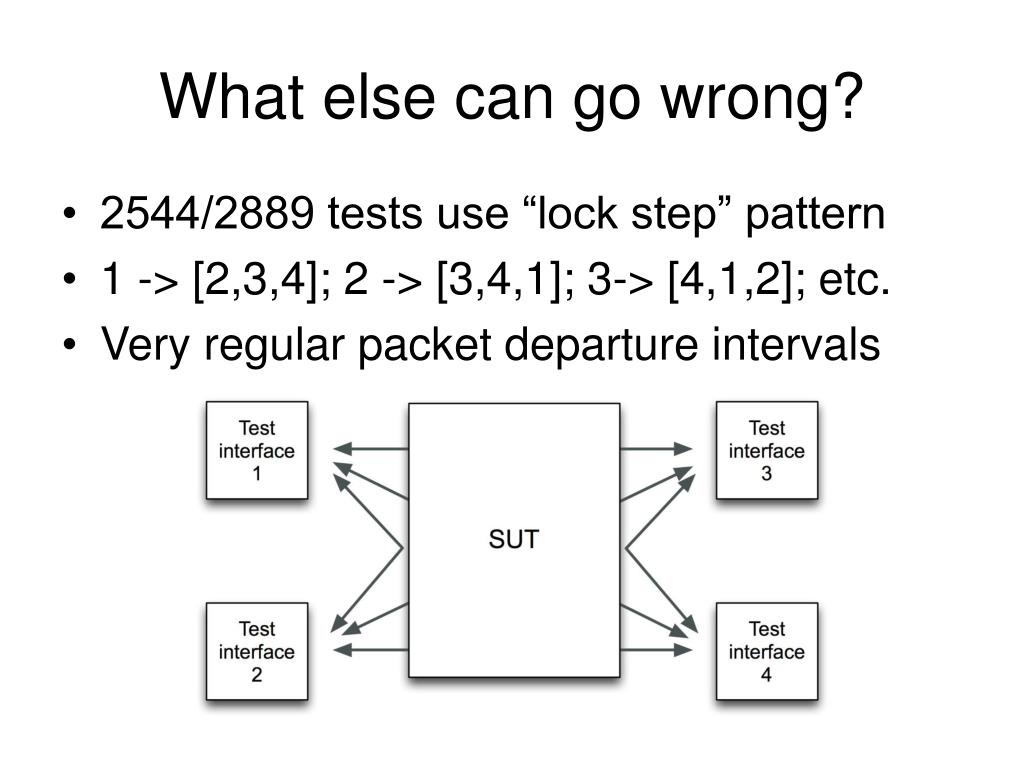

  7. What else can go wrong? • 2544/2889 tests use “lock step” pattern • 1 -> [2,3,4]; 2 -> [3,4,1]; 3-> [4,1,2]; etc. • Very regular packet departure intervals

  8. What else can go wrong? • DCB devices quickly go out of lock step • Not just per-port but also per-class • Much tougher on schedulers

  9. DCB testing: What’s new • Proposed new work item:http://www.ietf.org/id/draft-player-dcb-benchmarking-00.txt • New metric: Queueput • Measures MOL per classification • Multiple queueputs, one per classification, are possible • Maximum forwarding rate • Same concept as in 2285/2889 • For DCB, more meaningful than throughput • Extended to measure per classification

  10. DCB testing: What’s new • Back-off measures DUT PFC overhead • Conceptually similar to 2544 frame loss test • Offer traffic above queueput rate; then reduce iload until the DUT no longer pauses ingress traffic • Measure per classification

  11. DCB testing: What’s new • Back-to-back • Conceptually similar to back-off in RFCs 1242/2544 • Extended to measure per classification • Other DCB metrics?

  12. Thanks! • timmons.player@spirent.com • dnewman@networktest.com
