  1. Water Use and Management Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

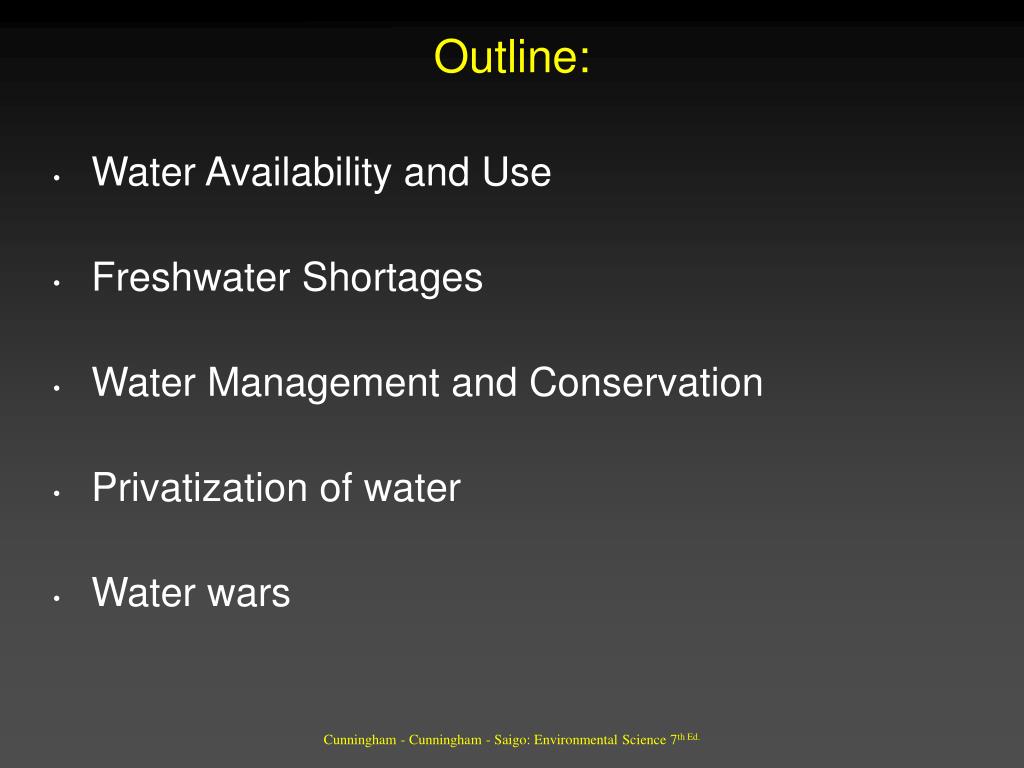

  2. Outline: • Water Availability and Use • Freshwater Shortages • Water Management and Conservation • Privatization of water • Water wars Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

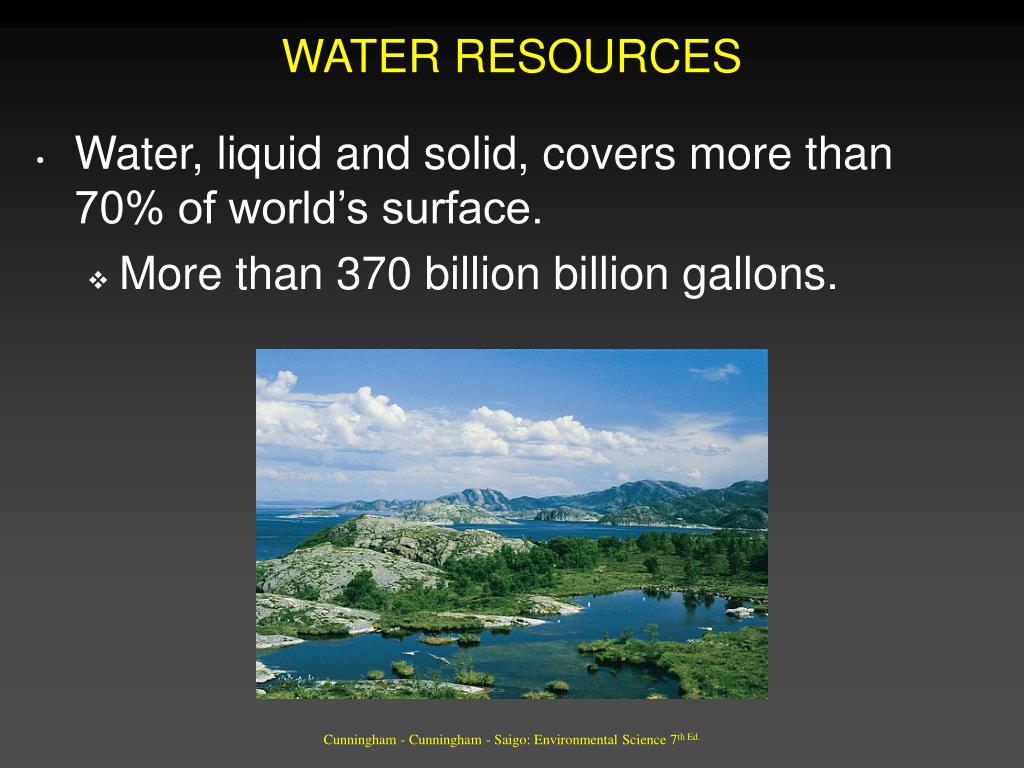

  3. WATER RESOURCES • Water, liquid and solid, covers more than 70% of world’s surface. • More than 370 billion billion gallons. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  4. Hydrologic Cycle Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  5. Sources of water Surface fresh water: 3% of liquid water, which is 13% of fresh water, which is 2.4% of water Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

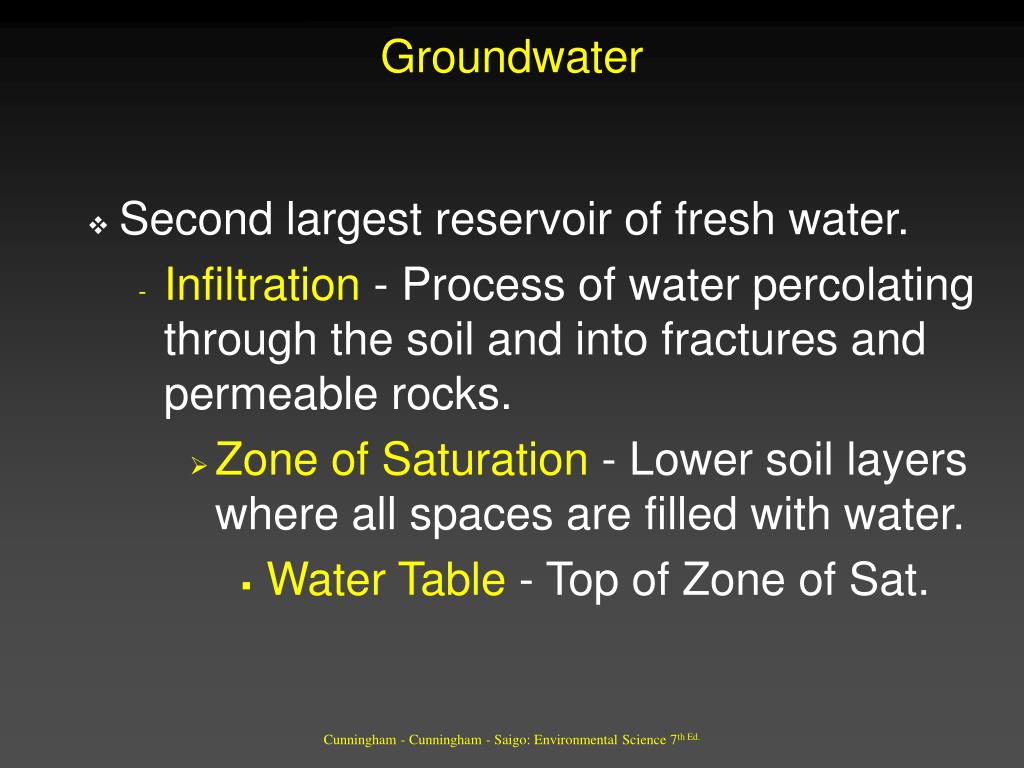

  6. Groundwater • Second largest reservoir of fresh water. • Infiltration - Process of water percolating through the soil and into fractures and permeable rocks. • Zone of Saturation - Lower soil layers where all spaces are filled with water. • Water Table - Top of Zone of Sat. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

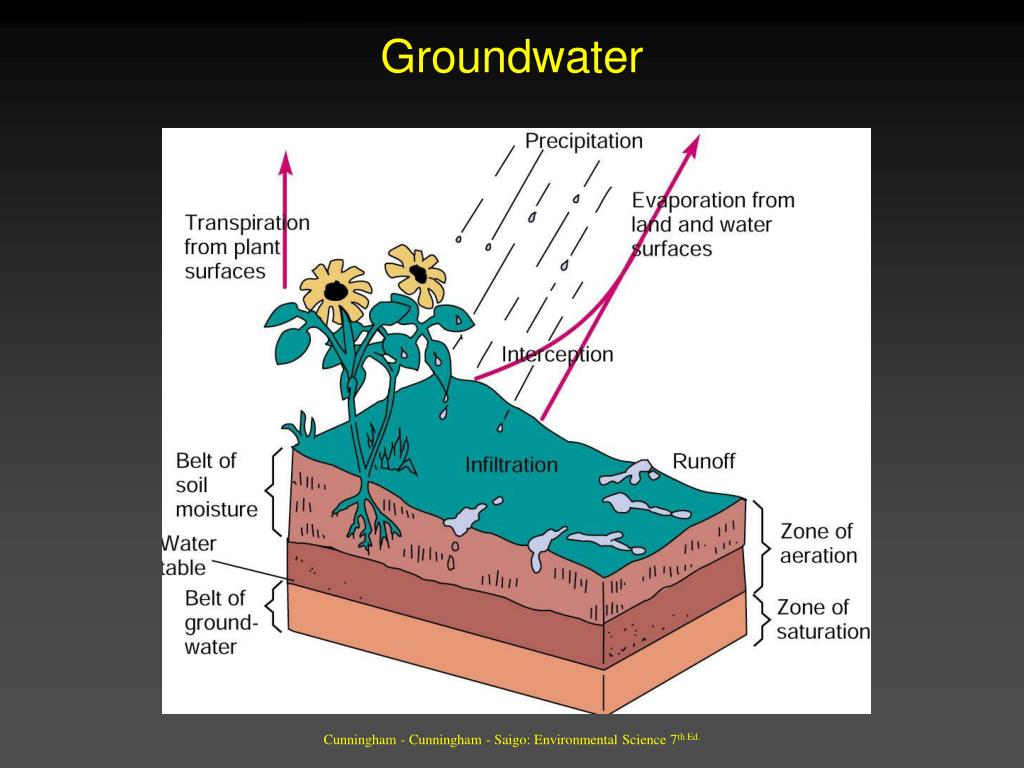

  7. Groundwater Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

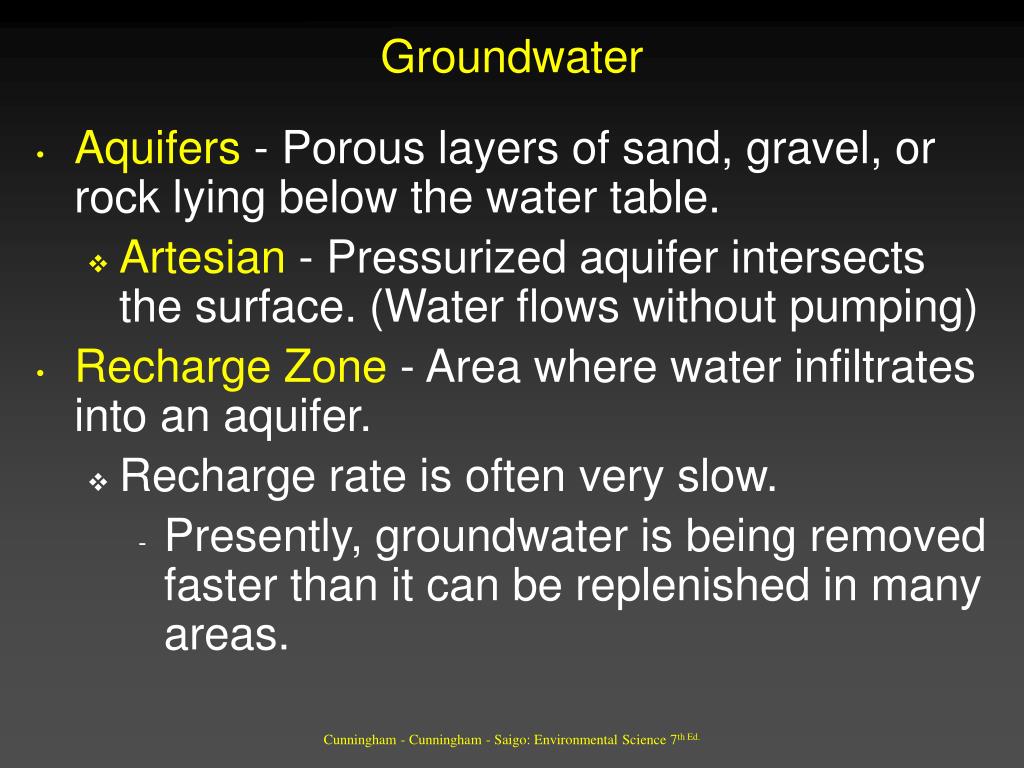

  8. Groundwater • Aquifers - Porous layers of sand, gravel, or rock lying below the water table. • Artesian - Pressurized aquifer intersects the surface. (Water flows without pumping) • Recharge Zone - Area where water infiltrates into an aquifer. • Recharge rate is often very slow. • Presently, groundwater is being removed faster than it can be replenished in many areas. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  9. Groundwater Aquifer Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

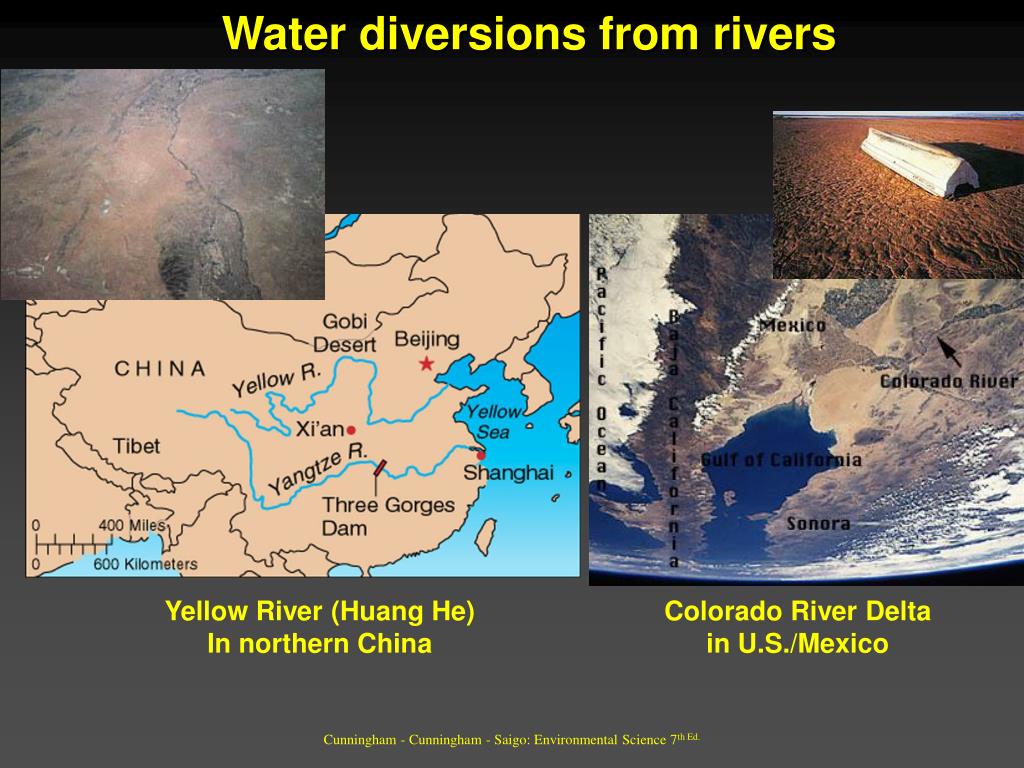

  10. Water diversions from rivers Yellow River (Huang He) In northern China Colorado River Delta in U.S./Mexico Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  11. Diversion of rivers to the Aral Sea • Once the 4th largest inland body of water in the world A series of dams was built to irrigate cotton. • Aral Sea reduced to about 25% of its 1960 volume, quadrupled the salinity of the lake and wiped out the fishery. Pollutants became airborne as dust, causing significant local health problems. • The environmental damage caused has been estimated at $1.25 -$2.5 billion a year. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  12. U.S. Water Policy • Through most of US history, water policies have generally worked against conservation. • In well-watered eastern states, water policy was based on riparian use rights. • In drier western regions where water is often a limiting resource, water law is based primarily on prior appropriation rights. • Fosters “Use it or Lose it” policies. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  13. Ogallala Aquifer High- capacity well withdrawals Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  14. Dried-up reservoir Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  15. Western U.S. water conflicts Klamath Basin, Oregon vs. Farmers. Ranchers. “Wise Users” Commercial fishers, Sport fishers, Tribes, Environmentalists Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  16. Bulk water transfers River system diversions(Canada-to-U.S.)Water pipelines(Canada/Great Lakes-to-Southwest)Supertankers(North America-to-Asia)Canadian government banned bulk transfers in 1999. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  17. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  18. Groundwater replenishing Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  19. WATER AVAILABILITY AND USE • Renewable Water Supplies • Made up of surface runoff and infiltration into accessible freshwater aquifers. • Readily accessible, renewable supplies are 400,000 gal/person/year. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  20. Drought Cycles • Every continent has regions of scarce rainfall due to topographic effects or wind currents. • Water shortages have most severe effect in semiarid zones where moisture availability is the critical factor in plant and animal distributions. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

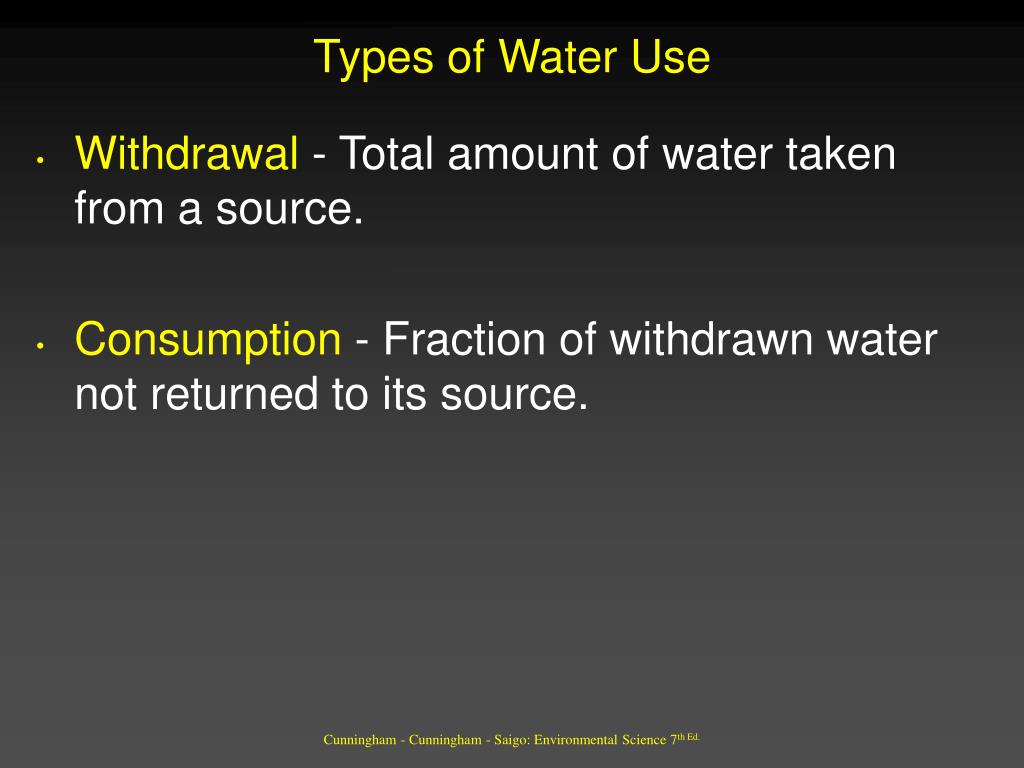

  21. Types of Water Use • Withdrawal - Total amount of water taken from a source. • Consumption - Fraction of withdrawn water not returned to its source. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  22. Types of Water Use • Worldwide, humans withdraw about 10% of total annual renewable supply. • Many societies have always treated water as an inexhaustible resource. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  23. Quantities of Water Used • Human water use has been increasing about twice as fast as population growth over the past century. • Average amount of withdrawn worldwide is about 170,544 gal/person/year. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  24. Global Water Use Growth Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

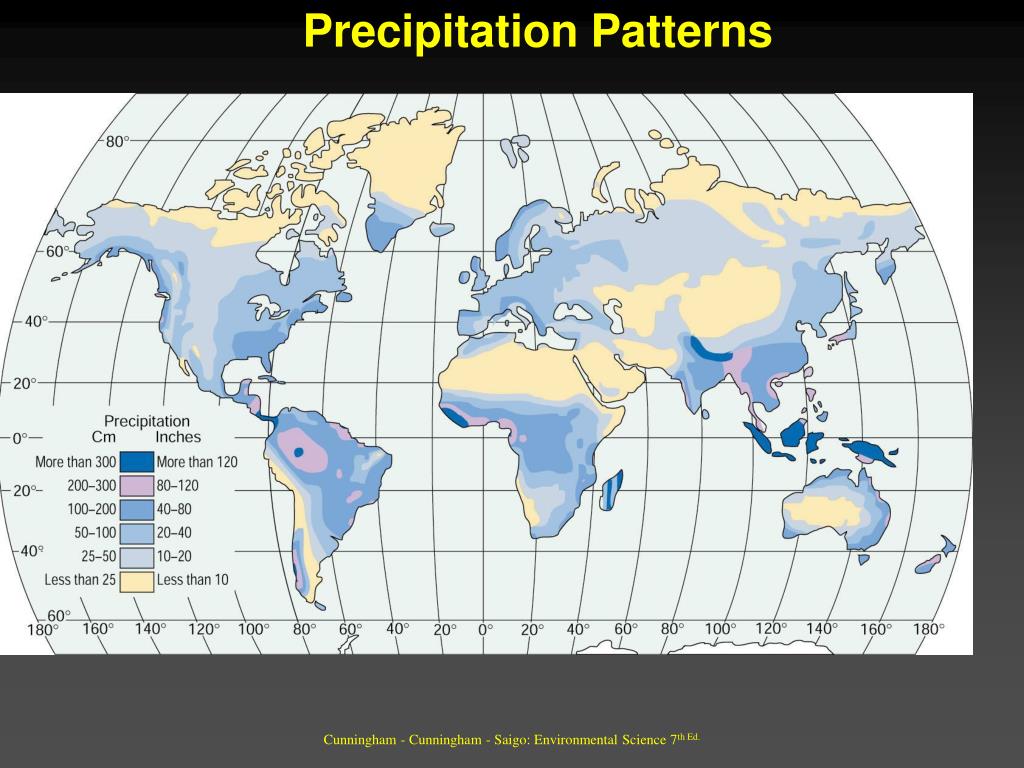

  25. Precipitation Patterns Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

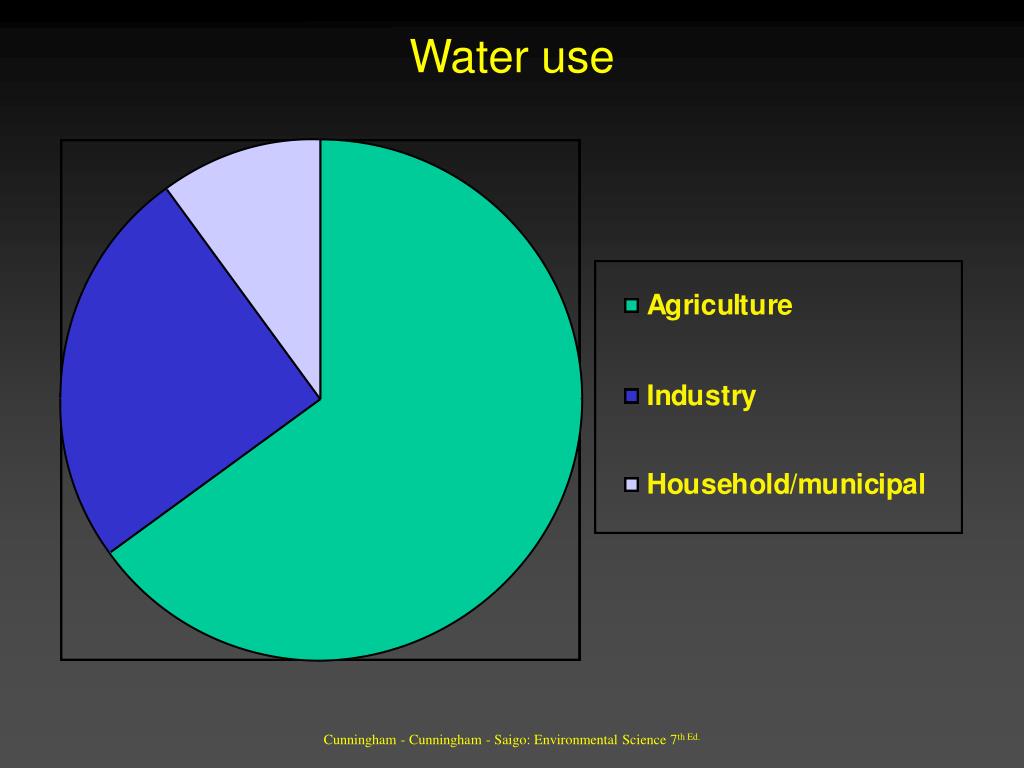

  26. Water use Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  27. FRESHWATER SHORTAGES • Estimated 1.5 billion people lack access to an adequate supply of drinking water. • Nearly 3 billion lack acceptable sanitation. • A country where consumption exceeds more than 20% of available, renewable supply is considered vulnerable to water stress. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  28. A Precious Resource • 45 countries have serious water stress, and cannot meet the minimum essential water requirements of their citizens. • More than two-thirds of world’s households have to retrieve water from outside the home. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  29. Depleting Groundwater • Groundwater is the source of nearly 40% of fresh water in the US. • On a local level, withdrawing water faster than it can be replenished leads to a cone of depression in the water table, • On a broader scale, heavy pumping can deplete an aquifer. • Mining non-renewable resource. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  30. Depleting Groundwater Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

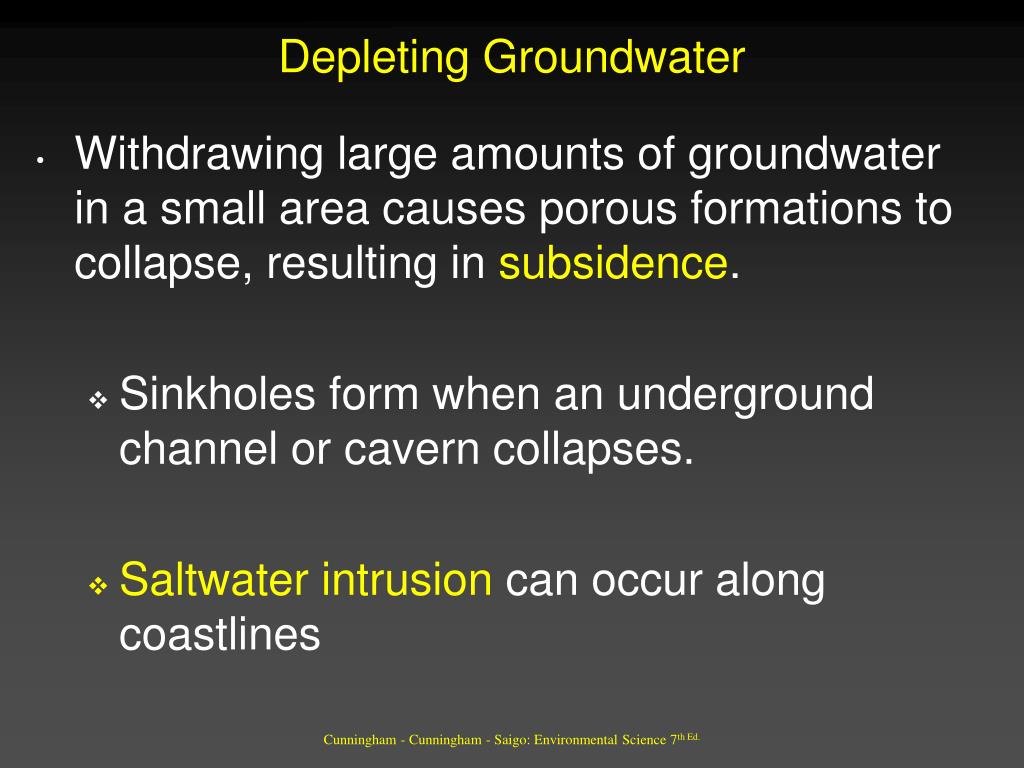

  31. Depleting Groundwater • Withdrawing large amounts of groundwater in a small area causes porous formations to collapse, resulting in subsidence. • Sinkholes form when an underground channel or cavern collapses. • Saltwater intrusion can occur along coastlines Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  32. Saltwater Intrusion Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

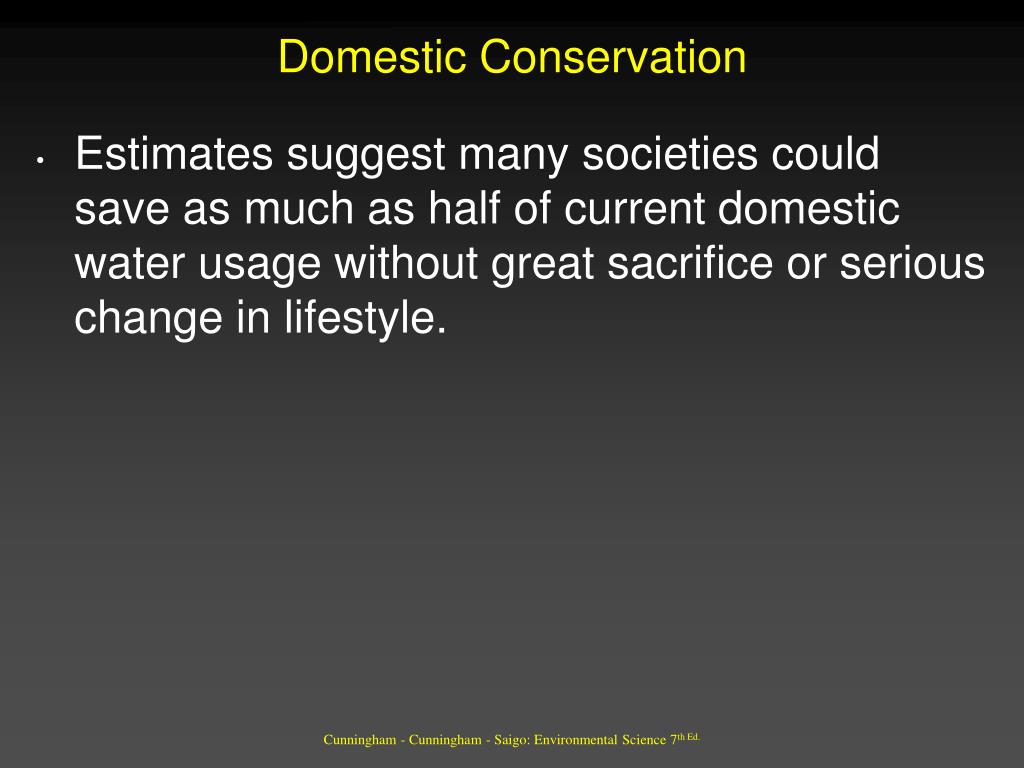

  33. Domestic Conservation • Estimates suggest many societies could save as much as half of current domestic water usage without great sacrifice or serious change in lifestyle. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  34. Typical US Household Water Use Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

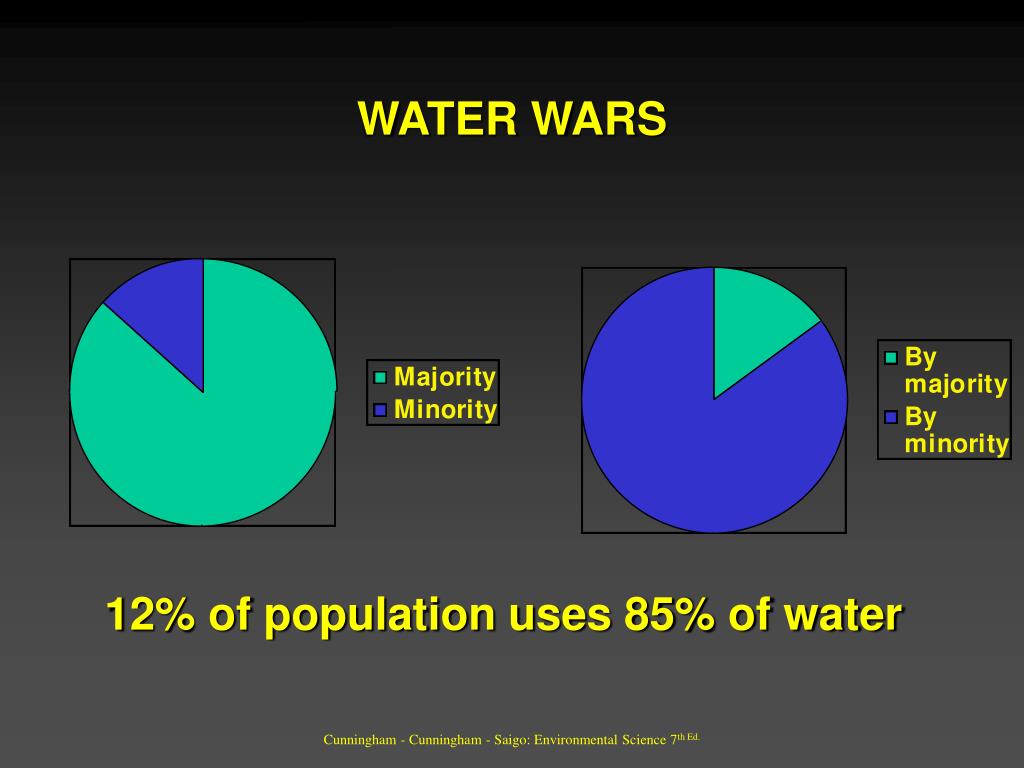

  35. WATER WARS 12% of population uses 85% of water Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  36. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  37. Price Mechanisms • Charging a higher proportion of real costs to users of public water projects has helped encourage conservation. • Yet discriminates against poor. Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

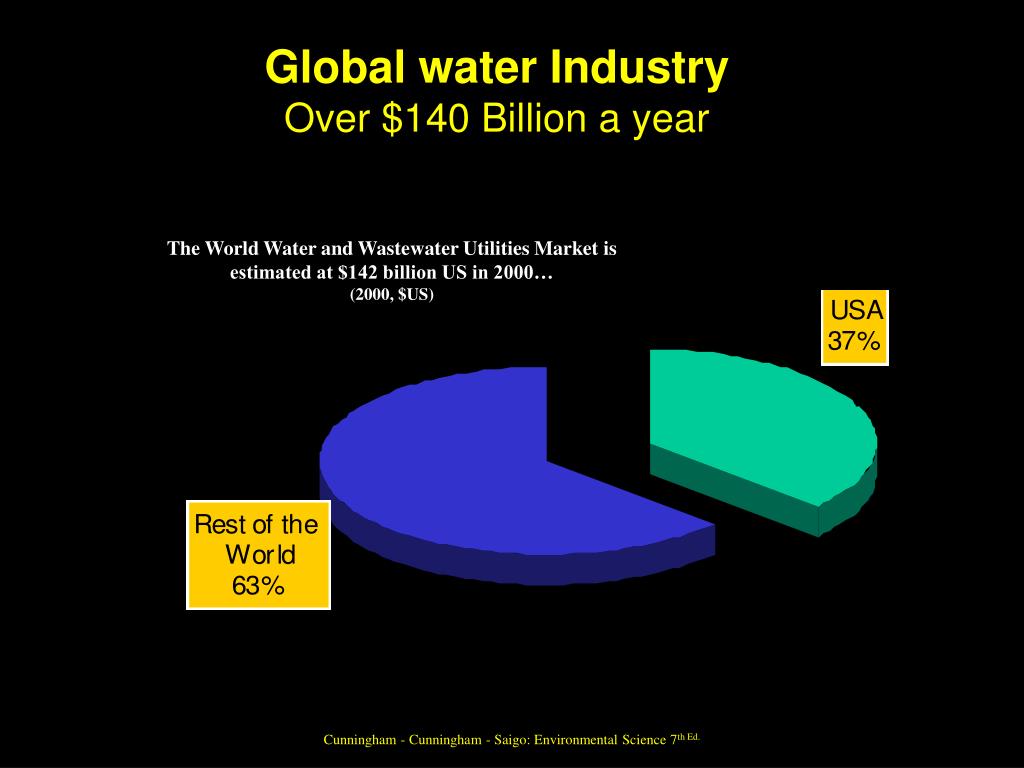

  38. Global water Industry Over $140 Billion a year The World Water and Wastewater Utilities Market is estimated at $142 billion US in 2000… (2000, $US) Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

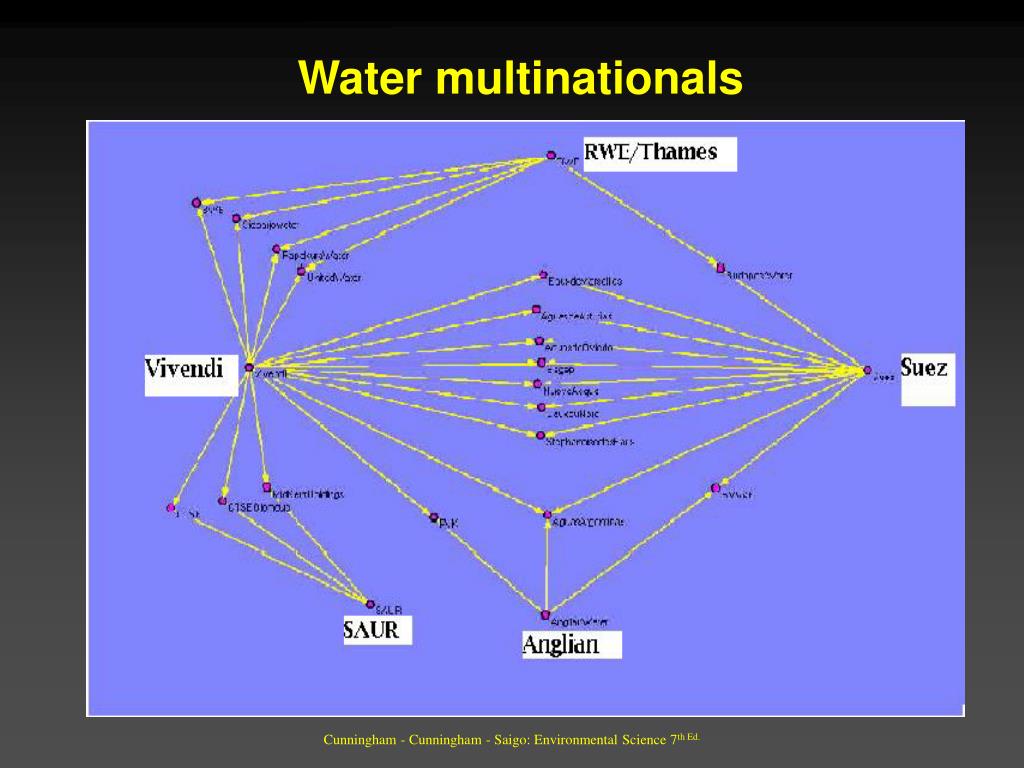

  39. Water multinationals Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  40. Public/private water in EU countries Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  41. Public and private prices in France Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  42. “Water War” in Bolivia Cochabamba residents protesting Bechtel privatization of municipal water system, 1999 Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  43. Private and public: subsidies to and from water Private Public Subsidies from taxation Loss leaders Water services Financing other MNC operations Financing other public services Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  44. Alternative: Porto Alegre, Brazil • Autonomous department • Efficiency and public accountability • ‘Participatory budgeting’ • Decentralised democratic prioritising Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

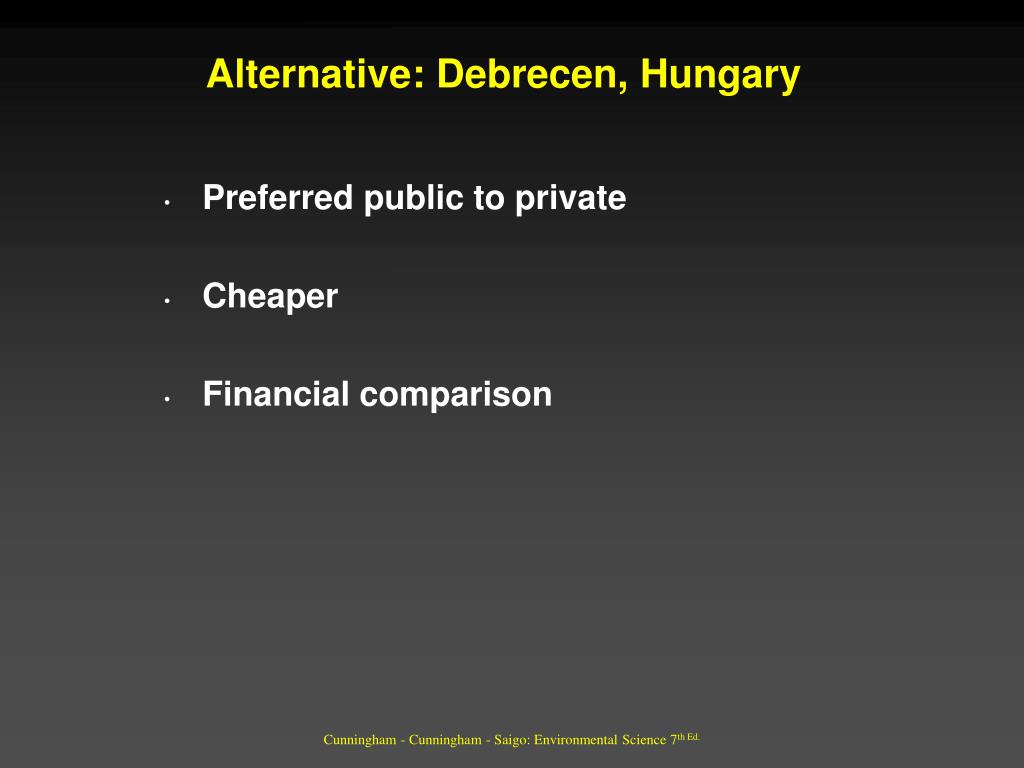

  45. Alternative: Debrecen, Hungary • Preferred public to private • Cheaper • Financial comparison Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  46. Safety of municipal water supplies Australia, 1998 (privatized system) Wisconsin, 1993 Ontario, 2000 (gov’t had dropped e-coli testing) Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

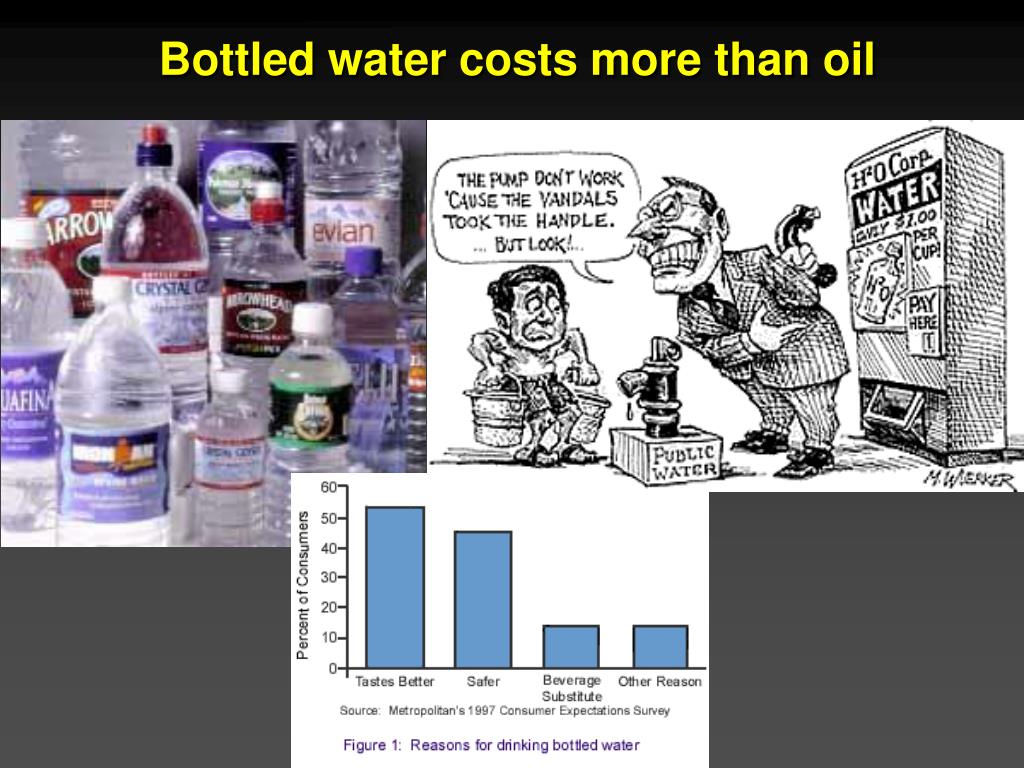

  47. Bottled water costs more than oil Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  48. Bottled water quality in question Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  49. Bottled water growth Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.

  50. Water Privatization Woodstock Riot 1999 Fewer bubblers in public buildings? Cunningham - Cunningham - Saigo: Environmental Science 7th Ed.
