Presentation Transcript

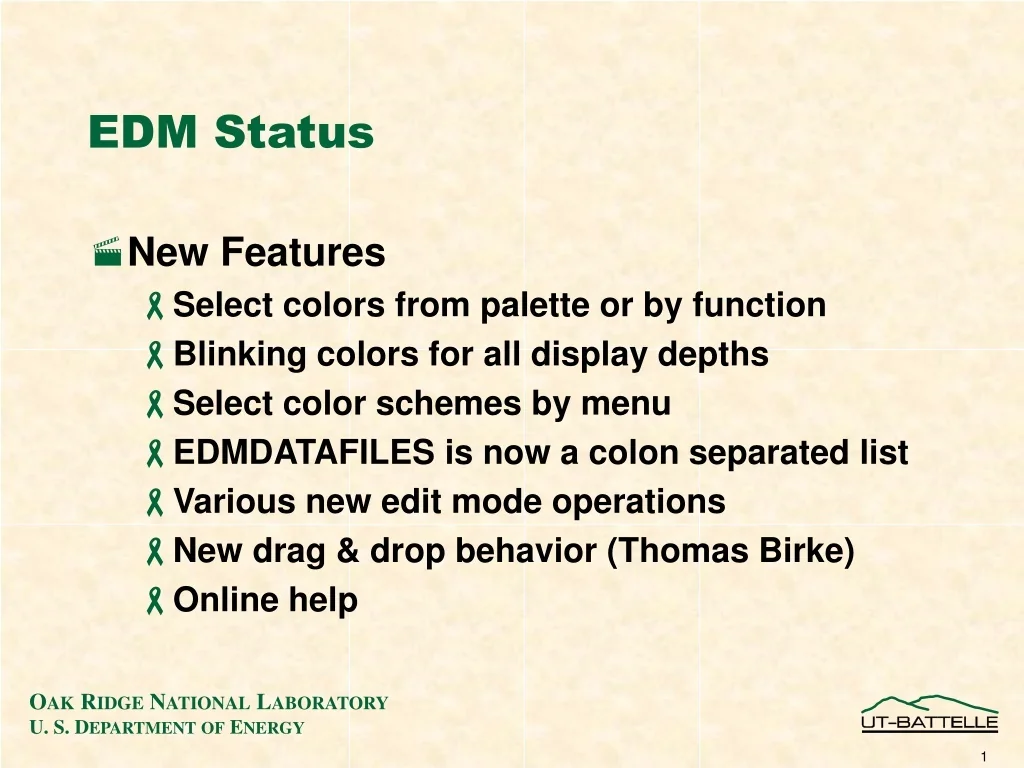

  1. EDM Status • New Features • Select colors from palette or by function • Blinking colors for all display depths • Select color schemes by menu • EDMDATAFILES is now a colon separated list • Various new edit mode operations • New drag & drop behavior (Thomas Birke) • Online help

  2. EDM Status • New widgets • text entry (Kay Kasemir) • text update (Kay Kasemir) • strip chart (Kay Kasemir) • text update with reg expr (Pam Gurd) • static text with reg expr (Pam Gurd) • Byte (Carl Lionberger) • X-Y Graph • Motif slider

  3. EDM Status • New widgets (cont) • Radio box • Up/down button

  4. Widgets

  5. Widgets

  6. X-Y Plot Widget

  7. Obtaining EDM • Anonymous ftp • snsftp.sns.ornl.gov/UPLOAD/OAK_RIDGE • file: edm-#-#-#.tgz • Required libraries/binaries • png support: libpng.so • gif support: libgif.so • printing support: xpmtoppm, pnmtops, etc.(Included with current linux distros; must be obtained and installed for Solaris)

  8. Future • Complete documentation • User • Widget developer • Runtime shutdown/restart • Modify all widgets to utilize pv factory • Implement remaining undo operations • New file format (xml?) • Enhance compatibility with medm

  9. Future • Implement local pv class • Relational DB widgets • New scheme for printing displays
