# Face recognition and detection using Principal Component Analysis PCA

Face recognition and detection using Principal Component Analysis PCA. KH Wong. Overview. PCA P rinciple C omponent A nalysis Application to face detection and recognition Reference: [Bebis ] Applications 1) Face detection 2) Face recognition. PCA Principle component analysis [1].

Télécharger la présentation

## Face recognition and detection using Principal Component Analysis PCA

E N D

### Presentation Transcript

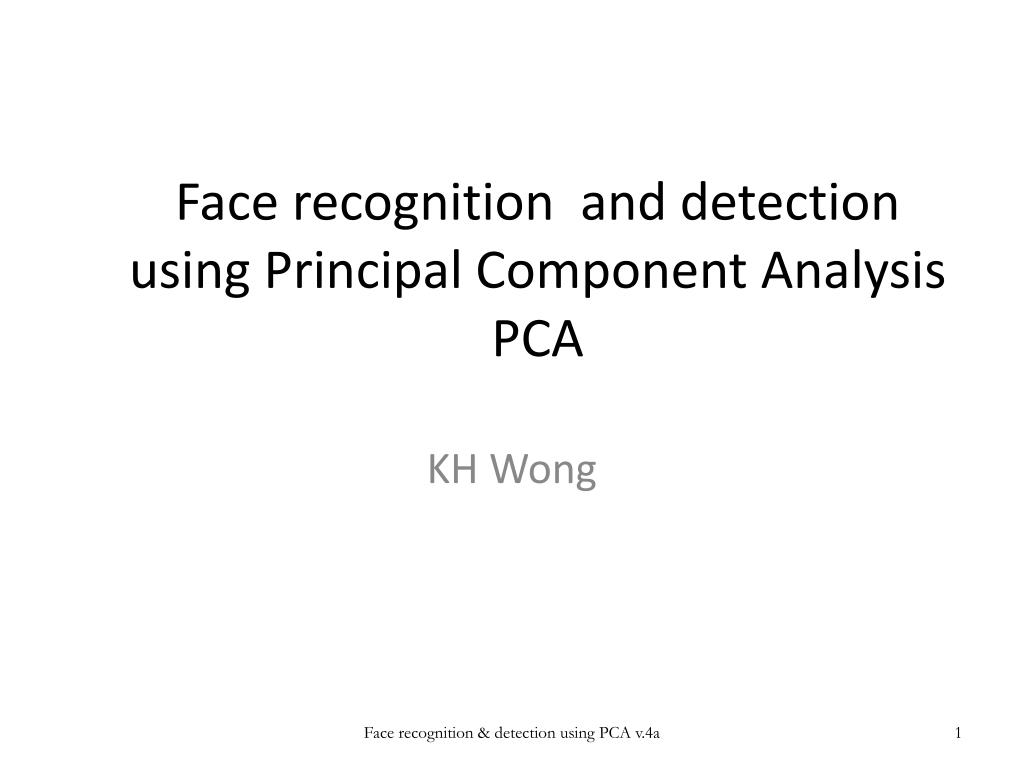

1. Face recognition and detection using Principal Component Analysis PCA KH Wong Face recognition & detection using PCA v.4a

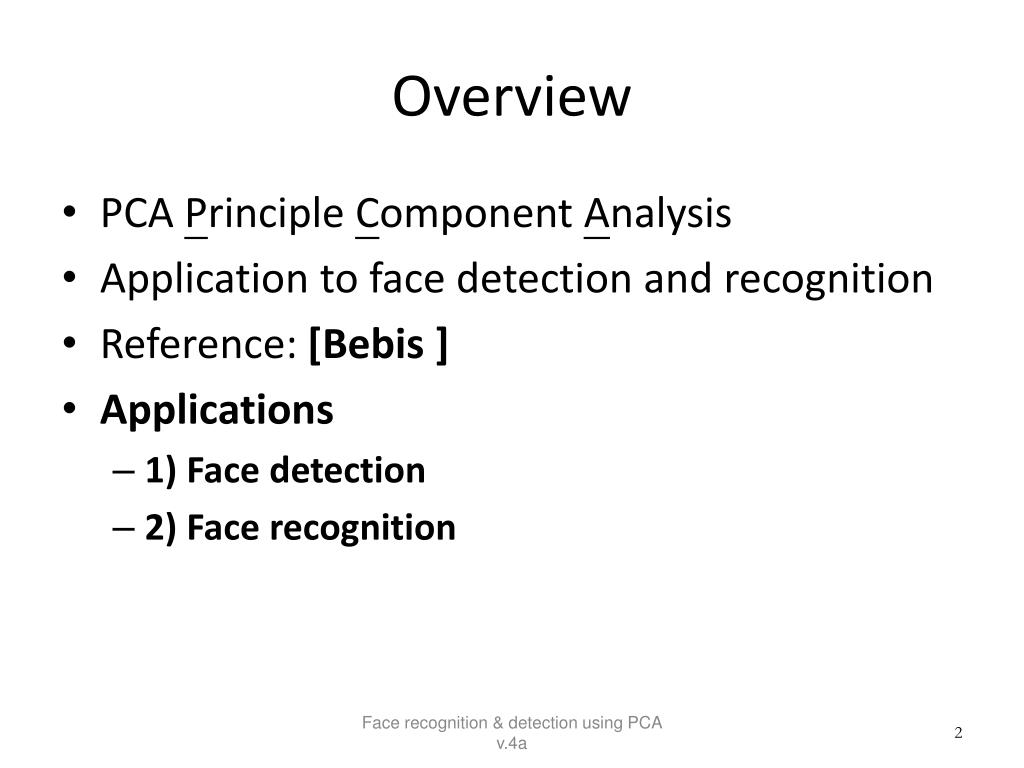

2. Overview • PCA Principle Component Analysis • Application to face detection and recognition • Reference: [Bebis ] • Applications • 1) Face detection • 2) Face recognition Face recognition & detection using PCA v.4a

3. PCA Principle component analysis [1] • A method of data compression • Use less data in “b” to represent ‘”a” but retain important information • E.g N=10, 10 dimensions reduced to K=5 dimensions. • The task is to identify the N important parameters. • So recognition is easier. A detailed Christmas tree: N parameters A rough Christmas tree with K important parameters, where N>K. Face recognition & detection using PCA v.4a

4. Data reduction N dataK data (N>K), how? k N N k Face recognition & detection using PCA v.4a

5. Dimensionality basis Face recognition & detection using PCA v.4a

6. Condition for data reduction:data must not be random Data reduction (Compression) is difficult for random data Compression is easy for non-random data u1 x2 x2 x1 x1 Data are spread all over the 2D space, so redundancy of using 2 axes (x1,x2) is low Data are spread along one line , so redundancy of using 2 axes is high. Can consider to use one axis (U1) along the spread of data to represent it. Although some error may be introduced. Face recognition & detection using PCA v.4a

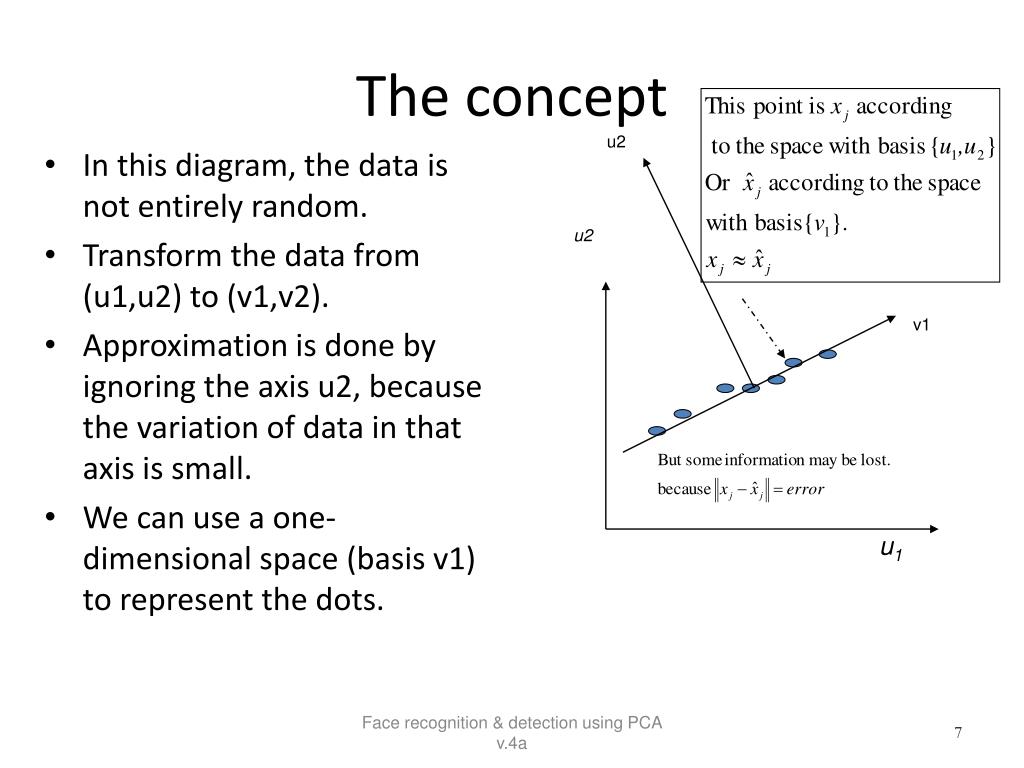

7. u2 v1 u1 The concept u2 • In this diagram, the data is not entirely random. • Transform the data from (u1,u2) to (v1,v2). • Approximation is done by ignoring the axis u2, because the variation of data in that axis is small. • We can use a one-dimensional space (basis v1) to represent the dots. Face recognition & detection using PCA v.4a

8. u2 v1 u1 How to compress data? • The method is to find a transformation (T) of data from (u1,u2) space to (v1,v2) space and remove the v2 coordinate. • The whole method is called Principal Component Analysis PCA. • This transformation (T) depends on the data and is called Eigen vectors. u2 Face recognition & detection using PCA v.4a

9. u1 PCA will enable information lost to be minimized • Use Covariance matrix method to find relation between axes (u1,u2). • Use Eigen value method to find the new axes. u2 Face recognition & detection using PCA v.4a

10. PCA Algorithm: Tutorial in [smith 2002]Proof is in Appendix by [Shlens 2005] • Step1: • get data • Step2: • subtract the mean • Step 3: • Find Covariance matrix C • Step 4: • find Eigen vectors and Eigen values of C • Step5: • Choosing the large feature components (the main axis). Face recognition & detection using PCA v.4a

11. Some math background • Mean • Variance/ standard deviation • Covariance • Covariance matrix Face recognition & detection using PCA v.4a

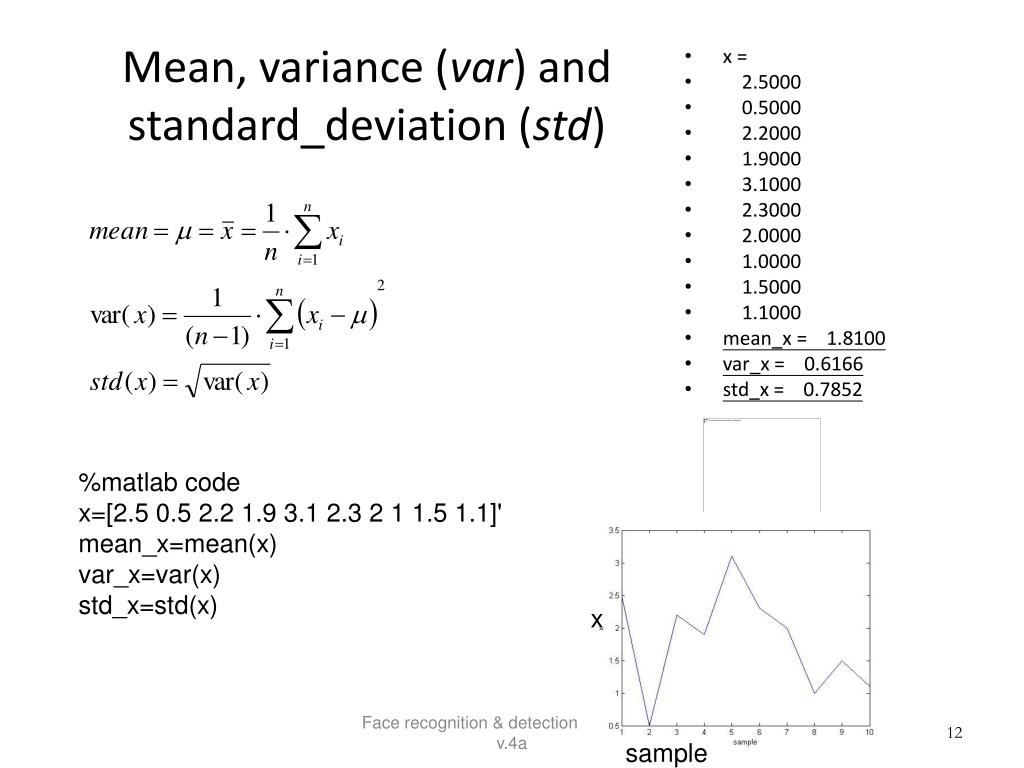

12. Mean, variance (var) and standard_deviation (std) • x = • 2.5000 • 0.5000 • 2.2000 • 1.9000 • 3.1000 • 2.3000 • 2.0000 • 1.0000 • 1.5000 • 1.1000 • mean_x = 1.8100 • var_x = 0.6166 • std_x = 0.7852 %matlab code x=[2.5 0.5 2.2 1.9 3.1 2.3 2 1 1.5 1.1]' mean_x=mean(x) var_x=var(x) std_x=std(x) x Face recognition & detection using PCA v.4a sample

13. N or N-1 as denominator??seehttp://stackoverflow.com/questions/3256798/why-does-matlab-native-function-cov-covariance-matrix-computation-use-a-differe • “n-1 is the correct denominator to use in computation of variance. It is what's known as Bessel's correction” (http://en.wikipedia.org/wiki/Bessel%27s_correction) Simply put, 1/(n-1) produces a more accurate expected estimate of the variance than 1/n Face recognition & detection using PCA v.4a

14. Class exercise 1 By computer (Matlab) By and x=[1 3 5 10 12]' mean= Variance= Standard deviation= • x=[1 3 5 10 12]' • mean(x) • var(x) • std(x) • Mean(x) • = 6.2000 • Variance(x)= 21.7000 • Stand deviation = 4.6583 Face recognition & detection using PCA v.4a

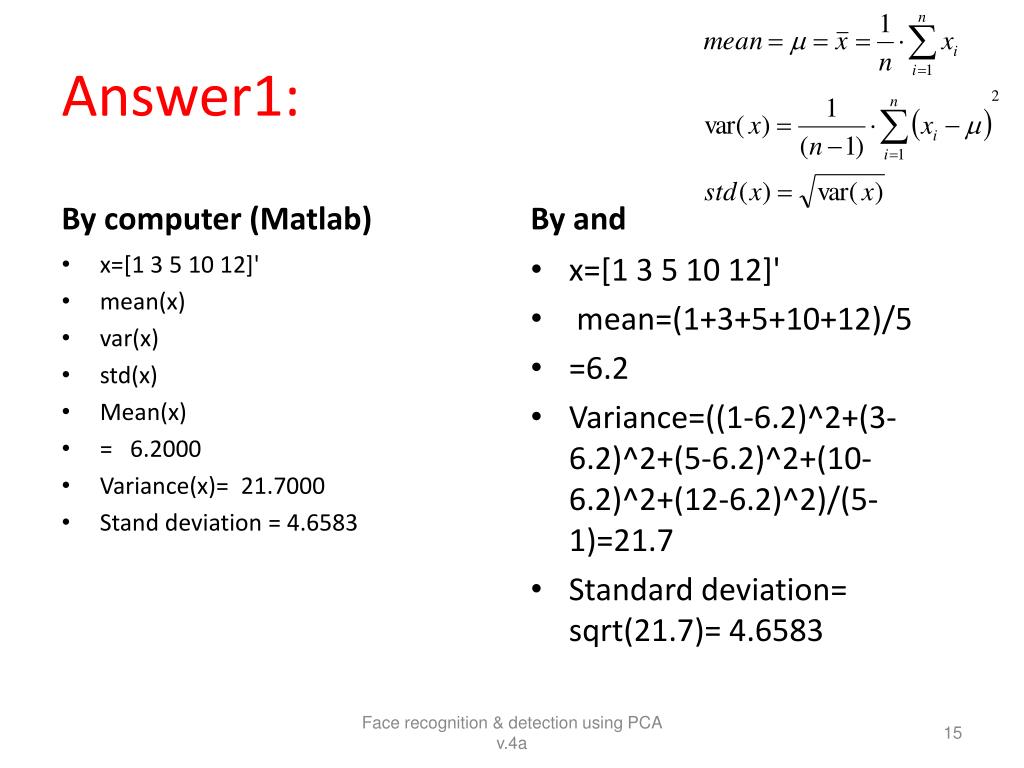

15. Answer1: By computer (Matlab) By and x=[1 3 5 10 12]' mean=(1+3+5+10+12)/5 =6.2 Variance=((1-6.2)^2+(3-6.2)^2+(5-6.2)^2+(10-6.2)^2+(12-6.2)^2)/(5-1)=21.7 Standard deviation= sqrt(21.7)= 4.6583 • x=[1 3 5 10 12]' • mean(x) • var(x) • std(x) • Mean(x) • = 6.2000 • Variance(x)= 21.7000 • Stand deviation = 4.6583 Face recognition & detection using PCA v.4a

16. Covariance [see wolfram mathworld] • “Covariance is a measure of the extent to which corresponding elements from two sets of ordered data move in the samedirection.” • http://stattrek.com/matrix-algebra/variance.aspx Face recognition & detection using PCA v.4a

17. Covariance (Variance-Covariance) matrix”Variance-Covariance Matrix: Variance and covariance are often displayed together in a variance-covariance matrix. The variances appear along the diagonal and covariancesappear in the off-diagonal elements”,http://stattrek.com/matrix-algebra/variance.aspx c=1 c=2 c=C Xc N Face recognition & detection using PCA v.4a

18. From Matlab >help cov Consider A = [-1 1 2 ; -2 3 1 ; 4 0 3 ; 1 2 0] To obtain a vector of variances for each column of A: v = diag(cov(A))' v = 7.0000 1.6667 1.6667 Compare vector v with covariance C=cov(A); C=[7.0000 -2.6667 1.6667 -2.6667 1.6667 -1.3333 1.6667 -1.3333 1.6667] Ie. Take the first column of A a=[-1,-2,4,1]’ a2=a-mean(a) a2=[-1,-2,4,1]’-0.5=[-1.5000,-2.5000, 3.5000, 0.5000]’ Cov([-1,-2,4,1]’)=7 Cov(a)=7 a2’*a2/(N-1)= [-1.5000,-2.5000,3.5000,0.5000]* [-1.5000,-2.5000,3.5000,0.5000]’/(4-1) =7 Diagonals are variances of the columns Covariance of first and second column >> cov([-1,-2,4,1]',[1,3,0,2]')= 7.0000 -2.6667 -2.6667 1.6667 Also >> cov([1,3,0,2]',[2,1,3,0]') = 1.6667 -1.3333 -1.3333 1.6667 Covariance matrix example1A is 4x3 math v4c

19. From Matlab >help cov Consider A = [-1 1 2 ; -2 3 1 ; 4 0 3]. To obtain a vector of variances for each column of A: v = diag(cov(A))' v = 10.3333 2.3333 1.0000 Compare vector v with covariance matrix C: C = 10.3333 -4.1667 3.0000 -4.1667 2.3333 -1.5000 3.0000 -1.5000 1.0000 Ie. Take the first column of A a=[-1,-2,4]’ a2=a-mean(a) a2=[-1,-2,4]’-0.333=[-1.3333 -2.3333 3.6667]’ Cov([-1,-2,4]’)= Cov(a)= a2’*a2/(N-1)= [-1.3333 -2.3333 3.6667]’ *[-1.3333 -2.3333 3.6667]/(3-1) =10.333 Diagonals are variances of the columns Covariance of first and second column >> cov([-1 -2 4]',[1 3 0]')= 10.3333 -4.1667 -4.1667 2.3333 Also >> cov([1 3 0]',[2 1 3]') = 2.3333 -1.5000 -1.5000 1.0000 Covariance matrix example2A is 3x3 Face recognition & detection using PCA v.4a

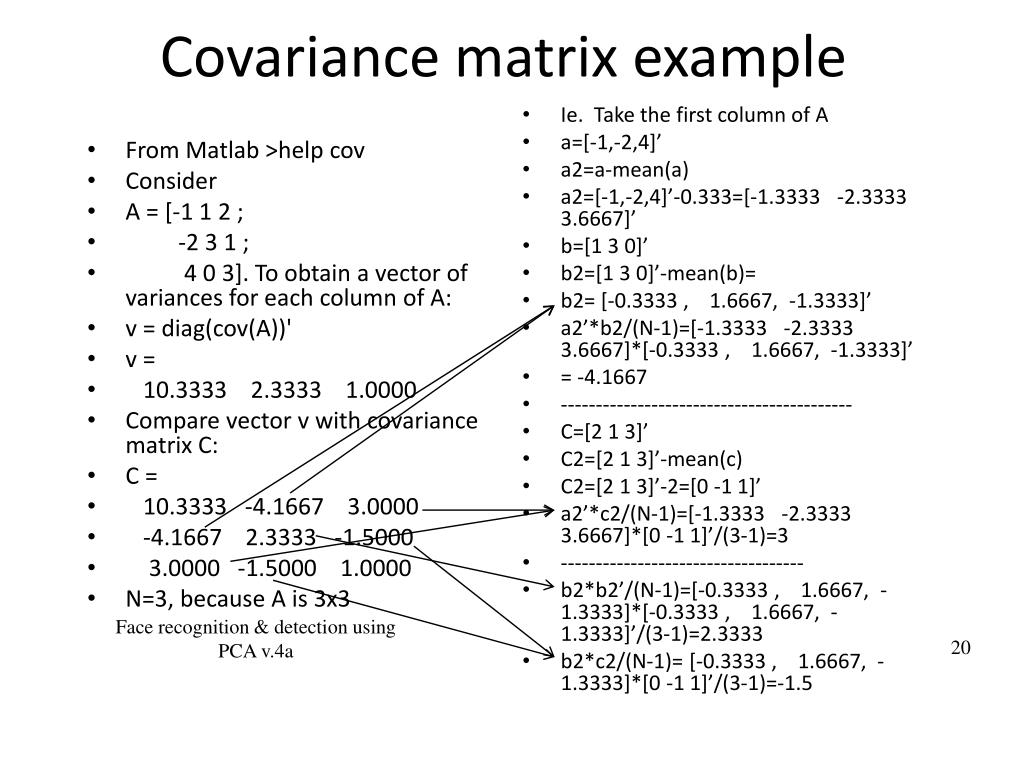

20. From Matlab >help cov Consider A = [-1 1 2 ; -2 3 1 ; 4 0 3]. To obtain a vector of variances for each column of A: v = diag(cov(A))' v = 10.3333 2.3333 1.0000 Compare vector v with covariance matrix C: C = 10.3333 -4.1667 3.0000 -4.1667 2.3333 -1.5000 3.0000 -1.5000 1.0000 N=3, because A is 3x3 Ie. Take the first column of A a=[-1,-2,4]’ a2=a-mean(a) a2=[-1,-2,4]’-0.333=[-1.3333 -2.3333 3.6667]’ b=[1 3 0]’ b2=[1 3 0]’-mean(b)= b2= [-0.3333 , 1.6667, -1.3333]’ a2’*b2/(N-1)=[-1.3333 -2.3333 3.6667]*[-0.3333 , 1.6667, -1.3333]’ = -4.1667 ------------------------------------------ C=[2 1 3]’ C2=[2 1 3]’-mean(c) C2=[2 1 3]’-2=[0 -1 1]’ a2’*c2/(N-1)=[-1.3333 -2.3333 3.6667]*[0 -1 1]’/(3-1)=3 ----------------------------------- b2*b2’/(N-1)=[-0.3333 , 1.6667, -1.3333]*[-0.3333 , 1.6667, -1.3333]’/(3-1)=2.3333 b2*c2/(N-1)= [-0.3333 , 1.6667, -1.3333]*[0 -1 1]’/(3-1)=-1.5 Covariance matrix example Face recognition & detection using PCA v.4a

21. Eigen vector of a square matrix Because A is rank2 and is 2x2 cov_x * X=  X, so cov_x has 2 eigen values and 2 vectors In Matlab [eigvec,eigval] =eign(cov_x) Square matrix eigvect of cov_x = [-0.7352 0.6779] [ 0.6779 0.7352] eigval of cov_x = [0.0492 0] [ 0 1.2840 ] covariance_matrix of X = cov_x= [0.6166 0.6154] [0.6154 0.7166] So eigen value 1= 0.49, its eigen vector is [-0.7352 0.6779] eigen value 2= 1.2840, its eigen vector is [0.6779 0.7352] Face recognition & detection using PCA v.4a

22. To find eigen values Face recognition & detection using PCA v.4a

23. What is an Eigen vector? • AX=X (by definition) • A=[a b • c d] •  is the Eigen value and is a scalar. • X=[x1 • x2] • The direction of Eigen vectors of A will not be changed by transformation A. • If A is 2 by 2, there are 2 Eigen values and 2 vectors. Face recognition & detection using PCA v.4a

24. Find eigen vectors from eigen values1=0.0492, 2=1.2840, for 1 Face recognition & detection using PCA v.4a

25. Find eigen vectors from eigen values1=0.0492, 2=1.2840, for 2 Face recognition & detection using PCA v.4a

26. Cov numerical example (pca_test1.m, in appendix) x2 x’1 Step1: Original data = Xo=[ xo1 xo2]= [2.5000 2.4000 0.5000 0.7000 2.2000 2.9000 1.9000 2.2000 3.1000 3.0000 2.3000 2.7000 2.0000 1.6000 1.0000 1.1000 1.5000 1.6000 1.1000 0.9000] Mean 1.81 1.91(Not 0,0) x’2 Step2: • X_data_adj = • X=Xo-mean(Xo)= • =[x1 x2]= • [0.6900 0.4900 • -1.3100 -1.2100 • 0.3900 0.9900 • 0.0900 0.2900 • 1.2900 1.0900 • 0.4900 0.7900 • 0.1900 -0.3100 • -0.8100 -0.8100 • -0.3100 -0.3100 • -0.7100 -1.0100] • Mean is (0,0) x1 Data is biased in this 2D space (not random) so PCA for data reduction will work. We will show X can be approximated in a 1-D space with small data lost. Eigen vector with small eigen value Eigen vector with Large eigen value Step4: eigvects of cov_x = -0.7352 0.6779 0.6779 0.7352 eigval of cov_x = 0.0492 0 0 1.2840 Step3: Covariance_matrix of X = cov_x= 0.6166 0.6154 0.6154 0.7166 Small eigen value Large eigen value Face recognition & detection using PCA v.4a

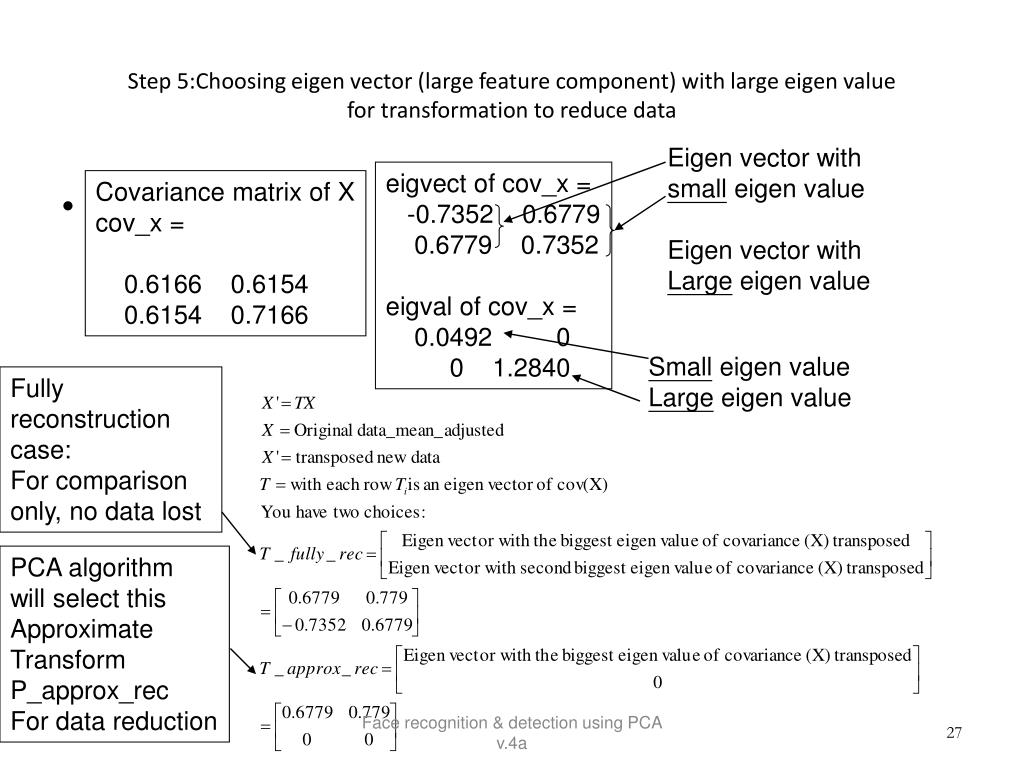

27. Step 5:Choosing eigen vector (large feature component) with large eigen valuefor transformation to reduce data Eigen vector with small eigen value Eigen vector with Large eigen value eigvect of cov_x = -0.7352 0.6779 0.6779 0.7352 eigval of cov_x = 0.0492 0 0 1.2840 Covariance matrix of X cov_x = 0.6166 0.6154 0.6154 0.7166 Small eigen value Large eigen value Fully reconstruction case: For comparison only, no data lost PCA algorithm will select this Approximate Transform P_approx_rec For data reduction Face recognition & detection using PCA v.4a

28. X’_Fully_reconstructed • (use 2 eignen vectors) • X’_full=P_fully_rec_X • (two columns are filled)= • 0.8280 -0.1751 • -1.7776 0.1429 • 0.9922 0.3844 • 0.2742 0.1304 • 1.6758 -0.2095 • 0.9129 0.1753 • -0.0991 -0.3498 • -1.1446 0.0464 • -0.4380 0.0178 • -1.2238 -0.1627 • {No data lost, for comparaison only} • X’_Approximate_reconstructed • (use 1 eignen vector) • X’_approx=P_approx_rec_X (the second column is 0) = • 0.8280 0 • -1.7776 0 • 0.9922 0 • 0.2742 0 • 1.6758 0 • 0.9129 0 • -0.0991 0 • -1.1446 0 • -0.4380 0 • -1.2238 0 • {data reduction 2D  1 D, data lost exist} Face recognition & detection using PCA v.4a

29. Squares= Transformed values X=T_approx*X’ x’1 x’2 0.8280 0 -1.7776 0 0.9922 0 0.2742 0 1.6758 0 0.9129 0 -0.0991 0 -1.1446 0 -0.4380 0 -1.2238 0 What is the meaning of reconstruction? ‘+’=Transformed values X=T_approx*X’ x’1 x’2 0.8280 -0.1751 -1.7776 0.1429 0.9922 0.3844 0.2742 0.1304 1.6758 -0.2095 0.9129 0.1753 -0.0991 -0.3498 -1.1446 0.0464 -0.4380 0.0178 -1.2238 -0.1627 x’1 x2 X_data_adj = X=Xo-mean(Xo)= =[x1 x2]= [0.6900 0.4900 -1.3100 -1.2100 0.3900 0.9900 0.0900 0.2900 1.2900 1.0900 0.4900 0.7900 0.1900 -0.3100 -0.8100 -0.8100 -0.3100 -0.3100 -0.7100 -1.0100] Mean is (0,0) x’2 ‘o’ are original true values ‘o’ and + overlapped 100% x1 Face recognition & detection using PCA v.4a

30. ‘O’=Original data ‘’=Recovered using one eigen vector that has the biggest eigen value (principal component) Some lost of information ‘+’=Recovered using all Eigen vectors  Same as original , so no lost of information eigen vector with large eigen value (red) eigen vector with small eigen value (blue, too small to be seen) Face recognition & detection using PCA v.4a

31. Some other test results using pca_test1.m (see appendix)Left) When x,y change together, first Eigen vector is longer than the second one.Right) Similar to the left case, however, a slight difference at (x=5.0, y=7.8) make the second Eigen vector a little bigger x=rand(6,1); y=rand(6,1); • x=[1.0 3.0 5.0 7.0 9.0 10.0]’ • y=[1.1 3.2 5.8 6.8 9.3 10.3]' • x=[1.0 3.0 5.0 7.0 9.0 10.0]' • y=[1.1 3.2 7.8 6.8 9.3 10.3]' Correlated data , one Eigen vector is much larger than the second one (the second one is too small to be seen) Correlated data , with some noise: one Eigen vector is larger than the second one y y y Random data, Two Eigen vectors have similar lengths x x x Face recognition & detection using PCA v.4a

32. PCA algorithm Face recognition & detection using PCA v.4a

33. Continue Face recognition & detection using PCA v.4a

34. PCA • Space dimension N reduced to dimension K • Uiare normalized unit vectors Face recognition & detection using PCA v.4a

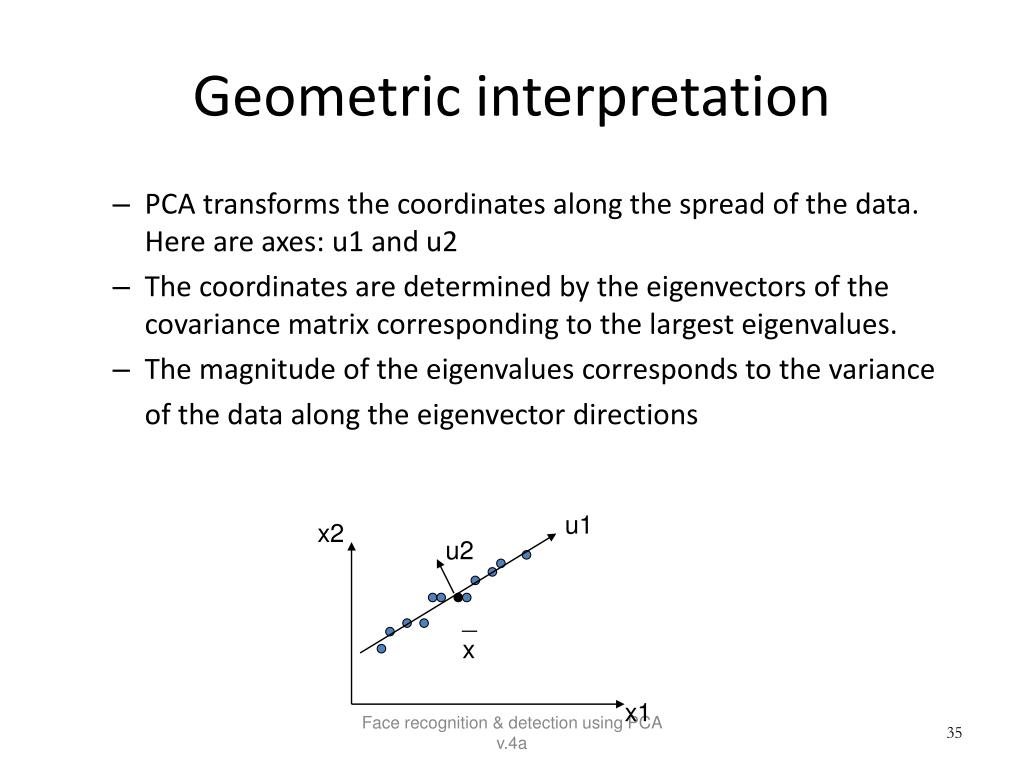

35. u1 x2 u2 _ x x1 Geometric interpretation • PCA transforms the coordinates along the spread of the data. Here are axes: u1 and u2 • The coordinates are determined by the eigenvectors of the covariance matrix corresponding to the largest eigenvalues. • The magnitude of the eigenvalues corresponds to the variance of the data along the eigenvector directions Face recognition & detection using PCA v.4a

36. Choose K • > Threshold 0.95 will preserve 95 % information • If K=N ,100% will be reserved (no data reduction) • Data standardization is needed Face recognition & detection using PCA v.4a

37. Application1 for face detection • Step1: obtain the training faces images I1,I2,…,IM (centered and same size) • Each image is represented by a vector  • Each image(a Nr x Nc matrix)  (N2x1) vector Nc=Ncolumn=92 (1,1) 92 92 Vector Nc x Nr=92x1192=10304 : Nr=Nrow=112 92 Face recognition & detection using PCA v.4a

38. A 2D array Nr X Nc =112x92=10304 pixels An input data Vector (i) is a vector of (Ntotal) x 1= 10304 x 1 elements Linearization example X=92 (1,1) 92 Pixel=I(x,y) Y=112 Ntotal = 112 x92 =10304 Pixels=I(x,y) Face recognition & detection using PCA v.4a

39. Collect many faces, for example M=300 • Each image is • Ntotal=Nr x Nc=112x92 • Linear each image becomes an input data vector i=Ntotalx1=10304 x 1 http://www.cedar.buffalo.edu/~govind/CSE666/fall2007/biometrics_face_detection.pdf Face recognition & detection using PCA v.4a

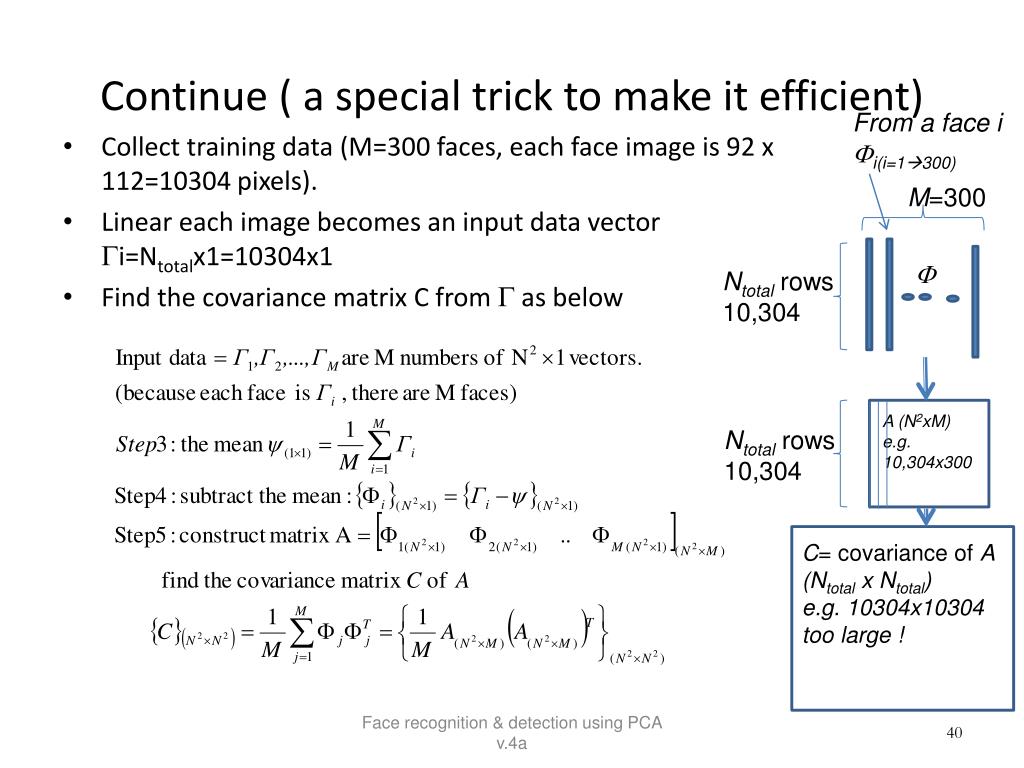

40. Continue ( a special trick to make it efficient) From a face i i(i=1300) M=300 • Collect training data (M=300 faces, each face image is 92 x 112=10304 pixels). • Linear each image becomes an input data vector i=Ntotalx1=10304x1 • Find the covariance matrix C from  as below  Ntotal rows 10,304 A A (N2xM) e.g. 10,304x300 Ntotal rows 10,304 A C= covariance of A (Ntotal x Ntotal) e.g. 10304x10304 too large ! Face recognition & detection using PCA v.4a

41. Continue: But: C (size of NtotalX Ntotal =10304 x 10304) is too large to be calculated , if Ntotal=Nr x Nc= 92 x 112 =10304 Face recognition & detection using PCA v.4a

42. Continue Face recognition & detection using PCA v.4a

43. Important results (e.g Ntotal=10304, M=300) • (AAT)size=10304x10304 have Ntotal=10304 eigen vectors and eigen values • (ATA) size=300x300have M=300 eigen vectors and eigen values • The M eigen values of (ATA) are the same as the M largest eigen values of (AAT) Face recognition & detection using PCA v.4a

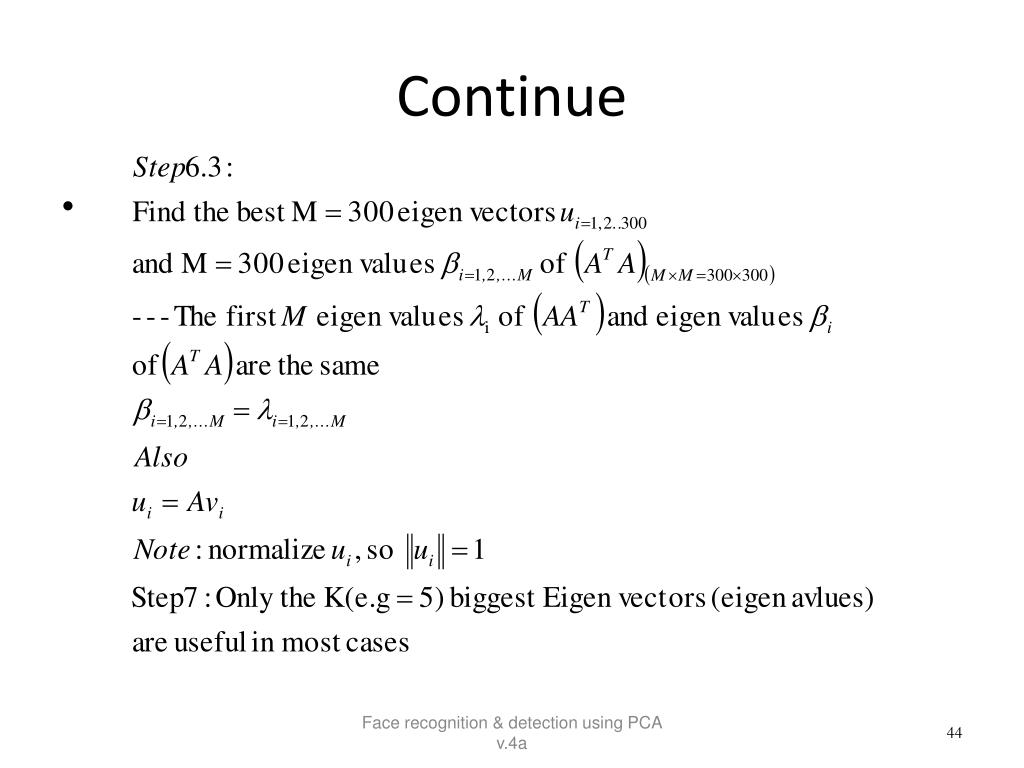

44. Continue Face recognition & detection using PCA v.4a

45. Steps for training • Training faces from 300 faces • Find largest Eigen vectors  ={u1,u2,..uk=5 } • For each ui (a vector of size 10304 x 1, re-shape back to an image 112 x92), convert back to image . (In MATLAB use the function reshape) Face recognition & detection using PCA v.4a

46. Eigen faces for face recognition • For each face, find the K (e.g. K=5) face images (called Eigen faces) corresponding to the first K Eigen vectors () with largest Eigen values • Use Eigen faces as parameters for face detection. http://onionesquereality.files.wordpress.com/2009/02/eigenfaces-reconstruction.jpg Face recognition & detection using PCA v.4a

47. Application 1: Face detection using PCA • Use a face database to form  as described in the last slide. • Scan the input picture with different scale and positions, pick up windows and rescale to some convenient size , e.g 112 x 92 pixels=W(i) • W(i)  Eigen face (biggest 5 Eigen vectors) representation ((i)). • If |((i) - )|<threshold it is a face Face recognition & detection using PCA v.4a

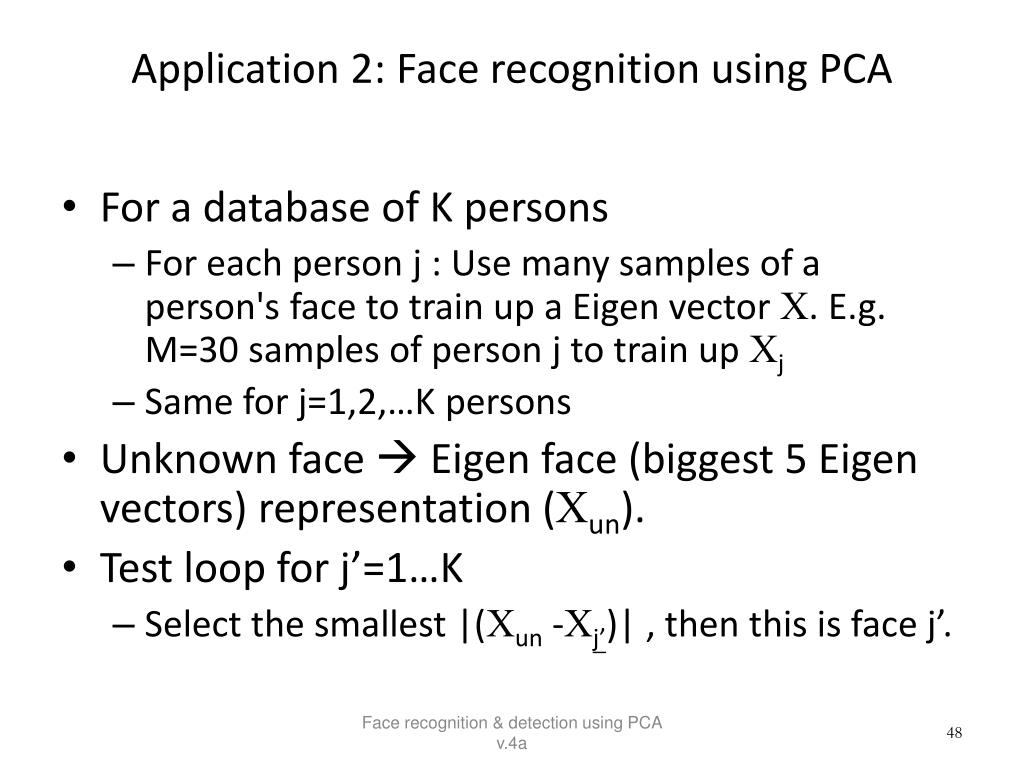

48. Application 2: Face recognition using PCA • For a database of K persons • For each person j : Use many samples of a person's face to train up a Eigen vector . E.g. M=30 samples of person j to train up j • Same for j=1,2,…K persons • Unknown face  Eigen face (biggest 5 Eigen vectors) representation (un). • Test loop for j’=1…K • Select the smallest |(un -j’)| , then this is face j’. Face recognition & detection using PCA v.4a

49. References • Matlab code • “Eigen Face Recognition” by Vinay kumar Reddy http://www.mathworks.com/matlabcentral/fileexchange/38268-eigen-face-recognition • Eigenface Tutorial • http://www.pages.drexel.edu/~sis26/Eigenface%20Tutorial.htm • Reading list • [Bebis]Face Recognition Using Eigenfaceswww.cse.unr.edu/~bebis/CS485/Lectures/Eigenfaces.ppt • [Turk 91] Turk and Pentland , “Face recognition using Principal component analysis” journal of Cognitive Neuroscience 391), pp71-86 1991. • [smith 2002] LI Smith , "A tutorial on Principal Components Analysis”, http://www.cs.otago.ac.nz/cosc453/student_tutorials/principal_components.pdf • [Shlens 2005] Jonathon Shlens , “ A tutorial on Principal Component Analysis”, http://www.cs.otago.ac.nz/cosc453/student_tutorials/principal_components.pdf • [AI Access] http://www.aiaccess.net/English/Glossaries/GlosMod/e_gm_covariance_matrix.htm • http://www.pages.drexel.edu/~sis26/Eigenface%20Tutorial.htm Face recognition & detection using PCA v.4a
