Charged Particles in Uniform Electric Fields

Charged Particles in Uniform Electric Fields. Forces and Fields 9. Consider the following:. + + + + + + + +. - - - - - - - -. 15.0 cm. +. +.

jasia
Télécharger la présentation

Charged Particles in Uniform Electric Fields

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Charged Particles in Uniform Electric Fields Forces and Fields 9

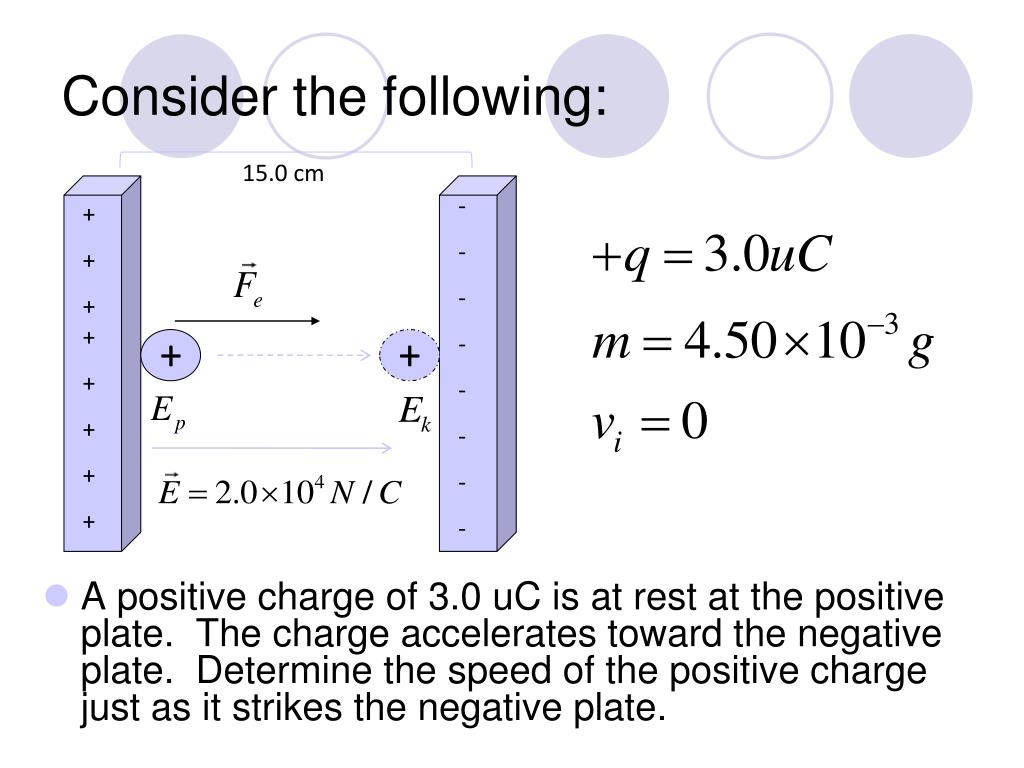

  2. Consider the following: + + ++ + + + + - - - - - - - - 15.0 cm + + A positive charge of 3.0 uC is at rest at the positive plate. The charge accelerates toward the negative plate. Determine the speed of the positive charge just as it strikes the negative plate.

  3. 1. Kinematics Solution

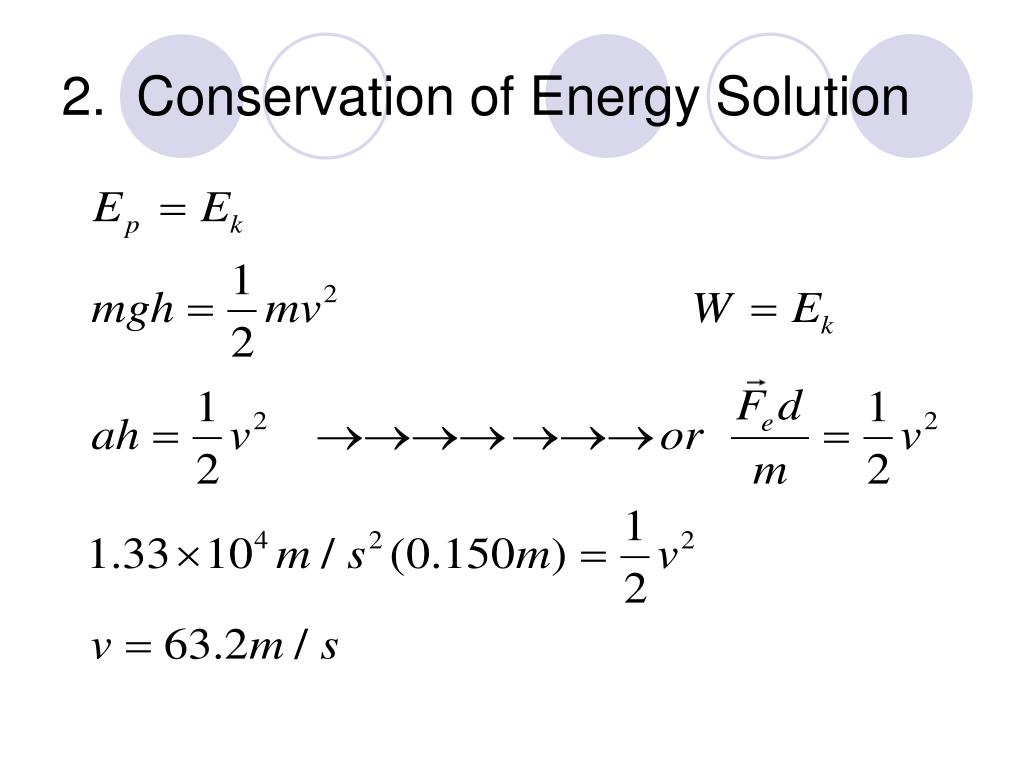

  4. 2. Conservation of Energy Solution

  5. The electric field between oppositely charged plates is uniform, except at the ends. + + ++ + + + + - - - - - - - - If a charge is placed between the oppositely charged plates, it will experience a constant force because the field is uniform.

  6. eg)A charge is projected horizontally into a uniform electric field as illustrated below. + + ++ + + + + - - - - - - - - v = 20.0 m/s + 10.0 cm q =+8.00 uC m = 50.0 mg The charge enters the electric field midway between the 2 plates. Determine the horizontal distance the charge will travel before striking the negative plate.

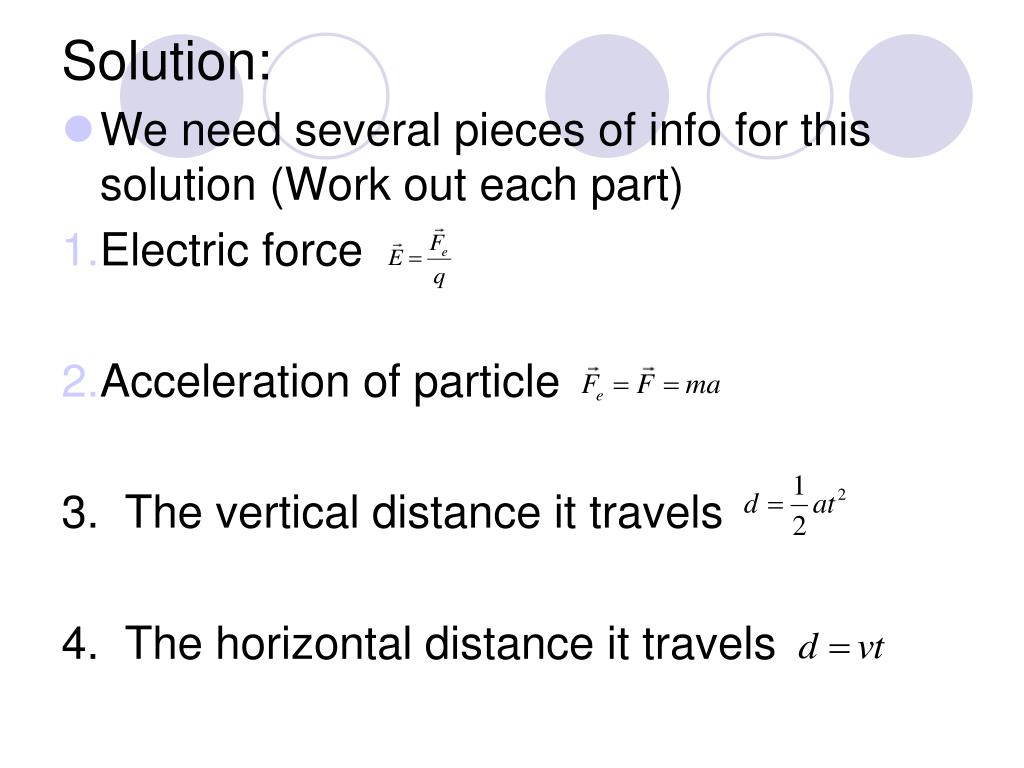

  7. Solution: We need several pieces of info for this solution (Work out each part) Electric force Acceleration of particle 3. The vertical distance it travels 4. The horizontal distance it travels

  8. Example 2: • A TV with a cathode ray tube (pre flat screen TV) accelerates electrons through a potential of 25 kV using oppositely charged parallel plates, 1.5 cm apart. • Find the electric field strength between the plates? • Find the maximum speed of the achieved by the electrons.

  9. Field

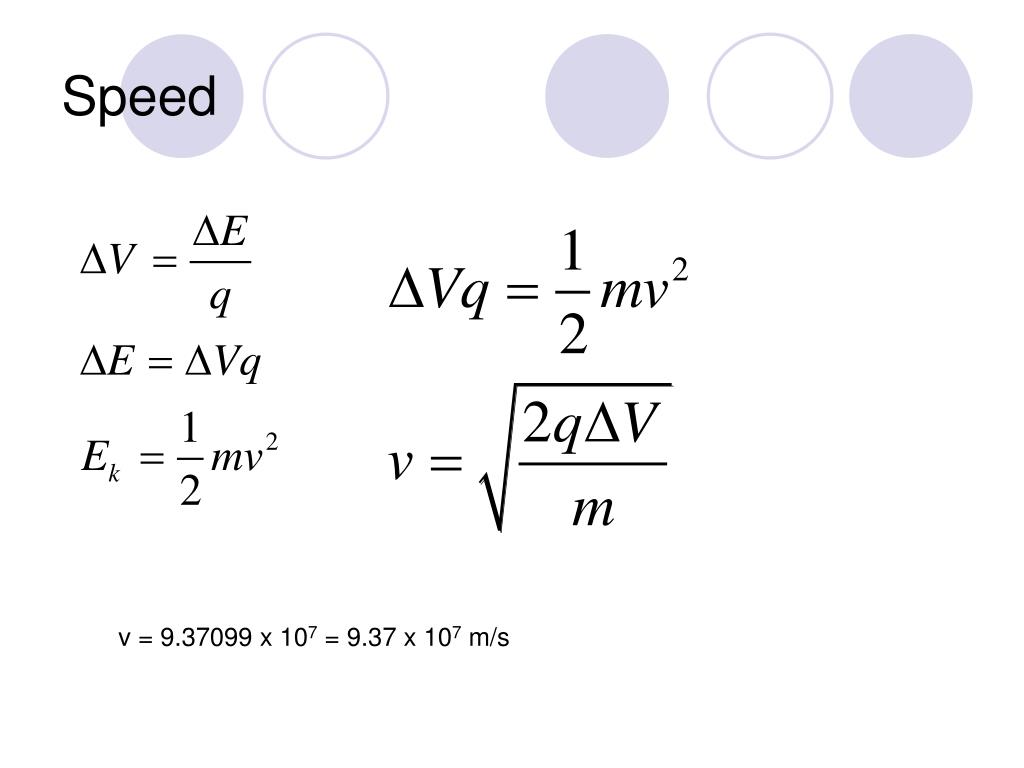

  10. Speed v = 9.37099 x 107 = 9.37 x 107 m/s

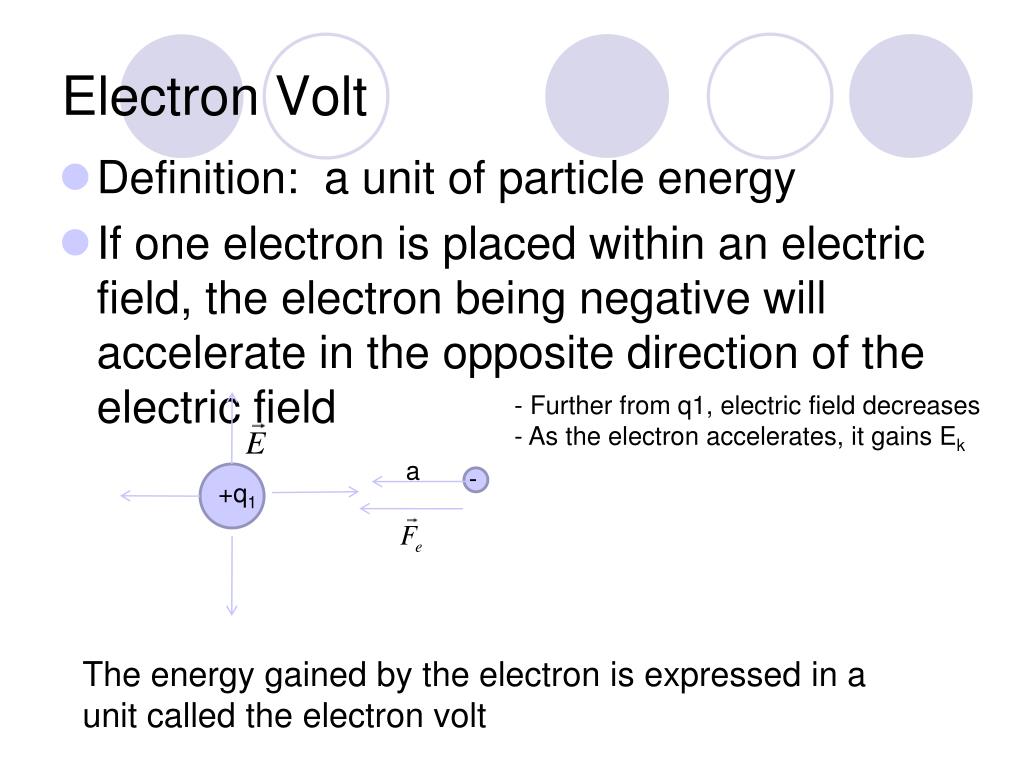

  11. Electron Volt - Further from q1, electric field decreases - As the electron accelerates, it gains Ek - a +q1 The energy gained by the electron is expressed in a unit called the electron volt Definition: a unit of particle energy If one electron is placed within an electric field, the electron being negative will accelerate in the opposite direction of the electric field

  12. Electron Volt (eV) – the energy gained by an electron when accelerated through a potential difference of 1.00 volts. + + ++ + + + + - - - - - - - - -

  13. eg) Determine the energy gained in electron volts when a proton accelerates through a potential difference of 120V. The charge on one electron = 1e The charge on one proton = 1e

  14. Quiz on Thursday 1.Coulomb’s Law 2. Electric Field Strength 3. Voltage 4. uniform electric plates 5. theory
