Audio Processing Unit (APU)

DESCRIPTION

The Audio Processing Unit (APU), developed by Clint Lozinsky, Richard Schultz, Duncan Campbell, and Grant Cunningham, utilizes an Xess XSA-100 and Xtend board combination to digitally process audio signals. It captures analog inputs, processes them, and outputs them for playback, featuring advanced capabilities like Fast Fourier Transform, real-time audio effects (e.g., Chorus, Flange, Echo, Phaser), and a user-friendly interface with push buttons and an LCD. The system can store up to 3 minutes of audio using SDRAM, offering a versatile design that allows for easy modification and customization of its features.

1 / 8

Télécharger la présentation

Audio Processing Unit (APU)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Audio Processing Unit (APU) Clint Lozinsky Richard Schultz Duncan Campbell Grant Cunningham

  2. Overview • Digital Audio Signal Processor • Developed using Xess XSA-100 and Xtend board combination. • Samples an analog input, processes and stores signal digitally, and outputs an audio signal suitable for playback.

  3. Features • Fast Fourier Transform • Recording and Playback • SDRAM and Codec Interfaces • Real-Time Audio Effects • Chorus, Flange, Echo, Phaser • User Interface • Push Buttons and LCD

  4. PushbuttonInputs User Interface Controller LCD Controller Effects Engine Stereo Codec Storage Unit SDRAM General Block Diagram

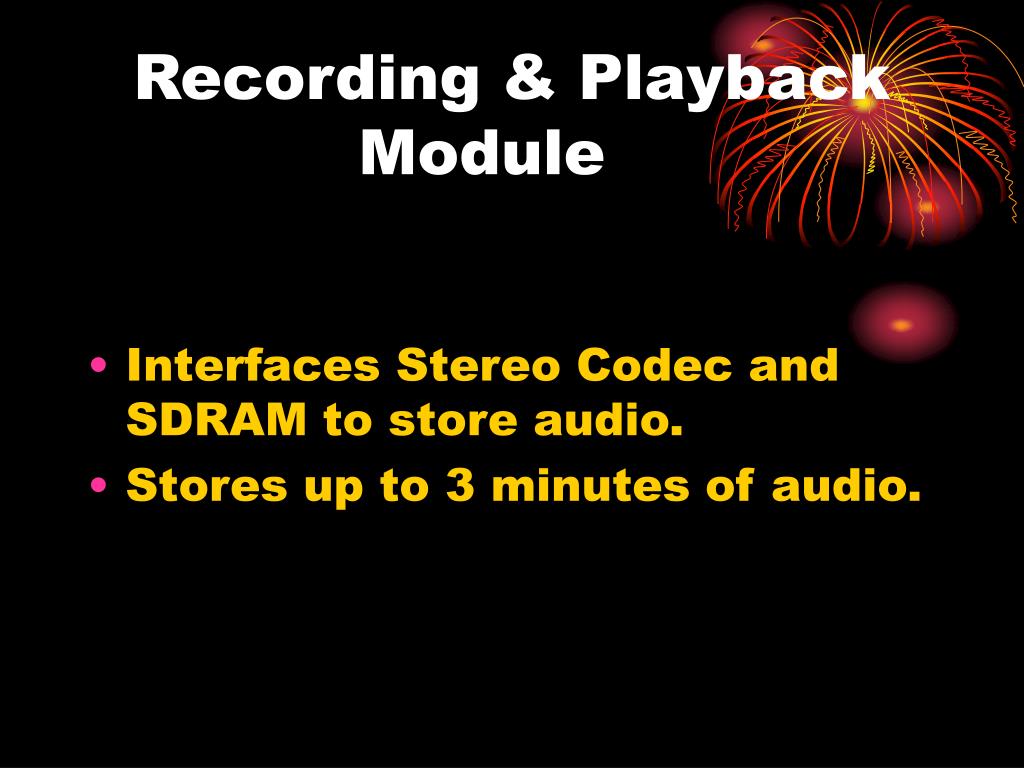

  5. Recording & Playback Module • Interfaces Stereo Codec and SDRAM to store audio. • Stores up to 3 minutes of audio.

  6. Effects Engine • Circular Buffer uses SDRAM. • Capable of Echo, Chorus, Flange, Phaser. • Versatile design allows for easy modification and customization.

  7. User Interface • Two push buttons to scroll and select states in a Finite State Machine. • Messages for LCD are stored in core generated ROM. • LCD driver initializes display and the LCD decoder pulls characters from ROM and sends to display.

  8. Fast Fourier Transform • Limited by size of the chip. • Designs using the Xilinx Core, and another with shift registers were unsuccessful. • Only feasible with the use of RAM. • Development yet to be finalized.
