Presentation Transcript

  1. PROGRAMS DEALER SHOWROOM INSERT BURNING DISPLAY STAND PROGRAM

  2. PROGRAMS • ONLINE TRAINING • FACTORY TRAINING

  3. PROGRAMS

  4. PRODUCTS REALLY, REALLY COOL PRODUCTS!

  5. READY TO SELL AND SHIP WOOD IGNITER SYSTEM

  6. READY TO SELL AND SHIP GREENSTART IGNITER TRAVIS INDUSTRIES IS CHANGING THE WOOD INDUSTRY AS WE KNOW IT BY ADDING START-UP CONVENIENCE TO WOOD BURNING APPLIANCES. With the push of a button your customers can easily start a wood burning unit without the use of paper or kindling, even with a cold, outside flue! No need to crack the door for added air during start-up or refueling. Woodstoves have always been an economical heat source, but now they will be SAFER & MORE CONVENIENT!

  7. READY TO SELL AND SHIP GREENSTART IGNITER Igniter kit will include one igniter, pump (bellows), controls, housing & brick Push the button once for start-up; • Pump starts @ 100% for 15 seconds LED light turns Green. • Pump voltage reduces to 65 volt and igniter starts at 16 seconds. • At 5 minutes pump voltage increases back to 100%. • At 10 minutes igniter & pump turn off.

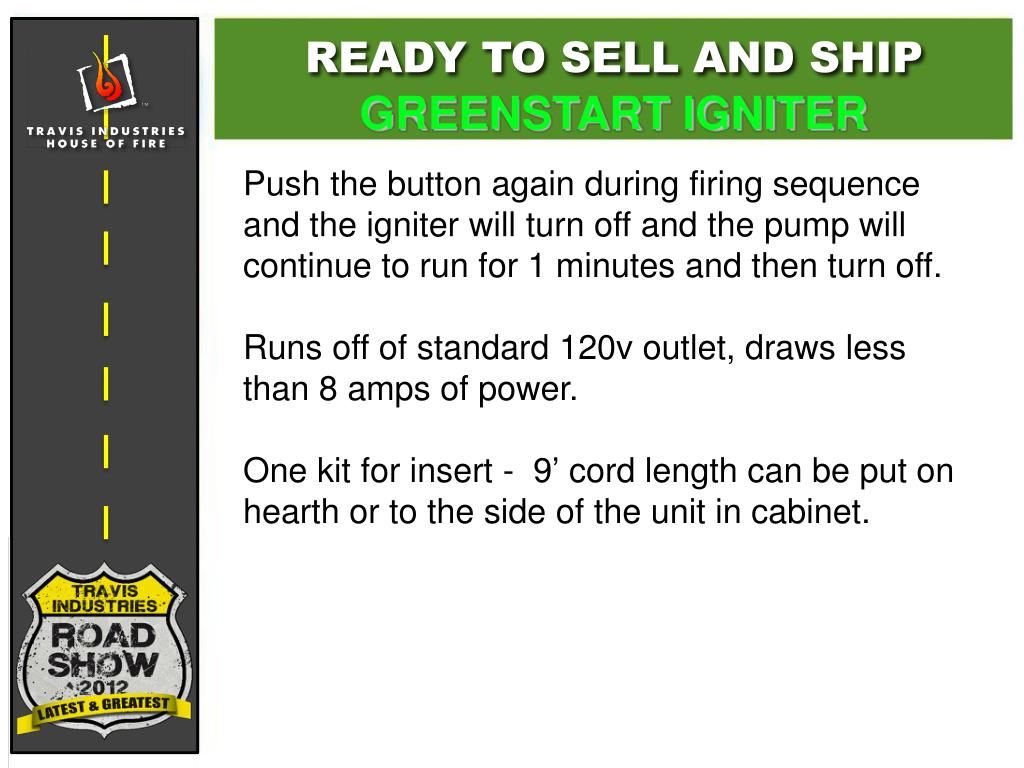

  8. READY TO SELL AND SHIP GREENSTART IGNITER Push the button again during firing sequence and the igniter will turn off and the pump will continue to run for 1 minutes and then turn off. Runs off of standard 120v outlet, draws less than 8 amps of power. One kit for insert - 9’ cord length can be put on hearth or to the side of the unit in cabinet.

  9. READY TO SELL AND SHIP GREENSTART IGNITER One kit for freestanding models for placement under the unit. The Rainier requires a separate brick (sku #94400019) Easy one button control with Green LED light indicator.

  10. READY TO SELL AND SHIP GREENSTART IGNITER One kit for freestanding models for placement SUPER QUIET PUMP MOTOR only runs during start-up, easy to light with Igniter super heats to 1400 degrees for quick, easy start-up; no paper, kindling or cracking of the door required. Easy to install option and easy to service. 15

  11. READY TO SELL AND SHIP GREENSTART IGNITER Click To Play Movie 16 16

  12. READY TO SELL AND SHIP GREENSTART IGNITER GREENSTART READY The Lopi Answer, Endeavor and Liberty stoves The Avalon Rainier and Olympic Stoves All Flush Wood Plus Inserts Large Flush Wood Hybrid-Fyre Insert (Rect) The Cape Cod Hybrid-Fyre wood stove available the Summer of 2012. 17

  13. AVAILABLE IN 2012 HYBRID-FYRE TECHNOLOGY This new BLENDED wood technology from Travis Industries will offer consumers the CLEANEST WOOD BURNING APPLIANCES IN THE WORLD! Travis Industries continues our commitment to protecting the environment. Whether the consumer is remodeling or building a new home they will be able to purchase a wide variety of models, looks and features starting in 2012.

  14. AVAILABLE IN 2012 HYBRID-FYRE TECHNOLOGY The Hybrid-Fyre units will be easy to use, maintain and service. Wood is carbon neutral, a renewable resource and still one of the cheapest heating options available for consumers.

  15. AVAILABLE IN 2012 HYBRID-FYRE TECHNOLOGY The new Travis Hybrid-Fyre will easily exceed current USA EPA requirements and should meet any proposed EPA standards on the horizon. Wood burning will remain a viable part of our future for heating homes andproviding an income for our dealers.

  16. AVAILABLE IN 2012 HYBRID-FYRE TECHNOLOGY The Hybrid-Fyre™ flattens the emission curve which means all four burn rates aresignificantly less than 1 gram per hour. In comparison, a typical non-catalytic emission curve starts dirty at low-burn, cleans up in mid-burn and emissions increase in the high-burn rate creating a U- shaped emission curb. A typical catalytic emission curve starts lower and increases as the burn rate gets higher.

  17. AVAILABLE IN 2012 HYBRID-FYRE TECHNOLOGY The Hybrid-Fyre™ also reduces the carbon monoxide level in all burn rates to less than 1/10th of a percent, therefore giving us combustion efficiency over 95% (using the B415 test method). Overall efficiency at all burn rates is in the high 80 percentiles. As an example the overall efficiency during medium-low burn is 89.6% (B 415)

  18. AVAILABLE IN 2012 HYBRID-FYRE TECHNOLOGY A full series of EPA tests confirmed a newbreak thru record as low as 0.45* grams per hour of emissions. These test were confirmed by the independent testing agency, Intertek . Virtually zero carbon monoxide released during burn cycle. 83,220 BTU’s – Large Flush Wood 86,688 BTU’s – Cape Cod Stove * Cape Cod Stove

  19. AVAILABLE IN 2012 HYBRID-FYRE TECHNOLOGY Combines the best of several technologies, for a new Revolutionary Blended Hybrid-Fyre featuring; • Beautiful show of fire. • Very clean glass even with large viewing areas and large firebox sizes. • Clean burn, virtually smoke free.

  20. AVAILABLE IN 2012 HYBRID-FYRE TECHNOLOGY • Hybrid-Fyre works in all sizes of fireboxes, will not limit customers’ aesthetic choices or heating needs. • Easy to use one draft control, by-pass for larger models. • Durable design, easy to service.

  21. AVAILABLE IN 2012-WOOD CAPE COD HYBRID-FYRE WOOD STOVE

  22. AVAILABLE IN 2012-WOOD CAPE COD HYBRID-FYRE WOOD STOVE

  23. AVAILABLE IN 2012-WOOD CAPE COD HYBRID-FYRE WOOD STOVE Specifications • 3.0 Cu. Ft. Firebox, 24 inch Log • 0.45 grams per hour, • 80.5% Overall Efficiency • Heating Capacity: Up to 2,500 Sq. Ft. • 86,688 BTU’s

  24. AVAILABLE IN 2012-WOOD CAPE COD HYBRID-FYRE WOOD STOVE What’s The Magic • Vesta Best of Show winner 2011, Salt Lake City • The world’s cleanest burning technology • GreenStart™ Push button ignition is an industry first • Patent-pending quick-start, refresh & draft enhancing system

  25. AVAILABLE IN 2012-WOOD CAPE COD HYBRID-FYRE WOOD STOVE What’s The Magic • Cast Iron design with convection chamber • Large ash pan with glide system • Bypass Damper standard • Clearances to combustible backwall – 11 3/4" • Super quite 400 CFM fan option • Large convection chamber • Charcoal paint or Oxford Brown enamel finish

  26. AVAILABLE IN 2012-WOOD CAPE COD HYBRID-FYRE WOOD STOVE

  27. AVAILABLE IN 2012-WOOD CAPE COD HYBRID-FYRE WOOD STOVE 21 ¾” 32 3/8” 18 3/8”

  28. AVAILABLE IN 2012-WOOD LARGE FLUSH HYBRID-FYRE WOOD INSERT

  29. AVAILABLE IN 2012-WOOD LARGE FLUSH HYBRID-FYRE WOOD INSERT

  30. AVAILABLE IN 2012-WOOD LARGE FLUSH HYBRID-FYRE WOOD INSERT

  31. AVAILABLE IN 2012-WOOD LARGE FLUSH HYBRID-FYRE WOOD INSERT Specifications • 3.0 Cu. Ft. Firebox, 24 inch Log • 0.56 grams per hour • 80.3% Overall Efficiency • Heating Capacity: Up to 2,500 Sq. Ft. • 83,220 Btu’s

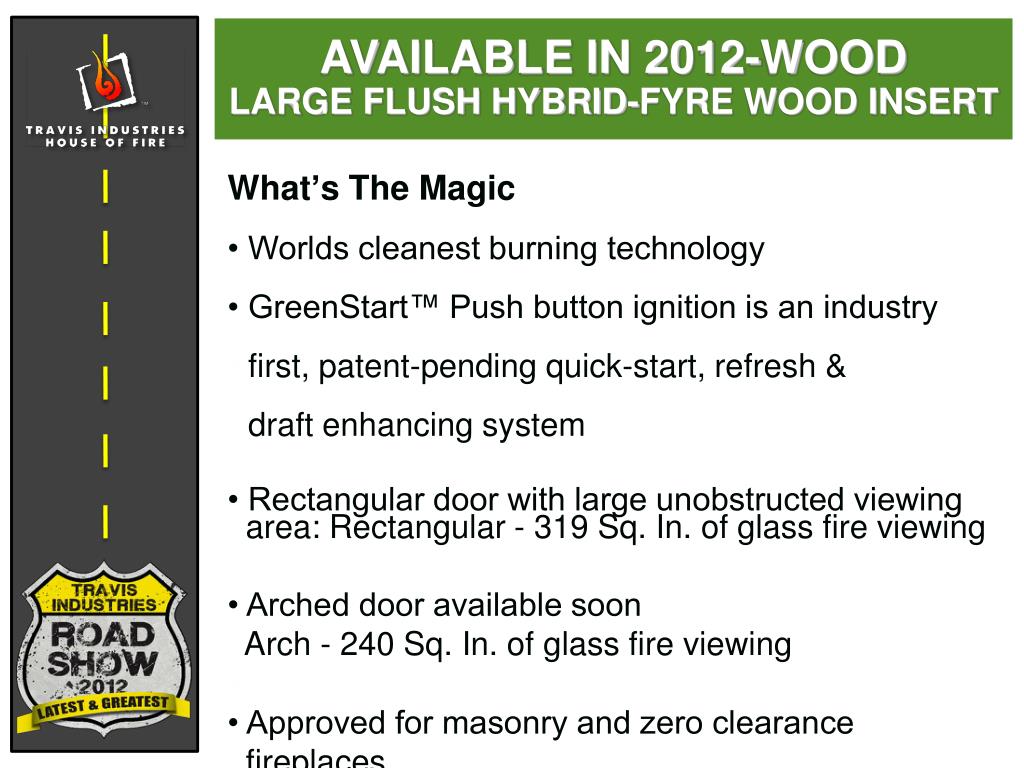

  32. AVAILABLE IN 2012-WOOD LARGE FLUSH HYBRID-FYRE WOOD INSERT What’s The Magic • Worlds cleanest burning technology • GreenStart™ Push button ignition is an industry • first, patent-pending quick-start, refresh & • draft enhancing system • Rectangular door with large unobstructed viewing area: Rectangular - 319 Sq. In. of glass fire viewing • Arched door available soon Arch - 240 Sq. In. of glass fire viewing • • Approved for masonry and zero clearance fireplaces

  33. AVAILABLE IN 2012-WOOD LARGE FLUSH HYBRID-FYRE WOOD INSERT What’s The Magic • True flush installation for clean fireplace • appearance • Concealed easily accessible twin 90 CFM fans • come standard • Seamless, one-piece panels available in one size. • 32.5“x 42”(rectangular unit)

  34. AVAILABLE IN 2012-WOOD LARGE FLUSH HYBRID-FYRE WOOD INSERT Shadowbox Face Rect. Bevel Face Universal Face Cypress Face with Accent Lights

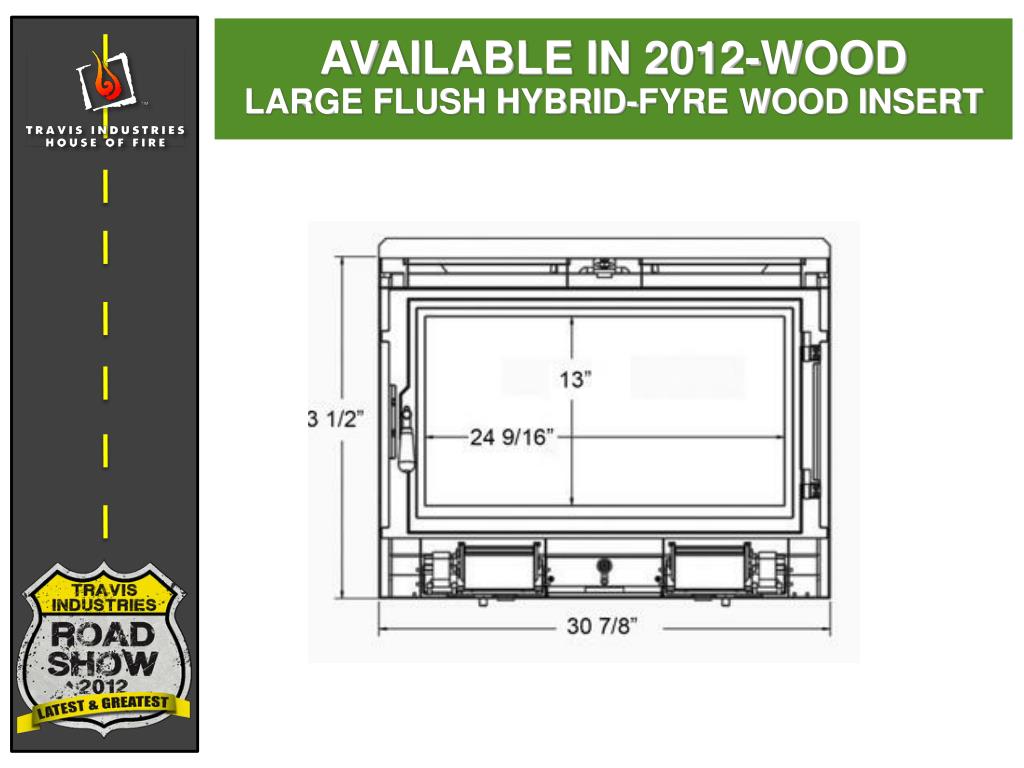

  35. AVAILABLE IN 2012-WOOD LARGE FLUSH HYBRID-FYRE WOOD INSERT

  36. AVAILABLE IN 2012-WOOD LARGE FLUSH HYBRID-FYRE WOOD INSERT

  37. AVAILABLE IN 2012-WOOD LARGE FLUSH HYBRID-FYRE WOOD INSERT

  38. AVAILABLE IN 2012-GAS INSERTS DVS AND DVL WITHOUT BURNERS • Names DVS GSR NB DVL GSR NB What’s The Magic • Now your best selling, fully loaded gas insert has • multiple media options • Media Options: • Ember-Fyre™ Burner w/High Definition Log Kit, • Dancing-Fyre™ Burner w/Choice of Basic • • Logset, Driftwood Fire Art or Fyre-Stone Kit • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 62

  39. AVAILABLE IN 2012-GAS INSERTS DVS AND DVL WITHOUT BURNERS • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 63

  40. AVAILABLE IN 2012-GAS INSERTS DVS AND DVL WITHOUT BURNERS • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 63

  41. READY TO SELL AND SHIP CYPRESS FACES FOR AVALON GAS INSERTS 31DVI/DVS Size 33DVI/DVL Size 23

  42. AVAILABLE IN 2012-GAS INSERTS 616 GSR • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 65

  43. AVAILABLE IN 2012-GAS INSERTS 616 GSR • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 65

  44. AVAILABLE IN 2012-GAS INSERTS 616 GSR – Optional Media • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 68

  45. AVAILABLE IN 2012-GAS INSERTS 616 GSR – Optional Media • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 68

  46. AVAILABLE IN 2012-GAS INSERTS 616 GSR with Glass Floor Specifications • Comes with Dancing-Fyre™ Burner installed • 39,000 BTUs/Hr to 14,835 BTUs/Hr (NG) • 39,000 BTUs/Hr to 11,872 BTUs/Hr (LP) • 70% Turndown Rate • Unit Dimensions: 35” W, 16-1/2” D, 24-1/4” H • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 70

  47. AVAILABLE IN 2012-GAS INSERTS 616 GSR with Glass Floor What’s The Magic 616 Gas Insert showcases a fire that is 2nd to none, big heat output with 616 sq. inches of viewing area that is actually larger than our 564 Fireplace. A traditional hearth look is achieved by having our ceramic glass go almost all the way to the bottom of the unit, and hearth. This gas insert converts an existing masonry or metal fireplace into an efficient heater while preserving the charm of a traditional fireplace. • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 71

  48. AVAILABLE IN 2012-GAS INSERTS 616 GSR with Glass Floor What’s The Magic Efficiency rating of up to 76% and a P-4 rating of over 70 % ensures we are using the gas resource wisely, and adding not only a great look to any home but an incredible efficient heater as well. The 180 CFM fans move air around the heated firebox and with a Shadowbox face the heated air is forced down in front of the ceramic glass, super heating the air as it moves into the living area, yet other faces, (Universal, Metropolitan, Wilmington) have more direct alignment of the convection chamber, allowing a direct transfer of hot air directly into the living area. • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 71

  49. AVAILABLE IN 2012-GAS INSERTS 616 GSR with Glass Floor What’s The Magic This Extra Large insert fits into most fireplace openings, only measuring 24 1/4” high x 35” wide x 16.5 inches deep, very similar to the ever popular DVL Insert (DVL 23.75 h x 31.5 w x 14.5 d). Having the controls laterally located, allows for and increased glass viewing area by almost 20%. (616 sq in vs. 518 sq in) than a DVL. The 616 comes full loaded, with fans, accent lights, 3 stage burner and Greensmart Remote, all standard. The Greensmart Comfort Control allows the middle and front burner to operate independently of the rear burner for maximum flame turndown. • CYPRESS WOOD STOVE FEATURING • HYBRID-FYRE™ TECHNOLOGY 71
