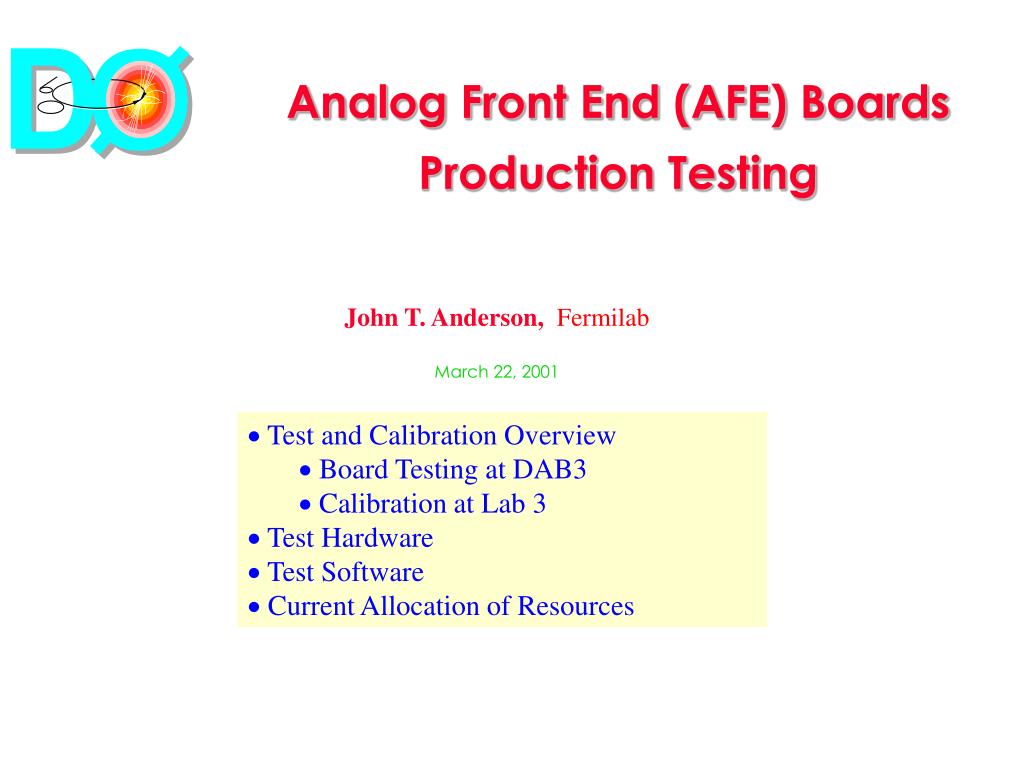

  1. Analog Front End (AFE) BoardsProduction Testing John T. Anderson, Fermilab March 22, 2001 • Test and Calibration Overview • Board Testing at DAB3 • Calibration at Lab 3 • Test Hardware • Test Software • Current Allocation of Resources

  2. Test and Calibration Overview • Two separate systems for testing and calibration • Test stands at DAB3 perform production test • All boards calibrated relative to each other against AFE Test Module • DAB3 tests sufficient to insure board will work on platform • All functions of board are exercised at DAB3 • Subset of boards taken to Lab3 for absolute calibration • Lab3 data correlates performance using AFE Test Module to response against actual VLPC signals AFE Testing - John T. Anderson

  3. Board Testing at DAB3 • Five-Step Test Pipeline • Inspection & Rework • Unpowered tests • Programming of PLDs and Microcontroller • Bench tests of individual functions • Analog functionality and relative calibration against AFETM • Stages 1 & 2 require minimal equipment • Stage 3 requires computer and interfaces • Stages 4 & 5 require significant hardware & expertise AFE Testing - John T. Anderson

  4. Calibration at Lab 3 • Lab 3 provides exact model of platform connections • Lab 3 is difficult environment to work in • Physically cramped • Lots of electrical noise • Necessary for some boards, but impractical to run all boards through Lab 3 • Since all boards are run through AFETM, correlation of some boards Lab3 results to their AFETM results provides relative calibration of all boards. • Estimate that 10% to 15% of all boards should go through Lab 3 calibration AFE Testing - John T. Anderson

  5. Test Hardware • Stage 1: none required • Stage 2: DVMs only • Stage 3: PC with Lattice and Microchip software & interfaces • Stage 4: PC with Excel/VBA code, Bit 3, VME crate, 1553 interface, SASEQ module, Vicor power supplies, Rack Monitor, AFE backplane • two of these test stands have already been built and are in use • Stage 5: Same as Stage 4 plus LVDS test setup and AFETM mounted in relay rack • one of these built butLVDS test setup still not codified AFE Testing - John T. Anderson

  6. Test Software • Software is largest work remaining • Extant Stage 4 software OK for highly trained engineers but not usable for efficient production testing • New software design not required, need work on user interface and data logging. Needs to be much more automatic than it is now. • Subroutines and pieces from which Stage 5 software could be written exist, and structure defined, but not yet coded. • If more hands are to be added, this is the place to do it. AFE Testing - John T. Anderson

  7. Allocation of Resources • Current resource allocation: • Anderson: AFETM, 12-MCM (mother & daughter) redesign, Sanmina, assist with prototype testing • Matulik: prototype testing, test procedure documentation • Zverev: prototype testing • Rubinov: Lab 3 • Pei/Moua : rework/inspection of remaining prototypes • Sheahan: 12-MCM motherboard schematic entry • Kubik: 12-MCM daughterboard schematic entry AFE Testing - John T. Anderson
