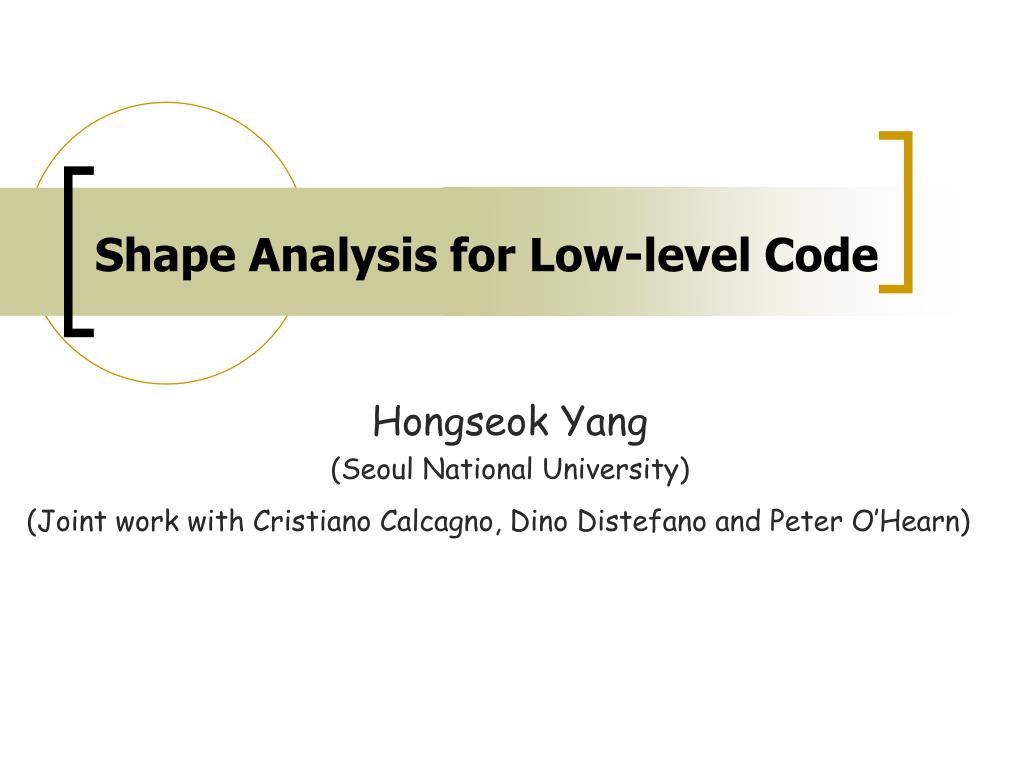

  1. Shape Analysis for Low-level Code Hongseok Yang (Seoul National University) (Joint work with Cristiano Calcagno, Dino Distefano and Peter O’Hearn)

  2. Dream Automatically verify the memory safety of systems code, such as device derivers and memory managers. Challenges: • Pointer arithmetic. • Scalability. • Concurrency.

  3. Our Analyzer • Handles programs for dynamic memory management. • Experimental results (Pentium 3.2GHz,4GB) Found a hidden assumption of the K&R memory manager. These are “fixed” versions. Proved memory safety and even partial correctness.

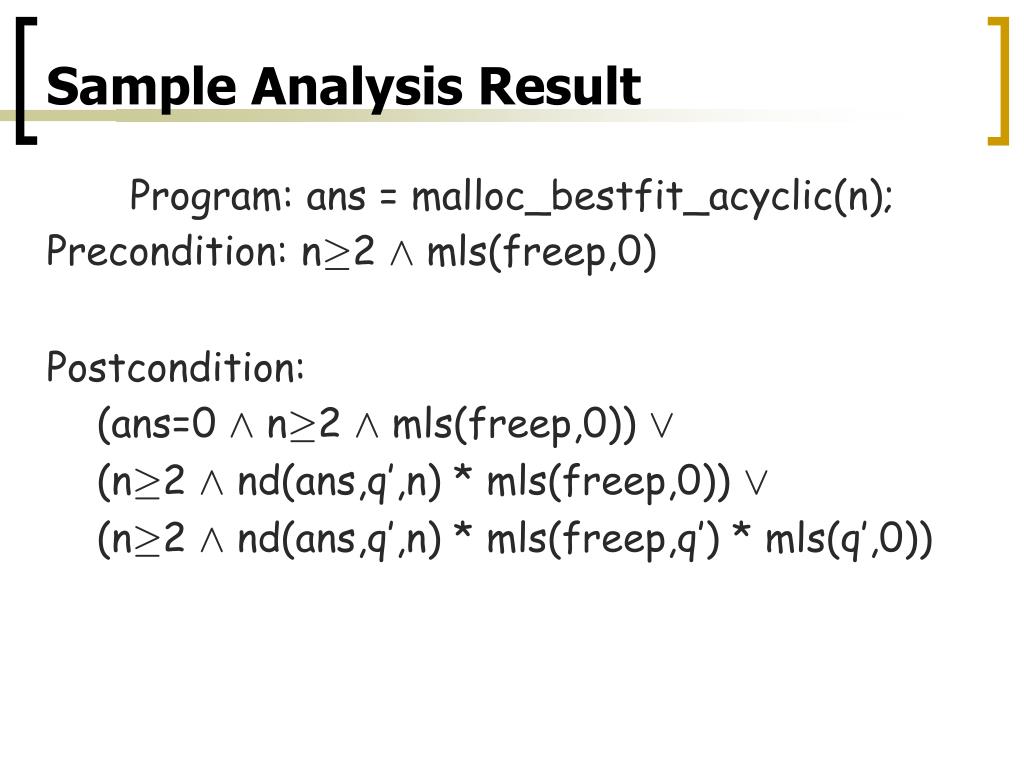

  4. Sample Analysis Result Program: ans = malloc_bestfit_acyclic(n); Precondition: n¸2 Æ mls(freep,0) Postcondition: (ans=0 Æ n¸2 Æ mls(freep,0)) Ç (n¸2 Æ nd(ans,q’,n) * mls(freep,0)) Ç (n¸2 Æ nd(ans,q’,n) * mls(freep,q’) * mls(q’,0))

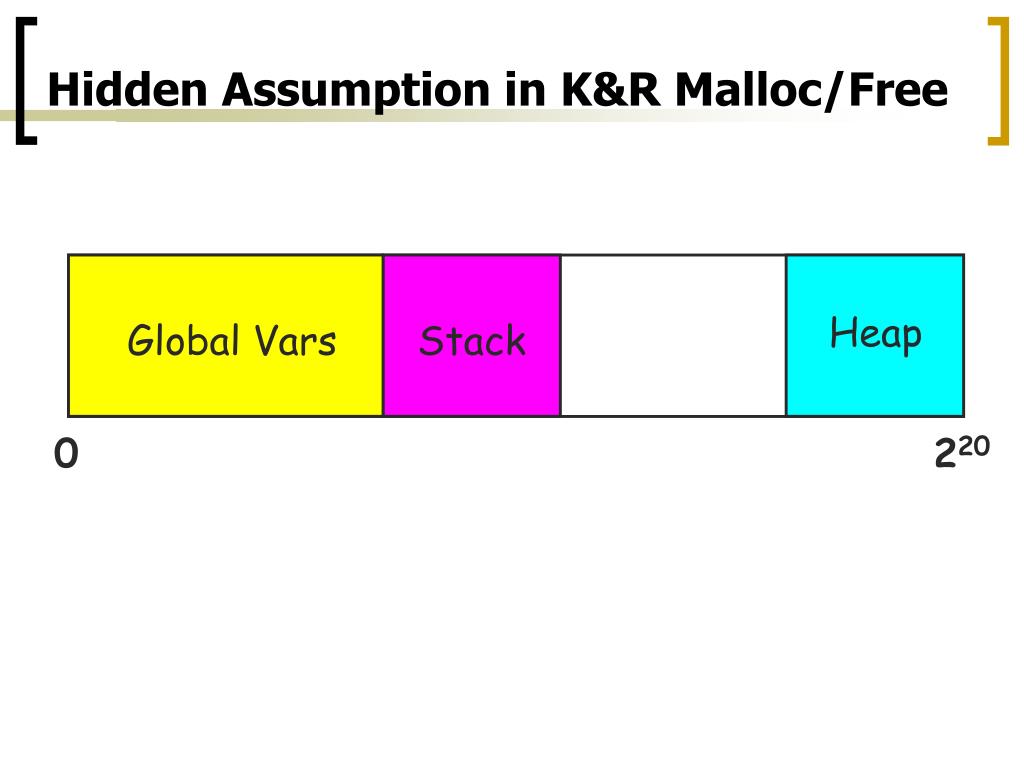

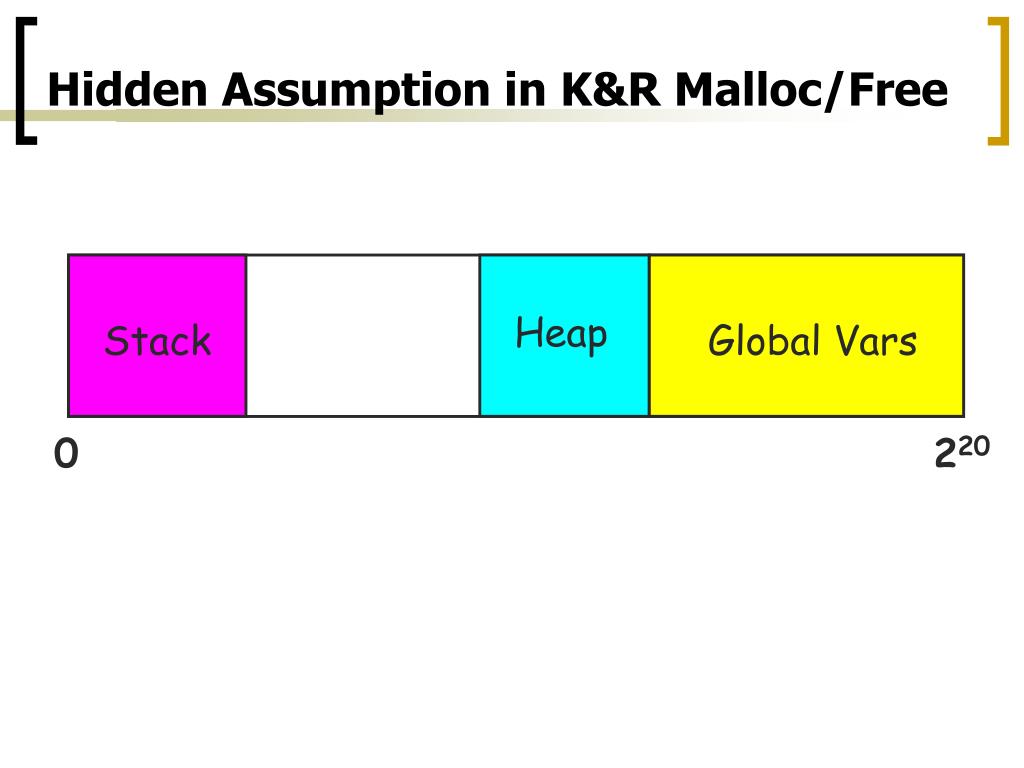

  5. Hidden Assumption in K&R Malloc/Free Heap Global Vars Stack 0 220

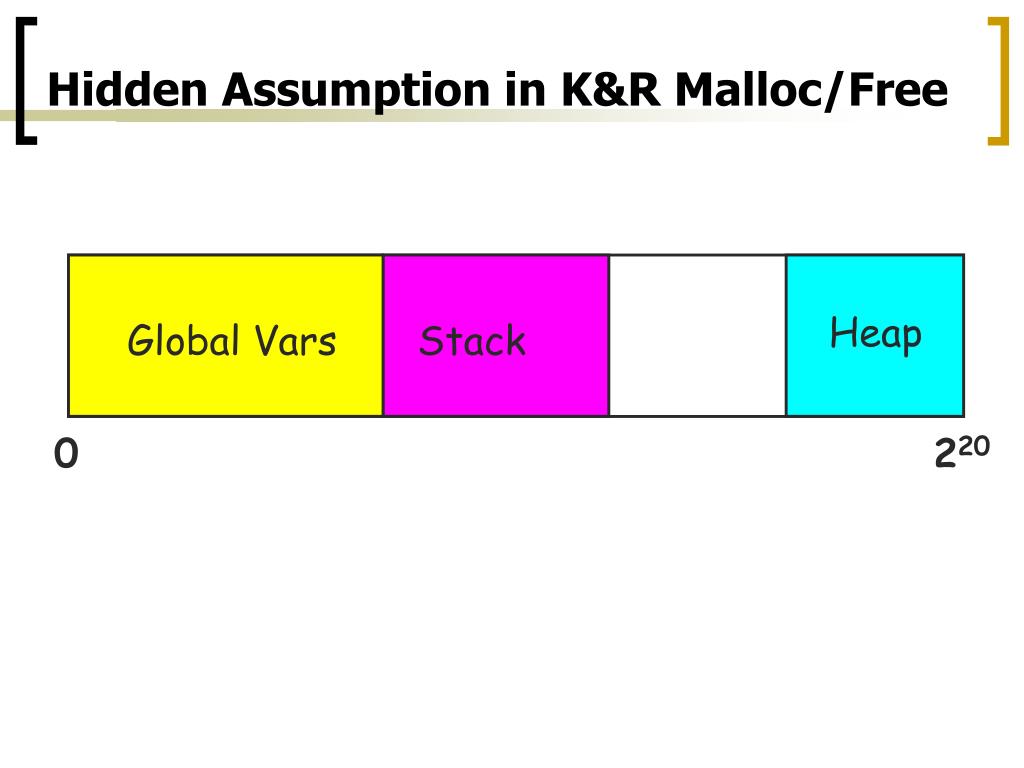

  6. Hidden Assumption in K&R Malloc/Free Heap Global Vars Stack 0 220

  7. Hidden Assumption in K&R Malloc/Free Heap Global Vars Stack 0 220

  8. Hidden Assumption in K&R Malloc/Free Heap Global Vars Stack 0 220

  9. Hidden Assumption in K&R Malloc/Free Heap Stack Global Vars 0 220

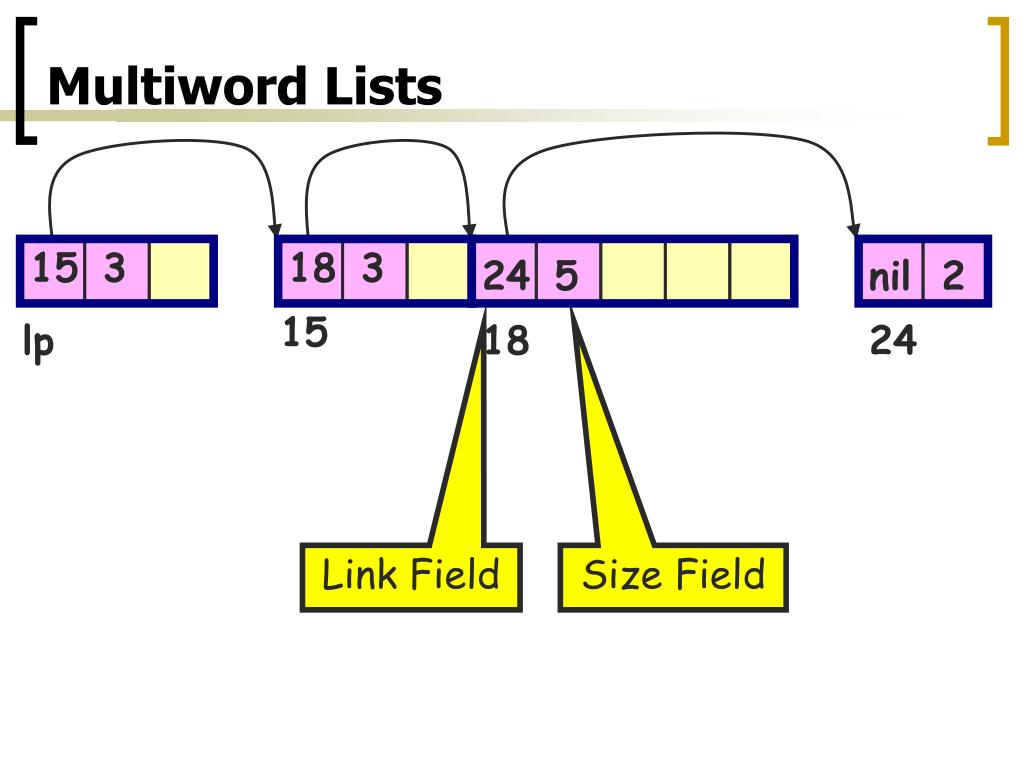

  10. Multiword Lists 15 3 18 3 24 5 nil 2 15 lp 18 24 Link Field Size Field

  11. Coalescing p = lp; while (p!=0) { local q = *p; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = q; } } 15 3 18 3 24 5 nil 2 5 15 18 24 p

  12. Coalescing p = lp; while (p!=0) { local q = *p; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = q; } } 15 3 18 3 24 5 nil 2 5 15 18 24 p

  13. Coalescing p = lp; while (p!=0) { local q = *p; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = q; } } 15 3 18 3 24 5 nil 2 5 15 18 24 p q

  14. Coalescing p = lp; while (p!=0) { local q = *p; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = q; } } 15 3 18 3 24 5 nil 2 5 15 18 24 p q

  15. Coalescing p = lp; while (p!=0) { local q = *p; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = q; } } 15 3 18 8 24 5 nil 2 5 15 18 24 p q

  16. Coalescing p = lp; while (p!=0) { local q = *p; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = q; } } 15 3 24 8 24 5 nil 2 5 15 18 24 p q

  17. Coalescing p = lp; while (p!=0) { local q = *p; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = q; } } 15 3 24 8 nil 2 5 15 24 p

  18. Coalescing p = lp; while (p!=0) { local q = *p; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = q; } } Nodeful High-level View Nodeless Low-level View Nodeful High-level View Complex numerical relationships are used only for reconstructing a high-level view. 15 3 24 8 nil 2 5 15 24 p=0

  19. Separation Logic • blk(p+2,p+5) • nd(p,q,5) =def (pq) * (p+15) * blk(p+2,p+5) • mls(p,q) p+2 p+5 p p+5 q 5 q p 3 4 2

  20. Symbolic Heaps 9x’,y’. (P1Æ P2Æ … Æ Pn) Æ (H1 * H2 * … * Hm) where P ::= E=F | E·F | E!=F | … H ::= EF | blk(E,F) | mls(E,F) | nd(E,F,G) |…

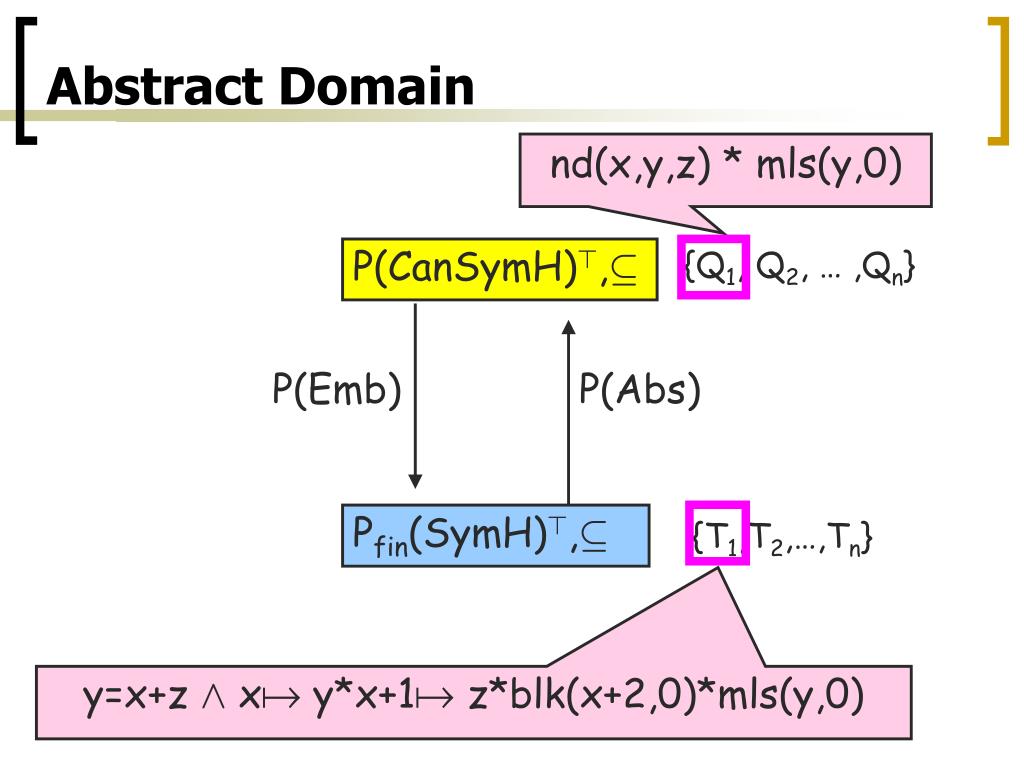

  21. Abstract Domain nd(x,y,z) * mls(y,0) P(CanSymH)>,µ {Q1, Q2, … ,Qn} P(Emb) P(Abs) {T1,T2,…,Tn} Pfin(SymH)>,µ y=x+z Æ x y*x+1 z*blk(x+2,0)*mls(y,0)

  22. Our Analysis Nodeless View: Pfin(SymH)> Nodeful View: P(CanSymH)> while(B) { C; } {Q1, Q2, … ,Qn} Emb; Rearrangement {T1,T2,…,Tn} Sym. Execution Abstraction { T’1,T’2,…,T’m} {Q’1, Q’2, … ,Q’m}

  23. Our Analysis Nodeless View: Pfin(SymH)> Nodeful View: P(CanSymH)> while(B) { C; } {Q1, Q2, … ,Qn} {T1,T2,…,Tn} { T’1,T’2,…,T’m} {Q’1, Q’2, … ,Q’m}

  24. Analysis «C¬ : Pfin(SymH)>! Pfin(SymH)> «A¬d = P(SymExec(A) o Rearrange(A))d «while b C¬d = FixComp(P(Abs) o F) where F : P(CanSymHeaps) ! P(CanSymHeaps) F(d’) = P(Abs)(d [«C¬d’)

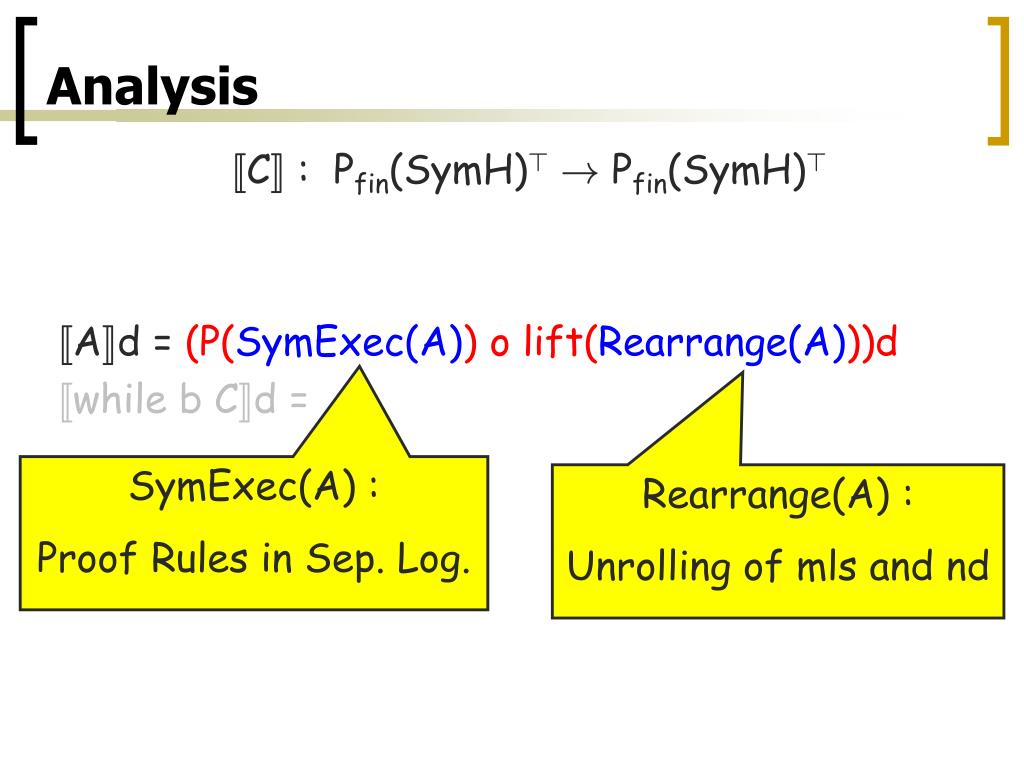

  25. Analysis «C¬ : Pfin(SymH)>! Pfin(SymH)> «A¬d = (P(SymExec(A)) o lift(Rearrange(A)))d «while b C¬d = FixComp(P(Abs) o F) where F : P(CanSymHeaps) ! P(CanSymHeaps) F(d’) = P(Abs)(d [«C¬d’) SymExec(A) : Proof Rules in Sep. Log. Rearrange(A) : Unrolling of mls and nd

  26. Analysis Widened Differential Fixpoint Algorithm «C¬ : Pfin(SymH)>! Pfin(SymH)> «A¬d = (P(SymExec(A)) o lift(Rearrange(A)))d «while b C¬d = FixComp(F) where F : P(CanSymH)>! P(CanSymH)> F(d’) = P(Abs)(d [ («C¬o P(Emb))d’) Abs : SymH ! CanSymH Information Loss Emb: CanSymH !SymH

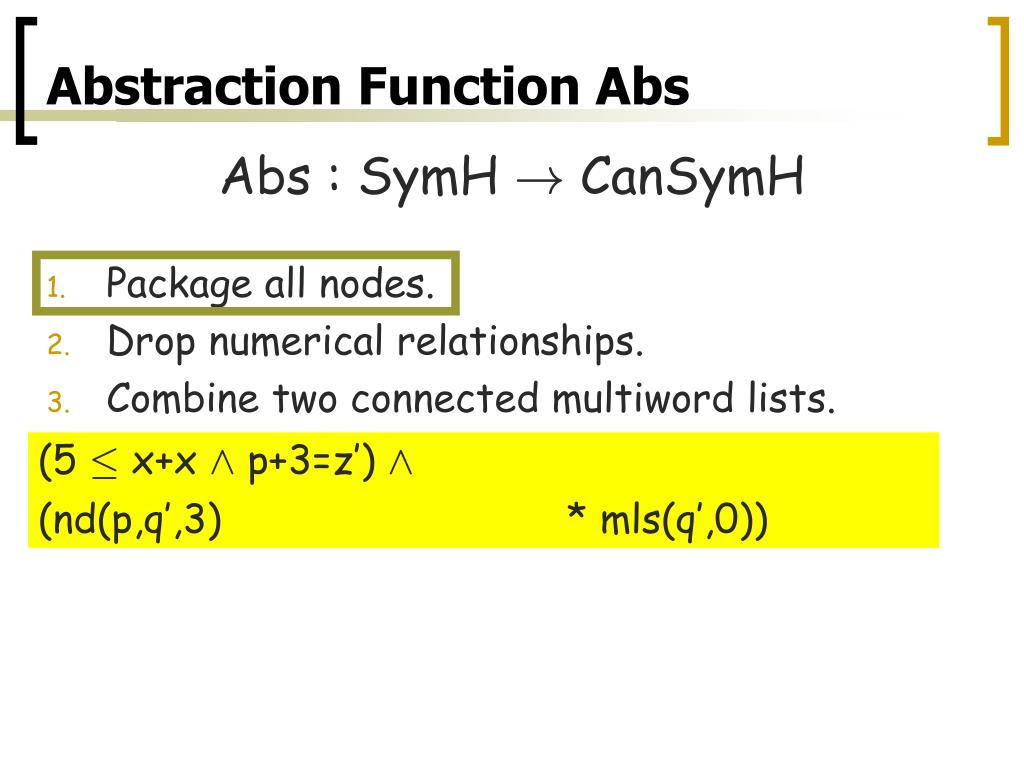

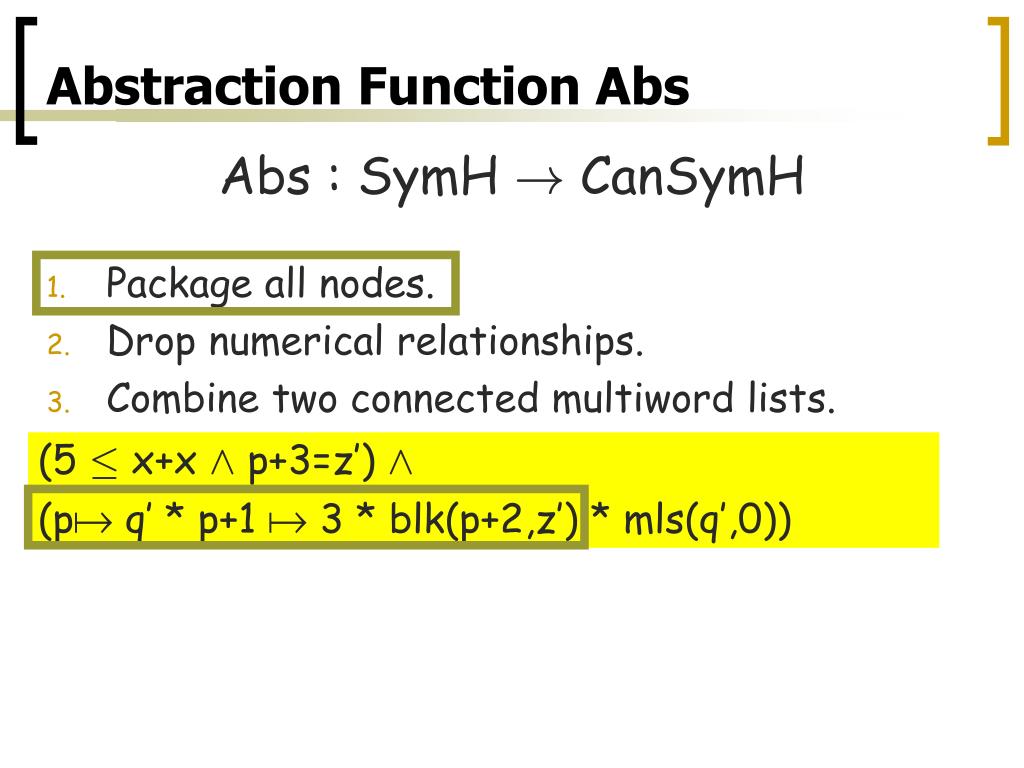

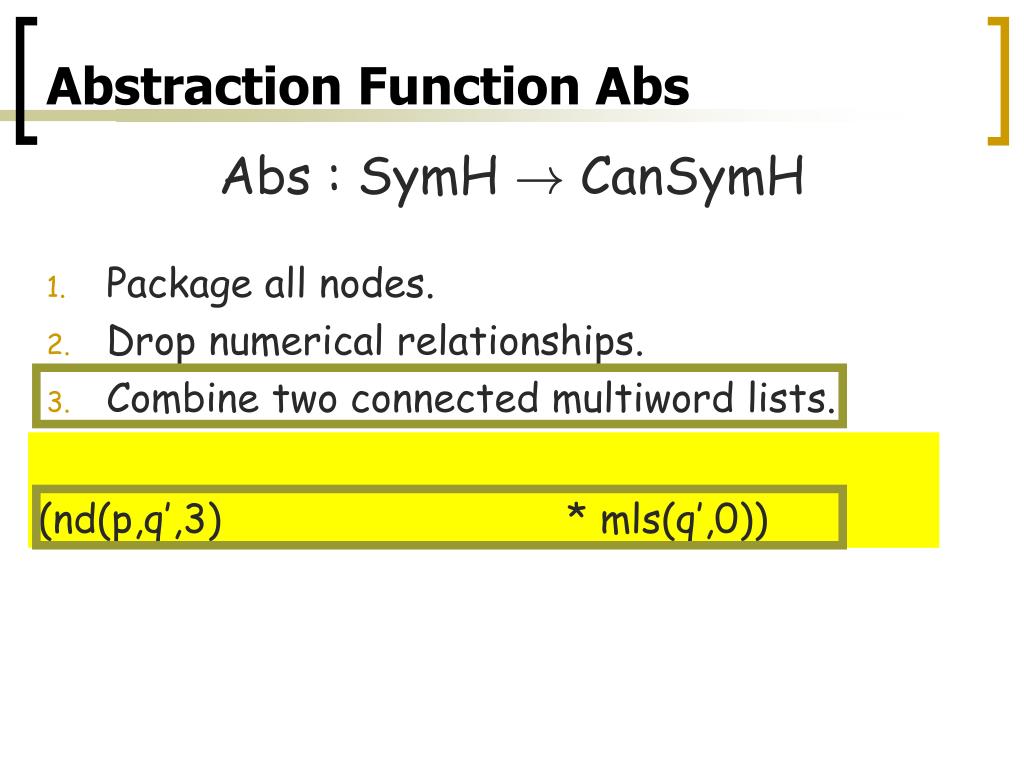

  27. Abstraction Function Abs Abs : SymH ! CanSymH • Package all nodes. • Drop numerical relationships. • Combine two connected multiword lists. (5 · x+x Æ p+3=z’) Æ (p q’ * p+1  3 * blk(p+2,z’) * mls(q’,0))

  28. Abstraction Function Abs Abs : SymH ! CanSymH • Package all nodes. • Drop numerical relationships. • Combine two connected multiword lists. (5 · x+x Æ p+3=z’) Æ (nd(p,q’,3) * mls(q’,0))

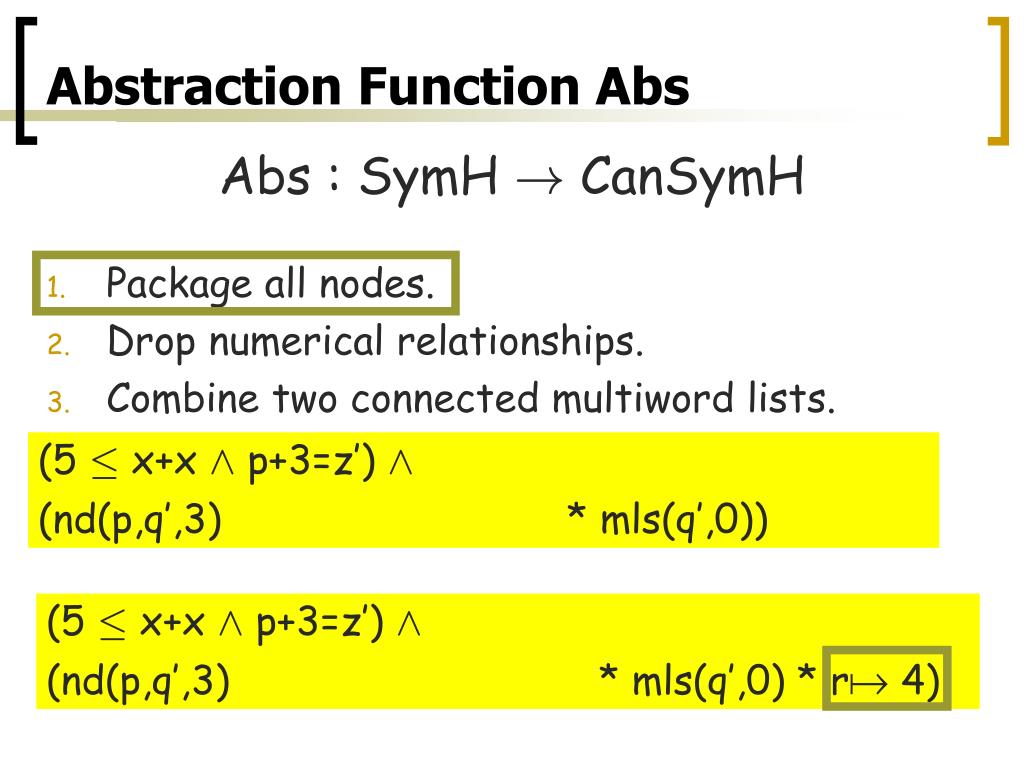

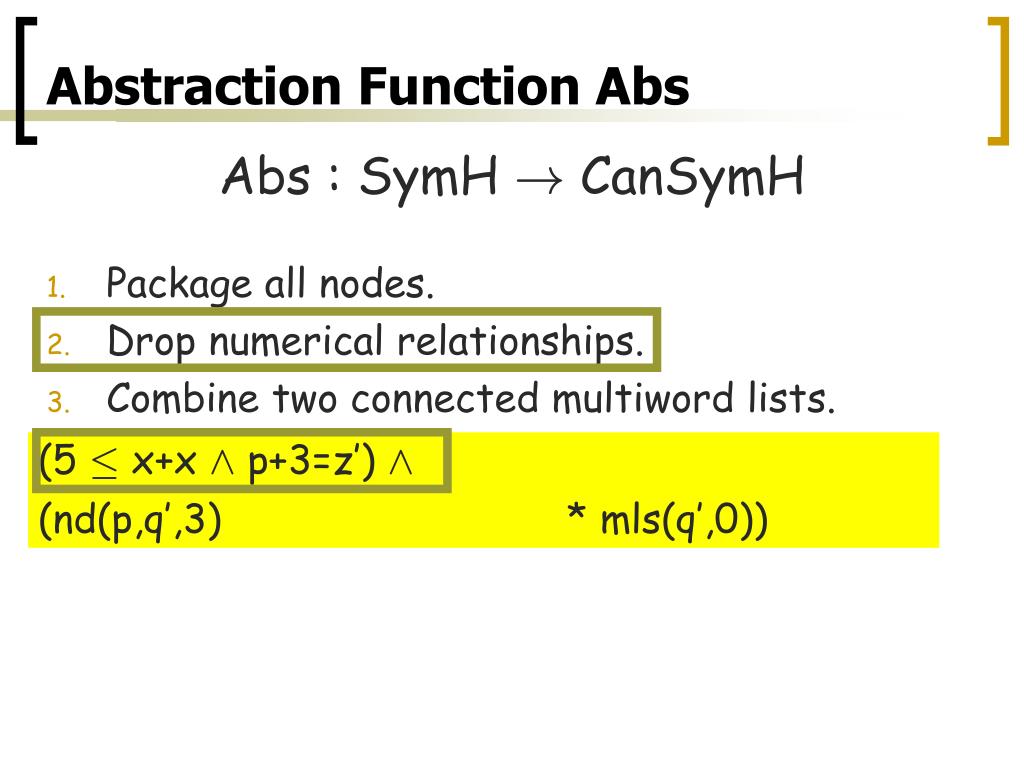

  29. Abstraction Function Abs Abs : SymH ! CanSymH • Package all nodes. • Drop numerical relationships. • Combine two connected multiword lists. (5 · x+x Æ p+3=z’) Æ (nd(p,q’,3) * mls(q’,0)) (5 · x+x Æ p+3=z’) Æ (nd(p,q’,3) * mls(q’,0) * r 4)

  30. Abstraction Function Abs Abs : SymH ! CanSymH • Package all nodes. • Drop numerical relationships. • Combine two connected multiword lists. (5 · x+x Æ p+3=z’) Æ (nd(p,q’,3) * mls(q’,0)) (5 · x+x Æ p+3=z’) Æ (nd(p,q’,3) * mls(q’,0) * true)

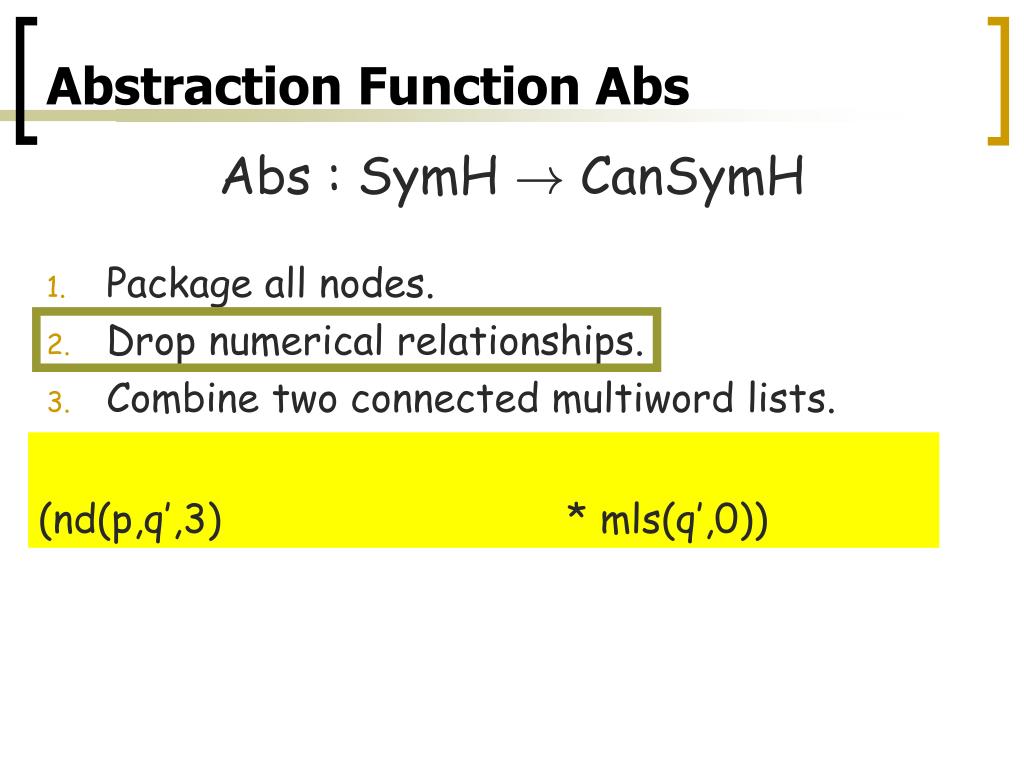

  31. Abstraction Function Abs Abs : SymH ! CanSymH • Package all nodes. • Drop numerical relationships. • Combine two connected multiword lists. (5 · x+x Æ p+3=z’) Æ (nd(p,q’,3) * mls(q’,0))

  32. Abstraction Function Abs Abs : SymH ! CanSymH • Package all nodes. • Drop numerical relationships. • Combine two connected multiword lists. (nd(p,q’,3) * mls(q’,0))

  33. Abstraction Function Abs Abs : SymH ! CanSymH • Package all nodes. • Drop numerical relationships. • Combine two connected multiword lists. (nd(p,q’,3) * mls(q’,0))

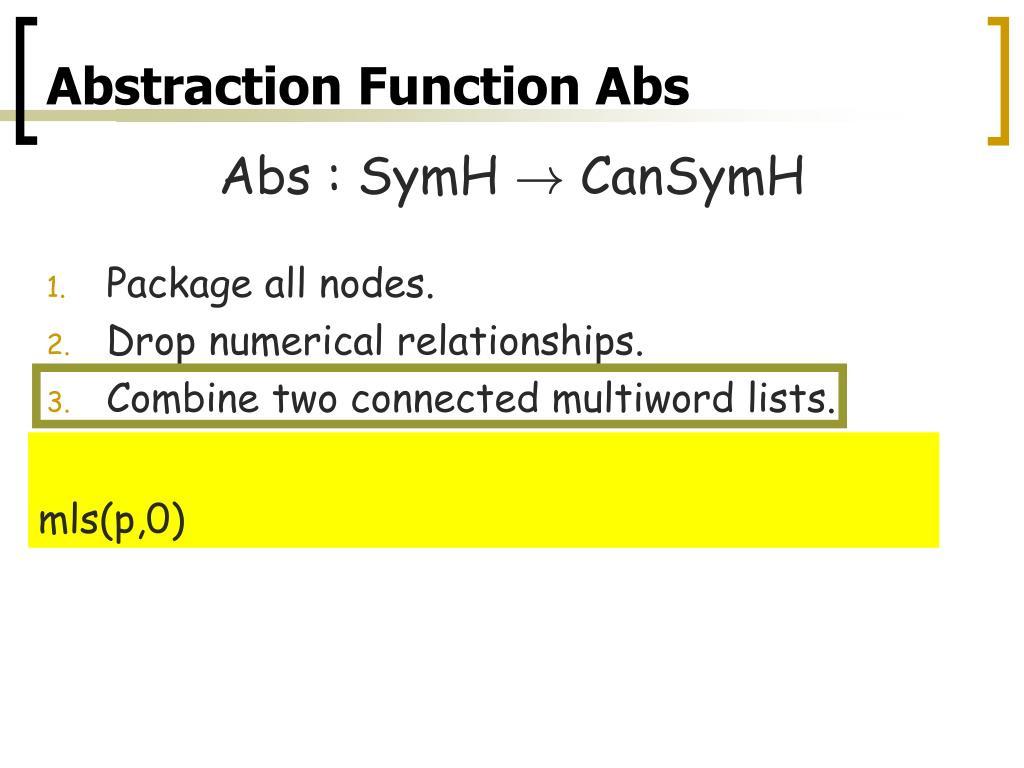

  34. Abstraction Function Abs Abs : SymH ! CanSymH • Package all nodes. • Drop numerical relationships. • Combine two connected multiword lists. mls(p,0)

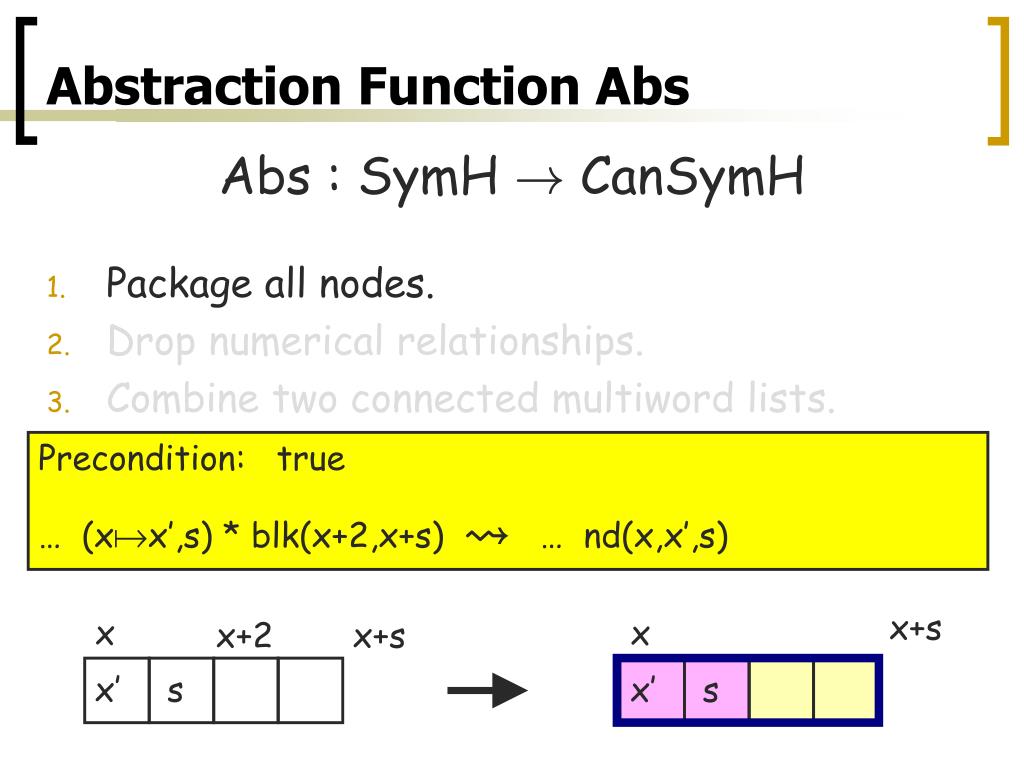

  35. Abstraction Function Abs Abs : SymH ! CanSymH • Package all nodes. • Drop numerical relationships. • Combine two connected multiword lists. Precondition: true … (xx’,s) * blk(x+2,x+s) Ã … nd(x,x’,s) x+s x x x+2 x+s x’ s x’ s

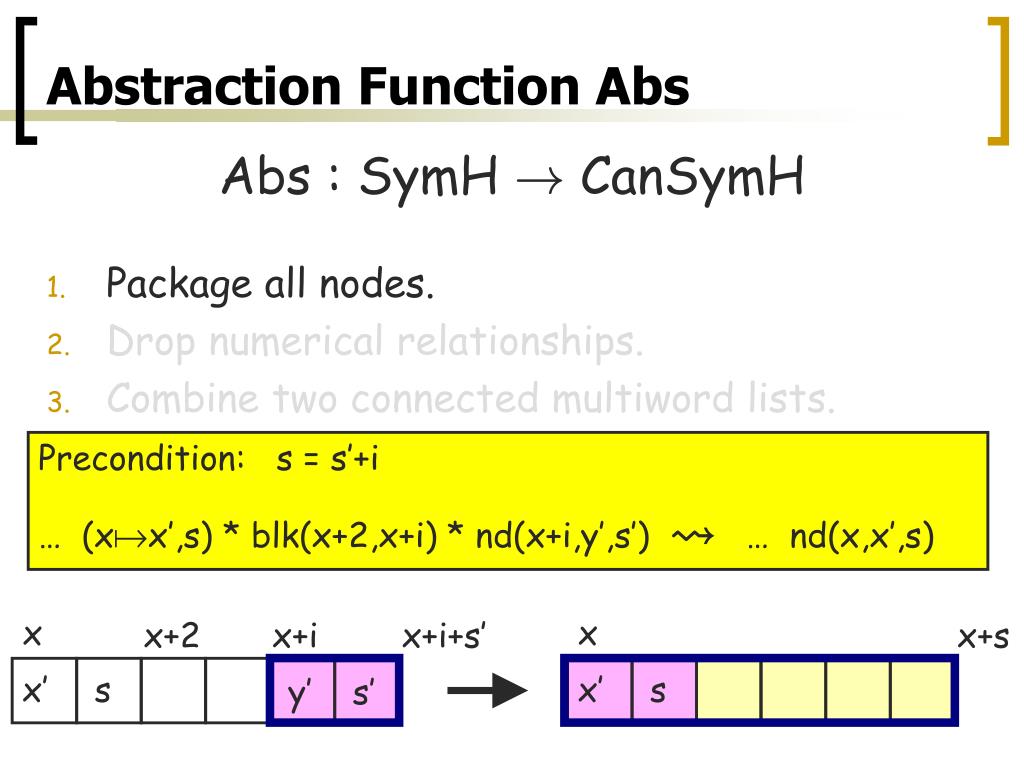

  36. Abstraction Function Abs Abs : SymH ! CanSymH • Package all nodes. • Drop numerical relationships. • Combine two connected multiword lists. Precondition: s = s’+i … (xx’,s) * blk(x+2,x+i) * nd(x+i,y’,s’) Ã … nd(x,x’,s) x x x+2 x+i x+i+s’ x+s x’ s x’ s y’ s’

  37. Coalescing … mls(lp,p) * mls(p,0) while (p!=0){local q=p*; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = *p; } } p!=0 Æ mls(lp,p) * p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0 Æp+s’=qÆ mls(lp,p)*p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0Æp+s’=qÆmls(lp,p)* pq,s’+t’ * blk(p+2,p+s’) *qr’,t’*blk(q+2,q+t’)*mls(r’,0) p!=0Æp+s’=qÆmls(lp,p)*pr’,s’+t’*blk(p+2,p+s’)*qr’,t’*blk(q+2,q+t’)*mls(r’,0) p!=0Æp+s’=qÆmls(lp,p)*pr’,s’+t’*blk(p+2,p+s’)*qr’,t’*blk(q+2,q+t’)*mls(r’,0)

  38. Coalescing … mls(lp,p) * mls(p,0) while (p!=0){local q=p*; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = *p; } } p!=0 Æ mls(lp,p) * p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0 Æp+s’=qÆ mls(lp,p)*p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0Æp+s’=qÆmls(lp,p)* pq,s’+t’ * blk(p+2,p+s’) *qr’,t’*blk(q+2,q+t’)*mls(r’,0) p!=0Æp+s’=qÆmls(lp,p)*pr’,s’+t’*blk(p+2,p+s’)*qr’,t’*blk(q+2,q+t’)*mls(r’,0) p!=0Æp+s’=q’Æmls(lp,p)*pr’,s’+t’*blk(p+2,p+s’)*q’r’,t’*blk(q’+2,q’+t’)*mls(r’,0)

  39. Coalescing … mls(lp,p) * mls(p,0) while (p!=0){local q=p*; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = *p; } } p!=0 Æ mls(lp,p) * p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0 Æp+s’=qÆ mls(lp,p)*p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0Æp+s’=qÆmls(lp,p)* pq,s’+t’ * blk(p+2,p+s’) *qr’,t’*blk(q+2,q+t’)*mls(r’,0) p!=0Æp+s’=qÆmls(lp,p)*pr’,s’+t’*blk(p+2,p+s’)*qr’,t’*blk(q+2,q+t’)*mls(r’,0) p!=0Æp+s’=q’Æmls(lp,p)*pr’,s’+t’*blk(p+2,p+s’)*nd(q’,r’,t’) *mls(r’,0)

  40. Coalescing … mls(lp,p) * mls(p,0) while (p!=0){local q=p*; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = *p; } } p!=0 Æ mls(lp,p) * p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0 Æp+s’=qÆ mls(lp,p)*p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0Æp+s’=qÆmls(lp,p)* pq,s’+t’ * blk(p+2,p+s’) *qr’,t’*blk(q+2,q+t’)*mls(r’,0) p!=0Æp+s’=qÆmls(lp,p)*pr’,s’+t’*blk(p+2,p+s’)*qr’,t’*blk(q+2,q+t’)*mls(r’,0) p!=0Æp+s’=q’Æmls(lp,p)*nd(p,r’,s’+t’)* *mls(r’,0)

  41. Coalescing … mls(lp,p) * mls(p,0) while (p!=0){local q=p*; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = *p; } } p!=0 Æ mls(lp,p) * p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0 Æp+s’=qÆ mls(lp,p)*p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0Æp+s’=qÆmls(lp,p)* pq,s’+t’ * blk(p+2,p+s’) *qr’,t’*blk(q+2,q+t’)*mls(r’,0) p!=0Æp+s’=qÆmls(lp,p)*pr’,s’+t’*blk(p+2,p+s’)*qr’,t’*blk(q+2,q+t’)*mls(r’,0) mls(lp,p)*nd(p,r’,s’+t’)* *mls(r’,0)

  42. Coalescing … mls(lp,p) * mls(p,0) while (p!=0){local q=p*; if (p + *(p+1) == q) { *(p+1) = *(p+1) + *(q+1); *p = *q; } else { p = *p; } } p!=0 Æ mls(lp,p) * p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0 Æp+s’=qÆ mls(lp,p)*p q,s’ * blk(p+2,p+s’) * mls(q,0) p!=0Æp+s’=qÆmls(lp,p)* pq,s’+t’ * blk(p+2,p+s’) *qr’,t’*blk(q+2,q+t’)*mls(r’,0) p!=0Æp+s’=qÆmls(lp,p)*pr’,s’+t’*blk(p+2,p+s’)*qr’,t’*blk(q+2,q+t’)*mls(r’,0) mls(lp,p)*mls(p,0)

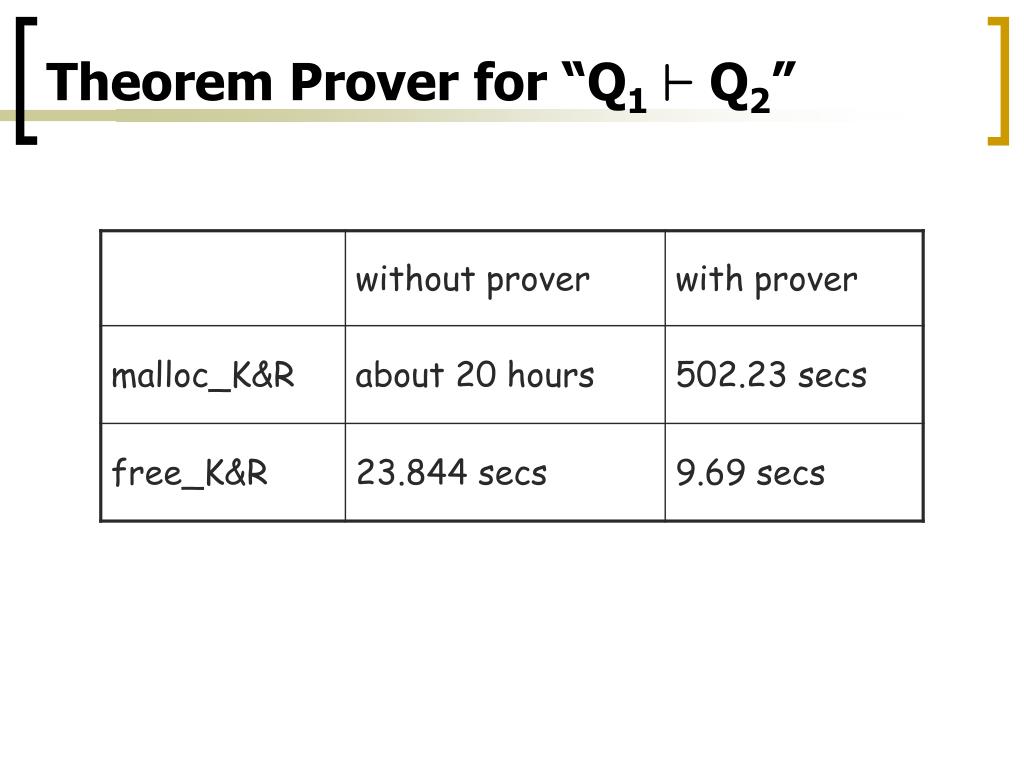

  43. Theorem Prover for “Q1` Q2”

  44. Put Prover inside Hoare Powerdomain? Q1` Q2, Q3` Q4 {Q1, Q2, Q3, Q4} x0 = {} x1 = F(x0) = {Q1, Q2, Q4} x2 = F(x1) = {Q1, Q2, Q3, Q4} P(CanSymH), µ vs. PH(CanSymH), v {Q2, Q3} v But, works only when ` is transitive.

  45. Put Prover inside Hoare Powerdomain? Q1` Q2, Q2` Q3, Q3` Q1 x0 = {} x1 = F(x0) = {Q1, Q2} x2 = F(x1) = {Q2, Q3} x3 = F(x2) = {Q3, Q1} x4 = F(x3) = {Q1, Q2} P(CanSymH), µ vs. PH(CanSymH), v But, works only when ` is transitive.

  46. Put Prover inside Widening! r : P(CanSymH) £ P(CanSymH) ! P(CanSymH) x0r x1 =defx0[{ Q 2 x1 | 8Q’ 2 x0. Q ` Q’ } x0 = {} x1 = x0r F(x0) x2 = x1r F(x1) xn+1 = xnr F(xn) … x0µ x1µ x2µ x3 …

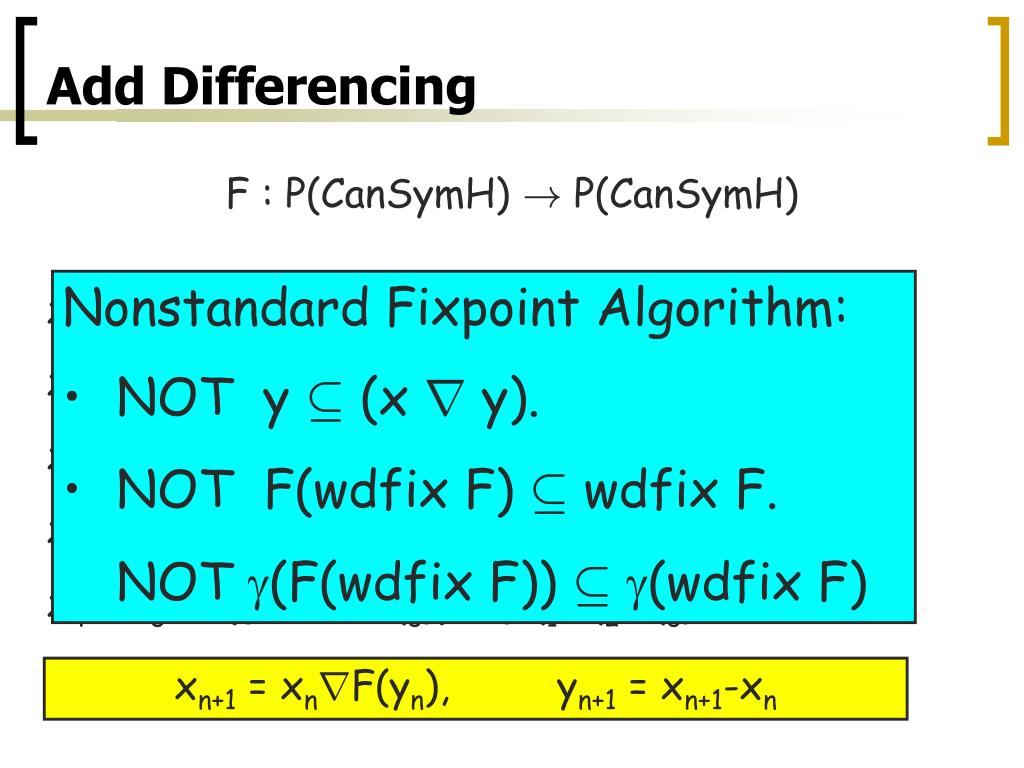

  47. Add Differencing F : P(CanSymH) ! P(CanSymH) x0 = {} x1 = x0rF({}) = {Q1} x2 = x1rF({Q1}) = {Q1,Q2} x3 = x2rF({Q1,Q2}) = {Q1,Q2,Q3} x4 = x3rF({Q1,Q2,Q3}) = {Q1,Q2,Q3} Nonstandard Fixpoint Algorithm: • NOT y µ (x r y). • NOT F(wdfix F) µ wdfix F. NOT (F(wdfix F)) µ(wdfix F) xn+1 = xnrF(yn), yn+1 = xn+1-xn

  48. Soundness Analysis results can be compiled into separation-logic proofs.

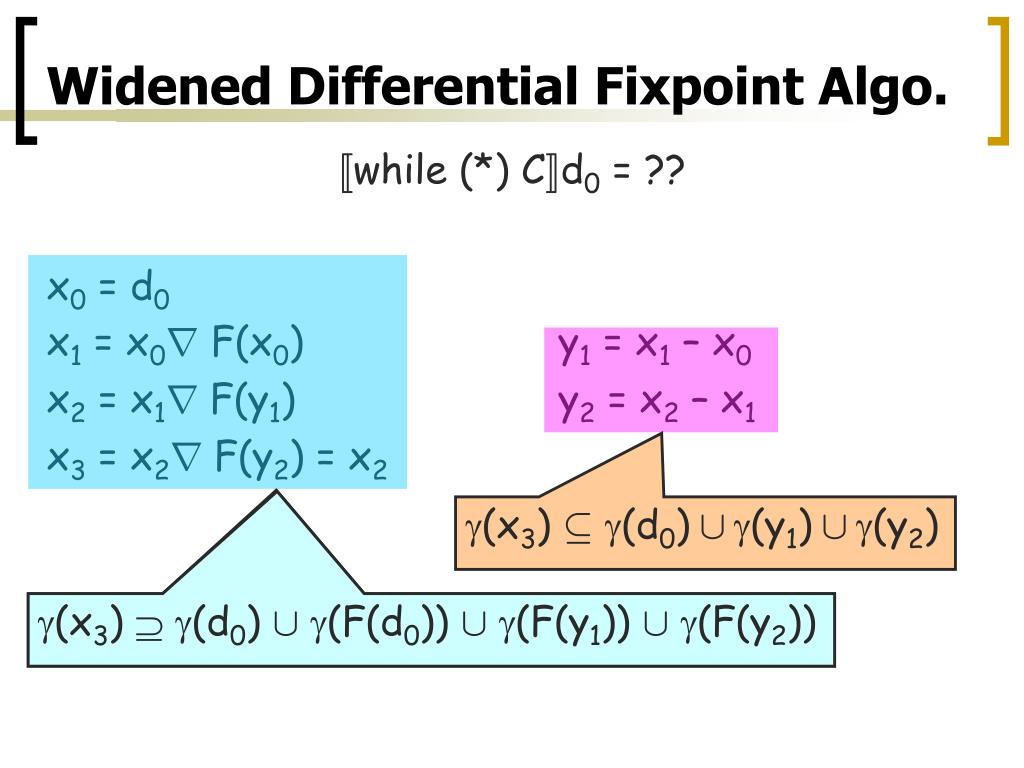

  49. Widened Differential Fixpoint Algo. «while (*) C¬d0 = ?? x0 = d0 x1 = x0r F(x0) y1 = x1 – x0 x2 = x1r F(y1) y2 = x2 – x1 x3 = x2r F(y2) = x2 (x3) µ(d0)[(y1)[(y2) x3 = d0r F(d0) r F(y1) r F(y2) (x3) (d0) [(F(d0)) [(F(y1)) [(F(y2))

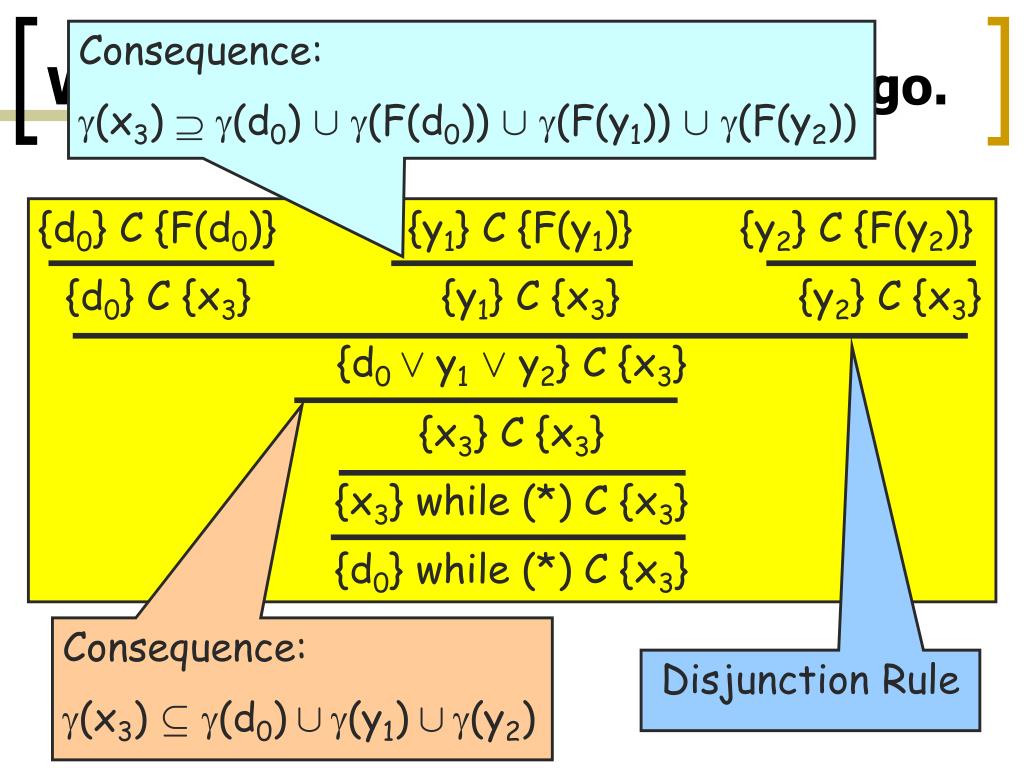

  50. Widened Differential Fixpoint Algo. Consequence: (x3) (d0) [(F(d0)) [(F(y1)) [(F(y2)) {d0} C {F(d0)} {y1} C {F(y1)} {y2} C {F(y2)} {d0} C {x3} {y1} C {x3} {y2} C {x3} {d0 Ç y1Ç y2} C {x3} {x3} C {x3} {x3} while (*) C {x3} {d0} while (*) C {x3} Consequence: (x3) µ(d0)[(y1)[(y2) Disjunction Rule
