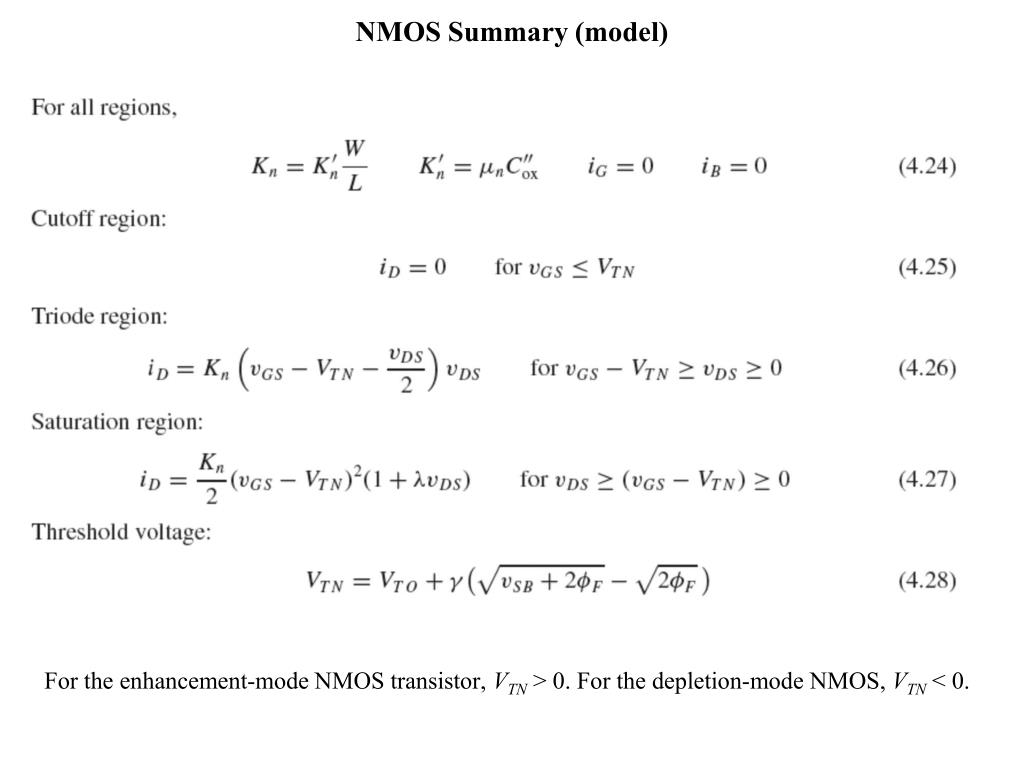

  1. NMOS Summary (model) For the enhancement-mode NMOS transistor, VTN > 0. For the depletion-mode NMOS, VTN < 0.

  2. PMOS Summary (model)

  3. JFET n-Channel Model Summary NJIT ECE271 Dr. Serhiy Levkov

  4. JFET p-Channel Model Summary NJIT ECE271 Dr. Serhiy Levkov

  5. NMOS and PMOS Summary (regions of operation)

  6. BJT simplified models Cut-off region Saturation region iC + iB = iE. NPN FAR NL CVD PNP RAR C E NL CVD
