Polyatomic Ions

keefe avatar
keefe
18 diapositives · 452 Views · Oct 03, 2014

Polyatomic Ions. Compounds & Nomenclature. Objectives Covered Today. 6. Define a polyatomic ion 7. C4.2c Name compounds containing a polyatomic ion. 8. C4.2d Given the name of a compound containing a polyatomic ion, write its formula. Objective 6. Define a polyatomic ion

Polyatomic Ions - slide 1
01 / 18Polyatomic Ions
1 / 17

Télécharger la présentation

Polyatomic Ions
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Polyatomic Ions Compounds & Nomenclature

  2. Objectives Covered Today 6. Define a polyatomic ion 7. C4.2c Name compounds containing a polyatomic ion. 8. C4.2d Given the name of a compound containing a polyatomic ion, write its formula.

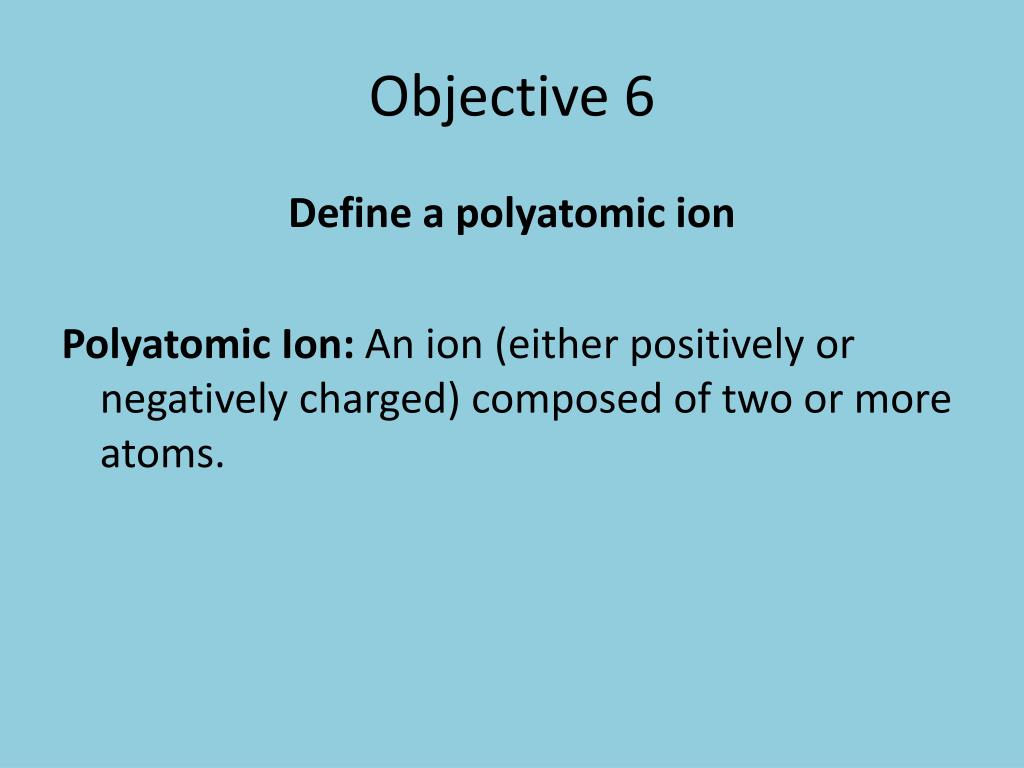

  3. Objective 6 Define a polyatomic ion Polyatomic Ion: An ion (either positively or negatively charged) composed of two or more atoms.

  4. Is it possible to predict charges? • Based on covalent bonding (next chapter) • Charges of polyatomic ions are still based on the overall stability of the molecule • Not as predictable as monatomic ions • These will have to be memorized • However, this becomes easy with practice

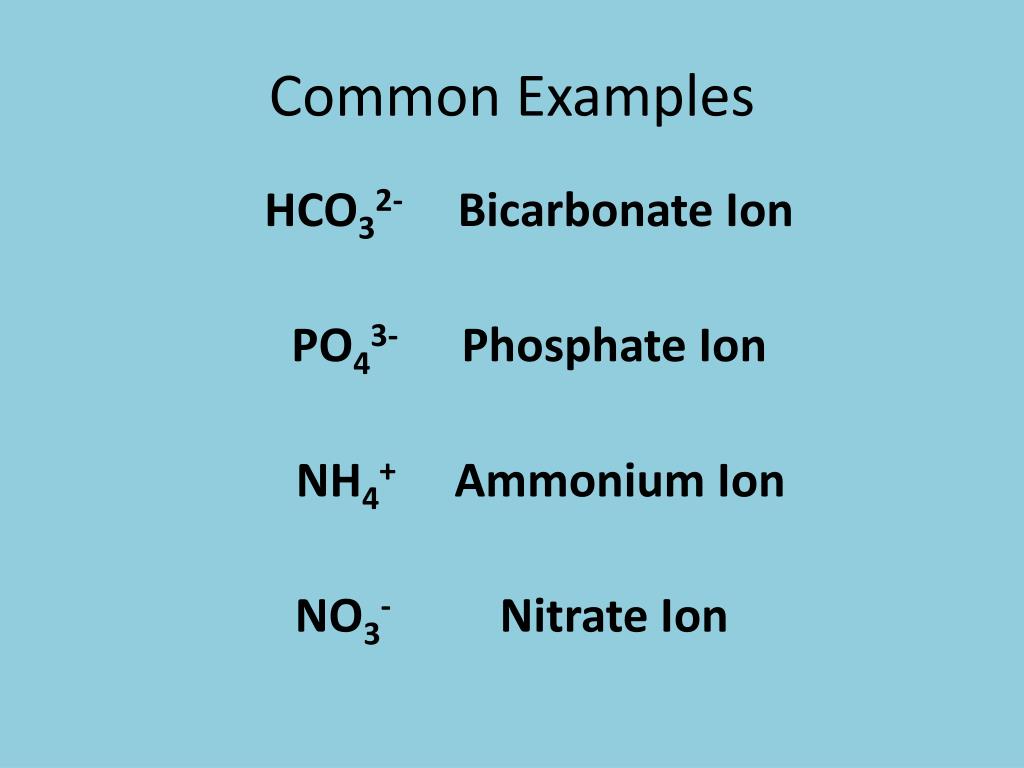

  5. Common Examples HCO32- Bicarbonate Ion PO43- Phosphate Ion NH4+ Ammonium Ion NO3- Nitrate Ion

  6. Objective 7 Name compounds containing a polyatomic ion Example: NaNO3 • If the compound contains a metal cation, the name of the metal comes first.

  7. Objective 7 Name compounds containing a polyatomic ion Example: NaNO3 • If the compound contains a metal cation, the name of the metal comes first. Sodium

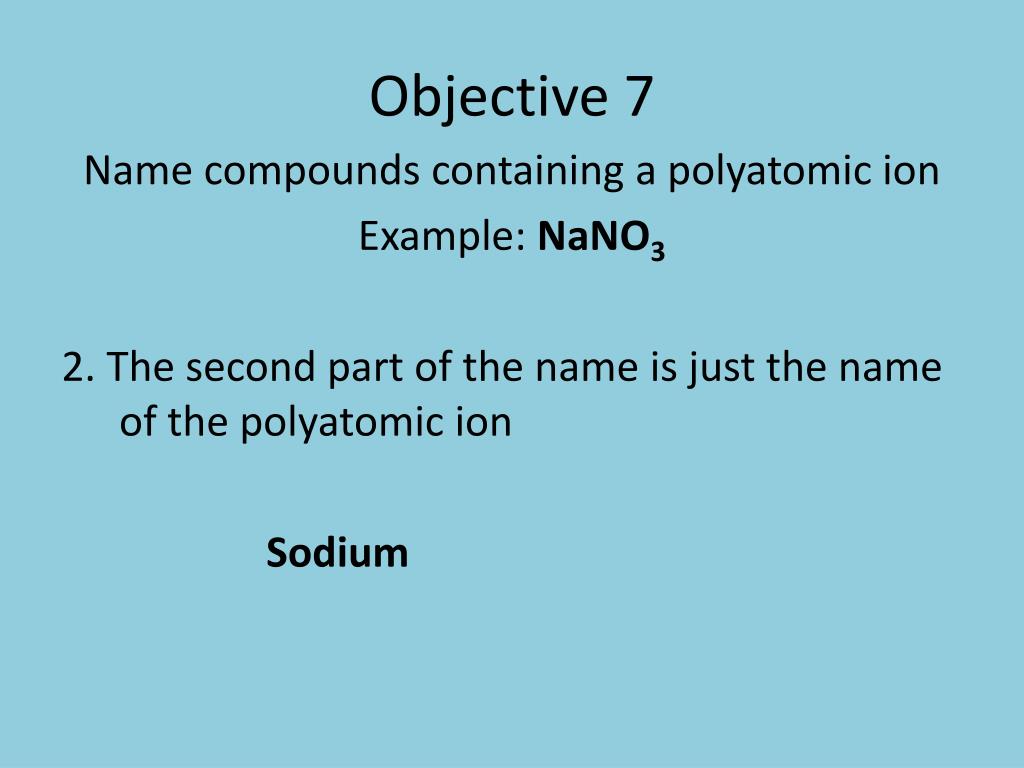

  8. Objective 7 Name compounds containing a polyatomic ion Example: NaNO3 2. The second part of the name is just the name of the polyatomic ion Sodium

  9. Objective 7 Name compounds containing a polyatomic ion Example: NaNO3 2. The second part of the name is just the name of the polyatomic ion Sodium Nitrate

  10. What if the Polyatomic Ion comes first? NH4+(Ammonium ion) is a positive ion while still being polyatomic If you are using a polyatomic cation you just use the ion’s name, and it will be written first NH4Cl

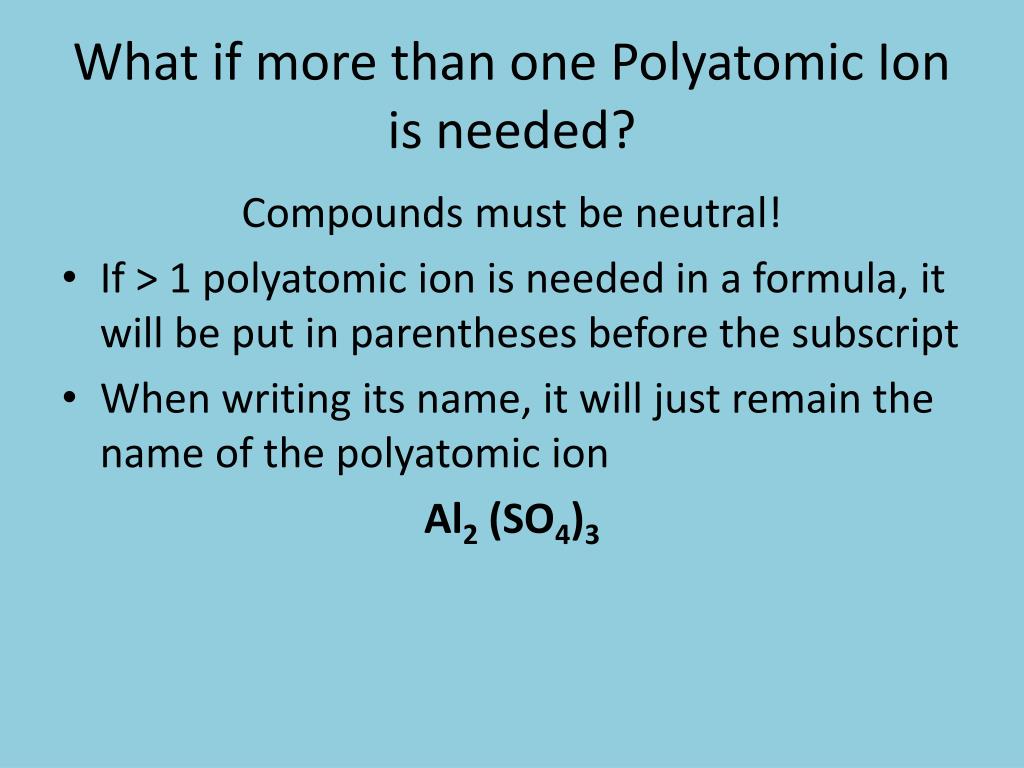

  11. What if more than one Polyatomic Ion is needed? Compounds must be neutral! • If > 1 polyatomic ion is needed in a formula, it will be put in parentheses before the subscript • When writing its name, it will just remain the name of the polyatomic ion Al2 (SO4)3

  12. Objective 8 Given the name of a compound containing a polyatomic ion, write its formula. Example: Potassium Carbonate 1. Determine atomic symbols and charges

  13. Objective 8 Given the name of a compound containing a polyatomic ion, write its formula. Example: Potassium Carbonate 1. Determine atomic symbols and charges K+ CO32-

  14. Objective 8 Given the name of a compound containing a polyatomic ion, write its formula. Example: Potassium Carbonate 2. Determine number of each ion to balance charges K+ CO32-

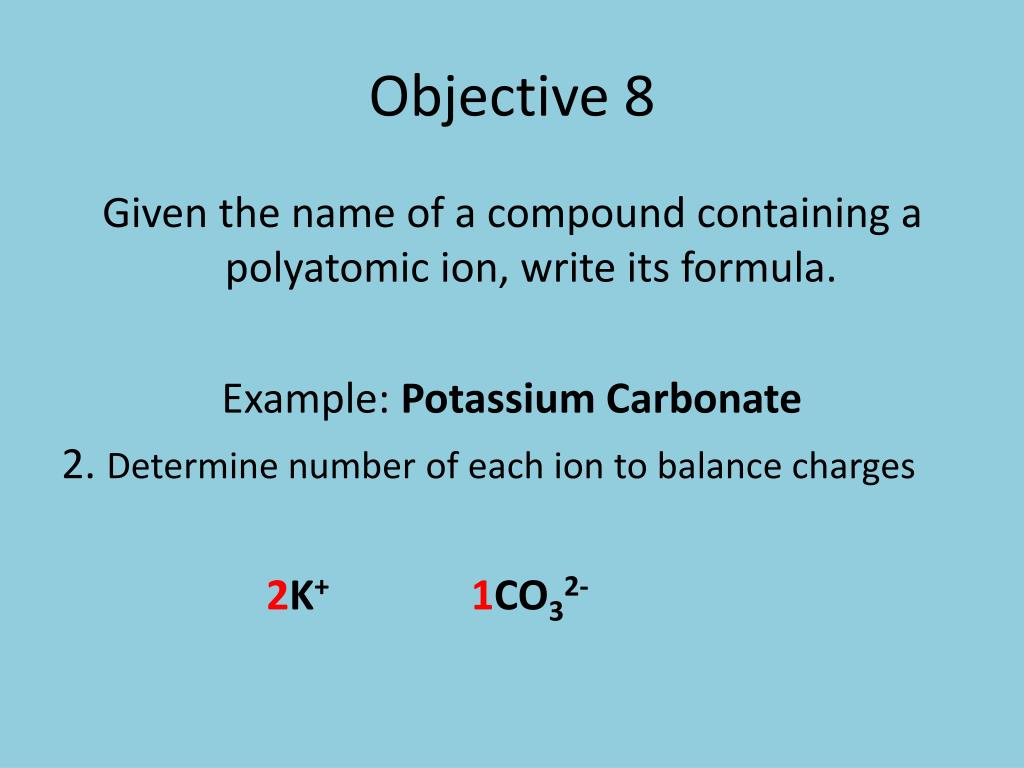

  15. Objective 8 Given the name of a compound containing a polyatomic ion, write its formula. Example: Potassium Carbonate 2. Determine number of each ion to balance charges 2K+1CO32-

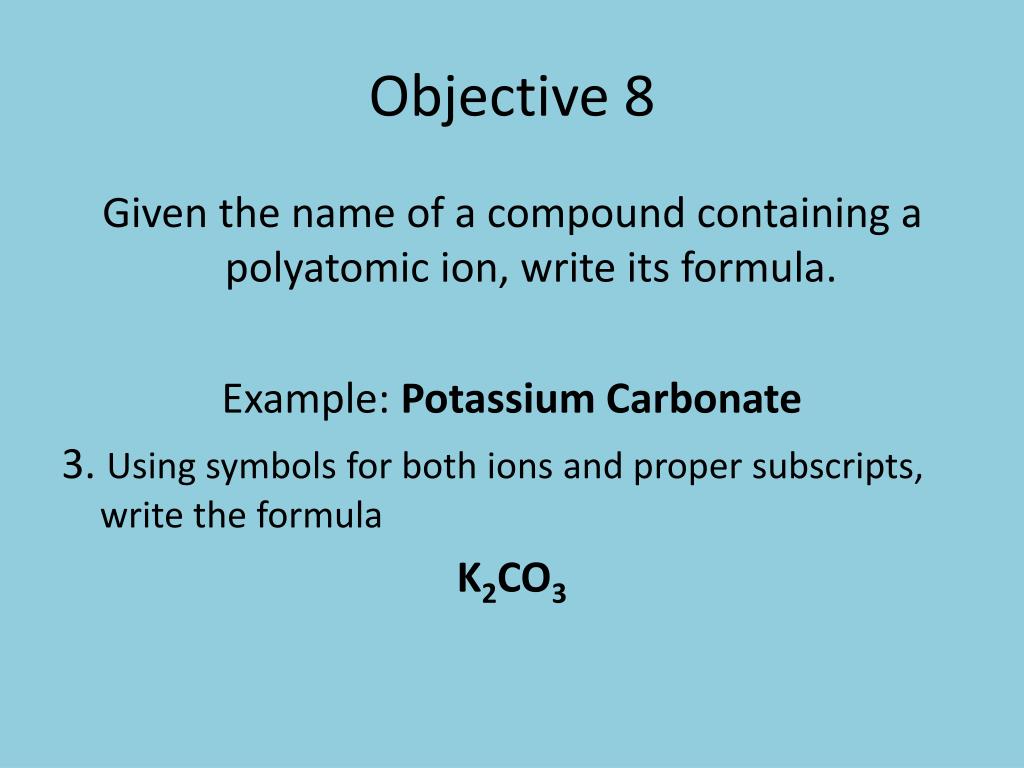

  16. Objective 8 Given the name of a compound containing a polyatomic ion, write its formula. Example: Potassium Carbonate 3. Using symbols for both ions and proper subscripts, write the formula K2CO3

  17. Practice Examples

  18. Happy Thanksgiving Break!
