Carbon Pools in Wooden Products and Substitution Effects

keira avatar
keira
25 diapositives · 401 Views · Oct 01, 2014

Carbon Pools in Wooden Products and Substitution Effects. Bernhard Zimmer and Hannes Schwaiger COST Action E9 , Final Conference in Hamburg, 29 th of November. Content. Background Carbon sinks and carbon pools LCA – a method to calculate carbon pools Carbon pool „wood and wood products“

#carbon pools in wooden products and substitution effects #carbon pools in wooden products and substitution effects ppt #powerpoint #presentation
Carbon Pools in Wooden Products and Substitution Effects - slide 1
01 / 25Carbon Pools in Wooden Products and Substitution Effects
1 / 17

Télécharger la présentation

Carbon Pools in Wooden Products and Substitution Effects
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

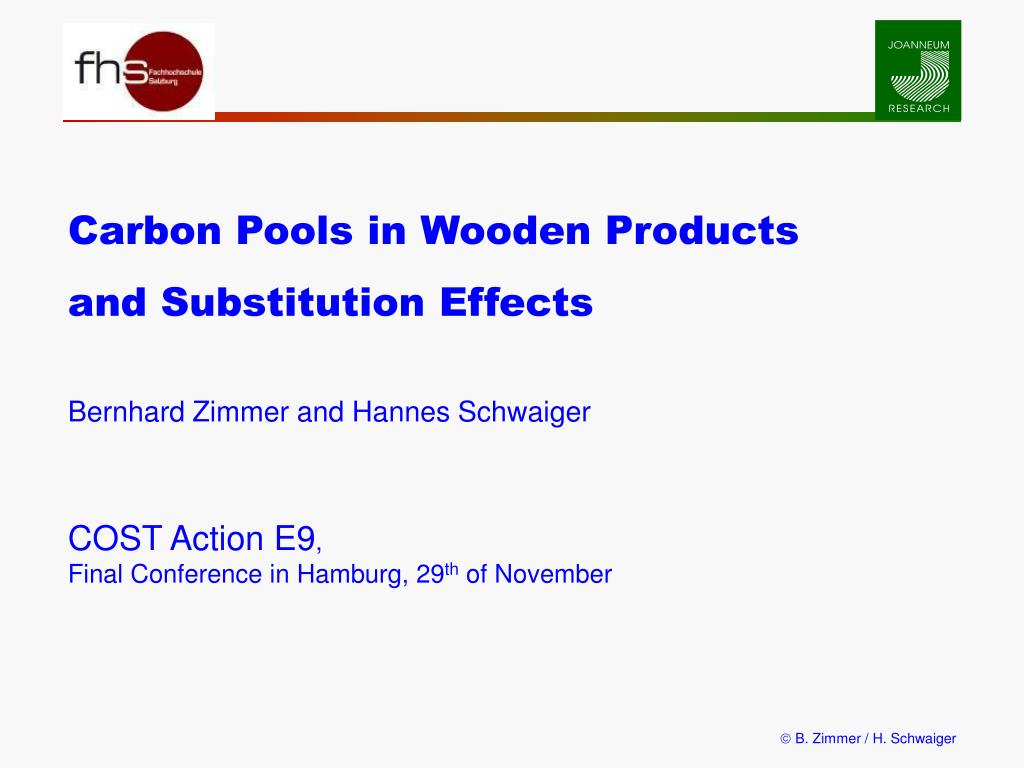

  1. Carbon Pools in Wooden Products and Substitution Effects Bernhard Zimmer and Hannes Schwaiger COST Action E9,Final Conference in Hamburg, 29th of November

  2. Content • Background • Carbon sinks and carbon pools • LCA – a method to calculate carbon pools • Carbon pool „wood and wood products“ • Conclusion

  3. Background • The important role of forests and their inherent potentials does not receive adequate recognition at international and national levels. • So far, the protection and economic use of forests and the importance of wood utilisation and wood use in the context of sustainability have not found sufficient consideration, nor has been translated into concerted political action. • The same goes for the contributions of forests, forestry and wood towards the fulfilment of the Kyoto-commitments.

  4. Aim and Scope • Present LCA methodology as a tool to estimate the carbon pools of wooden products • Show the link between „LCA on Forestry and Forest Products“ and the climate change discussion

  5. Carbon Pools and Annual Flows data according to Houghton (1997) and Schulze (2000)

  6. Wood and Timber Utilisation • 3.6 billion cubic metres of timber are currently being used per year; • almost half of this amount is used in wooden products and not directly as fuelwood;

  7. Life Span of Wooden Products

  8. Carbon Pool „Wood Products“

  9. Forest destruction every year also signifies the loss of about 3.7 billion cubic metres of wood that is no longer available for material use nor for controlled use as an energy resource. • In the final essence, this causes the release of about 1 Gt carbon per year from the destruction of wood mass alone.

  10. Carbon Pool „Wood Products“

  11. LCA, tool to estimate carbon pools

  12. The cradle of a wooden product is the forest

  13. Composition of Wood One ton of woodotro: • 500 kg carbon • 430 kg oxygen • 60 kg hydrogen • 10 kg other elements

  14. Wood production through photosynthesis Photosynthesis: 6 CO2 + 12 H2OC6H12O6 + 6 O2 + 6 H2O Theoretical approachto the calculation of material flows in the wood formation process: 8,4 CO2 + 12 H2O C8,4H12O5,4 + 8,7 O2 + 6 H2O

  15. carbon dioxide1851 kg water1082 kg solar energy 19100 MJ wood productionthroughphotosynthesis water541 kg water oxygen 1392 kg nutrientsN, P, K, Mg, Ca wood atro(softwood) 1000 kg

  16. Forestry

  17. Roundwood

  18. Transports

  19. Sawn timber

  20. LVL – Laminated Veneer Lumber

  21. GWP for production of 1 m³ LVL (Kerto)

  22. GWP for the production of a timber frame building (Haas)

  23. Conclusion • LCA is a valuable tool to calculate the carbon pools in products on condition that carbon dioxide is included as a elementary flow; • Therefore wood cannot be assessed as CO2-neutral and all CO2-emissions have to be mentioned in the GWP-Calculation

  24. Thank you very much for your attention
