  1. Chapter 7Light and Geometric Optics

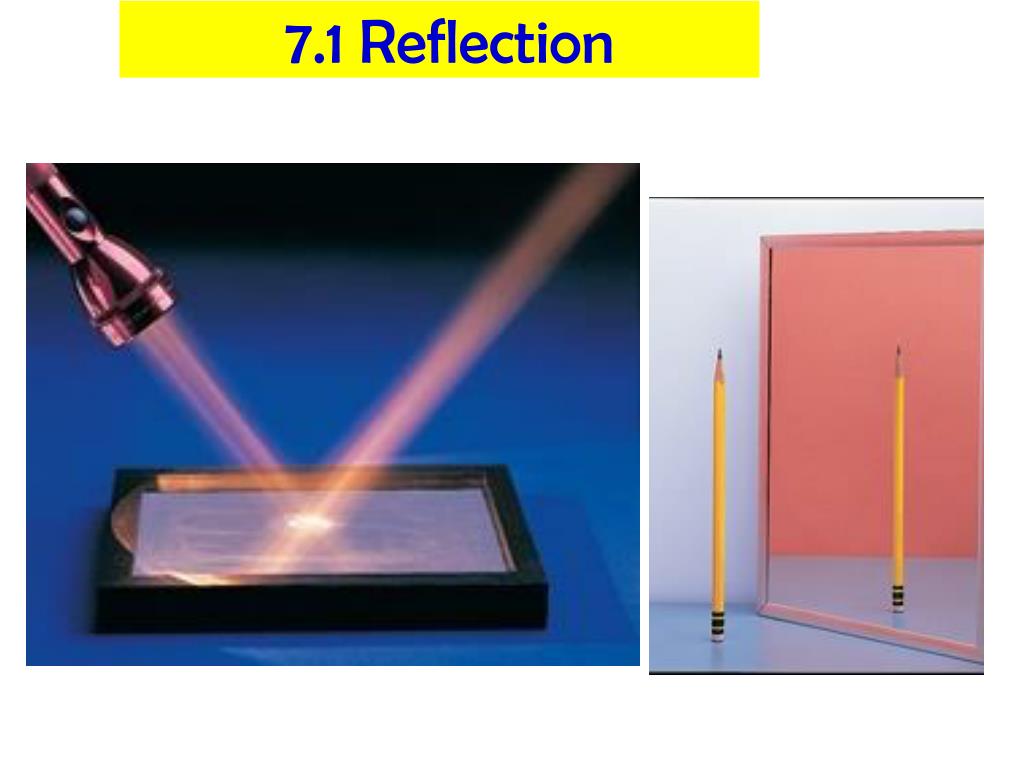

  2. 7.1 Reflection

  3. Heat Transfer by Radiation • Energy transmitted via RADIATION will be in the form of ELECTROMANETIC • WAVES and will travel at the SPEEDOFLIGHT

  4. Heat Transfer by Radiation The various forms of RADIANT ENERGY (which originate in the SUN)

  5. The Electromagnetic Spectrum All the different forms of electromagnetic radiation that occur in nature =

  6. Wavelength – Frequency – Energy long Wavelength = low Frequency = low Energy

  7. Wavelength – Frequency – Energy short Wavelength = high Frequency = high Energy

  8. Visible Light • light that our eyes can detect • visible light can be separated into its colors using prisms

  9. Infrared Radiation • has the greatest heating effect • Provides most of the thermal energy requirements of the planet

  10. Infrared Radiation

  11. Ultraviolet Radiation • DAMAGING: responsible for sun tans and sun burns

  12. Ultraviolet Radiation • Black Lights are sources of UV Radiation

  13. Linear Propagation Of Light • Light travel in straight lines (most of the time) • Even thought the light has a wave – like properties it can be approximated as rays rays =straight arrows

  14. Ray Diagrams • Ray of light is coming from the top of the candle and moving towards the mirror • For you to see the image of the candle in the mirror, the light needs to be reflected back to your eye • We complete the diagram by drawing another ray pointed to the direction of the eye

  15. The Law of Reflection • A ray approaching a mirror is called: INCIDENT RAY • A ray that is reflected by a mirror is called: REFLECTED RAY • The dashed line perpendicular to the mirror: THE NORMAL

  16. The Law of Reflection • The angle between the INCIDENT RAY and NORMAL: THE ANGLE OF INCIDENCE • The angle between the REFLECTEDRAY and NORMAL: THE ANGLE OF REFLECTION

  17. The Law of Reflection INCOMING and REFLECTED angles are EQUAL

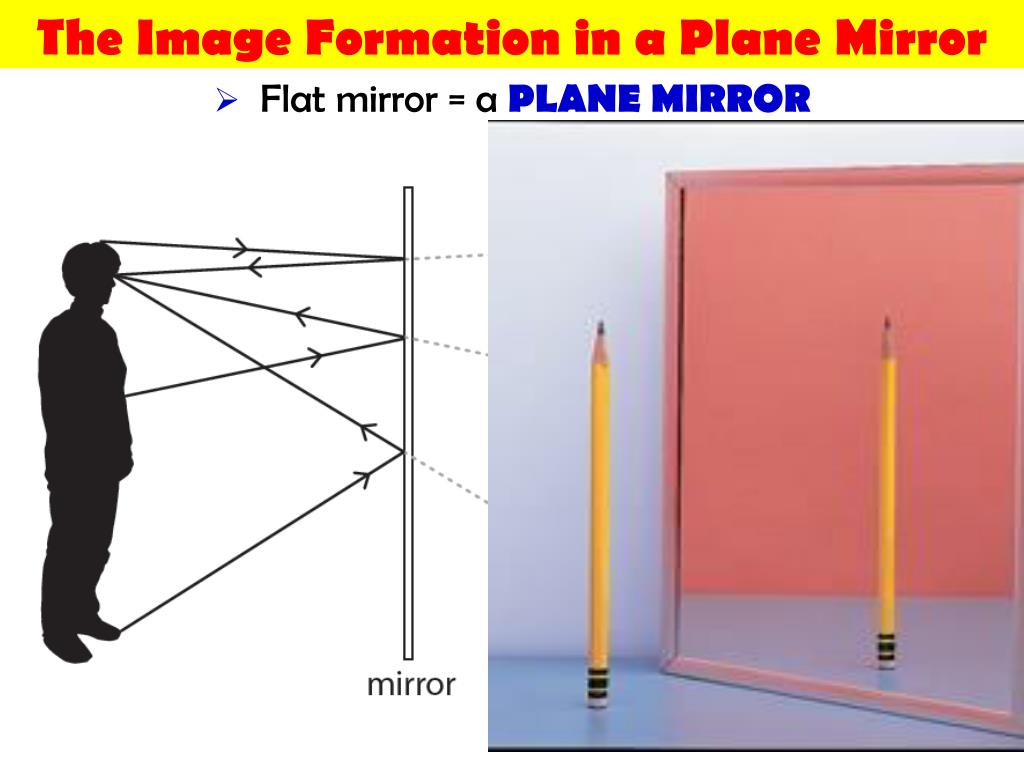

  18. The Image Formation in a Plane Mirror • Flat mirror = a PLANE MIRROR

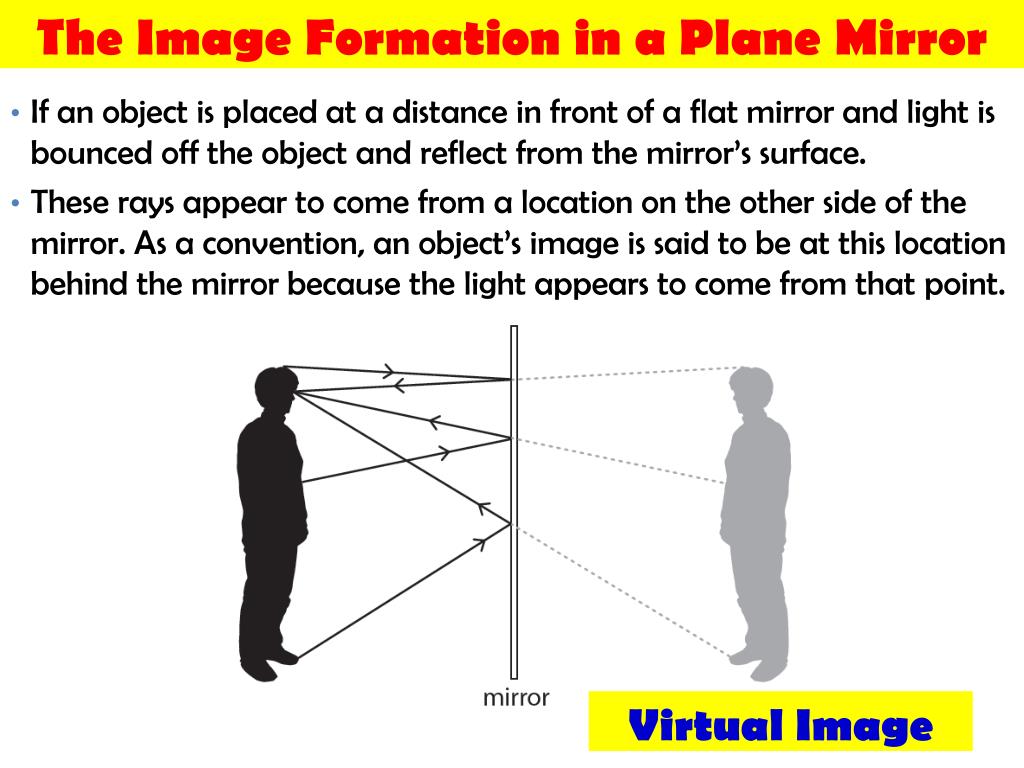

  19. The Image Formation in a Plane Mirror • If an object is placed at a distance in front of a flat mirror and light is bounced off the object and reflect from the mirror’s surface. • These rays appear to come from a location on the other side of the mirror. As a convention, an object’s image is said to be at this location behind the mirror because the light appears to come from that point. Virtual Image

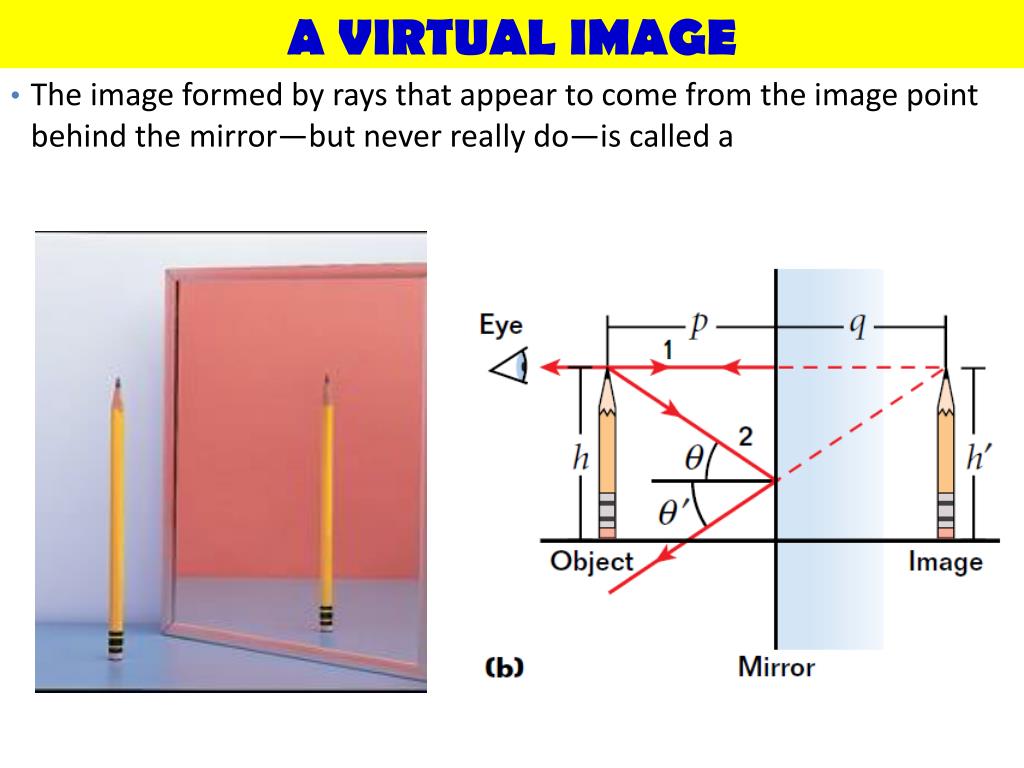

  20. A VIRTUAL IMAGE • The image formed by rays that appear to come from the image point behind the mirror—but never really do—is called a

  21. A VIRTUAL IMAGE • The image formed by rays that appear to come from the image point behind the mirror—but never really do—is called a An exact reflection of the real object: • Same size as the original object • It is upright • Same distance from the mirror as the object is from the mirror (p = q) p = object distance q = image distance • Image is REVERSED

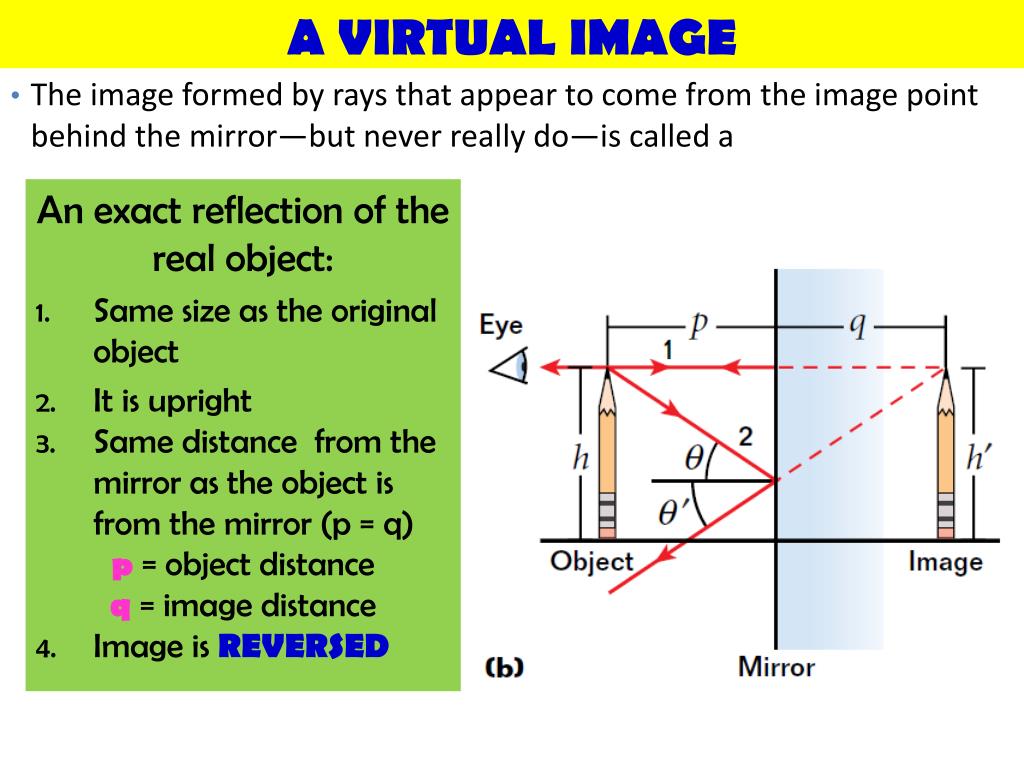

  22. A VIRTUAL IMAGE • The image formed by rays that appear to come from the image point behind the mirror—but never really do—is called a An exact reflection of the real object: • Same size as the original object • It is upright • Same distance from the mirror as the object is from the mirror (p = q) p = object distance q = image distance • Image is REVERSED

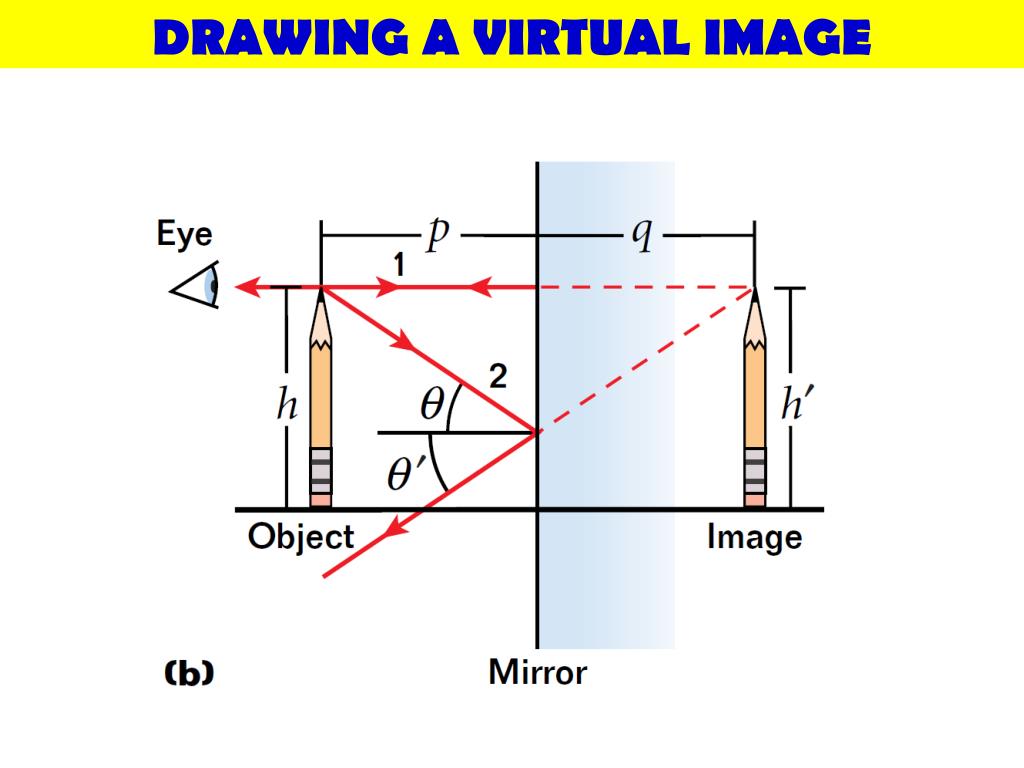

  23. DRAWING A VIRTUAL IMAGE

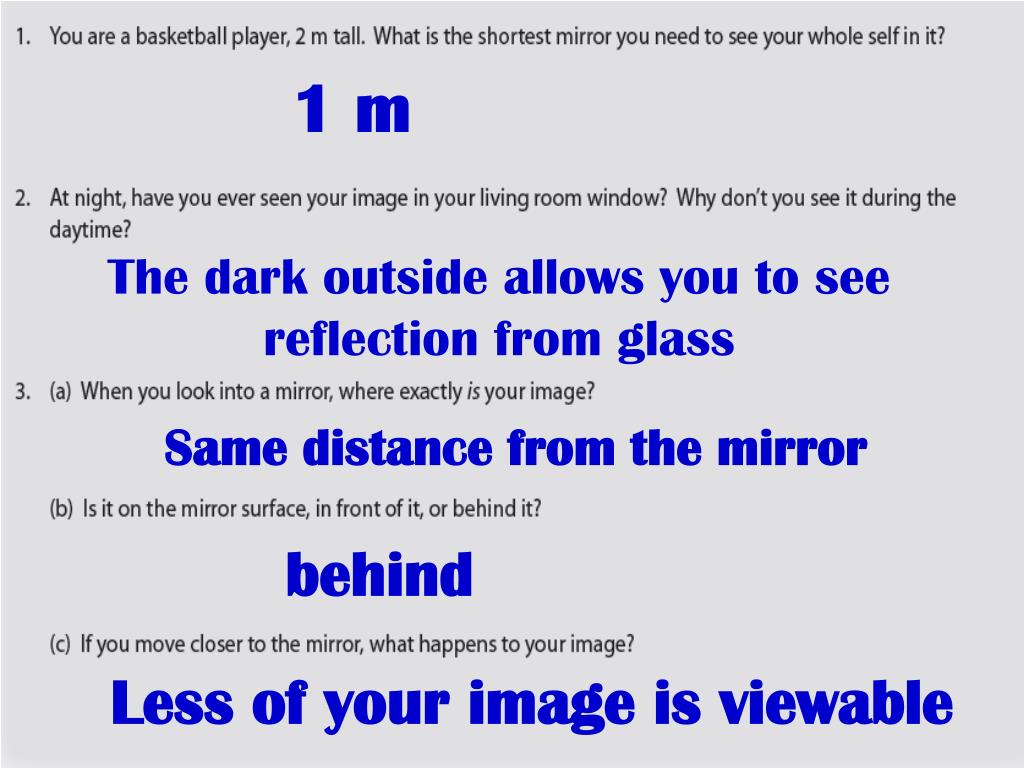

  24. 1 m The dark outside allows you to see reflection from glass Same distance from the mirror behind Less of your image is viewable

  25. 7.1 Review Questions (all)
