Delay Intubation?That is the question… Dr Peter Jordan FACEM Northern Hospital Austin Airway Forum May 2014
3 Cases • Background – ED Airway Management • Preoxygenation • Delayed Sequence Intubation • NIV • Ketamine • How to Make it Happen • Case Conclusions • Questions
Case 1 Confused and uncooperative 36YO male arrives via MAS at 0300 Probable alcohol +/- benzodiazepines +/- TCA Noisy resps, SaO2 89% on High Flow NRBM What are you going to do?
Case 2 Sunday PM Obese (>120kg) 48 man COPD/ Sleep apnoea/ HT Decreased Mental status and marked hypoxia. Sa02 68%, HR 140 Now what?
Case 3 37YO female – Obvious respiratory distress – unrecordable SaO2, ?cyanosed, Silent chest, Uncooperative – Keeps removing Nebuliser mask and stepping off trolley. History of Severe Asthma - Multiple ICU interventions
So you wanna have a crack at intubation? STEM.org.au

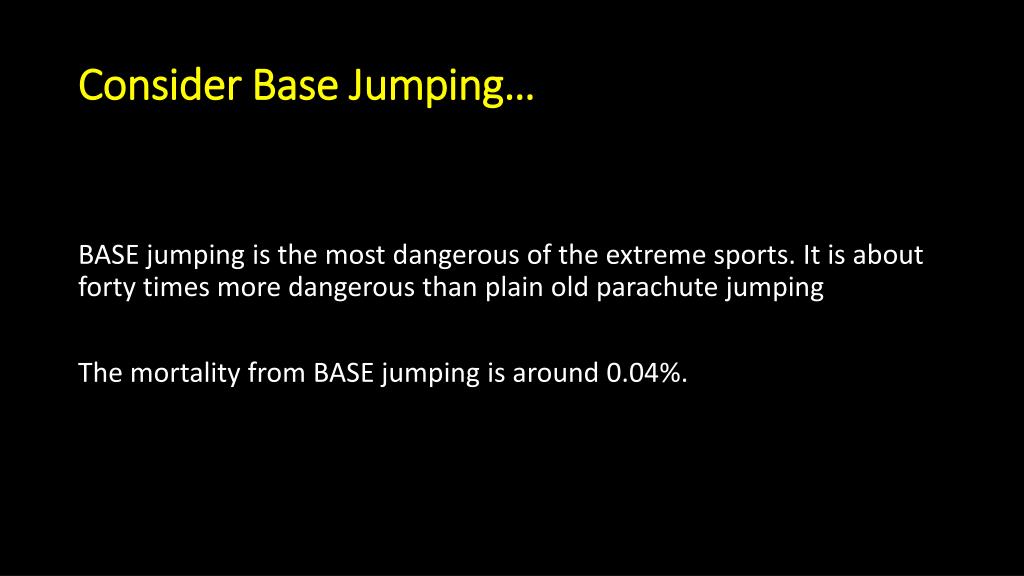

Consider Base Jumping… BASE jumping is the most dangerous of the extreme sports. It is about forty times more dangerous than plain old parachute jumping The mortality from BASE jumping is around 0.04%.
But its not me on the end of the blue cigar.. • Difficult laryngoscopy occurred in 24% • First pass success occurred in 83.4% • Difficult intubation occurred in 3.4% • Complications occurred in 29.0% • Desaturation in 15.7% • Periarrest Cardiac arrest occurred in 2.2% (no deaths) Prospective observational study of the practice of endotracheal intubation in the emergency department of a tertiary hospital in Sydney, Australia Fogg T et al EMA, 2012
Any other party poopers? • NAP4 (UK) • Death rate • ED 0.8% • ICU 3% • “Difficult” approx. 10% • Intubation in ED is 20 times more likely to kill you (as a patient) than base jumping…
But these patients are pretty sick right? When ALS succeeds, we convert a dead patient into a live one When RSI goes wrong we convert a live patient into a dead one

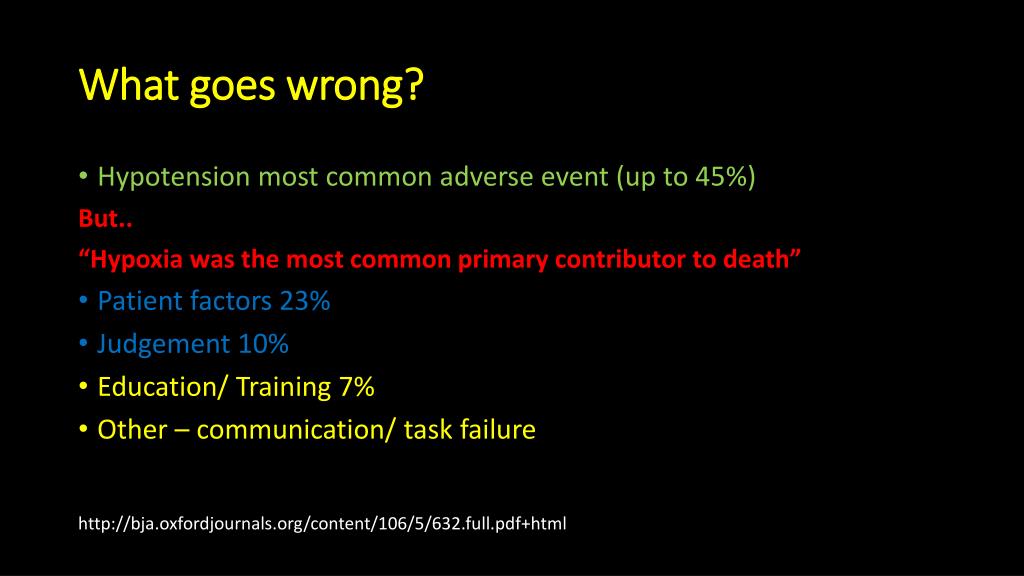

What goes wrong? • Hypotension most common adverse event (up to 45%) But.. “Hypoxia was the most common primary contributor to death” • Patient factors 23% • Judgement 10% • Education/ Training 7% • Other – communication/ task failure http://bja.oxfordjournals.org/content/106/5/632.full.pdf+html
Preoxygenation • Process of administering oxygen to a patient prior to intubation, so as to extend ‘the safe apnea time’ • Oxygen consumption during apnea is approximately 250 mL/minute (3 mL/kg per minute) in a healthy patient • in critically ill patients desaturation may occur immediately despite preoxygenation

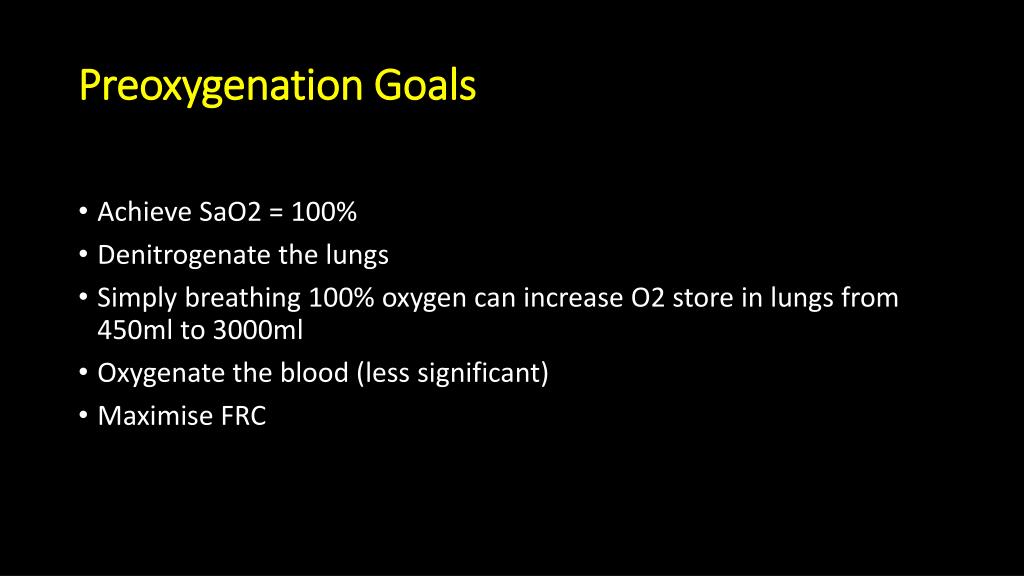

Preoxygenation Goals • Achieve SaO2 = 100% • Denitrogenatethe lungs • Simply breathing 100% oxygen can increase O2 store in lungs from 450ml to 3000ml • Oxygenate the blood (less significant) • Maximise FRC

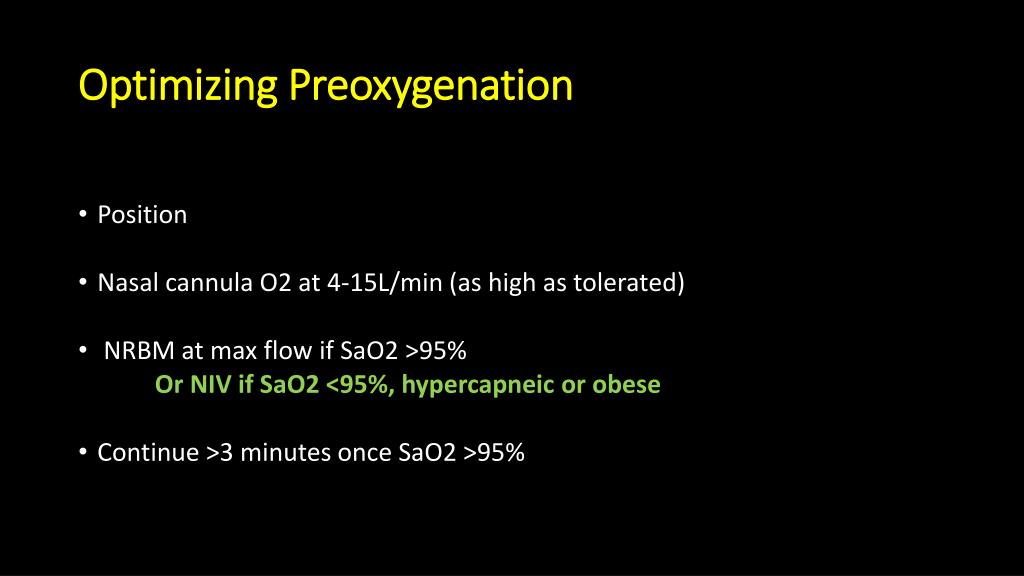

Optimizing Preoxygenation • Position • Nasal cannula O2 at 4-15L/min (as high as tolerated) • NRBM at max flow if SaO2 >95% Or NIV if SaO2 <95%, hypercapneic or obese • Continue >3 minutes once SaO2 >95%
DSI = procedural sedation, where the procedure is preoxygenation • The patient cannot tolerate preoxygenation (or other pre-intubation procedures) due to delirium and/ or agitation • Facilitates correction of hypoxia before paralysis • Sedative (Ketamine) preserves airway reflexes and respiratory drive and has minimal effect on haemodynamics • Does not always involve NIV
Other opportunities? • Better preparation • Self • Team • Environment • patient • NGT insertion • IV access • Vasopressors/ Inotropes • IV Fluids • Bronchodilation • Observation/ Monitoring • Buys Time - ”Double Set-up?”
What if the patient improves? • Great!! • But beware… • NNT = 4 (avoiding intubation) • Failed NIV worsens outcomes • If in doubt – Plan A is best Timing of Noninvasive Ventilation Failure - Causes, Risk Factors, and Potential Remedies. EzgiOzyilmaz, Aylin OzsancakUgurlu, Stefano Nava BMC Pulm Med. 2014;14(19)

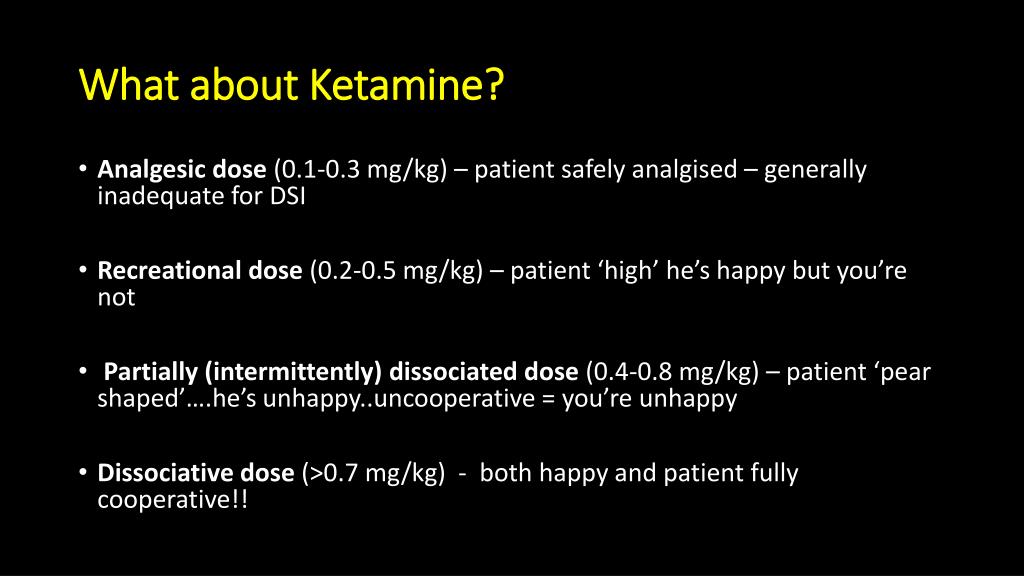

What about Ketamine? • Analgesic dose (0.1-0.3 mg/kg) – patient safely analgised – generally inadequate for DSI • Recreational dose (0.2-0.5 mg/kg) – patient ‘high’ he’s happy but you’re not • Partially (intermittently) dissociated dose (0.4-0.8 mg/kg) – patient ‘pear shaped’….he’s unhappy..uncooperative = you’re unhappy • Dissociative dose (>0.7 mg/kg) - both happy and patient fully cooperative!!
Ketamine sounds is a wonder drug.. Potentially significant Adverse Effects.. • Laryngospasm – mostly in children (0.4%) • Hypersalivation (~30%) • Emesis (~5-15% - but almost always during emergence) • Transient respiratory depression (usually in the first 2-3 minutes following a large, rapidly administered IV dose) • Transient mild increase in heart rate and blood pressure
Contraindications? Absolute • <3 months of age • Psychosis, (even if currently stable and controlled with medications) Relative • Age of 3-12 months • History of airway instability, tracheal surgery, or tracheal stenosis • Unstable cardiovascular disease, including angina, heart failure, or uncontrolled hypertension • Acute Globe Injury and Glaucoma Green SM, Roback MG, Kennedy RM, Krauss B. Clinical Practice Guideline for Emergency Department Ketamine Dissociative Sedation: 2011 Update. Annals of emergency medicine. 2011 – in press. PMID: 21256625
Ketamine Alternatives • Dexmedetomidine • Fentanyl/ Remifenatanyl/ Alfentanyl • Droperidol • Combinations
NIV - Contraindications • Pneumothorax • Trauma • AMI • Severe acidosis • Pre arrest • Resource Issues
NIV - What can go wrong? • Excessive secretions • Mask leaks • Pneumothorax • Vomiting/ aspiration • Patient-ventilator asynchrony
What if this happens? • physiotherapeutic techniques • judicious use of oral/ oro-pharyngeal suction • Brief PPV • changing ventilator settings – FiO2 (usually up) and pressures (up or down..Max 15cm EPAP) • Sedation/ More sedation • Proceed to intubation
Other ideas? emupdates.com

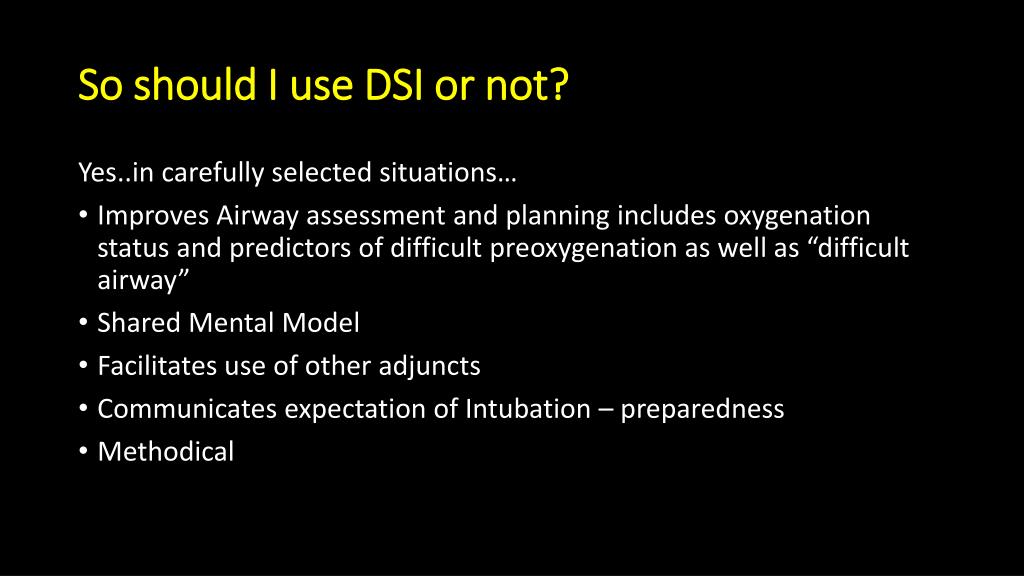

So should I use DSI or not? Yes..in carefully selected situations… • Improves Airway assessment and planning includes oxygenation status and predictors of difficult preoxygenationas well as “difficult airway” • Shared Mental Model • Facilitates use of other adjuncts • Communicates expectation of Intubation – preparedness • Methodical

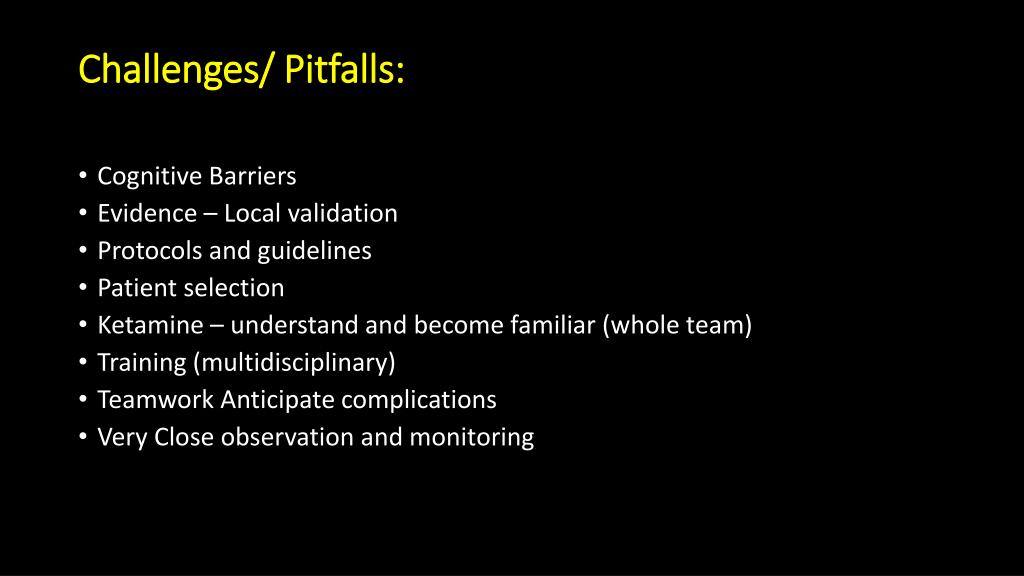

Challenges/ Pitfalls: • Cognitive Barriers • Evidence – Local validation • Protocols and guidelines • Patient selection • Ketamine – understand and become familiar (whole team) • Training (multidisciplinary) • Teamwork Anticipate complications • Very Close observation and monitoring
Making it Happen • Politics – gain approval/ agreement • Train with your team • Crisis Resource Management • Debrief/ Discuss/ Audit/ Report • airwayregistry.org.au

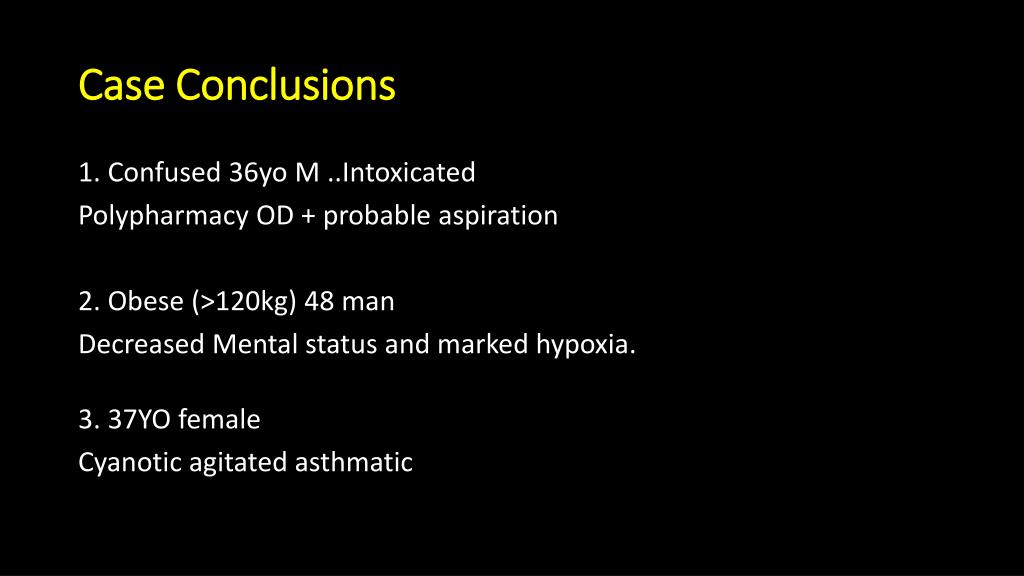

Case Conclusions 1. Confused 36yo M ..Intoxicated Polypharmacy OD + probable aspiration 2. Obese (>120kg) 48 man Decreased Mental status and marked hypoxia. 3. 37YO female Cyanotic agitated asthmatic
Thanks………….Questions? Sources: emcrit.org prehospitalmed.com (PHARM) STEM.org.au lifeinthefastlane.com emupdates.com Original Research and Reviews (see following slides)
references Prospective observational study of the practice of endotracheal intubation in the emergency department of a tertiary hospital in Sydney, Australia Fogg T et al EMA, 2012 Ballard C, Fosse et al NIV improves preoxygenation before intubation of hypoxic patients. Am J Resp Care. 2006;174:171-7 Delay J et al, The effectiveness of Non Invasive Positive Pressure Ventilation to enhance oxygenation in morbidly obese patients. An RCT. Anaesth Anal: 2008: 5 Green SM, Roback MG, Kennedy RM, Krauss B. Clinical Practice Guideline for Emergency Department Ketamine Dissociative Sedation: 2011 Update. Annals of emergency medicine. 2011 – in press. PMID: 21256625 Green SM, Cote CJ. Ketamine and neurotoxicity: clinical and implications for emergency medicine. Ann Emerg Med. 2009;54:181-190

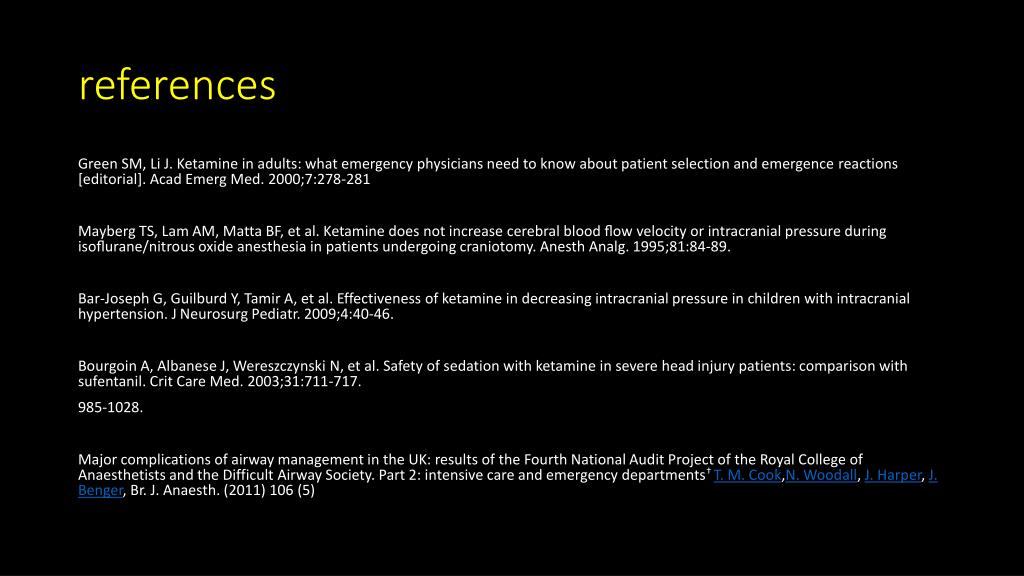

references Green SM, Li J. Ketamine in adults: what emergency physicians need to know about patient selection and emergence reactions [editorial]. AcadEmerg Med. 2000;7:278-281 MaybergTS, Lam AM, Matta BF, et al. Ketamine does not increase cerebral blood ﬂow velocity or intracranial pressure during isoﬂurane/nitrous oxide anesthesia in patients undergoing craniotomy. AnesthAnalg. 1995;81:84-89. Bar-Joseph G, Guilburd Y, Tamir A, et al. Effectiveness of ketamine in decreasing intracranial pressure in children with intracranial hypertension. J NeurosurgPediatr. 2009;4:40-46. BourgoinA, Albanese J, Wereszczynski N, et al. Safety of sedation with ketamine in severe head injury patients: comparison with sufentanil. Crit Care Med. 2003;31:711-717. 985-1028. Major complications of airway management in the UK: results of the Fourth National Audit Project of the Royal College of Anaesthetists and the Difficult Airway Society. Part 2: intensive care and emergency departments† T. M. Cook,N. Woodall, J. Harper, J. Benger, Br. J. Anaesth. (2011) 106 (5)

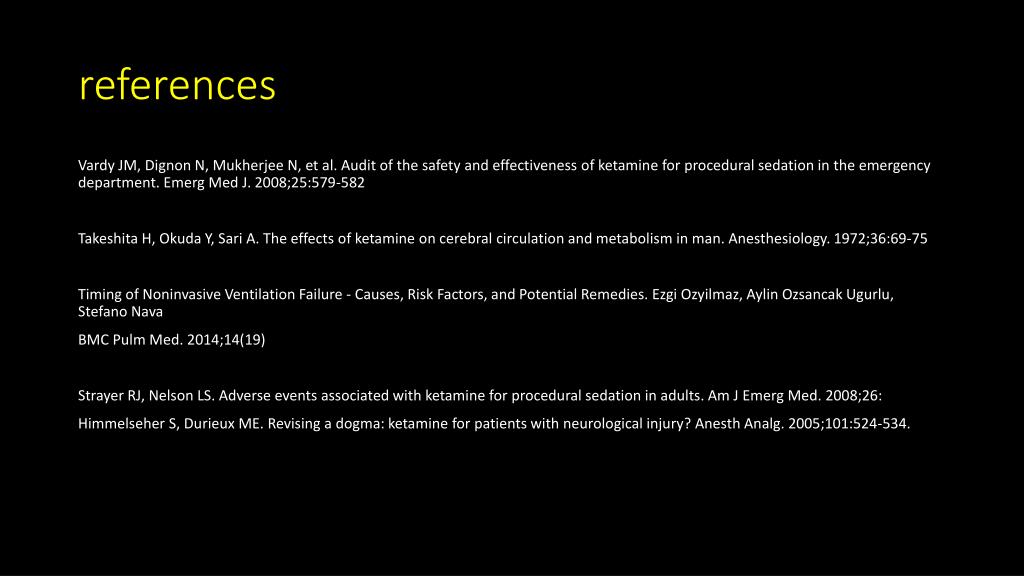

references Vardy JM, Dignon N, Mukherjee N, et al. Audit of the safety and effectiveness of ketamine for procedural sedation in the emergency department. Emerg Med J. 2008;25:579-582 TakeshitaH, Okuda Y, Sari A. The effects of ketamine on cerebral circulation and metabolism in man. Anesthesiology. 1972;36:69-75 Timing of Noninvasive Ventilation Failure - Causes, Risk Factors, and Potential Remedies. EzgiOzyilmaz, Aylin OzsancakUgurlu, Stefano Nava BMC Pulm Med. 2014;14(19) Strayer RJ, Nelson LS. Adverse events associated with ketamine for procedural sedation in adults. Am J Emerg Med. 2008;26: Himmelseher S, Durieux ME. Revising a dogma: ketamine for patients with neurological injury? AnesthAnalg. 2005;101:524-534.
