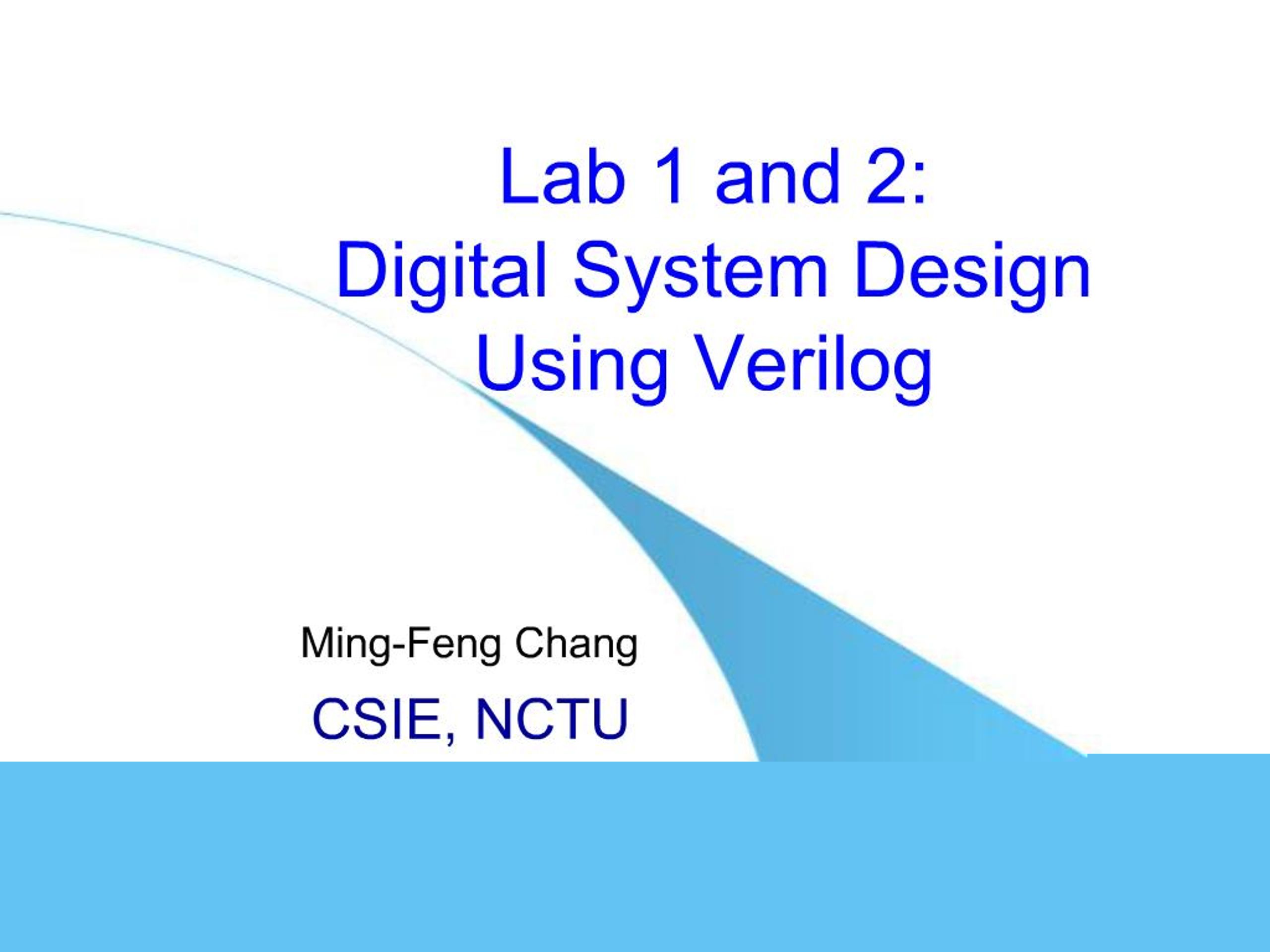

1. Lab 1 and 2:Digital System Design Using Verilog Ming-Feng Chang CSIE, NCTU

2. Introduction Objectives Understand the design methodologies using Verilog Target audience have basic digital circuits design concept use Verilog to design digital systems Verilog description for logic synthesis NOT in the talk a full coverage of Verilog use Verilog for quick behavioral modeling

3. Contents Verilog HDL structured modeling RTL modeling Example combinational circuits structured description (net-list) RTL Example sequential circuits RTL FSM combinational circuits sequential circuits

4. Verilog history Gateway Design Automation Phil Moorby in 1984 and 1985 Verilog-XL, "XL algorithm", 1986 a very efficient method for doing gate-level simulation Verilog logic synthesizer, Synopsys, 1988 the top-down design methodology is feasible Cadence Design Systems acquired Gateway December 1989 a proprietary HDL

5. Open Verilog International (OVI), 1991 Language Reference Manual (LRM) making the language specification as vendor-independent as possible. The IEEE 1364 working group, 1994 to turn the OVI LRM into an IEEE standard. Verilog became an IEEE standard December, 1995.

6. Hardware Description Languages The functionality of hardware concurrency timing controls The implementation of hardware structure net-list ISP C. Gordon Bell and Alan Newell at Carnegie Mellon University, 1972 RTL (register transfer level)

7. Different Levels of Abstraction Algorithmic the function of the system RTL the data flow the control signals the storage element and clock Gate gate-level net-list Switch transistor-level net-list

8. Verilog for Digital System Design Structural description net-list using primitive gates and switches continuous assignment using Verilog operators RTL functional description timing controls and concurrency specification procedural blocks (always and initial) registers and latches C + timing controls + concurrency An HDL to specify your design

9. Hierarchical structure Represent the hierarchy of a design modules the basic building blocks ports the I/O pins in hardware input, output or inout

10. Modules The principal design entity

11. Examples 4-bit adder module add4 (s,c3,ci,a,b) input [3:0] a,b ; // port declarations input ci ; output [3:0] s : // vector output c3 ; wire [2:0] co ; add a0 (co[0], s[0], a[0], b[0], ci) ; add a1 (co[1], s[1], a[1], b[1], co[0]) ; add a2 (co[2], s[2], a[2], b[2], co[1]) ; add a3 (c3, s[3], a[3], b[3], co[2]) ; endmodule

12. A full-adder module add (co, s, a, b, c) input a, b ,c ; output co, s ; xor (n1, a, b) ; xor (s, n1, c) ; nand (n2, a, b) ; nand (n3,n1, c) ; nand (co, n3,n2) ; endmodule

13. Data types Net physical wire between devices the default data type used in structural modeling and continuous assignment types of nets wire, tri : default wor, trior : wire-ORed wand, triand : wire-ANDed trireg : with capacitive storage tri1 : pull high tri0 ; pull low supply1 ; power supply0 ; ground

14. Reg variables used in RTL description a wire, a storage device or a temporary variable reg : unsigned integer variables of varying bit width integer : 32-bit signed integer real : signed floating-point time : 64-bit unsigned integer Parameters run-time constants

15. Special Language Tokens $<identifier>: System tasks and functions $time $stop $finish $monitor #<delay specification> used in gate instances and procedural statements unnecessary in RTL specification

16. Modeling Structures Net-list structural description for the top level Continuous assignments (combination circuits) data flow specification for simple combinational Verilog operators Procedural blocks (RTL) always and initial blocks allow timing control and concurrency C-like procedure statements primitives (=truth table, state transition table) function and task (�function and subroutine)

17. Gate-Level Modeling Net-list description built-in primitives gates A full-adder module add (co, s, a, b, c) input a, b ,c ; output co, s ; xor (n1, a, b) ; xor (s, n1, c) ; nand (n2, a, b) ; nand (n3,n1, c) ; nand (co, n3,n2) ; endmodule

18. Verilog Primitives Basic logic gates only and or not buf xor nand nor xnor bufif1, bufif0 notif1, notif0

19. Primitive Pins Are Expandable One output and variable number of inputs not and buf variable number of outputs but only one input

20. Continuous Assignments Describe combinational logic Operands + operators Drive values to a net assign out = a&b ; // and gate assign eq = (a==b) ; // comparator wire #10 inv = ~in ; // inverter with delay wire [7:0] c = a+b ; // 8-bit adder Avoid logic loops assign a = b + a ; asynchronous design

21. Operators { } concatenation + - * / arithmetic % modulus > >= < <= relational ! logical NOT && logical AND || logical OR == logical equality != logical inequality ? : conditional ~ bit-wise NOT & bit-wise AND | bit-wise OR ^ bit-wise XOR ^~ ~^ bit-wise XNOR & reduction AND | reduction OR ~& reduction NAND ~| reduction NOR ^ reduction XOR ~^ ^~ reduction XNOR << shift left >> shift right

22. Logical, bit-wise and unary operators a = 1011; b = 0010 logical bit-wise unary a || b = 1 a | b = 1011 |a = 1 a && b = 1 a &b = 0010 &a = 0 Conditional operator assign z = ({s1,s0} == 2'b00) ? IA : ({s1,s0} == 2'b01) ? IB : ({s1,s0} == 2'b10) ? IC : ({s1,s0} == 2'b11) ? ID : 1'bx ; assign s = (op == ADD) ? a+b : a-b ;

23. Operator Precedence [ ] bit-select or part-select ( ) parentheses !, ~ logical and bit-wise negation &, |, ~&, ~|, ^, ~^, ^~ reduction operators +, - unary arithmetic { } concatenation *, /, % arithmetic +, - arithmetic <<, >> shift >, >=, <, <= relational ==, != logical equality & bit-wise AND ^, ^~, ~^ bit-wise XOR and XNOR | bit-wise OR && logical AND || logical OR ? : conditional

24. RTL Modeling Describe the system at a high level of abstraction Specify a set of concurrently active procedural blocks procedural blocks = digital circuits Procedural blocks initial blocks test-fixtures to generate test vectors initial conditions always blocks can be combinational circuits can imply latches or flip-flops

25. Procedural blocks have the following components procedural assignment statements timing controls high-level programming language constructs

26. RTL Statements Procedural and RTL assignments reg & integer out = a + b ; begin . . . end block statements group statements if. . . else statements case statements for loops while loops forever loops disable statements disable a named block

27. Combinational Always Blocks A complete sensitivity list (inputs) always @(a or b or c) f = a&~c | b&c ; Simulation results always @(a or b) f = a&~c | b&c ; Parentheses always @(a or b or c or d) z = a + b + c + d ; // z = (a+b) + (c+d) ;

28. Sequential Always Blocks Inferred latches (Incomplete branch specifications) module infer_latch(D, enable, Q); input D, enable; output Q; reg Q; always @ (D or enable) begin if (enable) Q <= D; end endmodule the Q is not specified in a branch a latch like 74373

29. Combinational Circuit Design Outputs are functions of inputs Examples MUX decoder priority encoder adder

30. Multiplexor Net-list (gate-level) module mux2_1 (out,a,b,sel) ; output out ; input a,b,sel ; not (sel_, sel) ; and (a1, a, sel_) ; and (b1, b, sel) ; or (out, a1, b1) ; endmodule

31. Multiplexor Continuous assignment module mux2_1 (out,a,b,sel) ; output out ; input a,b,sel ; assign out = (a&~sel)|(b&sel) ; endmodule RTL modeling always @(a or b or sel) if(sel) out = b; else out = a;

32. Multiplexor 4-to-1 multiplexor module mux4_1 (out, in0, in1, in2, in3, sel) ; output out ; input in0,in1,in2,in3 ; input [1:0] sel ; assign out = (sel == 2'b00) ? in0 : (sel == 2'b01) ? in1 : (sel == 2'b10) ? in2 : (sel == 2'b11) ? in3 : 1'bx ; endmodule

33. module mux4_1 (out, in, sel) ; output out ; input [3:0] in ; input [1:0] sel ; reg out ; always @(sel or in) begin case(sel) 2�d0: out = in[0] ; 2�d1: out = in[1] ; 2�d2: out = in[2] ; 2�d3: out = in[3] ; default: 1�bx ; endcase end endmodule

34. Decoder 3-to 8 decoder with an enable control module decoder(o,enb_,sel) ; output [7:0] o ; input enb_ ; input [2:0] sel ; reg [7:0] o ; always @ (enb_ or sel) if(enb_) o = 8'b1111_1111 ; else case(sel) 3'b000 : o = 8'b1111_1110 ; 3'b001 : o = 8'b1111_1101 ; 3'b010 : o = 8'b1111_1011 ; 3'b011 : o = 8'b1111_0111 ; 3'b100 : o = 8'b1110_1111 ; 3'b101 : o = 8'b1101_1111 ; 3'b110 : o = 8'b1011_1111 ; 3'b111 : o = 8'b0111_1111 ; default : o = 8'bx ; endcase endmodule

35. Priority Encoder always @ (d0 or d1 or d2 or d3) if (d3 == 1) {x,y,v} = 3�b111 ; else if (d2 == 1) {x,y,v} = 3�b101 ; else if (d1 == 1) {x,y,v} = 3�b011 ; else if (d0 == 1) {x,y,v} = 3�b001 ; else {x,y,v} = 3�bxx0 ;

36. Parity Checker module parity_chk(data, parity); input [0:7] data; output parity; reg parity; always @ (data) begin: check_parity reg partial; integer n; partial = data[0]; for ( n = 0; n <= 7; n = n + 1) begin partial = partial ^ data[n]; end parity <= partial; end endmodule

37. Adder RTL modeling module adder(c,s,a,b) ; output c ; output [7:0] s ; input [7:0] a,b ; assign {c,s} = a + b ; endmodule Logic synthesis CLA adder for speed optimization ripple adder for area optimization

38. Tri-State The value z always @ (sela or a) if (sela) out = a ; else out = 1�bz ; Another block always @(selb or b) if(selb) out =b ; else out = 1�bz ;

39. Registers (Flip-flops) are implied @(posedge clk) or @(negedge clk) a positive edge-triggered D flip-flop always @ (posedge clk) q = d ;

40. Procedural Assignments Blocking assignments always @(posedge clk) begin rega = data ; regb = rega ; end Non-blocking assignments always @(posedge clk) begin regc <= data ; regd <= regc ; end

41. Sequential Circuit Design

42. Examples D flip-flop D latch register shifter counter pipeline FSM

43. Flip-Flop Synchronous clear module d_ff (q,d,clk,clr_) ; output q ; input d,clk,clr_ ; reg q ; always @ (posedge clk) if (~clr_) q = 0 ; else q = d ; endmodule Asynchronous clear always @ (posedge clk or negedge clr_) if (~clr_) q = 0 ; else q = d ;

44. Register module register (q,d,clk,clr_, set_) ; output [7:0] q ; input [7:0] d ; input clk,clr_, set_ ; reg [7:0] q ; always @ (posedge clk or negedge clr_ or negedge set_) if (~clr_) q = 0 ; else if (~set_) q = 8�b1111_1111 ; else q = d ; endmodule

45. D Latches D latch always @ (enable or data) if (enable) q = data ; D latch with gated asynchronous data always @ (enable or data or gate) if (enable) q = data & gate ;

46. D latch with gated �enable� always @ (enable or d or gate) if (enable & gate) q = d ; D latch with asynchronous reset always @ (reset or data or gate) if (reset) q = 1�b0 else if(enable) q = data ;

47. Shifter module shifter (so,si,d,clk,ld_,clr_) ; output so ; input [7:0] d ; input si,clk,ld_,clr_ ; // asynchronous clear and synchronous load reg [7:0] q ; assign so = q[7] ; always @ (posedge clk or negedge clr_) if (~clr_) q = 0 ; else if (~ld_) q = d ; else q[7:0] = {q[6:0],si} ; endmodule

48. Counter module bcd_counter(count,ripple_out,clr,clk) ; output [3:0] count ; output ripple_out ; reg [3:0] count ; input clr,clk ; wire ripple_out = (count == 4'b1001) ? 0:1 ; // combinational always @ (posedge clk or posedge clr) // combinational + sequential if (clr) ; count = 0 ; else if (count == 4'b1001) count = 0 ; else count = count + 1 ; endmodule

49. Memory module memory (data, addr, read, write); input read, write; input [4:0] addr; inout [7:0] data; reg [7:0] data_reg; reg [7:0] memory [0:8'hff]; parameter load_file = "cput1.txt"; assign data = (read) ? memory [addr] : 8'hz; always @ (posedge write) memory[addr] = data; initial $readmemb (load_file, memory); endmodule

50. Finite State Machine Moore model Mealy model

51. Inefficient Description module count (clock, reset, and_bits, or_bits, xor_bits); input clock, reset; output and_bits, or_bits, xor_bits; reg and_bits, or_bits, xor_bits; reg [2:0] count; always @(posedge clock) begin if (reset) count = 0; else count = count + 1; and_bits = & count; or_bits = | count; xor_bits = ^ count; end endmodule

52. Six implied registers

53. Efficient Description module count (clock, reset, and_bits, or_bits, xor_bits); input clock, reset; output and_bits, or_bits, xor_bits; reg and_bits, or_bits, xor_bits; reg [2:0] count; always @(posedge clock) begin if (reset) count = 0; else count = count + 1; end // combinational circuits always @(count) begin and_bits = & count; or_bits = | count; xor_bits = ^ count; end endmodule

54. Three registers are used

55. Mealy Machine Example module mealy (in1, in2, clk, reset,out); input in1, in2, clk, reset; output out; reg current_state, next_state, out; // state flip-flops always @(posedge clk or negedge reset) if (!reset) current_state = 0; else current_state = next_state; // combinational: next-state and outputs always @(in1 or in2 or current_state) case (current_state) 0: begin next_state = 1; out = 1'b0; end 1: if (in1) begin next_state = 1'b0; out = in2; end else begin next_state = 1'b1; out = !in2; end endcase endmodule

56. Pipelines An example assign n_sum = a+b assign p = sum * d_c // plus D flip-flops always @ (posedge clk) sum = n_sum ;

59. TL

61. Verilog Description module traffic_light(HG, HY, HR, FG, FY, FR,ST_o, tl, ts, clk, reset, c) ; output HG, HY, HR, FG, FY, FR, ST_o; input tl, ts, clk, reset, c ; reg ST_o, ST ; reg[0:1] state, next_state ; parameter EVEN= 0, ODD=1 ; parameter S0= 2'b00, S1=2'b01, S2=2'b10, S3=2'b11; assign HG = (state == S0) ; assign HY = (state == S1) ; assign HR = ((state == S2)||(state == S3)) ; assign FG = (state == S2) ; assign FY = (state == S3) ; assign FR = ((state == S0)||(state == S1)) ;

62. // flip-flops always@ (posedge clk or posedge reset) if(reset) // an asynchronous reset begin state = S0 ; ST_o = 0 ; end else begin state = next_state ; ST_o = ST ; end

63. always@ (state or c or tl or ts) case(state) // state transition S0: if(tl & c) begin next_state = S1 ; ST = 1 ; end else begin next_state = S0 ; ST = 0 ; end

64. S1: if (ts) begin next_state = S2 ; ST = 1 ; end else begin next_state = S1 ; ST = 0 ; end S2: if(tl | !c) begin next_state = S3 ; ST = 1 ; end else begin next_state = S2 ; ST = 0 ; end

65. S3: if(ts) begin next_state = S0 ; ST = 1 ; end else begin next_state = S3 ; ST = 0 ; end endcase endmodule

66. Efficient Modeling Techniques Separate combinational and sequential circuits always know your target circuits Separate structured circuits and random logic structured: data path, XORs, MUXs random logic: control logic, decoder, encoder Use parentheses control complex structure .....

67. Conclusions Verilog modeling structured modeling continuous assignment RTL modeling Design digital systems separate combinational and sequential description always keep your target circuits in mind

68. Reference Verilog-XL Training Manual, CIC Logic Synthesis Design Kit, CIC HDL Compiler for Verilog Reference Manual, Synopsys Synthesis Application Notes, Synopsys Online Documentation
