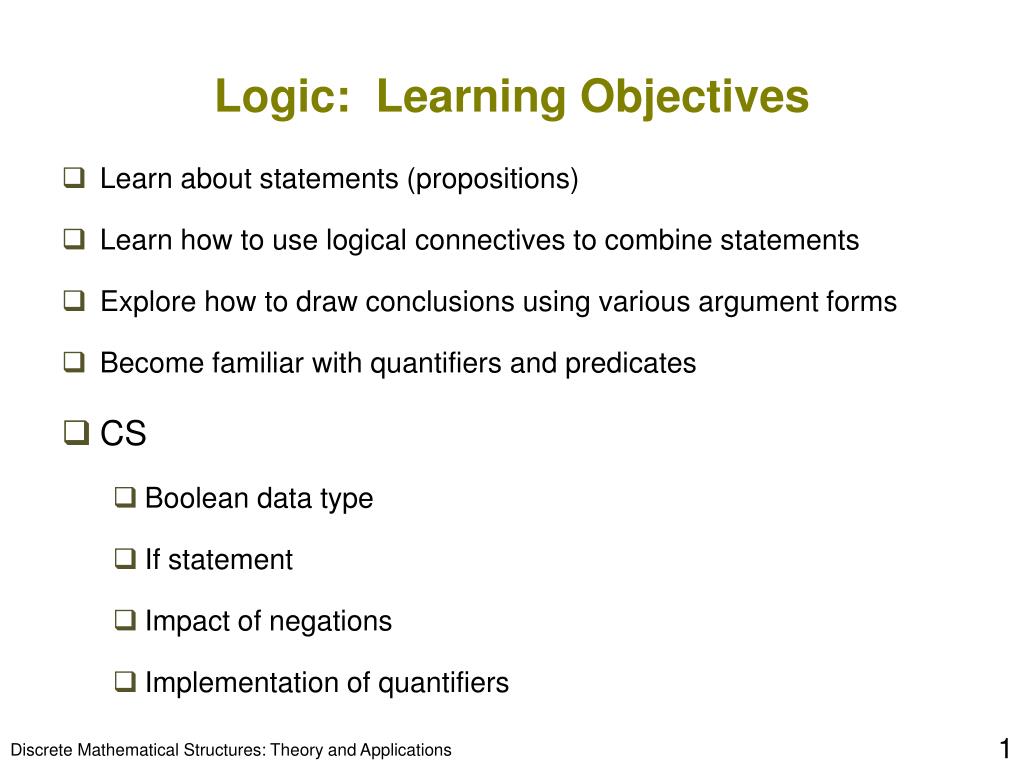

  1. Logic: Learning Objectives • Learn about statements (propositions) • Learn how to use logical connectives to combine statements • Explore how to draw conclusions using various argument forms • Become familiar with quantifiers and predicates • CS • Boolean data type • If statement • Impact of negations • Implementation of quantifiers Discrete Mathematical Structures: Theory and Applications

  2. Mathematical Logic • Definition: Methods of reasoning, provides rules and techniques to determine whether an argument is valid • Theorem: a statement that can be shown to be true (under certain conditions) • Example: If x is an even integer, then x + 1 is an odd integer • This statement is true under the condition that x is an integer is true Discrete Mathematical Structures: Theory and Applications

  3. Mathematical Logic • A statement, or a proposition, is a declarative sentence that is either true or false, but not both • Lowercase letters denote propositions • Examples: • p: 2 is an even number (true) • q: 3 is an odd number (true) • r: A is a consonant (false) • The following are not propositions: • p: My cat is beautiful • q: Are you in charge? Discrete Mathematical Structures: Theory and Applications

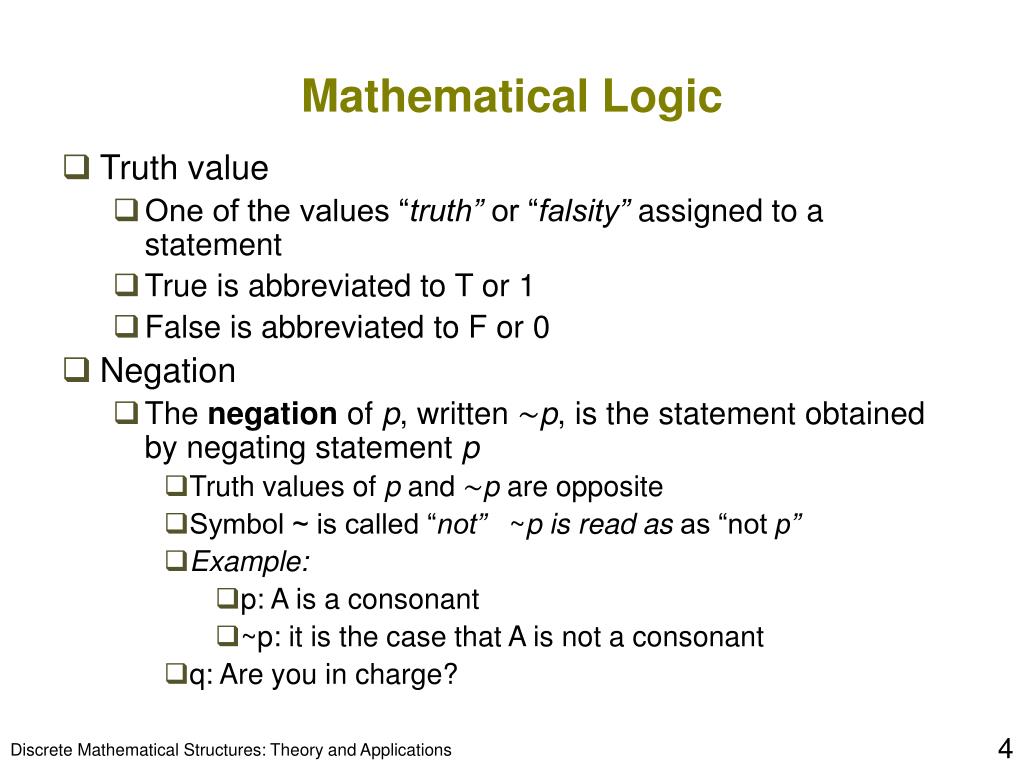

  4. Mathematical Logic • Truth value • One of the values “truth” or “falsity” assigned to a statement • True is abbreviated to T or 1 • False is abbreviated to F or 0 • Negation • The negation of p, written ∼p, is the statement obtained by negating statement p • Truth values of p and ∼p are opposite • Symbol ~ is called “not” ~p is read as as “not p” • Example: • p: A is a consonant • ~p: it is the case that A is not a consonant • q: Are you in charge? Discrete Mathematical Structures: Theory and Applications

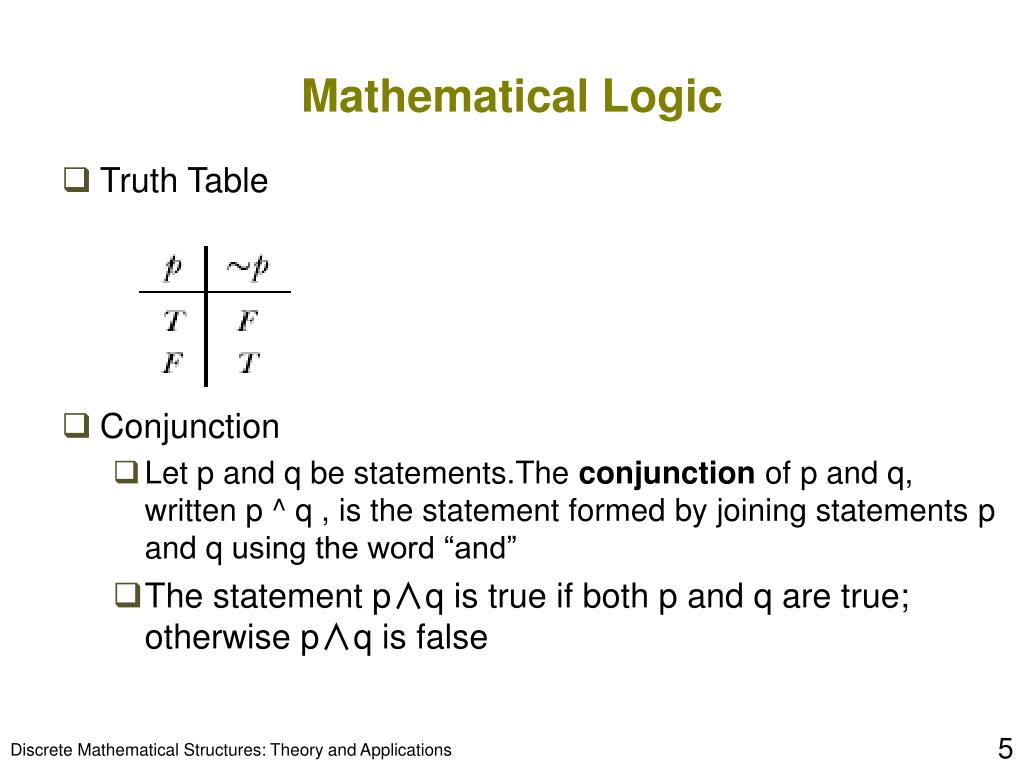

  5. Mathematical Logic • Truth Table • Conjunction • Let p and q be statements.The conjunction of p and q, written p ^ q , is the statement formed by joining statements p and q using the word “and” • The statement p∧q is true if both p and q are true; otherwise p∧q is false Discrete Mathematical Structures: Theory and Applications

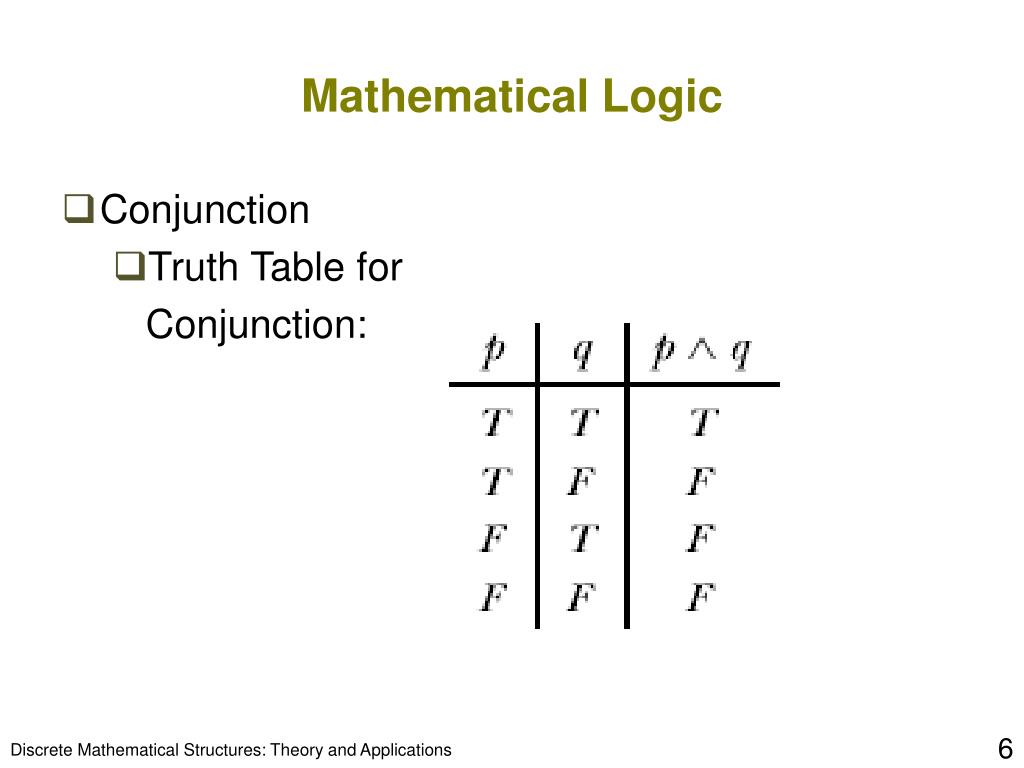

  6. Mathematical Logic • Conjunction • Truth Table for Conjunction: Discrete Mathematical Structures: Theory and Applications

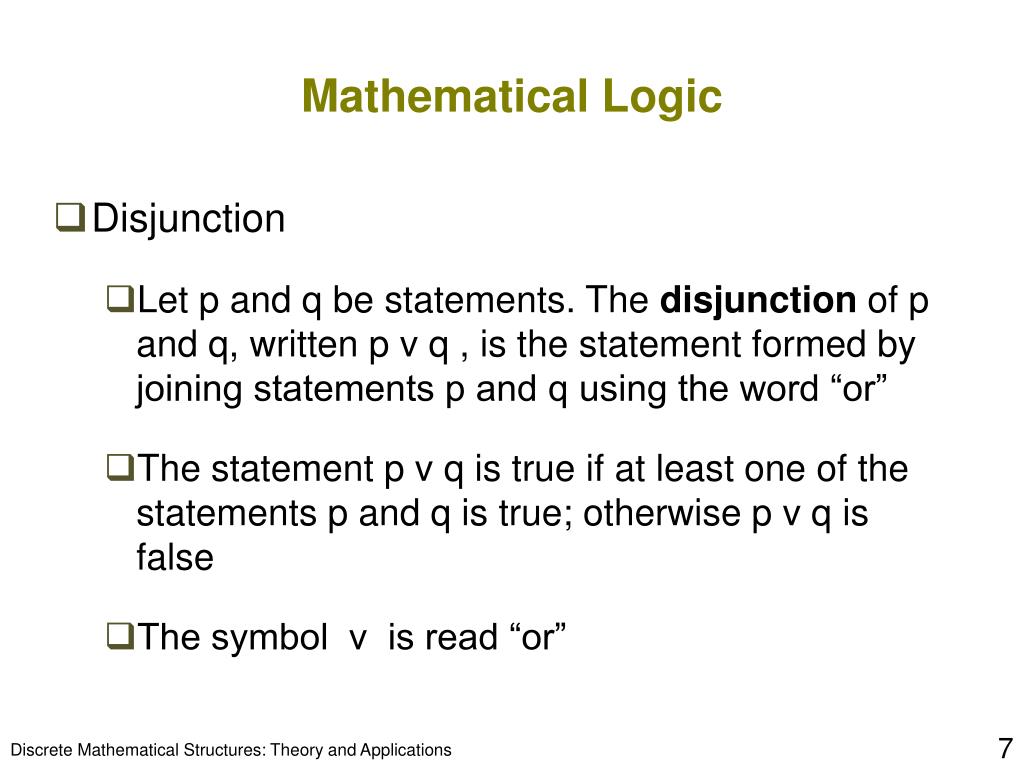

  7. Mathematical Logic • Disjunction • Let p and q be statements. The disjunction of p and q, written p v q , is the statement formed by joining statements p and q using the word “or” • The statement p v q is true if at least one of the statements p and q is true; otherwise p v q is false • The symbol v is read “or” Discrete Mathematical Structures: Theory and Applications

  8. Mathematical Logic • Disjunction • Truth Table for Disjunction: Discrete Mathematical Structures: Theory and Applications

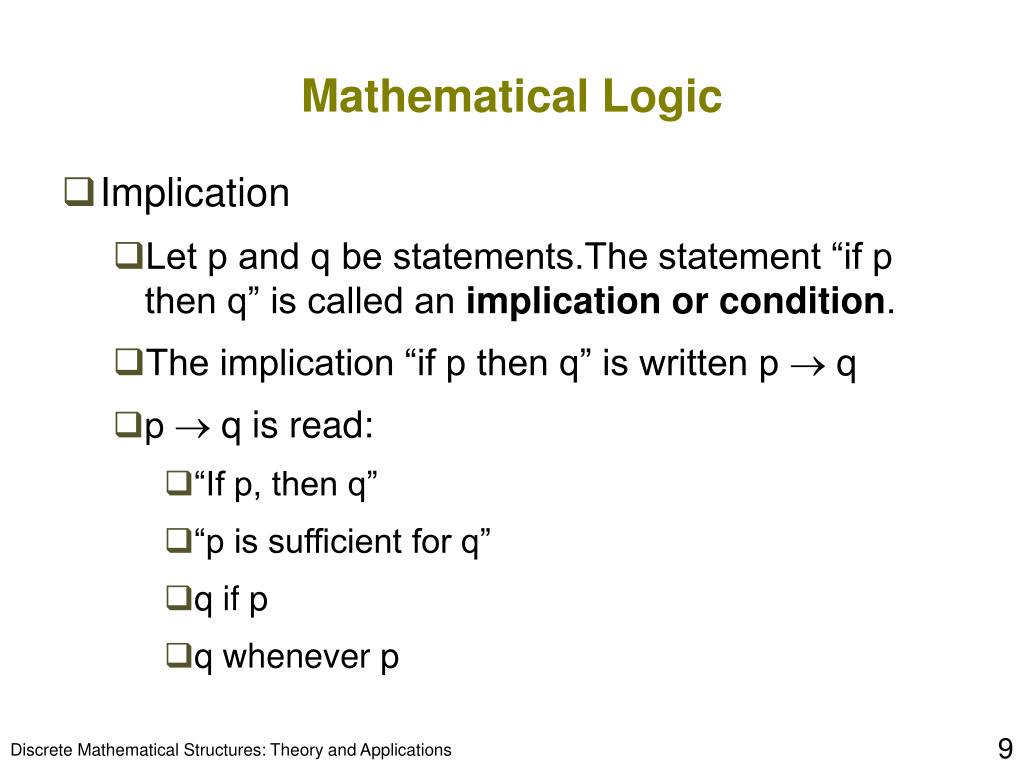

  9. Mathematical Logic • Implication • Let p and q be statements.The statement “if p then q” is called an implication or condition. • The implication “if p then q” is written p  q • p  q is read: • “If p, then q” • “p is sufficient for q” • q if p • q whenever p Discrete Mathematical Structures: Theory and Applications

  10. Mathematical Logic • Implication • Truth Table for Implication: • p is called the hypothesis, q is called the conclusion Discrete Mathematical Structures: Theory and Applications

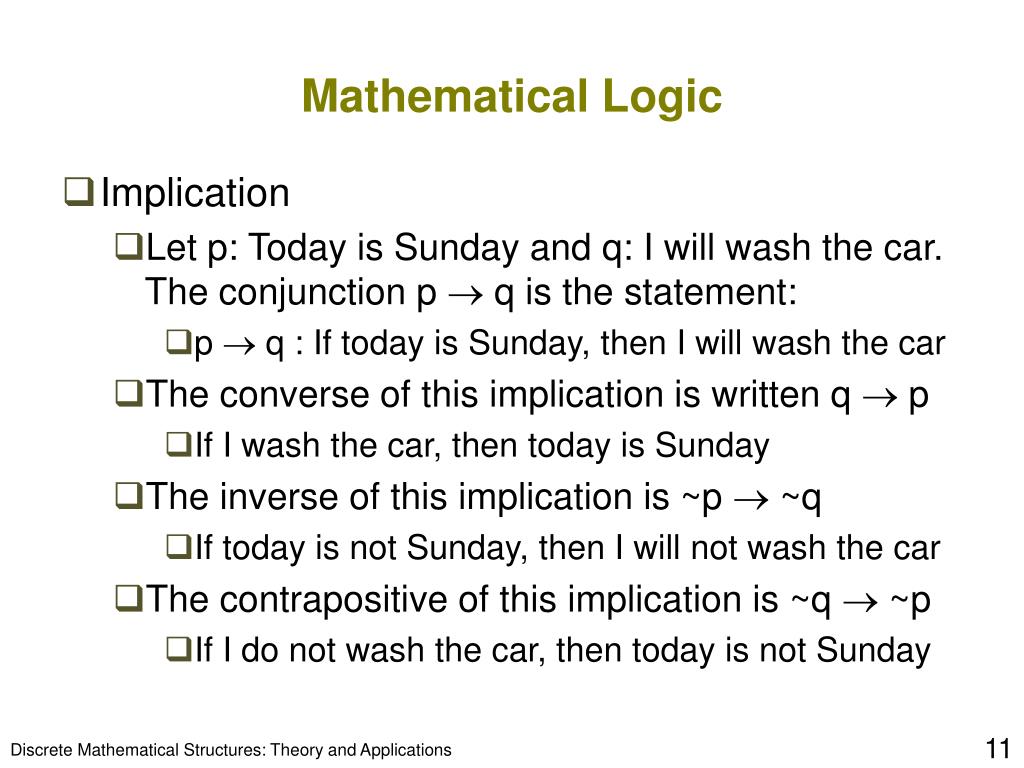

  11. Mathematical Logic • Implication • Let p: Today is Sunday and q: I will wash the car. The conjunction p  q is the statement: • p  q : If today is Sunday, then I will wash the car • The converse of this implication is written q  p • If I wash the car, then today is Sunday • The inverse of this implication is ~p  ~q • If today is not Sunday, then I will not wash the car • The contrapositive of this implication is ~q  ~p • If I do not wash the car, then today is not Sunday Discrete Mathematical Structures: Theory and Applications

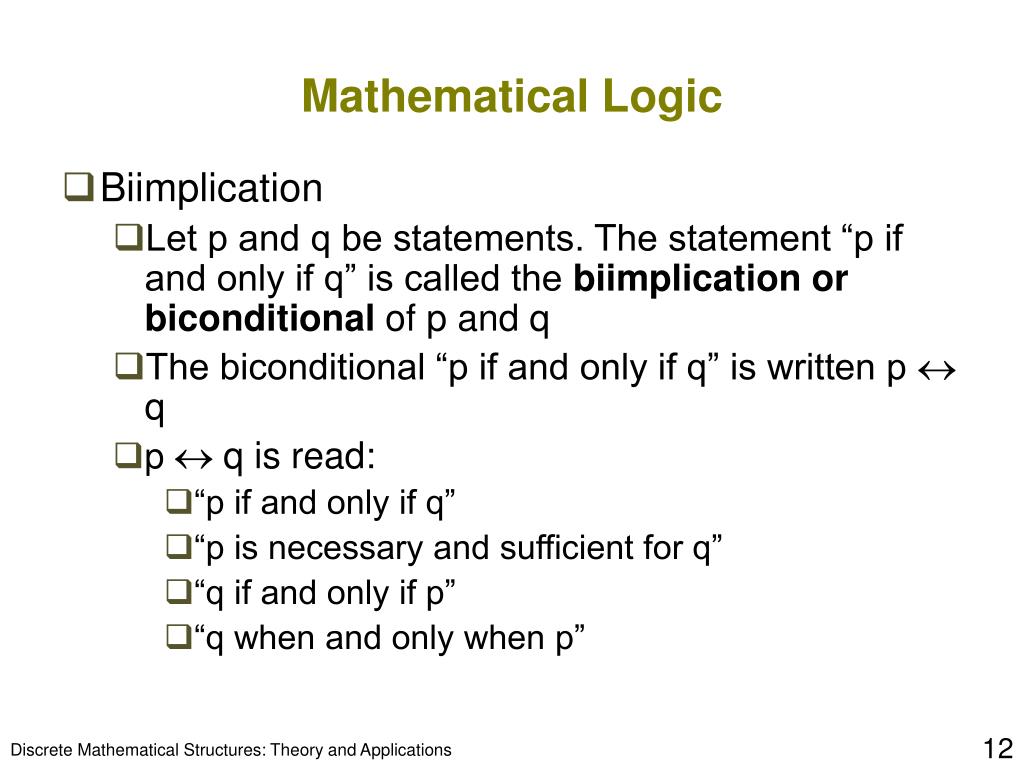

  12. Mathematical Logic • Biimplication • Let p and q be statements. The statement “p if and only if q” is called the biimplication or biconditional of p and q • The biconditional “p if and only if q” is written p  q • p  q is read: • “p if and only if q” • “p is necessary and sufficient for q” • “q if and only if p” • “q when and only when p” Discrete Mathematical Structures: Theory and Applications

  13. Mathematical Logic • Biconditional • Truth Table for the Biconditional: Discrete Mathematical Structures: Theory and Applications

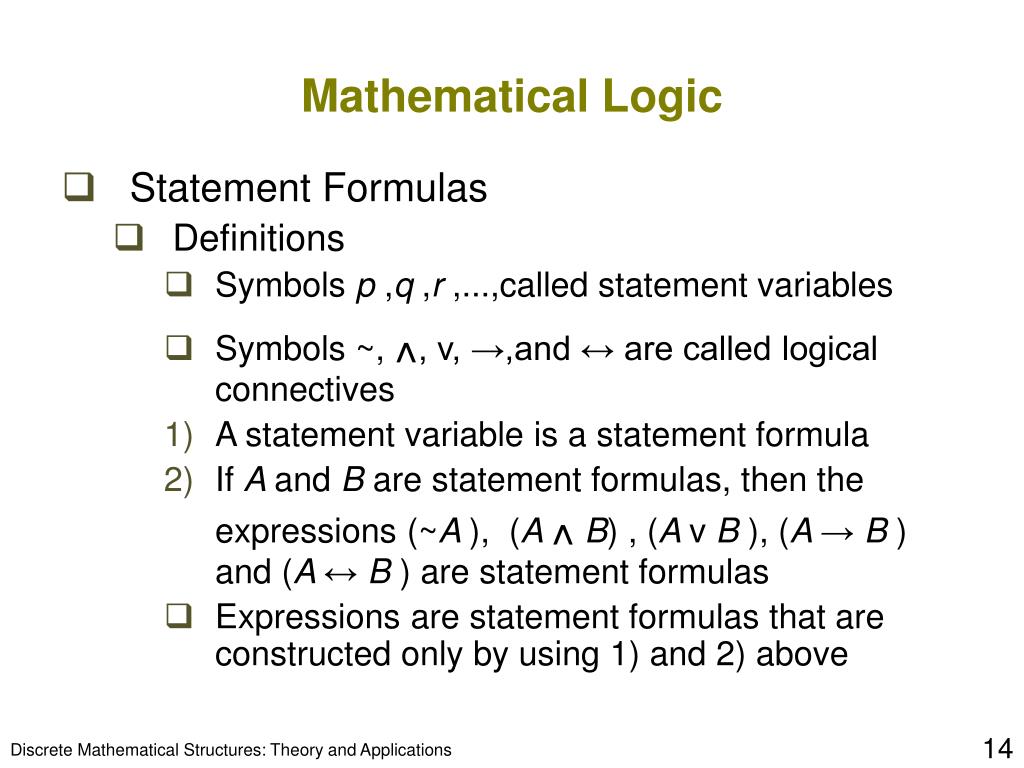

  14. Mathematical Logic • Statement Formulas • Definitions • Symbols p ,q ,r ,...,called statement variables • Symbols ~, ^, v, →,and ↔ are called logical connectives • A statement variable is a statement formula • If A and B are statement formulas, then the expressions (~A ), (A ^B) , (A v B ), (A → B ) and (A ↔ B ) are statement formulas • Expressions are statement formulas that are constructed only by using 1) and 2) above Discrete Mathematical Structures: Theory and Applications

  15. Mathematical Logic • Precedence of logical connectives is: • ~ highest • ^ second highest • v third highest • → fourth highest • ↔ fifth highest Discrete Mathematical Structures: Theory and Applications

  16. Mathematical Logic • Example: • Let A be the statement formula (~(p v q )) → (q ^p ) • Truth Table for A is: Discrete Mathematical Structures: Theory and Applications

  17. Mathematical Logic • Tautology • A statement formula A is said to be a tautology if the truth value of A is T for any assignment of the truth values T and F to the statement variables occurring in A • Contradiction • A statement formula A is said to be a contradiction if the truth value of A is F for any assignment of the truth values T and F to the statement variables occurring in A Discrete Mathematical Structures: Theory and Applications

  18. Mathematical Logic • Logically Implies • A statement formula A is said to logically imply a statement formula B if the statement formula A → B is a tautology. If A logically implies B, then symbolically we write A → B • Logically Equivalent • A statement formula A is said to be logically equivalent to a statement formula B if the statement formula A ↔ B is a tautology. If A is logically equivalent to B , then symbolically we write A ≡ B Discrete Mathematical Structures: Theory and Applications

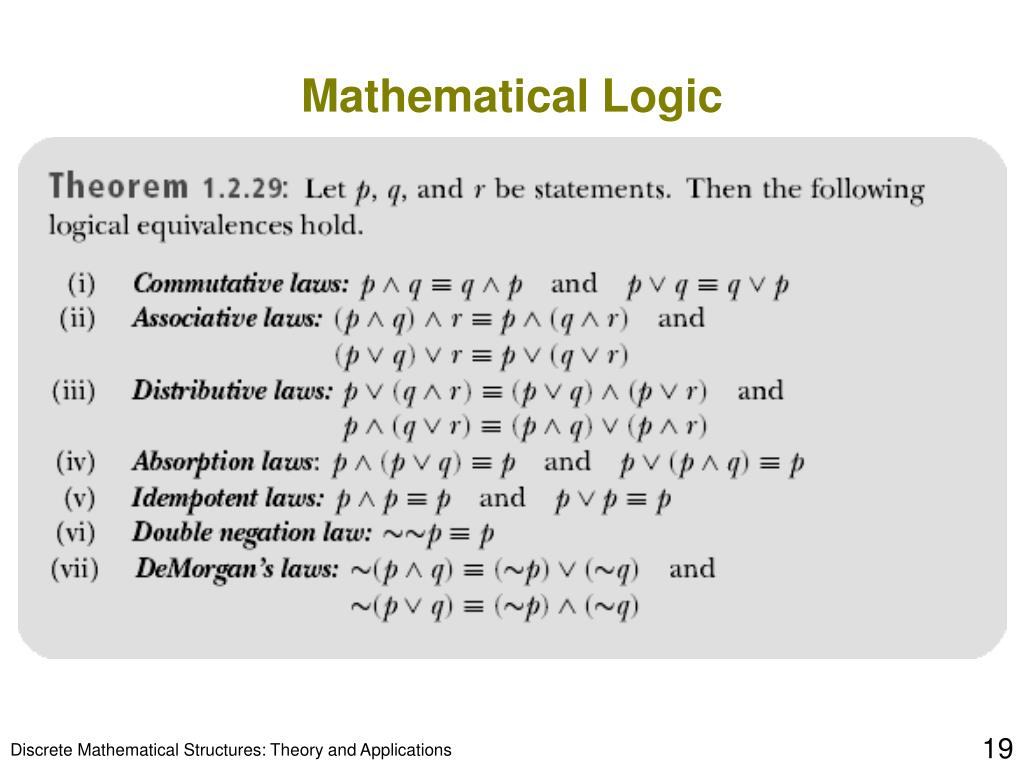

  19. Mathematical Logic Discrete Mathematical Structures: Theory and Applications

  20. Mathematical Logic • Proof of (~p ^q ) → (~(q →p )) Discrete Mathematical Structures: Theory and Applications

  21. Mathematical Logic • Proof of (~p ^q ) → (~(q →p )) [continued] Discrete Mathematical Structures: Theory and Applications

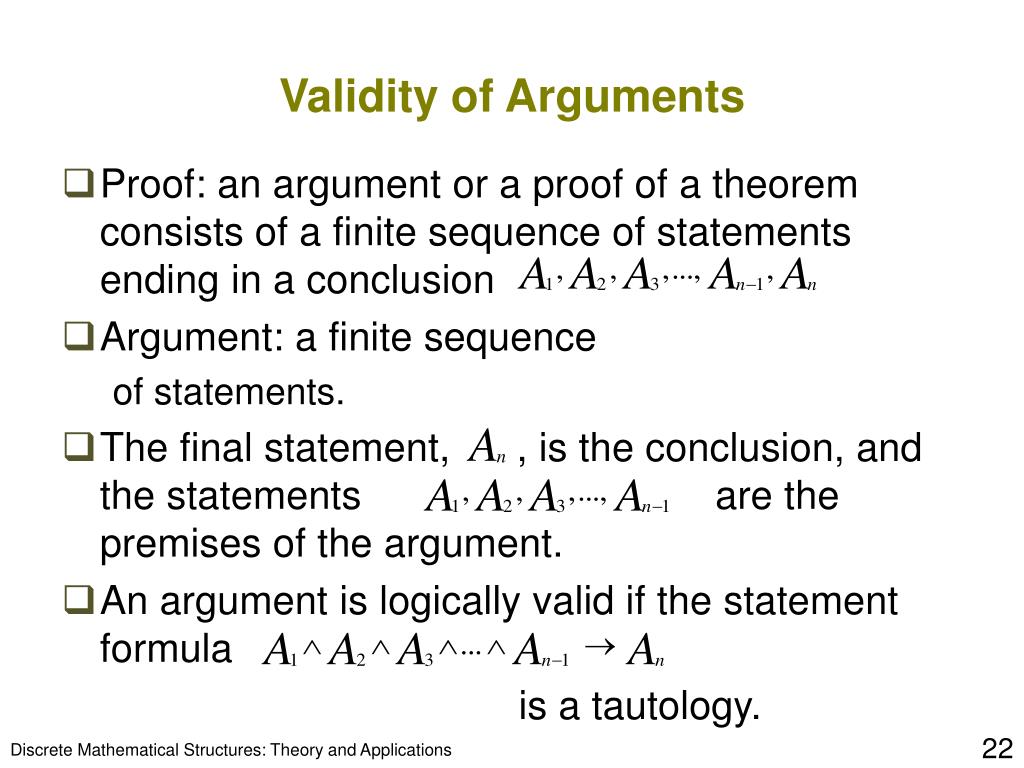

  22. Validity of Arguments • Proof: an argument or a proof of a theorem consists of a finite sequence of statements ending in a conclusion • Argument: a finite sequence of statements. • The final statement, , is the conclusion, and the statements are the premises of the argument. • An argument is logically valid if the statement formula is a tautology. Discrete Mathematical Structures: Theory and Applications

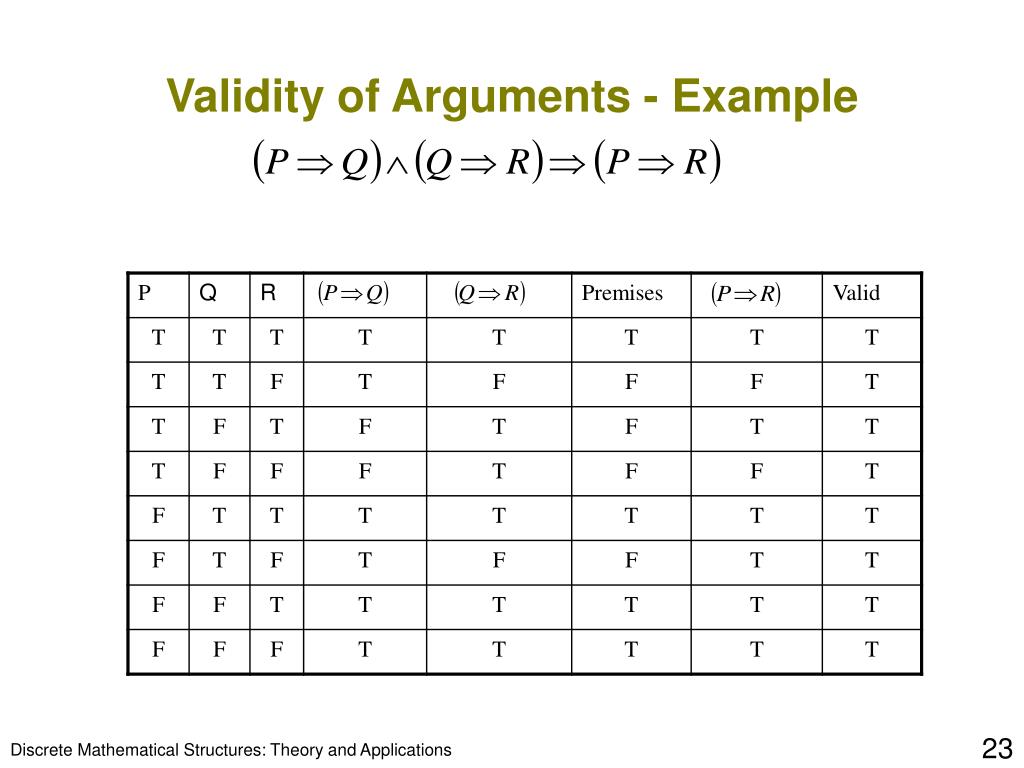

  23. Validity of Arguments - Example Discrete Mathematical Structures: Theory and Applications

  24. Validity of Arguments • Valid Argument Forms • Modus Ponens (Method of Affirming) Discrete Mathematical Structures: Theory and Applications

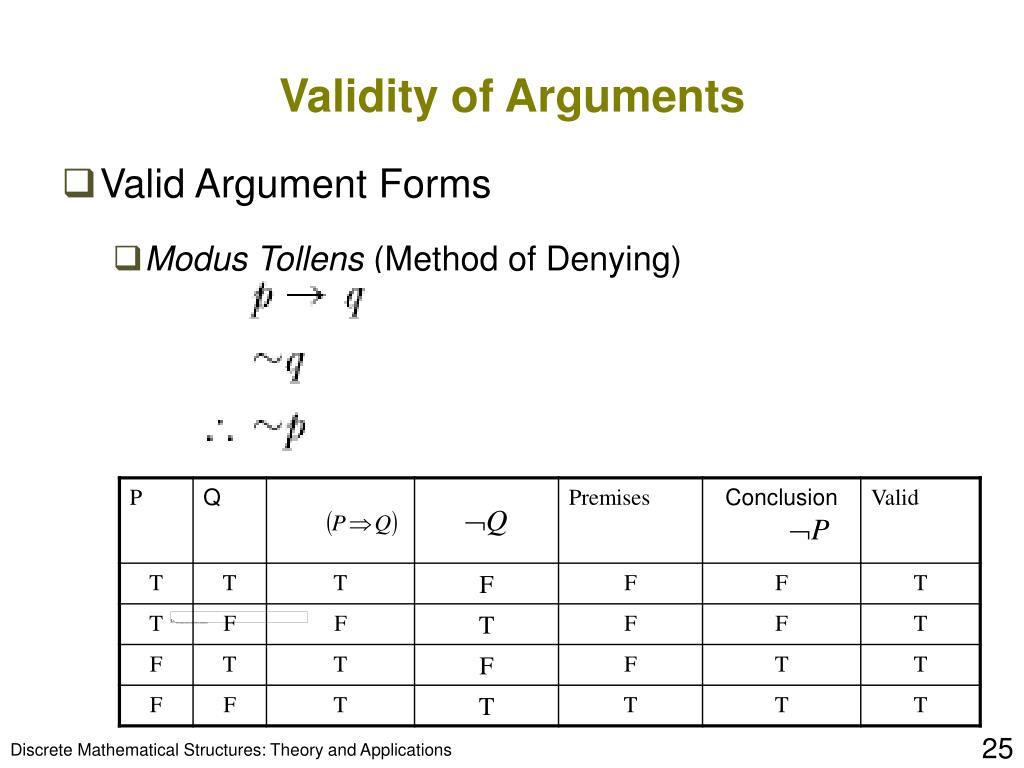

  25. Validity of Arguments • Valid Argument Forms • Modus Tollens (Method of Denying) Discrete Mathematical Structures: Theory and Applications

  26. Validity of Arguments • Valid Argument Forms • Disjunctive Syllogisms • Disjunctive Syllogisms Discrete Mathematical Structures: Theory and Applications

  27. Validity of Arguments • Valid Argument Forms • Hypothetical Syllogism (proven earlier) • Dilemma Discrete Mathematical Structures: Theory and Applications

  28. Validity of Arguments • Valid Argument Forms • Conjunctive Simplification • Conjunctive Simplification Discrete Mathematical Structures: Theory and Applications

  29. Validity of Arguments • Valid Argument Forms • Disjunctive Addition • Disjunctive Addition Discrete Mathematical Structures: Theory and Applications

  30. Validity of Arguments • Valid Argument Forms • Conjunctive Addition Discrete Mathematical Structures: Theory and Applications

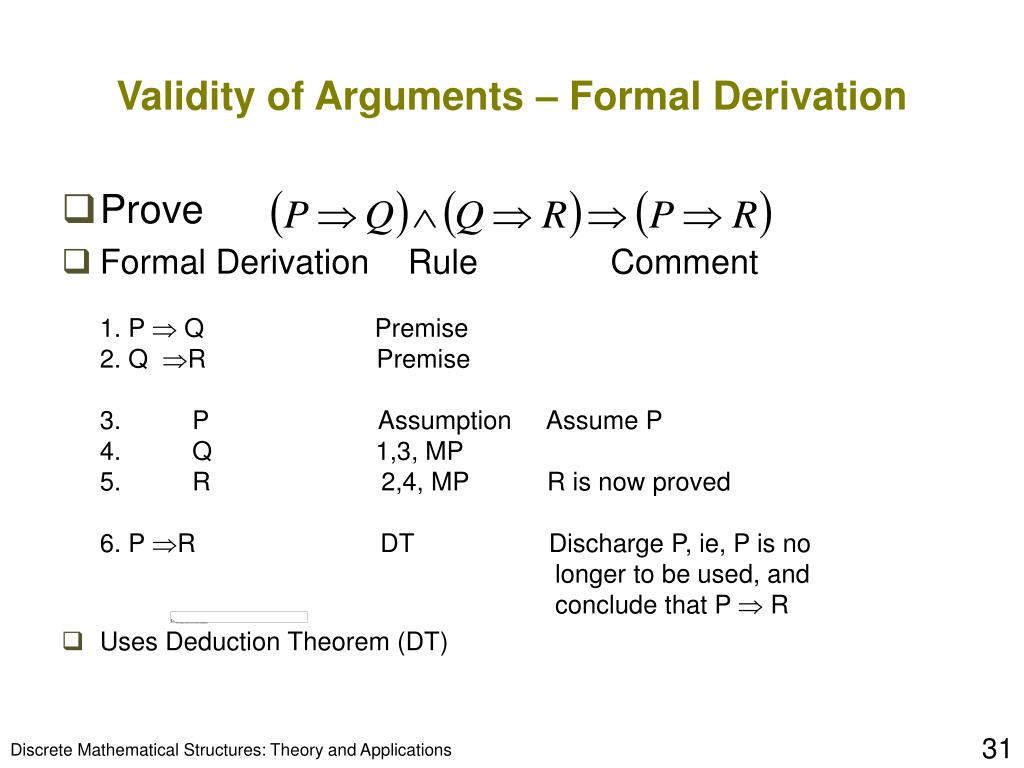

  31. Validity of Arguments – Formal Derivation • Prove • Formal Derivation Rule Comment1. P  Q Premise2. Q R Premise3. P Assumption Assume P4. Q 1,3, MP5. R 2,4, MP R is now proved6. P R DT Discharge P, ie, P is no longer to be used, and conclude that P  R • Uses Deduction Theorem (DT) Discrete Mathematical Structures: Theory and Applications

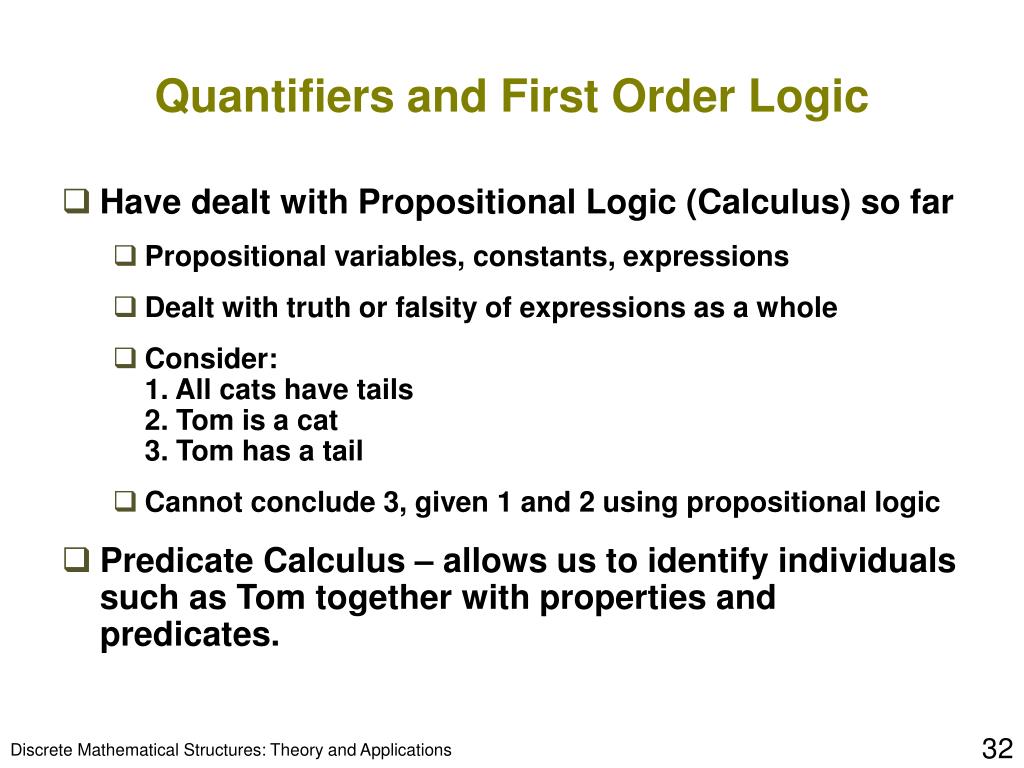

  32. Quantifiers and First Order Logic • Have dealt with Propositional Logic (Calculus) so far • Propositional variables, constants, expressions • Dealt with truth or falsity of expressions as a whole • Consider:1. All cats have tails2. Tom is a cat3. Tom has a tail • Cannot conclude 3, given 1 and 2 using propositional logic • Predicate Calculus – allows us to identify individuals such as Tom together with properties and predicates. Discrete Mathematical Structures: Theory and Applications

  33. Quantifiers and First Order Logic • Predicate or Propositional Function • Let x be a variable and D be a set; P(x) is a sentence • Then P(x) is called a predicate or propositional function with respect to the set D if for each value of x in D, P(x) is a statement; i.e., P(x) is true or false • Moreover, D is called the domain of the discourse and x is called the free variable Discrete Mathematical Structures: Theory and Applications

  34. Quantifiers and First Order LogicPropositional function example #1 Let P(x) be the statement: x is an odd integer Let D be the set of all positive integers. Then P is a propositional function with domain of discourse D. • For each x in D , P(x) is a proposition, i.e. a sentence which is either true or false. • P(1): 1 is an odd integer – True • P(14): 14 is an odd integer - False Discrete Mathematical Structures: Theory and Applications

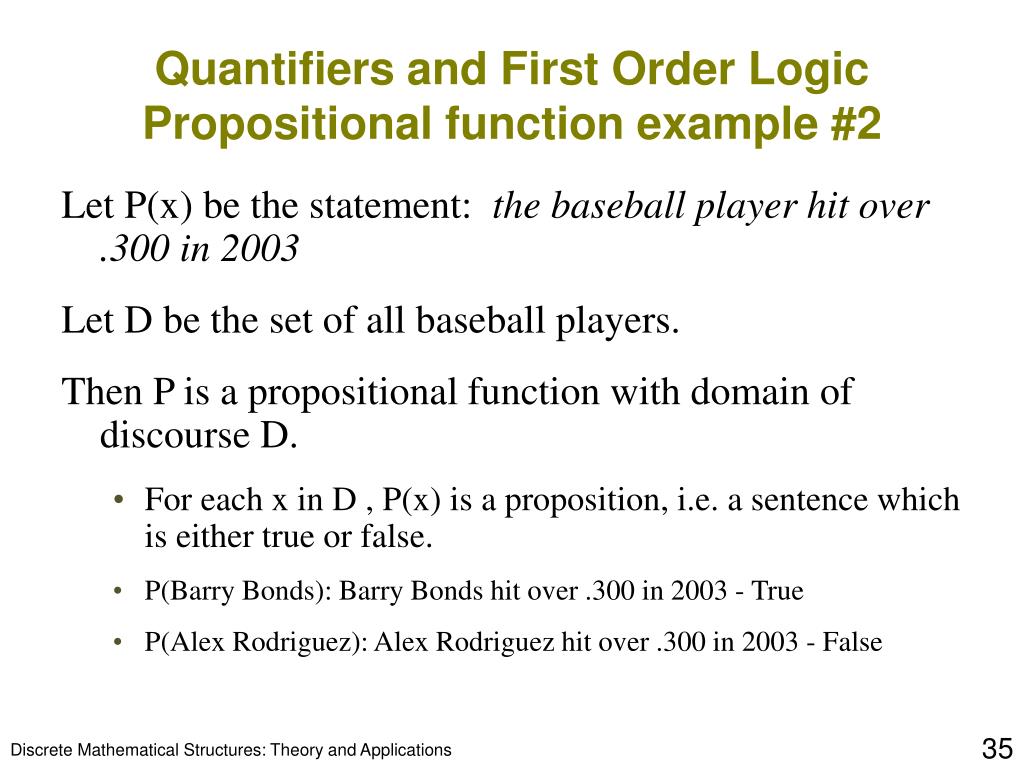

  35. Quantifiers and First Order LogicPropositional function example #2 Let P(x) be the statement: the baseball player hit over .300 in 2003 Let D be the set of all baseball players. Then P is a propositional function with domain of discourse D. • For each x in D , P(x) is a proposition, i.e. a sentence which is either true or false. • P(Barry Bonds): Barry Bonds hit over .300 in 2003 - True • P(Alex Rodriguez): Alex Rodriguez hit over .300 in 2003 - False Discrete Mathematical Structures: Theory and Applications

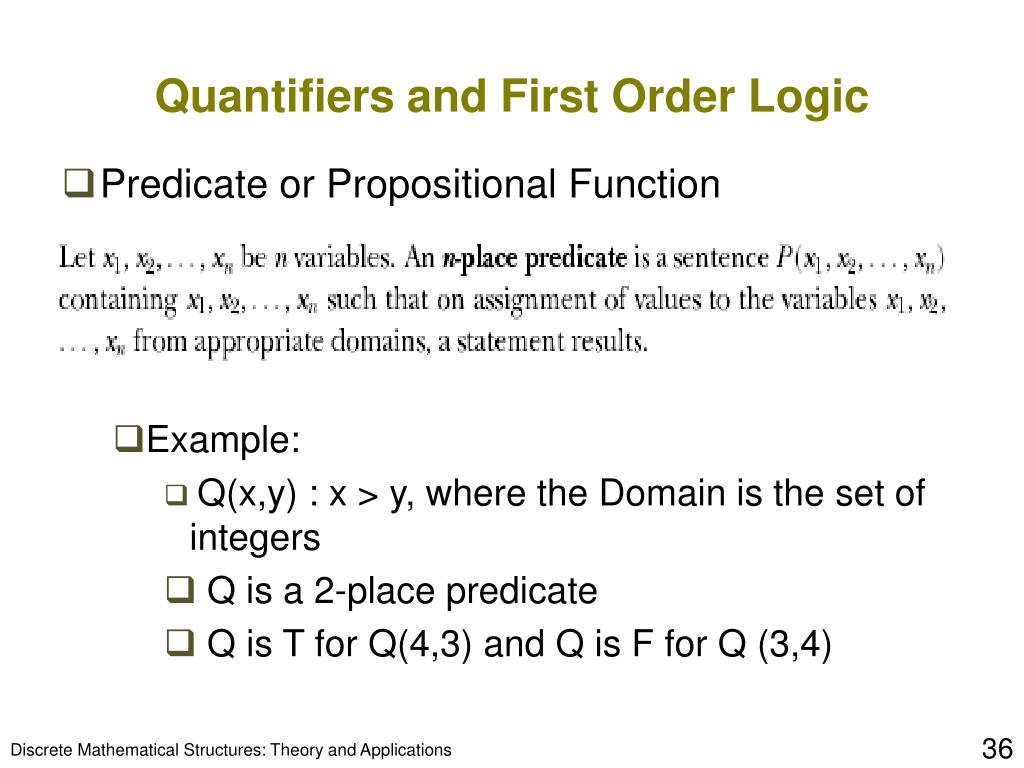

  36. Quantifiers and First Order Logic • Predicate or Propositional Function • Example: • Q(x,y) : x > y, where the Domain is the set of integers • Q is a 2-place predicate • Q is T for Q(4,3) and Q is F for Q (3,4) Discrete Mathematical Structures: Theory and Applications

  37. Quantifiers and First Order Logic • Universal Quantifier • Let P(x) be a predicate and let D be the domain of the discourse. The universal quantification of P(x) is the statement: • For all x, P(x) or • For every x, P(x) • The symbol is read as “for all and every” • Two-place predicate: Discrete Mathematical Structures: Theory and Applications

  38. Quantifiers and First Order Logic • Universal Quantifier Examples • Consider the statement • It is true if P(x) is true for every x in D • It is false if P(x) is false for at least one x in D • Consider with D being the set of all real numbers. • The statement is true because for every real number x, it is true that the square of x is positive or zero. • Consider that with D being the set of real numbers is false. Why? Discrete Mathematical Structures: Theory and Applications

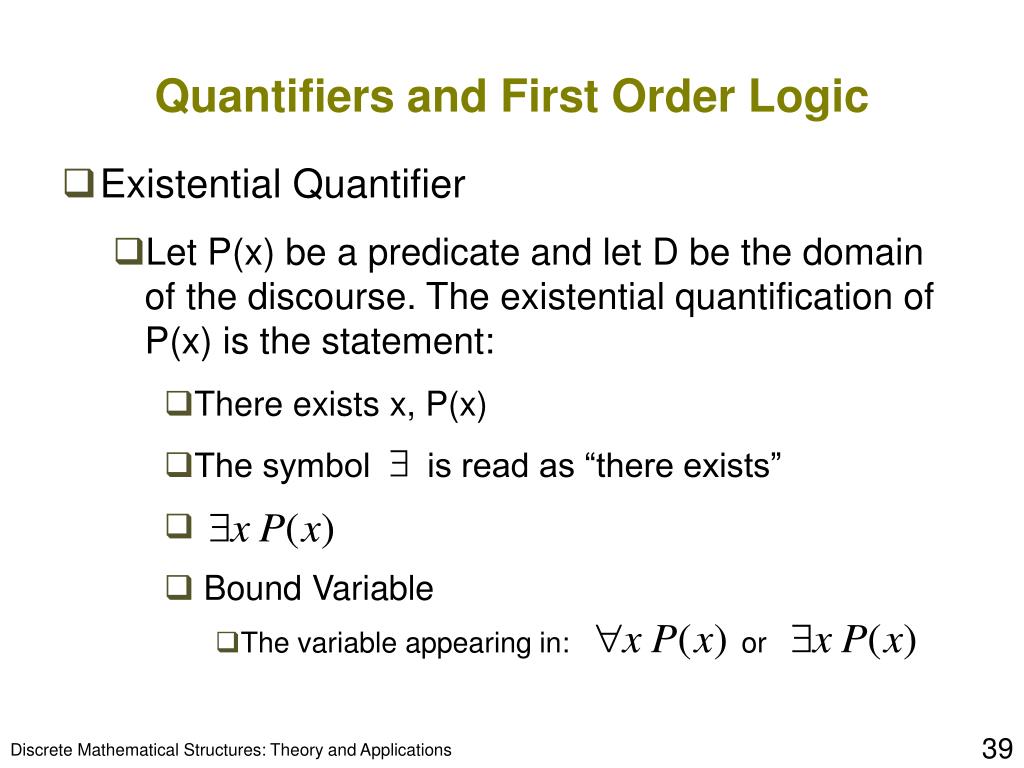

  39. Quantifiers and First Order Logic • Existential Quantifier • Let P(x) be a predicate and let D be the domain of the discourse. The existential quantification of P(x) is the statement: • There exists x, P(x) • The symbol is read as “there exists” • Bound Variable • The variable appearing in: or Discrete Mathematical Structures: Theory and Applications

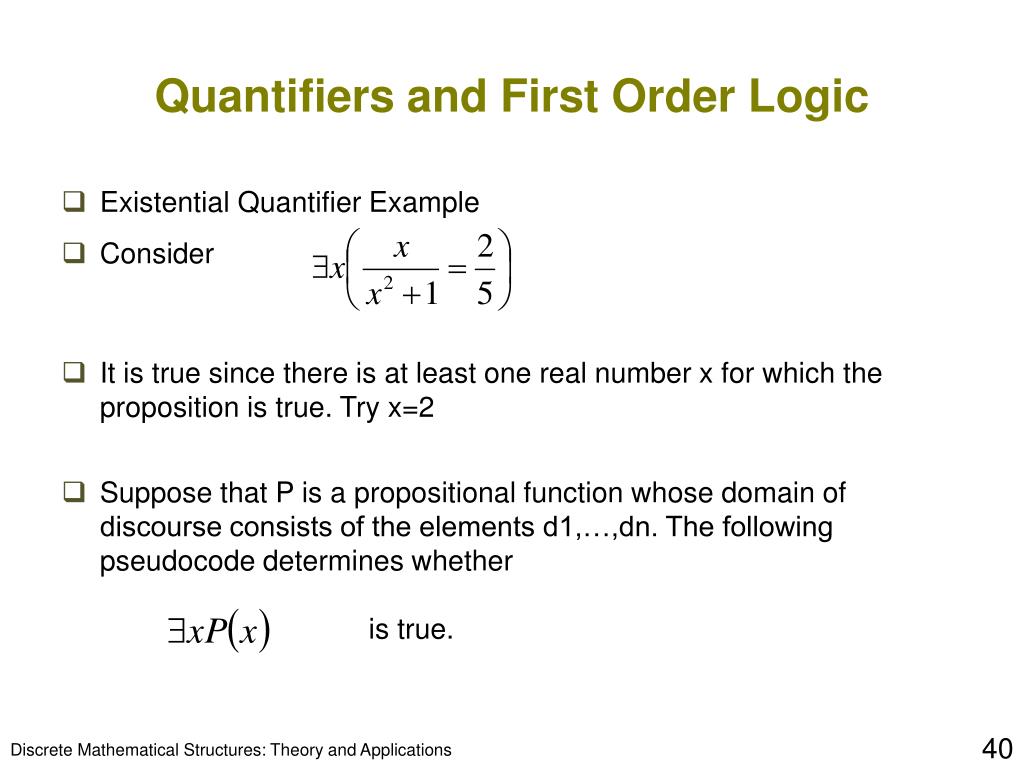

  40. Quantifiers and First Order Logic • Existential Quantifier Example • Consider • It is true since there is at least one real number x for which the proposition is true. Try x=2 • Suppose that P is a propositional function whose domain of discourse consists of the elements d1,…,dn. The following pseudocode determines whether is true. Discrete Mathematical Structures: Theory and Applications

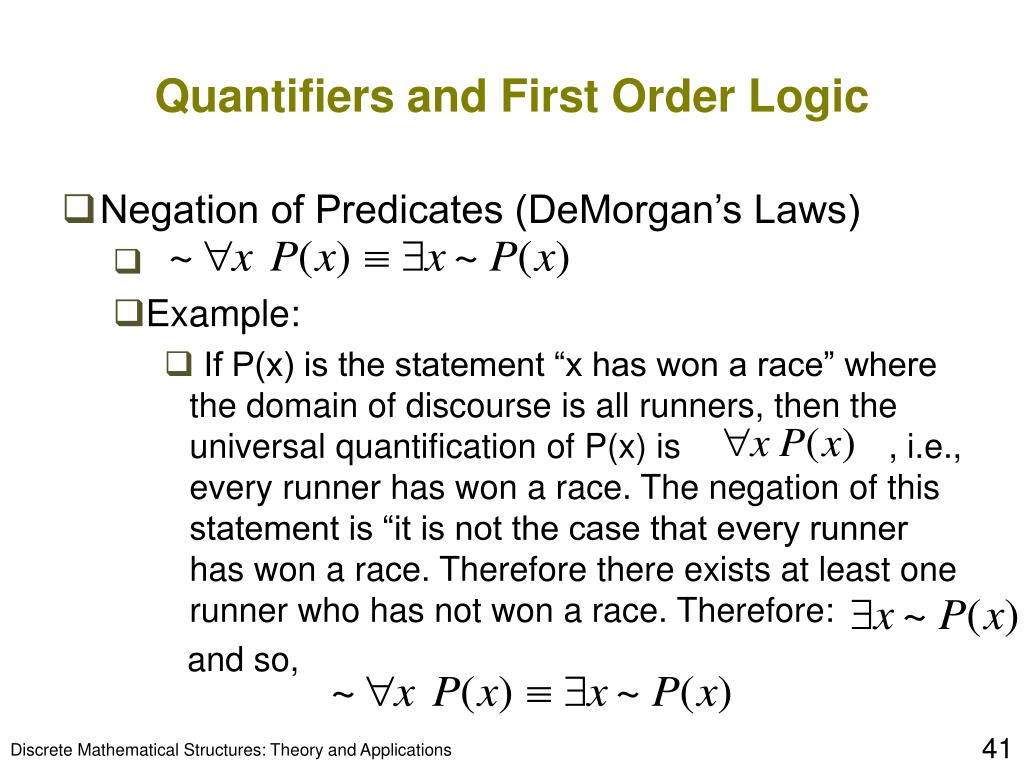

  41. Quantifiers and First Order Logic • Negation of Predicates (DeMorgan’s Laws) • Example: • If P(x) is the statement “x has won a race” where the domain of discourse is all runners, then the universal quantification of P(x) is , i.e., every runner has won a race. The negation of this statement is “it is not the case that every runner has won a race. Therefore there exists at least one runner who has not won a race. Therefore: and so, Discrete Mathematical Structures: Theory and Applications

  42. Quantifiers and First Order Logic • Negation of Predicates (DeMorgan’s Laws) Discrete Mathematical Structures: Theory and Applications

  43. Quantifiers and First Order Logic • Formulas in Predicate Logic • All statement formulas are considered formulas • Each n, n =1,2,...,n-place predicate P( ) containing the variables is a formula. • If A and B are formulas, then the expressions ~A, (A∧B), (A∨B) , A →B and A↔B are statement formulas, where ~, ∧, ∨, → and ↔ are logical connectives • If A is a formula and x is a variable, then ∀x A(x) and ∃x A(x) are formulas • All formulas constructed using only above rules are considered formulas in predicate logic Discrete Mathematical Structures: Theory and Applications

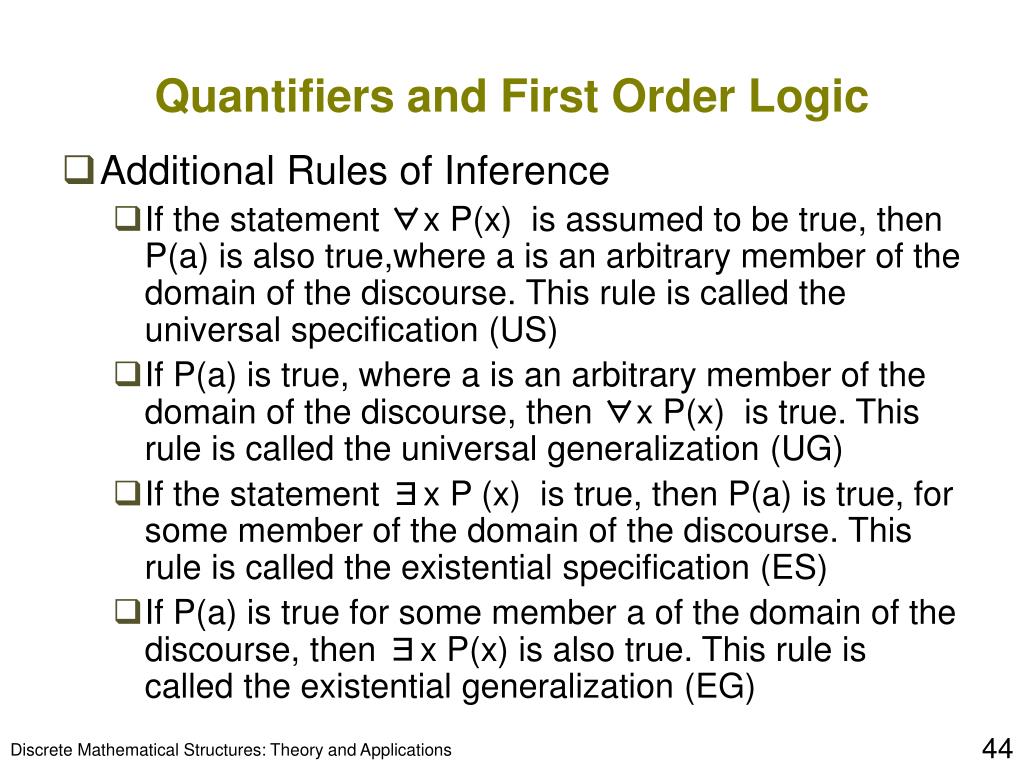

  44. Quantifiers and First Order Logic • Additional Rules of Inference • If the statement ∀x P(x) is assumed to be true, then P(a) is also true,where a is an arbitrary member of the domain of the discourse. This rule is called the universal specification (US) • If P(a) is true, where a is an arbitrary member of the domain of the discourse, then ∀x P(x) is true. This rule is called the universal generalization (UG) • If the statement ∃x P (x) is true, then P(a) is true, for some member of the domain of the discourse. This rule is called the existential specification (ES) • If P(a) is true for some member a of the domain of the discourse, then ∃x P(x) is also true. This rule is called the existential generalization (EG) Discrete Mathematical Structures: Theory and Applications

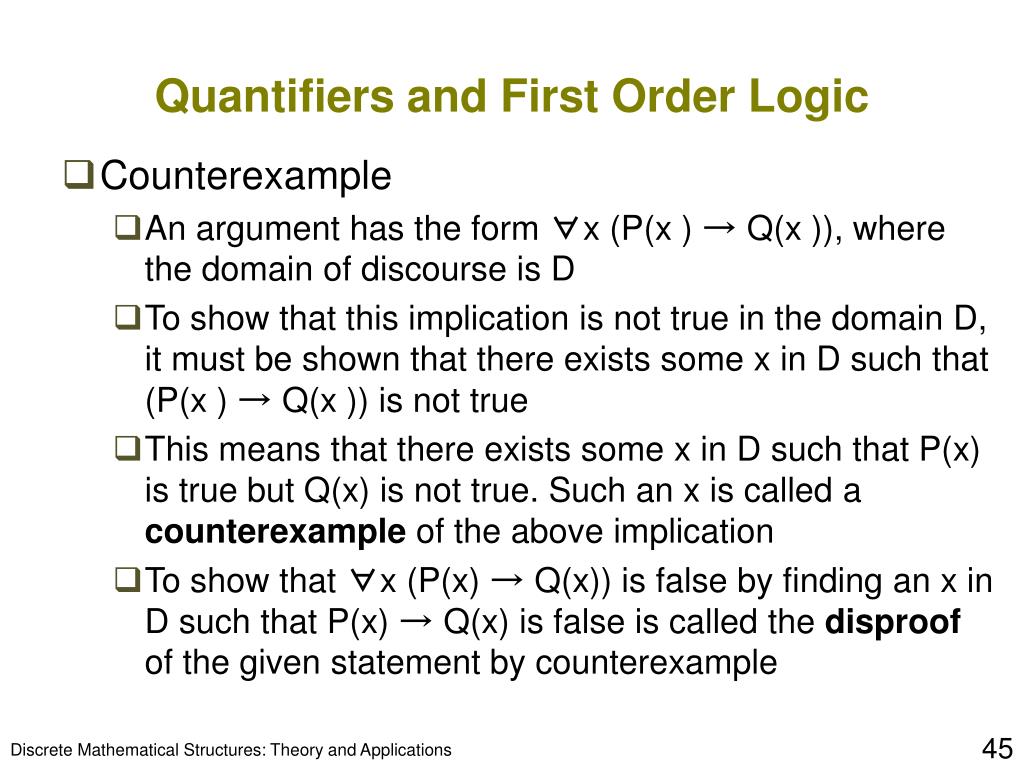

  45. Quantifiers and First Order Logic • Counterexample • An argument has the form ∀x (P(x ) → Q(x )), where the domain of discourse is D • To show that this implication is not true in the domain D, it must be shown that there exists some x in D such that (P(x ) → Q(x )) is not true • This means that there exists some x in D such that P(x) is true but Q(x) is not true. Such an x is called a counterexample of the above implication • To show that ∀x (P(x) → Q(x)) is false by finding an x in D such that P(x) → Q(x) is false is called the disproof of the given statement by counterexample Discrete Mathematical Structures: Theory and Applications

  46. Logic and CS • Logic is basis of ALU • Logic is crucial to IF statements • AND • OR • NOT • Implementation of quantifiers • Looping • Database Query Languages • Relational Algebra • Relational Calculus • SQL Discrete Mathematical Structures: Theory and Applications
