  1. LC Series of Detection DevicesTechnical Presentation

  2. LC Series of Detection Devices

  3. LC-100PI Motion Detector

  4. LC-100-PI — Overview • Description • Ideal for residential applications, the LC-100-PI motion detector, offers reliable detection in a slim design. The LC-100-PI also provides pet immunity up to 25kg. • Features • Pet immunity function (up to 25kg/55lbs) • Digital Signal Analysis • Quad Linear Imaging • Form ‘A’ contact • Sensitivity adjustment • Variable pulse width adjustment • Tamper Output • LED Indicator

  5. LC-100-PI — Overview • Specifications • Detection Method: Quad Element PIR • Operating Voltage: 8.2-16 Vdc • Current Draw: 10mA (maximum) • Warm Up Duration: 55-65 seconds • Temperature Compensation: Yes

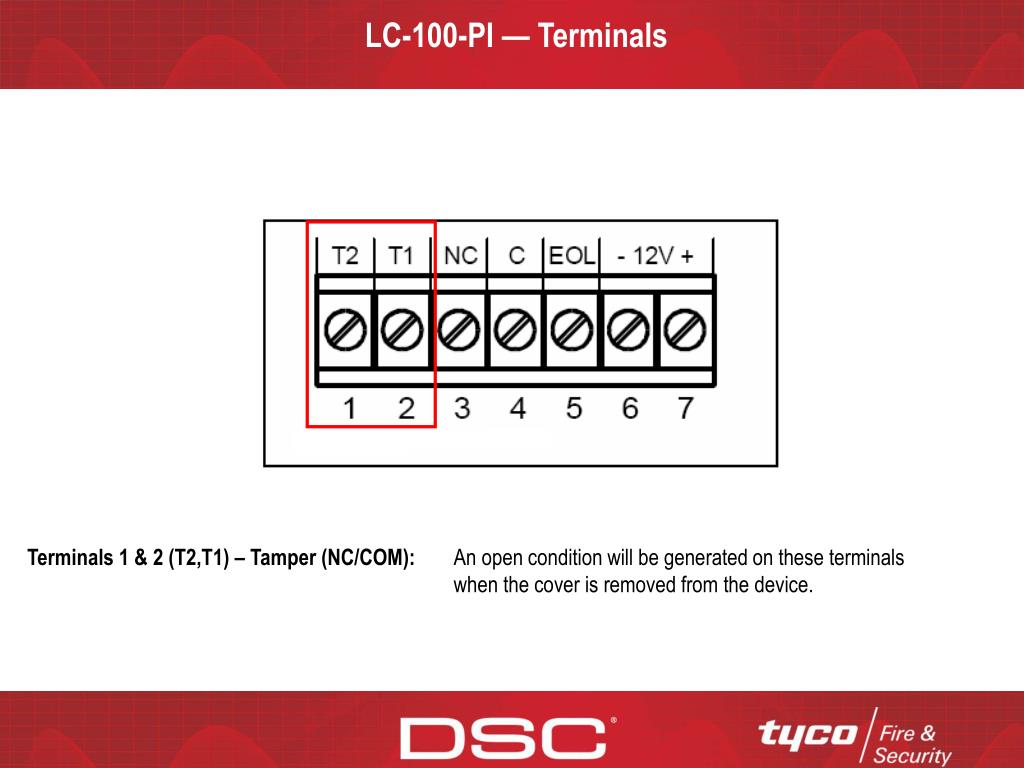

  6. LC-100-PI — Installation • Mounting Location • When mounting the LC-100-PI, choose a location that is most likely to intercept the intruder. • Avoid the following when mounting the LC-100-PI as the operation of the detector may be affected: • Do not mount facing direct sunlight • Do not mount facing areas subject to rapid temperature changes • Do not mount in areas with air ducts or substantial air flow

  7. LC-100-PI — Terminals Terminals 1 & 2 (T2,T1) – Tamper (NC/COM): An open condition will be generated on these terminals when the cover is removed from the device.

  8. LC-100-PI — Terminals Terminals 3 & 4 (NC/C) – Alarm Contact (NC/COM): These terminals will be triggered when the device is placed into alarm.

  9. LC-100-PI — Terminals Terminal 5 (EOL) – End of Line Option: This terminal is used as a connection point for the resistor and zone wire when the control panel is configured for end-of-the-line resistors.

  10. LC-100-PI — Terminals Terminals 6 & 7 – 12V(-/+): These terminals are used to provide power to the device.

  11. LC-100-PI — Jumper Configurations • Pulse Count Jumpers • These jumpers are used to configure the LC-100-PI according to the general installation environment. The following three settings are available: • Very stable environment (No pet) • Moderate nuisance situation (With pet up to 15Kg) • Harsh environment (With pet up to 25Kg)

  12. LC-100-PI — Additional Adjustments LED Jumper LED Enabled LED Disabled Pet Immunity Jumper Pet up to 15kg Pet up to 25kg Sensitivity Adjustment This potentiometer is used to adjust the detector according to the protected area range between 68% and 100% (default set to 84%). Rotate the potentiometer clockwise/counter-clockwise to increase/decrease the range.

  13. LC-101 Motion Detector with Integrated Camera

  14. LC-101 — Overview • Description • The LC-101 is a general purpose motion detector with a built-in camera. The LC-101 contains a dedicated relay output designed to trigger a video recording device when the PIR sensor is violated. • Features • Digital Signal Analysis • Quad Linear Imaging • Pet immunity function (up to 25kg/55lbs) • Form ‘A’ contact • Tamper Output • LED Indicator • Integrated Camera

  15. LC-101 — Specifications PIR Specifications Detection Method: Quad Element PIR Operating Voltage: 8.2-16 Vdc Warm-Up Duration 55-65 seconds Current Draw: 115mA (Mono Camera), 150mA (Color Camera) Temperature Compensation: Yes Camera Specifications Type: Black & White, Color Resolution: 420 TV Lines (Color), 380 TV Lines (Black & White) Video Output: 1V p-p 75W

  16. LC-101 — Specifications Available Models LC-101 No Camera LC-101-CAMCLPAL Color Camera (PAL) LC-101-CAMCLNTSC Color Camera (NTSC) LC-101-CAMBWCCIR B/W Camera CCIR LC-101-CAMBW EIA B/W Camera EIA

  17. LC-101 — Operation • Mounting Location • When mounting the LC-101, choose a location that is most likely to intercept the intruder. • Avoid the following when mounting the LC-101as the operation of the detector may be affected: • Do not mount facing direct sunlight • Do not mount facing areas subject to rapid temperature changes • Do not mount in areas with air ducts or substantial air flow

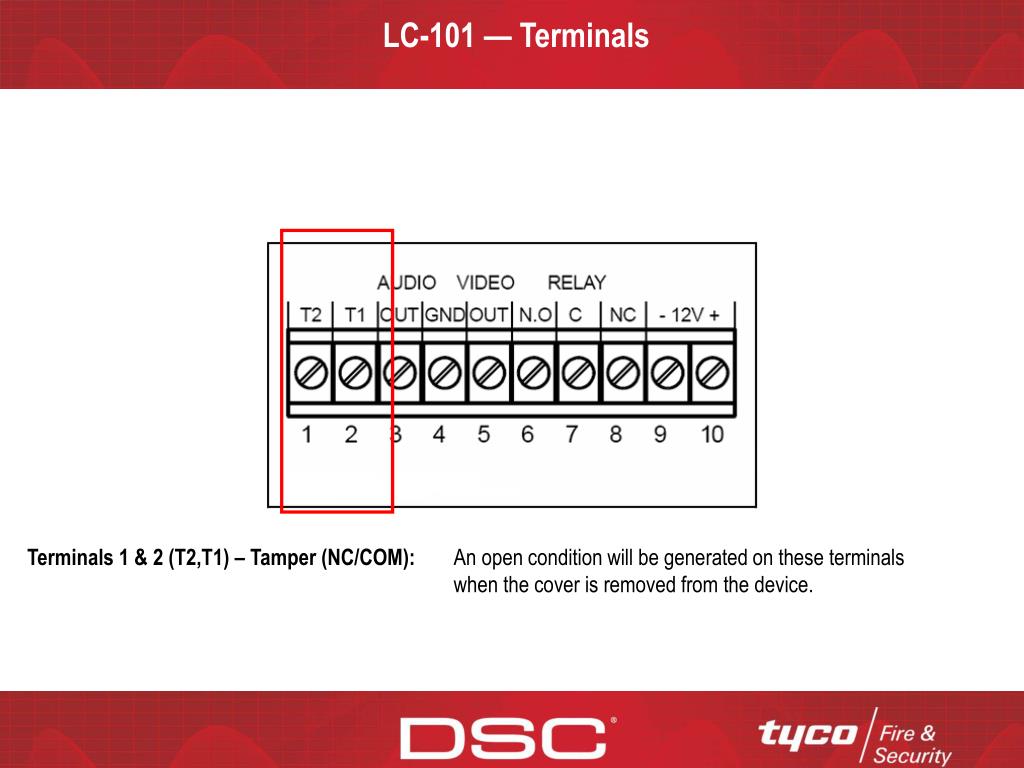

  18. LC-101 — Terminals Terminals 1 & 2 (T2,T1) – Tamper (NC/COM): An open condition will be generated on these terminals when the cover is removed from the device.

  19. LC-101 — Terminals Terminals 3 & 4 (Audio – OUT/GND): These terminals provide the audio output signal.

  20. LC-101 — Terminals Terminals 4 & 5 (Video – GND/OUT): These terminals provide the video output signal.

  21. LC-101 — Terminals Terminals 6,7,8 – Alarm Contact (NO/COM/NC): These terminals will be triggered when the PIR is placed into alarm. This output is typically used when triggering video recording equipment (i.e. VCR, DVR).

  22. LC-101 — Terminals Terminals 9 & 10 – 12V(-/+): These terminals are used to provide power to the device

  23. LC-101 – DIP Switches • DIP Switch 1,2 – Time Adjustment for Normally Opened Contact • The time duration which the normally opened contact on the LC-101 triggers for when a violation is detected is adjustable. • Switch 1 2 • 2 Seconds ON ON • 15 Seconds ON OFF • 60 Seconds OFF ON • 240 Seconds OFF OFF • DIP Switch 3 – LED Enable/Disable • ON – LED Enabled • OFF – LED Disabled

  24. LC-101 – DIP Switches DIP Switch 4 – PIR Sensitivity ON – Low Sensitivity OFF – High Sensitivity DIP Switch 5 – Pet Immunity Setting ON – Immunity for pet up to 15Kg OFF – Immunity for pet up to 25Kg

  25. LC-101 – Additional Adjustments PIR Sensitivity Potentiometer The LC-101 has an on-board potentiometer (or adjustment) for minor sensitivity adjustments of the PIR detector (adjustable between 68% and 100%). Turning the potentiometer clockwise will increase the detection sensitivity, turning it counter-clockwise will reduce the detection sensitivity. Audio Volume Potentiometer This potentiometer is used to adjust the output volume of the LC-101.

  26. LC-102PIGBSS Motion Detector with Glassbreak Sensor

  27. LC-102-PIGBSS — Overview • Description • The LC-102-PIGBSS combines a reliable motion and glassbreak detection in a single detector. • Features • Pet immunity function (up to 25kg/55lbs) • Digital Signal Analysis • Quad Linear Imaging • Form ‘A’ contact • Sensitivity adjustment • Variable pulse width adjustment • Tamper Output • Independent relay for both glassbreak and PIR alarms

  28. LC-102-PIGBSS — Overview Specifications: Detection Method: Quad Element PIR Operation Voltage: 8.2 – 16Vdc Current Draw: 18mA (Maximum) Warm-up Duration: 55-65 Seconds Temperature Compensation: Yes

  29. LC-102-PIGBSS — Installation • Mounting Location • When mounting the LC-102-PIGBSS, choose a location that is most likely to intercept the intruder. • Avoid the following when mounting the LC-102-PIGBSS as the operation of the detector may be affected: • Do not mount facing direct sunlight • Do not mount facing areas subject to rapid temperature changes • Do not mount in areas with air ducts or substantial air flow • Do not mount facing metal doors PIR Coverage Pattern Glassbreak Coverage Pattern

  30. LC-102-PIGBSS — Terminals Terminals 1 & 2 (T2,T1) – Tamper (NC/COM): An open condition will be generated on these terminals when the cover is removed from the device.

  31. LC-102-PIGBSS — Terminals Terminals 3 & 4 (NC/C) – Alarm Contact (NC/COM): These terminals will be triggered when the PIR is placed into alarm.

  32. LC-102-PIGBSS — Terminals Terminal 5 (EOL) – End of Line Option: This terminal is used as a connection point for the resistor and zone wire when the control panel is configured for end-of-the-line resistors.

  33. LC-102-PIGBSS — Terminals Terminals 6 & 7 (NC/C) – Alarm Contact (NC/COM): These terminals will be triggered when the glassbreak is placed into alarm.

  34. LC-102-PIGBSS — Terminals Terminals 8 & 9 – 12V(-/+): These terminals are used to provide power to the device

  35. LC-102-PIGBSS — Glassbreak Operation • Glassbreak Operation: • The glassbreak detector on the LC-102-PIGBSS will go into alarm when either of the following is detected: • Infrasonic Event • Glassbreak Event • Infrasonic Event • An infrasonic event occurs at the point of impact on the glass prior to it breaking. It consists of a series of low level frequencies. • Glassbreak Event • A glassbreak event occurs when the glass breaks. It consists of a series of high level frequencies.

  36. LC-102-PIGBSS — Glassbreak Sensitivity Adjustment Infrasonic Adjustment Step 1: Set the ‘to jumper to ‘SHOCK TEST’ Step 2: Gently tap on the protected glass and adjust the ‘Shock Sensitivity Adjustment’ potentiometer until both the RED and GREEN LED’s illuminate each time the glass is hit. Glassbreak Adjustment Step 1: Set the to jumper to ‘GLASS TEST’

  37. LC-102-PIGBSS — Glassbreak Sensitivity Adjustment Glassbreak Adjustment (continued) Step 2: Operate the AFT-100 Glassbreak Tester at various points near the protected glass. Adjust the ‘Shock Sensitivity Adjustment’ potentiometer until both the RED and YELLOW LED’s illuminate each time the simulator is activated. Note: After completing all adjustments, place the jumper to the ‘NORMAL’ setting for regular operation.

  38. LC-102-PIGBSS — DIP Switch Configurations • The LCD-102-PIGBSShas an on-board bank of DIP switches which are used to configure the following: • DIP Switch 1 – LED Enable/Disable • ON – LED Enabled • OFF – LED Disabled • DIP Switch 2 – Sound Sensitivity Adjustment (Glassbreak) • ON – Low Sensitivity • OFF – High Sensitivity • DIP Switch 3 – PIR Sensitivity Adjustment • ON – High Sensitivity • OFF – Low Sensitivity • DIP Switch 4 – Pet Immunity Setting • ON – Immunity for pet up to 15Kg • OFF – Immunity for pet up to 25Kg

  39. LC-102-PIGBSS — Additional Adjustments • Sensitivity Adjustment • This potentiometer is used to adjust the detector according to the protected area range between 68% and 100% (default set to 84%). Rotate the potentiometer clockwise/counter-clockwise to increase/decrease the range.

  40. LC-103PIMSK Dual Technology Motion Detector with Anti-Masking

  41. LC-103-PIMSK — Overview • Description • The LC-103-PIMSK dual technology motion detector combines both microwave and passive infrared sensors. An alarm is generated when both sensors are violated at the same time. • With an anti-masking feature, the LC103-PIMSK is designed to prevent tampering of the detector, which could potentially interfere with detection capabilities. • Features • Anti-Masking • Microwave detection • Microwave sensitivity adjustment • PIR sensitivity adjustment • Pet immunity function (up to 25kg/55lbs) • Form ‘A’ contact • Tamper Output

  42. LC-103-PIMSK — Specifications Specifications: Detection Method: Quad Element PIR & Microwave Pulse Doppler Operating Voltage: 8.2-16 Vdc Current Draw: 25.5mA (maximum) Warm Up Duration: 55-65 seconds Temperature Compensation: Yes LED Indicators: Red LED – Alarm Green LED – PIR Channel Yellow LED – Microwave Channel

  43. LC-103-PIMSK — Installation • Mounting Location • When mounting the LC-103-PIMSK, choose a location that is most likely to intercept the intruder. • Avoid the following when mounting the LC-103-PIMSKas the operation of the detector may be affected: • Do not mount facing direct sunlight • Do not mount facing areas subject to rapid temperature changes • Do not mount in areas with air ducts or substantial air flow

  44. LC-103-PIMSK — Terminals Terminals 1 & 2 (T2,T1) – Tamper (NC/COM): An open condition will be generated on these terminals when the cover is removed from the device.

  45. LC-103-PIMSK — Terminals Terminals 3 & 4 (NC/C) – Alarm Contact (NC/COM): These terminals will be triggered when the anti-mask is placed into alarm. An anti-mask alarm occurs if an intruder is detected within 0.4m or 0.8m (jumper selectable) and closer to the detector.

  46. LC-103-PIMSK — Terminals Terminal 5 (EOL) – End of Line Option: This terminal is used as a connection point for the resistor and zone wire when the control panel is configured for end-of-the-line resistors.

  47. LC-103-PIMSK — Terminals Terminals 6 & 7 (NC/C) – Alarm Contact (NC/COM): These terminals will be triggered when the PIR is placed into alarm.

  48. LC-103-PIMSK — Terminals Terminals 8 & 9 – 12V(-/+): These terminals are used to provide power to the device

  49. LC-103-PIMSK— DIP Switch Configurations • The LCD-103-PIMSKhas an on-board bank of DIP switches which are used to configure the following: • DIP Switch 1 – LED Enable/Disable • ON – LED Enabled • OFF – LED Disabled • DIP Switch 2 – Anti Mask Function • ON – Protection against masking from 0.4m and closer • OFF – Protection against masking from masking 0.8m and closer • DIP Switch 3 – PIR Sensitivity Adjustment • ON – High Sensitivity • OFF – Low Sensitivity • DIP Switch 4 – Pet Immunity Setting • ON – Immunity for pet up to 15Kg • OFF – Immunity for pet up to 25Kg

  50. LC-103-PIMSK— Additional Adjustments • Microwave Sensitivity Adjustment • The LC-103-PIMSK has an on-board potentiometer (or adjustment) for minor sensitivity adjustments of the microwave detector (adjustable between 40% and 100%). Turning the potentiometer clockwise will increase the detection sensitivity, turning it counter-clockwise will reduce the detection sensitivity. • PIR Sensitivity Adjustment • The LC-103-PIMSK has an on-board potentiometer (or adjustment) for minor sensitivity adjustments of the PIR detector (adjustable between 68% and 100%). Turning the potentiometer clockwise will increase the detection sensitivity, turning it counter-clockwise will reduce the detection sensitivity.
