Chapter Three Managing Network Protocols

laksha avatar
laksha
56 diapositives · 742 Views · Aug 31, 2014

70-270, 70-290 MCSE/MCSA Guide to Installing and Managing Microsoft Windows XP Professional and Windows Server 2003. Chapter Three Managing Network Protocols. Objectives. Identify the components of a network system

Chapter Three Managing Network Protocols - slide 1
01 / 56Chapter Three Managing Network Protocols
1 / 17

Télécharger la présentation

Chapter Three Managing Network Protocols
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. 70-270, 70-290 MCSE/MCSA Guide to Installing and Managing Microsoft Windows XP Professional and Windows Server 2003 Chapter Three Managing Network Protocols

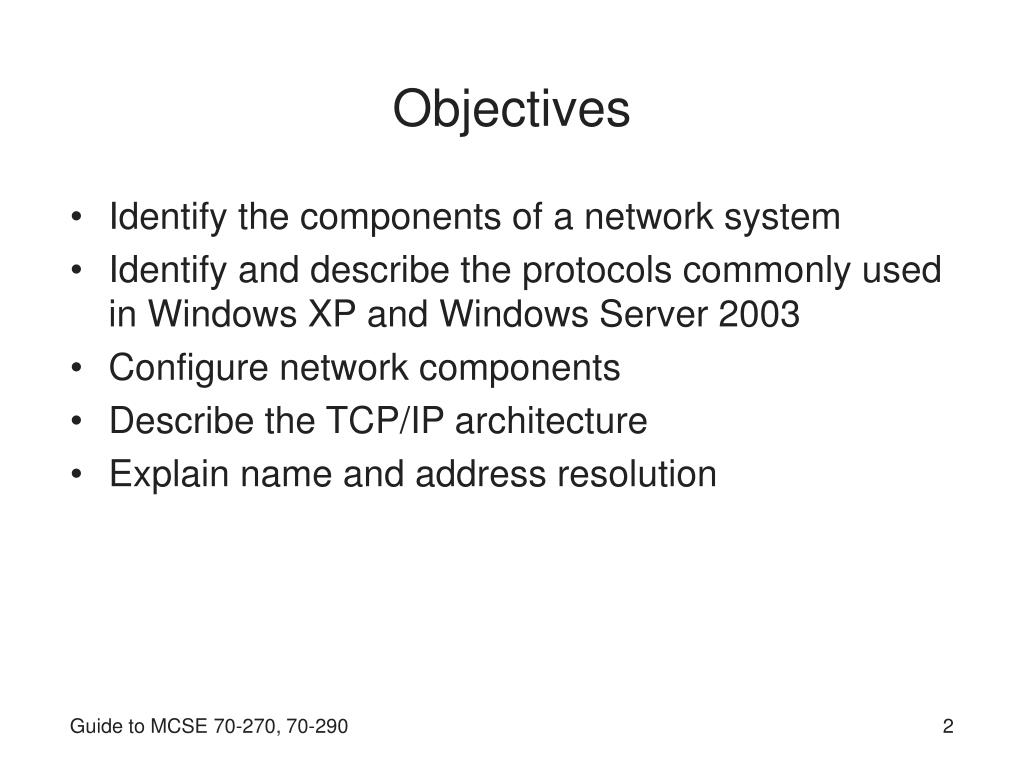

  2. Objectives • Identify the components of a network system • Identify and describe the protocols commonly used in Windows XP and Windows Server 2003 • Configure network components • Describe the TCP/IP architecture • Explain name and address resolution Guide to MCSE 70-270, 70-290

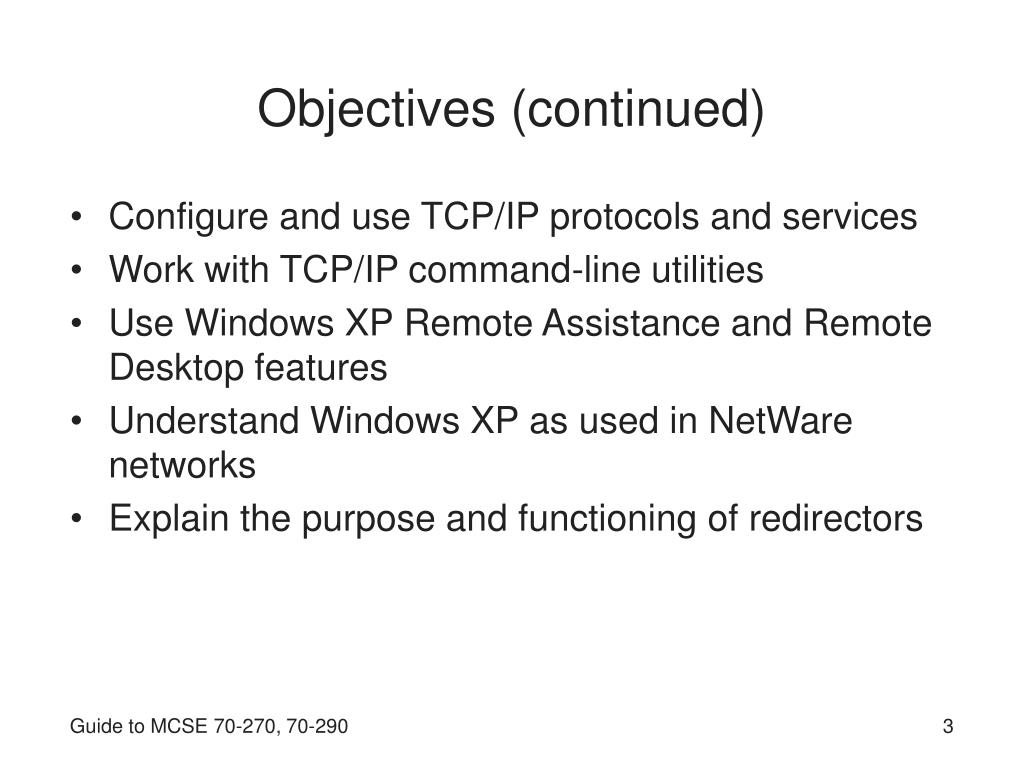

  3. Objectives (continued) • Configure and use TCP/IP protocols and services • Work with TCP/IP command-line utilities • Use Windows XP Remote Assistance and Remote Desktop features • Understand Windows XP as used in NetWare networks • Explain the purpose and functioning of redirectors Guide to MCSE 70-270, 70-290

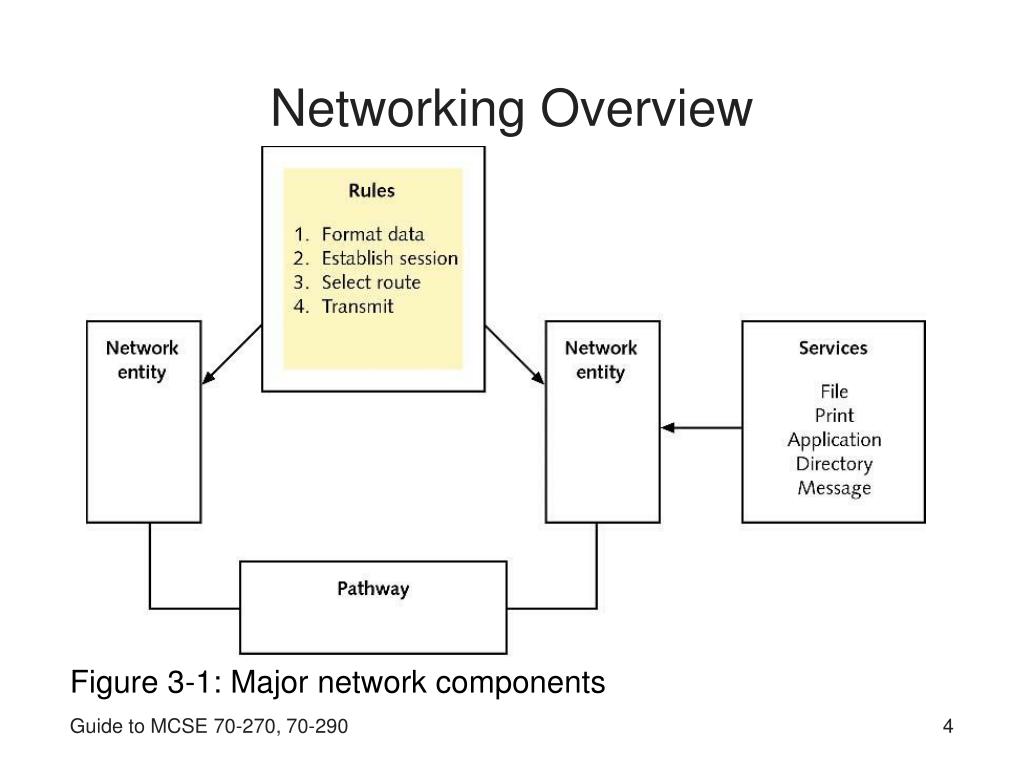

  4. Networking Overview Figure 3-1: Major network components Guide to MCSE 70-270, 70-290

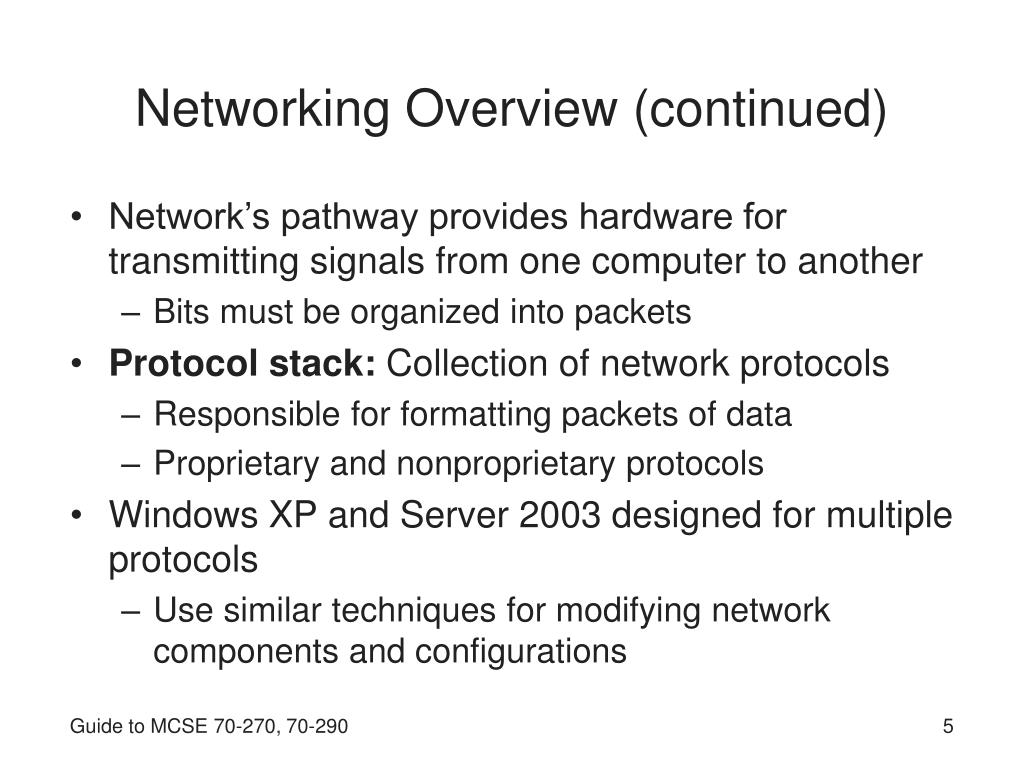

  5. Networking Overview (continued) • Network’s pathway provides hardware for transmitting signals from one computer to another • Bits must be organized into packets • Protocol stack: Collection of network protocols • Responsible for formatting packets of data • Proprietary and nonproprietary protocols • Windows XP and Server 2003 designed for multiple protocols • Use similar techniques for modifying network components and configurations Guide to MCSE 70-270, 70-290

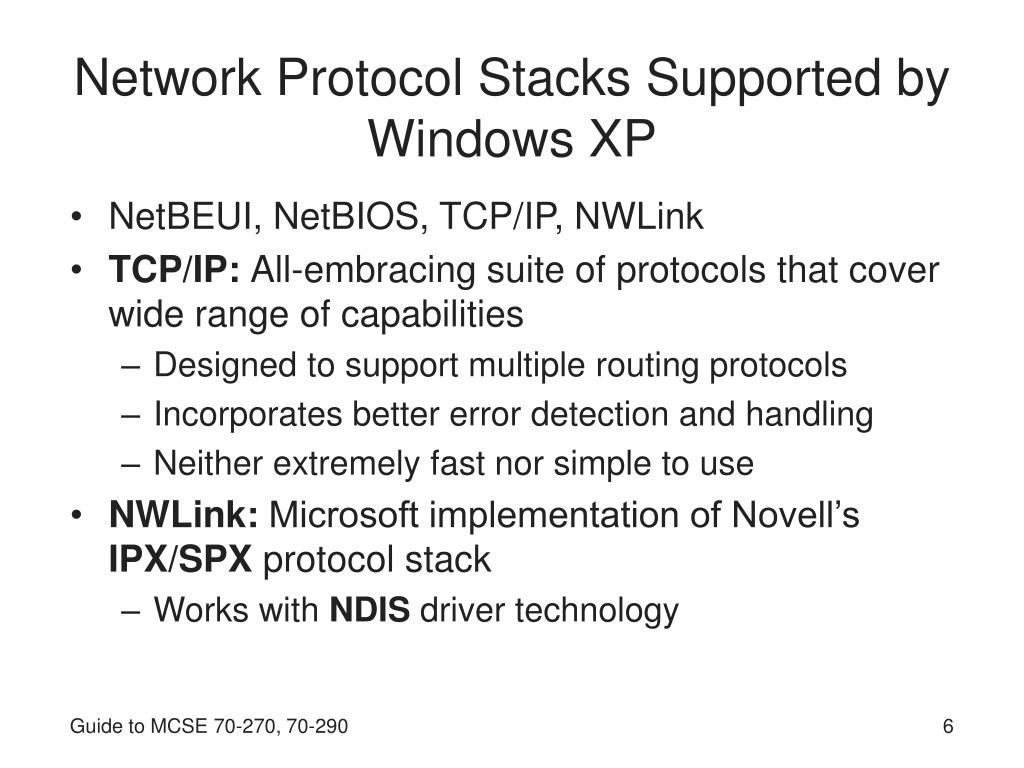

  6. Network Protocol Stacks Supported by Windows XP • NetBEUI, NetBIOS, TCP/IP, NWLink • TCP/IP: All-embracing suite of protocols that cover wide range of capabilities • Designed to support multiple routing protocols • Incorporates better error detection and handling • Neither extremely fast nor simple to use • NWLink: Microsoft implementation of Novell’s IPX/SPX protocol stack • Works with NDIS driver technology Guide to MCSE 70-270, 70-290

  7. Network Protocol Stacks Supported by Windows XP (continued) • NWLink (continued): • Advantages: • SPX II • Autodetection of frame types • Direct hosting over IPX • Disadvantages: • IPX might not scale well on large networks • Lacks built-in feature for centralized name and address management • IPX imposes higher memory requirements on DOS machines and runs less efficiently across slow serial connections Guide to MCSE 70-270, 70-290

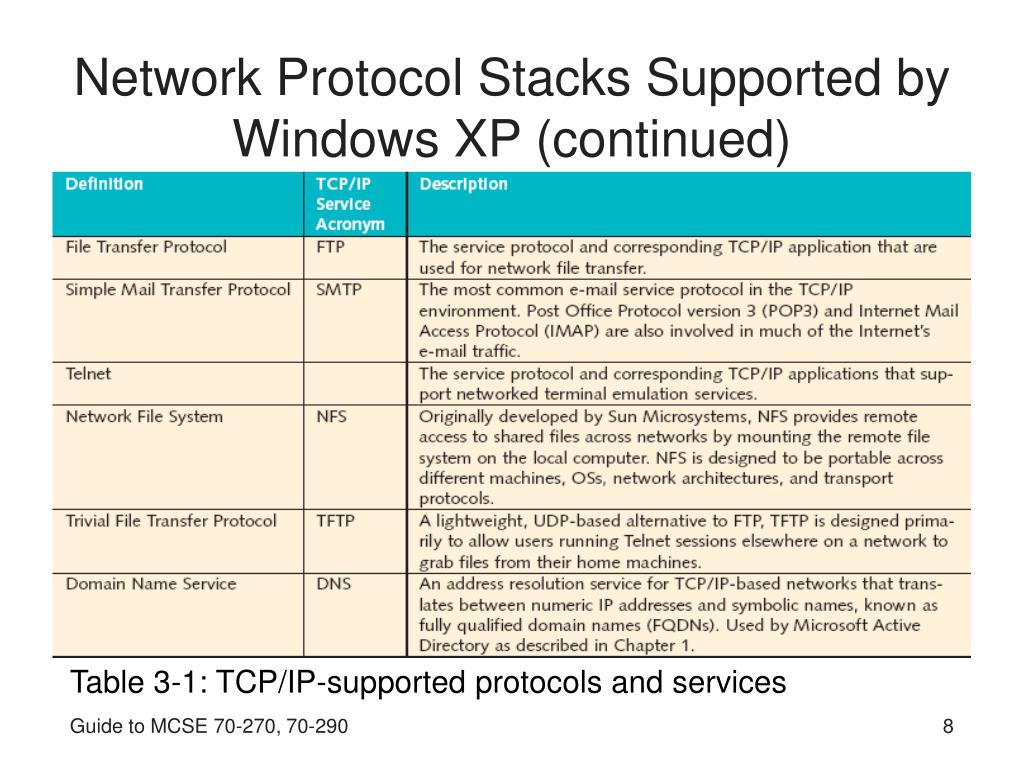

  8. Network Protocol Stacks Supported by Windows XP (continued) Table 3-1: TCP/IP-supported protocols and services Guide to MCSE 70-270, 70-290

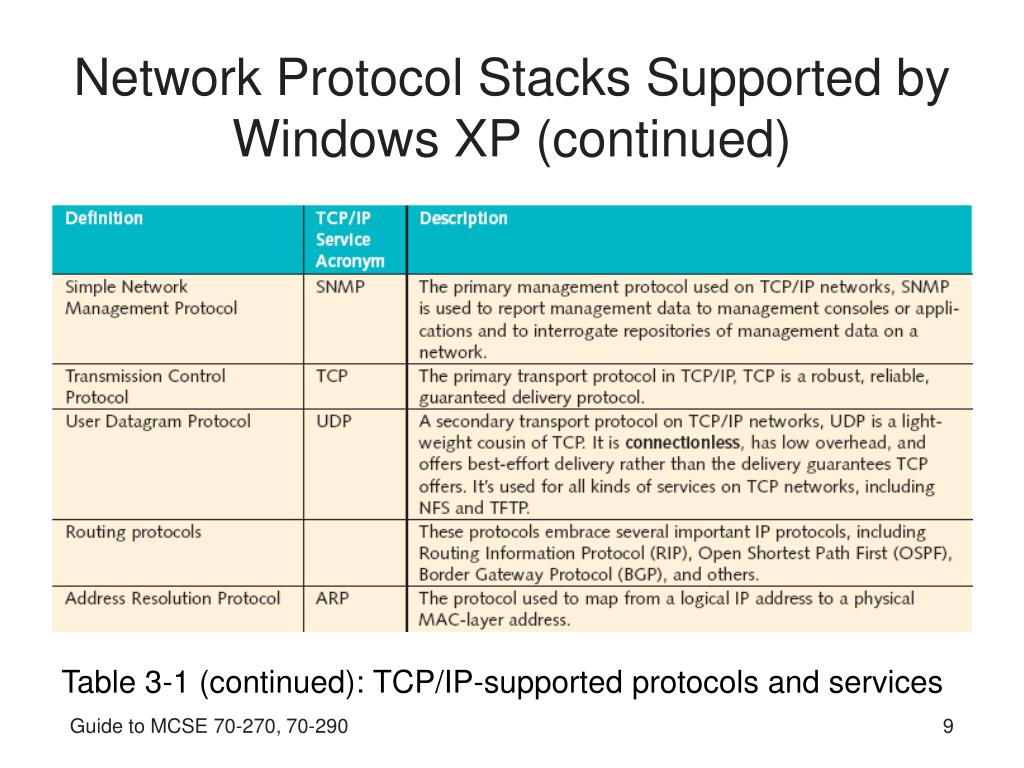

  9. Network Protocol Stacks Supported by Windows XP (continued) Table 3-1 (continued): TCP/IP-supported protocols and services Guide to MCSE 70-270, 70-290

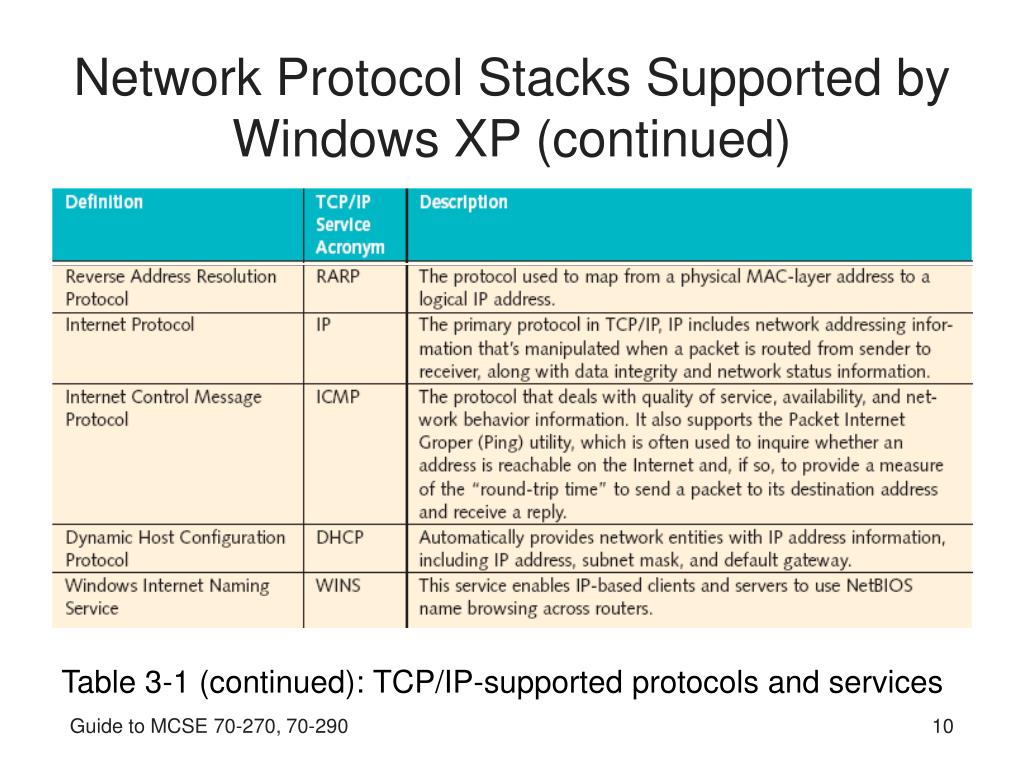

  10. Network Protocol Stacks Supported by Windows XP (continued) Table 3-1 (continued): TCP/IP-supported protocols and services Guide to MCSE 70-270, 70-290

  11. Network Protocol Stacks Supported by Windows XP (continued) • NetBEUI and DLC: Deemphasized in Windows XP and Windows Server 2003 • NetBIOS: Widely used but simple PC client/server interprocess communication (IPC) mechanism • Works with all TDI-compliant transports • NWNBLink • NBT • By default, Windows XP TCP/IP configured to use NetBIOS setting defined by local DHCP server Guide to MCSE 70-270, 70-290

  12. Configuring Network Components Figure 3-2: The Network Connections utility Guide to MCSE 70-270, 70-290

  13. Configuring Network Components (continued) Figure 3-3: The General tab of the Local Area Connection Properties dialog box Guide to MCSE 70-270, 70-290

  14. Configuring Network Components (continued) • Elements that can be installed: • Client for Microsoft Networks • Client Service for NetWare • QoS Packet Scheduler • File and Printer Sharing for Microsoft Networks • Service Advertising Protocol • Internet Protocol (TCP/IP) • Network Monitor Driver • NWLink IPX/SPX/NetBIOS Compatible Transport Protocol Guide to MCSE 70-270, 70-290

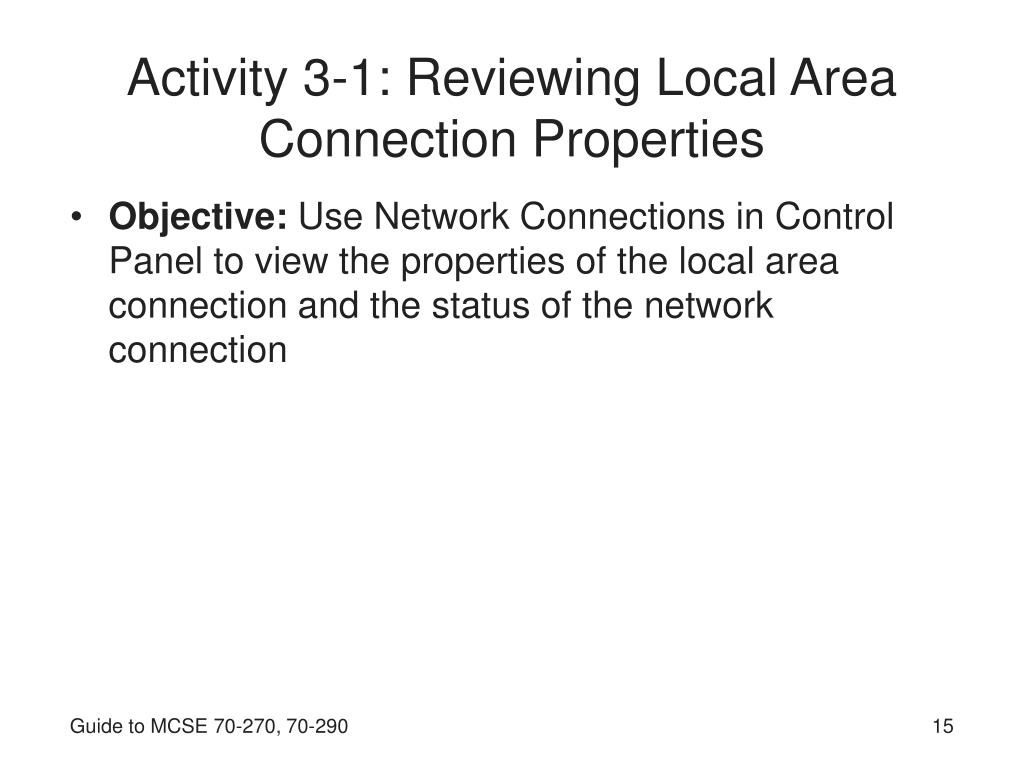

  15. Activity 3-1: Reviewing Local Area Connection Properties • Objective: Use Network Connections in Control Panel to view the properties of the local area connection and the status of the network connection Guide to MCSE 70-270, 70-290

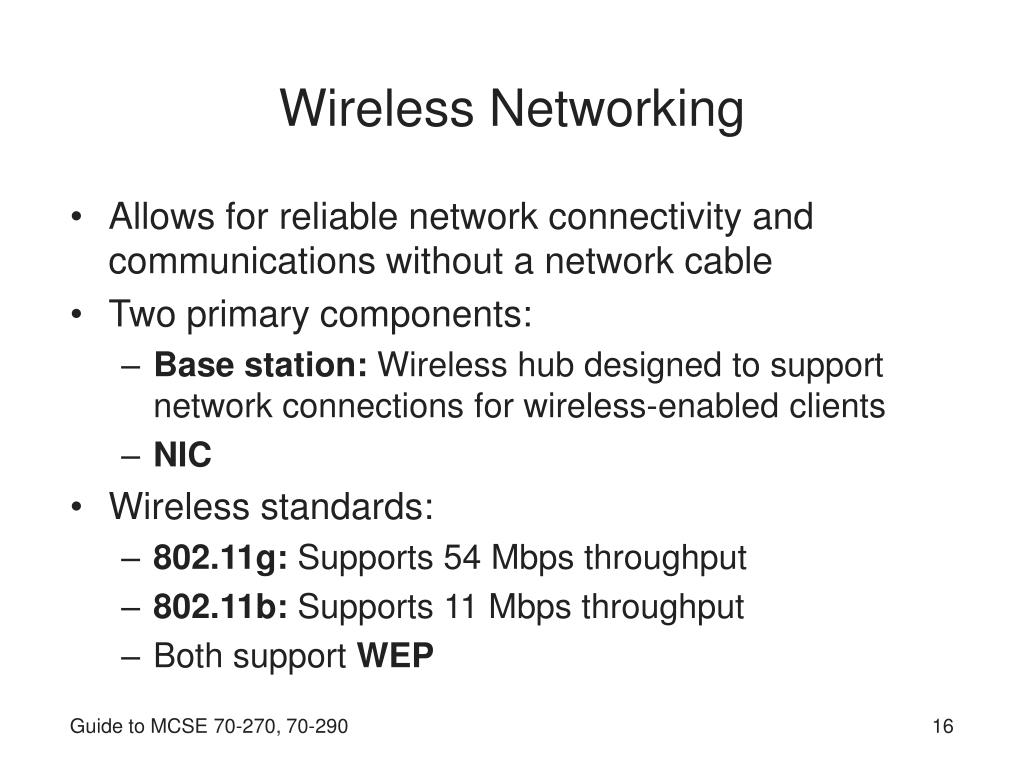

  16. Wireless Networking • Allows for reliable network connectivity and communications without a network cable • Two primary components: • Base station: Wireless hub designed to support network connections for wireless-enabled clients • NIC • Wireless standards: • 802.11g: Supports 54 Mbps throughput • 802.11b: Supports 11 Mbps throughput • Both support WEP Guide to MCSE 70-270, 70-290

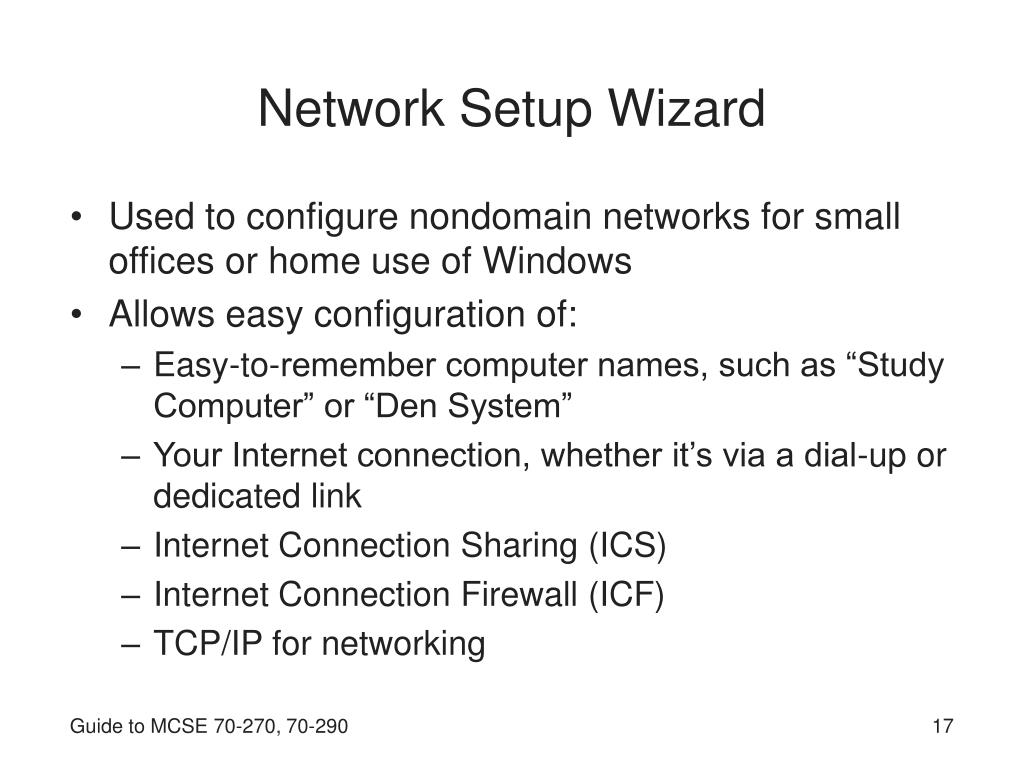

  17. Network Setup Wizard • Used to configure nondomain networks for small offices or home use of Windows • Allows easy configuration of: • Easy-to-remember computer names, such as “Study Computer” or “Den System” • Your Internet connection, whether it’s via a dial-up or dedicated link • Internet Connection Sharing (ICS) • Internet Connection Firewall (ICF) • TCP/IP for networking Guide to MCSE 70-270, 70-290

  18. Managing Bindings • Binding: Order in which networking components linked • Affects system behavior and performance • By default, XP binds any two components that share common boundary layer • Complete binding • Disabling unused and unneeded protocol bindings improves system performance • Decreases likelihood of communication errors • XP makes connections in order in which protocols bound Guide to MCSE 70-270, 70-290

  19. Managing Bindings (continued) Figure 3-6: The Adapters and Bindings tab Guide to MCSE 70-270, 70-290

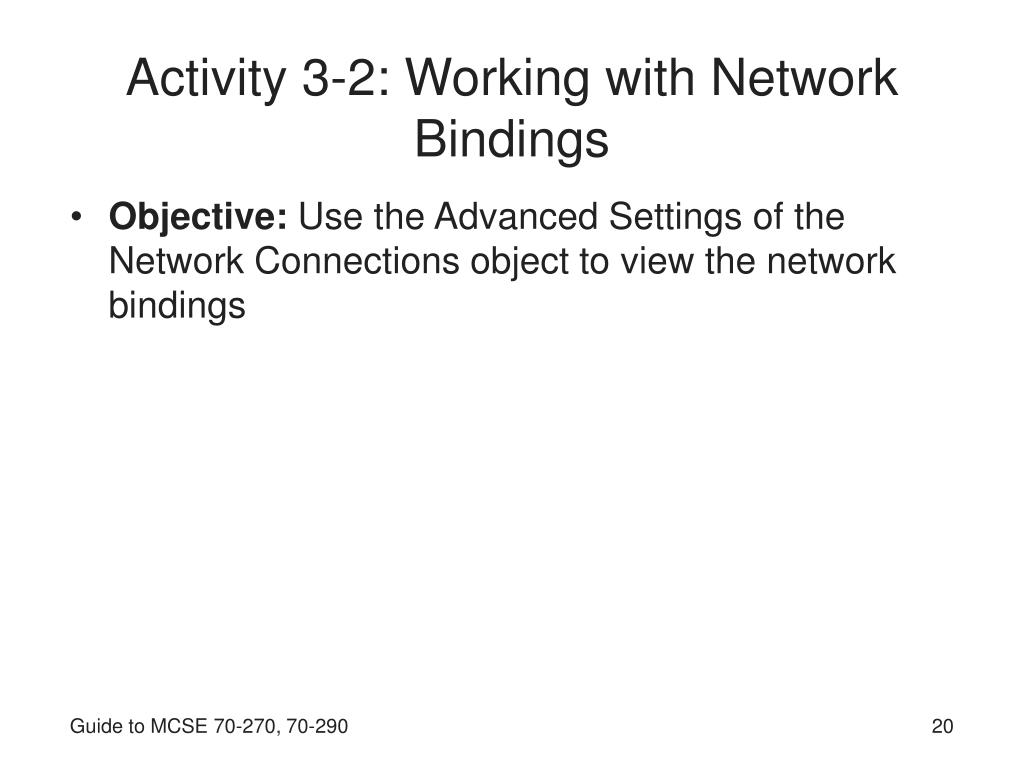

  20. Activity 3-2: Working with Network Bindings • Objective: Use the Advanced Settings of the Network Connections object to view the network bindings Guide to MCSE 70-270, 70-290

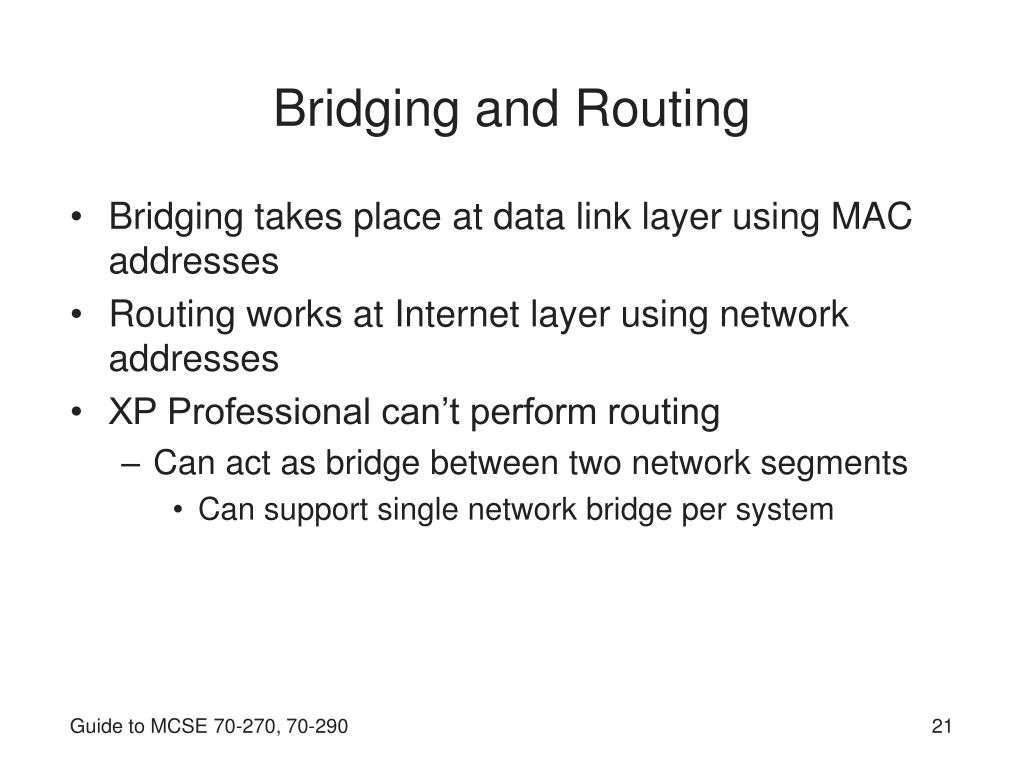

  21. Bridging and Routing • Bridging takes place at data link layer using MAC addresses • Routing works at Internet layer using network addresses • XP Professional can’t perform routing • Can act as bridge between two network segments • Can support single network bridge per system Guide to MCSE 70-270, 70-290

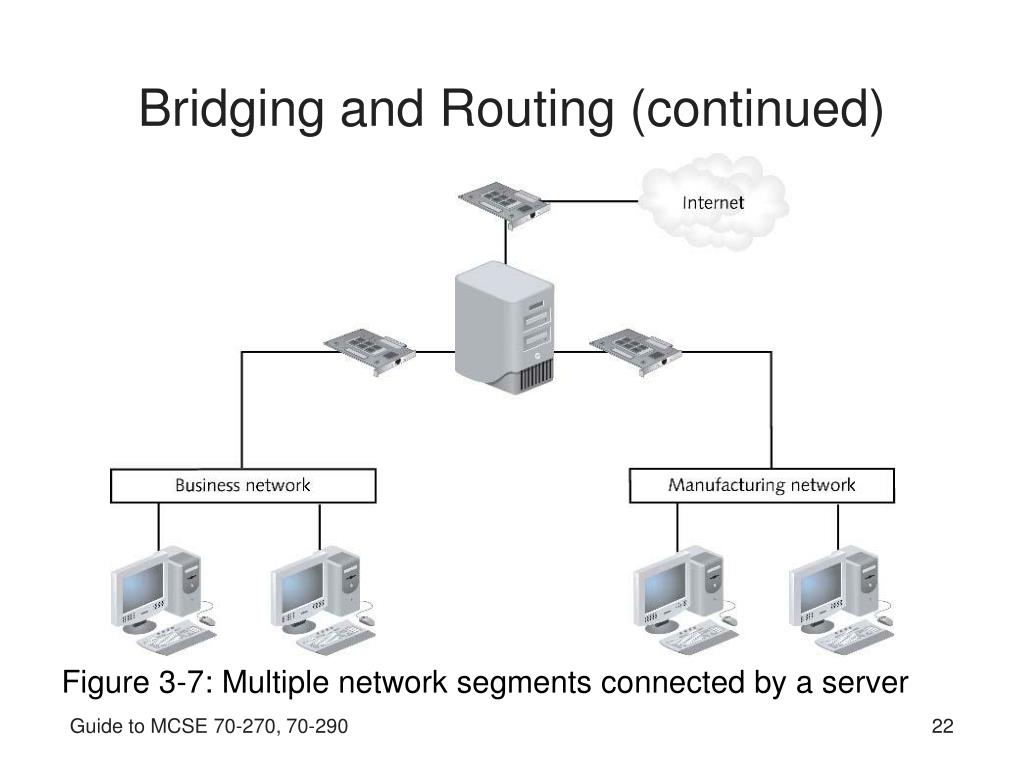

  22. Bridging and Routing (continued) Figure 3-7: Multiple network segments connected by a server Guide to MCSE 70-270, 70-290

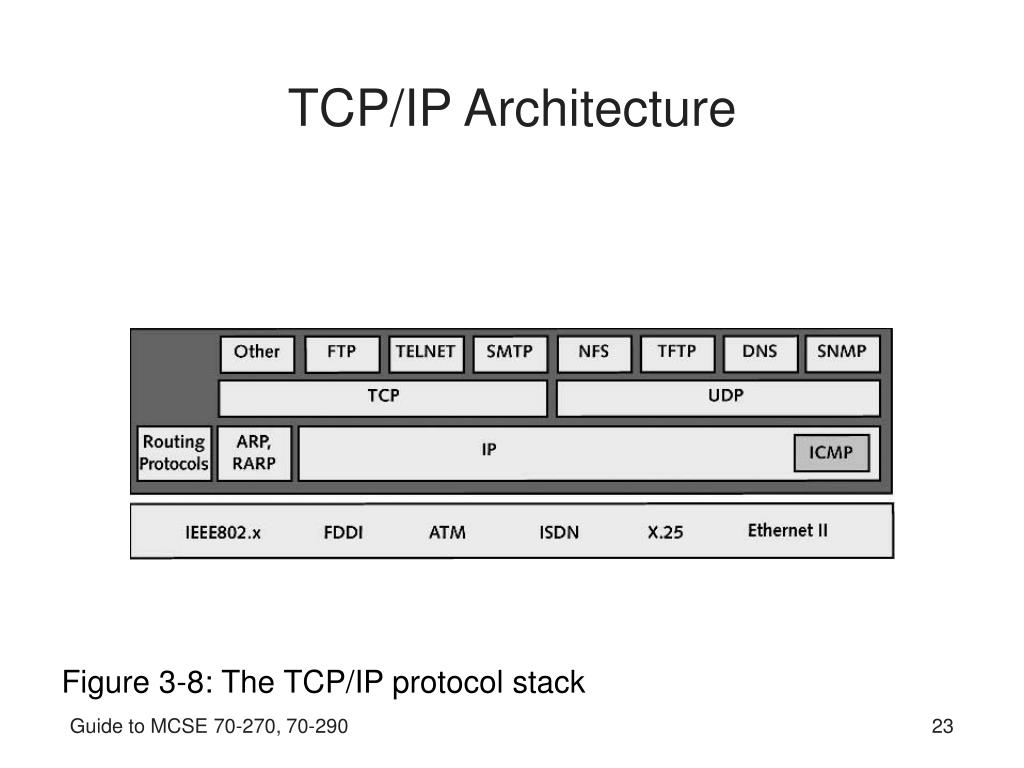

  23. TCP/IP Architecture Figure 3-8: The TCP/IP protocol stack Guide to MCSE 70-270, 70-290

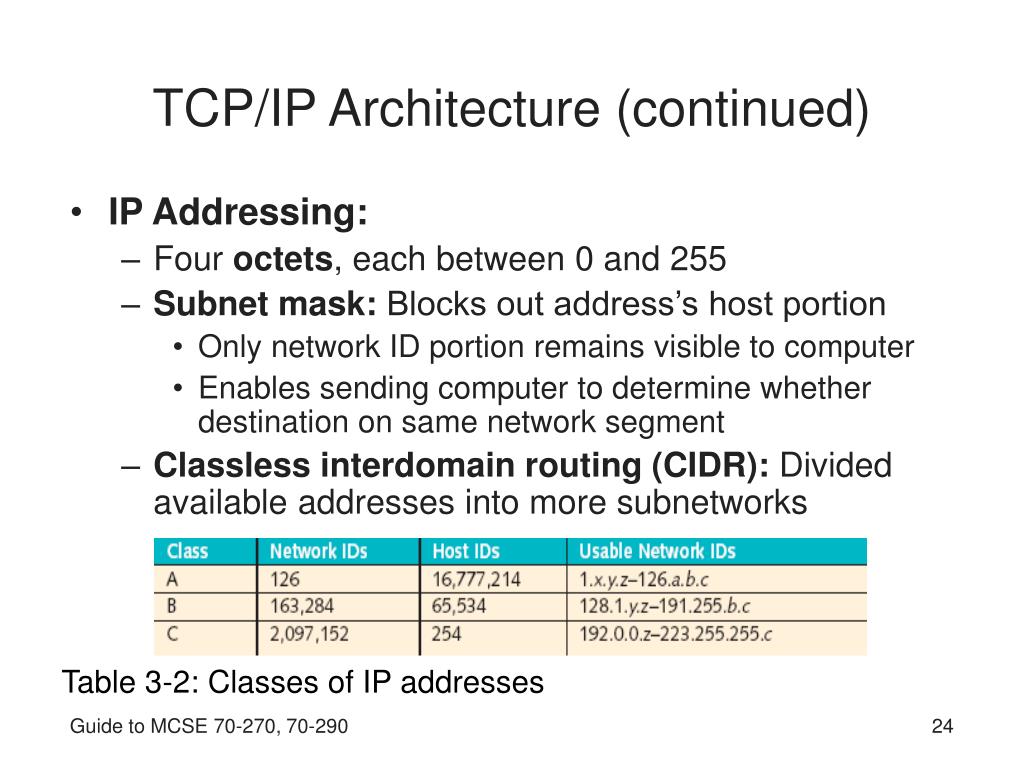

  24. TCP/IP Architecture (continued) • IP Addressing: • Four octets, each between 0 and 255 • Subnet mask: Blocks out address’s host portion • Only network ID portion remains visible to computer • Enables sending computer to determine whether destination on same network segment • Classless interdomain routing (CIDR): Divided available addresses into more subnetworks Table 3-2: Classes of IP addresses Guide to MCSE 70-270, 70-290

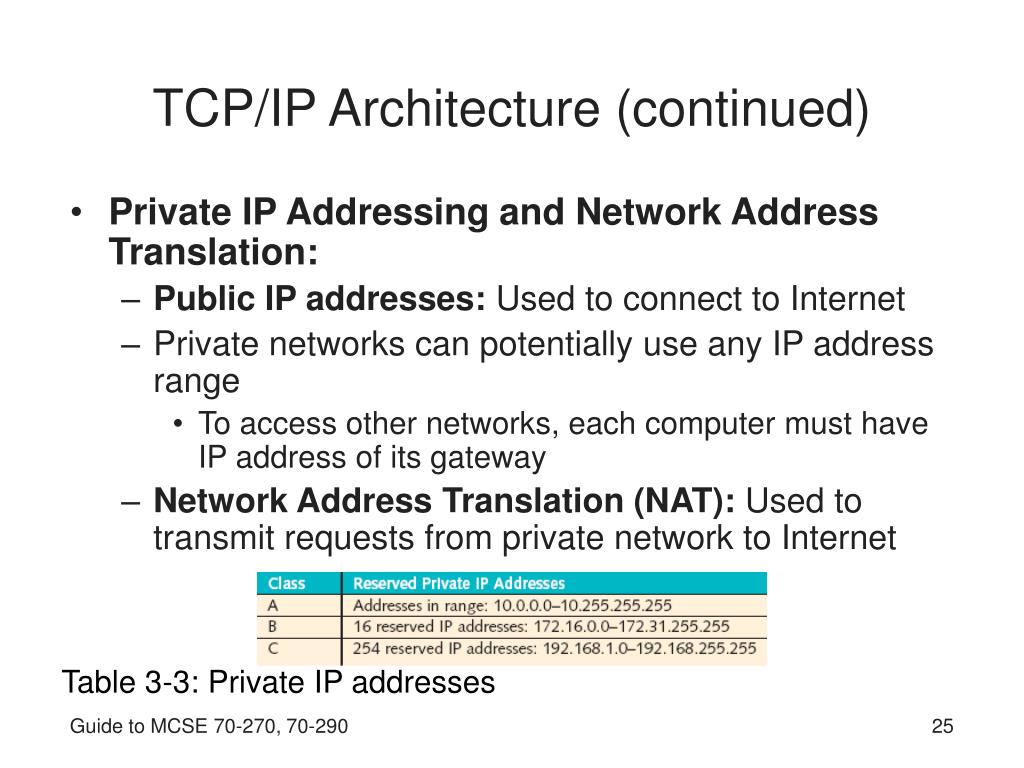

  25. TCP/IP Architecture (continued) • Private IP Addressing and Network Address Translation: • Public IP addresses: Used to connect to Internet • Private networks can potentially use any IP address range • To access other networks, each computer must have IP address of its gateway • Network Address Translation (NAT): Used to transmit requests from private network to Internet Table 3-3: Private IP addresses Guide to MCSE 70-270, 70-290

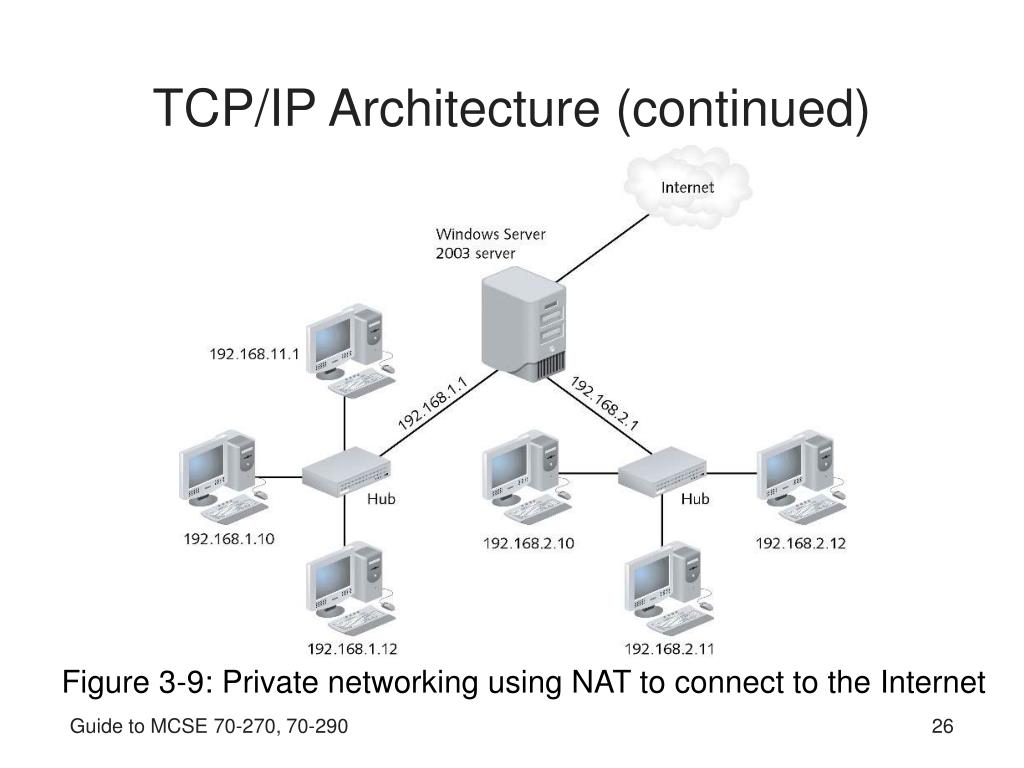

  26. TCP/IP Architecture (continued) Figure 3-9: Private networking using NAT to connect to the Internet Guide to MCSE 70-270, 70-290

  27. TCP/IP Architecture (continued) • Internet Protocol (IP) Suite: • Internet Protocol (IP): Provides source and destination addressing and routing in TCP/IP • Connectionless datagram protocol • Internet Control Message Protocol (ICMP): Used to send control messages between IP hosts • e.g., error messages and confirmations • Address Resolution Protocol (ARP): Used to associate logical and physical addresses • IPv6: Uses 128-bit address space Guide to MCSE 70-270, 70-290

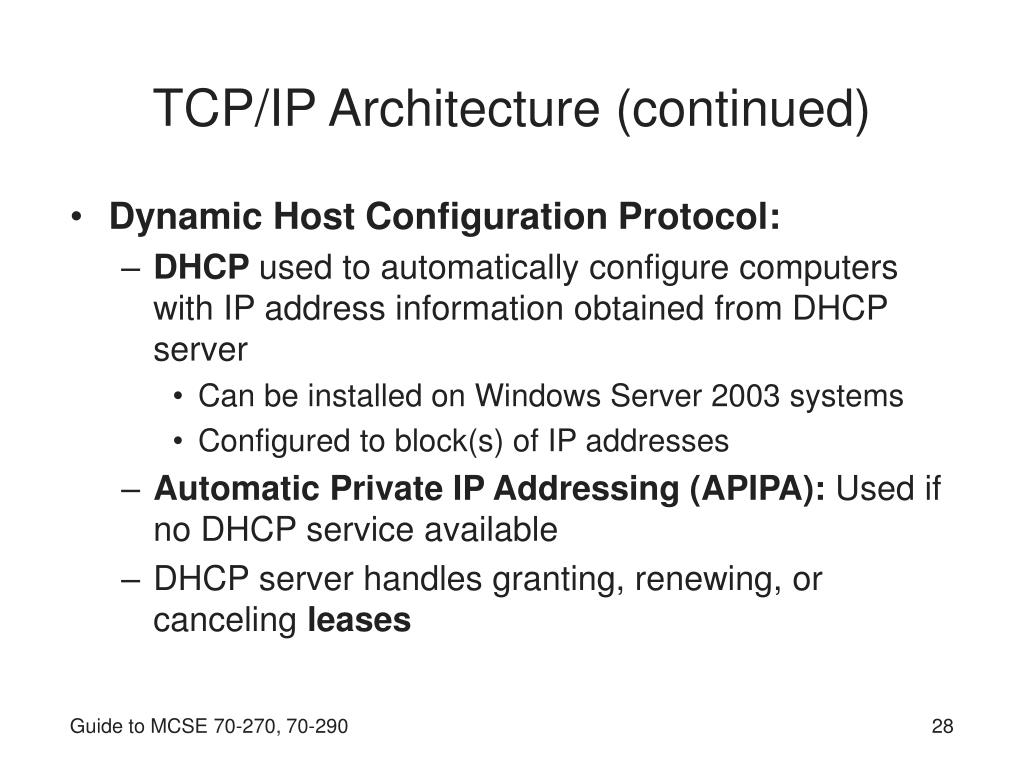

  28. TCP/IP Architecture (continued) • Dynamic Host Configuration Protocol: • DHCP used to automatically configure computers with IP address information obtained from DHCP server • Can be installed on Windows Server 2003 systems • Configured to block(s) of IP addresses • Automatic Private IP Addressing (APIPA): Used if no DHCP service available • DHCP server handles granting, renewing, or canceling leases Guide to MCSE 70-270, 70-290

  29. TCP/IP Architecture (continued) • Automatic Private IP Addressing: Allows home users and small business users to create single subnet TCP/IP network • Without using static addressing or DHCP server • Transmission Control Protocol (TCP): Primary Internet transport protocol • Accepts messages and provides transportation to TCP peer on remote network host • Connection oriented • TCP port number used to determine which process on host is to receive particular packet Guide to MCSE 70-270, 70-290

  30. TCP/IP Architecture (continued) • User Datagram Protocol (UDP): Connectionless transport protocol • Used for distributed file systems • e.g., Network File System (NFS) • Used for TFTP • File Transfer Protocol (FTP): Connection-oriented file transfer service • Uses TCP as transport protocol • Windows Server 2003 can provide FTP services to clients Guide to MCSE 70-270, 70-290

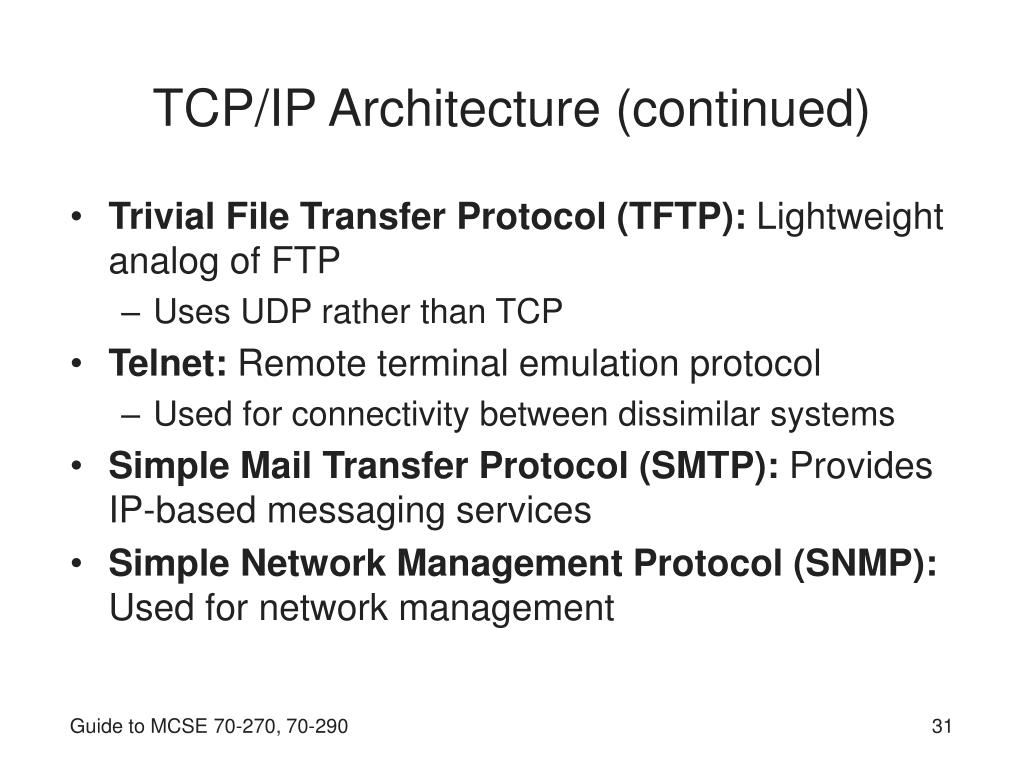

  31. TCP/IP Architecture (continued) • Trivial File Transfer Protocol (TFTP): Lightweight analog of FTP • Uses UDP rather than TCP • Telnet: Remote terminal emulation protocol • Used for connectivity between dissimilar systems • Simple Mail Transfer Protocol (SMTP): Provides IP-based messaging services • Simple Network Management Protocol (SNMP): Used for network management Guide to MCSE 70-270, 70-290

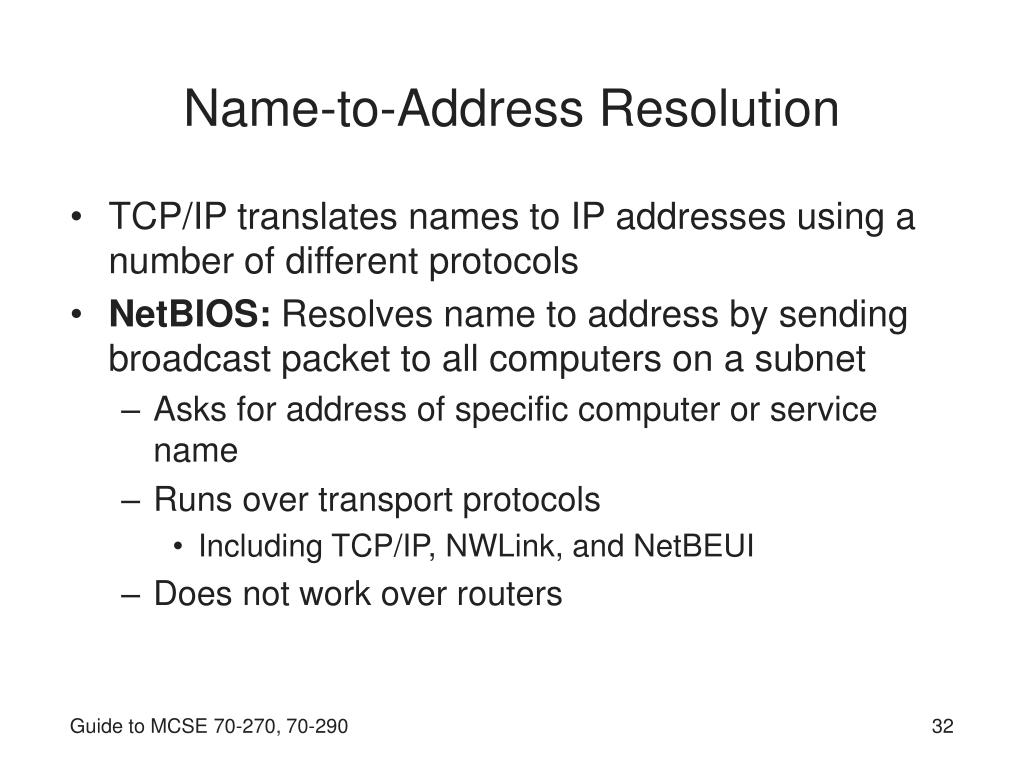

  32. Name-to-Address Resolution • TCP/IP translates names to IP addresses using a number of different protocols • NetBIOS: Resolves name to address by sending broadcast packet to all computers on a subnet • Asks for address of specific computer or service name • Runs over transport protocols • Including TCP/IP, NWLink, and NetBEUI • Does not work over routers Guide to MCSE 70-270, 70-290

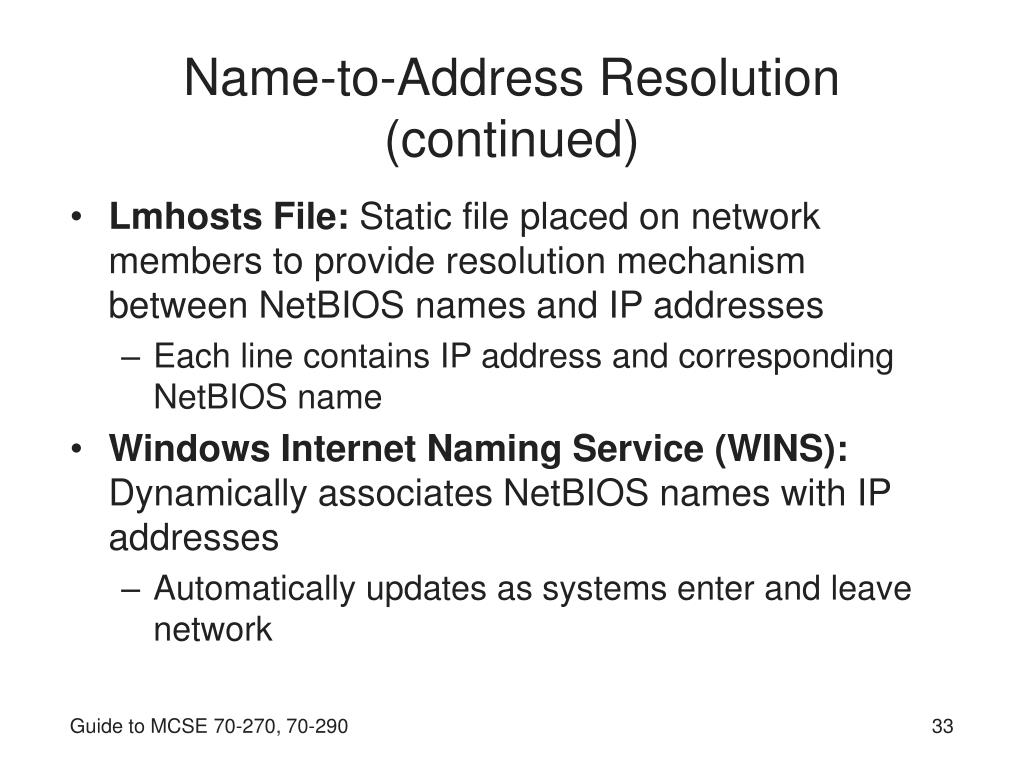

  33. Name-to-Address Resolution (continued) • Lmhosts File: Static file placed on network members to provide resolution mechanism between NetBIOS names and IP addresses • Each line contains IP address and corresponding NetBIOS name • Windows Internet Naming Service (WINS): Dynamically associates NetBIOS names with IP addresses • Automatically updates as systems enter and leave network Guide to MCSE 70-270, 70-290

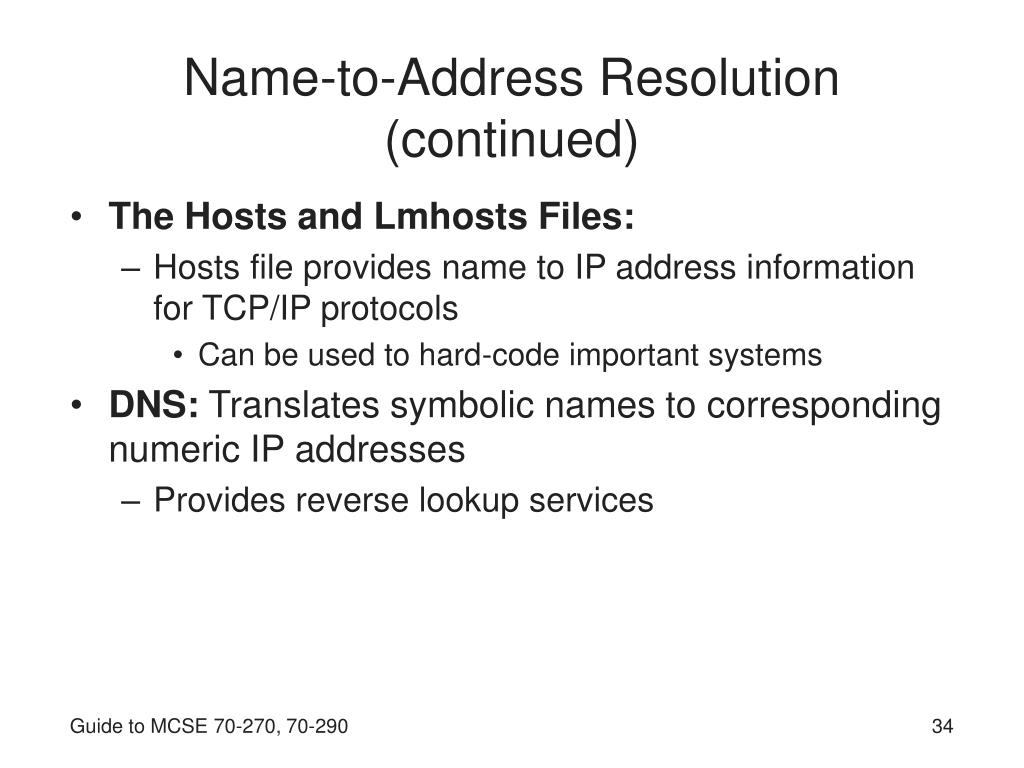

  34. Name-to-Address Resolution (continued) • The Hosts and Lmhosts Files: • Hosts file provides name to IP address information for TCP/IP protocols • Can be used to hard-code important systems • DNS: Translates symbolic names to corresponding numeric IP addresses • Provides reverse lookup services Guide to MCSE 70-270, 70-290

  35. Activity 3-3: Resolving Names to Addresses • Objective: View the contents of the Hosts and Lmhosts files • Via Notepad • In \Windows\System32\Drivers\Etc folder Guide to MCSE 70-270, 70-290

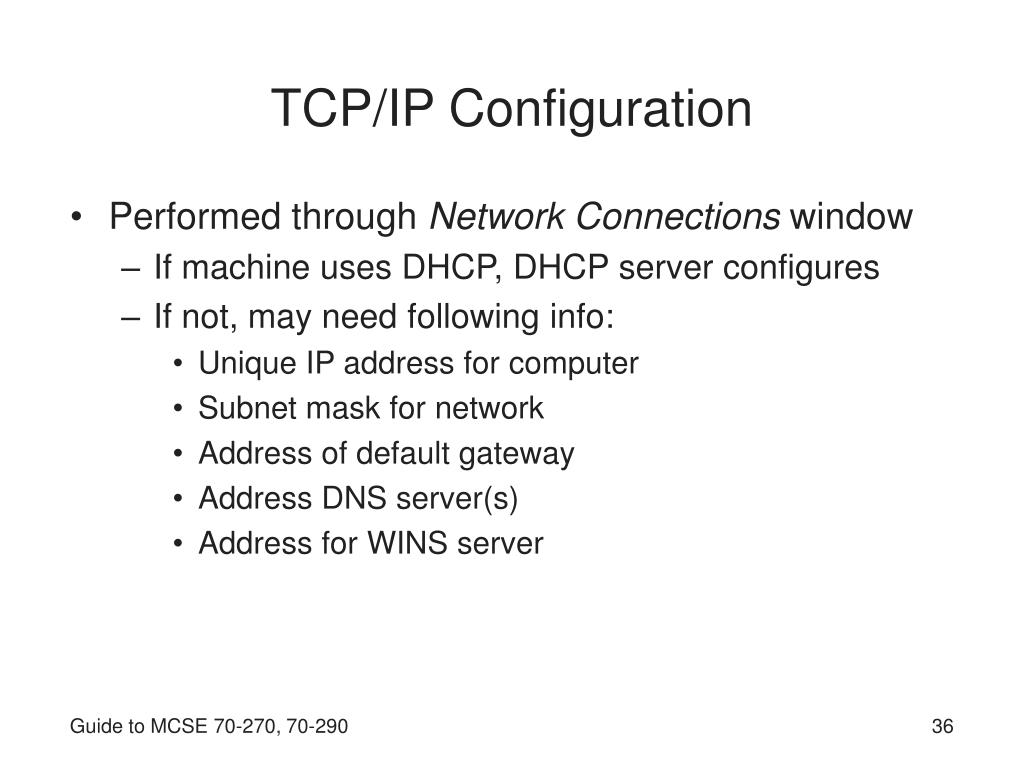

  36. TCP/IP Configuration • Performed through Network Connections window • If machine uses DHCP, DHCP server configures • If not, may need following info: • Unique IP address for computer • Subnet mask for network • Address of default gateway • Address DNS server(s) • Address for WINS server Guide to MCSE 70-270, 70-290

  37. TCP/IP Configuration (continued) Figure 3-10: The DNS tab of the Advanced TCP/IP Settings dialog box Guide to MCSE 70-270, 70-290

  38. Activity 3-4: Configuring TCP/IP • Objective: Configure the IP address of a computer from the Local Area Connection properties dialog box • Via Network Connections window Guide to MCSE 70-270, 70-290

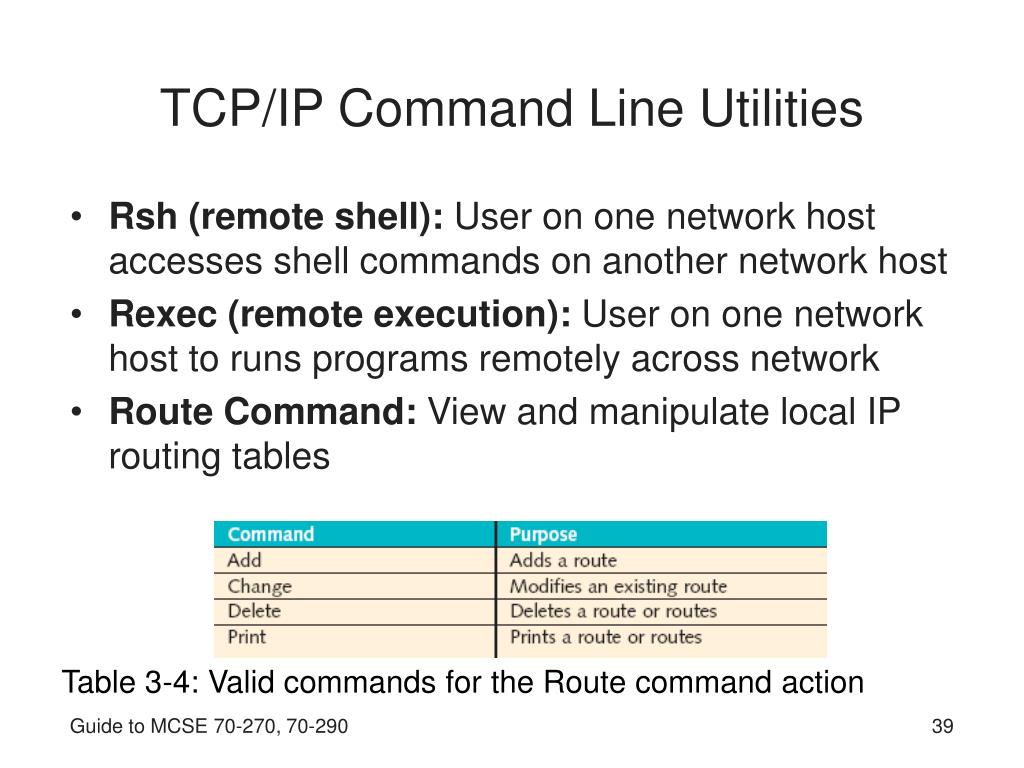

  39. TCP/IP Command Line Utilities • Rsh (remote shell): User on one network host accesses shell commands on another network host • Rexec (remote execution): User on one network host to runs programs remotely across network • Route Command: View and manipulate local IP routing tables Table 3-4: Valid commands for the Route command action Guide to MCSE 70-270, 70-290

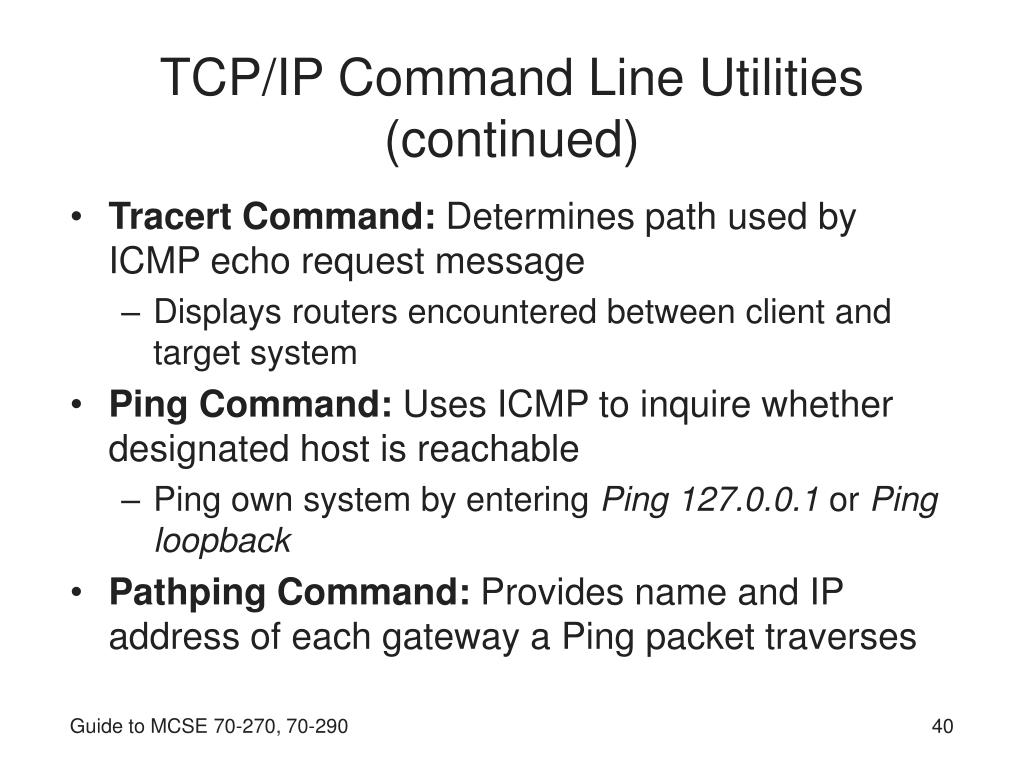

  40. TCP/IP Command Line Utilities (continued) • Tracert Command: Determines path used by ICMP echo request message • Displays routers encountered between client and target system • Ping Command: Uses ICMP to inquire whether designated host is reachable • Ping own system by entering Ping 127.0.0.1 or Ping loopback • Pathping Command: Provides name and IP address of each gateway a Ping packet traverses Guide to MCSE 70-270, 70-290

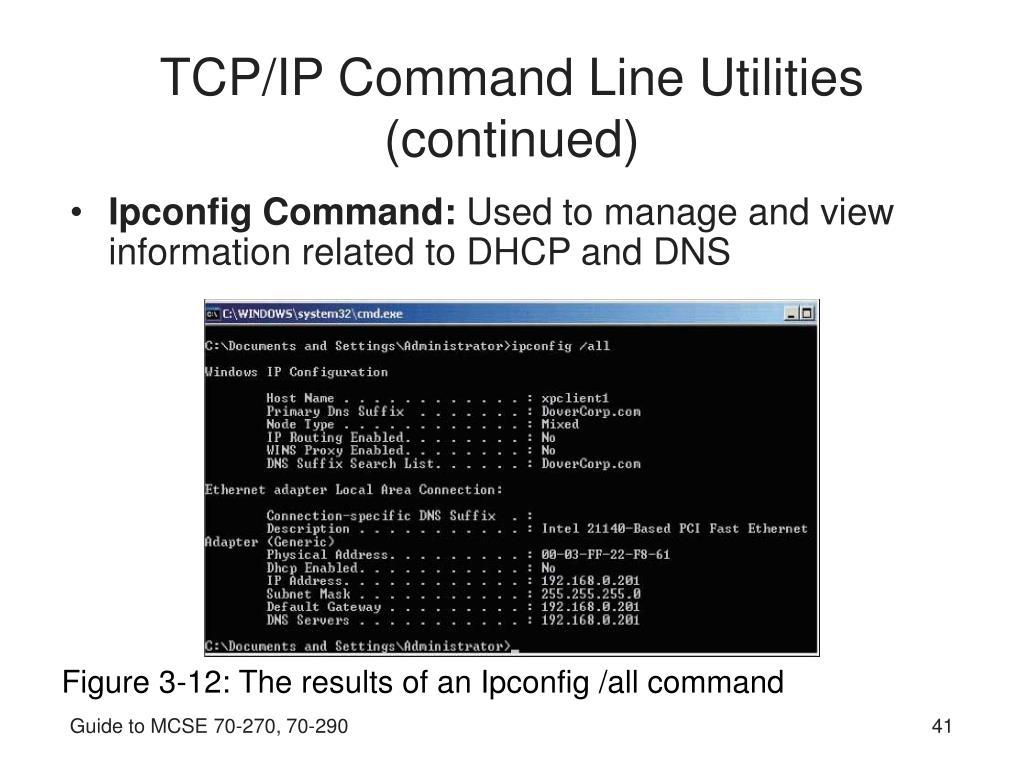

  41. TCP/IP Command Line Utilities (continued) • Ipconfig Command: Used to manage and view information related to DHCP and DNS Figure 3-12: The results of an Ipconfig /all command Guide to MCSE 70-270, 70-290

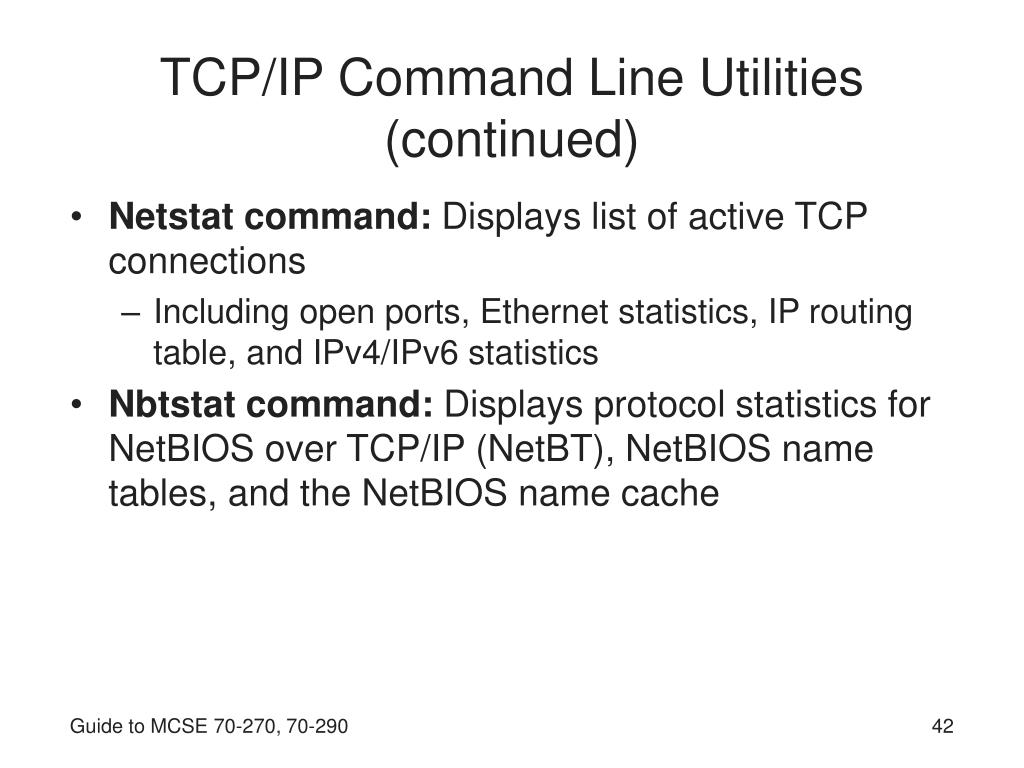

  42. TCP/IP Command Line Utilities (continued) • Netstat command: Displays list of active TCP connections • Including open ports, Ethernet statistics, IP routing table, and IPv4/IPv6 statistics • Nbtstat command: Displays protocol statistics for NetBIOS over TCP/IP (NetBT), NetBIOS name tables, and the NetBIOS name cache Guide to MCSE 70-270, 70-290

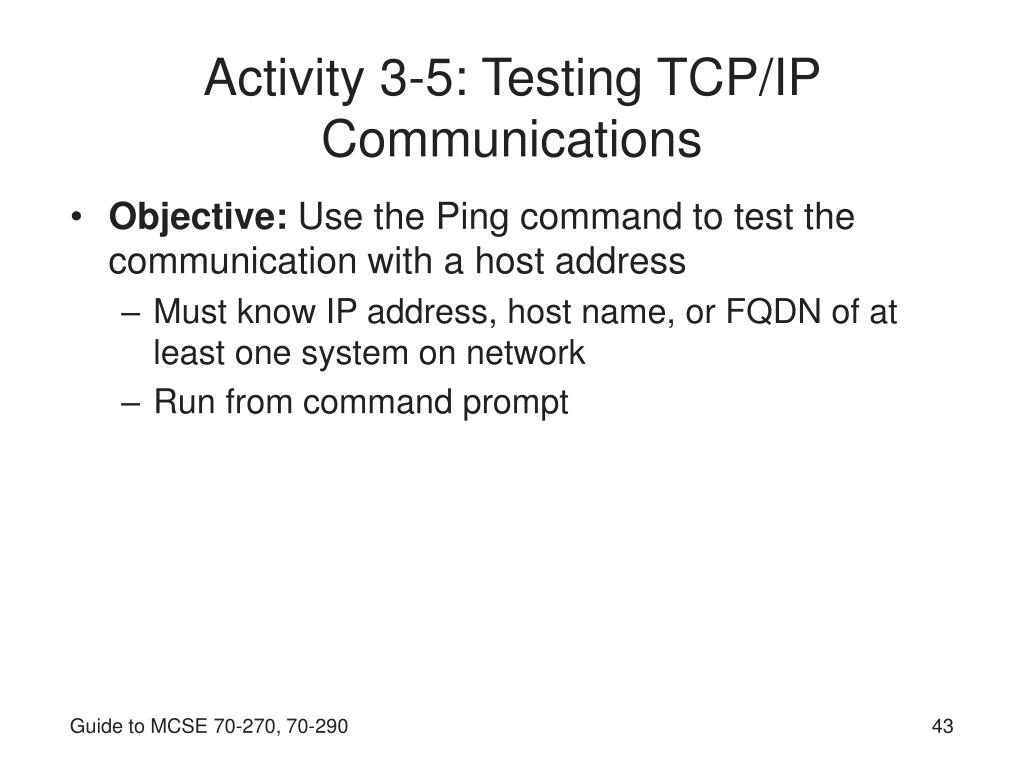

  43. Activity 3-5: Testing TCP/IP Communications • Objective: Use the Ping command to test the communication with a host address • Must know IP address, host name, or FQDN of at least one system on network • Run from command prompt Guide to MCSE 70-270, 70-290

  44. Activity 3-6: Testing Name-to-address Resolution • Objective: View the contents of the Hosts file and modify it to use your name as an alternative name for your computer • Review Activity 3-3 first • Use Ping to test name-to-address resolution Guide to MCSE 70-270, 70-290

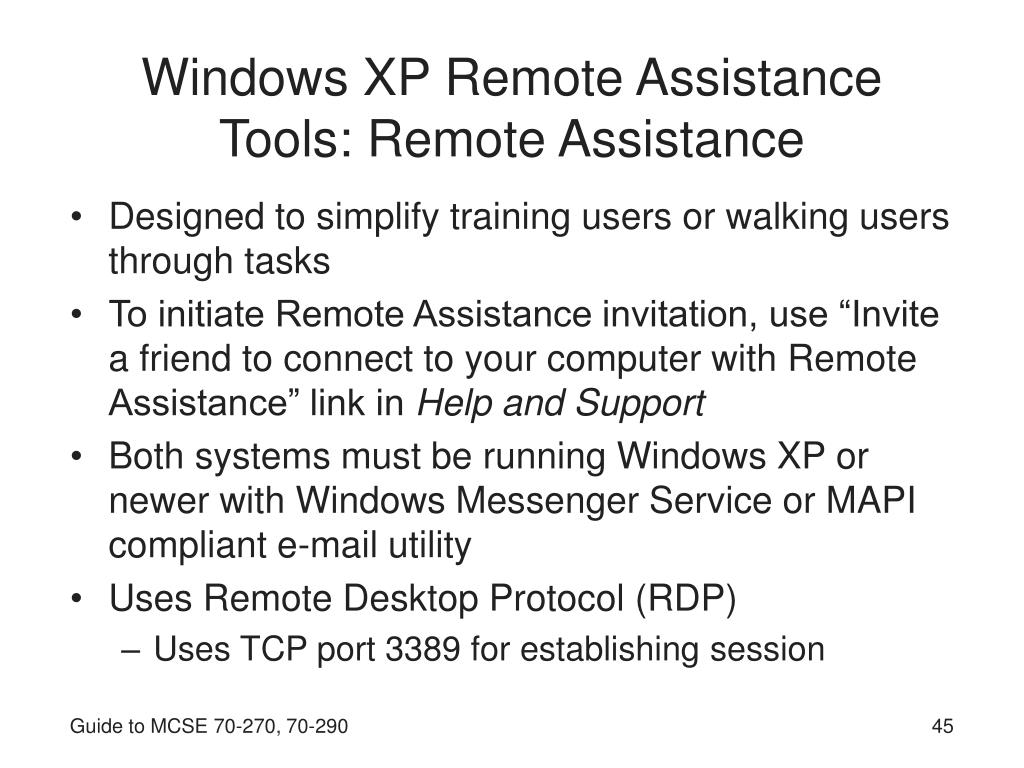

  45. Windows XP Remote Assistance Tools: Remote Assistance • Designed to simplify training users or walking users through tasks • To initiate Remote Assistance invitation, use “Invite a friend to connect to your computer with Remote Assistance” link in Help and Support • Both systems must be running Windows XP or newer with Windows Messenger Service or MAPI compliant e-mail utility • Uses Remote Desktop Protocol (RDP) • Uses TCP port 3389 for establishing session Guide to MCSE 70-270, 70-290

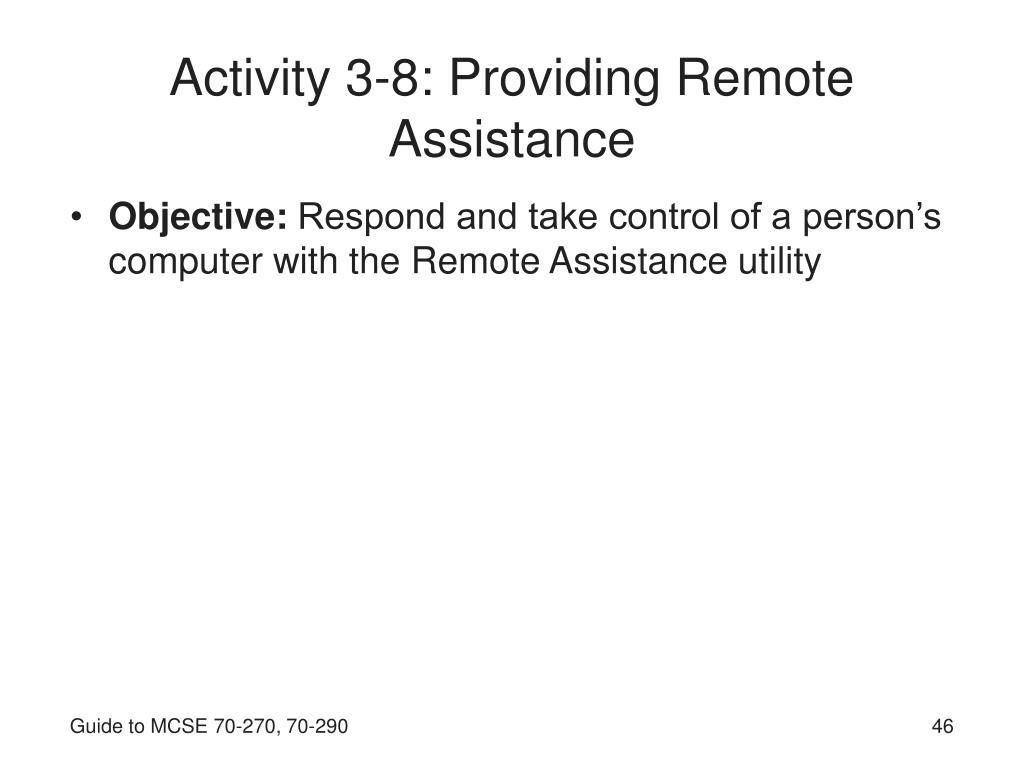

  46. Activity 3-8: Providing Remote Assistance • Objective: Respond and take control of a person’s computer with the Remote Assistance utility Guide to MCSE 70-270, 70-290

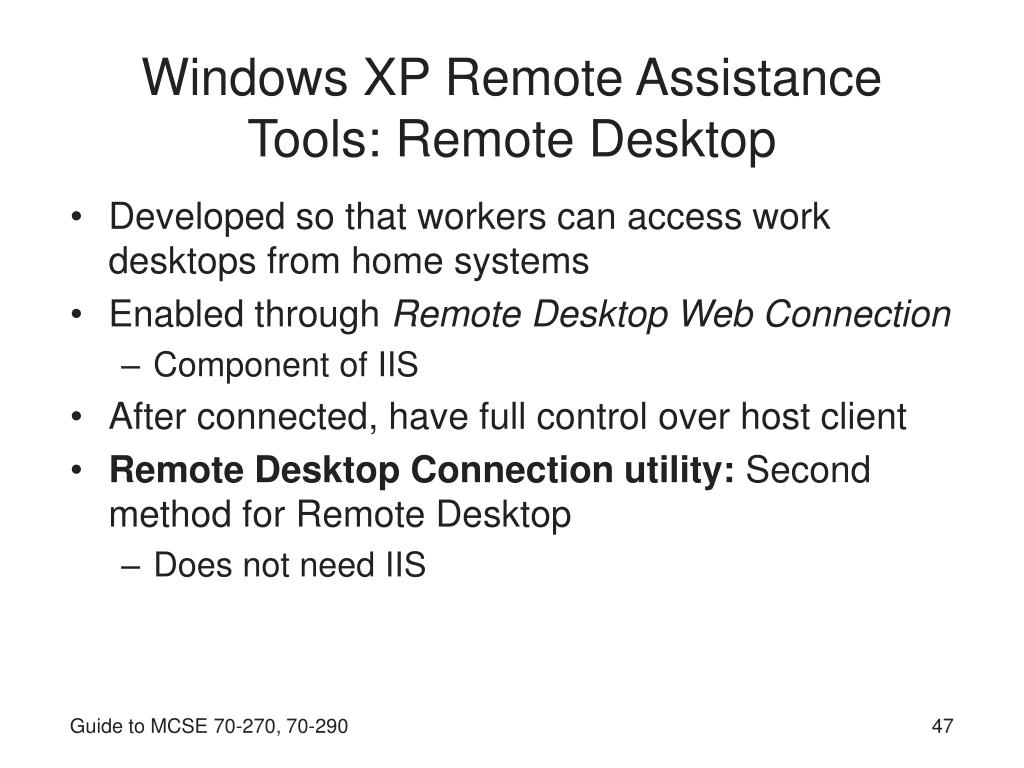

  47. Windows XP Remote Assistance Tools: Remote Desktop • Developed so that workers can access work desktops from home systems • Enabled through Remote Desktop Web Connection • Component of IIS • After connected, have full control over host client • Remote Desktop Connection utility: Second method for Remote Desktop • Does not need IIS Guide to MCSE 70-270, 70-290

  48. Windows XP and NetWare Networks • Many companies use Novell NetWare • Microsoft includes interconnectivity enhancements to allow Windows XP computers to connect to NetWare servers • Bindery: Proprietary database that contains network resource information • Novell Directory Services (NDS): Hierarchical database used by NetWare 4.0 and later servers to store network resource and object data • Comparable to Active Directory Guide to MCSE 70-270, 70-290

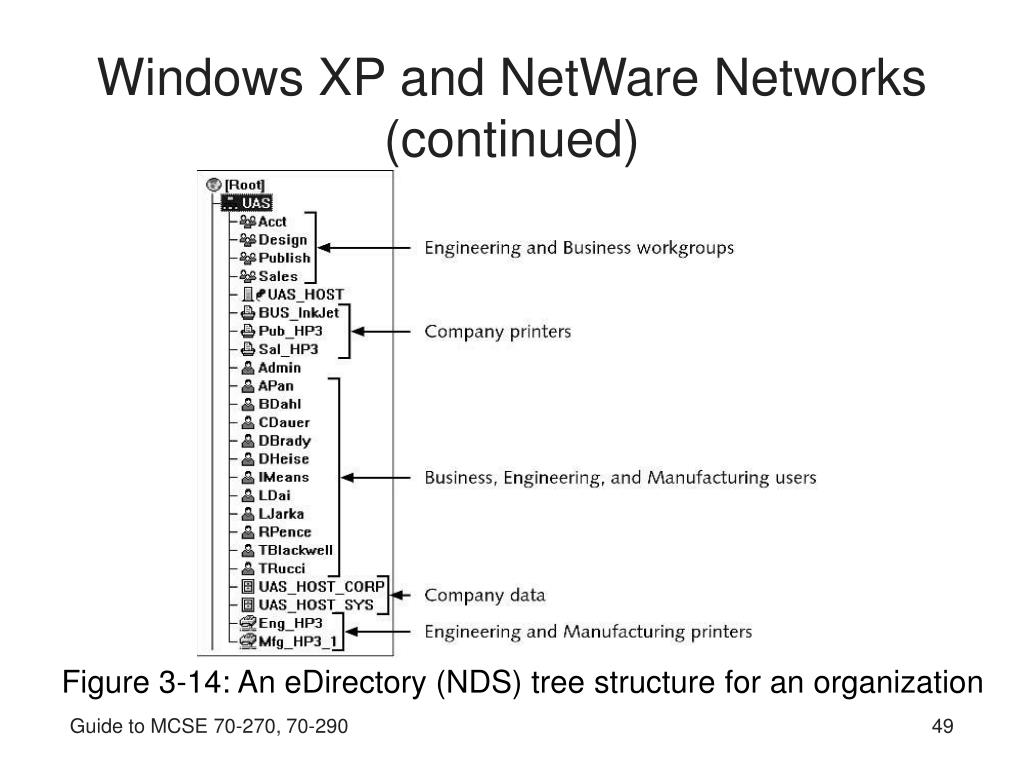

  49. Windows XP and NetWare Networks (continued) Figure 3-14: An eDirectory (NDS) tree structure for an organization Guide to MCSE 70-270, 70-290

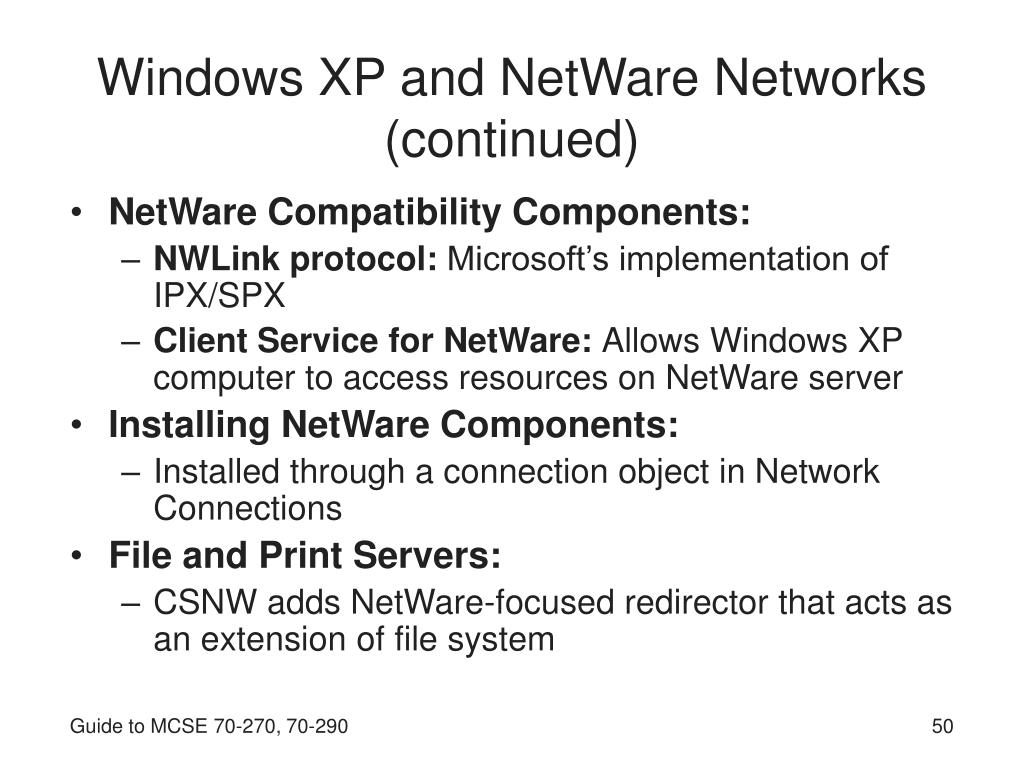

  50. Windows XP and NetWare Networks (continued) • NetWare Compatibility Components: • NWLink protocol: Microsoft’s implementation of IPX/SPX • Client Service for NetWare: Allows Windows XP computer to access resources on NetWare server • Installing NetWare Components: • Installed through a connection object in Network Connections • File and Print Servers: • CSNW adds NetWare-focused redirector that acts as an extension of file system Guide to MCSE 70-270, 70-290
