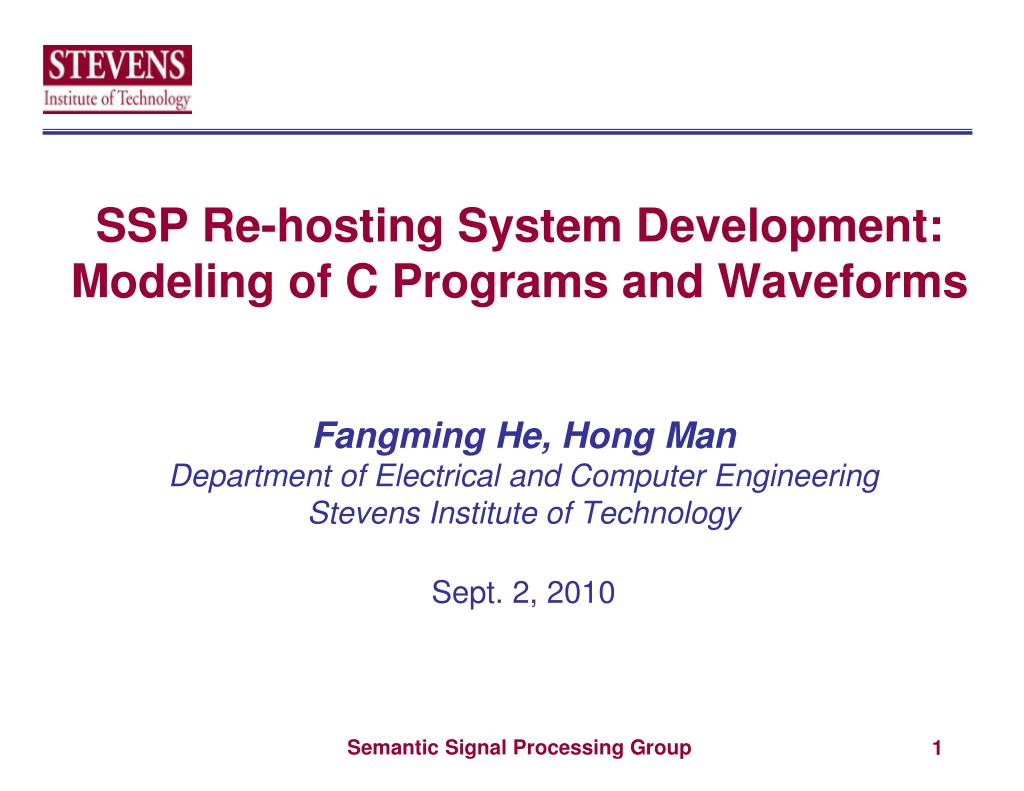

  1. SSP Re-hosting System Development: Modeling of C Programs and Waveforms Fangming He, Hong Man Department of Electrical and Computer Engineering Stevens Institute of Technology Sept. 2, 2010

  2. Outline Waveform Layer Coding Layer • C language Modeling for Cognitive Linguistics • Waveform Modeling (System Level) for Cognitive Linguistics

  3. C language Modeling

  4. CL Representation---- for • Initiation  place • condition  cause • statements & Loop control  path • statement  place • loop control  place • for(initiation; condition; loop control){ statement 1; statement 2; }

  5. CL Representation ---- While

  6. CL Representation ---- Switch Case switch ( states ) { case condition1 is true: statement 1; break; case condition2 is true: statement 2; break; case condition is true: statement 3; break; ... default: statement N; }

  7. CL Representation ---- Hierarchical Structure <cause> <path> 。。。。。。 </path> </cause> <cause> <path> <cause> <path> 。。。 </path> </cause> <cause> <path> 。。。 </path> </cause> </path> </cause>

  8. Waveform Modeling for CL (1) • Path • Every signal processing block can be expressed as a path. • Thing • The specific value of parameters in the signal processing block. • Place • The description of thing including the id, attributes and types of the thing. • Action • Data flow control: the connection of different paths. • Cause • Conditions to trigger to enter some paths. 8

  9. Waveform Modeling for CL (2)

  10. Waveform Modeling for CL (3) <action> <thing>random_source_x_0</thing> <thing>blks2_dxpsk_mod_0</thing> </action> <action> <thing>blks2_dxpsk_mod_0</thing> <thing>gr_multiply_const_vxx_0</thing> </action> <action> <thing>gr_multiply_const_vxx_0</thing> <thing>usrp2_sink_xxxx_0</thing> </action> <action> <thing>usrp2_source_xxxx_0</thing> <thing>wxgui_constellationsink2_0</thing> </action>

  11. Waveform Modeling for CL (2)

  12. Waveform Modeling for CL (4) • <path name = "blks2_dxpsk_mod"> • <place>id • <thing>blks2_dxpsk_mod_0</thing> </place> • <place>_enabled • <thing>True</thing> </place> • <place>type • <thing>dqpsk</thing> </place> • <place>samples_per_symbol • <thing>samps_per_sym</thing> </place> • <place>excess_bw • <thing>0.35</thing> </place> • <place>gray_code • <thing>True</thing> </place> • <place>_coordinate • <thing>(468, 55)</thing> </place> • <place>_rotation • <thing>0</thing> </place> • </path>
