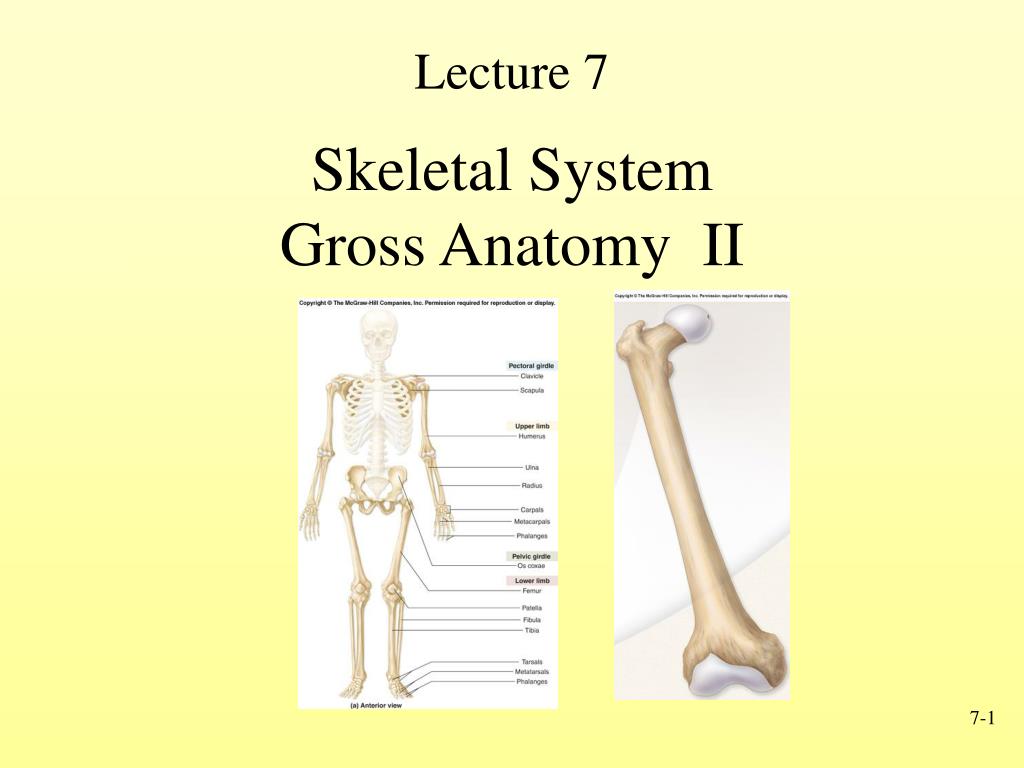

  1. Skeletal SystemGross Anatomy II Lecture 7

  2. Appendicular Skeleton • Girdles • Pectoral or shoulder • Pelvic • Upper Limbs • Arm (brachial) • Forearm (antebrachial) • Wrist (carpal) • Hand (manus) • Lower Limbs • Thigh (femoral) • Leg (crural) • Foot (pes) Fig. 8.1

  3. Pectoral Girdle • Scapula (2) • Acromion process • Forms protective cover • Attachment for clavicle • Attachment for muscles • Coracoid process • Attachment for muscles • Glenoid cavity • Articulates with humerus • Clavicle (2) Fig. 8.3 Fig. 8.2

  4. Arm • Humerus • Head • Tubercles • Greater and lesser • Intertubercular groove • Capitulum • Articulates with radius • Trochlea • Articulates with ulna • Epicondyles • Attachment of forearm muscles Fig. 8.4

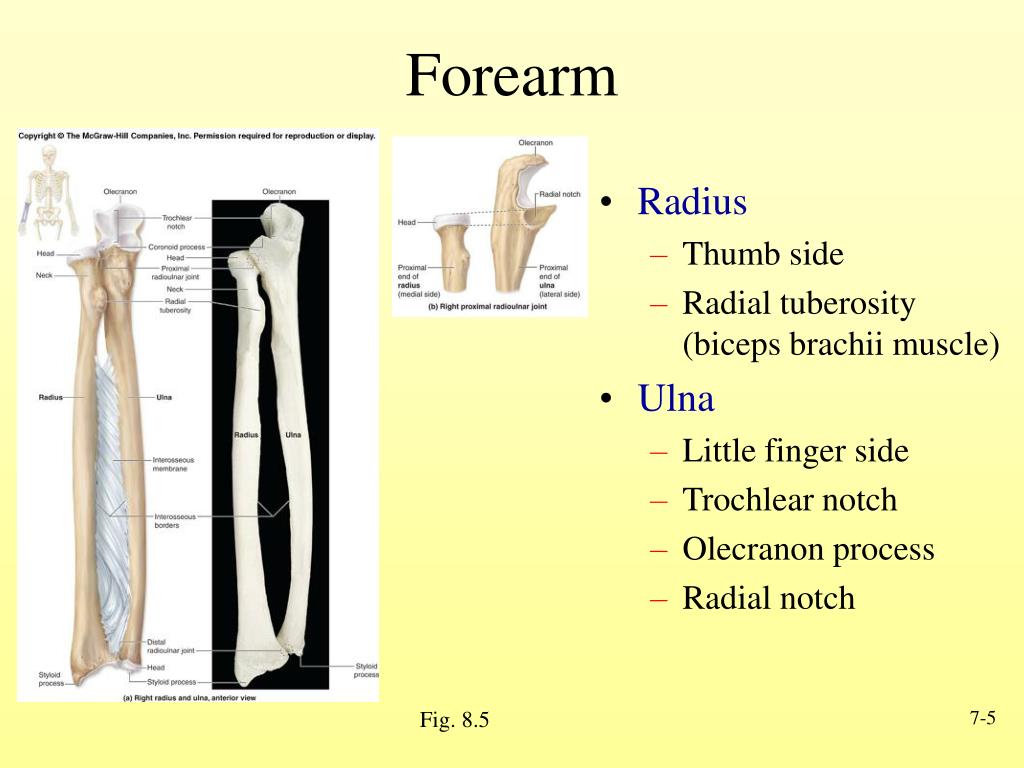

  5. Forearm • Radius • Thumb side • Radial tuberosity (biceps brachii muscle) • Ulna • Little finger side • Trochlear notch • Olecranon process • Radial notch Fig. 8.5

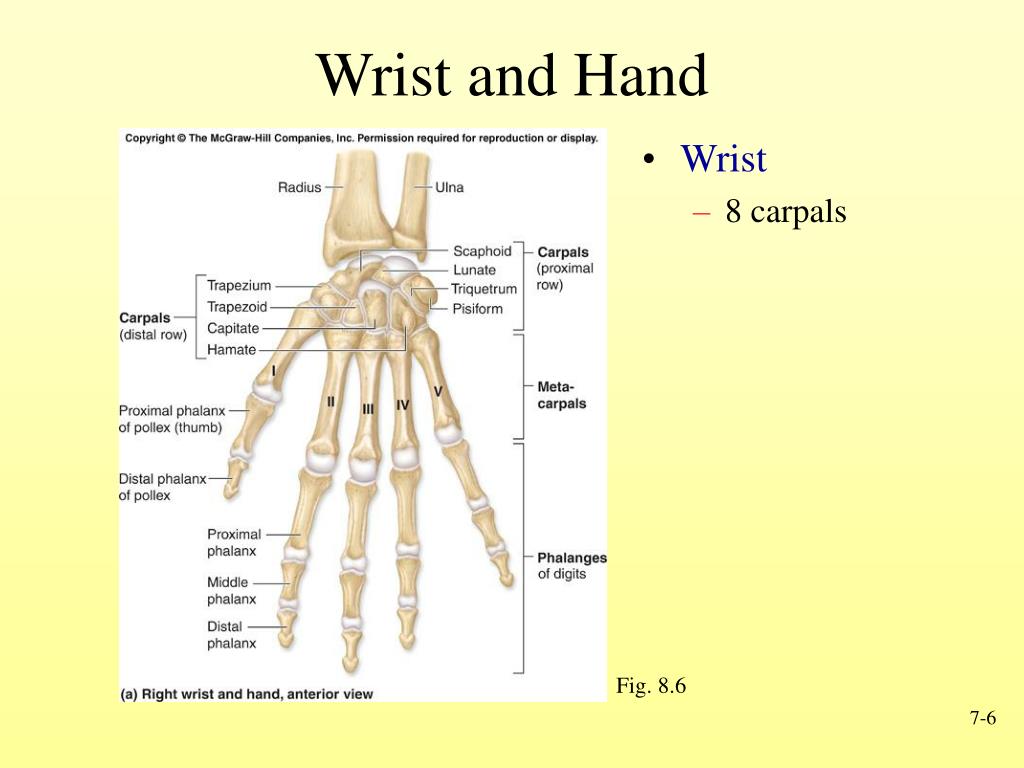

  6. Wrist and Hand • Wrist • 8 carpals Fig. 8.6

  7. Pelvis • Os Coxae: Right and Left • Ilium • Ischium • Sit down bone • Pubis • Symphysis pubis • Acetabulum • Obturator foramen • Sacrum Fig. 8.7

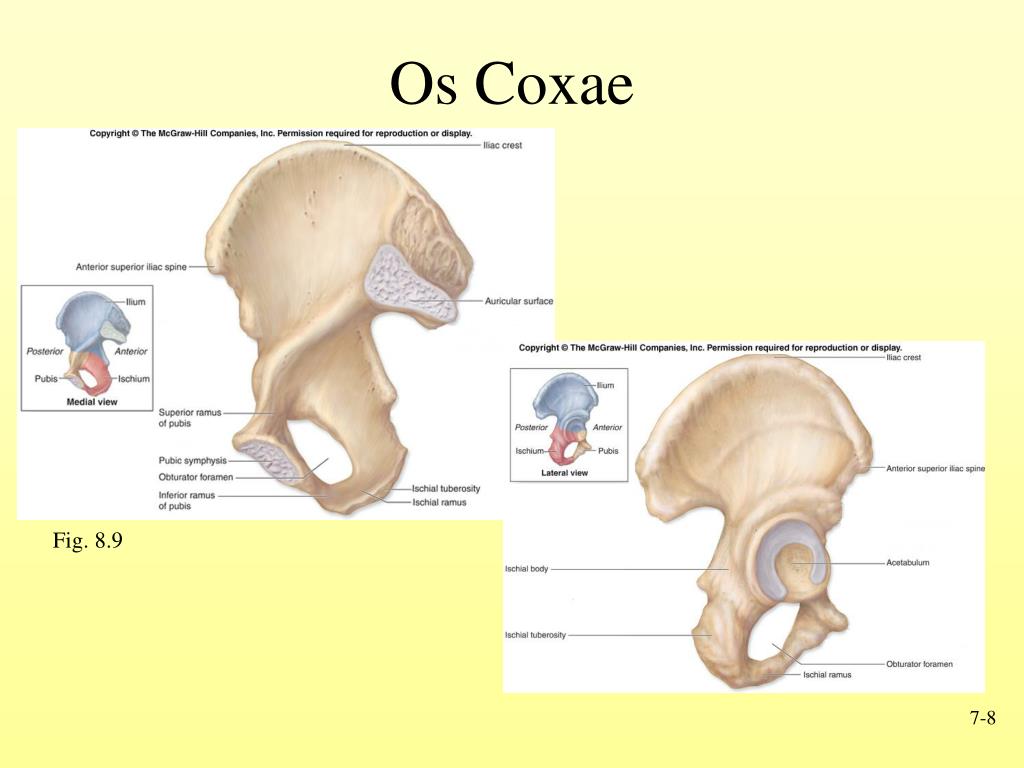

  8. Os Coxae Fig. 8.9

  9. Thigh • Femur • Head • Neck • Trochanters • Greater and lesser • Condyles • Medial and lateral • Epicondyles • Medial and lateral • Patella or kneecap Fig. 8.11 Fig. 8.12

  10. Leg • Tibia • Larger and supports most of weight • Tibial tuberosity • Medial malleolus • Fibula • Articulates with tibia not femur • Lateral malleolus Fig. 8.13

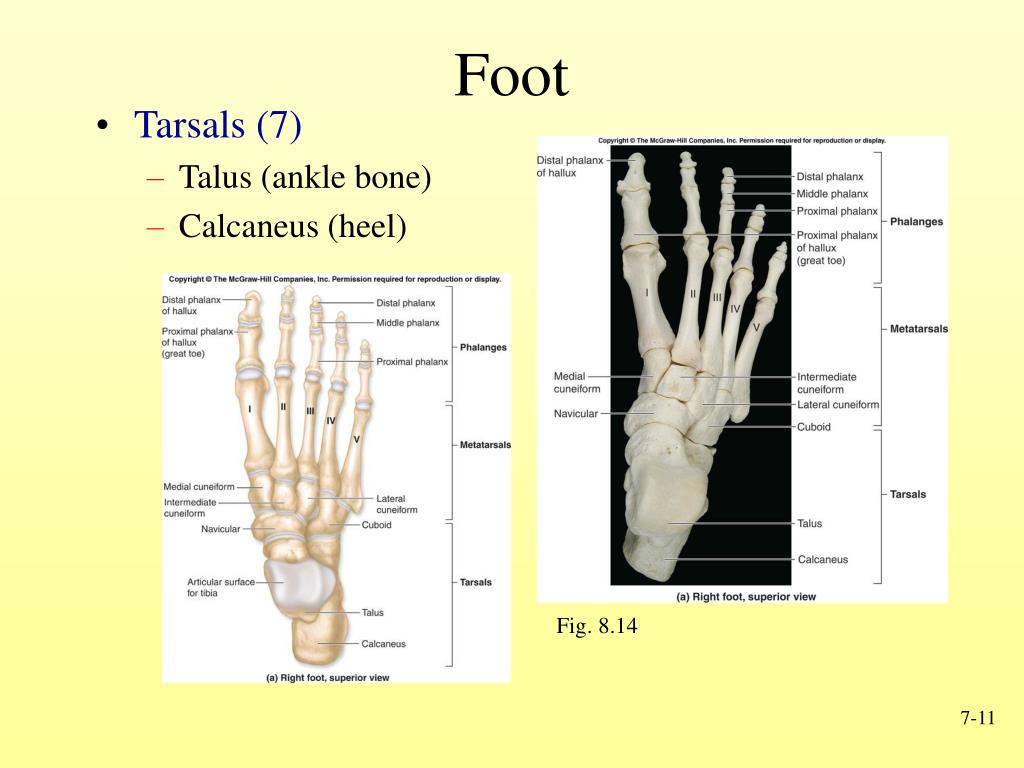

  11. Foot • Tarsals (7) • Talus (ankle bone) • Calcaneus (heel) Fig. 8.14

  12. Points to Remember • Appendicular skeleton includes bones of upper and lower limbs and pectoral and pelvic girdles • Pectoral girdle and upper limb held in place largely by muscles • Pelvic girdle has strong articulation with sacrum to help support weight of body

  13. Questions?
