The Crust

The Crust. SOLID layer of rock that forms Earth’s outer skin, including the solid earth and oceans. CONTINENTAL CRUST composed of granitic rocks , which are less dense than basaltic rocks of the oceanic crust. So, most of continental crust is above sea level.

lucian-woodward
Télécharger la présentation

The Crust

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

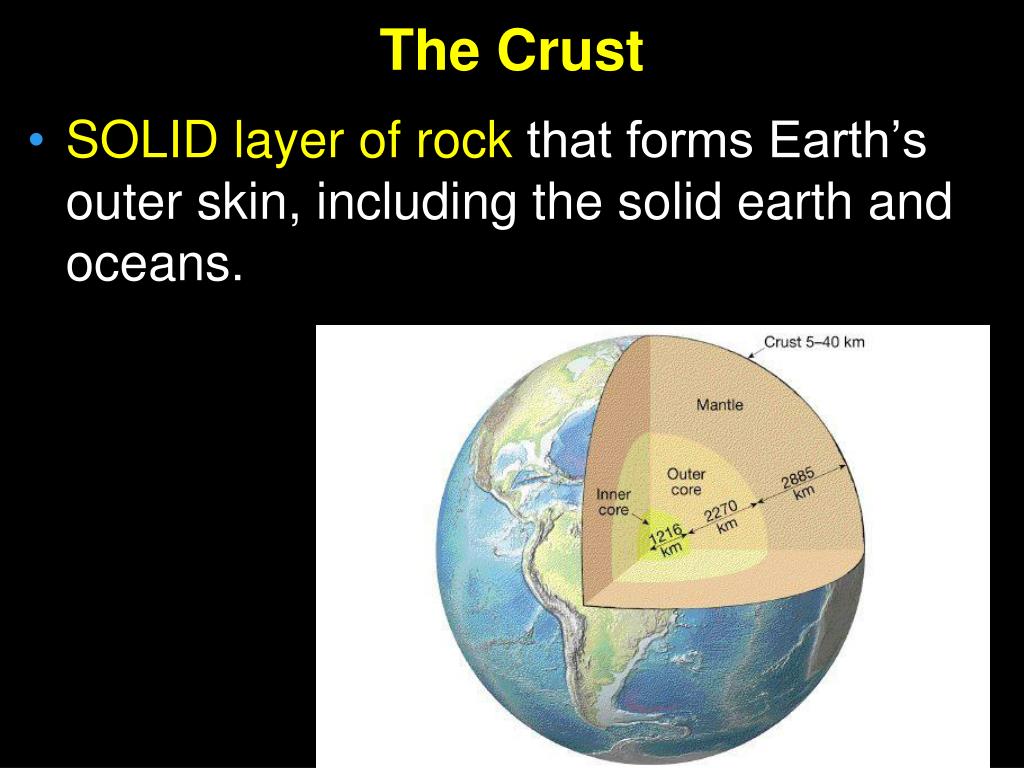

  1. The Crust • SOLID layer of rock that forms Earth’s outer skin, including the solid earth and oceans.

  2. CONTINENTAL CRUST composed of granitic rocks, which are less dense than basaltic rocks of the oceanic crust. So, most of continental crust is above sea level. • OCEANIC CRUST - composed ofbasaltic rocks, which are more dense than granitic rocks of the continental crust. So, oceanic crust is below sea level.

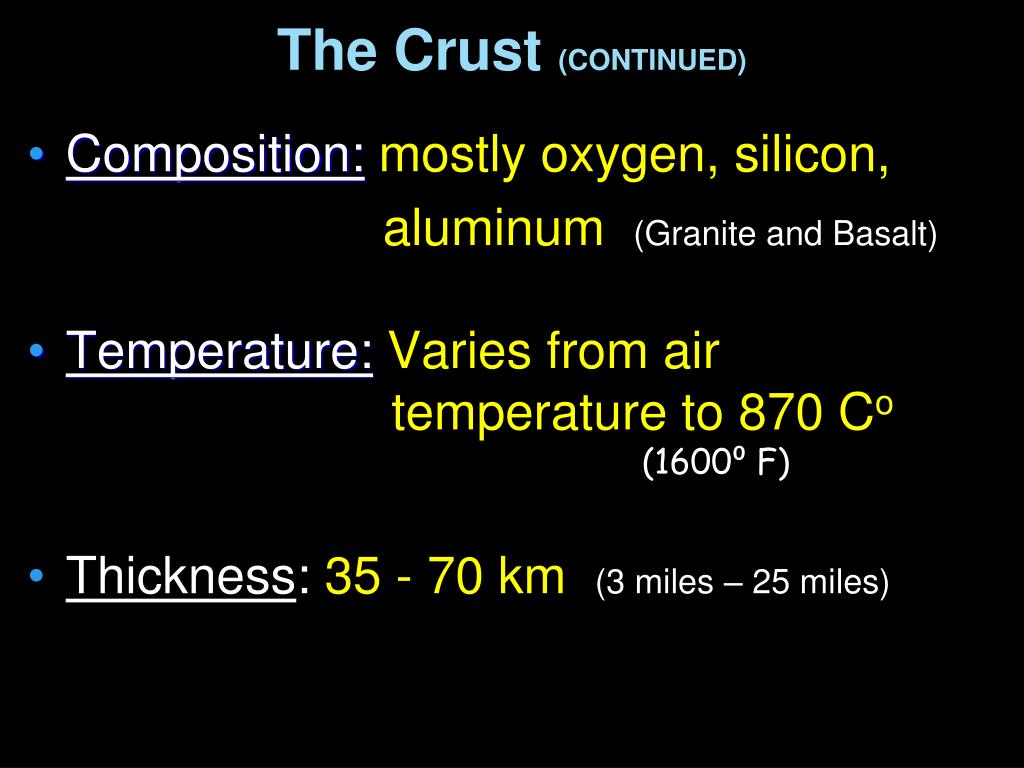

  3. The Crust (CONTINUED) • Composition:mostly oxygen, silicon, aluminum (Granite and Basalt) • Temperature:Varies from air temperature to 870 Co (1600⁰ F) • Thickness: 35 - 70 km (3 miles – 25 miles)

  4. Lithosphere • Upper part of the mantle and the crust. • Floats on top of the soft rock below it. • Litho means “stone” in Greek. • The crust and upper part of the mantle are very similar, so they are combined in this layer.

  5. The Mantle • SOLID layer of hot rock between the crust and core.

  6. Mantle (continued) Composition: Solid rock, mostly iron and magnesium Temperature: (16,000⁰ - 4000⁰ F) Thickness:2900 km (1800 mi) (contains most of earth’s mass) Convection currents - hot material in the mantle rises, cools and then sinks.

  7. Asthenosphere • Upper part of the Mantle. • Molten (melted) rock layer. • About 175 km thick.

  8. The Core Center of the Earth; under extreme pressure

  9. The Outer Core Composition:LIQUID iron and nickel Relative Temperature: 3,700oC – 4,300oC (4000o – 9,000o F) Thickness: 2,200km (1400 miles)

  10. The Inner Core Composition:SOLID iron and nickel Temperature: 7,200oC (13,000o F) Thickness: 5,200km – 6,428km The inner core is very hot, pressure from the weight of the rest of the Earth doesn’t allow the material to melt. Iron’s normal temperature of melting is 15350C, but in the earth inner core it could stand 40000C with no melting. Pressure equals 45,000,000 pounds per square inch.
