  1. KX-TDA200/100 System(Ver.1.0) Panasonic Communications Co., Ltd. Network Business Company Edition 1.1 27 Jan., 2003 Chapter 3System Resources and Features

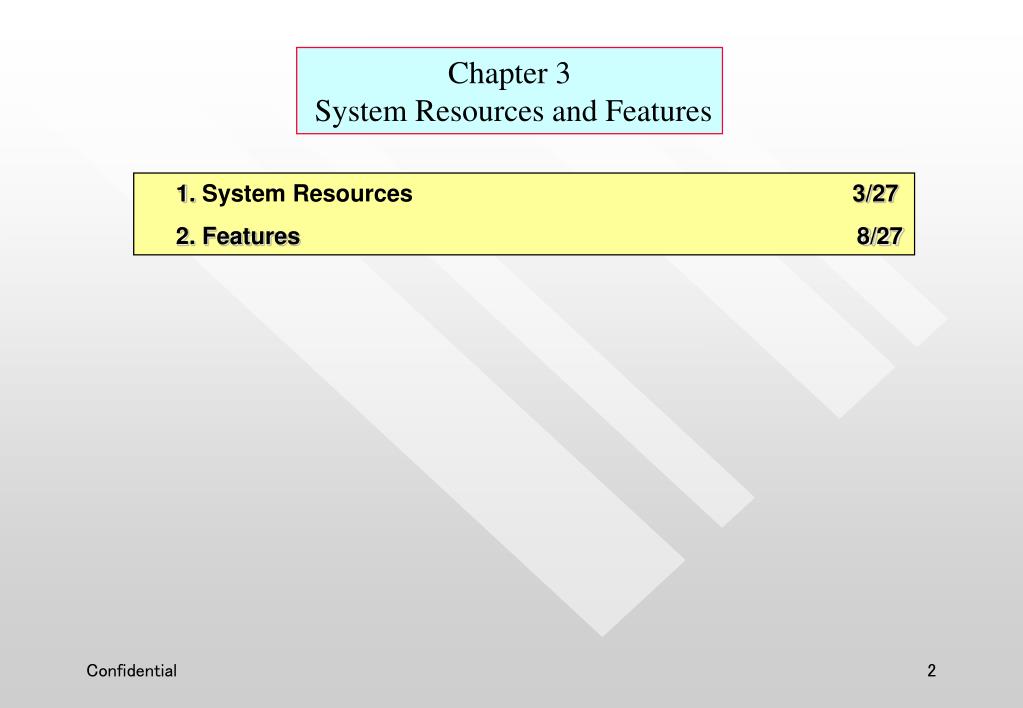

  2. Chapter 3 System Resources and Features 1. System Resources 3/27 2. Features 8/27

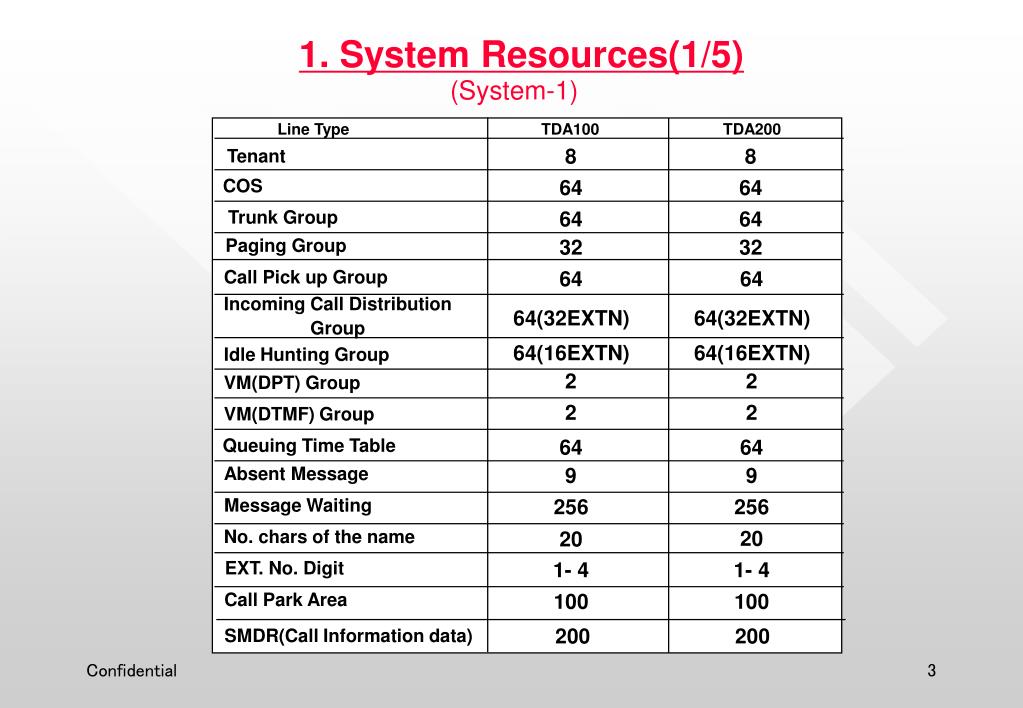

  3. 1. System Resources(1/5) (System-1) Line Type TDA100 TDA200 8 8 Tenant COS 64 64 Trunk Group 64 64 Paging Group 32 32 Call Pick up Group 64 64 Incoming Call Distribution Group 64(32EXTN) 64(32EXTN) 64(16EXTN) 64(16EXTN) Idle Hunting Group 2 2 VM(DPT) Group 2 2 VM(DTMF) Group Queuing Time Table 64 64 Absent Message 9 9 Message Waiting 256 256 No. chars of the name 20 20 EXT. No. Digit 1- 4 1- 4 Call Park Area 100 100 200 200 SMDR(Call Information data)

  4. 1. System Resources(2/5) (System-2) Line Type TDA100 TDA200 Conference 3X10 - 8X4(32CNFT) 3X10 - 8X4 Verified Code 10digits,1000enries 10digits,1000entries 16digits,20entries Special Carrier Code 16digits,20entries 10digits,4entries/TG 10digits,4entries/TG Host PBX Access Code 16digits,1000entries 16digits,1000entries DDI/DID Table

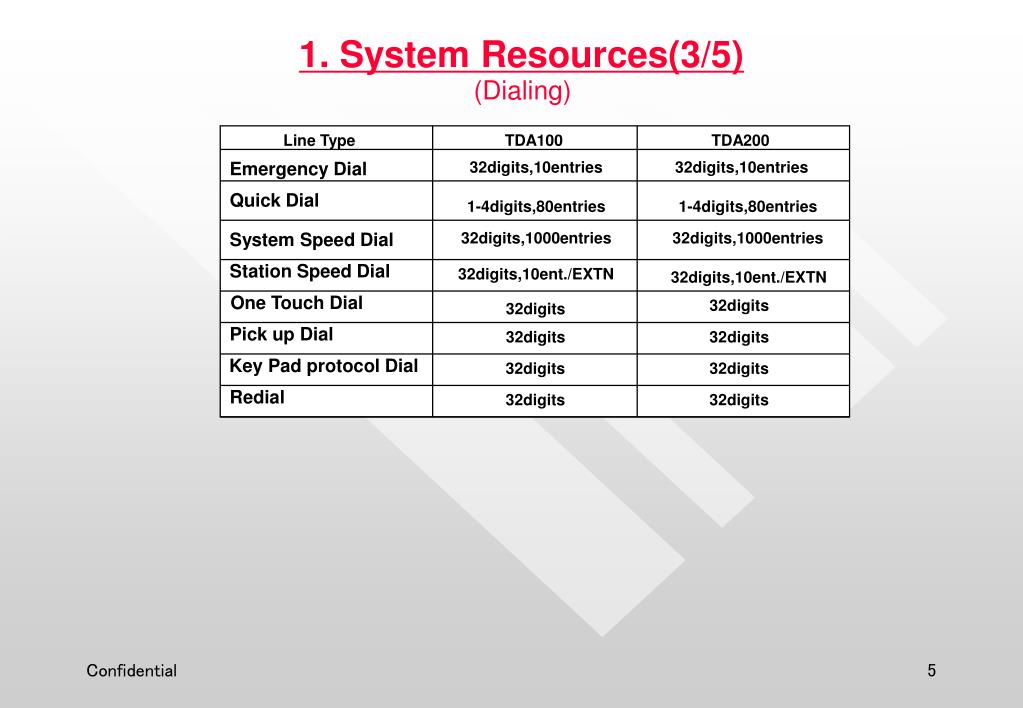

  5. 1. System Resources(3/5) (Dialing) Line Type TDA100 TDA200 32digits,10entries 32digits,10entries Emergency Dial Quick Dial 1-4digits,80entries 1-4digits,80entries 32digits,1000entries 32digits,1000entries System Speed Dial Station Speed Dial 32digits,10ent./EXTN 32digits,10ent./EXTN One Touch Dial 32digits 32digits Pick up Dial 32digits 32digits Key Pad protocol Dial 32digits 32digits Redial 32digits 32digits

  6. 1. System Resources(4/5) (ARS/LCR, Networking, Toll Restriction) Line Type TDA100 TDA200 Routing Plan 16 16 Leading Digits 10digits,1000entries 10digits,1000entries 200entries Exception Leading Digits 200entries 10 10 ARS/LCR Carrier 5digits 5digits Itemized Code 20digits 20digits Authorization Code TIE Routing Table 32entries 32entries 3digits 3digits Leading Digits 7digits 7digits PBX Code 7 7 Toll Restriction Level 7digits,100entries/LV 7digits,100entries/LV Toll restriction Code 16digits,200entries 16digits,200entries Toll restriction Exception Code

  7. 1. System Resources(5/5) (Charge Management, Call Log, Voice Mail, Password) Line Type TDA100 TDA200 Charge Rate 8digits 8digits Charge Currency 3 chars 3 chars Charge Record for Hotel 1000 2000 Call Log-Outgoing Call 0-100 log/EXTN MAX. 640 log/Sys 0-100 log/EXTN MAX. 640 log/Sys Call Log-Incoming Call 0-100 log/EXTN MAX. 1280 log/Sys 0-100 log/EXTN MAX. 1280 log/Sys Call Log-Incoming Call - ICD Group 0-100 log/EXTN MAX. 640 log/Sys 0-100 log/EXTN MAX. 640 log/Sys VPS(DPT) No. of Systems 2 system 2 system VPS(DPT) Number of Channels 24CH 24CH 16digits 16digits Mail BOX No.Digits 4-10digits 4-10digits System Password (Administrate) 4-10digits 4-10digits System Password (End user) 4-10digits 4-10digits Manager Password Extension PIN 0-10digits/Station 0-10digits/Station

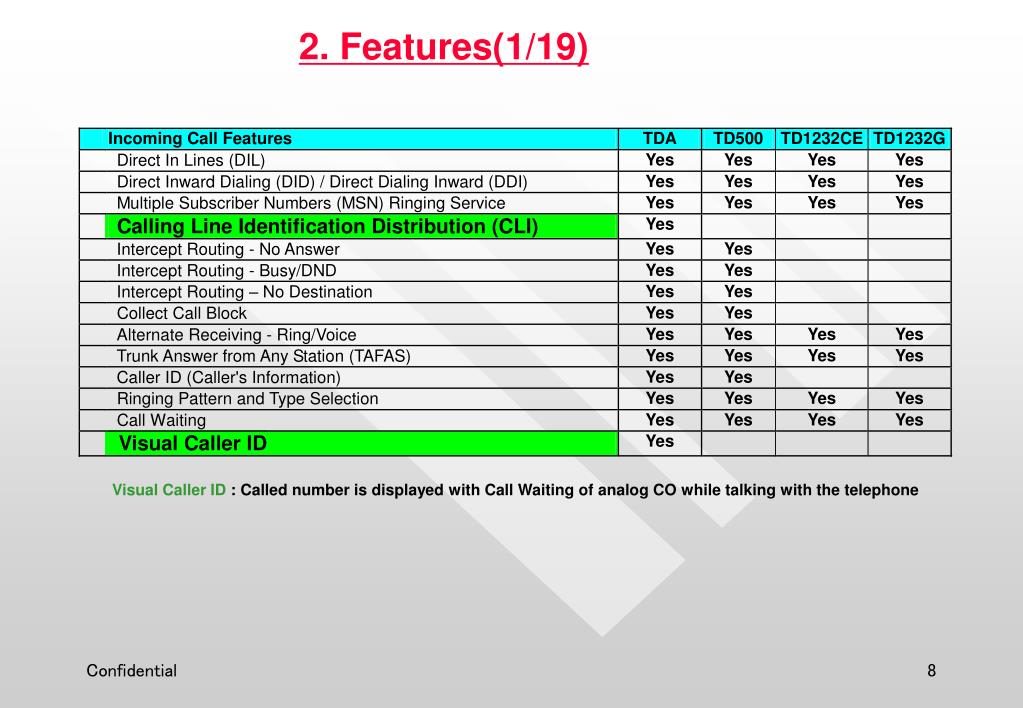

  8. 2. Features(1/19) Visual Caller ID : Called number is displayed with Call Waiting of analog CO while talking with the telephone

  9. 2. Features(2/19)

  10. 2. Features(3/19) Hands-free Answerback : Auto answer for the CO incoming Call

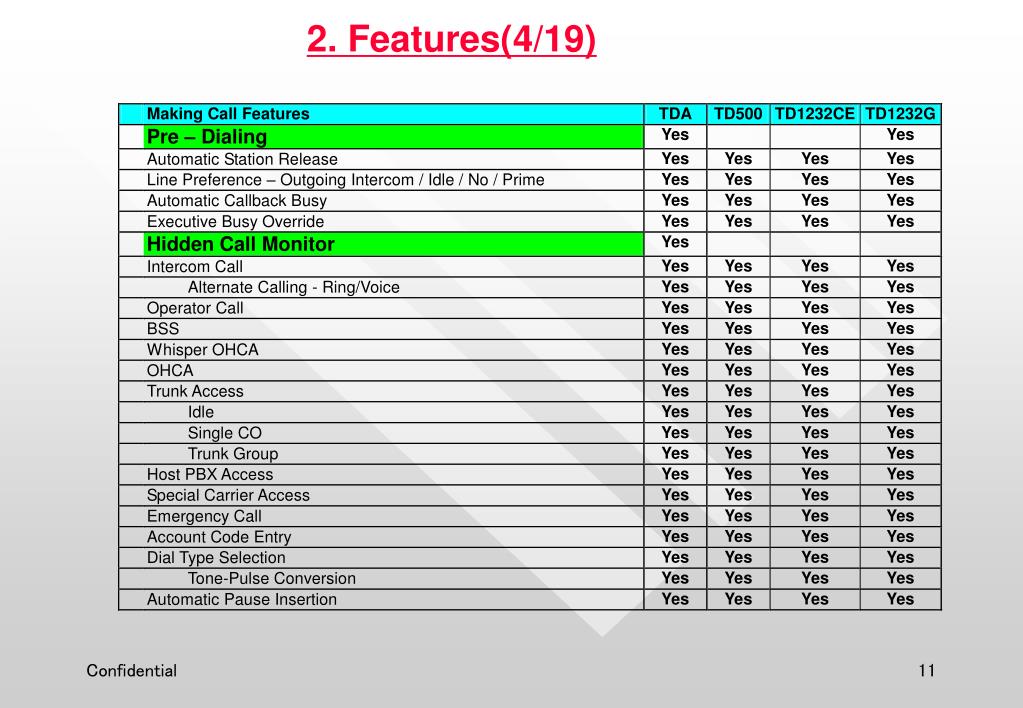

  11. 2. Features(4/19)

  12. 2. Features(5/19) Notebook Function : To input dial while talking the telephone and to preserve dial information

  13. 2. Features(6/19)

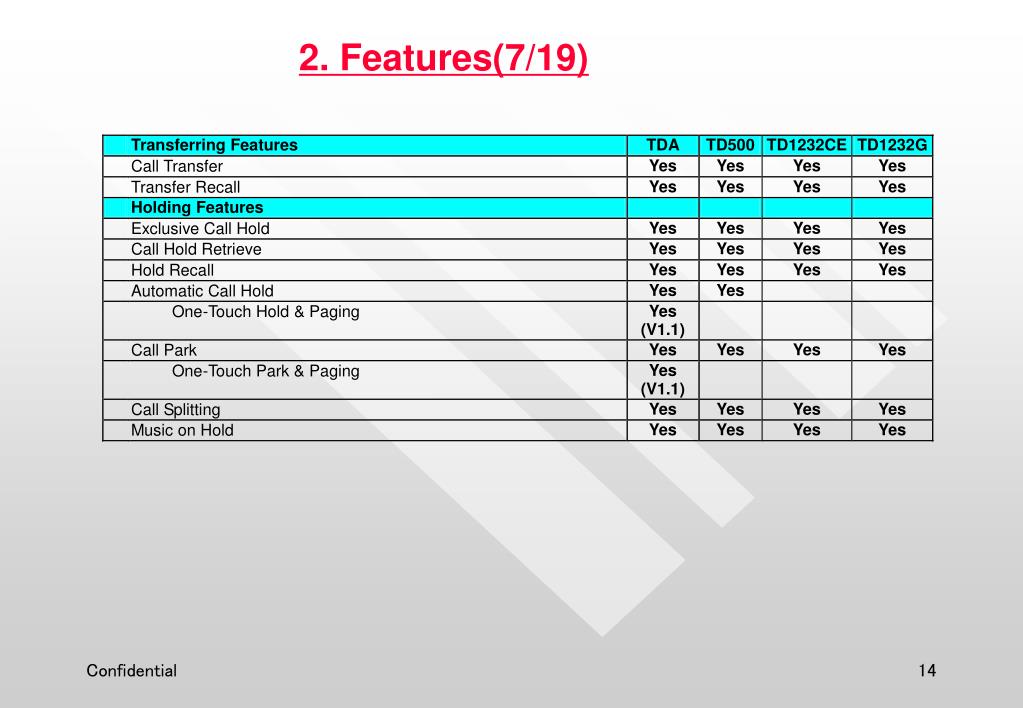

  14. 2. Features(7/19)

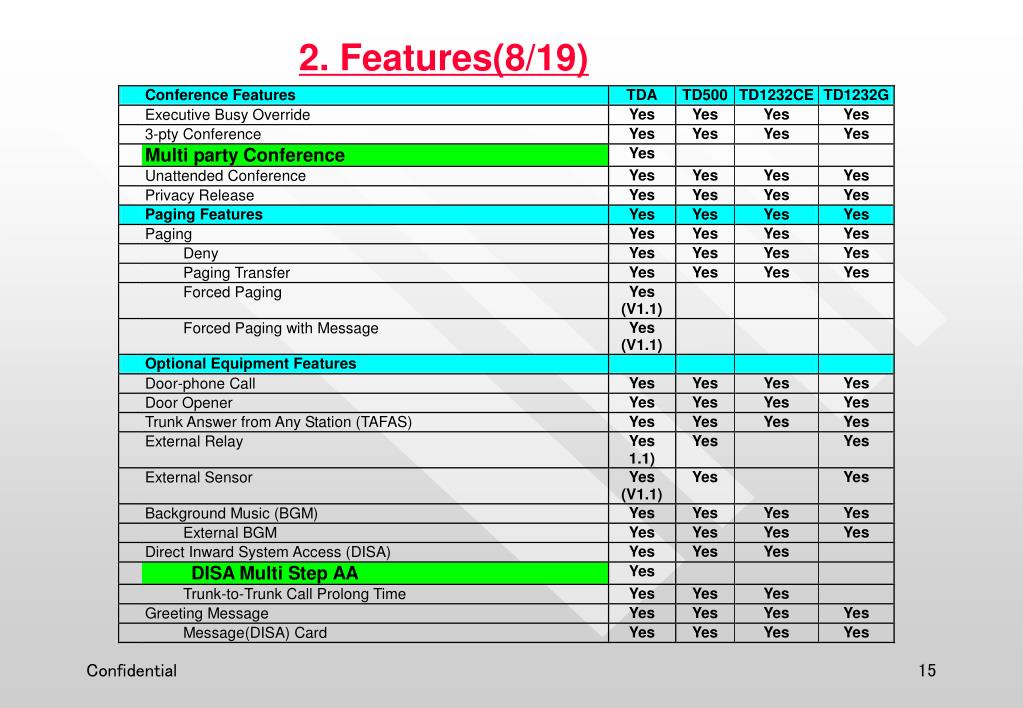

  15. 2. Features(8/19)

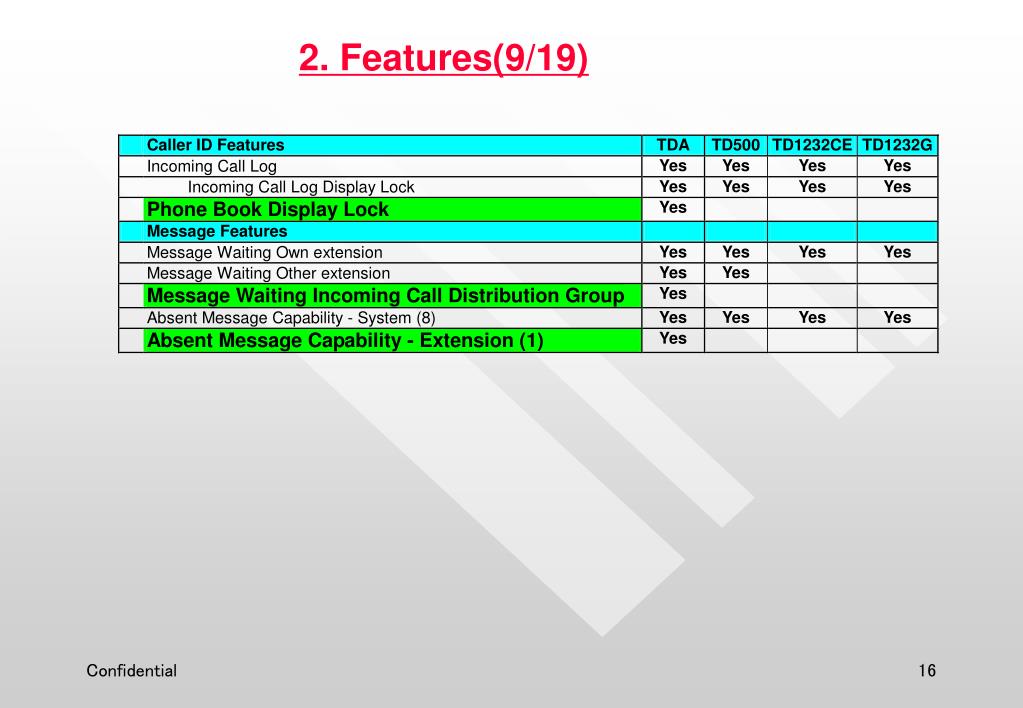

  16. 2. Features(9/19)

  17. 2. Features(10/19)

  18. 2. Features(11/19)

  19. 2. Features(12/19)

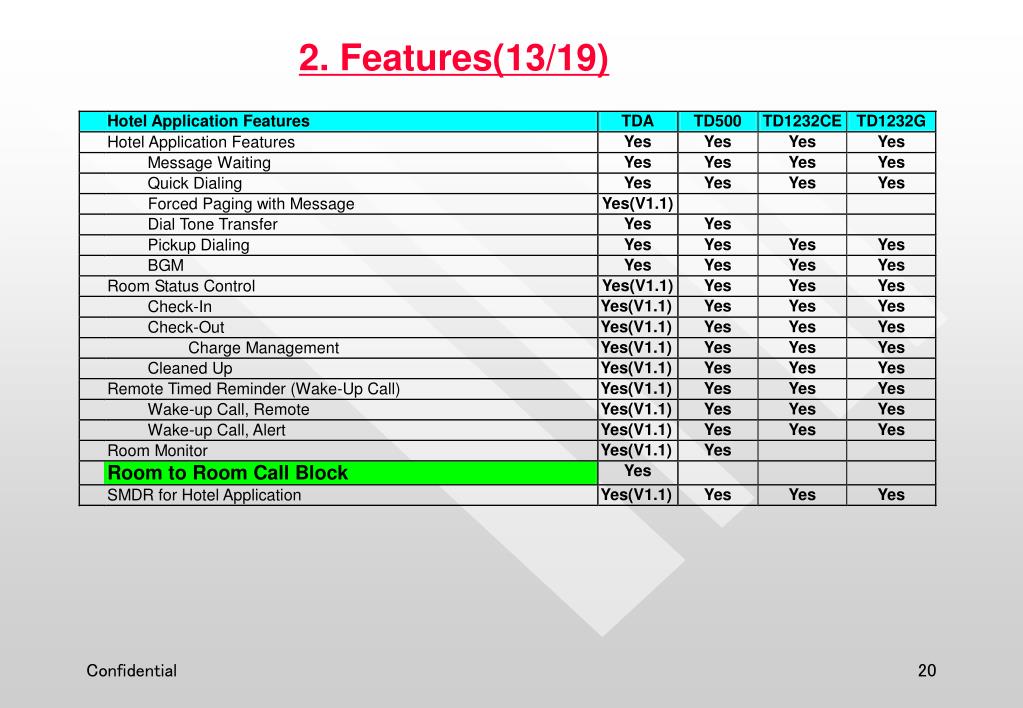

  20. 2. Features(13/19)

  21. 2. Features(14/19)

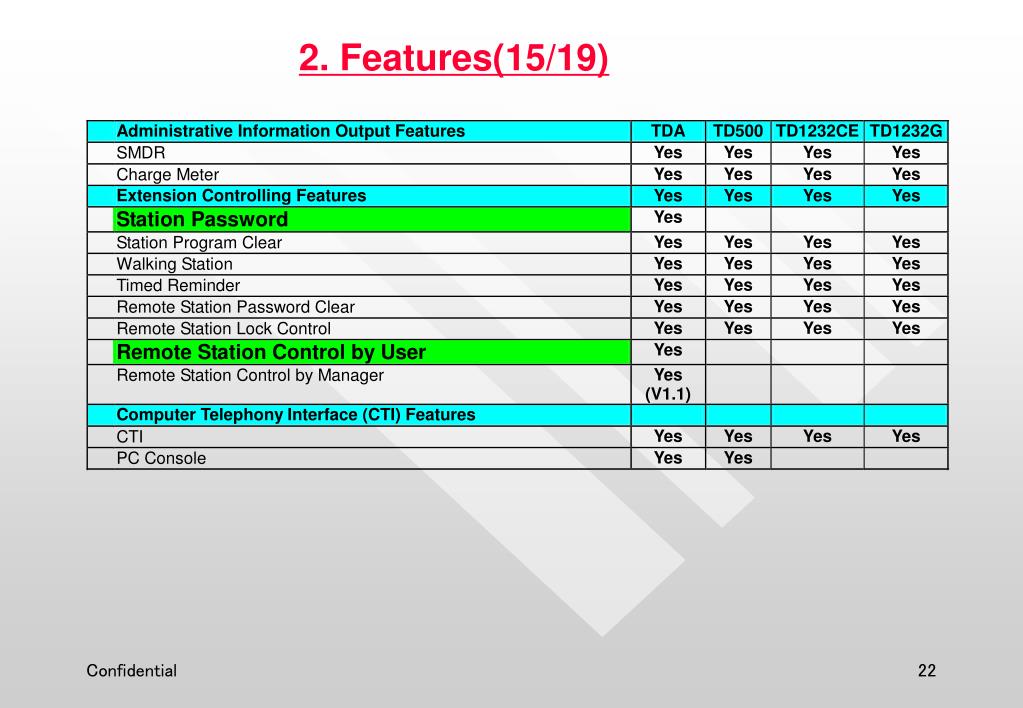

  22. 2. Features(15/19)

  23. 2. Features(16/19)

  24. 2. Features(17/19)

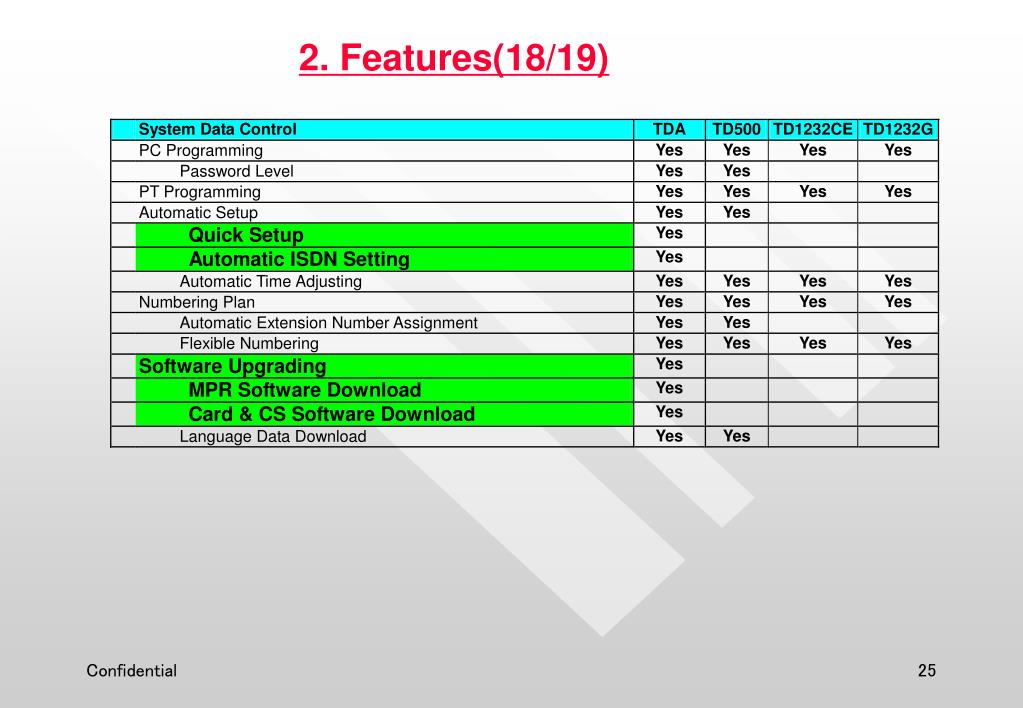

  25. 2. Features(18/19)

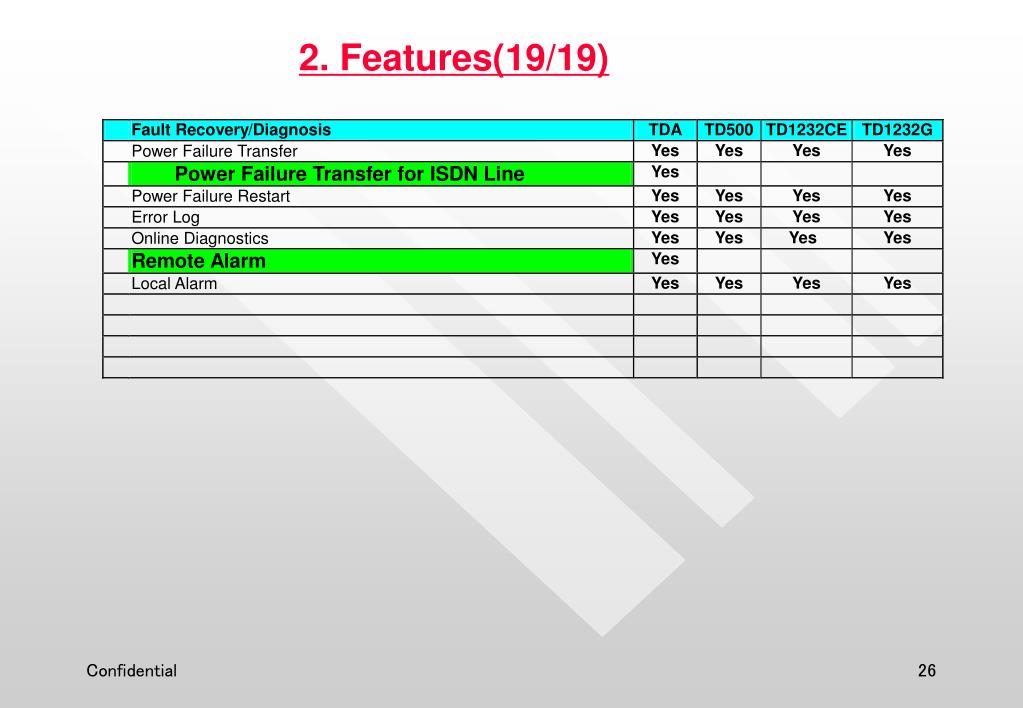

  26. 2. Features(19/19)

  27. Chapter 3 System Resources and Features Thank you very much !
