  1. KX-TDA200/100 System Enhanced Items (Ver.1.1) • Panasonic Communications Co., Ltd. • Network Business Company • Edition 1.3 07 Jul., 2004

  2. General System Highlight New Features Condition of New Features Software Compatibility

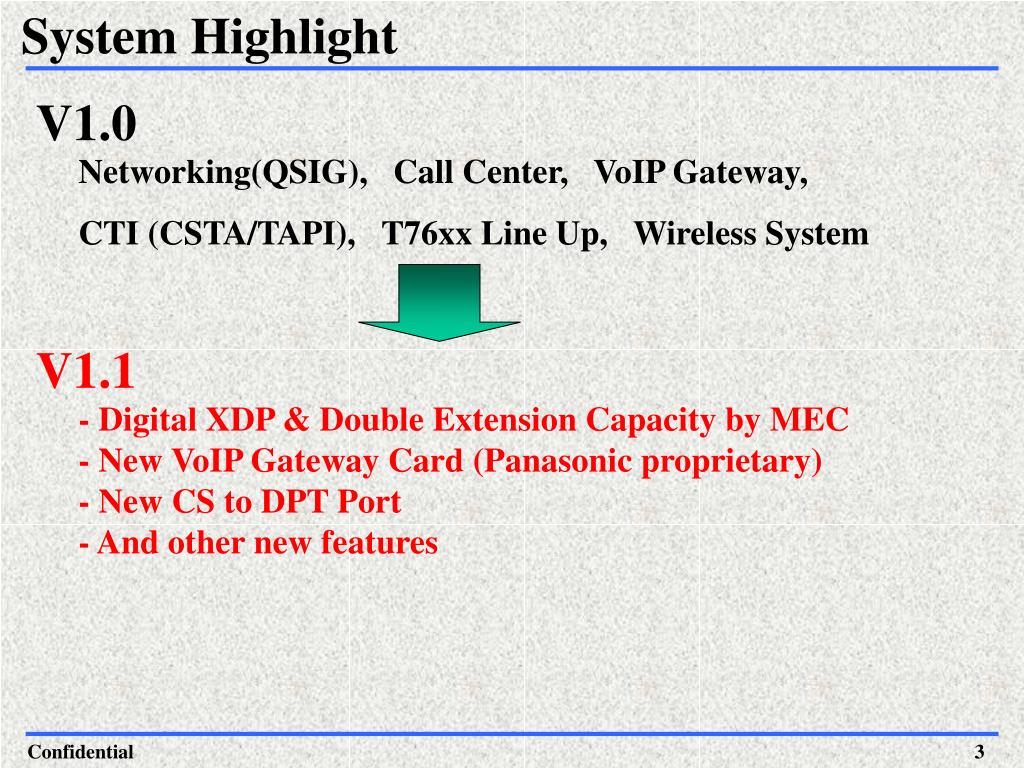

  3. System Highlight V1.0 Networking(QSIG), Call Center, VoIP Gateway, CTI (CSTA/TAPI), T76xx Line Up, Wireless System V1.1 - Digital XDP & Double Extension Capacity by MEC - New VoIP Gateway Card (Panasonic proprietary) - New CS to DPT Port - And other new features

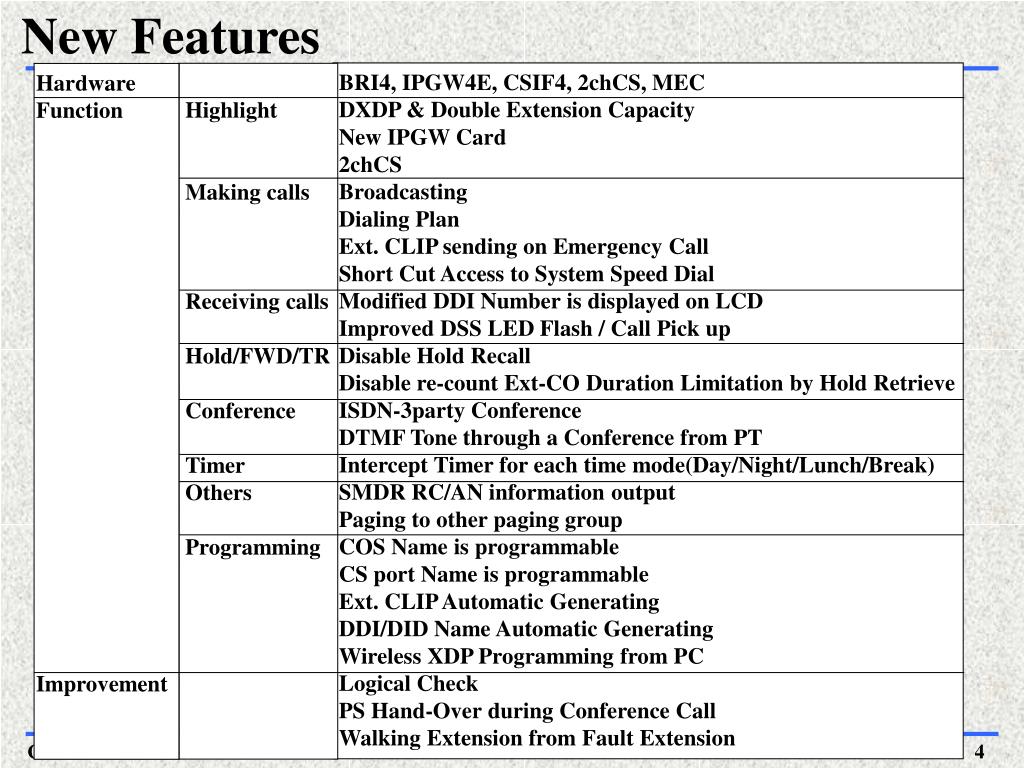

  4. New Features BRI4, IPGW4E, CSIF4, 2chCS, MEC DXDP & Double Extension Capacity New IPGW Card 2chCS Broadcasting Dialing Plan Ext. CLIP sending on Emergency Call Short Cut Access to System Speed Dial Modified DDI Number is displayed on LCD Improved DSS LED Flash / Call Pick up Disable Hold Recall Disable re-count Ext-CO Duration Limitation by Hold Retrieve ISDN-3party Conference DTMF Tone through a Conference from PT Intercept Timer for each time mode(Day/Night/Lunch/Break) SMDR RC/AN information output Paging to other paging group COS Name is programmable CS port Name is programmable Ext. CLIP Automatic Generating DDI/DID Name Automatic Generating Wireless XDP Programming from PC Logical Check PS Hand-Over during Conference Call Walking Extension from Fault Extension Highlight Making calls Receiving calls Hold/FWD/TR Conference Timer Others Programming Hardware Function Improvement

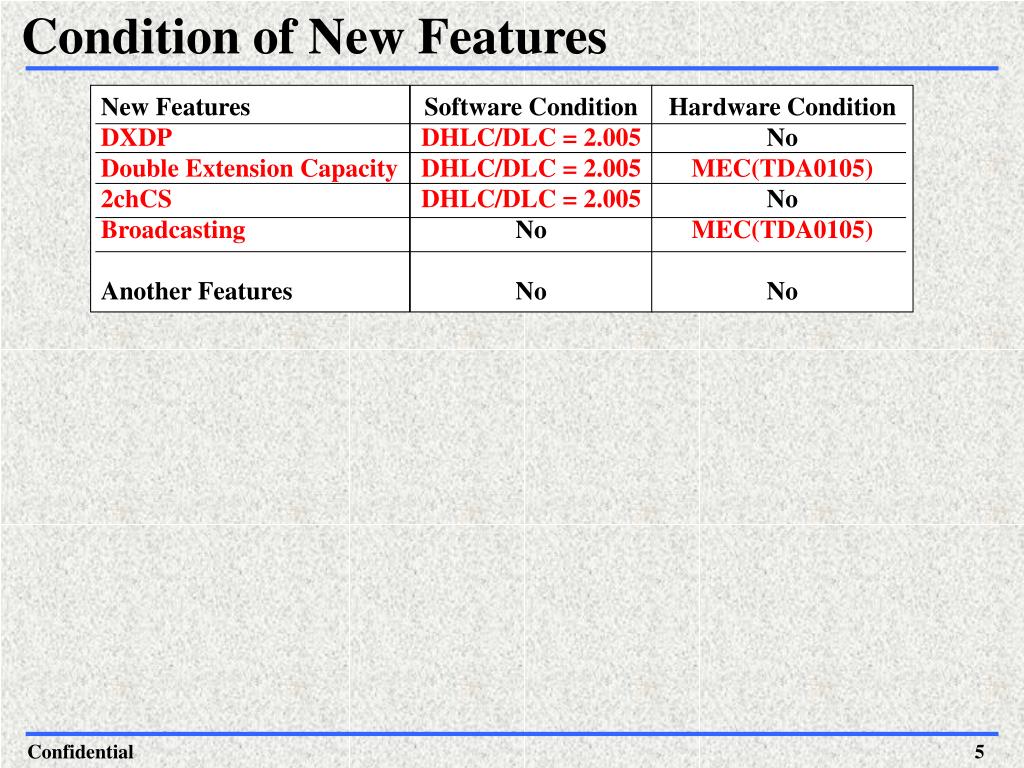

  5. Condition of New Features New Features DXDP Double Extension Capacity 2chCS Broadcasting Another Features Software Condition DHLC/DLC = 2.005 DHLC/DLC = 2.005 DHLC/DLC = 2.005 No No Hardware Condition No MEC(TDA0105) No MEC(TDA0105) No

  6. Software Compatibility MPR 1.0xx MPR 1.1xx DLC/DHLC 1.xxx YES YES w/o DXDP, TDA0141 DLC/DHLC 2.005 YES YES MPR 1.0xx MPR 1.1xx 1.06 YES NO 1.07 YES YES MPR / LPR MPR / PC maintenance console

  7. Hardware - New Hardware - Power Factor Summary

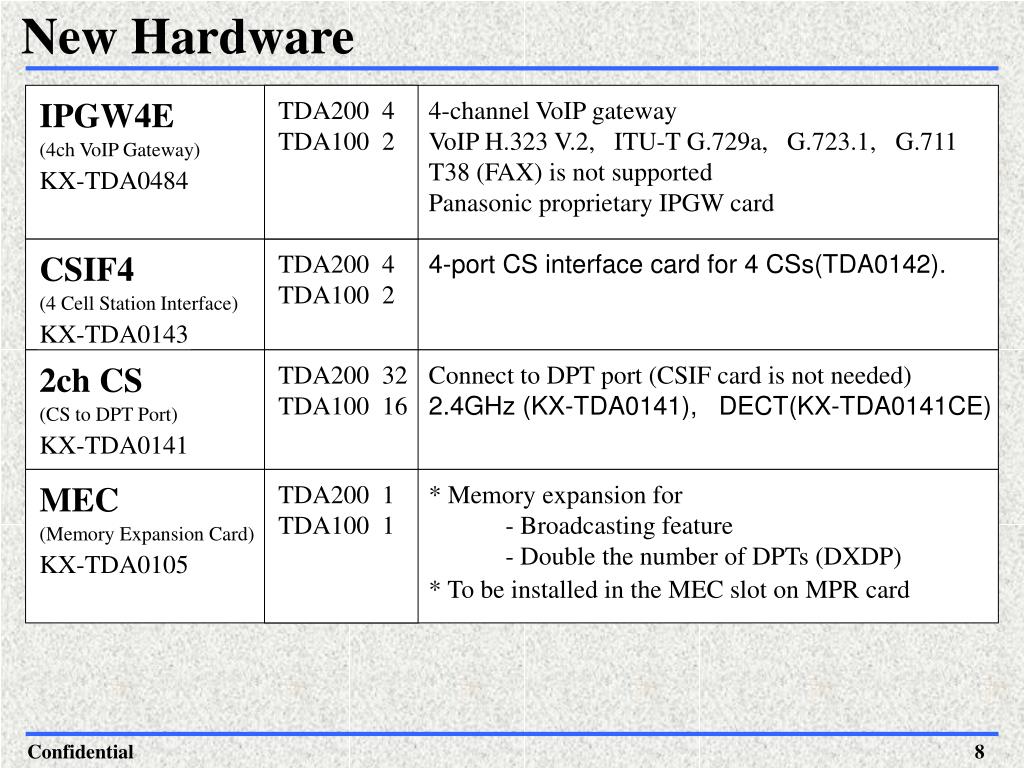

  8. New Hardware IPGW4E TDA200 4 TDA100 2 (4ch VoIP Gateway) KX-TDA0484 4-channel VoIP gateway VoIP H.323 V.2, ITU-T G.729a, G.723.1, G.711 T38 (FAX) is not supported Panasonic proprietary IPGW card CSIF4 TDA200 4 TDA100 2 4-port CS interface card for 4 CSs(TDA0142). (4 Cell Station Interface) KX-TDA0143 2ch CS TDA200 32 TDA100 16 Connect to DPT port (CSIF card is not needed) 2.4GHz (KX-TDA0141), DECT(KX-TDA0141CE) (CS to DPT Port) KX-TDA0141 MEC TDA200 1 TDA100 1 * Memory expansion for - Broadcasting feature - Double the number of DPTs (DXDP) (Memory Expansion Card) KX-TDA0105 * To be installed in the MEC slot on MPR card

  9. Power factor summary (Ver. 1.1) Extension Card Trunk Card LPR Card Model Power units LPR Card Model Power units DHLC-8 TDA0170 8/Card* LCOT-8 TDA0180 0 DLC-8 TDA0171 0 LCOT-16 TDA0181 0 DLC-16 TDA0172 0 E&M TDA0184 0 SLC-8 TDA0173 8/Card* E1 TDA0188 0 SLC-16 TDA0174 16/Card* CID (CO) TDA0193 0 MSLC-16 TDA0175 16/Card* BRI-4 TDA0284 0 CS I/F-8 TDA0144 0 BRI-8 TDA0288 0 CS I/F-4 TDA0143 0 PRI-30 TDA0290 0 IPGW4 TDA0480 0 IPGW4E TDA0484 0 Terminals Other T76xx, T7560, T7565 1/Extension DPH-2/4 TDA0161/162 0 Voice Mail (D-PT) 2/Port (2ch) Echo TDA0166 0 BRI Extension 2/Port (2ch) RMT TDA0196 0 T72xx/T74xx/T75xx 4/Extension MSG TDA0191 0 APT & DSS console 4/Extension CTI-LINK TDA0410 0 MEC TDA0105 0 SLT 0 CS (TDA0142) 4/CS CS (TDA0141) 4/CS * Calculated with base card, not using base ports.

  10. Function - Highlight DXDP & Double Extension Capacity New IPGW Card 2ch CS

  11. Digital XDP (DXDP) -1 DXDP-Master DXDP-Slave XDP DHLC Port 4 Wires 2 Wires 4 Wires SLT DHLC Port 2 Wires 4 Wires SLT 2 Wires DHLC Port 2 Wires 2 Wires SLT 2 Wires DLC Port 2 Wires 2 Wires - DPT on DPT without additional HW or SW - Easy installation for additional Extensions - 1 DHLC port => 3 telephones (2x DPT+1x SLT) * DHLC Card = Max 24 Ext. - 1 DLC port => 2 telephones (2x DPT) * DLC16 Card = Max 32 Ext. * DLC8 Card = Max 16 Ext. DXDP-Slave or XDP

  12. Digital XDP (DXDP) -2 V1.0 V1.1 No Yes Yes DXDP No No Yes MEC Max 64 Ext. TDA100 Max 64 Ext. Max 128 Ext. Max 128 Ext. Max 256 Ext. TDA200 Max 128 Ext. Additional DPT can be installed without buying another DHLC or DLC, but total capacity does not change without MEC. V1.0 V1.1 with DXDP&MEC TDA100 80 (108) ports TDA200 160 (216) ports TDA100 144 (158) ports TDA200 288 (316) ports Capacity for Extension System Capacity (Trunk & Extension mixed)

  13. Digital XDP (DXDP) -3 Click” PU for extension cards DHLC-8 8 (Fixed) + Connected PT/DSS/VM SLC-8 8 (Fixed) DLC-8 Connected PT/DSS/VM SLC-16 16 (Fixed) DLC-16 Connected PT/DSS/VM If connected extension is exceed 128 with M type PSU, what happens? - 129th Extension (PT) will not come in service. - Minor error log = PT Connection Over. MEC(TDA0105) How to check the TDA0105 If the TDA0105 is not installed. If the TDA0105 is installed.

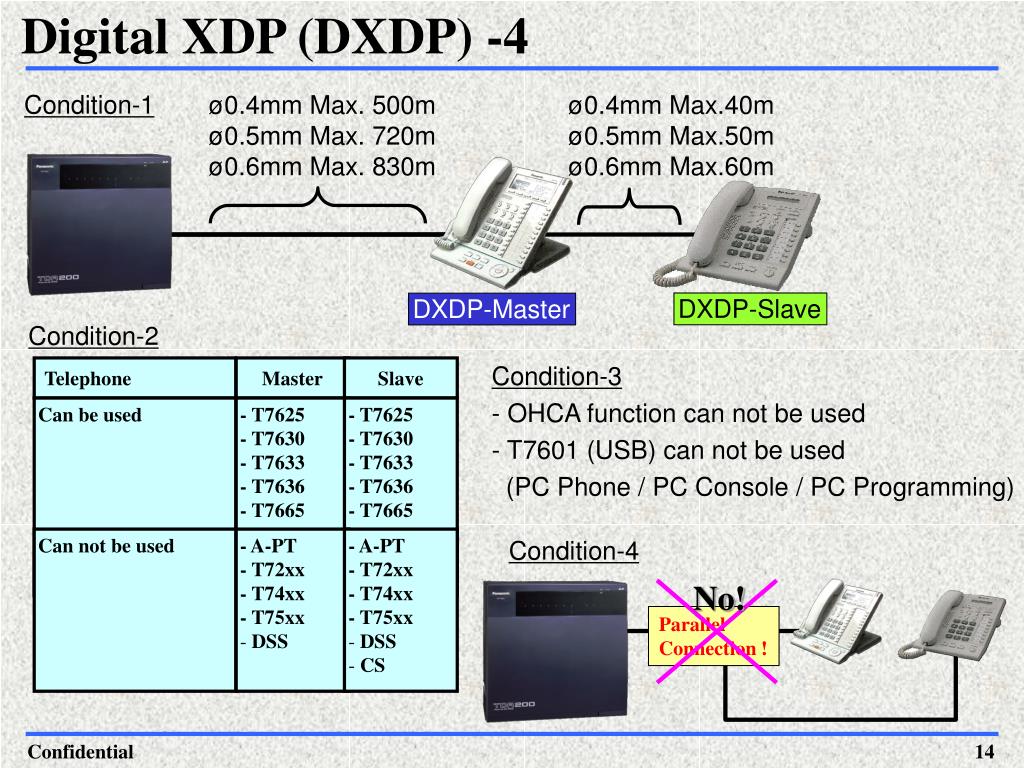

  14. Digital XDP (DXDP) -4 Condition-1 ø0.4mm Max. 500m ø0.5mm Max. 720m ø0.6mm Max. 830m ø0.4mm Max.40m ø0.5mm Max.50m ø0.6mm Max.60m DXDP-Slave DXDP-Master Condition-2 Telephone Master Slave Can be used - T7625 - T7630 - T7633 - T7636 - T7665 - T7625 - T7630 - T7633 - T7636 - T7665 Can not be used • - A-PT • - T72xx • - T74xx • - T75xx • DSS • - A-PT • - T72xx • - T74xx • - T75xx • DSS • CS Condition-4 No! Condition-3 - OHCA function can not be used - T7601 (USB) can not be used (PC Phone / PC Console / PC Programming) Parallel Connection !

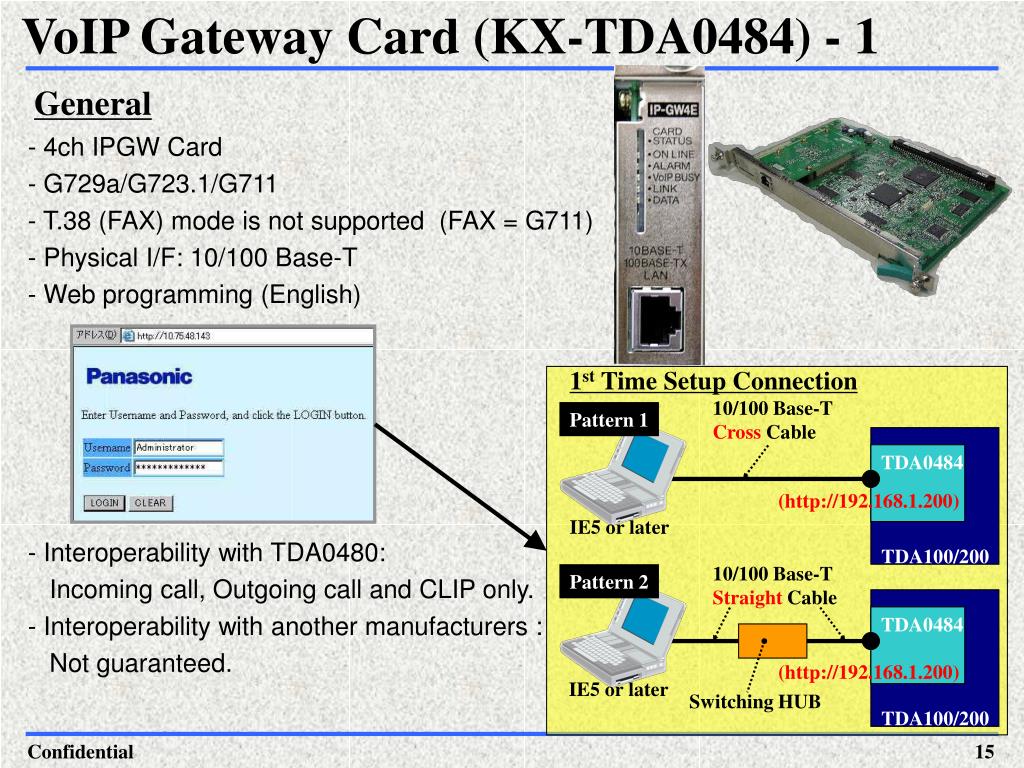

  15. VoIP Gateway Card (KX-TDA0484) - 1 1st Time Setup Connection 10/100 Base-T Cross Cable Pattern 1 TDA0484 (http://192.168.1.200) IE5 or later TDA100/200 10/100 Base-T Straight Cable Pattern 2 TDA0484 (http://192.168.1.200) IE5 or later Switching HUB TDA100/200 General - 4ch IPGW Card - G729a/G723.1/G711 - T.38 (FAX) mode is not supported (FAX = G711) - Physical I/F: 10/100 Base-T - Web programming (English) - Interoperability with TDA0480: Incoming call, Outgoing call and CLIP only. - Interoperability with another manufacturers : Not guaranteed.

  16. VoIP Gateway Card (KX-TDA0484) - 2 Compatibility TDA0484/TDA3480 TDA0480 Signalling H.323 V2 H.323 V2 QSIG service H.323 V4Annex M1 Proprietary Max networked IPGW cards 511 511 Voice Codec G.711/G.723.1/G.729a G.723/G.729a FAX Protocol G.711 T.38 Echo canceller G.165/G.168 16ms 16ms AGC No Yes DTMF Tone Detection Yes Yes SNMP No Yes Event Notice by email No Yes DHCP Yes (Client) No NAT No No New IPGW Card (Compatibility)

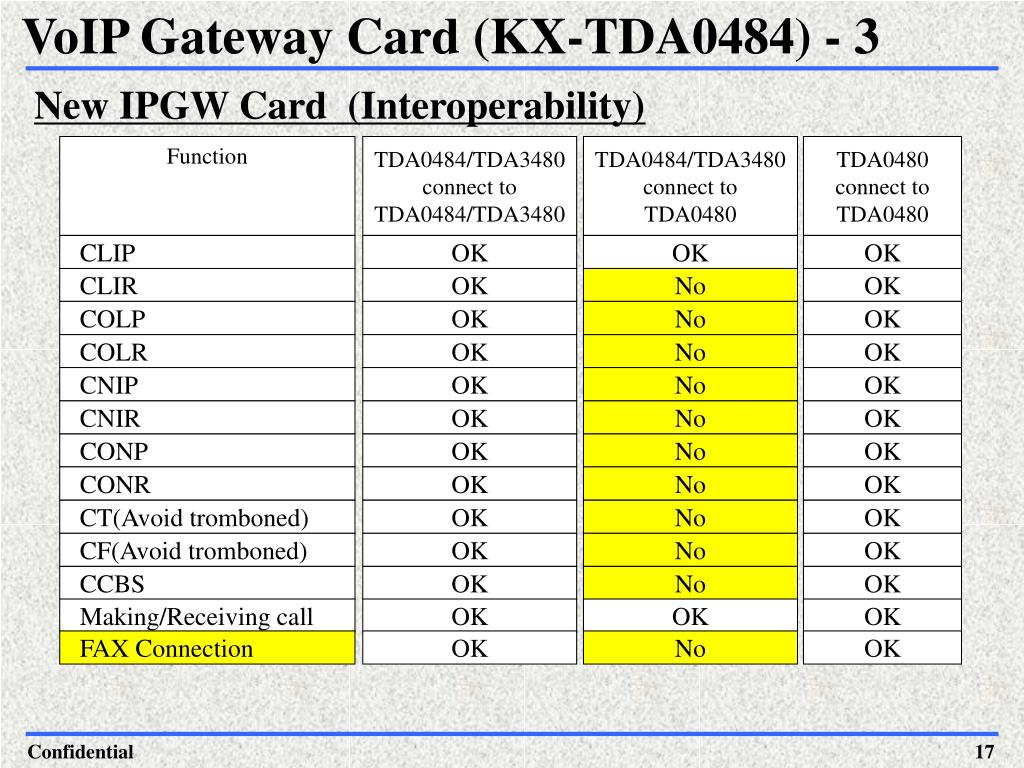

  17. VoIP Gateway Card (KX-TDA0484) - 3 Function TDA0484/TDA3480 connect to TDA0484/TDA3480 TDA0484/TDA3480 connect to TDA0480 TDA0480 connect to TDA0480 CLIP OK OK OK CLIR OK No OK COLP OK No OK COLR OK No OK CNIP OK No OK CNIR OK No OK CONP OK No OK CONR OK No OK CT(Avoid tromboned) OK No OK CF(Avoid tromboned) OK No OK CCBS OK No OK Making/Receiving call OK OK OK FAX Connection OK No OK New IPGW Card (Interoperability)

  18. VoIP Gateway Card (KX-TDA0484) - 4 How to connect TDA0480 & TDA0484… Outline of example Subnet Mask:255.255.255.0 Default GW: 192.168.1.1 PBX Code = 81 TDA0484 TDA0480 PBX Code = 82 Switching HUB A-low A-low TRG2 TRG2 IP_Address: 192.168.1.200 IP_Address: 192.168.1.12 IP_Address: 192.168.1.100 Ext.102 TIE Access = 7 Ext.103 TIE Access = 7 TIE Routing Table Lead : 82 Remove : 0 Added : none Trunk : 02 TIE Routing Table Lead : 81 Remove : 0 Added : none Trunk : 02 Dial = [7]+[82]+[103]  103 of PBX82 Dial = [7]+[81]+[102]  102 of PBX81

  19. VoIP Gateway Card (KX-TDA0484) - 5 PBX Code = 81 * Address Setting (IP Address of Card) IP Address : 192.168.1.200 Subnet Mask: 255.255.255.0 Default GW : 192.168.1.1 1.Programming 1.1 Network Settings, General 1.1.1 IP Address Setting TRG 2 TRG 2 * Interface between IPGW & PBX BRI -QSIG BRI -QSIG Outgoing 82103 * Handling setting for Incoming Call from IP Network 1.Programming 1.4 VoIP Gateway/IP-PBX Interface Settings 1.4.2 Others 1.Programming 1.5 Hunt Pattern (for Incoming Group) G711 A-Law Hunt Group Grp1 = Port 1 & Port 2 Grp2 = none Hunt Pattern 1: Rcv Leading Digit = 81, Hunt Group = 1 Port 1 Port 2 * Handling setting for Outgoing Call from PBX to IP Network 1.Programming 1.6 DN2IP (Dialed Number to IP Address Translation) 1.6.1 GW Entry 1.6.2 DN2IP Entry TDA0484 Incoming 81102 GW No.= 1 Comment = 82 Office, TDA0480 IP Address = 192.168.1.12 Group No. = 0 Leading No. = 82 Remaining Number of Digits = 3 GW No./Group No. Selection = GW GW No./Group No. = 1 IP Network TDA0484 Setting

  20. VoIP Gateway Card (KX-TDA0484) - 6 General Tab IP Address : 192.168.1.12 Subnet Mask : 255.255.255.0 Rout Address 1: 192.168.1.1 Rout Address 2: none Trunk Data Tab Port1 Trunk Group #1 Interface type = Basic Interface Length of call reference = 1 Port2 --- same as Port1 Configuration = QSIG Configuration procedure 1. Configure TDA0480 own setting 2. Create “Other Unit” --- TDA0484 IP Address 3. Edit DNS table and send to TDA0480 4. Reset PBX after sending all data for TDA0480 Hunt pattern Tab --- Incoming call Handling Destination Number = 82 Hunt pattern = 1 Trunk priority Tab Hunt pattern 1: Priority1 = Trunk group#1 (Default) Other Tab A-law/m-law flag = A-law TDA0480 Setting DNS Editing Terminal = 81 Remaining digits = 3 Selected unit = TDA0484 Unit ICON

  21. VoIP Gateway Card (KX-TDA0484) - 7 IP Network IP Network Grouping Not available Originating IP-GW IP-GW(a). IP-GW(b). GW Grouping (Slide Call feature) In the case that TDA has more than an IP-GW, you can group these IP-GWs. Benefit of the GW Grouping : Slide Call In the case that the IP-GW(a) is not available because all channels are in use for example, originating IP-GW try the IP-GW(b).

  22. 2ch Cell Station (KX-TDA0141) -1 TDA0141&TDA0142 total Max.32 CS / TDA200 Max.16 CS / TDA100 4 PU / CS TDA0144 TDA0143 TDA0142 - Two Voice Paths per CS. - A specific CS I/F card is not needed. - A port on DHLC and DLC cards can used as the interface for KX-TDA0141. - Max. number of CS: TDA100=16 TDA200=32 (Including TDA0142). - DHLC/DLC cards software must be 2.005 or later. - Functionality : The same as TDA0142 - Hand-over TDA0141  TDA0142: “YES” - Power factor is 4. ø0.4mm 222m ø0.5mm 347m (CAT5) ø0.6mm 500m DHLC DLC TDA0141 - CS Port assignment is not needed. The TDA automatically detects the connected CS (as same as DPT connection).

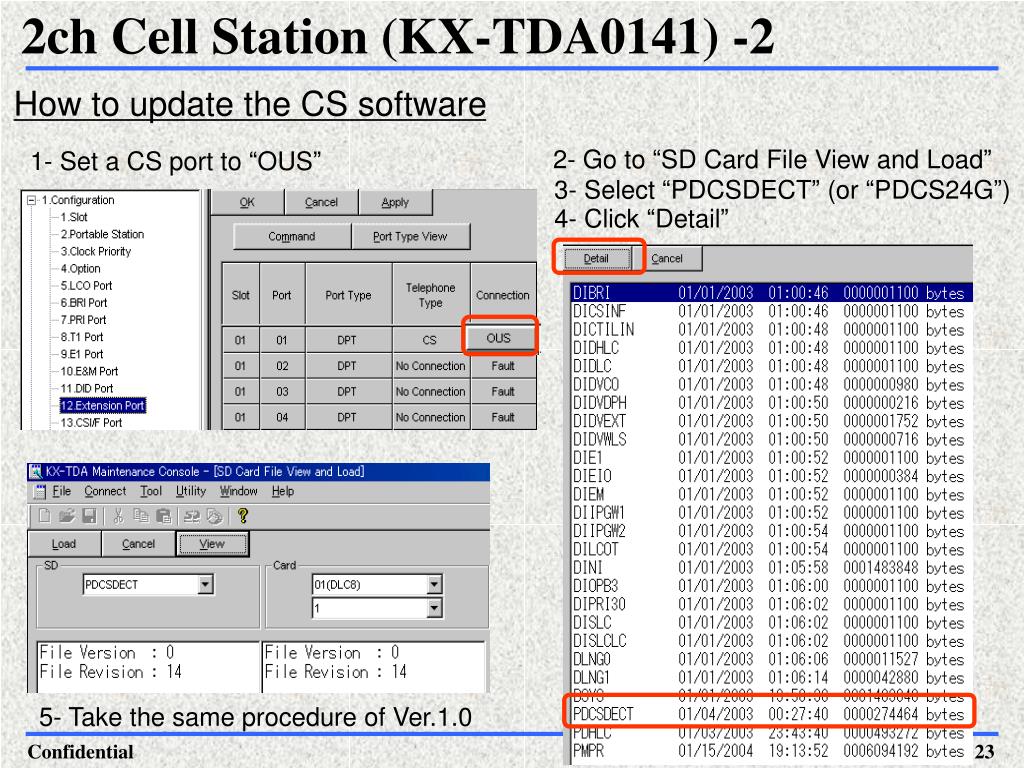

  23. 2ch Cell Station (KX-TDA0141) -2 3- Select “PDCSDECT” (or “PDCS24G”) 4- Click “Detail” How to update the CS software 2- Go to “SD Card File View and Load” 1- Set a CS port to “OUS” 5- Take the same procedure of Ver.1.0

  24. Function – Making Calls Broadcasting Dialing Plan Ext. CLIP sending on Emergency Call Short Cut Access to System Speed Dial

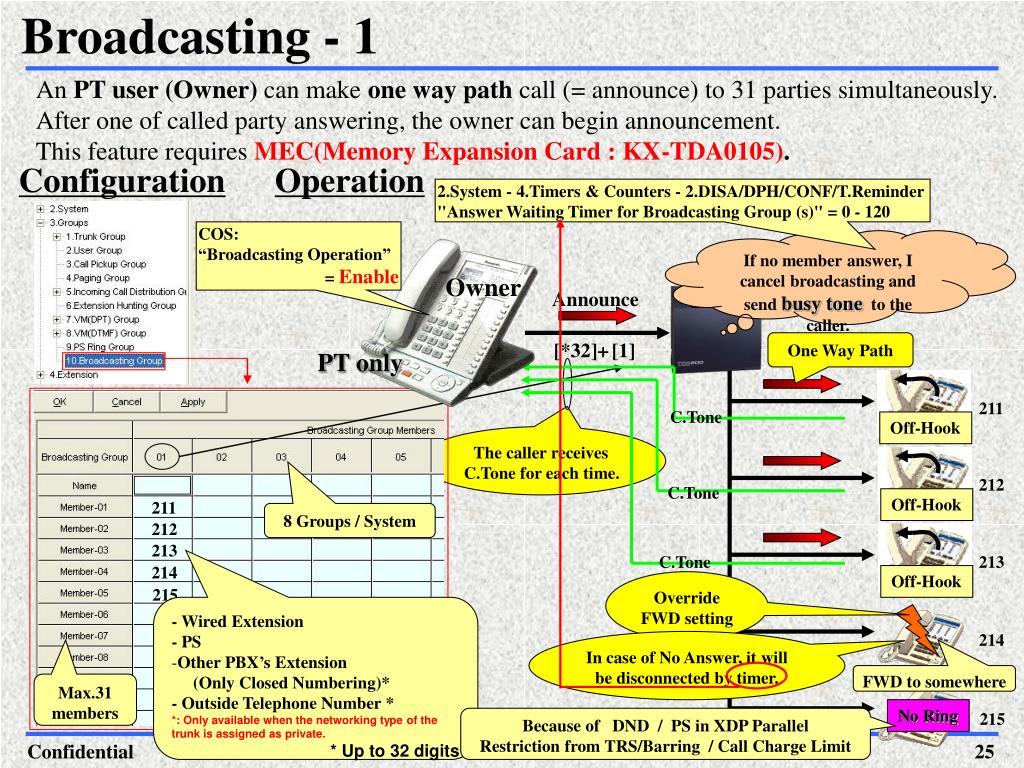

  25. Broadcasting - 1 Announce COS: “Broadcasting Operation” = Enable [*32]+ [1] Owner Off-Hook Off-Hook Off-Hook C.Tone 211 The caller receives C.Tone for each time. C.Tone 212 211 212 C.Tone 213 213 214 215 214 FWD to somewhere No Ring 215 An PT user (Owner) can make one way path call (= announce) to 31 parties simultaneously. After one of called party answering, the owner can begin announcement. This feature requires MEC(Memory Expansion Card : KX-TDA0105). Configuration Operation 2.System - 4.Timers & Counters - 2.DISA/DPH/CONF/T.Reminder "Answer Waiting Timer for Broadcasting Group (s)" = 0 - 120 If no member answer, I cancel broadcasting and send busy tone to the caller. One Way Path PT only 8 Groups / System Override FWD setting • - Wired Extension • - PS • Other PBX’s Extension • (Only Closed Numbering)* • - Outside Telephone Number * • *: Only available when the networking type of the trunk is assigned as private. • * Up to 32 digits In case of No Answer, it will be disconnected by timer. Max.31 members Because of DND / PS in XDP Parallel Restriction from TRS/Barring / Call Charge Limit

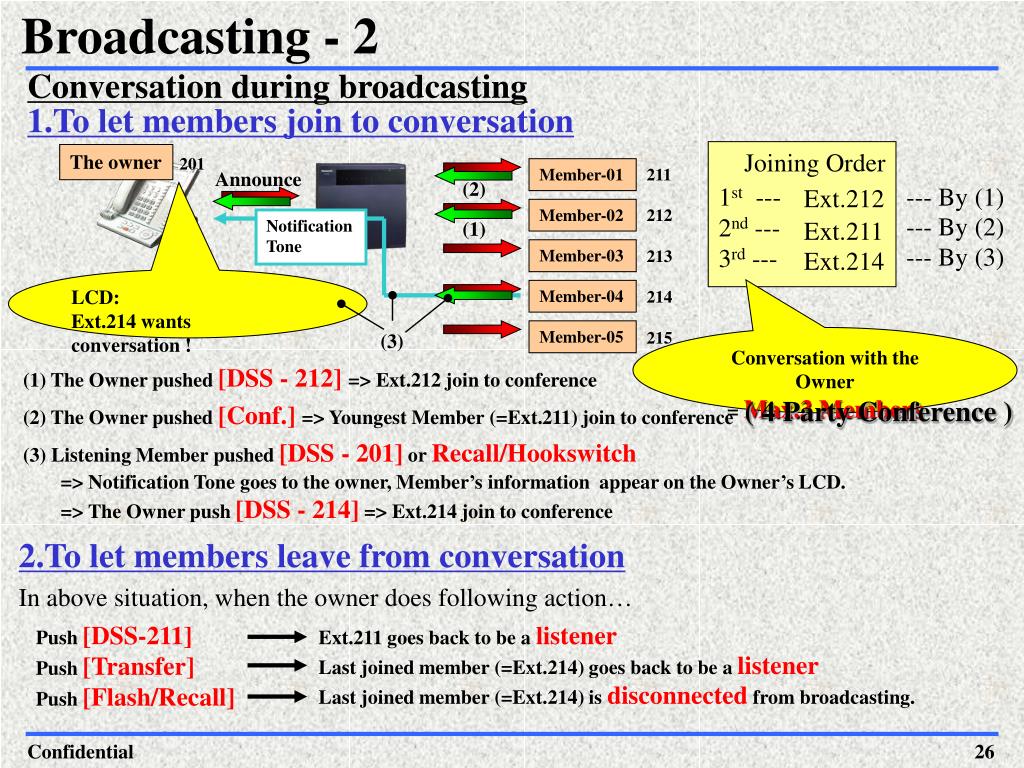

  26. Broadcasting - 2 Joining Order Member-01 211 (2) 1st --- 2nd --- 3rd --- --- By (1) Ext.212 Member-02 212 --- By (2) --- By (3) Ext.211 Ext.214 (1) Member-03 213 Notification Tone The owner Announce 201 Member-04 214 Member-05 215 (3) (3) Listening Member pushed [DSS - 201] or Recall/Hookswitch => Notification Tone goes to the owner, Member’s information appear on the Owner’s LCD. => The Owner push [DSS - 214] => Ext.214 join to conference Ext.211 goes back to be a listener Last joined member (=Ext.214) goes back to be a listener Last joined member (=Ext.214) is disconnected from broadcasting. Conversation during broadcasting 1.To let members join to conversation LCD: Ext.214 wants conversation ! Conversation with the Owner = Max.3 Members (1) The Owner pushed [DSS - 212] => Ext.212 join to conference ( 4 Party Conference ) (2) The Owner pushed [Conf.] => Youngest Member (=Ext.211) join to conference 2.To let members leave from conversation In above situation, when the owner doesfollowing action… Push [DSS-211] Push [Transfer] Push [Flash/Recall]

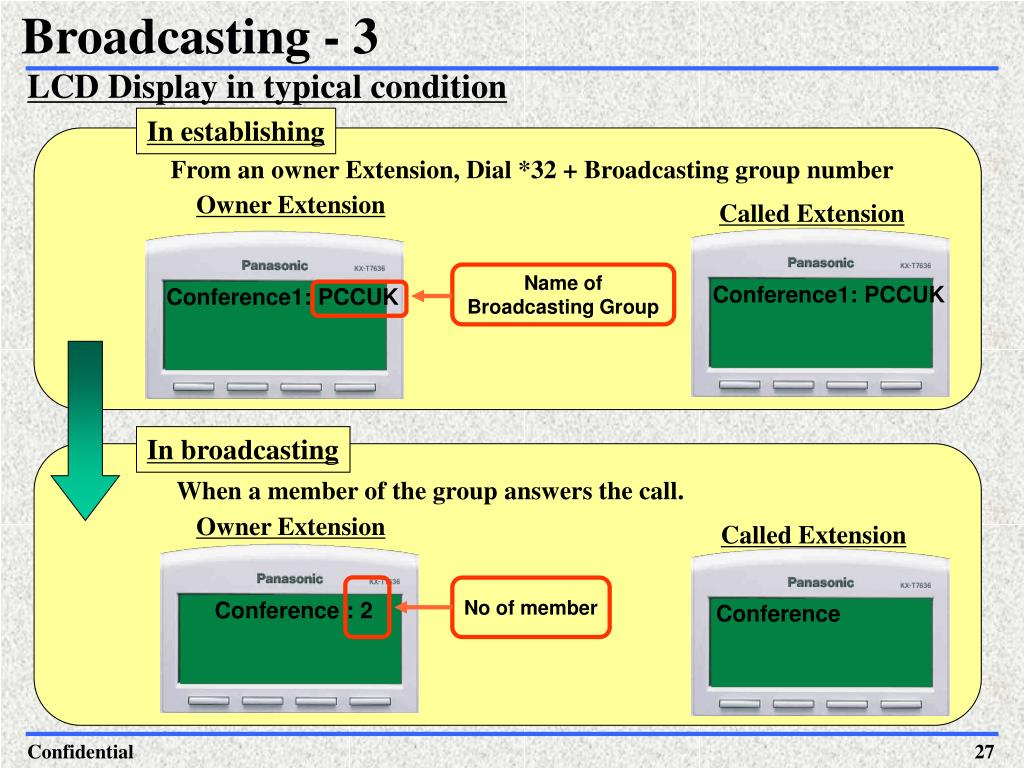

  27. Broadcasting - 3 Name of Broadcasting Group Conference1: PCCUK Conference1: PCCUK No of member Conference : 2 Conference LCD Display in typical condition In establishing From an owner Extension, Dial *32 + Broadcasting group number Owner Extension Called Extension In broadcasting When a member of the group answers the call. Owner Extension Called Extension

  28. Broadcasting - 4 Condition of Member Ext. Response for Arriving Broadcasting Call Set to Call FWD The broadcast call arrives this extension. The broadcast call does not arrive this extension. Set to DND Call Waiting function will be performed. Busy Auto Answer The Auto Answer function will not be performed. Wireless XDP PS The broadcast call does not arrive this PS. Internal Call Block is Block The broadcast call does not arrive this extension. Additional information Conditions and Responses of Member Extension DSS key of Owner Extension which relates with member extension If owner extension has DSS key of a member of broadcasting group and establishes a broadcasting call, the DSS key does not flash when the called extension rings. It actually turns red (not flashing).

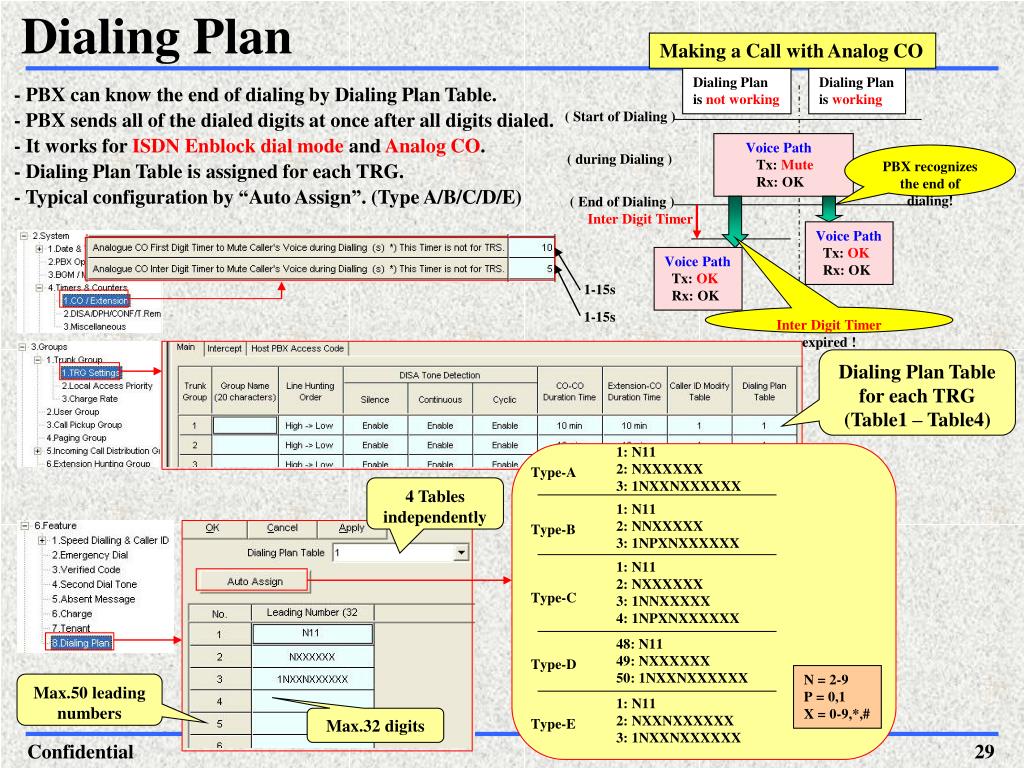

  29. Dialing Plan Making a Call with Analog CO Dialing Plan is not working Dialing Plan is working - PBX can know the end of dialing by Dialing Plan Table. - PBX sends all of the dialed digits at once after all digits dialed. ( Start of Dialing ) - It works for ISDN Enblock dial mode and Analog CO. Voice Path Tx: Mute Rx: OK ( during Dialing ) PBX recognizes the end of dialing! - Dialing Plan Table is assigned for each TRG. - Typical configuration by “Auto Assign”. (Type A/B/C/D/E) ( End of Dialing ) Inter Digit Timer Voice Path Tx: OK Rx: OK Voice Path Tx: OK Rx: OK Dialing Plan Table for each TRG (Table1 – Table4) 1-15s 1-15s Inter Digit Timer expired ! 1: N11 2: NXXXXXX 3: 1NXXNXXXXXX Type-A 1: N11 2: NNXXXXX 3: 1NPXNXXXXXX Type-B 4 Tables independently 1: N11 2: NXXXXXX 3: 1NNXXXXX 4: 1NPXNXXXXXX Type-C 48: N11 49: NXXXXXX 50: 1NXXNXXXXXX Type-D N = 2-9 P = 0,1 X = 0-9,*,# 1: N11 2: NXXNXXXXXX 3: 1NXXNXXXXXX Type-E Max.50 leading numbers Max.32 digits

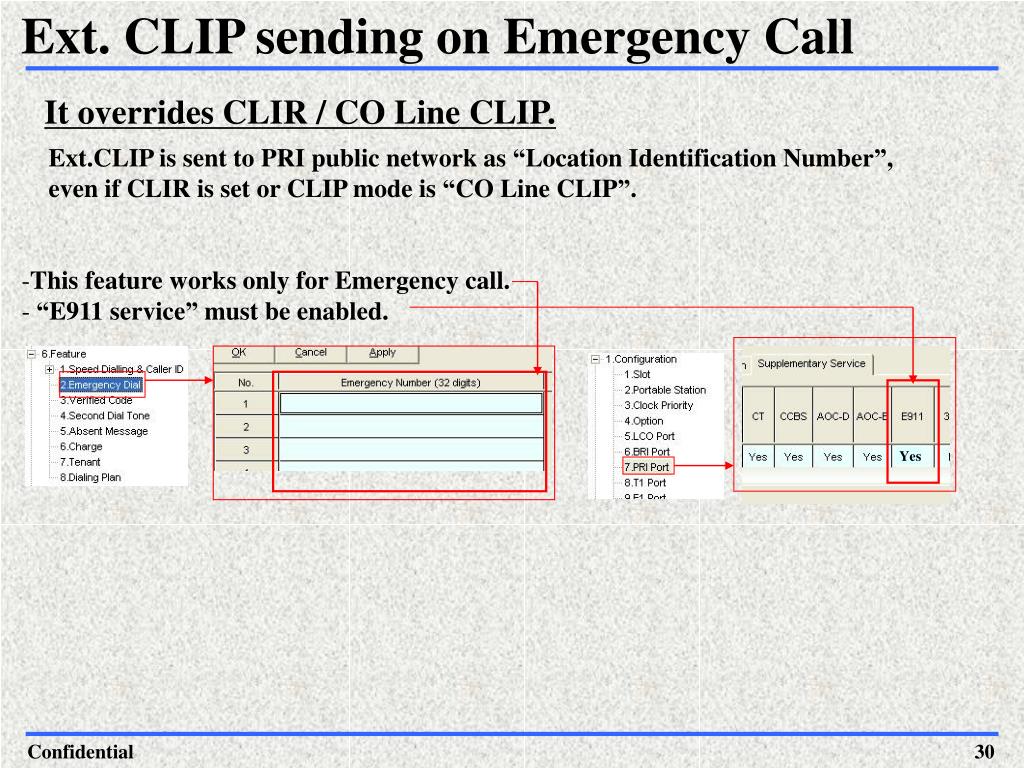

  30. Ext. CLIP sending on Emergency Call It overrides CLIR / CO Line CLIP. Ext.CLIP is sent to PRI public network as “Location Identification Number”, even if CLIR is set or CLIP mode is “CO Line CLIP”. • This feature works only for Emergency call. • “E911 service” must be enabled. Yes

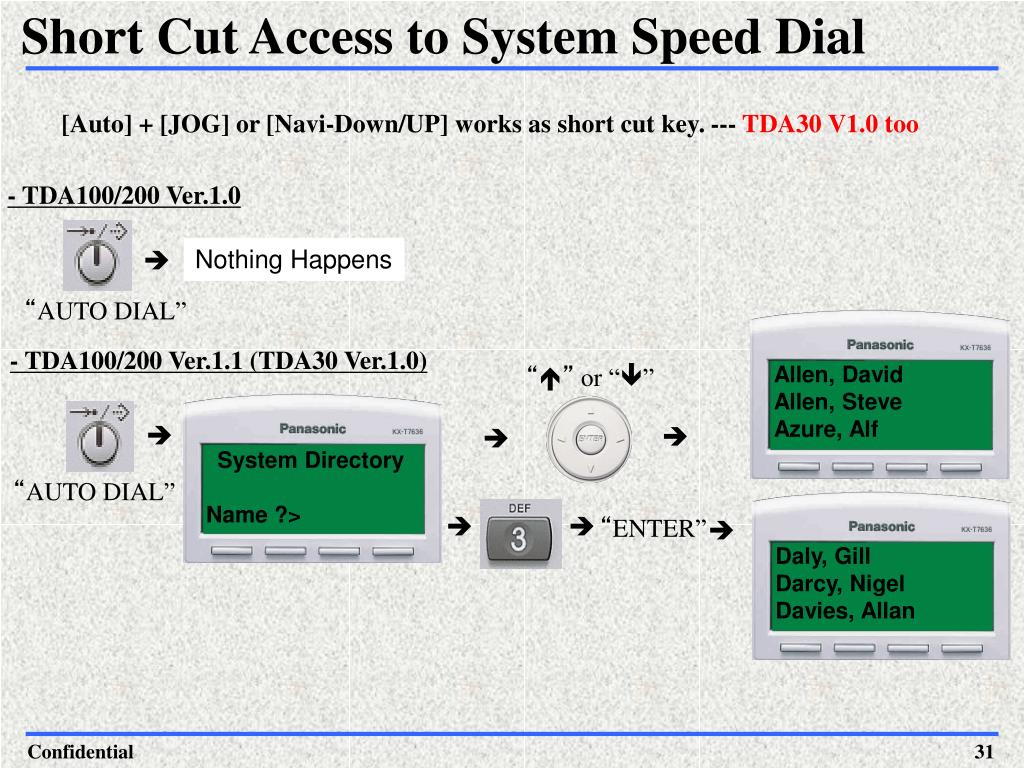

  31. Short Cut Access to System Speed Dial “AUTO DIAL” “” or “” “AUTO DIAL” [Auto] + [JOG] or [Navi-Down/UP] works as short cut key. --- TDA30 V1.0 too - TDA100/200 Ver.1.0 Nothing Happens  - TDA100/200 Ver.1.1 (TDA30 Ver.1.0) Allen, David Allen, Steve Azure, Alf    System Directory Name ?>   “ENTER”  Daly, Gill Darcy, Nigel Davies, Allan

  32. Function – Receiving Calls Modified DDI Number is displayed on LCD Disable DSS Flash

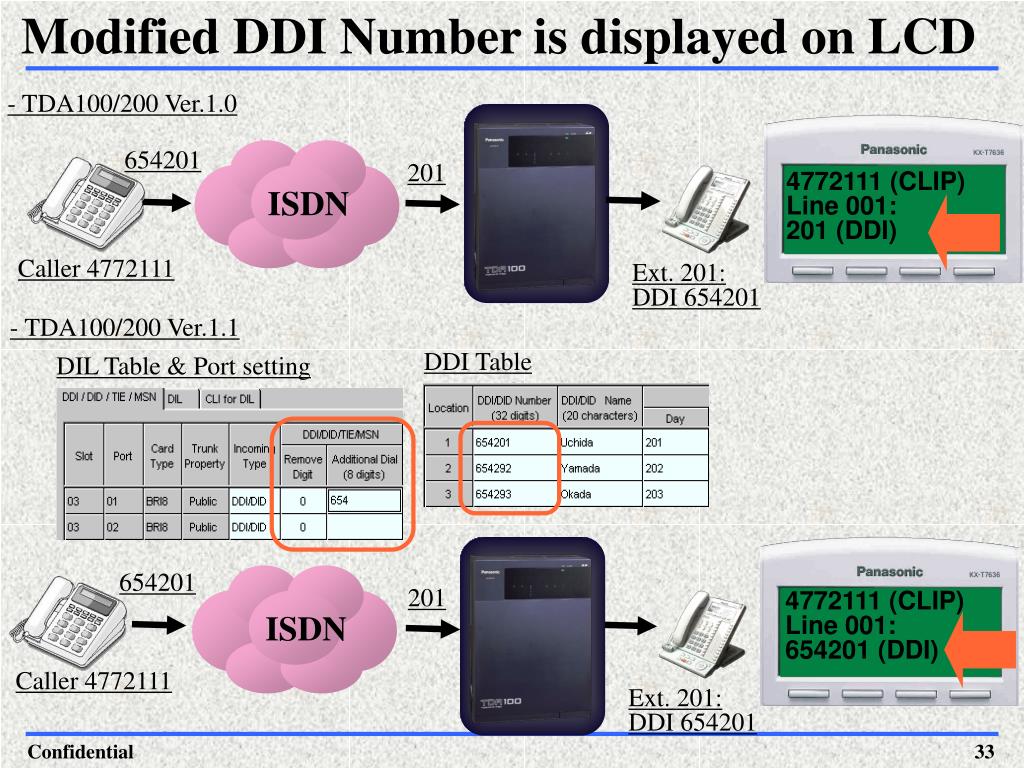

  33. Modified DDI Number is displayed on LCD Ext. 201: DDI 654201 ISDN ISDN DDI Table DIL Table & Port setting 654201 201 Caller 4772111 Ext. 201: DDI 654201 - TDA100/200 Ver.1.0 654201 201 4772111 (CLIP) Line 001: 201 (DDI) Caller 4772111 - TDA100/200 Ver.1.1 4772111 (CLIP) Line 001: 654201 (DDI)

  34. Improved DSS LED flashing/Pick up call -1 201 External Call Ext. 202 Ext. 201 External Call to Extension directly - TDA100/200 Ver.1.0 The DSS LED on Ext.202 is flashing. The call can be picked up by pressing the button. All DSS LED’s flashing look like a Xmas tree.  Annoying!!! - TDA100/200 Ver.1.1 Two options: - The DSS LED on Ext.202 will flash. The call can be picked up by pressing the button. - The DSS LED on Ext.202 will turn ON. The call cannot be picked up by pressing the button. Busy tone is sent if the DSS button is pressed. Enable : DSS LED will flash Disable : DSS LED will turn ON New program item

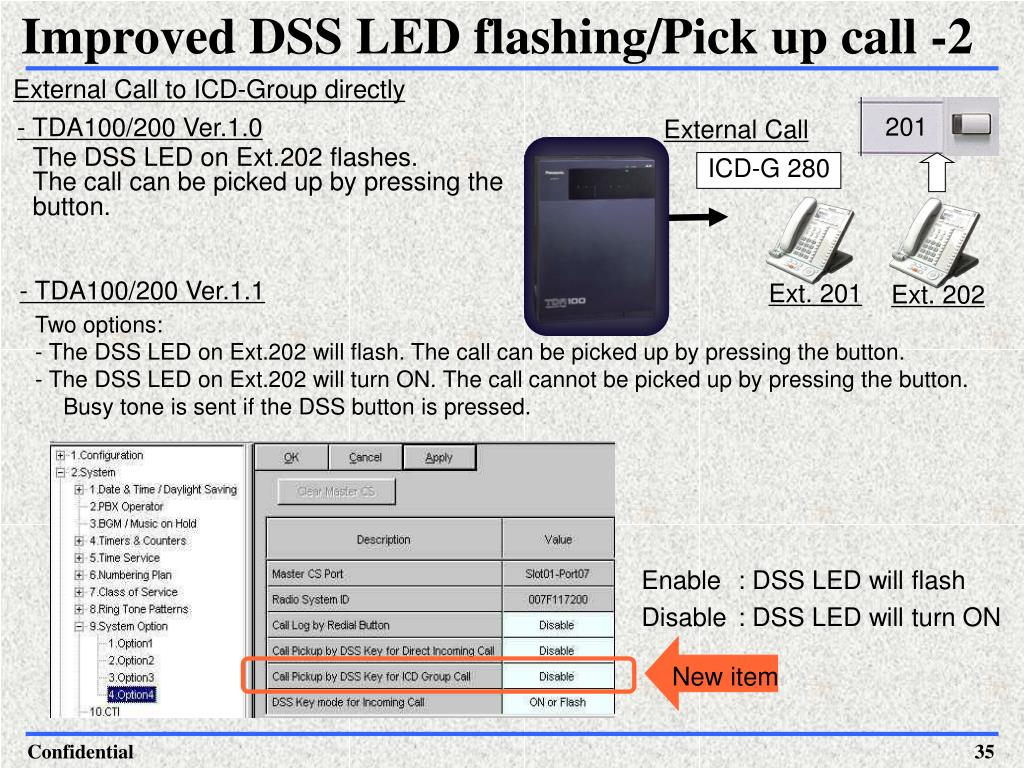

  35. Improved DSS LED flashing/Pick up call -2 External Call 201 ICD-G 280 Ext. 201 Ext. 202 External Call to ICD-Group directly - TDA100/200 Ver.1.0 The DSS LED on Ext.202 flashes. The call can be picked up by pressing the button. - TDA100/200 Ver.1.1 Two options: - The DSS LED on Ext.202 will flash. The call can be picked up by pressing the button. - The DSS LED on Ext.202 will turn ON. The call cannot be picked up by pressing the button. Busy tone is sent if the DSS button is pressed. Enable : DSS LED will flash Disable : DSS LED will turn ON New item

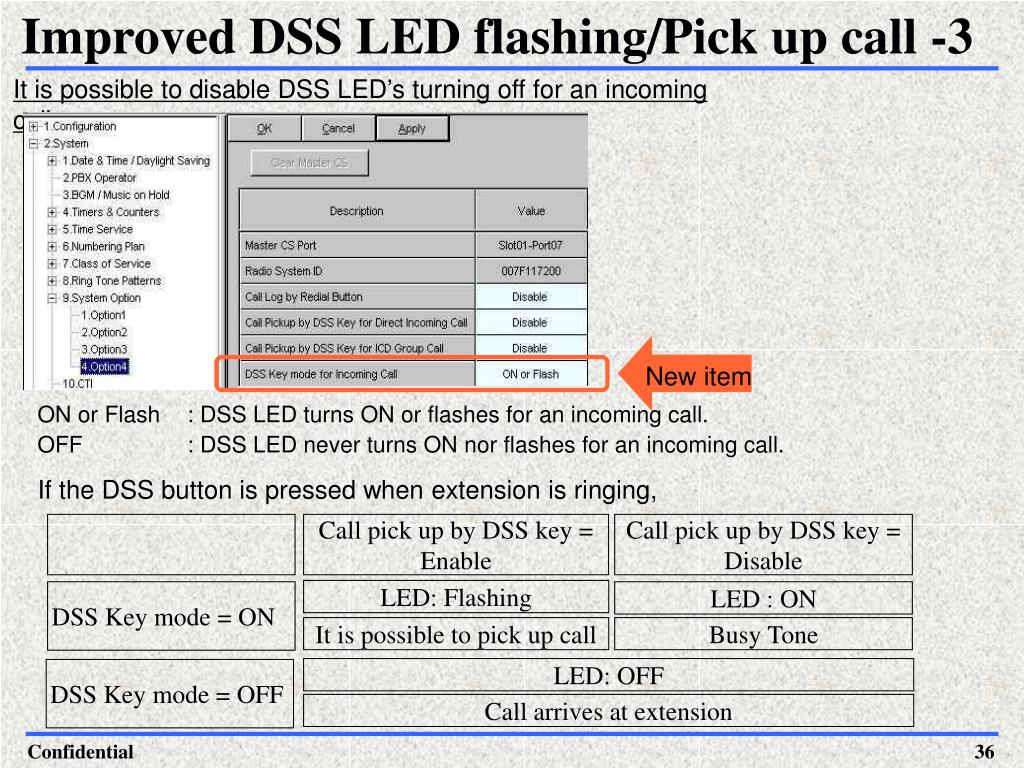

  36. Improved DSS LED flashing/Pick up call -3 Call pick up by DSS key = Enable Call pick up by DSS key = Disable DSS Key mode = ON DSS Key mode = OFF It is possible to disable DSS LED’s turning off for an incoming call. New item ON or Flash : DSS LED turns ON or flashes for an incoming call. OFF : DSS LED never turns ON nor flashes for an incoming call. If the DSS button is pressed when extension is ringing, LED: Flashing LED : ON It is possible to pick up call Busy Tone LED: OFF Call arrives at extension

  37. Function – Hold/FWD/TR Disable Hold Recall Disable re-count Ext-CO Duration Limitation

  38. Disable Hold Recall Disable Hold Recall is available if Hold Recall Timer is 0. 1-240: Hold Recall works 0 : does not work V1.0 does not have.

  39. Disable Re-counting Ext-CO Duration Timer Calling Party Called Party Extn-CO Duration Timer Call dest. Party Ringing (Establishing a Call) V1.0 V1.1 Answer Start Start (In Conversation) Place on Hold (On Hold to transfer) Hold Retrive ReStart (In Conversation) Concrete example - Ext 201 makes an external call. - Extension-CO duration timer on Ext 201 starts when the external party answers the call. - Ext 201 transfers the call to Ext 202. Time flow Extension-CO duration timer on Ext 202 re-starts when Ext 202 answers the call. V1.0 V1.1 Extension-CO duration timer on Ext 201 continues on Ext 202. Disable re-count Ext-CO Duration Limitation by Hold Retrieve

  40. Function – Conference ISDN – 3 party Conference DTMF Tone through a Conference from PT

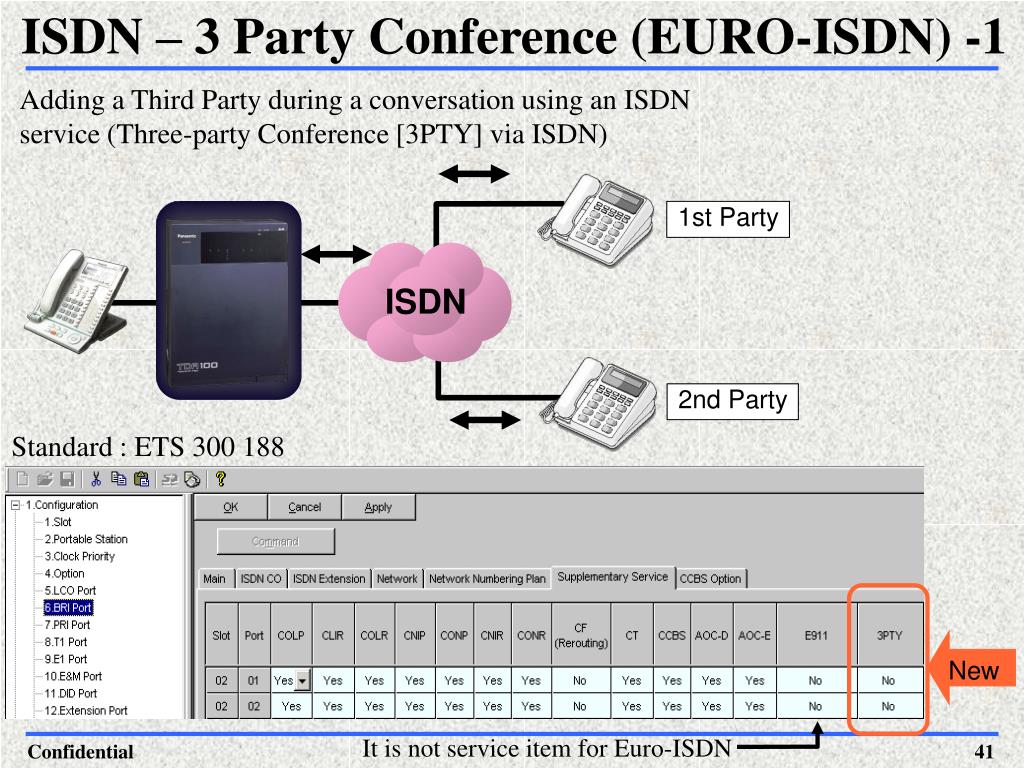

  41. ISDN – 3 Party Conference (EURO-ISDN) -1 ISDN It is not service item for Euro-ISDN Adding a Third Party during a conversation using an ISDN service (Three-party Conference [3PTY] via ISDN) 1st Party 2nd Party Standard : ETS 300 188 New

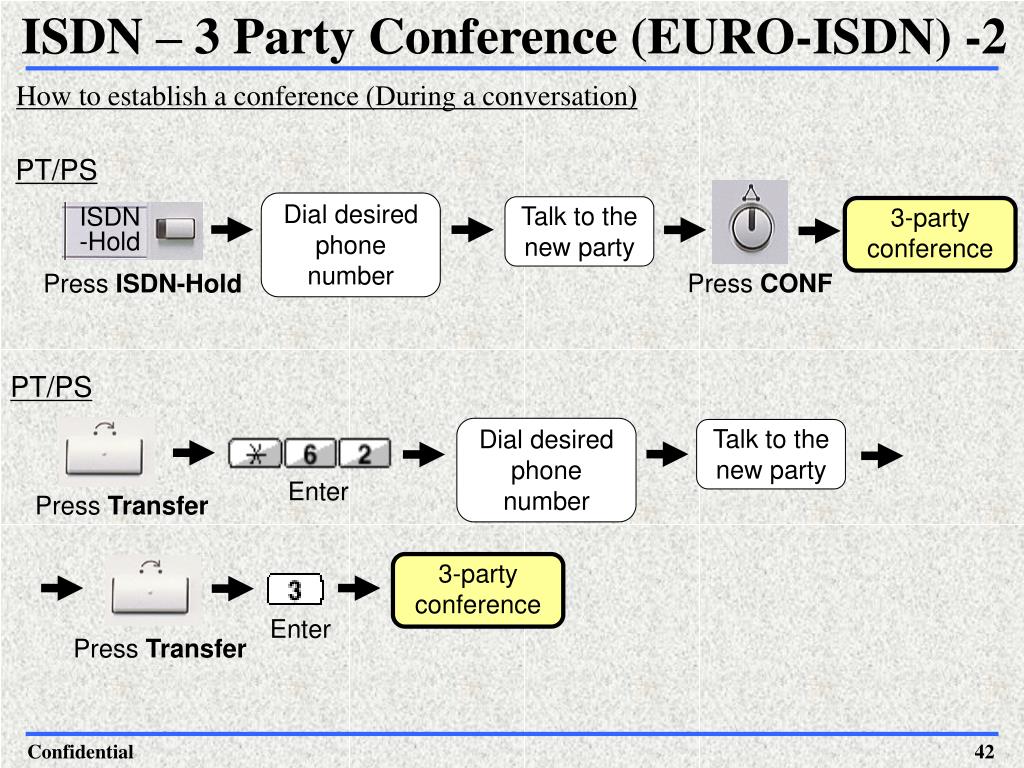

  42. ISDN – 3 Party Conference (EURO-ISDN) -2 ISDN -Hold Press CONF Enter Press Transfer Enter Press Transfer How to establish a conference (During a conversation) PT/PS Dial desired phone number Talk to the new party 3-party conference Press ISDN-Hold PT/PS Dial desired phone number Talk to the new party 3-party conference

  43. DTMF Tone Through to Conf.Call from PT PT ( Conference ) SLT DTMF Tone Voice Mail DTMF Tone Voice Mail control during conference call. V1.0 V1.1 SLT YES(Can send DTMF) YES(Can send DTMF) PT NO(Cannot send DTMF) YES(Can send DTMF) - This will be useful for two parties to listen to VM message. Not only SLT user but also PT user can control Voice Mail.

  44. Function – Timer Intercept Timer for each time mode

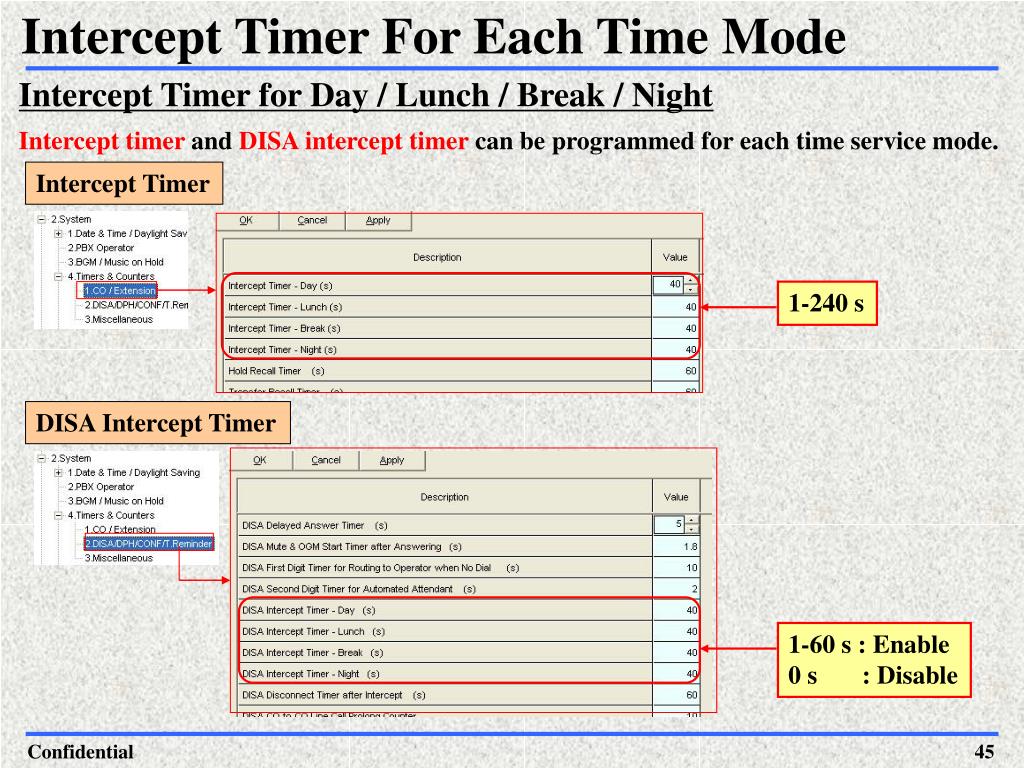

  45. Intercept Timer For Each Time Mode Intercept Timer for Day / Lunch / Break / Night Intercept timer and DISA intercept timer can be programmed for each time service mode. Intercept Timer 1-240 s DISA Intercept Timer 1-60 s : Enable 0 s : Disable

  46. Function – Others SMDR RC/AN Information Output Paging to Another Paging Group

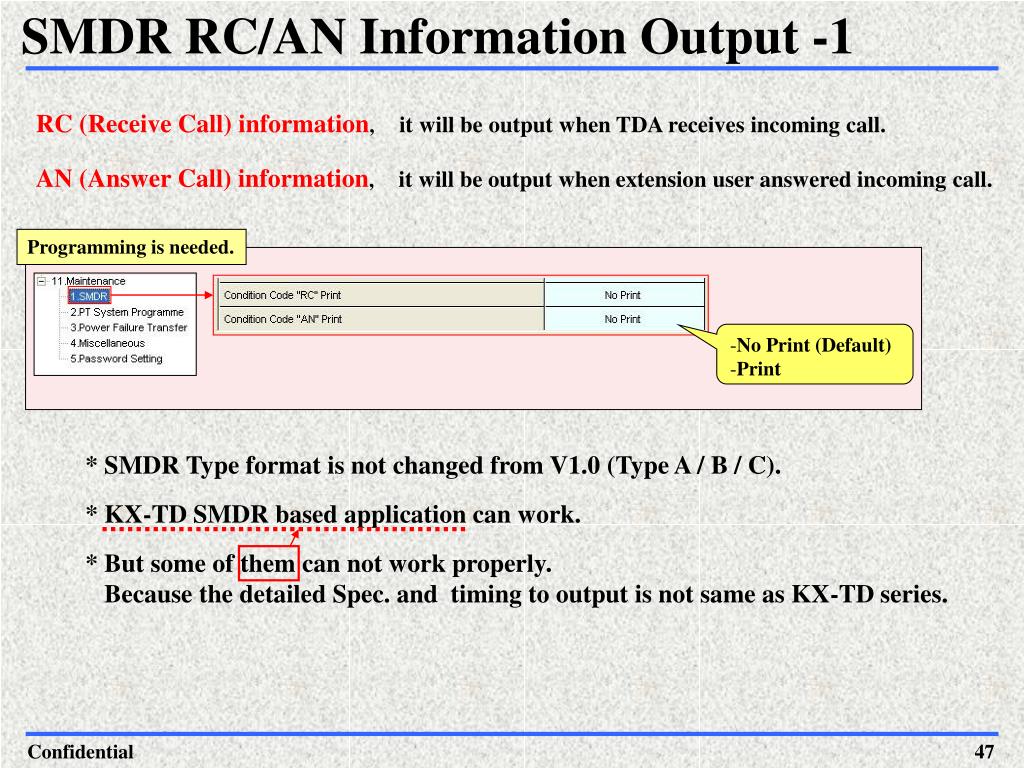

  47. SMDR RC/AN Information Output -1 Programming is needed. • No Print (Default) • Print RC (Receive Call) information, it will be output when TDA receives incoming call. AN (Answer Call) information, it will be output when extension user answered incoming call. * SMDR Type format is not changed from V1.0 (Type A / B / C). * KX-TD SMDR based application can work. * But some of them can not work properly. Because the detailed Spec. and timing to output is not same as KX-TD series.

  48. SMDR RC/AN Information Output -2 Output Samples-1 - External Call  Extension (201)  No answer  Caller disconnects 20/02/04 07:48AM 201 01 <I>203 RC 20/02/04 07:49AM 201 01 <I>203 0'56 00:00'00 NA - External Call  Extension (201)  Answers  Disconnects 20/02/04 08:22AM 201 01 <I>203 RC 20/02/04 08:22AM 201 01 <I>203 0'11 AN  Ext. 201 Answers 20/02/04 08:22AM 201 01 <I>203 0'11 00:00'17 Output Samples-2 (DISA) - External Call  DISA (270)  OGM is sent  No Answers  Caller disconnects 20/02/04 09:00AM 270 01 <I>203 RC 20/02/04 09:00AM 270 01 <I>203 0'05 AN  DISA Answers 20/02/04 09:01AM 270 01 <I>203 0'05 00:00'19 D0 - External Call  DISA (270)  OGM is sent  Ext. 201 answers  Disconnects 20/02/04 09:04AM 270 01 <I>203 RC 20/02/04 09:04AM 270 01 <I>203 0'05 AN  DISA Answers 20/02/04 09:05AM 270 01 <I>203 0'05 00:00'09 D0  Ext. 201 Answers 20/02/04 09:05AM 201 01 <I>203 0'00 00:00'12 TR

  49. SMDR RC/AN Information Output -3 Output Samples-3 (ICD-G) - External Call  ICD-G (280)  Time table is not started  No Answers  Caller disconnects 20/02/04 08:42AM 280 01 <I>203 RC 20/02/04 08:42AM 280 01 <I>203 0'05 00:00'00 NA - External Call  ICD-G (280)  Time table is not started  Ext.201 Answers  Disconnect 20/02/04 08:49AM 280 01 <I>203 RC 20/02/04 08:49AM 280 01 <I>203 0'04 AN  Ext. 201 Answers 20/02/04 08:49AM 280 01 <I>203 0'04 00:00'00 20/02/04 08:49AM 201 01 <I>203 0'00 00:00'06 - External Call  ICD-G (280)  Time table starts  No Answers  Caller disconnects 20/02/04 10:57PM 280 01 <I>203 RC 20/02/04 10:57PM 280 01 <I>203 0'00 AN  Time table starts 20/02/04 10:57PM 280 01 <I>203 0'00 00:00'17 -External Call  ICD-G (280)  Wait  Time table starts  No Answers  Caller disconnects 20/02/04 08:36AM 280 01 <I>203 RC 20/02/04 08:37AM 280 01 <I>203 0'10 AN  Time table starts 20/02/04 08:37AM 280 01 <I>203 0'10 00:00'19 -External Call  ICD-G (280)  Wait  Time table starts  Ext.201 Answers  Disconnect 20/02/04 10:48PM 280 01 <I>203 RC 20/02/04 10:48PM 280 01 <I>203 0'05 AN  Time table starts 20/02/04 10:48PM 280 01 <I>203 0'05 00:00'12  Ext.201 Answers 20/02/04 10:48PM 201 01 <I>203 0'00 00:00'06

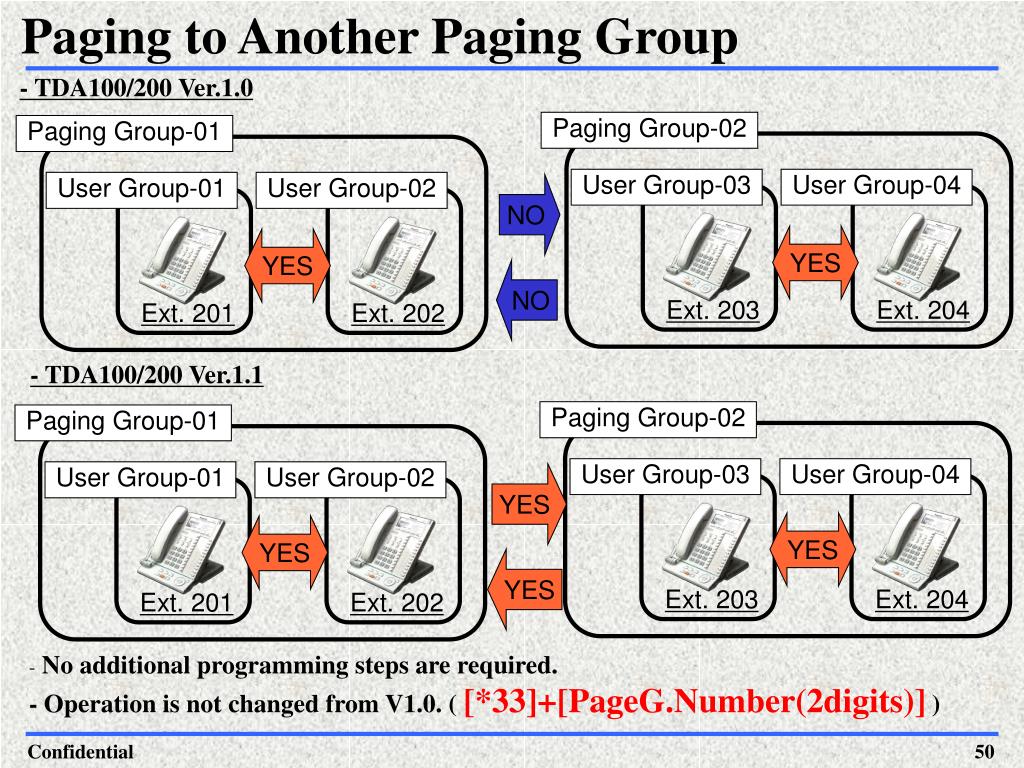

  50. Paging to Another Paging Group - TDA100/200 Ver.1.0 Paging Group-02 Paging Group-01 User Group-03 User Group-04 User Group-01 User Group-02 NO YES YES NO Ext. 203 Ext. 204 Ext. 201 Ext. 202 - TDA100/200 Ver.1.1 Paging Group-02 Paging Group-01 User Group-03 User Group-04 User Group-01 User Group-02 YES YES YES YES Ext. 203 Ext. 204 Ext. 201 Ext. 202 • No additional programming steps are required. • - Operation is not changed from V1.0. ( [*33]+[PageG.Number(2digits)])
