Advanced ON/OFF Analog Controller for DC Motors Using an L298N H-Bridge System

This project details the design and implementation of an ON/OFF analog control system for DC motors utilizing an L298N H-Bridge. It combines several subsystems, including a window comparator and feedback mechanisms, ensuring precise motor control based on window height input. Key components include operational amplifiers (LM324), a window maker subsystem for height adjustment, and a 10-turn potentiometer for fine-tuning the set point. The integration of mechanical linkages enhances performance, making it ideal for automation and robotics applications.

macy-carney
Télécharger la présentation

Advanced ON/OFF Analog Controller for DC Motors Using an L298N H-Bridge System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Electrical Engineering – ELCT 201 ELCT 201ON/OFF Analog Controller

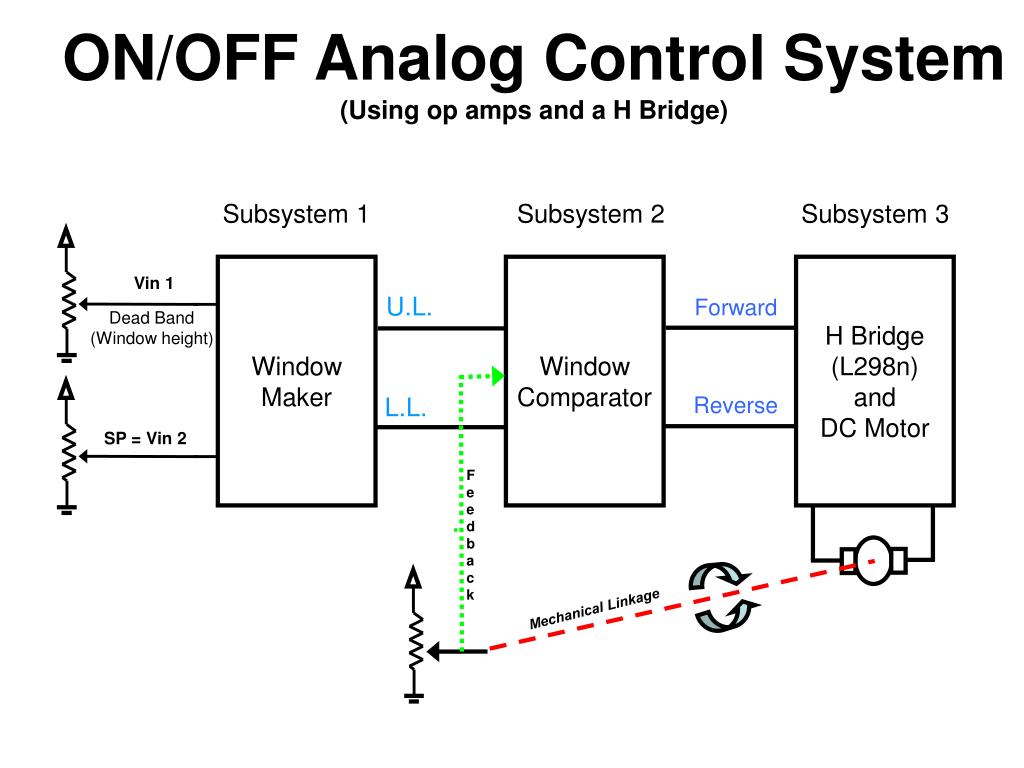

  2. Subsystem 1 Subsystem 2 Subsystem 3 Window Maker Window Comparator H Bridge (L298n) and DC Motor U.L. Forward Reverse L.L. SP =Vin 2 Feedback Vin 1 Dead Band (Window height) Mechanical Linkage ON/OFF Analog Control System (Using op amps and a H Bridge)

  3. Vin 1 10K Window height Trim pot 10K Window Maker (Subsystem 1) 100K 100K Vout 1 = Vin 2 – Vin 1 LM324 100K L.L. (Lower Limit) 100K Set Point =Vin 2 Window position 10 Turn pot Vout 2 = Vin 2 LM324 U.L. (Upper Limit)

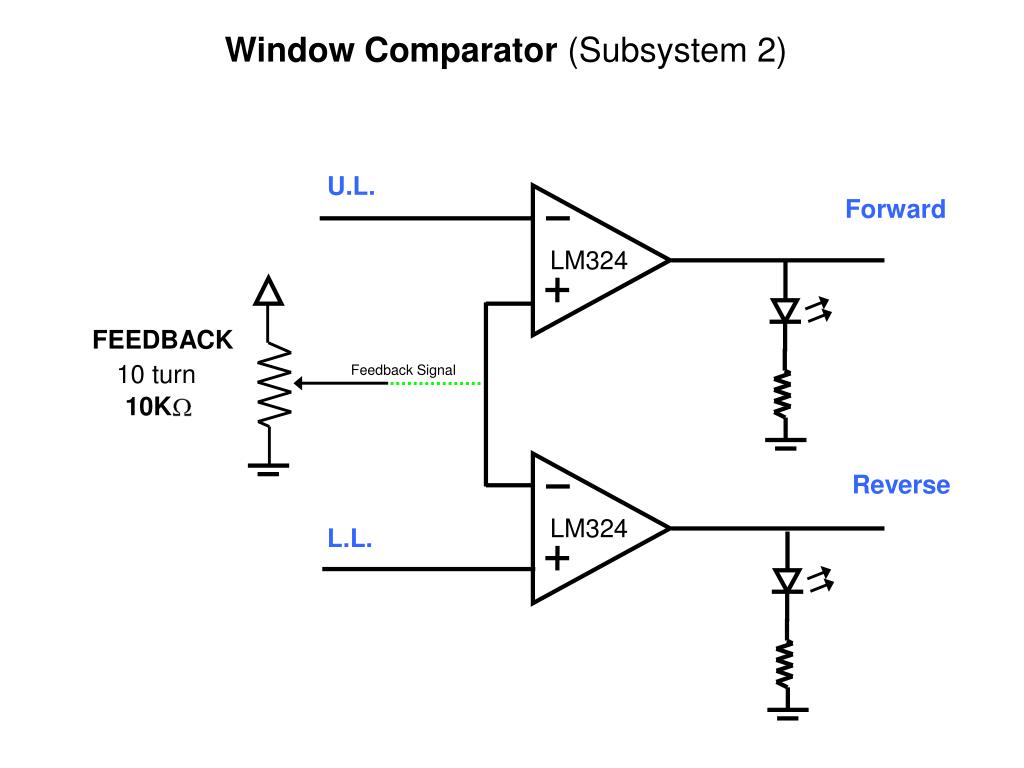

  4. U.L. LM324 FEEDBACK 10 turn 10K L.L. LM324 Window Comparator (Subsystem 2) Forward Feedback Signal Reverse

  5. 10K FEEDBACK Forward Reverse 10 turn Reverse Forward H Bridge (L298n) and DC Motor (Subsystem 3) Mechanical Linkage

  6. L298N Half Package Vs 14 C D 10 13 12 Vss 4 3 4 ½ L298N Ven 11 15 8

  7. L298N Half Package Vs 100nF 100nF 14 C D 10 13 12 Vss 4 3 4 ½ L298N Ven 11 15 8

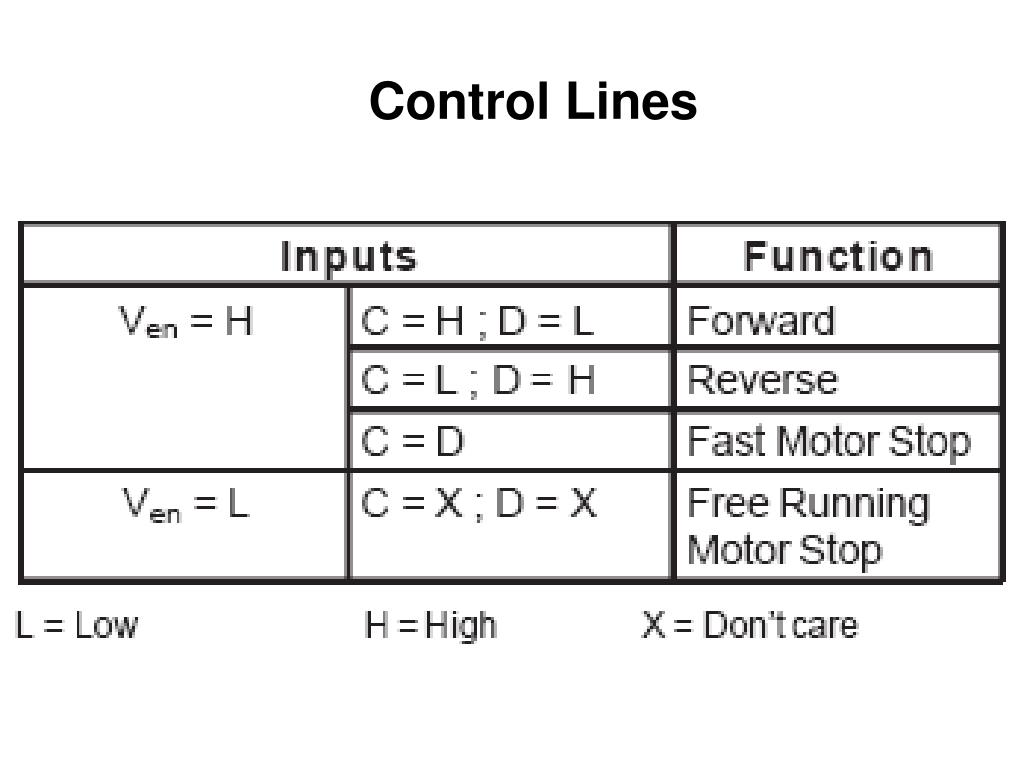

  8. Control Lines

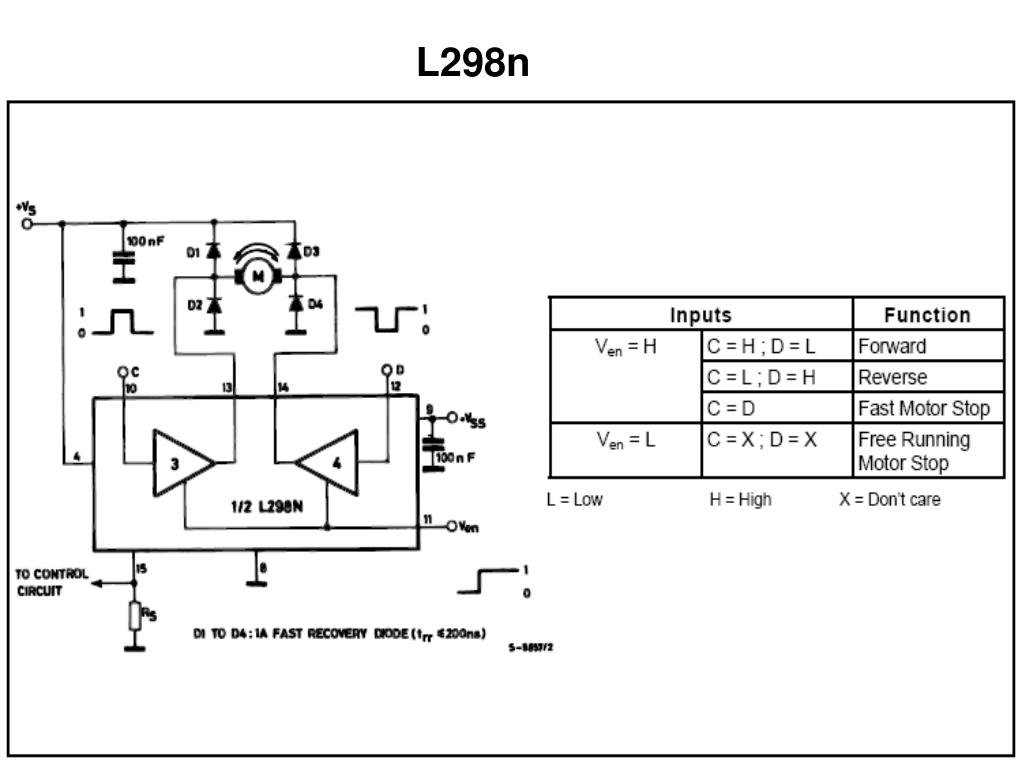

  9. L298n

  10. L298n pinout

  11. L298n
