  1. Sound Engine Evaluation for Computer Games Case Study: fmod Jyun-Ming Chen

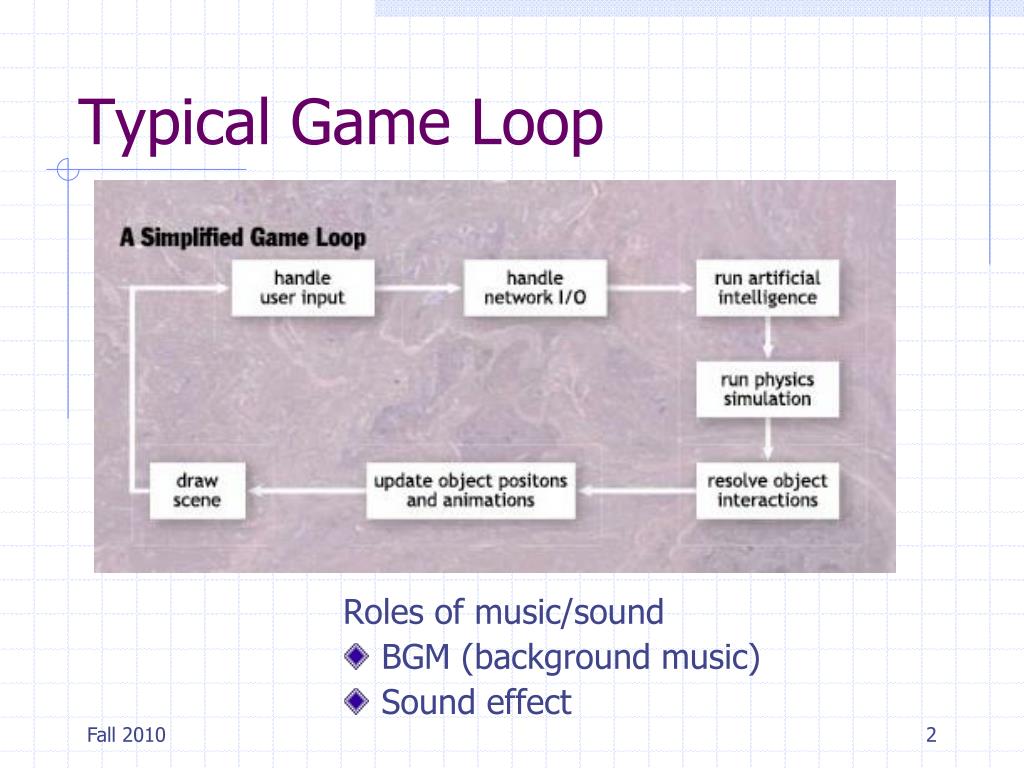

  2. Typical Game Loop Roles of music/sound • BGM (background music) • Sound effect

  3. Microsoft SDK Need more sophisticated tools! • BGM (Midi) • mciSendCommand (…) • Sound (Wave) • sndPlaySound • See msdn for details • Ex: midi_wav.zip on webhd2/game-ex

  4. BGM File formats supported: mid, mp3, mod, … Looping Early termination Volume control Sound effects File formats supported Trigger mechanism Reverb and other DSP FX (e.g., room effects) Pre-load to avoid delay in first play General Mixing capability (how many sounds can be mixed at one time) Spatial sound Position: 3D vs. panning Velocity: Doppler supported? Occlusion?! Sync capability sound to action Action to sound Others CPU overhead Check List

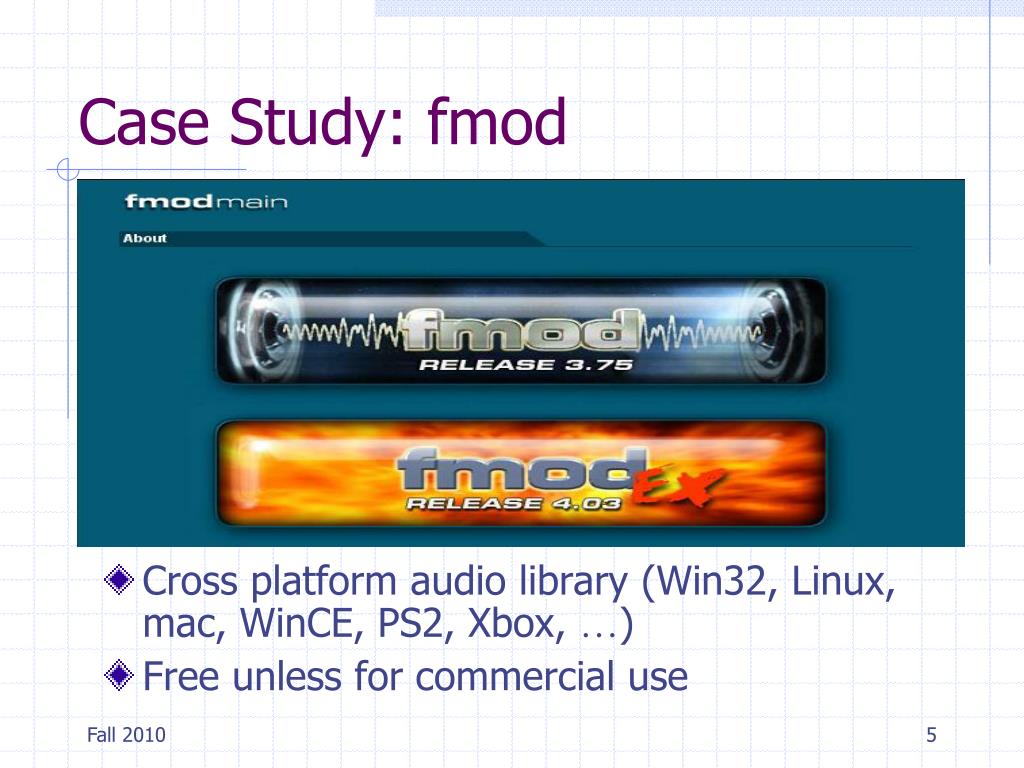

  5. Case Study: fmod • Cross platform audio library (Win32, Linux, mac, WinCE, PS2, Xbox, …) • Free unless for commercial use

  6. Documentation FSOUND: for sound effect FMUSIC: for bgm

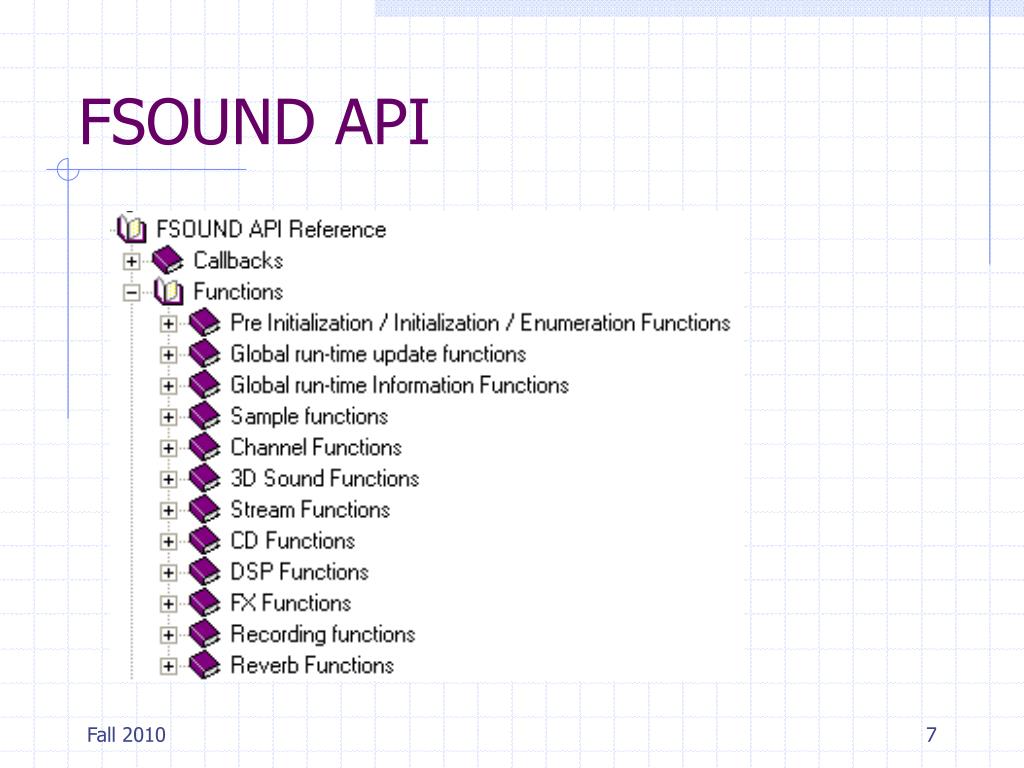

  7. FSOUND API

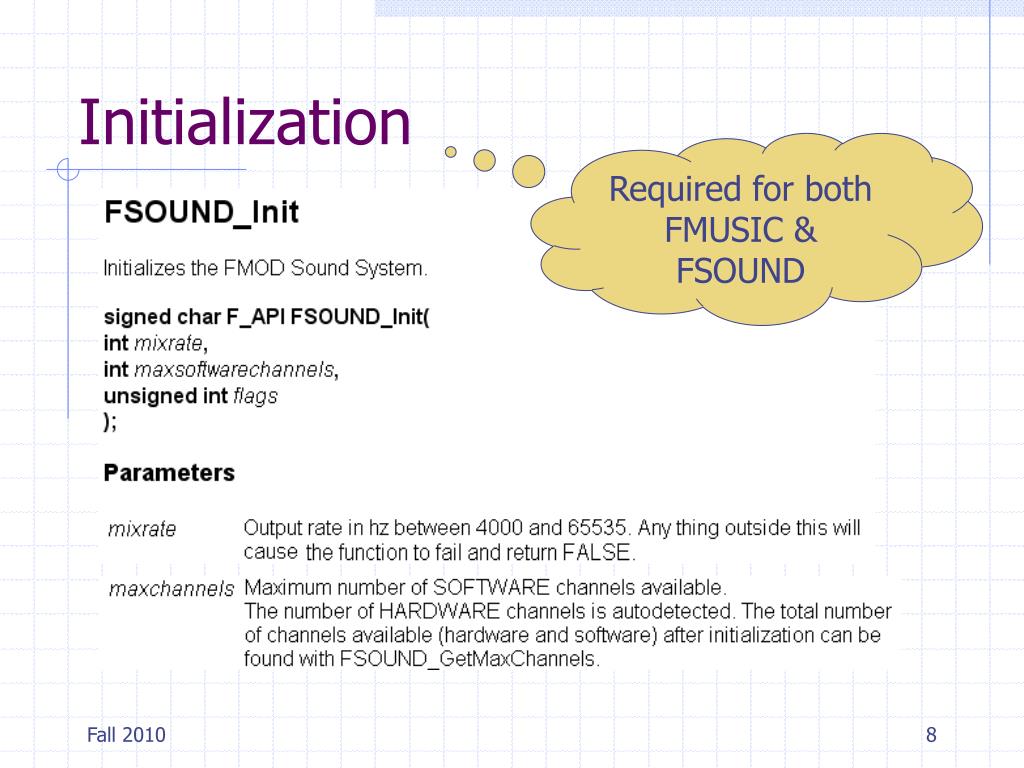

  8. Initialization Required for both FMUSIC & FSOUND

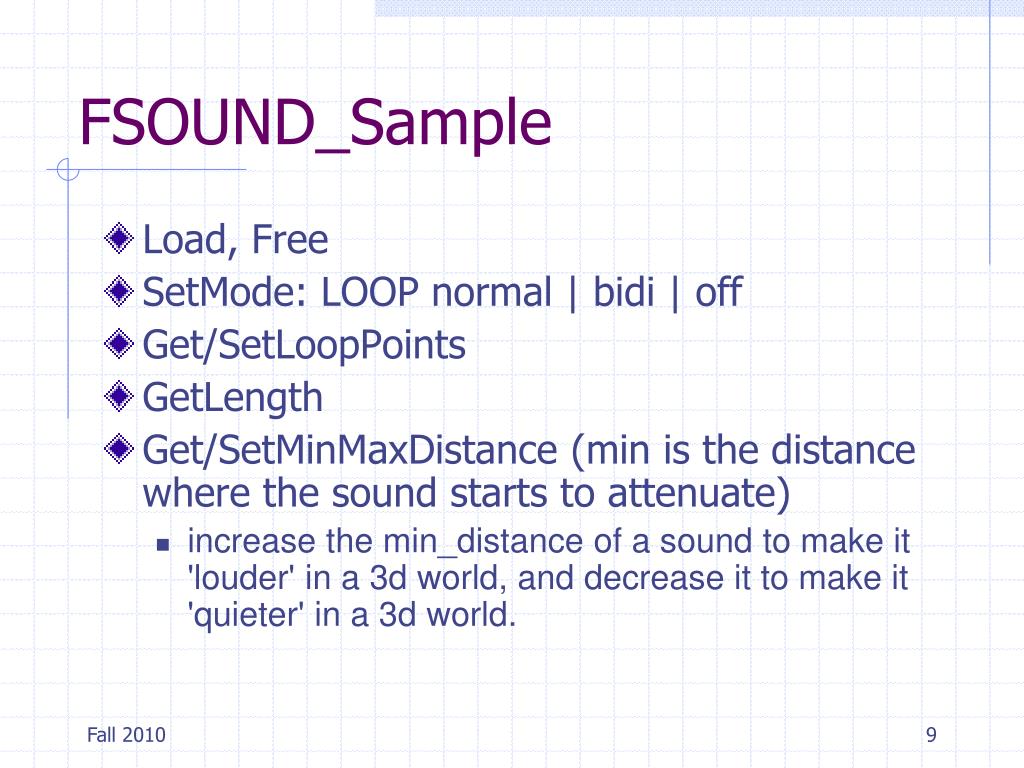

  9. FSOUND_Sample • Load, Free • SetMode: LOOP normal | bidi | off • Get/SetLoopPoints • GetLength • Get/SetMinMaxDistance (min is the distance where the sound starts to attenuate) • increase the min_distance of a sound to make it 'louder' in a 3d world, and decrease it to make it 'quieter' in a 3d world.

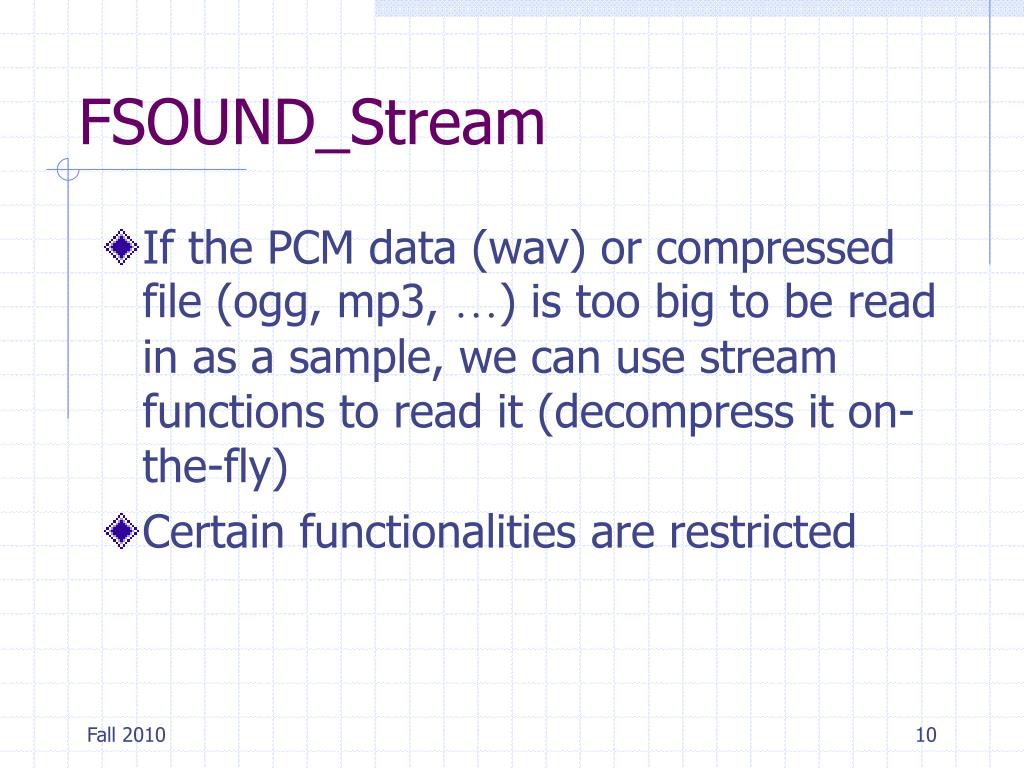

  10. FSOUND_Stream • If the PCM data (wav) or compressed file (ogg, mp3, …) is too big to be read in as a sample, we can use stream functions to read it (decompress it on-the-fly) • Certain functionalities are restricted

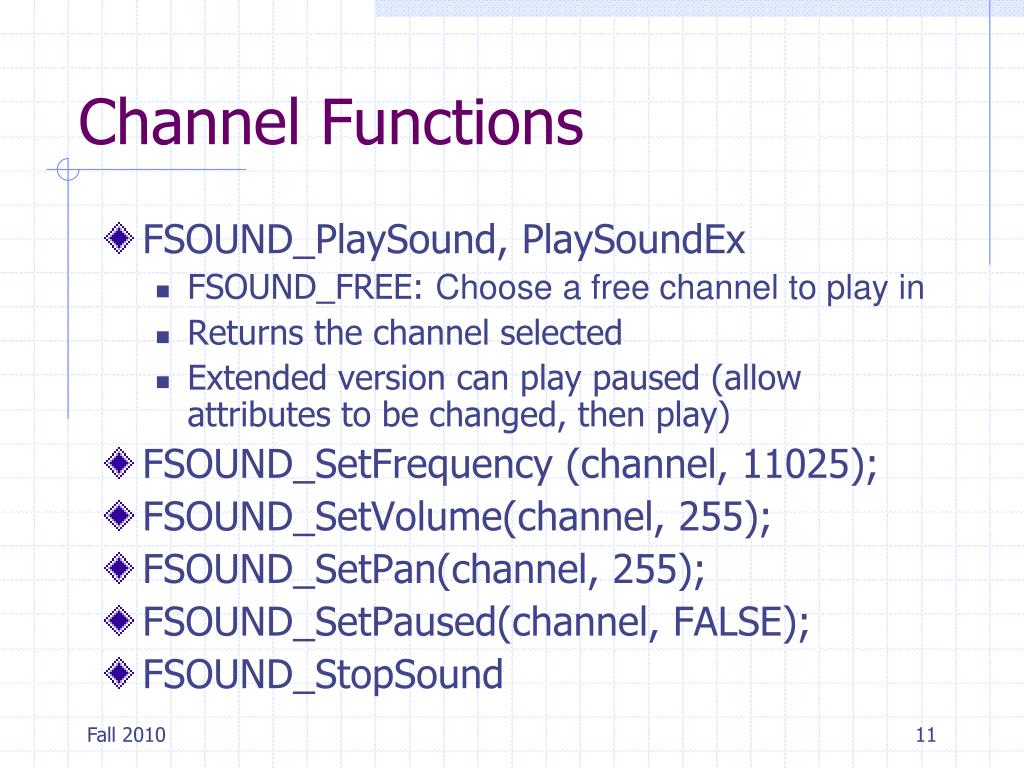

  11. Channel Functions • FSOUND_PlaySound, PlaySoundEx • FSOUND_FREE: Choose a free channel to play in • Returns the channel selected • Extended version can play paused (allow attributes to be changed, then play) • FSOUND_SetFrequency (channel, 11025); • FSOUND_SetVolume(channel, 255); • FSOUND_SetPan(channel, 255); • FSOUND_SetPaused(channel, FALSE); • FSOUND_StopSound

  12. FMUSIC (mid, mod; mp3) • LoadSong • PlaySong: can play more than one music (yes, but why?) • SetPaused • SetLooping: default TRUE • SetPanSeparation, SetMasterSpeed, SetMasterVolume • StopSong, StopAllSongs • FreeSong • SetReverb (midi only)

  13. OpenGL Tests Webhd2/game-ex/fmod_opengl_tests

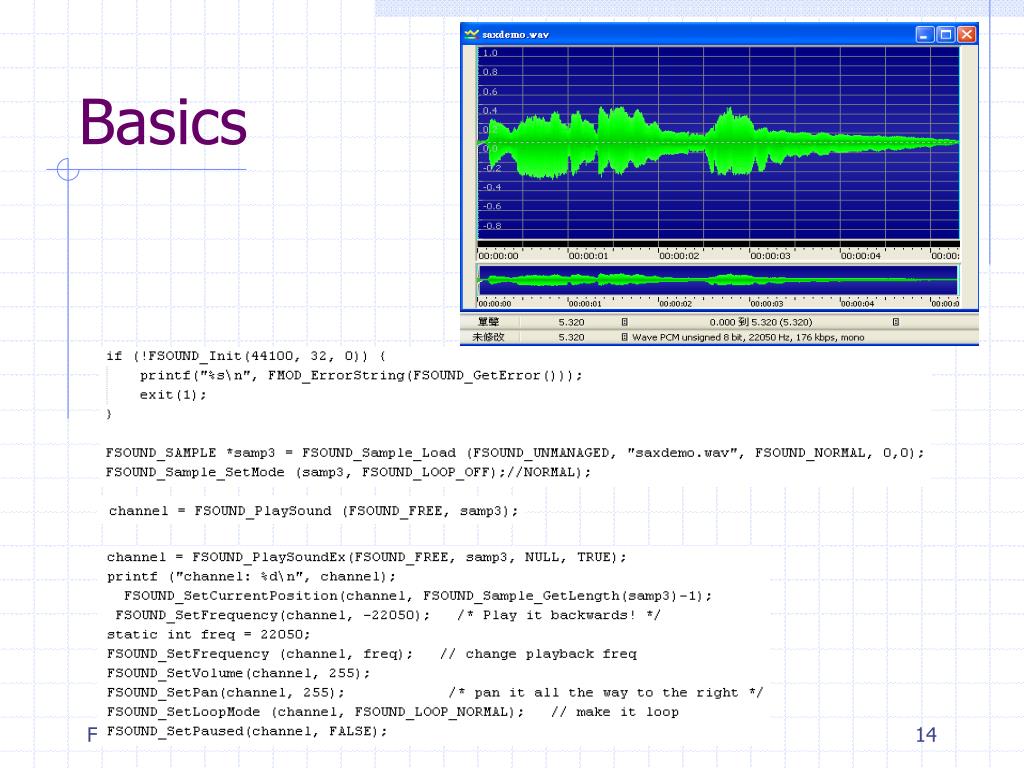

  14. Basics

  15. FMUSIC PLAYS S3M AND MID; NOT MP3 (sequenced file, not PCM-type) Bgmusic OK for mod files

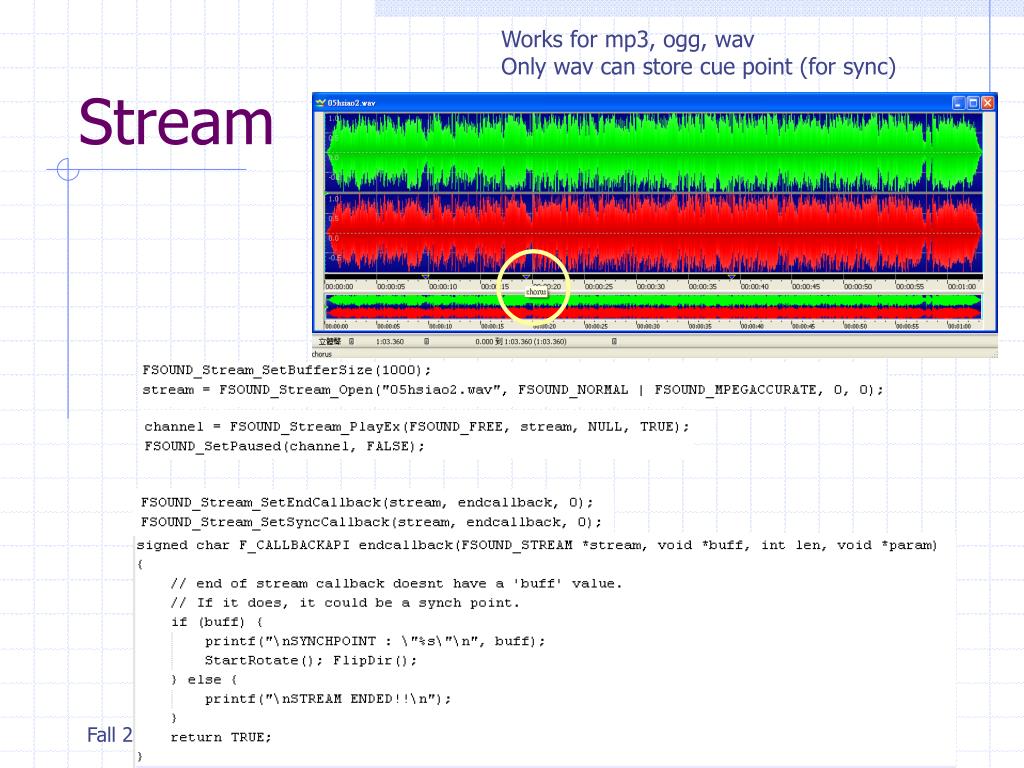

  16. Works for mp3, ogg, wav Only wav can store cue point (for sync) Stream

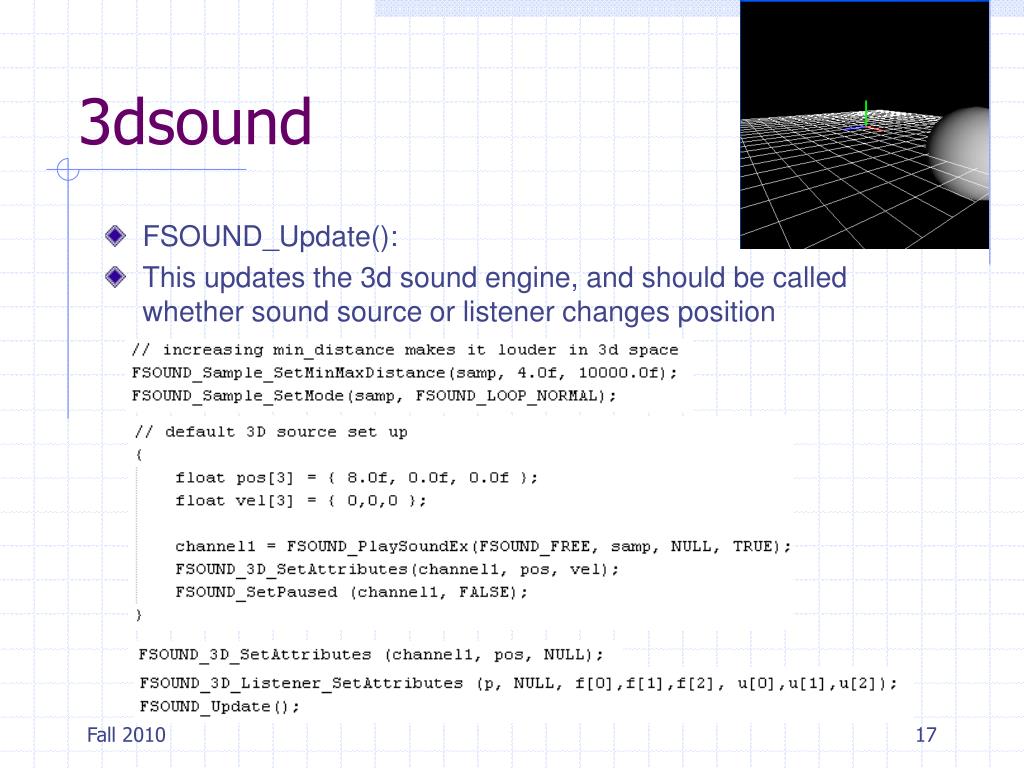

  17. 3dsound • FSOUND_Update(): • This updates the 3d sound engine, and should be called whether sound source or listener changes position

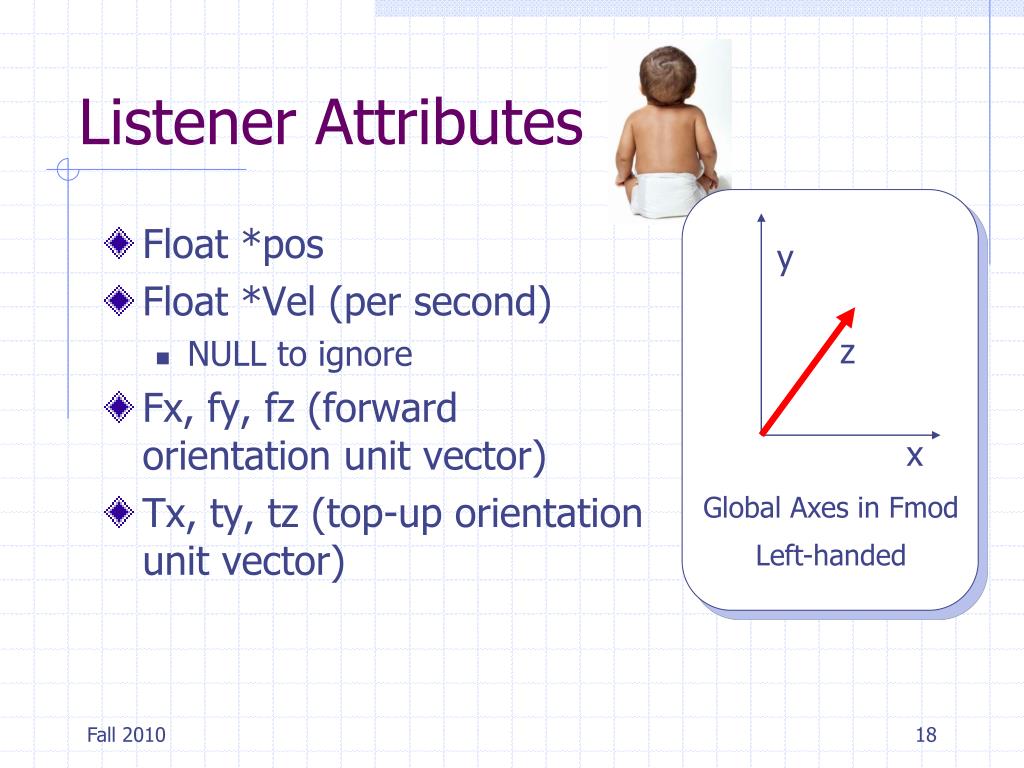

  18. Float *pos Float *Vel (per second) NULL to ignore Fx, fy, fz (forward orientation unit vector) Tx, ty, tz (top-up orientation unit vector) y z x Global Axes in Fmod Left-handed Listener Attributes

  19. Doppler FSOUND_3D_SetDopplerFactor (4.0);

  20. Commonly Used APIs Init and Close Load and Free sample

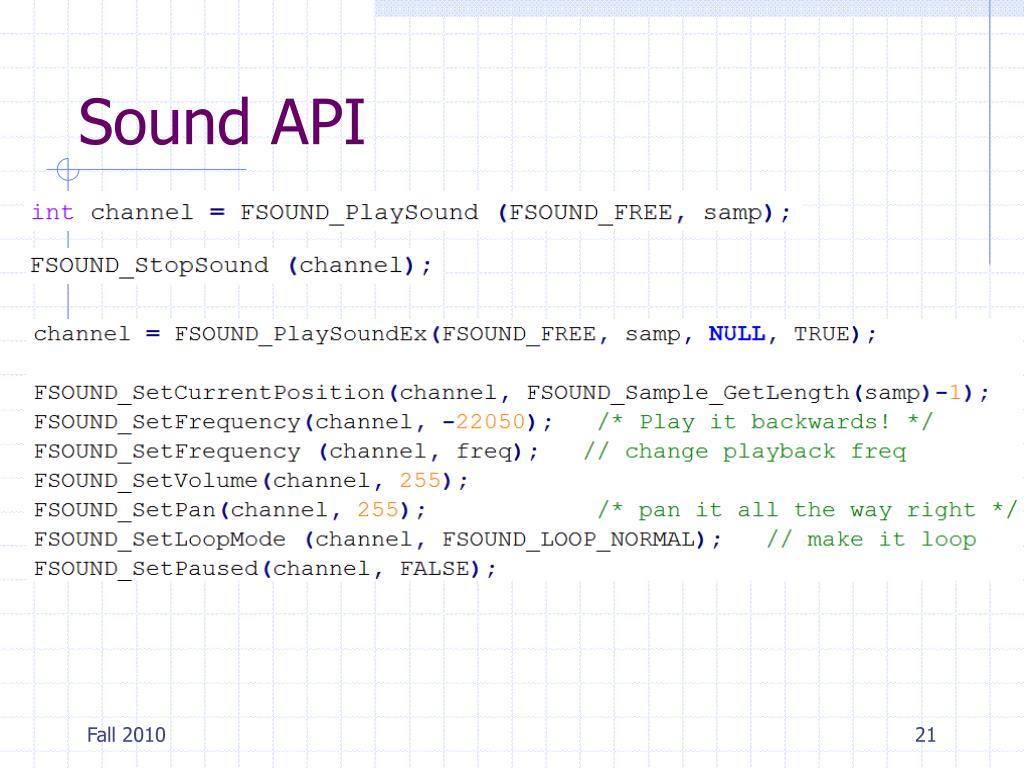

  21. Sound API
