  1. Doug Burns @orcldoug #oug_scot 10053 Trace Files(Mostly Harmless)

  2. Introduction • Introduction • What • How • Why • Structure • Example • Conclusions and References

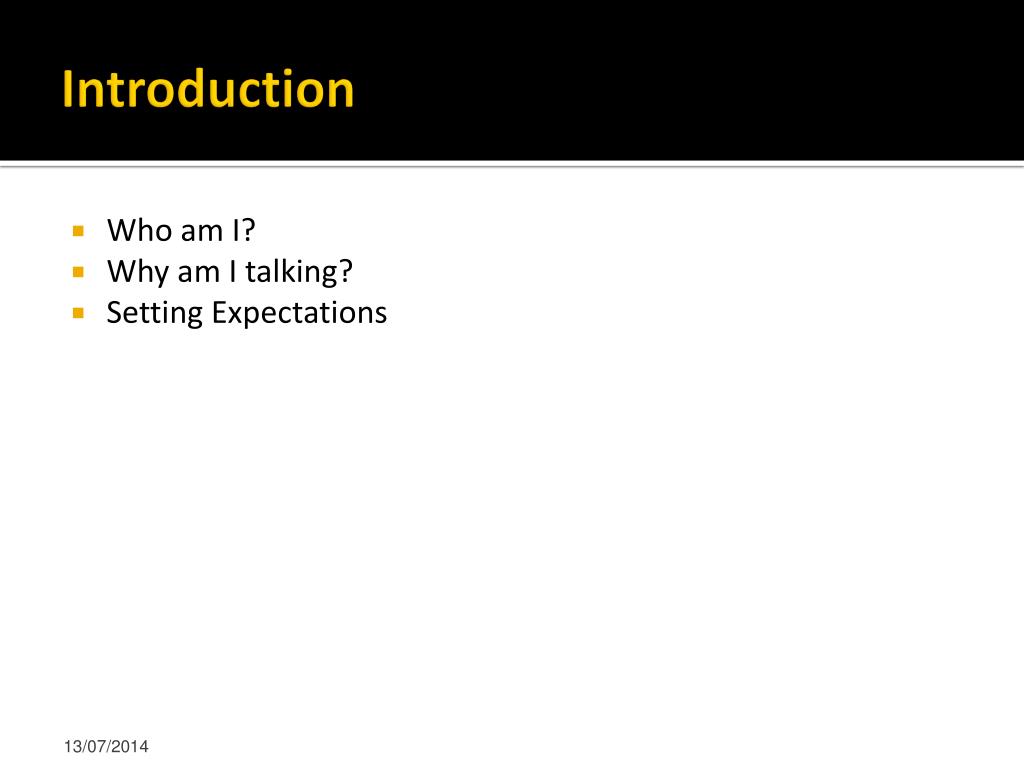

  3. Introduction • Who am I? • Why am I talking? • Setting Expectations

  4. Who am I? • I am Doug • Doug I am << Dr Seuss Edition • Actually I am Douglas • … or, if you're Scottish, Dougie or Doogie • I'm not from England • You will have probably noticed that already • I don't know many Scottish people who do glowing introductions about their all-round genius! • But, amongst other things, I am …

  5. A Bitter Old Man

  6. A Corporate Sell-Out

  7. A Family Man

  8. Why am I talking? • A long time ago in a galaxy far, far away …. • "A look under the hood of CBO: The 10053 Event" • Wolfgang Breitling (see References) • Time passes & beers are consumed & conversations follow … • You almost never need to use 10053 trace files • They are far too long and complex to understand • … and yet … • I find myself using them more often • I think they're becoming easier to understand

  9. Setting Expectations • Although 10053 files are • Sometimes useful • Mostly Harmless • They are also • Usually unnecessary • Undocumented • Subject to change over time • Complex in places

  10. What • Introduction • What • How • Why • Structure • Example • Conclusions and References

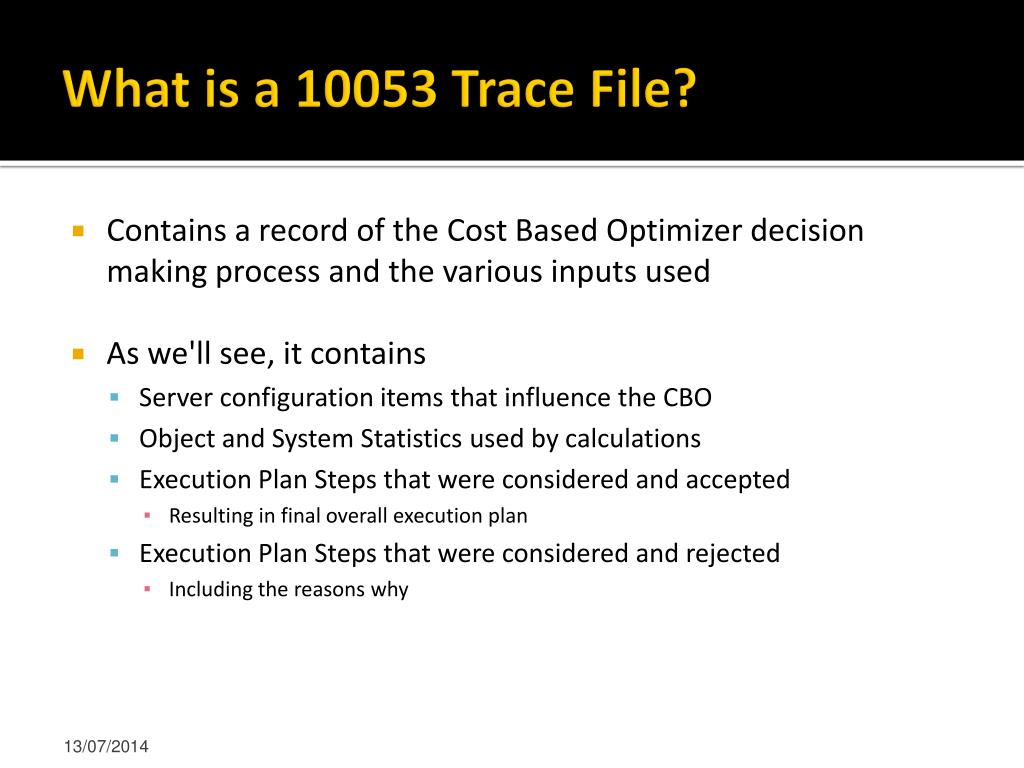

  11. What is a 10053 Trace File? • Contains a record of the Cost Based Optimizer decision making process and the various inputs used • As we'll see, it contains • Server configuration items that influence the CBO • Object and System Statistics used by calculations • Execution Plan Steps that were considered and accepted • Resulting in final overall execution plan • Execution Plan Steps that were considered and rejected • Including the reasons why

  12. How • Introduction • What • How • Why • Structure • Example • Conclusions and References

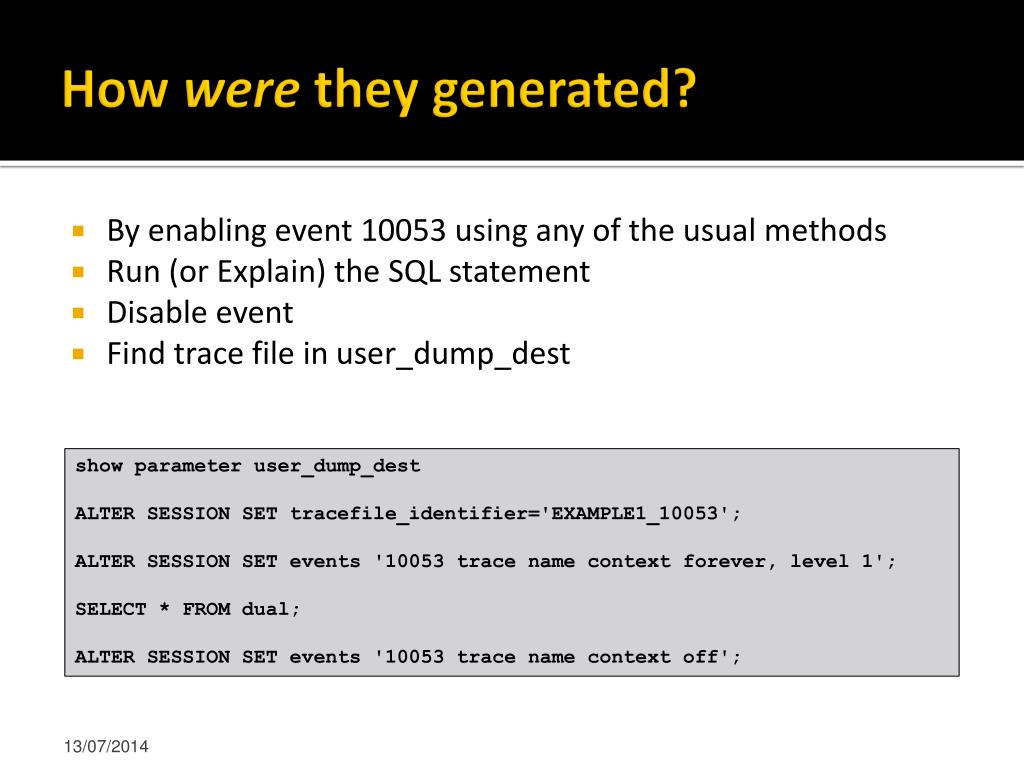

  13. How were they generated? • By enabling event 10053 using any of the usual methods • Run (or Explain) the SQL statement • Disable event • Find trace file in user_dump_dest show parameter user_dump_dest ALTER SESSION SET tracefile_identifier='EXAMPLE1_10053'; ALTER SESSION SET events '10053 trace name context forever, level 1'; SELECT * FROM dual; ALTER SESSION SET events '10053 trace name context off';

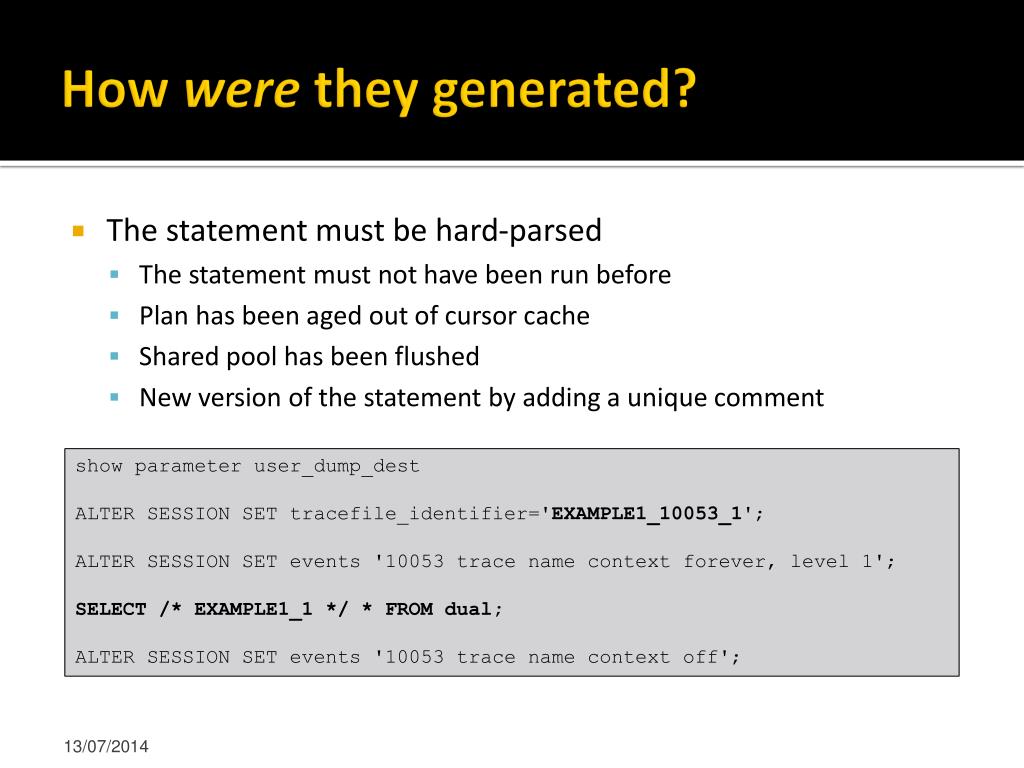

  14. How were they generated? • The statement must be hard-parsed • The statement must not have been run before • Plan has been aged out of cursor cache • Shared pool has been flushed • New version of the statement by adding a unique comment show parameter user_dump_dest ALTER SESSION SET tracefile_identifier='EXAMPLE1_10053_1'; ALTER SESSION SET events '10053 trace name context forever, level 1'; SELECT /* EXAMPLE1_1 */ * FROM dual; ALTER SESSION SET events '10053 trace name context off';

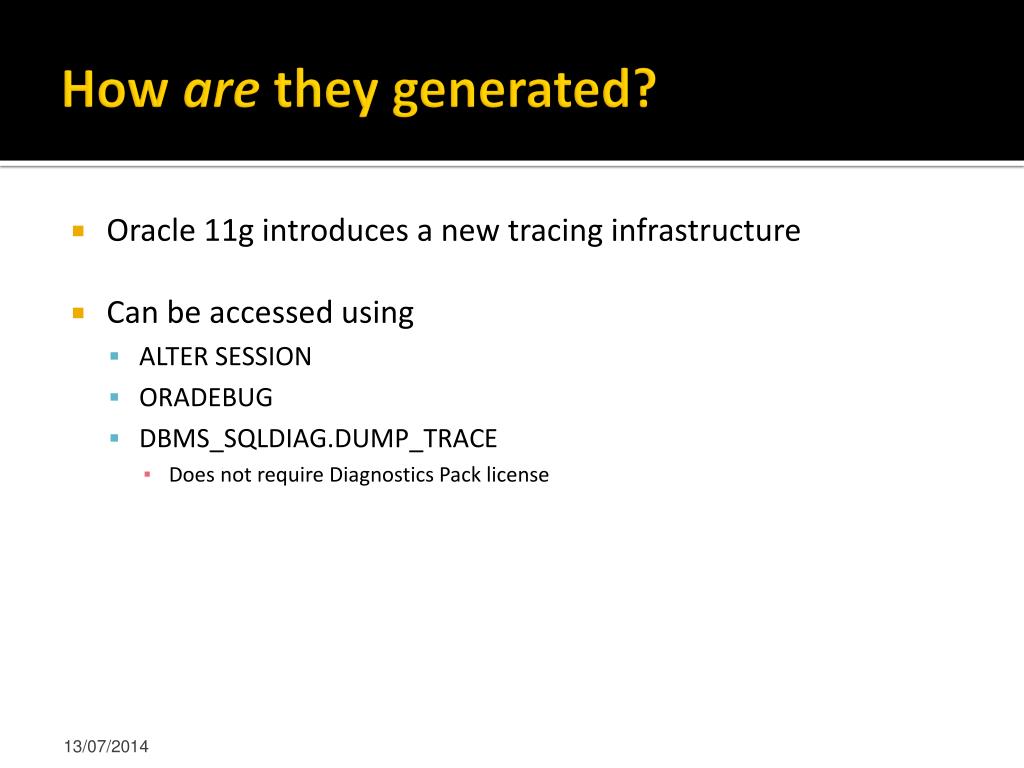

  15. How are they generated? • Oracle 11g introduces a new tracing infrastructure • Can be accessed using • ALTER SESSION • ORADEBUG • DBMS_SQLDIAG.DUMP_TRACE • Does not require Diagnostics Pack license

  16. How are they generated? • Replacement for original method of setting event 10053 • Options are SQL_Compiler and SQL_Optimizer • There are also sub-options but I've never used them show parameter user_dump_dest ALTER SESSION SET tracefile_identifier='EXAMPLE1_2_OPTTRACE'; ALTER SESSION SET events 'trace [SQL_Compiler.*]'; SELECT /* EXAMPLE1_2 */ * FROM dual; ALTER SESSION SET events 'trace [SQL_Compiler.*] off';

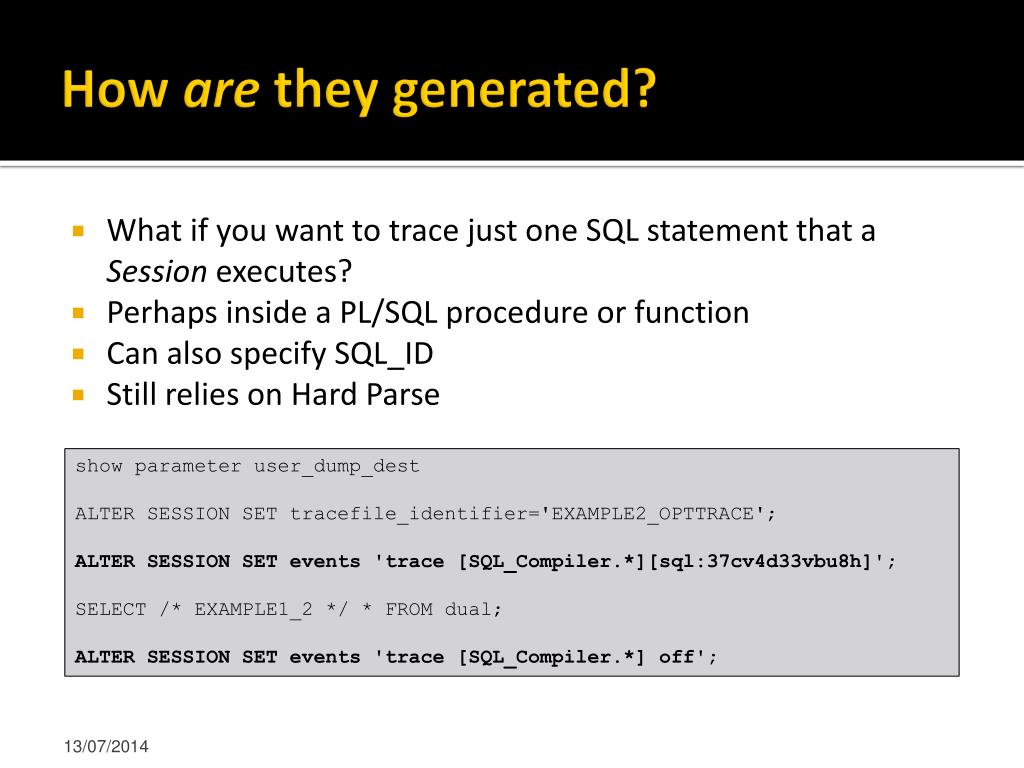

  17. How are they generated? • What if you want to trace just one SQL statement that a Session executes? • Perhaps inside a PL/SQL procedure or function • Can also specify SQL_ID • Still relies on Hard Parse show parameter user_dump_dest ALTER SESSION SET tracefile_identifier='EXAMPLE2_OPTTRACE'; ALTER SESSION SET events 'trace [SQL_Compiler.*][sql:37cv4d33vbu8h]'; SELECT /* EXAMPLE1_2 */ * FROM dual; ALTER SESSION SET events 'trace [SQL_Compiler.*] off';

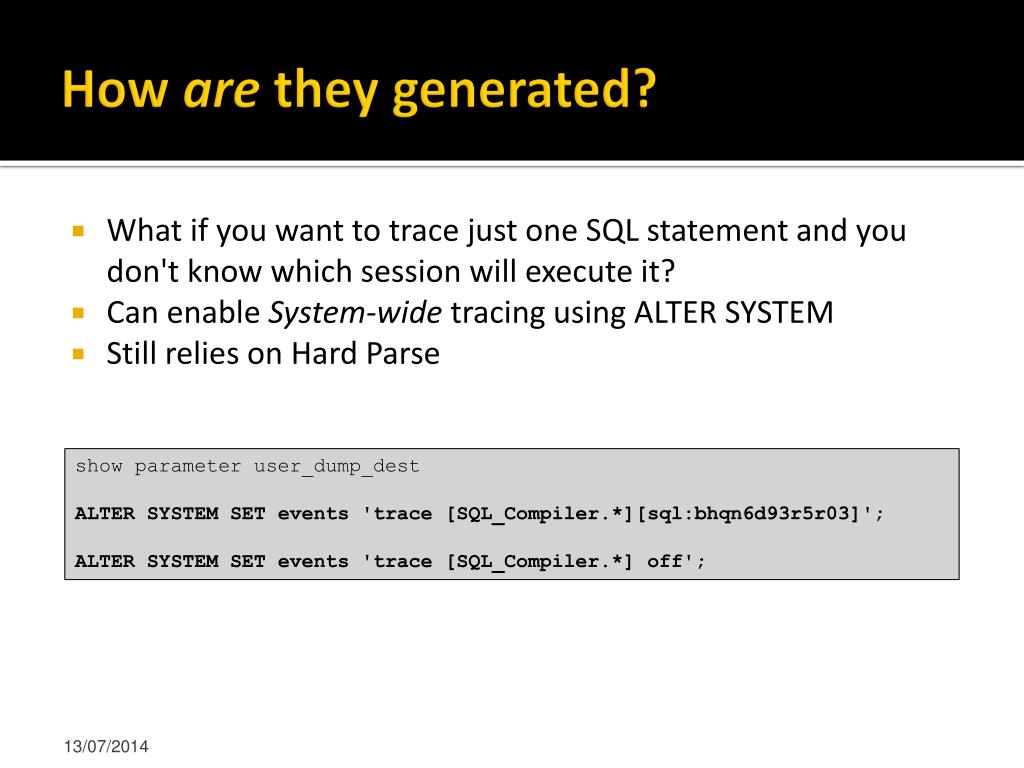

  18. How are they generated? • What if you want to trace just one SQL statement and you don't know which session will execute it? • Can enable System-wide tracing using ALTER SYSTEM • Still relies on Hard Parse show parameter user_dump_dest ALTER SYSTEM SET events 'trace [SQL_Compiler.*][sql:bhqn6d93r5r03]'; ALTER SYSTEM SET events 'trace [SQL_Compiler.*] off';

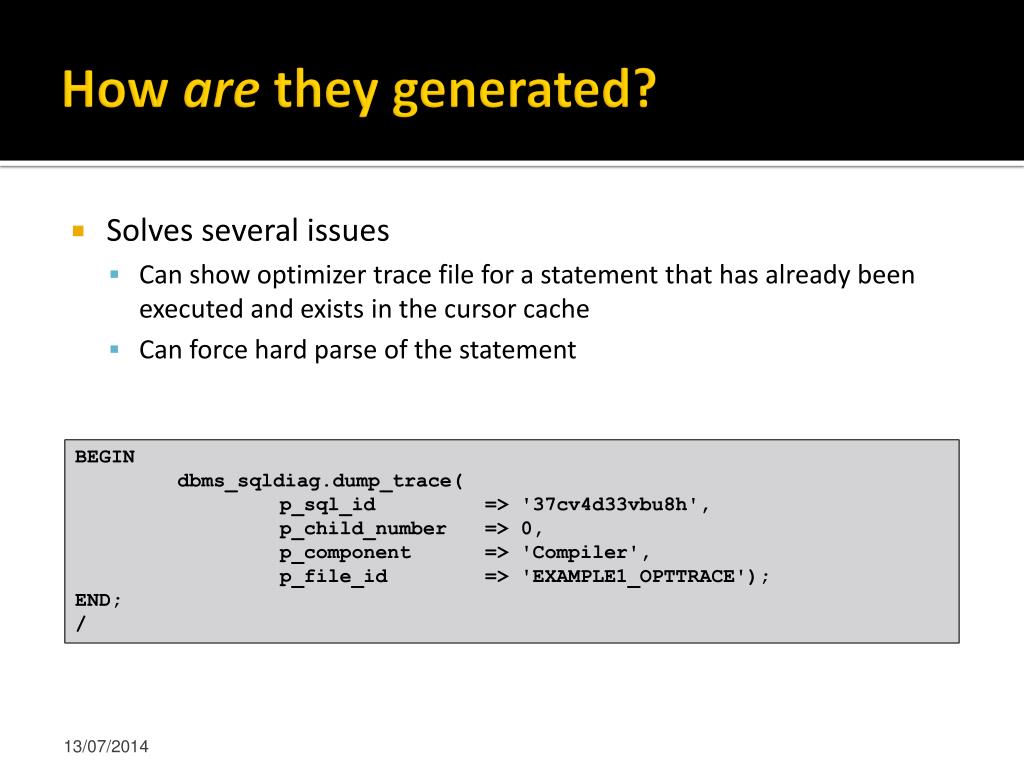

  19. How are they generated? • Solves several issues • Can show optimizer trace file for a statement that has already been executed and exists in the cursor cache • Can force hard parse of the statement BEGIN dbms_sqldiag.dump_trace( p_sql_id => '37cv4d33vbu8h', p_child_number => 0, p_component => 'Compiler', p_file_id => 'EXAMPLE1_OPTTRACE'); END; /

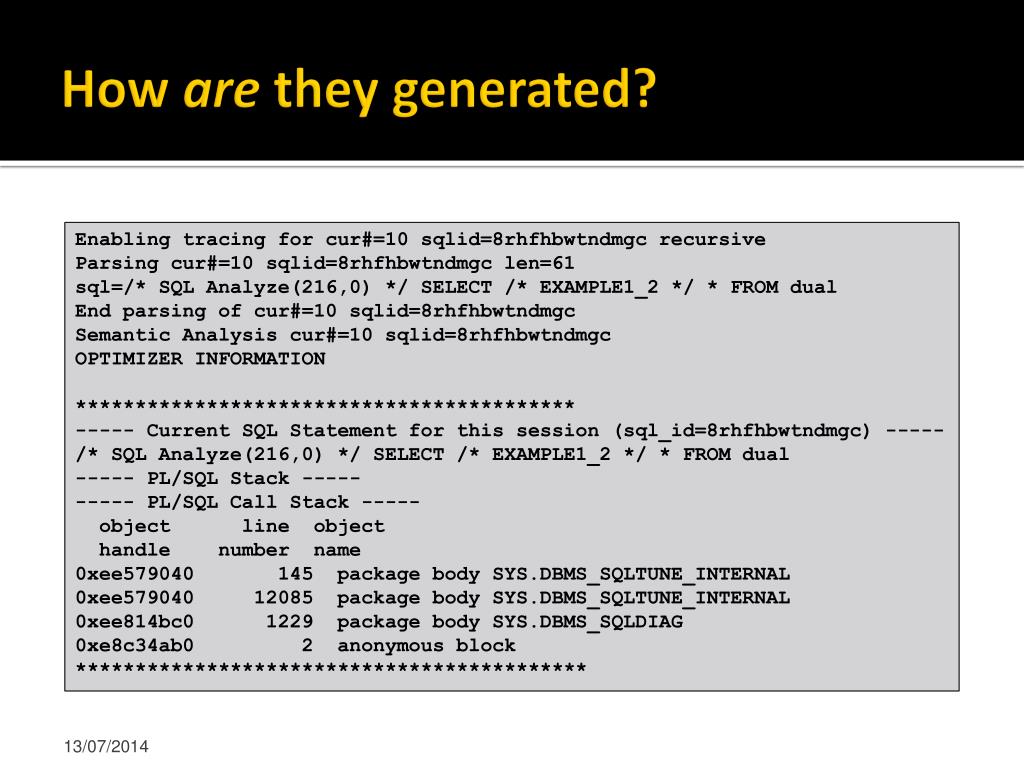

  20. How are they generated? Enabling tracing for cur#=10 sqlid=8rhfhbwtndmgc recursive Parsing cur#=10 sqlid=8rhfhbwtndmgc len=61 sql=/* SQL Analyze(216,0) */ SELECT /* EXAMPLE1_2 */ * FROM dual End parsing of cur#=10 sqlid=8rhfhbwtndmgc Semantic Analysis cur#=10 sqlid=8rhfhbwtndmgc OPTIMIZER INFORMATION ****************************************** ----- Current SQL Statement for this session (sql_id=8rhfhbwtndmgc) ----- /* SQL Analyze(216,0) */ SELECT /* EXAMPLE1_2 */ * FROM dual ----- PL/SQL Stack ----- ----- PL/SQL Call Stack ----- object line object handle number name 0xee579040 145 package body SYS.DBMS_SQLTUNE_INTERNAL 0xee579040 12085 package body SYS.DBMS_SQLTUNE_INTERNAL 0xee814bc0 1229 package body SYS.DBMS_SQLDIAG 0xe8c34ab0 2 anonymous block *******************************************

  21. Why • Introduction • What • How • Why • Structure • Example • Conclusions and References

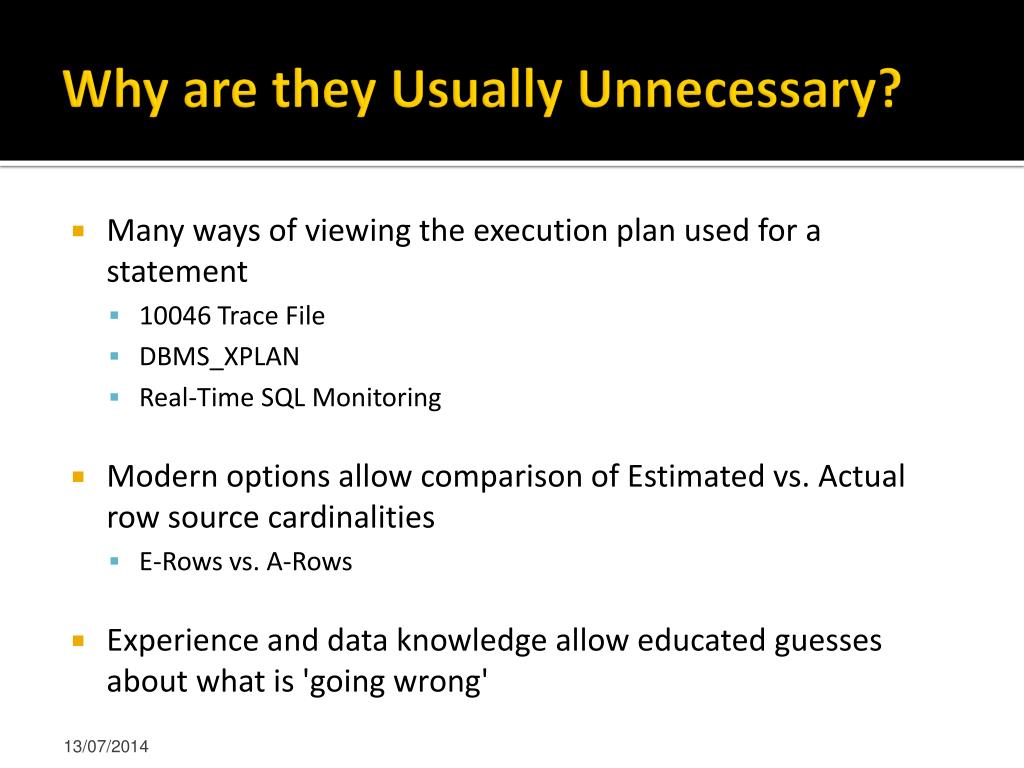

  22. Why are they Usually Unnecessary? • Many ways of viewing the execution plan used for a statement • 10046 Trace File • DBMS_XPLAN • Real-Time SQL Monitoring • Modern options allow comparison of Estimated vs. Actual row source cardinalities • E-Rows vs. A-Rows • Experience and data knowledge allow educated guesses about what is 'going wrong'

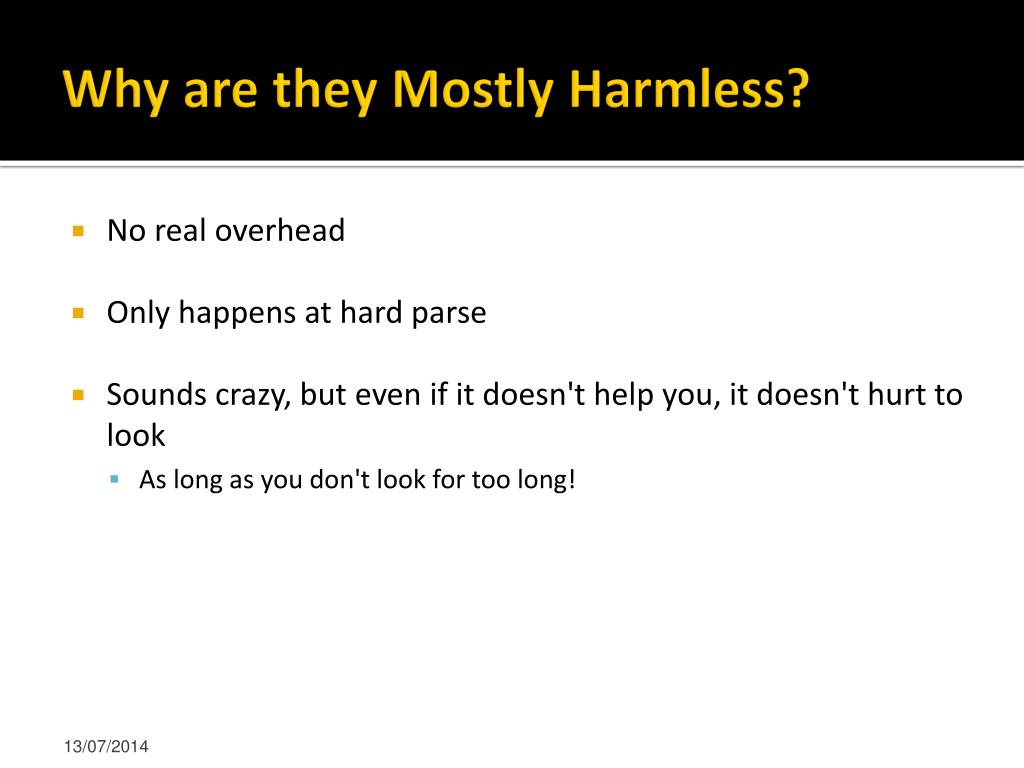

  23. Why are they Mostly Harmless? • No real overhead • Only happens at hard parse • Sounds crazy, but even if it doesn't help you, it doesn't hurt to look • As long as you don't look for too long!

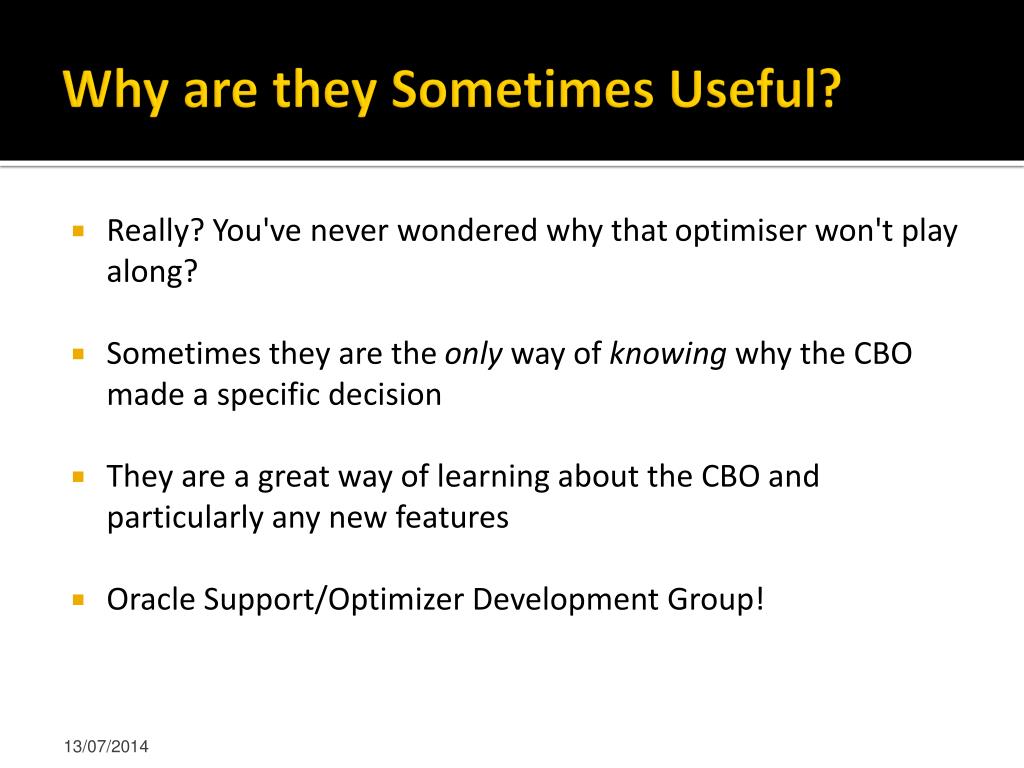

  24. Why are they Sometimes Useful? • Really? You've never wondered why that optimiser won't play along? • Sometimes they are the only way of knowing why the CBO made a specific decision • They are a great way of learning about the CBO and particularly any new features • Oracle Support/Optimizer Development Group!

  25. Structure • Introduction • What • How • Why • Structure • Example • Conclusions and References

  26. SELECT * FROM DUAL; • Standard Trace File Pre-amble • Query Block Assignment • SQL Plan Management • Parallel Query/Auto-DOP • Predicate Move-Around • Optimizer Information • Query Transformations • Peeked Binds • Statistics • Computations – Access Paths and Join Orders • SQL Statement and Execution Plan dump

  27. Pre-amble Trace file /app/ora/local/admin/TEST1102/diag/rdbms/TEST1102_doug/TEST1102/trace/TEST1102_ora_1450_DOUG_TEST2.trc Oracle Database 11g Enterprise Edition Release 11.2.0.2.0 - 64bit Production With the Partitioning, Automatic Storage Management, OLAP, Data Mining and Real Application Testing options ORACLE_HOME = /app/ora/local/product/11.2.0.2/db_4 System name: Linux Node name: doug Release: 2.6.18-194.11.4.el5 Version: #1 SMP Fri Sep 17 04:57:05 EDT 2010 Machine: x86_64 Instance name: TEST1102 Redo thread mounted by this instance: 1 Oracle process number: 52 Unix process pid: 1450, image: oracle@doug *** 2013-03-18 10:59:58.774 *** SESSION ID:(139.79) 2013-03-18 10:59:58.774 *** CLIENT ID:() 2013-03-18 10:59:58.774 *** SERVICE NAME:(SYS$USERS) 2013-03-18 10:59:58.774 *** MODULE NAME:(TOAD 10.6.1.3) 2013-03-18 10:59:58.774 *** ACTION NAME:() 2013-03-18 10:59:58.774

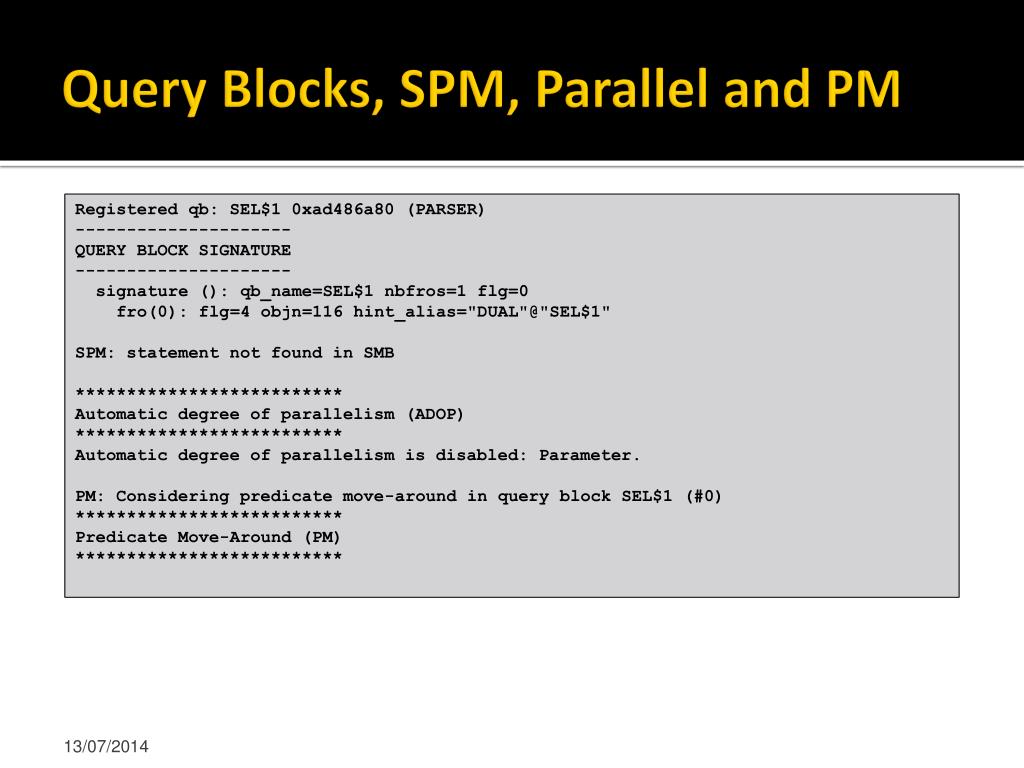

  28. Query Blocks, SPM, Parallel and PM Registered qb: SEL$1 0xad486a80 (PARSER) --------------------- QUERY BLOCK SIGNATURE --------------------- signature (): qb_name=SEL$1 nbfros=1 flg=0 fro(0): flg=4 objn=116 hint_alias="DUAL"@"SEL$1" SPM: statement not found in SMB ************************** Automatic degree of parallelism (ADOP) ************************** Automatic degree of parallelism is disabled: Parameter. PM: Considering predicate move-around in query block SEL$1 (#0) ************************** Predicate Move-Around (PM) **************************

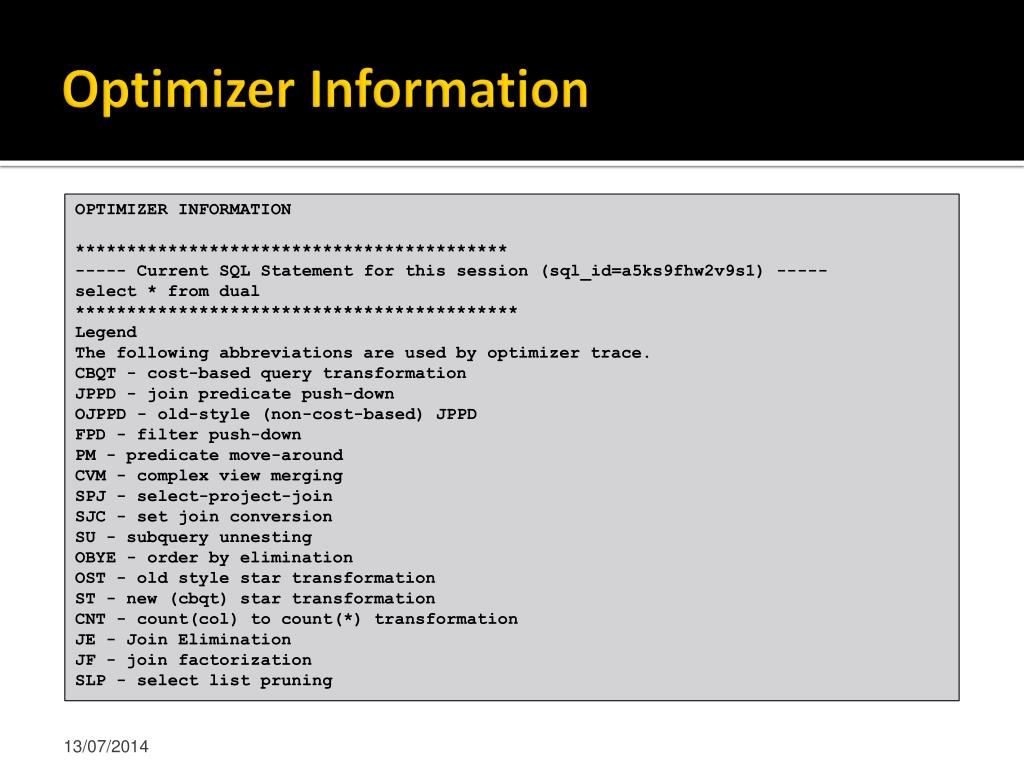

  29. Optimizer Information OPTIMIZER INFORMATION ****************************************** ----- Current SQL Statement for this session (sql_id=a5ks9fhw2v9s1) ----- select * from dual ******************************************* Legend The following abbreviations are used by optimizer trace. CBQT - cost-based query transformation JPPD - join predicate push-down OJPPD - old-style (non-cost-based) JPPD FPD - filter push-down PM - predicate move-around CVM - complex view merging SPJ - select-project-join SJC - set join conversion SU - subqueryunnesting OBYE - order by elimination OST - old style star transformation ST - new (cbqt) star transformation CNT - count(col) to count(*) transformation JE - Join Elimination JF - join factorization SLP - select list pruning

  30. Parameters *************************************** PARAMETERS USED BY THE OPTIMIZER ******************************** ************************************* PARAMETERS WITH ALTERED VALUES ****************************** Compilation Environment Dump _pga_max_size = 2097152 KB ************************************* PARAMETERS WITH DEFAULT VALUES ****************************** Compilation Environment Dump optimizer_mode_hinted = false optimizer_features_hinted = 0.0.0 *************************************** PARAMETERS IN OPT_PARAM HINT **************************** • Oracle 8.1.7 ≈ 50 • Oracle 11.2.0.3 > 300

  31. fix_control Environment • The Optimizer Development group are Busy Bees! • As they introduce fixes, they number them and store information about them in V$SYSTEM_FIX_CONTROL • Can enable/disable … http://tinyurl.com/5r9zrse Bug Fix Control Environment fix 3834770 = 1 fix 3746511 = enabled fix 4519016 = enabled fix 3118776 = enabled fix 4488689 = enabled fix 2194204 = disabled fix 2660592 = enabled

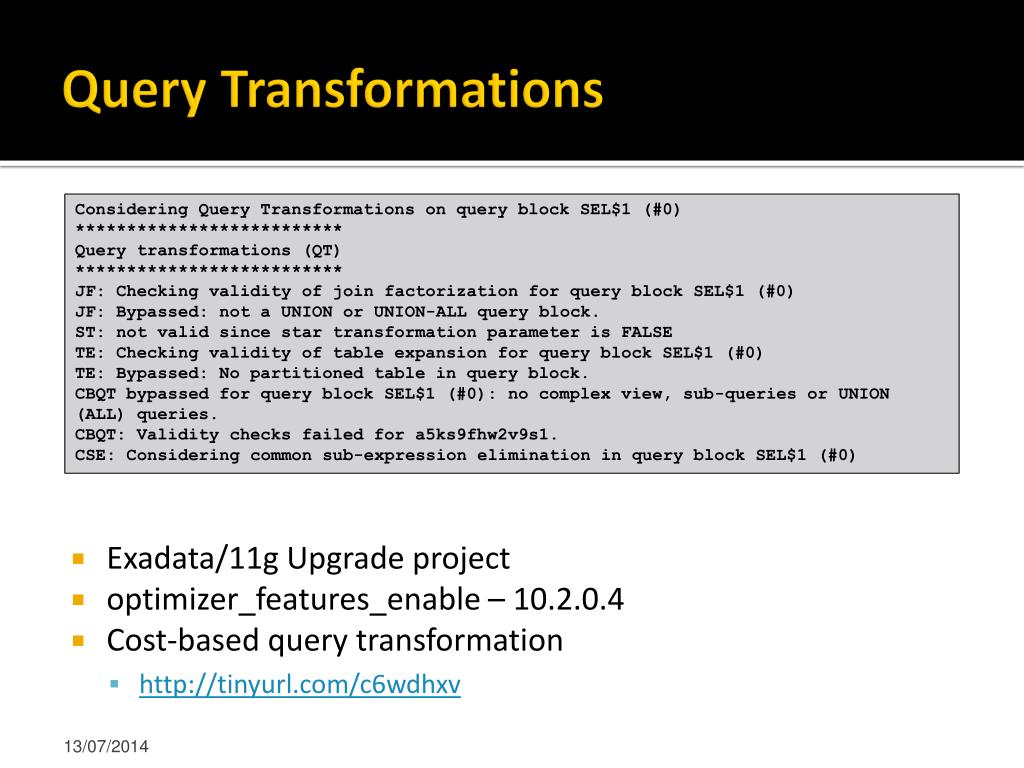

  32. Query Transformations Considering Query Transformations on query block SEL$1 (#0) ************************** Query transformations (QT) ************************** JF: Checking validity of join factorization for query block SEL$1 (#0) JF: Bypassed: not a UNION or UNION-ALL query block. ST: not valid since star transformation parameter is FALSE TE: Checking validity of table expansion for query block SEL$1 (#0) TE: Bypassed: No partitioned table in query block. CBQT bypassed for query block SEL$1 (#0): no complex view, sub-queries or UNION (ALL) queries. CBQT: Validity checks failed for a5ks9fhw2v9s1. CSE: Considering common sub-expression elimination in query block SEL$1 (#0) • Exadata/11g Upgrade project • optimizer_features_enable – 10.2.0.4 • Cost-based query transformation • http://tinyurl.com/c6wdhxv

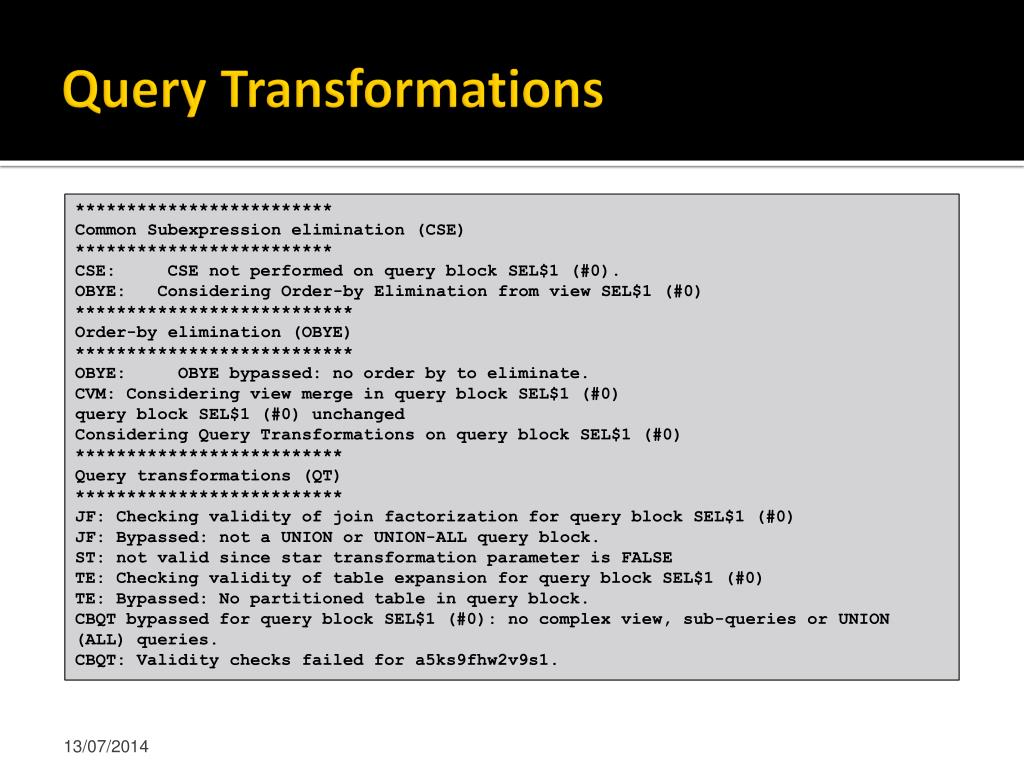

  33. Query Transformations ************************* Common Subexpression elimination (CSE) ************************* CSE: CSE not performed on query block SEL$1 (#0). OBYE: Considering Order-by Elimination from view SEL$1 (#0) *************************** Order-by elimination (OBYE) *************************** OBYE: OBYE bypassed: no order by to eliminate. CVM: Considering view merge in query block SEL$1 (#0) query block SEL$1 (#0) unchanged Considering Query Transformations on query block SEL$1 (#0) ************************** Query transformations (QT) ************************** JF: Checking validity of join factorization for query block SEL$1 (#0) JF: Bypassed: not a UNION or UNION-ALL query block. ST: not valid since star transformation parameter is FALSE TE: Checking validity of table expansion for query block SEL$1 (#0) TE: Bypassed: No partitioned table in query block. CBQT bypassed for query block SEL$1 (#0): no complex view, sub-queries or UNION (ALL) queries. CBQT: Validity checks failed for a5ks9fhw2v9s1.

  34. Statistics SYSTEM STATISTICS INFORMATION ----------------------------- Using NOWORKLOAD Stats CPUSPEEDNW: 1416 millions instructions/sec (default is 100) IOTFRSPEED: 4096 bytes per millisecond (default is 4096) IOSEEKTIM: 10 milliseconds (default is 10) MBRC: -1 blocks (default is 32) *************************************** BASE STATISTICAL INFORMATION *********************** Table Stats:: Table: DUAL Alias: DUAL #Rows: 1 #Blks: 1 AvgRowLen: 2.00 ChainCnt: 0.00 Access path analysis for DUAL *************************************** SINGLE TABLE ACCESS PATH Single Table Cardinality Estimation for DUAL[DUAL] Table: DUAL Alias: DUAL Card: Original: 1.000000 Rounded: 1 Computed: 1.00 Non Adjusted: 1.00 Access Path: TableScan Cost: 2.00 Resp: 2.00 Degree: 0 Cost_io: 2.00 Cost_cpu: 9893 Resp_io: 2.00 Resp_cpu: 9893 Best:: AccessPath: TableScan Cost: 2.00 Degree: 1 Resp: 2.00 Card: 1.00 Bytes: 0

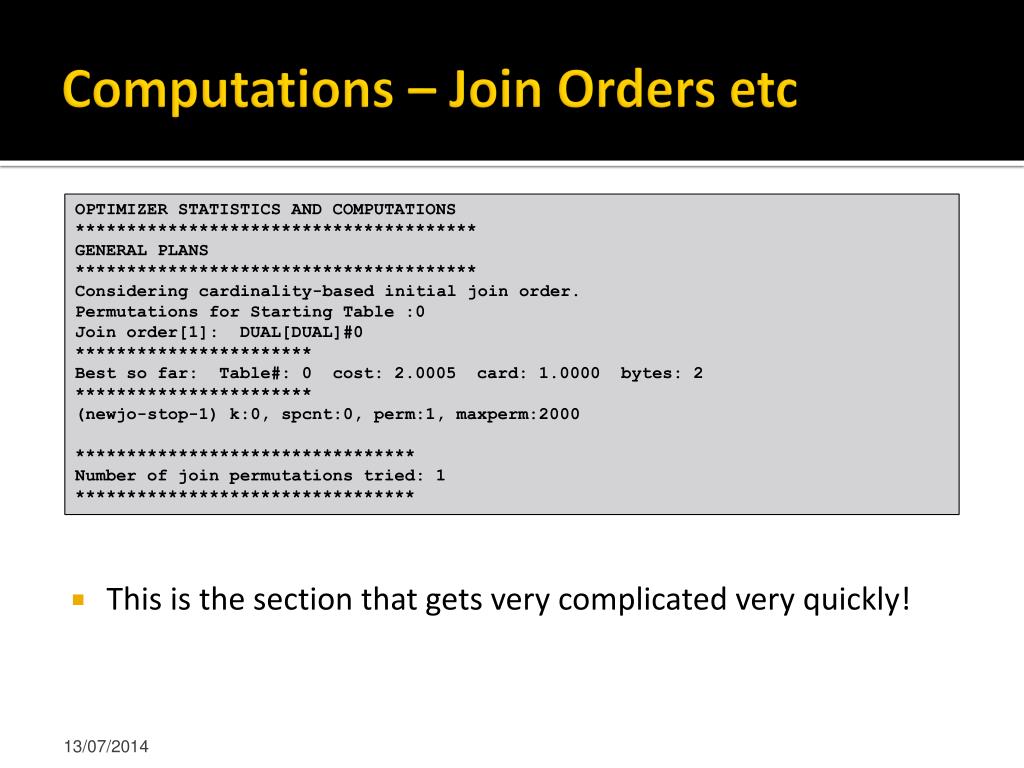

  35. Computations – Join Orders etc OPTIMIZER STATISTICS AND COMPUTATIONS *************************************** GENERAL PLANS *************************************** Considering cardinality-based initial join order. Permutations for Starting Table :0 Join order[1]: DUAL[DUAL]#0 *********************** Best so far: Table#: 0 cost: 2.0005 card: 1.0000 bytes: 2 *********************** (newjo-stop-1) k:0, spcnt:0, perm:1, maxperm:2000 ********************************* Number of join permutations tried: 1 ********************************* • This is the section that gets very complicated very quickly!

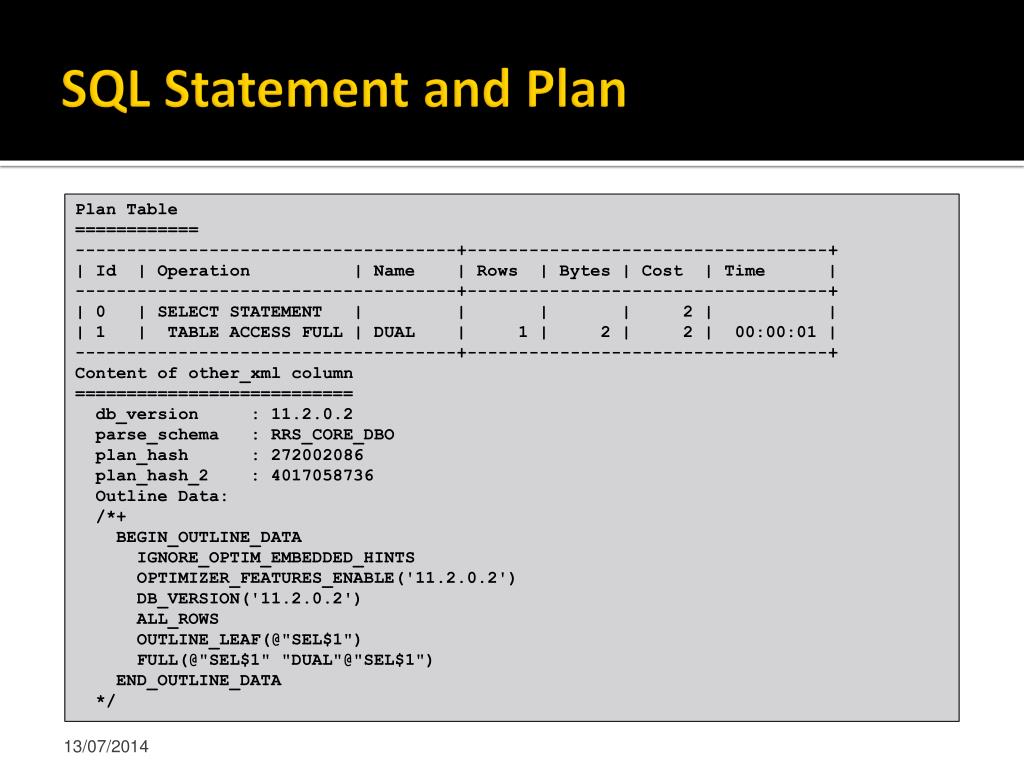

  36. SQL Statement and Plan Plan Table ============ -------------------------------------+-----------------------------------+ | Id | Operation | Name | Rows | Bytes | Cost | Time | -------------------------------------+-----------------------------------+ | 0 | SELECT STATEMENT | | | | 2 | | | 1 | TABLE ACCESS FULL | DUAL | 1 | 2 | 2 | 00:00:01 | -------------------------------------+-----------------------------------+ Content of other_xml column =========================== db_version : 11.2.0.2 parse_schema : RRS_CORE_DBO plan_hash : 272002086 plan_hash_2 : 4017058736 Outline Data: /*+ BEGIN_OUTLINE_DATA IGNORE_OPTIM_EMBEDDED_HINTS OPTIMIZER_FEATURES_ENABLE('11.2.0.2') DB_VERSION('11.2.0.2') ALL_ROWS OUTLINE_LEAF(@"SEL$1") FULL(@"SEL$1" "DUAL"@"SEL$1") END_OUTLINE_DATA */

  37. Example • Introduction • What • How • Why • Structure • Example • Conclusions and References

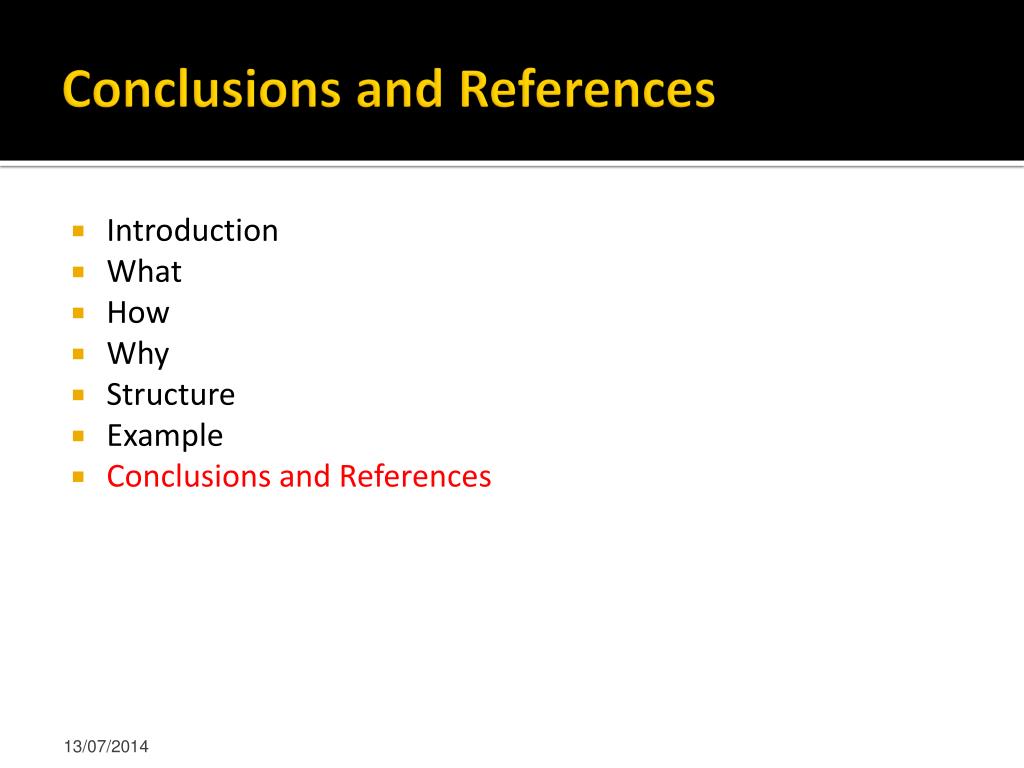

  38. Conclusions and References • Introduction • What • How • Why • Structure • Example • Conclusions and References

  39. Conclusions • Many ways of viewing the execution plan used for a statement • All show you the numbers that the CBO is using and the resulting plan • Some show you the real numbers • Only a optimizer trace file can truly show you why there is a discrepancy • Sometimes ;-)

  40. References • Cost Based Oracle Fundamentals - Appendix • Jonathan Lewis http://tinyurl.com/bxxl6 • Under the hood of the CBO • Wolfgang Breitling http://tinyurl.com/bxxl6 • Using new 11g tracing infrastructure to generate files • Optimizer Development Group (Maria Colgan) http://tinyurl.com/brcryvaand http://tinyurl.com/cr5kz8t • Greg Rahn http://tinyurl.com/bupmehx

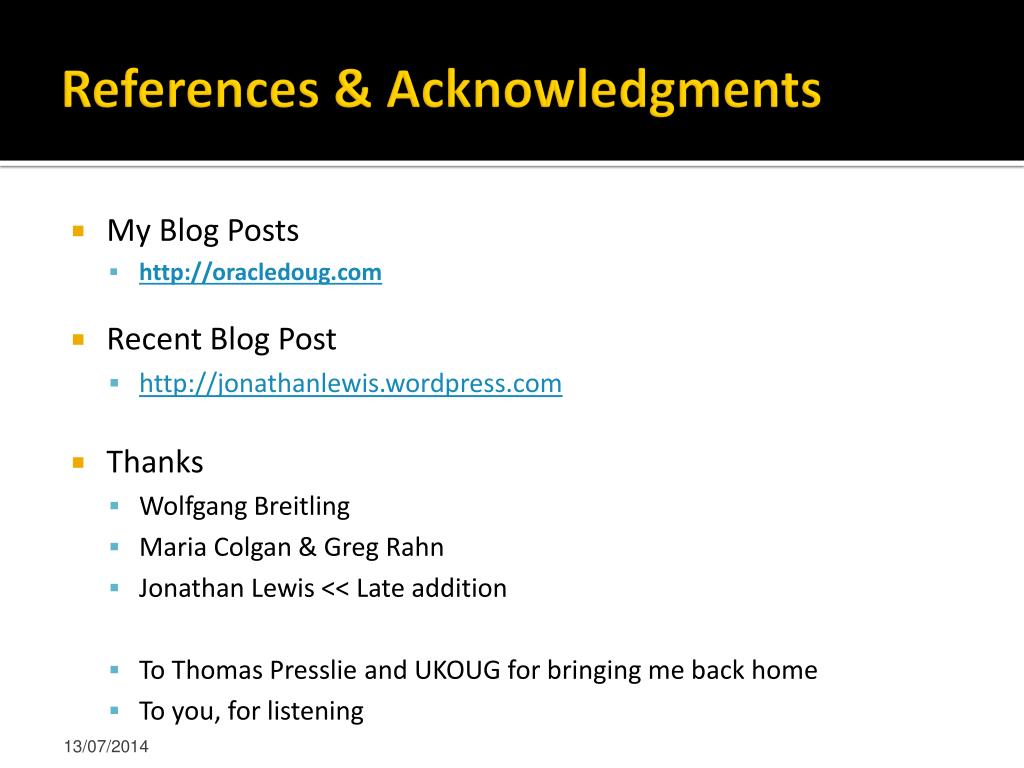

  41. References & Acknowledgments • My Blog Posts • http://oracledoug.com • Recent Blog Post • http://jonathanlewis.wordpress.com • Thanks • Wolfgang Breitling • Maria Colgan & Greg Rahn • Jonathan Lewis << Late addition • To Thomas Presslie and UKOUG for bringing me back home • To you, for listening

  42. Doug Burns dougburns@yahoo.com http://oracledoug.com @orcldoug #oug_scot Optimizer Trace Files(Mostly Harmless)
