  1. Oregon Joint Use Violation Examples Stump The Panel

  2. Question 1

  3. Question 2

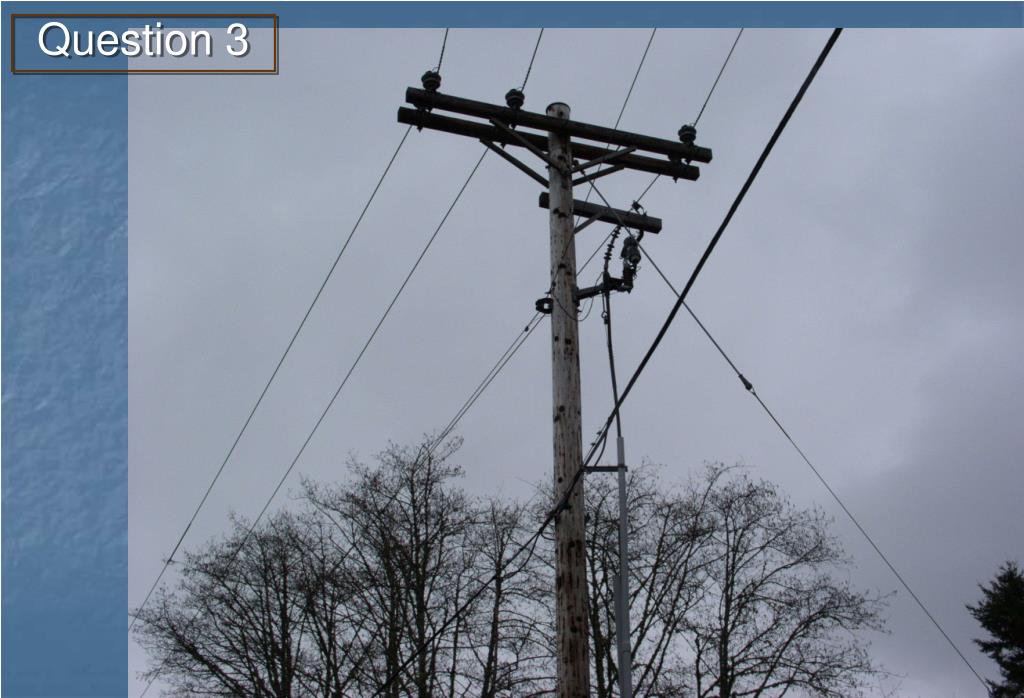

  4. Question 3

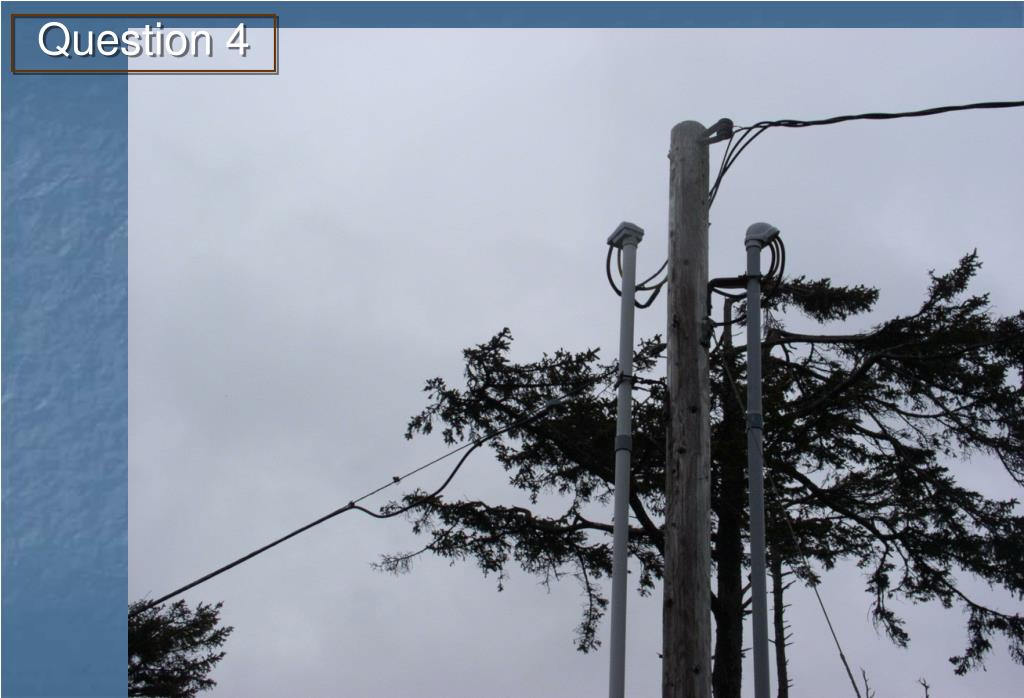

  5. Question 4

  6. Question 5

  7. Question 6

  8. Question 7

  9. Question 8

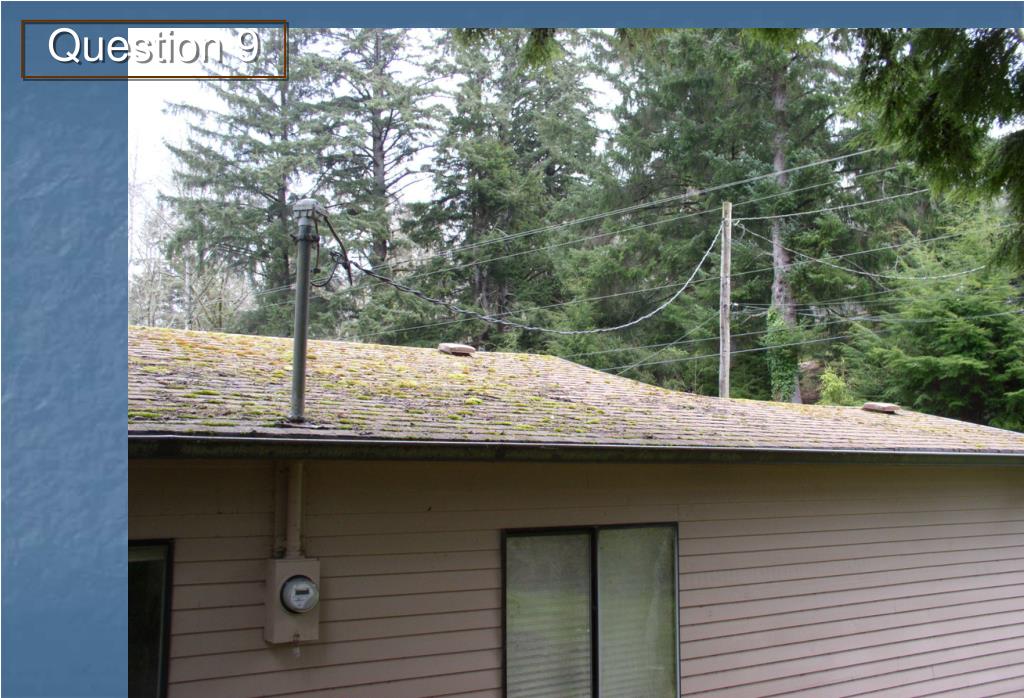

  10. Question 9

  11. Question 10

  12. Question 1 Answer Obstruction on pole creates climbing hazard. 217A4

  13. Question 2 Answer “Boxed” pole creates climbing hazard. 213, 236, 237, 238

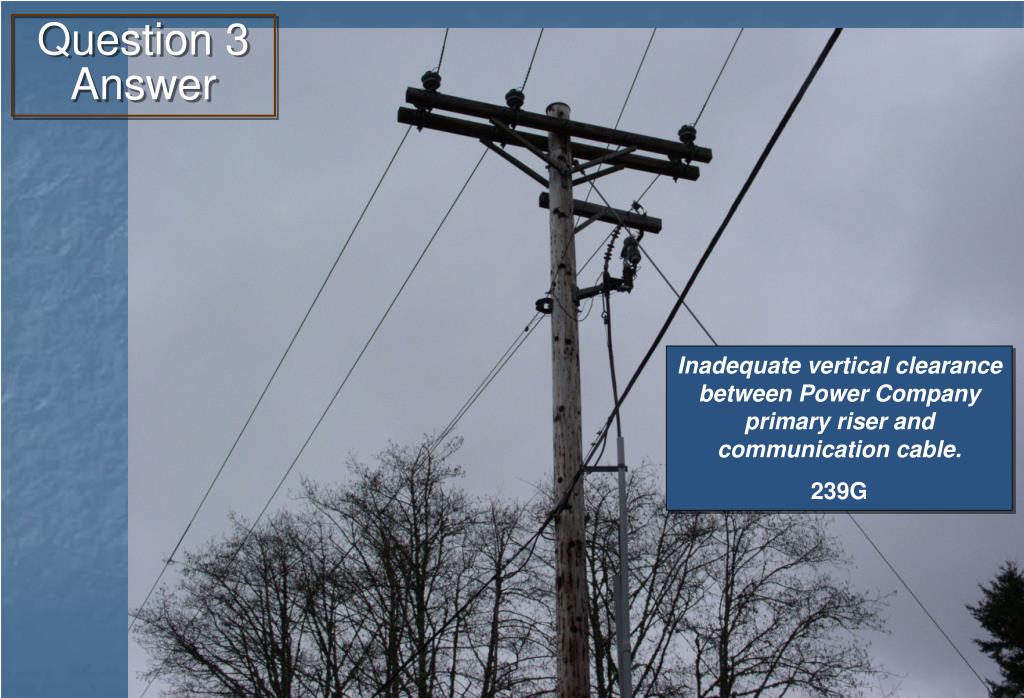

  14. Question 3 Answer Inadequate vertical clearance between Power Company primary riser and communication cable. 239G

  15. Question 4 Answer Inadequate vertical clearance between power supply conductor and communication cable. Deteriorated pole hardware, standoff bracket rusted and broken.. 235C1, 214A

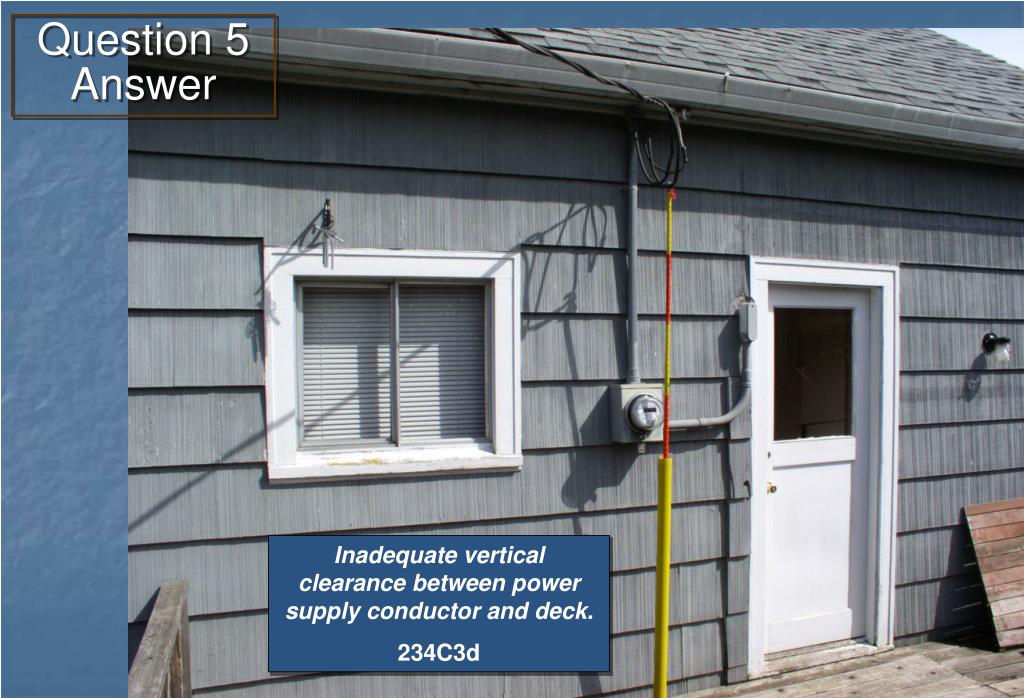

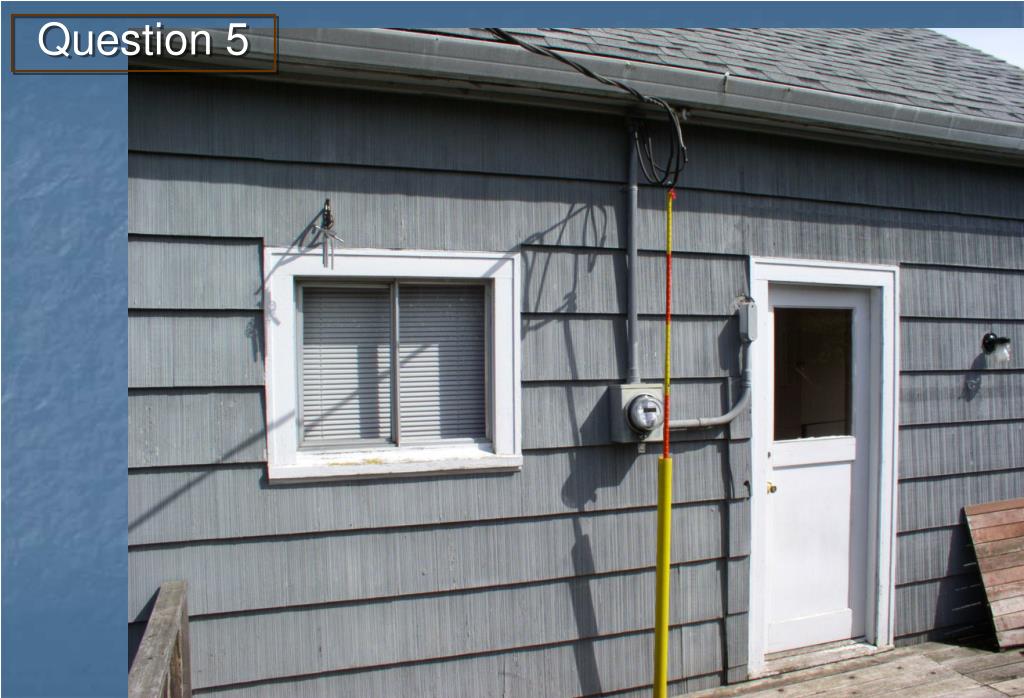

  16. Question 5 Answer Inadequate vertical clearance between power supply conductor and deck. 234C3d

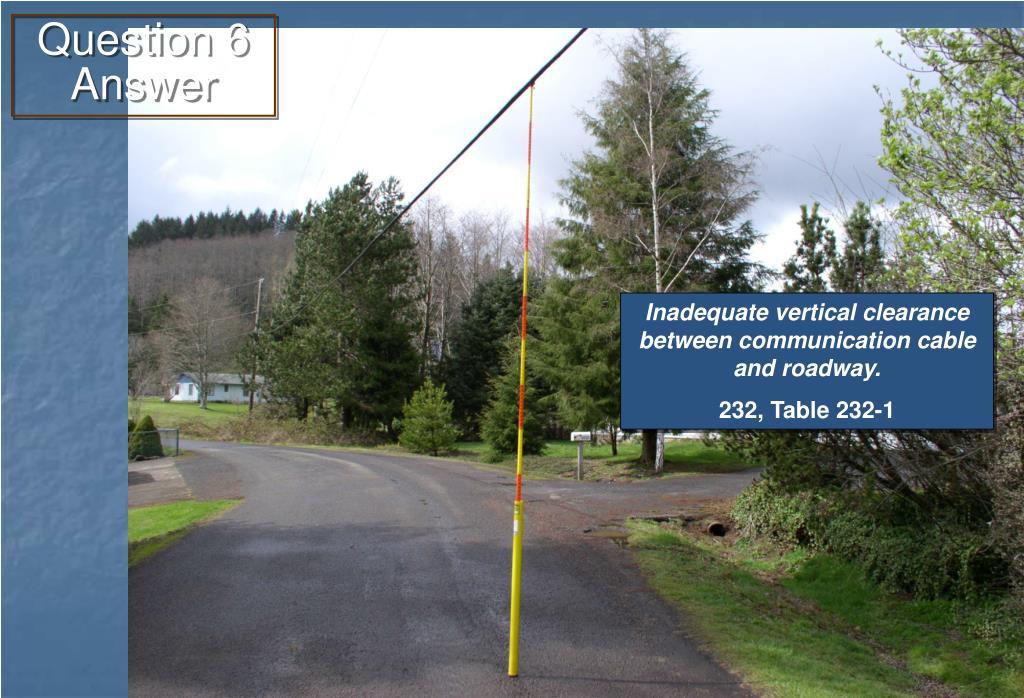

  17. Question 6 Answer Inadequate vertical clearance between communication cable and roadway. 232, Table 232-1

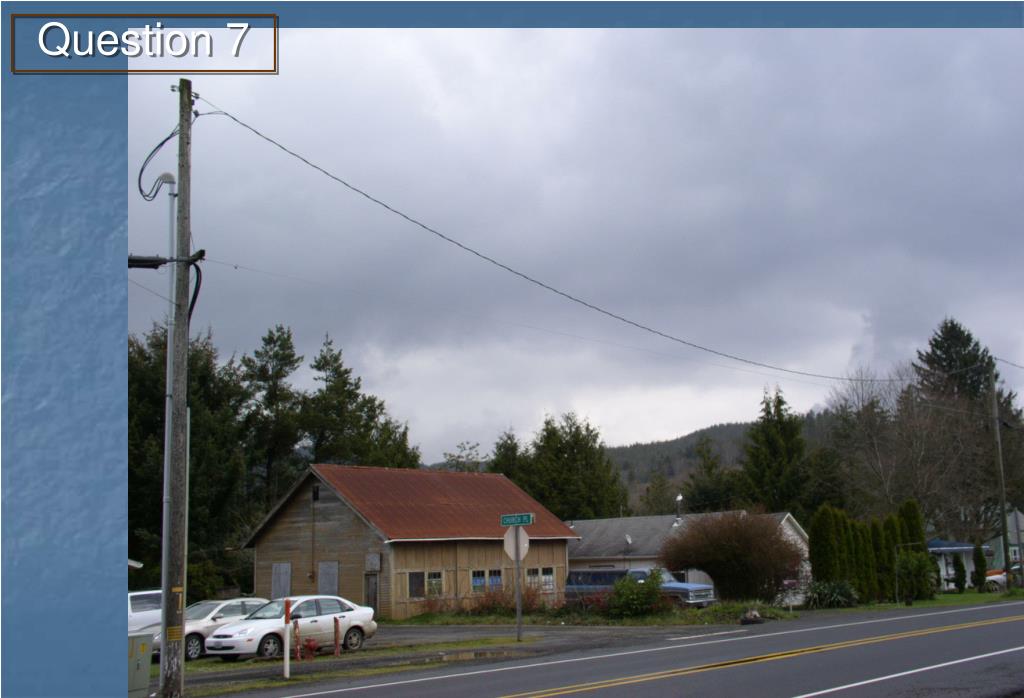

  18. Question 7 Answer Inadequate mid-span clearance between power supply conductor and communication cable. 235C2b(1)a

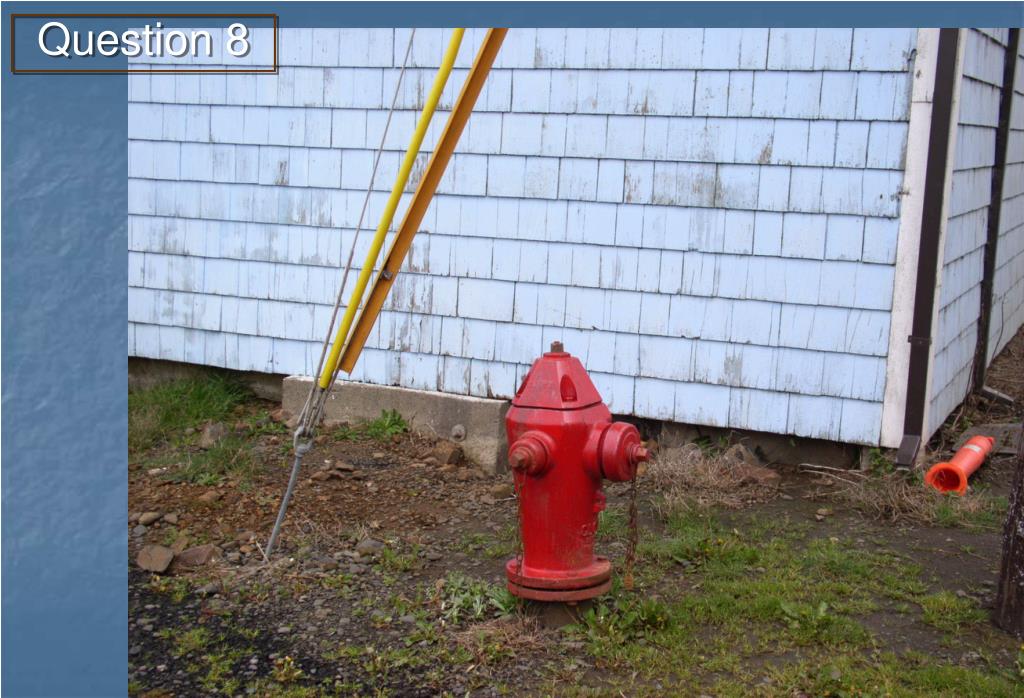

  19. Question 8 Answer Fire hydrant has inadequate horizontal clearance from anchor guy. Down guy in pedestrian area does not have substantial and conspicuous marker. 231A, 217C

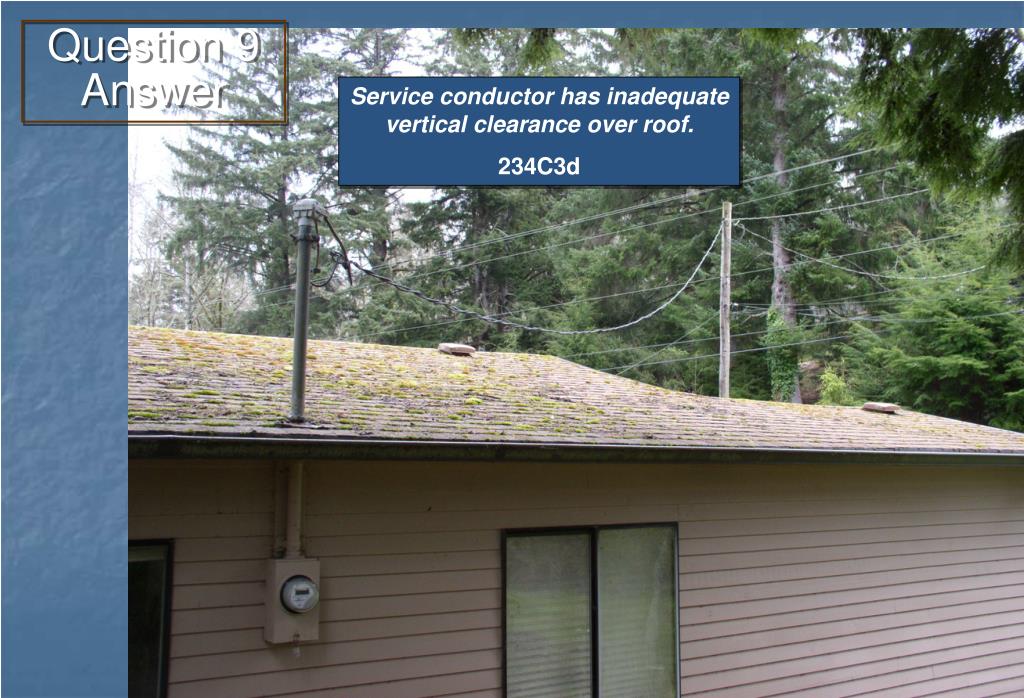

  20. Question 9 Answer Service conductor has inadequate vertical clearance over roof. 234C3d

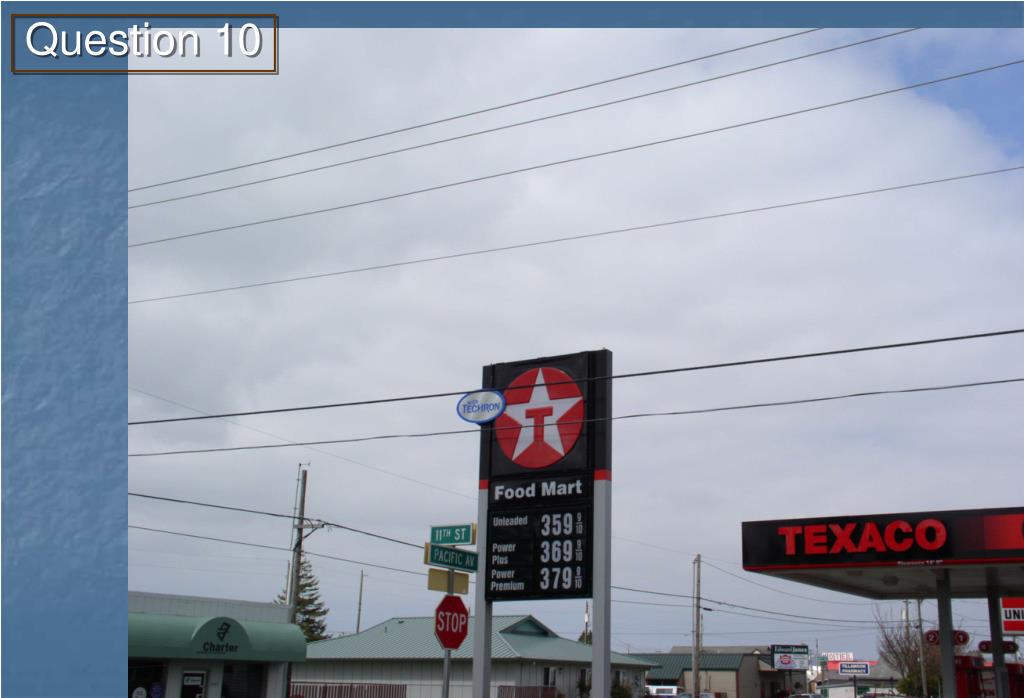

  21. Question 10 Answer Sign has inadequate horizontal clearance from communications cables at mid-span. 234C, Figure 234-1(b), Table 234-1
