Glenair Backshells: Outstanding Performance and Availability

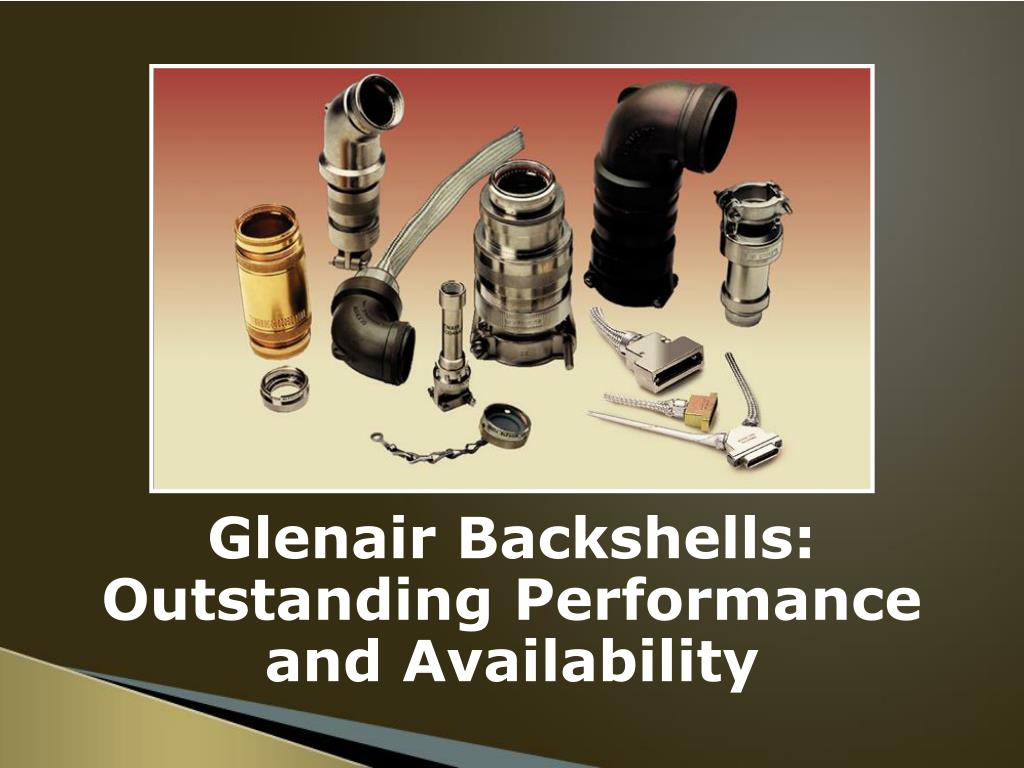

1. Glenair Backshells: Outstanding Performance and Availability

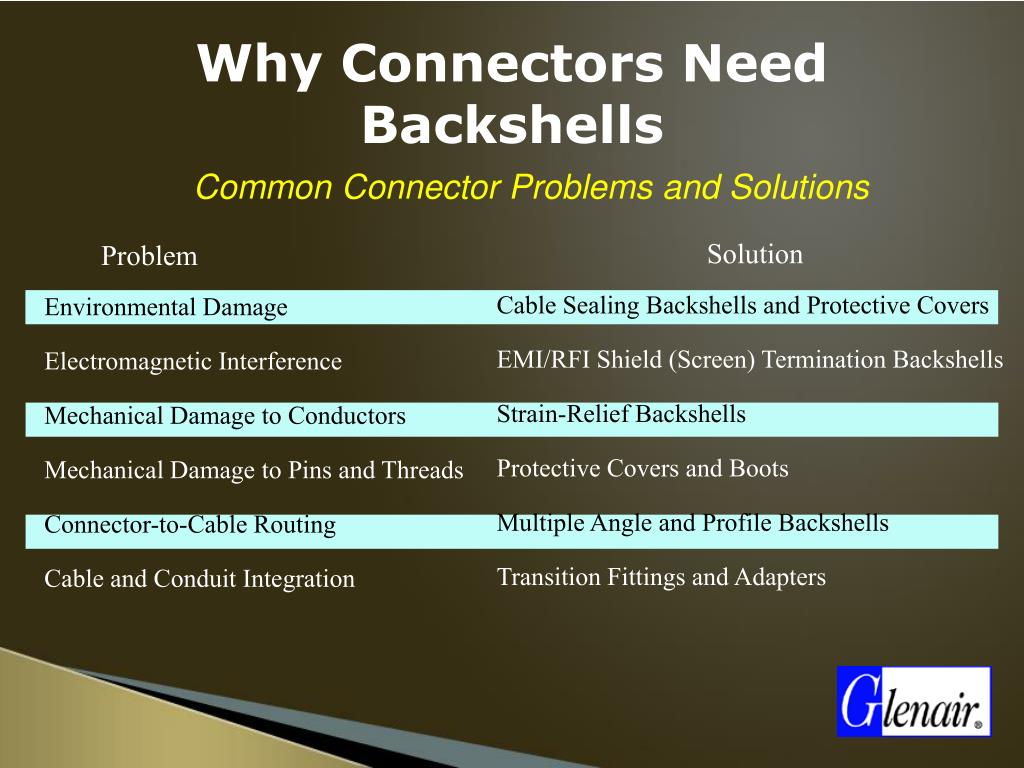

2. Why Connectors Need Backshells • Common Connector Problems and Solutions Solution Cable Sealing Backshells and Protective Covers EMI/RFI Shield (Screen) Termination Backshells Strain-Relief Backshells Protective Covers and Boots Multiple Angle and Profile Backshells Transition Fittings and Adapters Problem Environmental Damage Electromagnetic Interference Mechanical Damage to Conductors Mechanical Damage to Pins and Threads Connector-to-Cable Routing Cable and Conduit Integration

3. Glenair Backshell Product Lines • Backshells and Accessories for Every Application • Glenair Circular Connector Backshells and Accessories • Mil-Spec Backshells and Connector Accessories • Rectangular Connector Backshells • Composite Thermoplastic Connector Accessories • Backshell Assembly Tools, Banding Tools and Accessories

4. Specifying Mil-Spec Backshells • AS85049, M24758, M28840, M38999 • and Other Military Specifications • NO GAPS: Glenair has every QPL with most slash sheets in stock • Use Wall Chart for Scratch Selection • Use Part Number Index to Match Part Number and Catalog Page • Use Military Part Number Reference Guide to Cross Mil-Spec Numbers to Glenair Commercial Series Parts • Internet: QwikCreate Part Number Builder and NSN Cross Reference

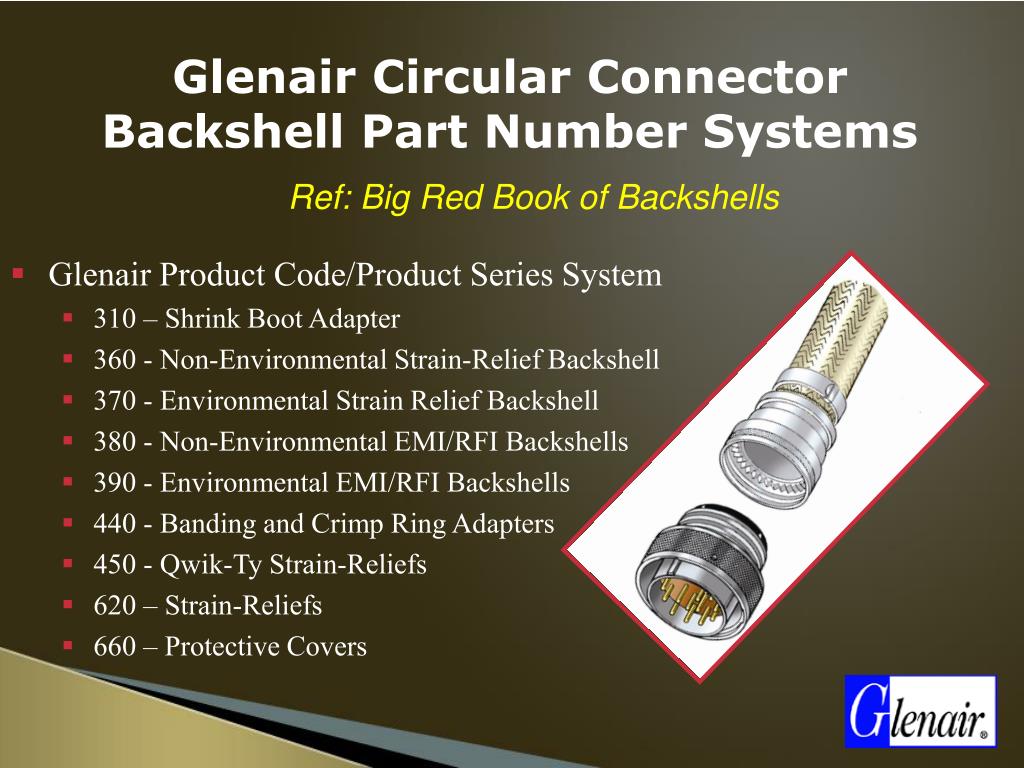

5. Glenair Circular Connector Backshell Part Number Systems • Ref: Big Red Book of Backshells • Glenair Product Code/Product Series System • 310 – Shrink Boot Adapter • 360 - Non-Environmental Strain-Relief Backshell • 370 - Environmental Strain Relief Backshell • 380 - Non-Environmental EMI/RFI Backshells • 390 - Environmental EMI/RFI Backshells • 440 - Banding and Crimp Ring Adapters • 450 - Qwik-Ty Strain-Reliefs • 620 – Strain-Reliefs • 660 – Protective Covers

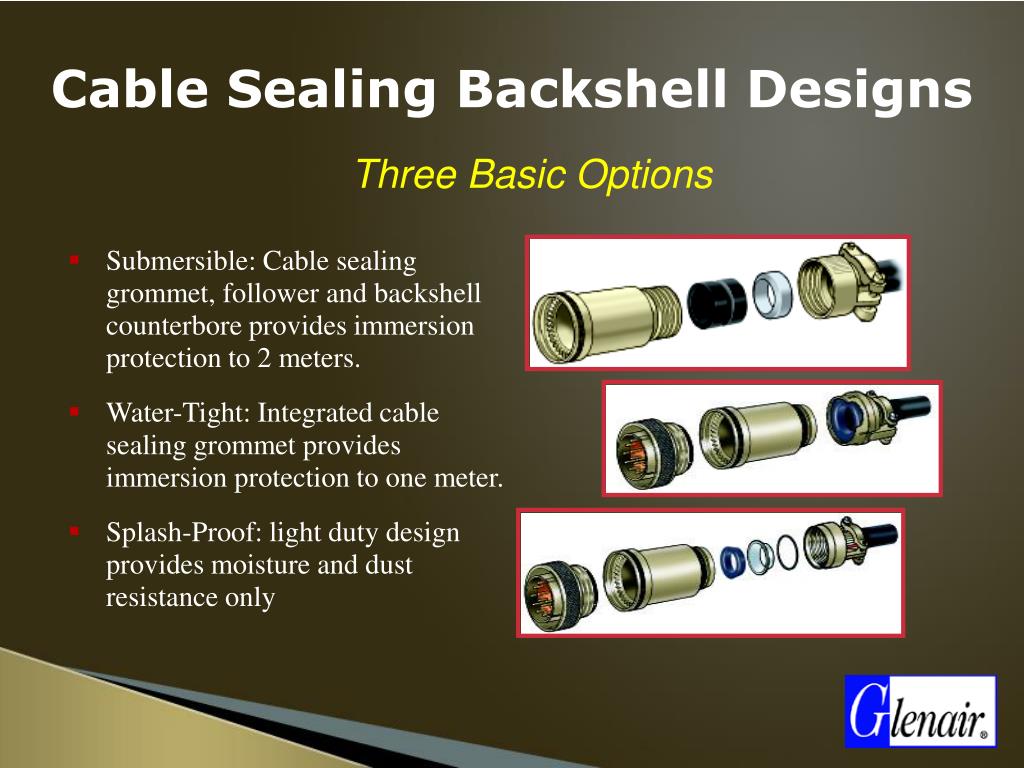

6. Cable Sealing Backshell Designs • Three Basic Options • Submersible: Cable sealing grommet, follower and backshell counterbore provides immersion protection to 2 meters. • Water-Tight: Integrated cable sealing grommet provides immersion protection to one meter. • Splash-Proof: light duty design provides moisture and dust resistance only

7. EMI/RFI Backshell Designs • Glenair Supports Every Industry-Standard Design • Single and Multiple Conical Rings • Crimp Rings • Banding Terminations • Castellated or Splined Rings • Lampbase Thread Rings • Radial Compression Springs • Integrated Shield Socks • Magnaforming • Tinel Lock-Rings

8. Band-it Shield Termination System • Fast and reliable RFI/EMI/EMP shield termination • No welding, soldering, crimping or magna-forming required - fully field repairable shield terminations • Fast, highly reliable terminations virtually eliminate EMI leakage and pass severe shock, vibration and thermal tests • “One size fits all” tool and band design provides unmatched flexibility • In stock and ready for same-day shipment

9. Cable Strain-Relief Designs • Matching the Technology to the Application • Straight and Angled Designs • Light, Medium and Heavy-Duty Saddle Bars • Qwik-Tys • QwikClamps • Others

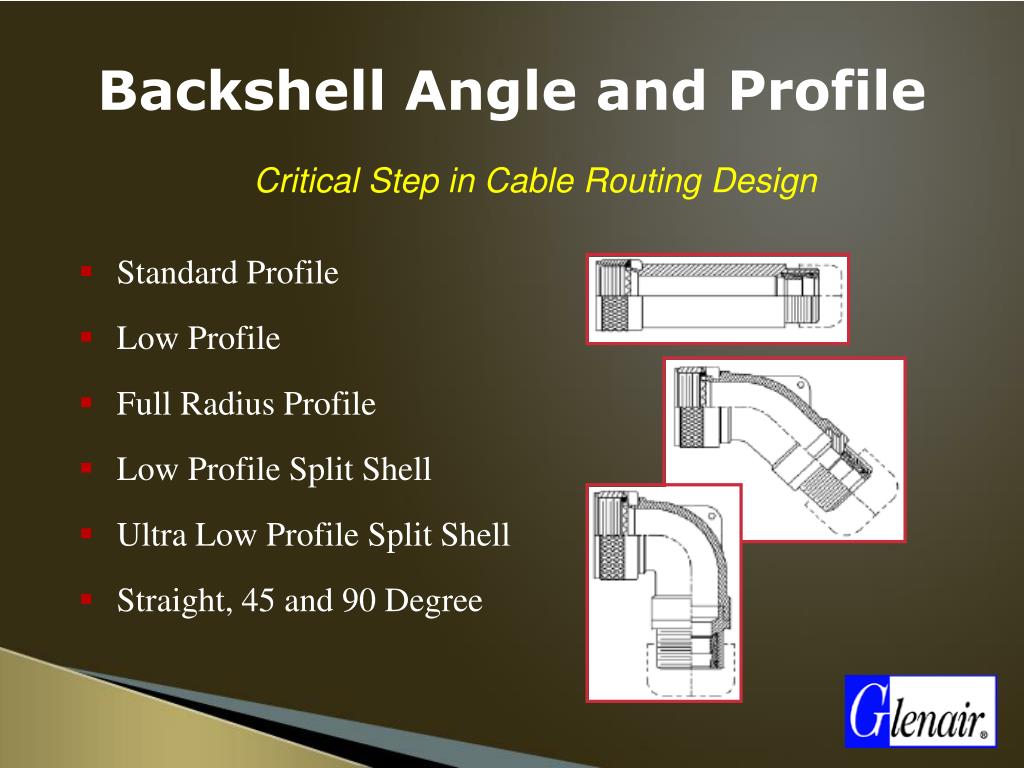

10. Backshell Angle and Profile • Critical Step in Cable Routing Design • Standard Profile • Low Profile • Full Radius Profile • Low Profile Split Shell • Ultra Low Profile Split Shell • Straight, 45 and 90 Degree

11. Backshell-to-Connector Coupling • Five Basic Designs • Direct Coupling • Rotatable Coupling • Self-Locking Rotatable Coupling • Positive-Lock (NESTOR) Non-Detent Coupling • Composite “G-Load” Coupling

12. Rectangular Backshells • Complete Backshell Support for All Rectangular Connector Families • MIL-C-24308 • MIL-C-81659 Configuration • MIL-C-83733 • ARINC Series 600 • MIL-DTL-83513 • Cannon Series 400 • MIL-C-83527/A • All the Rest

13. Composite Thermoplastic Designs • For advanced weight savings to corrosion protection • Weight savings: 40% over aluminum • Corrosion protection: unlimited • Inherent shock and vibration dampening • Reduced magnetic and acoustic signatures (stealth) • Cadmium free • Flame resistant, chemical resistant and high-temperature tolerant • Dimensionally stable • Accepts plating for EMI/RFI protection

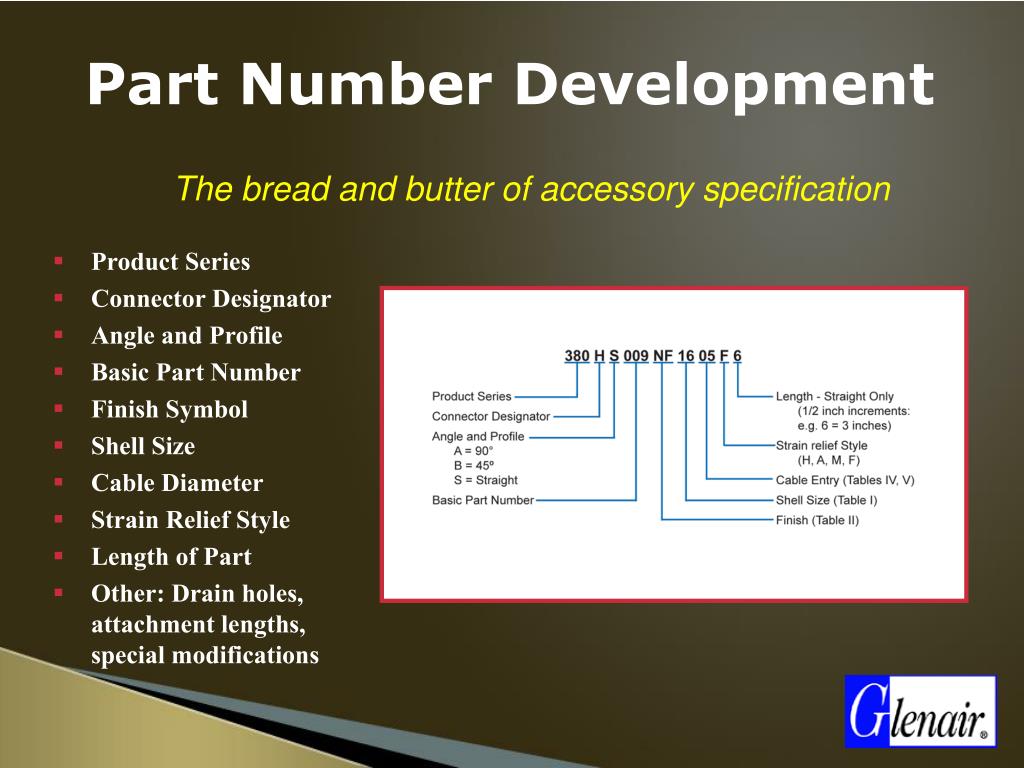

14. Part Number Development • The bread and butter of accessory specification • Product Series • Connector Designator • Angle and Profile • Basic Part Number • Finish Symbol • Shell Size • Cable Diameter • Strain Relief Style • Length of Part • Other: Drain holes, attachment lengths, special modifications

15. QwikCreate • Internet-Based Automated Part Number Development • Build or analyze part numbers via a simple menu interface • Generate printable document with all relevant dimensional data • Link to catalog page for additional information • Automatically select for Style 2 cable entry • Link to on-line order entry

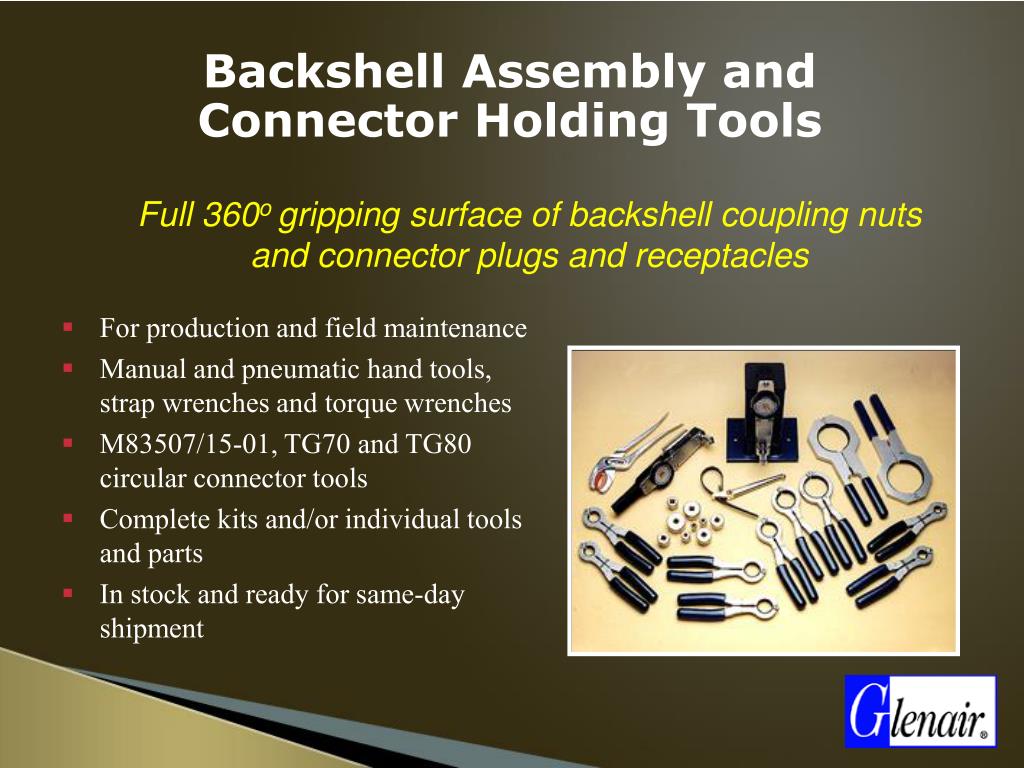

16. Backshell Assembly and Connector Holding Tools • Full 360o gripping surface of backshell coupling nuts and connector plugs and receptacles • For production and field maintenance • Manual and pneumatic hand tools, strap wrenches and torque wrenches • M83507/15-01, TG70 and TG80 circular connector tools • Complete kits and/or individual tools and parts • In stock and ready for same-day shipment

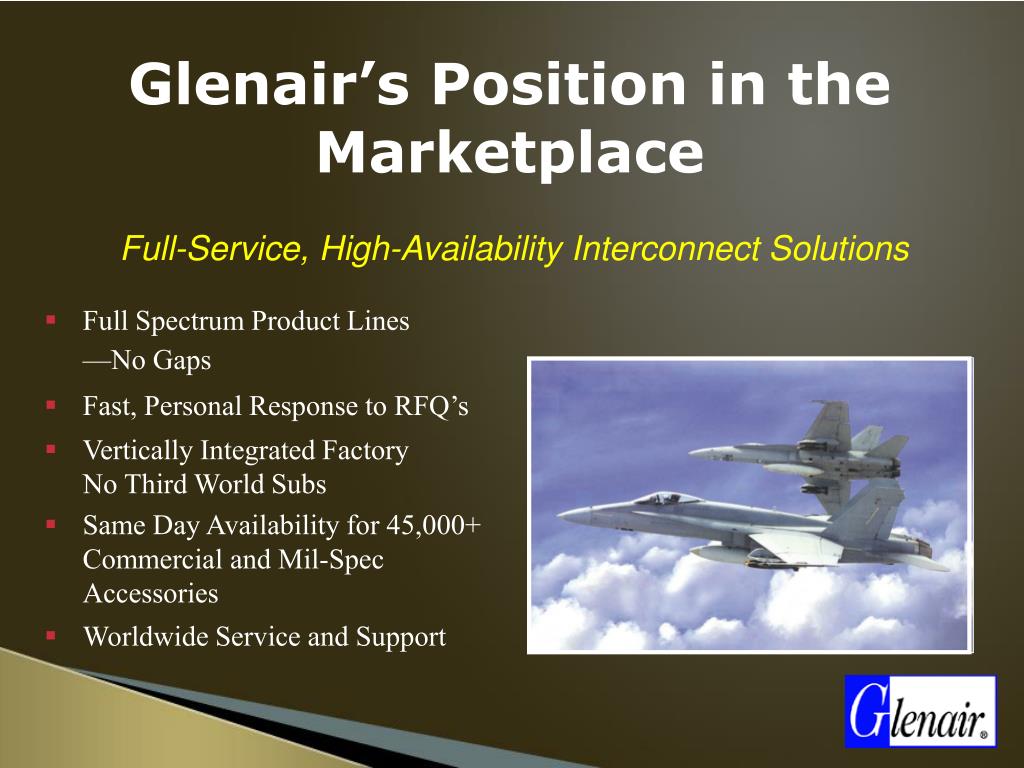

17. Glenair’s Position in the Marketplace • Full-Service, High-Availability Interconnect Solutions • Full Spectrum Product Lines —No Gaps • Fast, Personal Response to RFQ’s • Vertically Integrated Factory No Third World Subs • Same Day Availability for 45,000+ Commercial and Mil-Spec Accessories • Worldwide Service and Support
