  1. Normal distribution And standard deviation

  2. Normal Distributions • Normally distributed data is described by giving • the mean (the middle value) and • the standard deviation (sd) or measure of spread • The graph fits a bell-shaped curve with • most measurements near the middle and • a few extreme values above or below the mean

  3. mean 1 sd 1 sd 2 sd 2 sd 3 sd 3 sd 450 600 750 1050 1200 1350 900 Example • The lifetime of a light bulb is normally distributed, with mean 900 hours, and standard deviation 150 hours.

  4. Proportions • 68% of the data lies within 1 standard deviation (either side) of the mean. • It is likely or probable that the data will be in this region. 1 sd 68%

  5. Proportions • 95% of the data lies within 2 standard deviations (either side) of the mean. • It is very likely or very probable that the data will be in this region. 2 sd 95%

  6. Proportions • 99% of the data lies within 3 standard deviations (either side) of the mean. • It is almost certain that the data will be in this region. 99% 3 sd

  7. 13.5% 13.5% 2% 0.5% 2% 0.5% 34% 34% 1 sd = 68% 2 sd = 95% 3 sd = 99% The probability of all possible events add to 100% or 1 • You can divide the normally distributed curve into sections

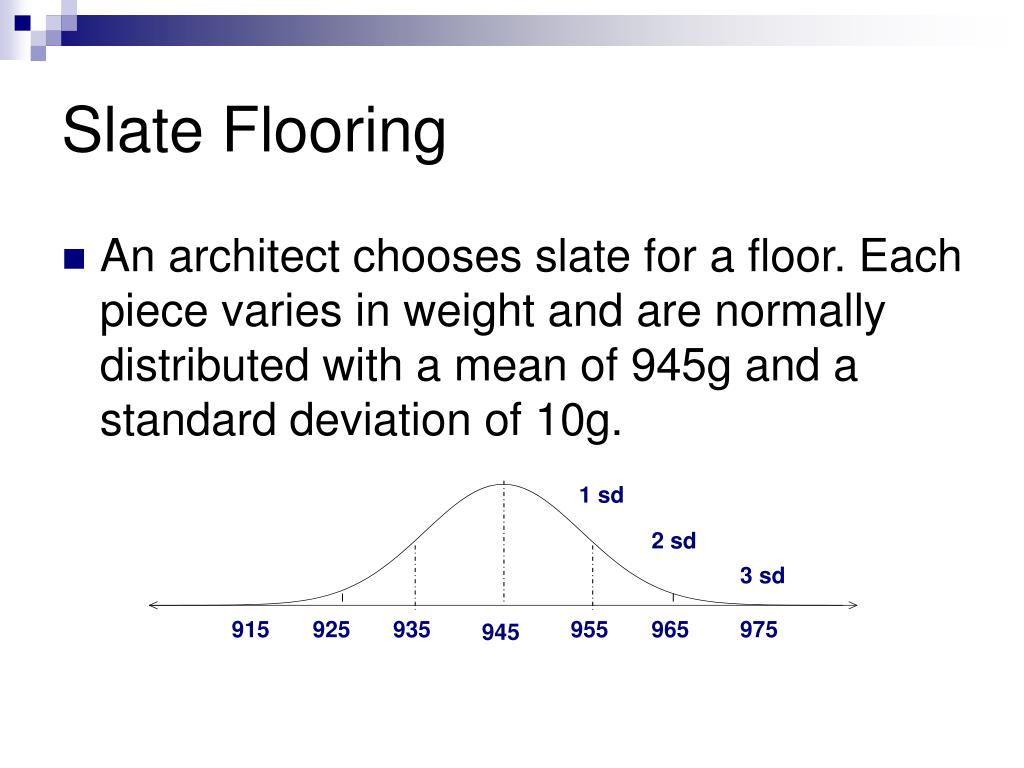

  8. 1 sd 2 sd 3 sd 915 925 935 955 965 975 945 Slate Flooring • An architect chooses slate for a floor. Each piece varies in weight and are normally distributed with a mean of 945g and a standard deviation of 10g.

  9. 2 sd from the mean 2 sd 2 sd a. What percentage of pieces weigh between 925g and 965g? • How far from the mean are 925 and 965? This corresponds to 95% probability 915 925 935 955 965 975 945

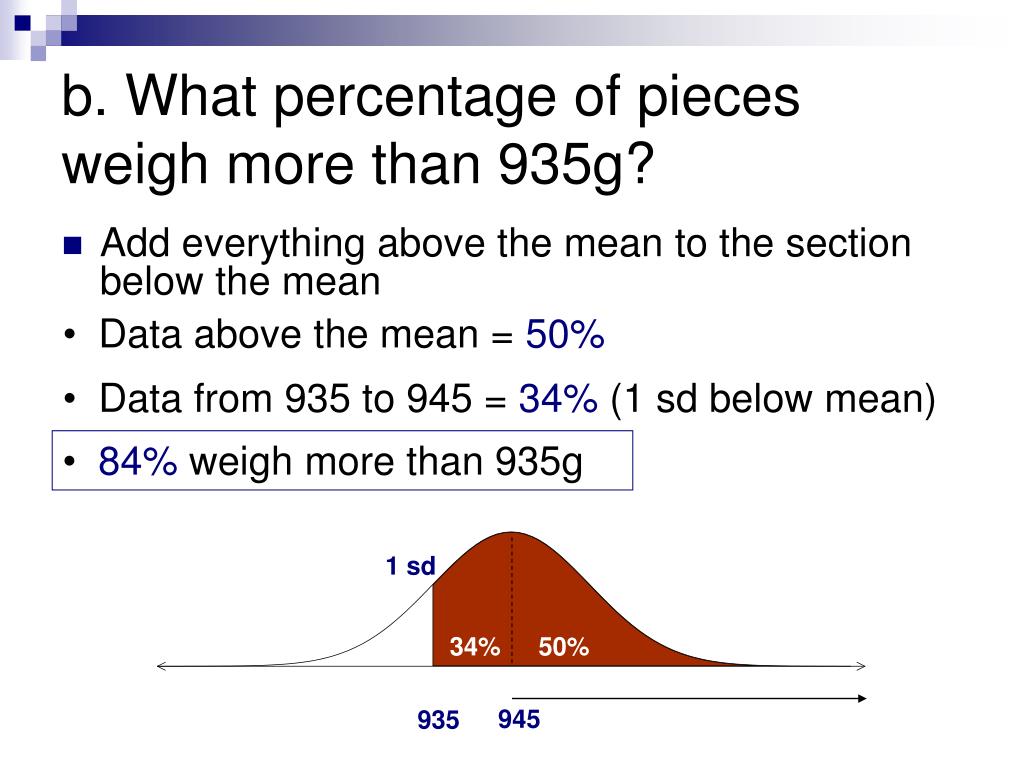

  10. Data above the mean = 50% • Data from 935 to 945 = 34% (1 sd below mean) 1 sd 34% 50% b. What percentage of pieces weigh more than 935g? • Add everything above the mean to the section below the mean • 84% weigh more than 935g 945 935

  11. 915 925 935 955 965 975 945 c. Below what weight will a piece of slate almost certainly be? • ‘Almost certainly’ corresponds to what sd? 3 sd Below 975g 1 sd 2 sd 3 sd

  12. 2 sd below mean 50% - 34% - 13.5% = 2.5% less than 925g 2 sd 50% 34% 13.5% d. 400 pieces of slate are ordered for the floor. Estimate how many will weigh less than 925g • Where is 925g situated on the curve? 2.5% x 400 10 pieces 915 925 935 945 955 965 975
