  1. Chapter 7 Cell Structure and Function

  2. Section 7-1 The History of the Cell Theory and Microscopes

  3. Historical View of the Cell Theory • As science improves, so do improvements in scientific instruments, and improved scientific instruments lead to new discoveries.

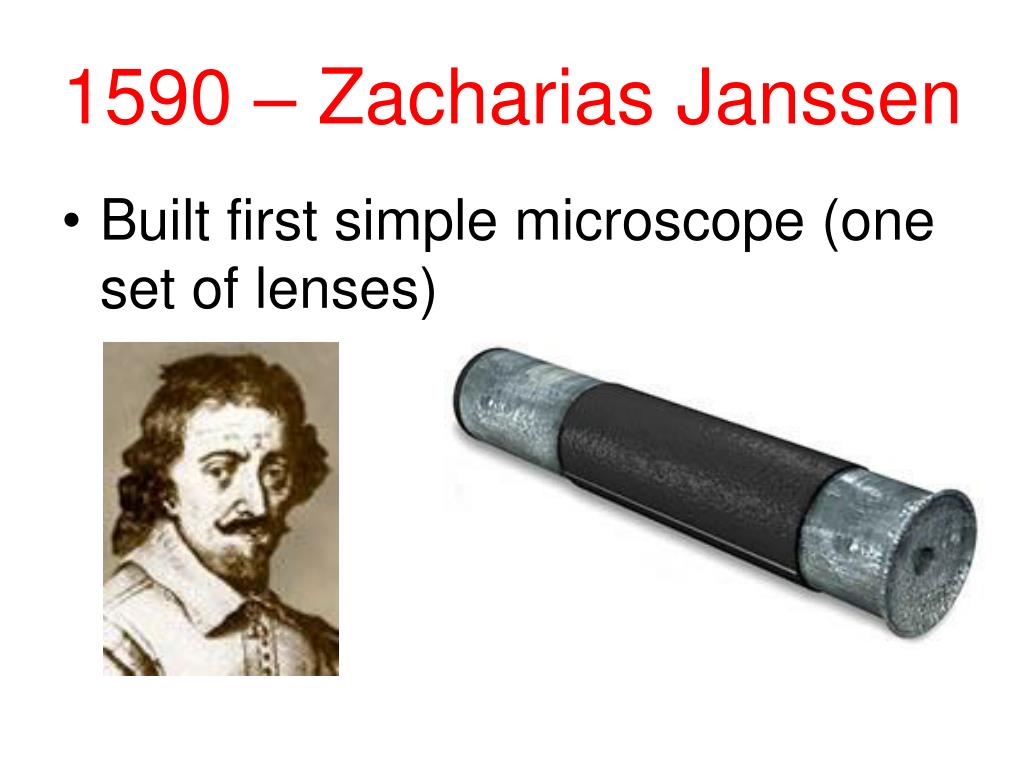

  4. 1590 – Zacharias Janssen • Built first simple microscope (one set of lenses)

  5. 1670’s Anton Van Leeuwenhoek • Made improvements • 270x magnification • Saw bacteria, protozoa, sperm cells, red blood cells and yeast cells

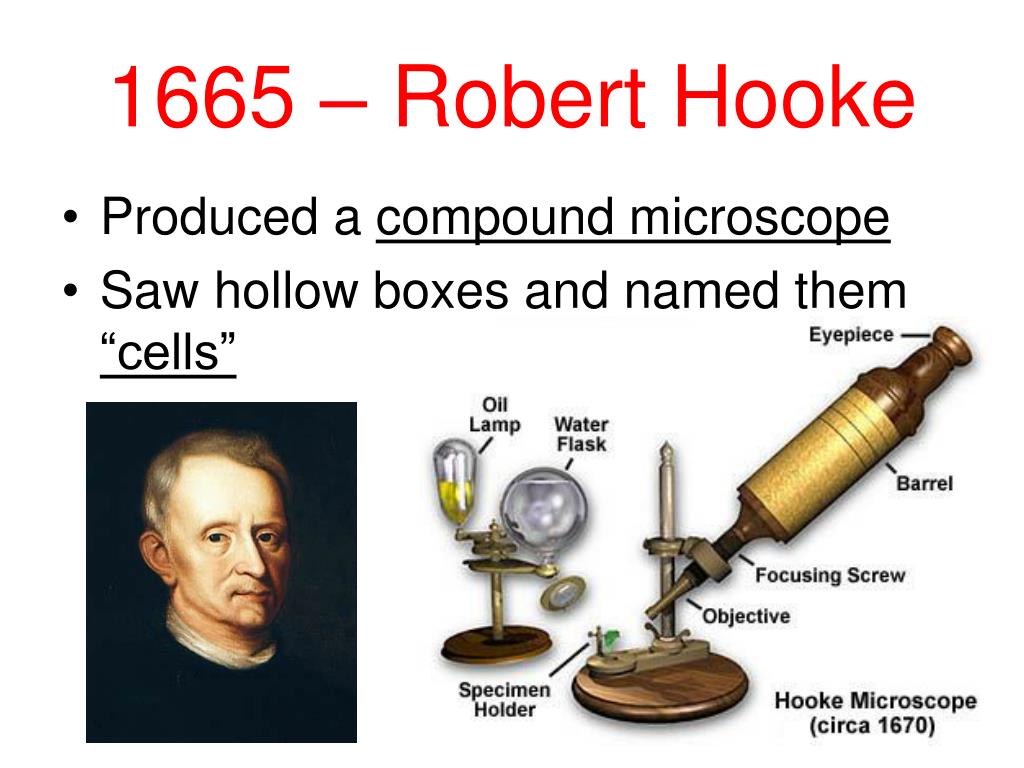

  6. 1665 – Robert Hooke • Produced a compound microscope • Saw hollow boxes and named them “cells”

  7. 1665 – Robert Hooke

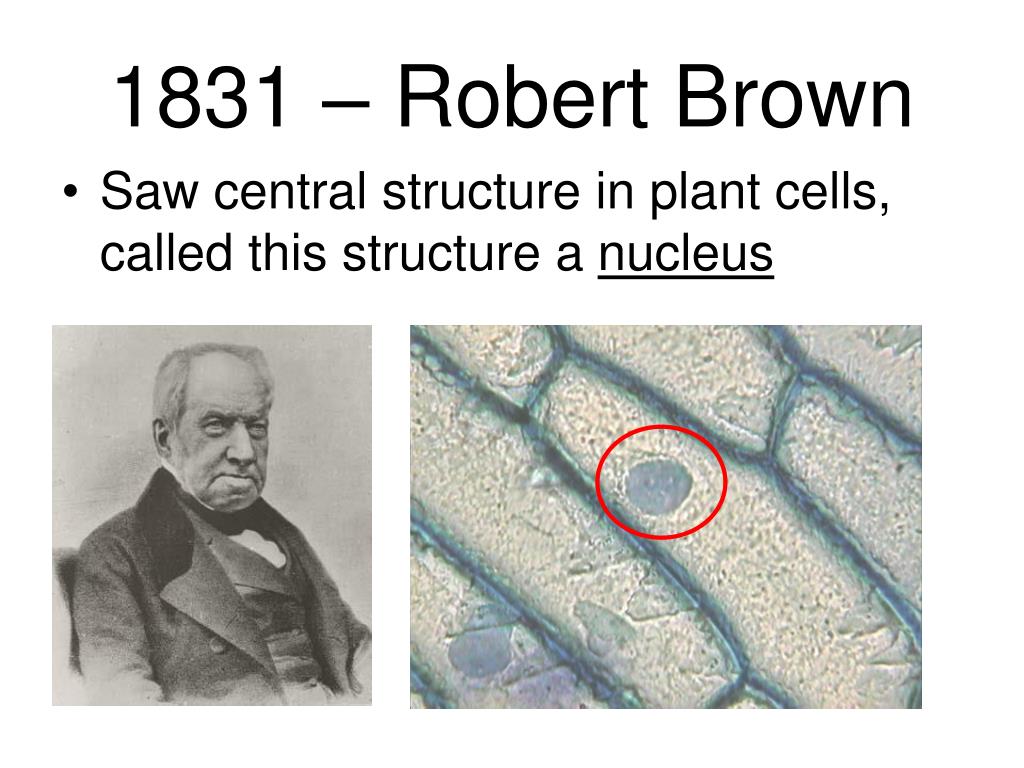

  8. 1831 – Robert Brown • Saw central structure in plant cells, called this structure a nucleus

  9. 1838 – Theodore Schwann • Concluded that all animals are made of cells

  10. 1838 – Matthias Schleiden • Concluded that all plants are made of cells

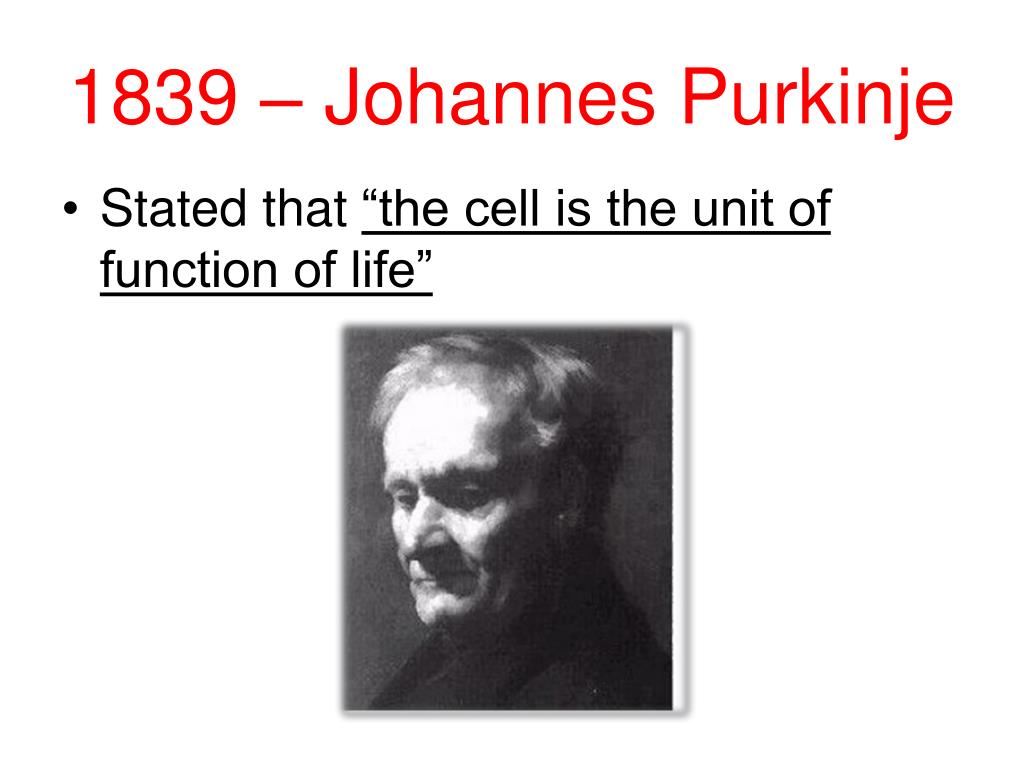

  11. 1839 – Johannes Purkinje • Stated that “the cell is the unit of function of life”

  12. 1858 – Rudolf Virchow • Concluded that “ cells come only from previously existing cells”

  13. The Cell Theory • All living things are composed of cells • Cells are the basic units of structure and function • New cells are produced from existing cells

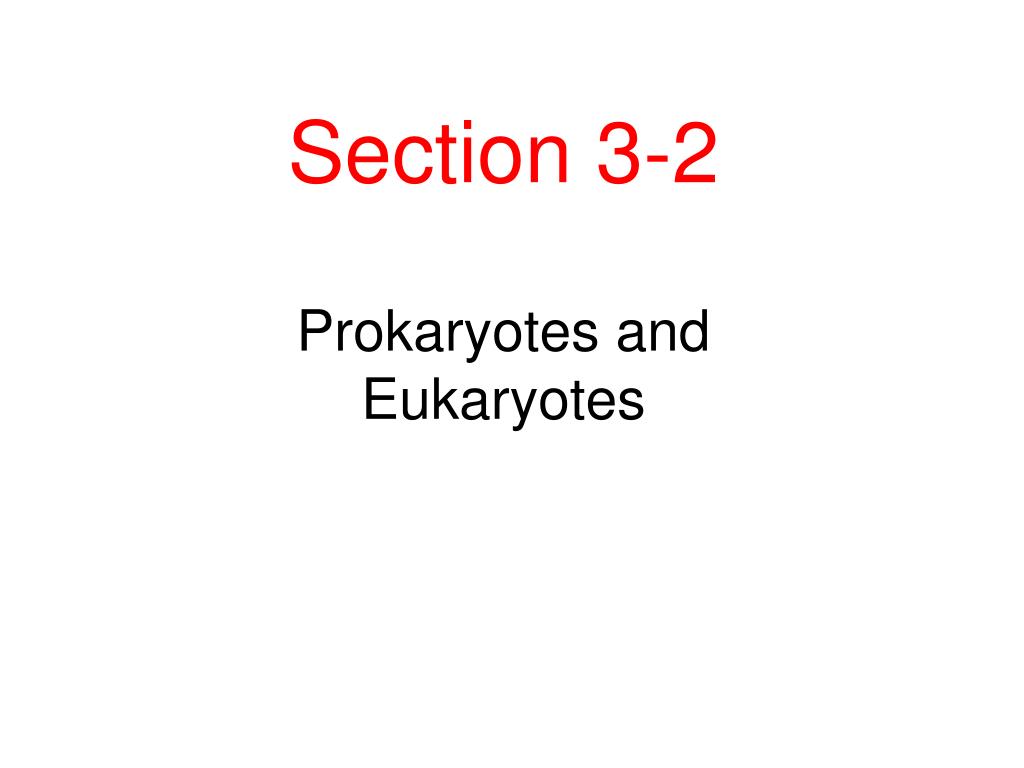

  14. Section 3-2 Prokaryotes and Eukaryotes

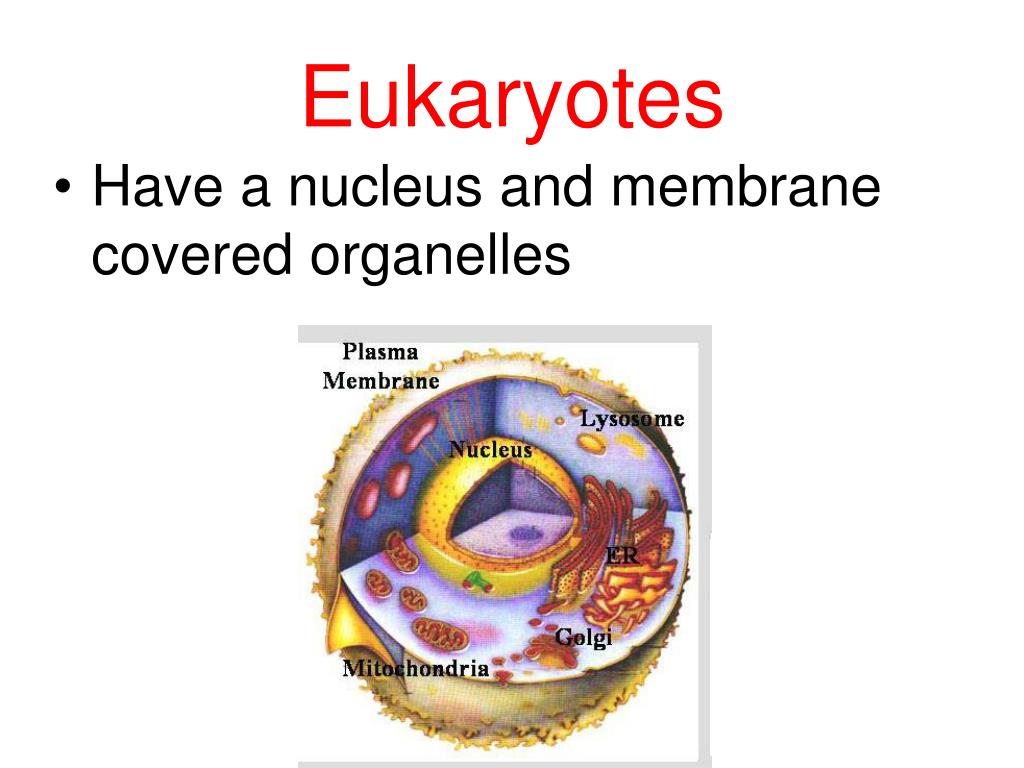

  15. Eukaryotes • Have a nucleus and membrane covered organelles

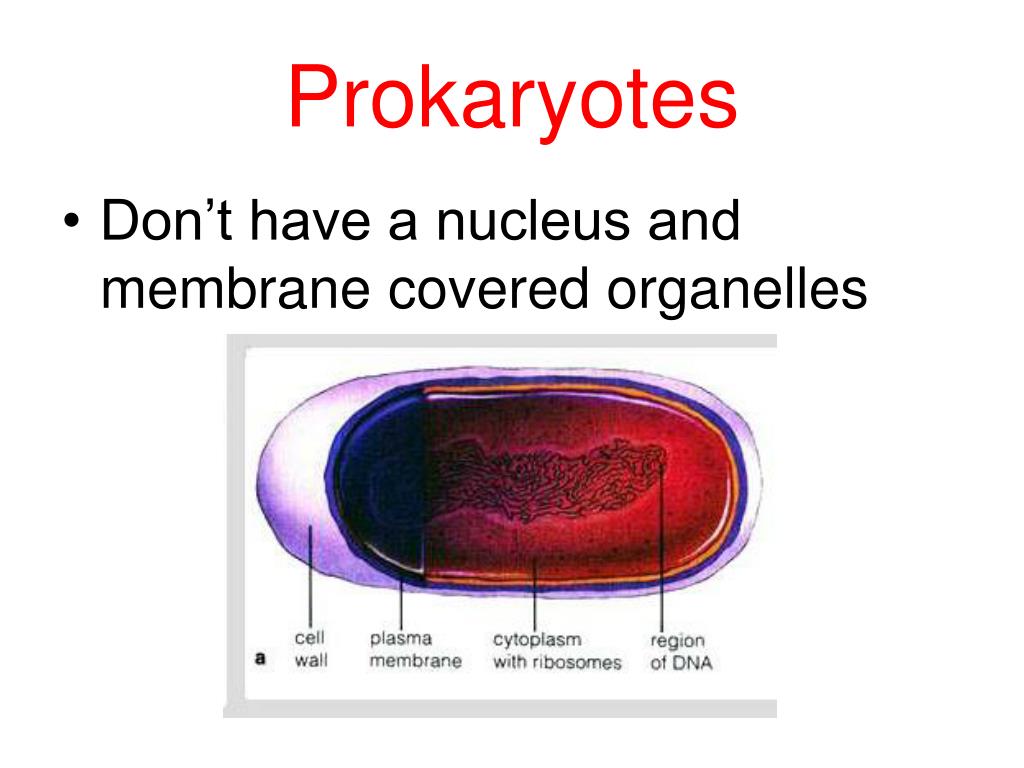

  16. Prokaryotes • Don’t have a nucleus and membrane covered organelles

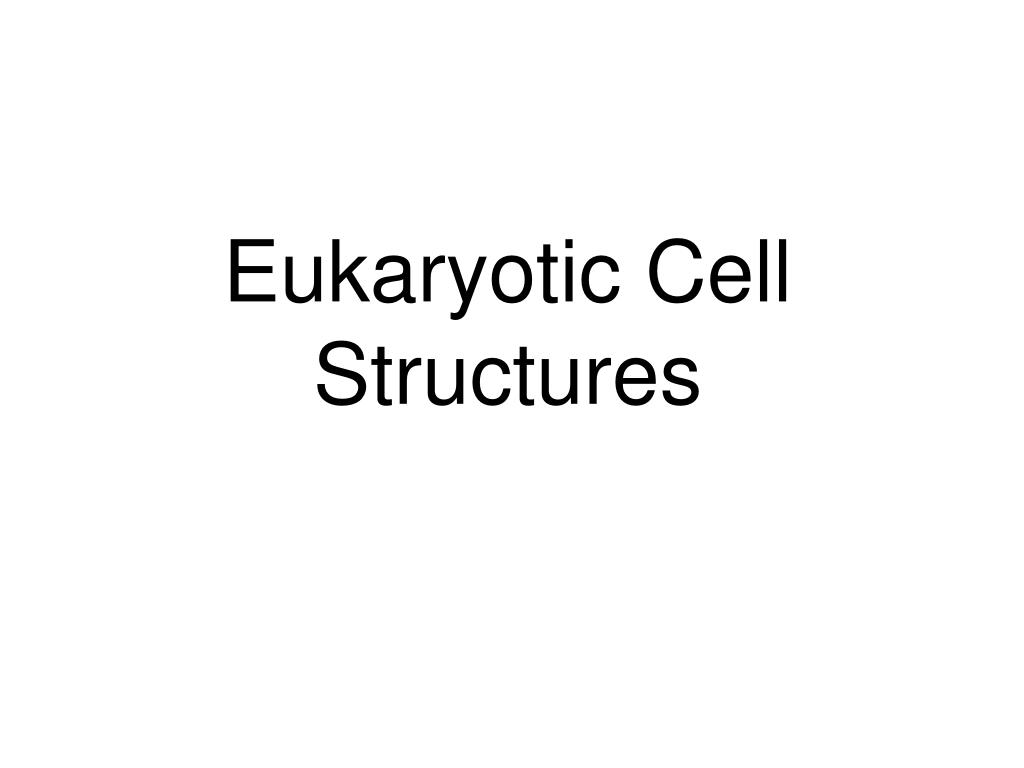

  17. Eukaryotic Cell Structures

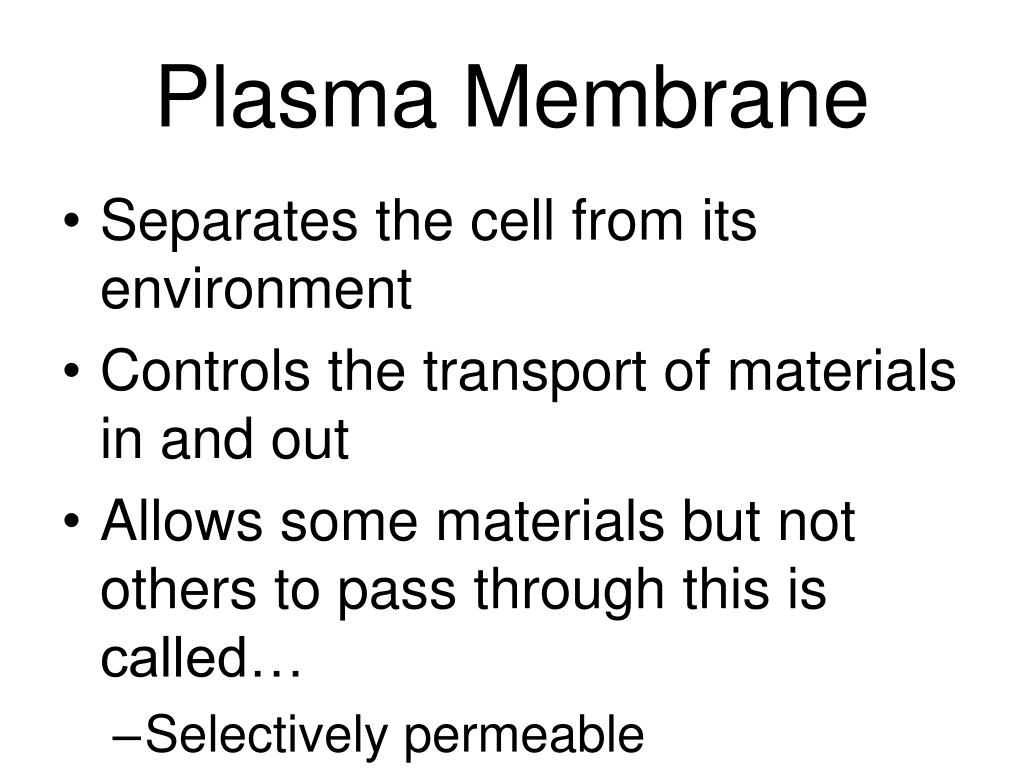

  18. Plasma Membrane • Separates the cell from its environment • Controls the transport of materials in and out • Allows some materials but not others to pass through this is called… • Selectively permeable

  19. Endoplasmic Reticulum • Extensive network of tube-like structures that forms a passageway that functions in the transport of materials throughout the cells

  20. Ribosomes • Site of protein synthesis • Attached to the walls of the ER or move freely in the cytoplasm

  21. Golgi Bodies • Stack of tiny, flattened sac-like tubes used in secretion • Package protein molecules in a membrane and send the package to the cells surface

  22. Mitochondria • Where cellular respiration takes place to release energy • “Mighty Mitochondria” • Powerhouse of the cell

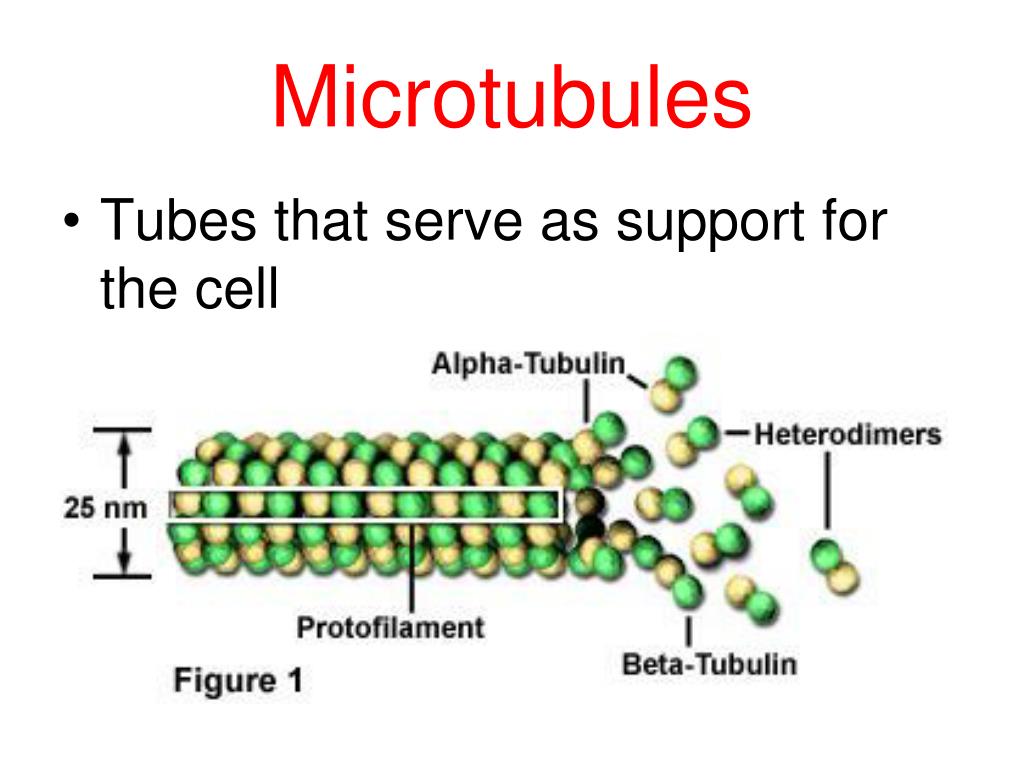

  23. Microtubules • Tubes that serve as support for the cell

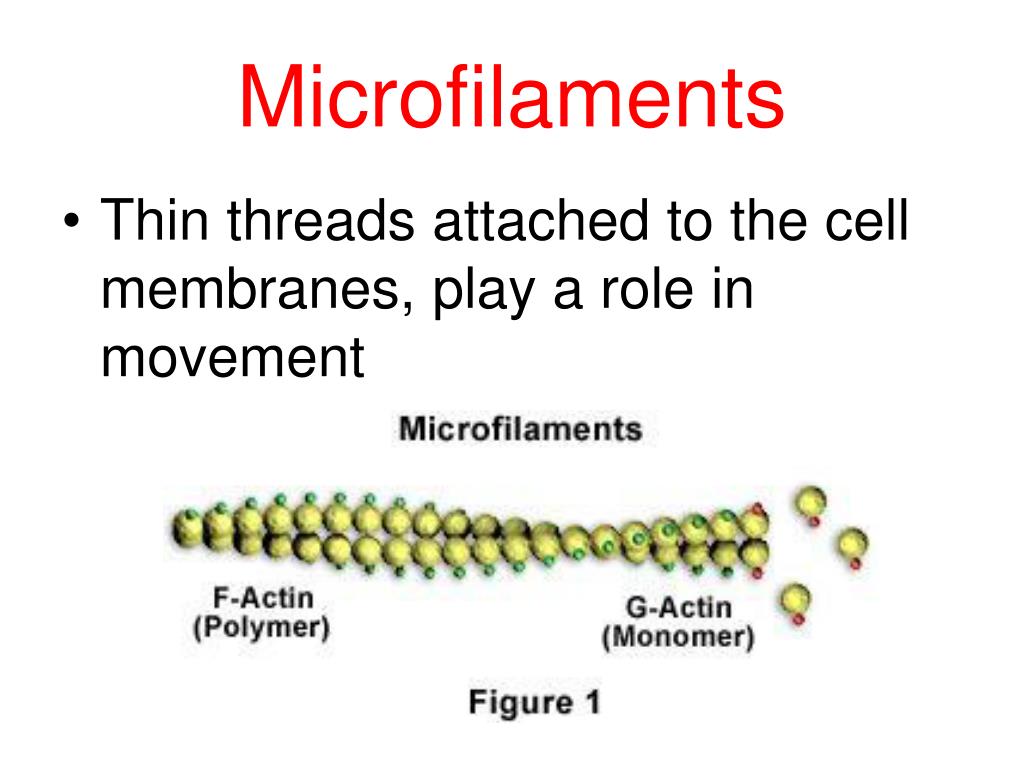

  24. Microfilaments • Thin threads attached to the cell membranes, play a role in movement

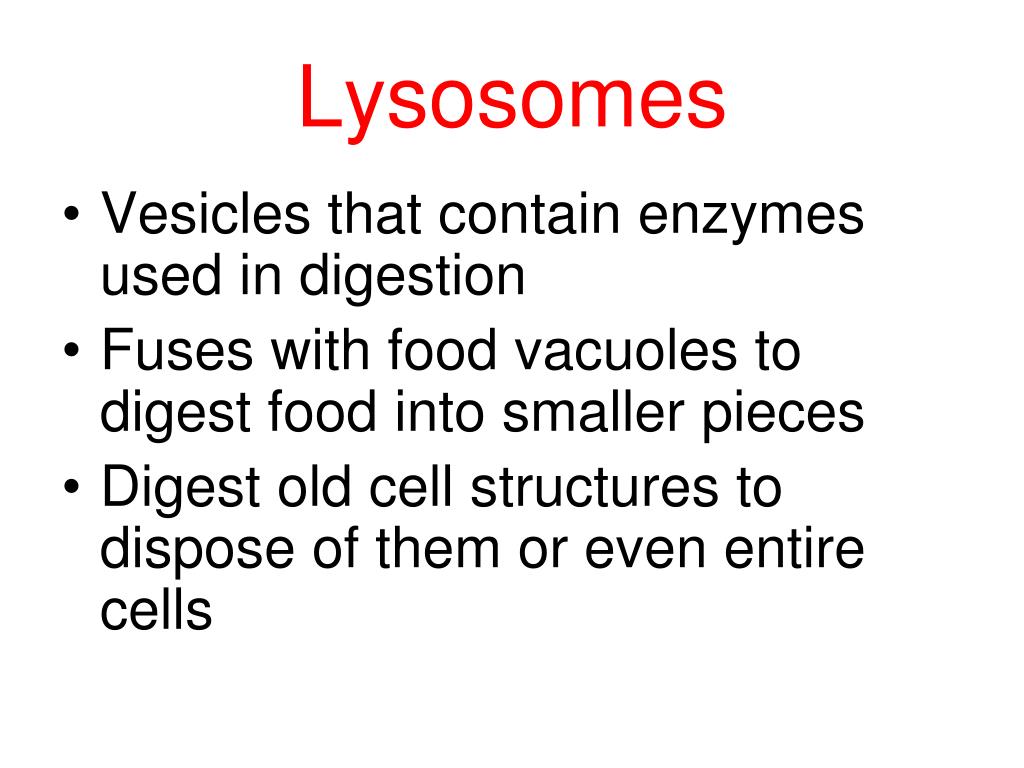

  25. Lysosomes • Vesicles that contain enzymes used in digestion • Fuses with food vacuoles to digest food into smaller pieces • Digest old cell structures to dispose of them or even entire cells

  26. Nucleus • Regulates all the cells activities

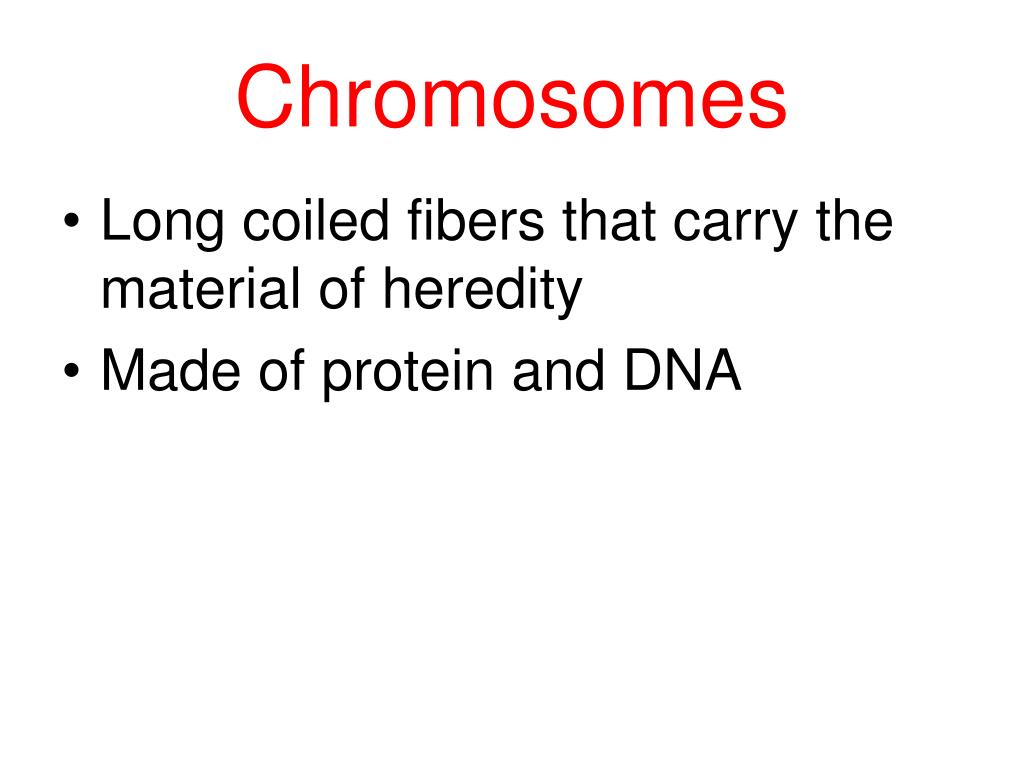

  27. Chromosomes • Long coiled fibers that carry the material of heredity • Made of protein and DNA

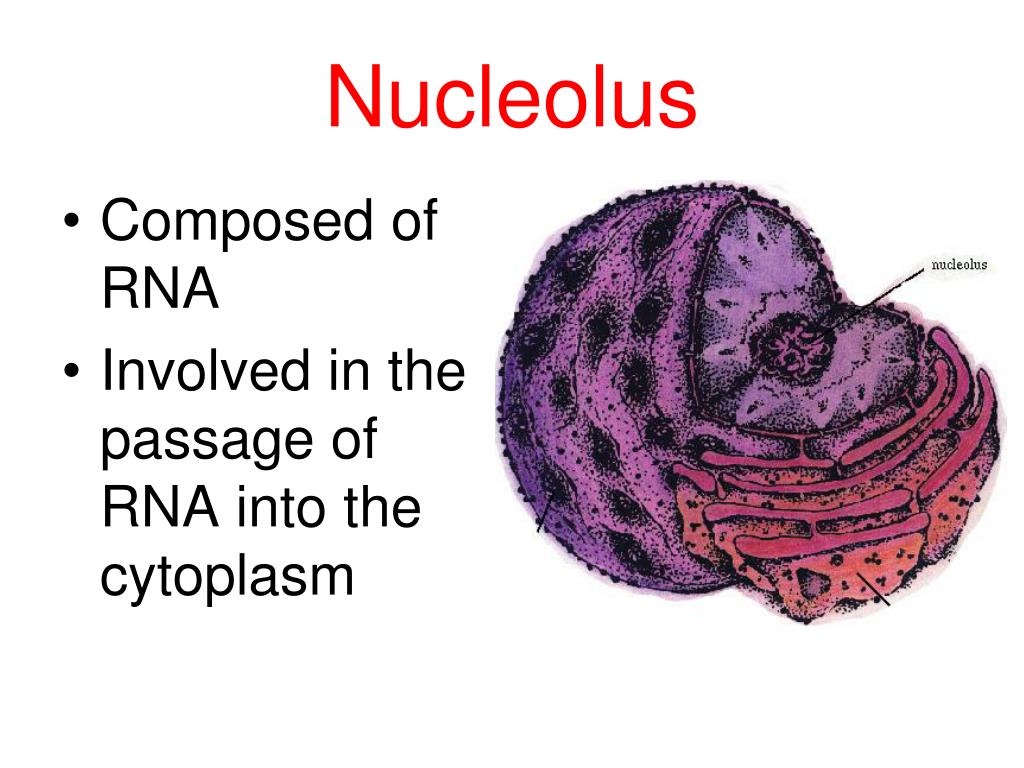

  28. Nucleolus • Composed of RNA • Involved in the passage of RNA into the cytoplasm

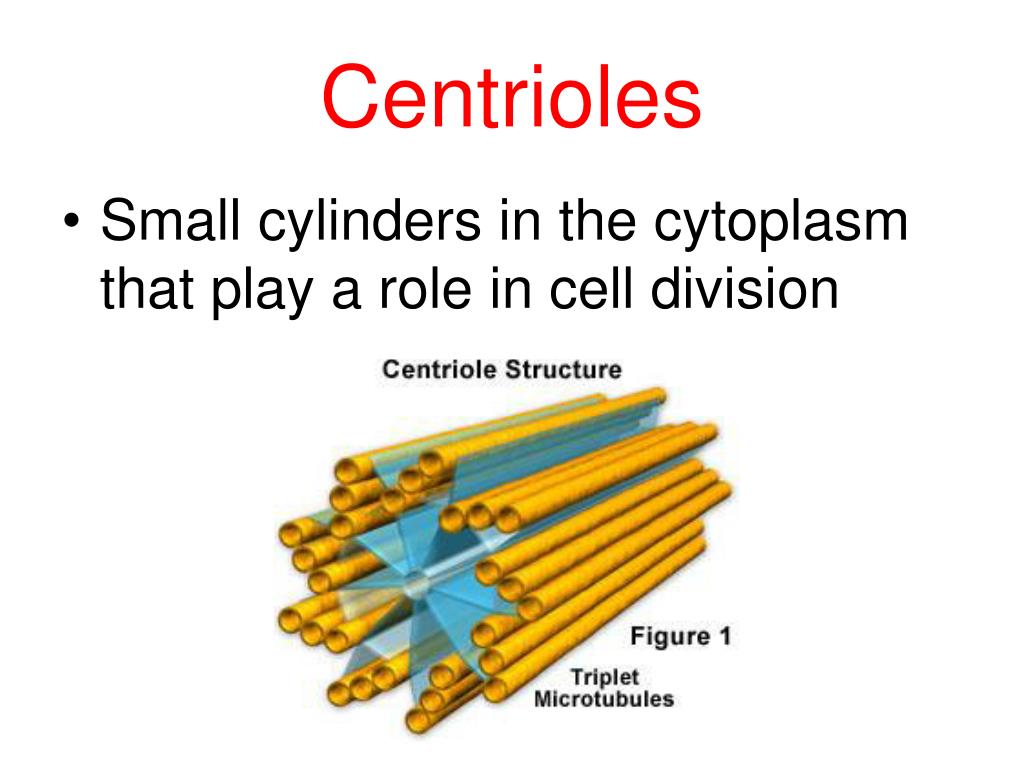

  29. Centrioles • Small cylinders in the cytoplasm that play a role in cell division

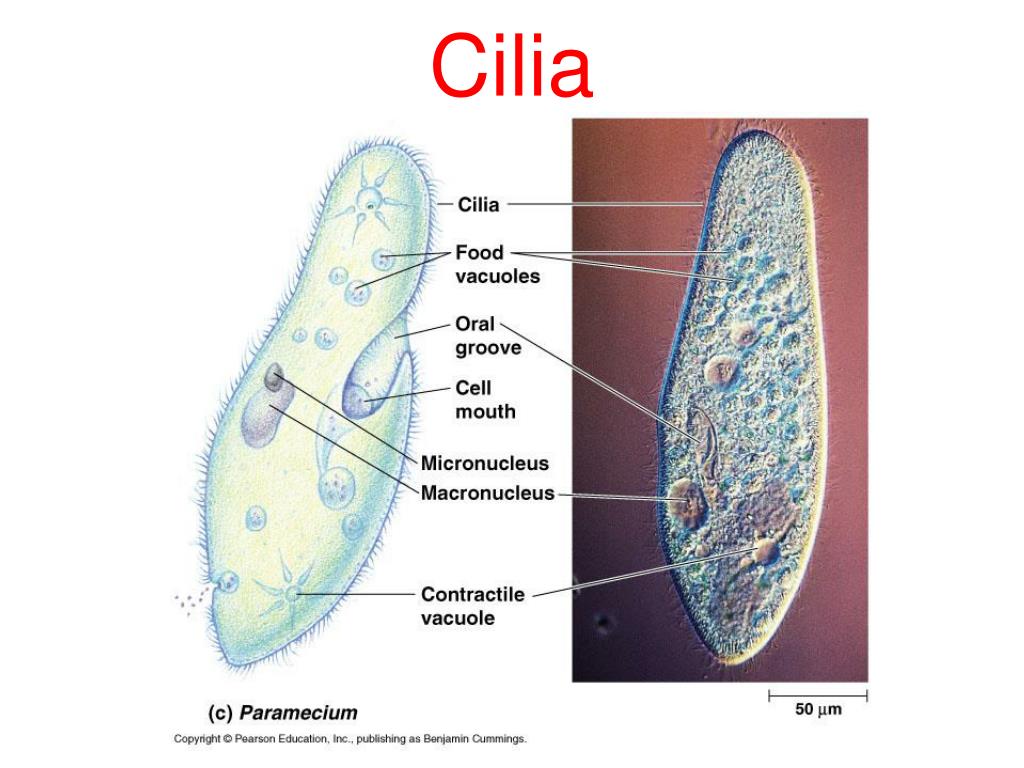

  30. Cilia

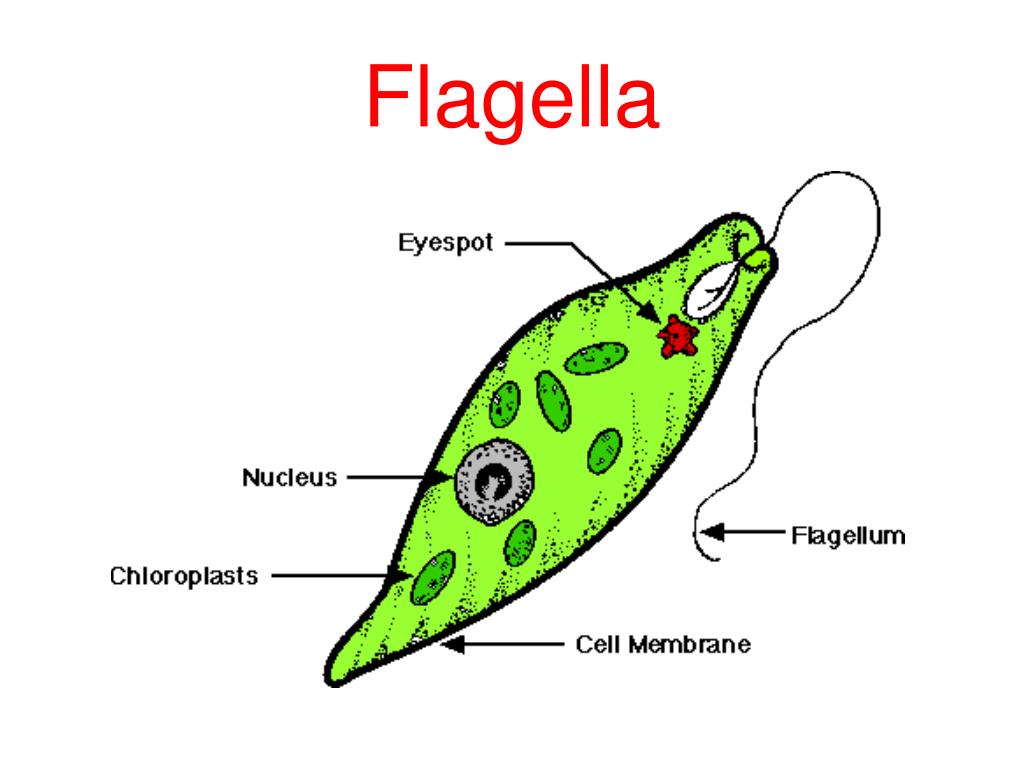

  31. Flagella

  32. Chloroplasts • Organelle found only in plants, used to make food

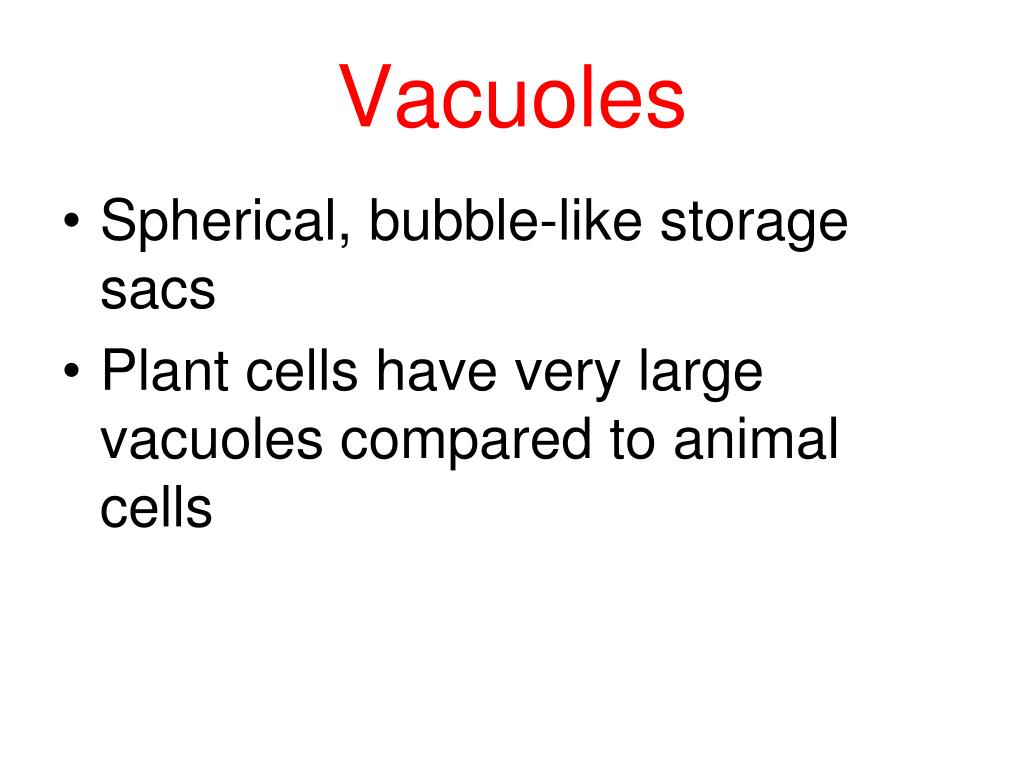

  33. Vacuoles • Spherical, bubble-like storage sacs • Plant cells have very large vacuoles compared to animal cells

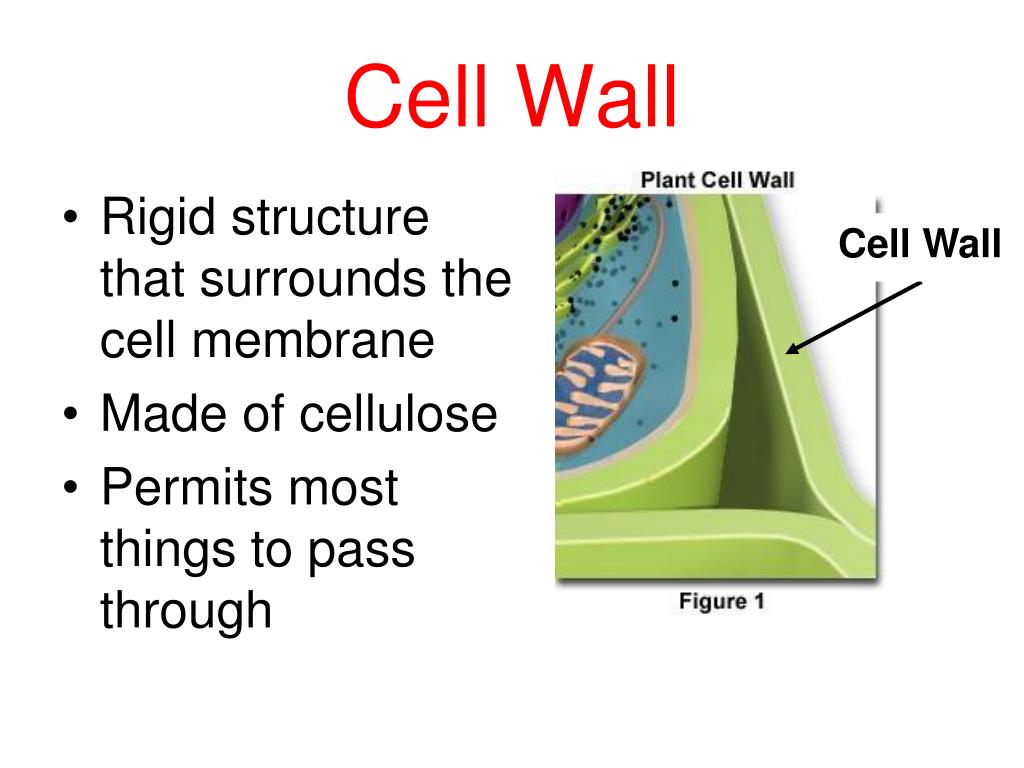

  34. Cell Wall • Rigid structure that surrounds the cell membrane • Made of cellulose • Permits most things to pass through Cell Wall

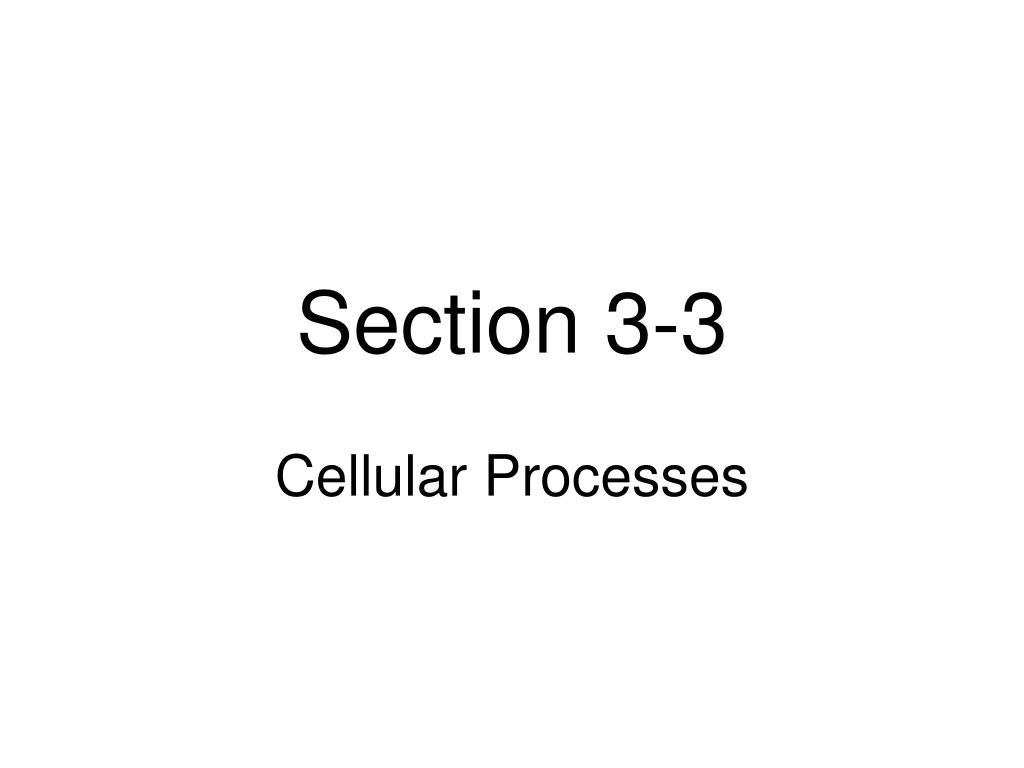

  35. Section 3-3 Cellular Processes
