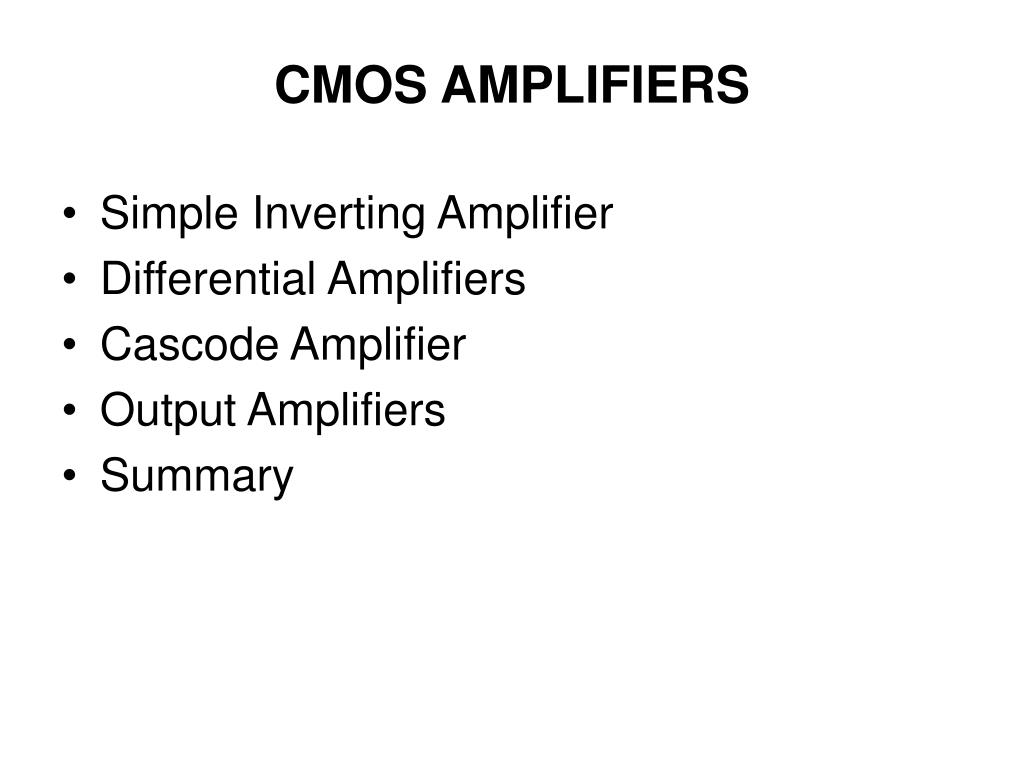

  1. CMOS AMPLIFIERS • Simple Inverting Amplifier • Differential Amplifiers • Cascode Amplifier • Output Amplifiers • Summary

  2. Simple Inverting Amplifiers

  3. ACTIVE LOAD INVERTER - VOLTAGE TRANSFER CURVE

  4. Active Load CMOS Inverter Output Swing Limits

  5. But this is not linear operation region!

  6. Small Signal Characteristics How do you get better matching?

  7. High gain inverters

  8. Large signal characteristic Push-pull

  9. Large Signal Transfer Characteristics

  10. CMOS Push - Pull Inverter Very large signal swing. Not all in linear region

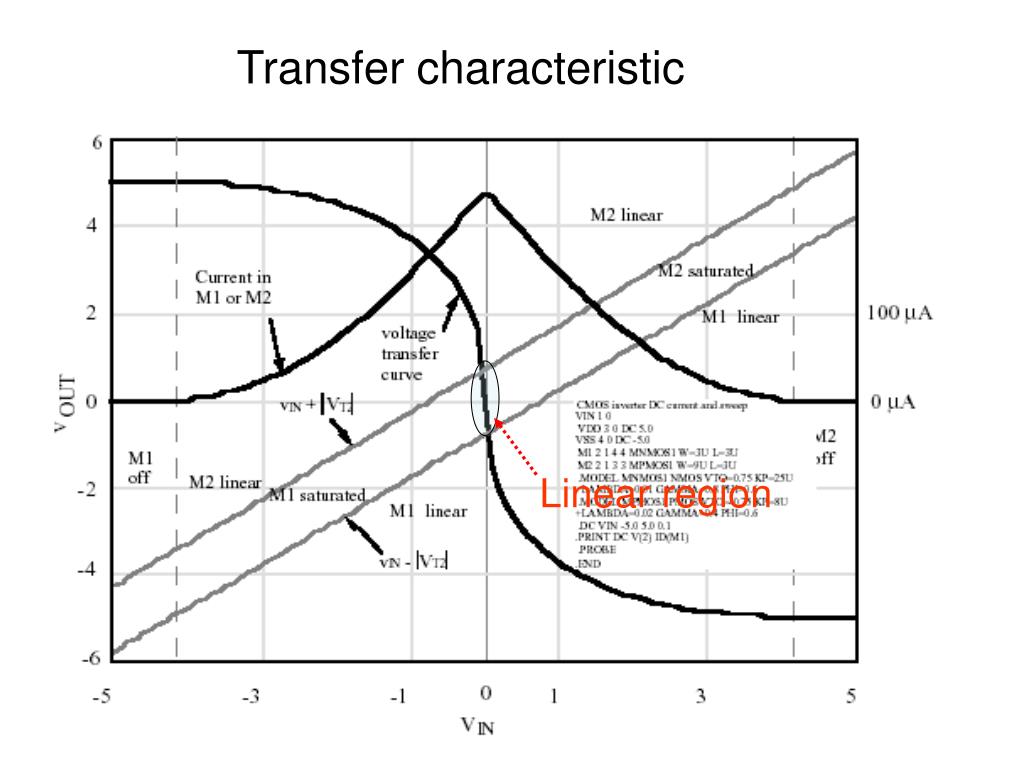

  11. Transfer characteristic Linear region

  12. Small signal High gain!

  13. Dependence of Gain upon Bias Current

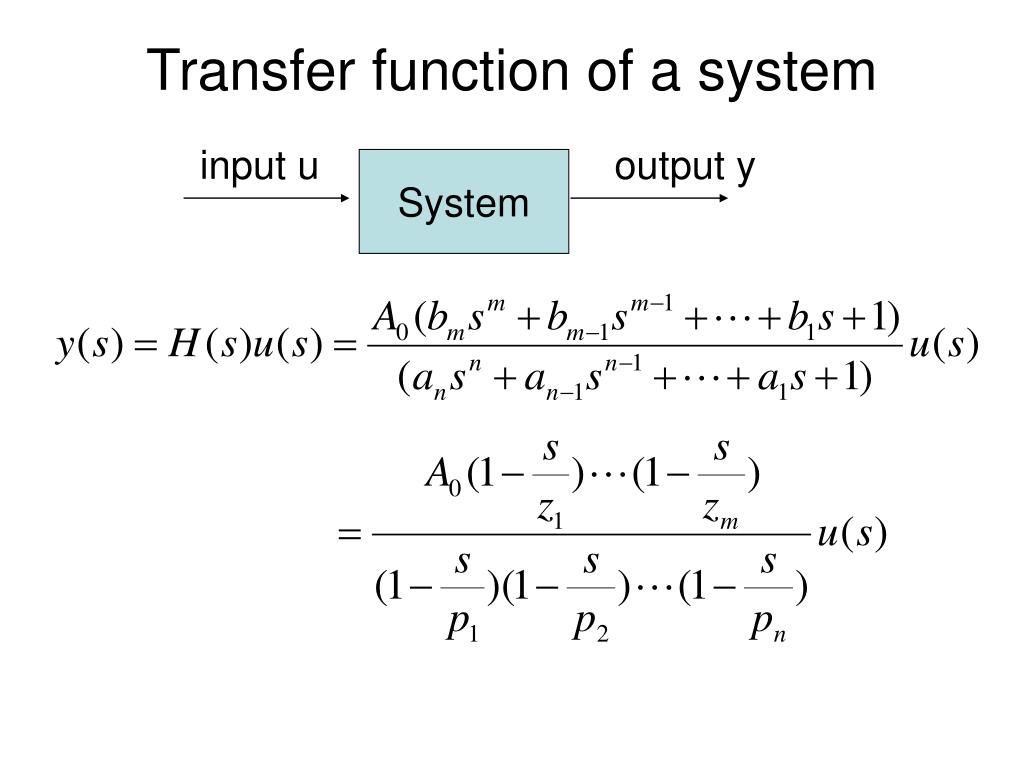

  14. Transfer function of a system input u output y System

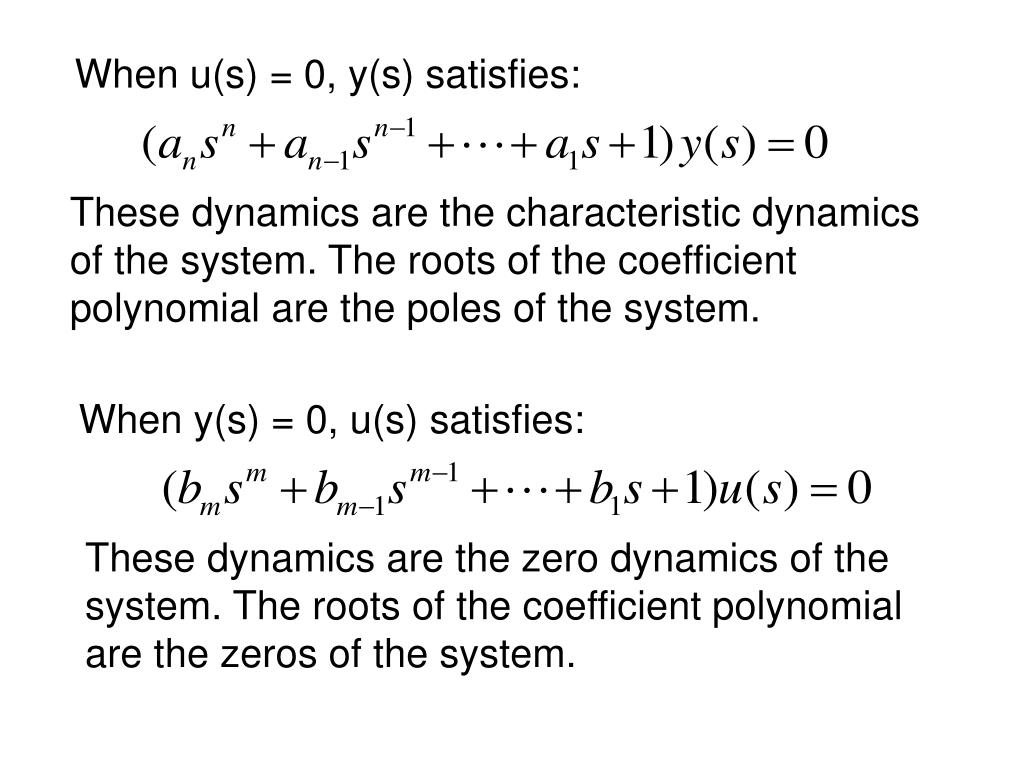

  15. When u(s) = 0, y(s) satisfies: These dynamics are the characteristic dynamics of the system. The roots of the coefficient polynomial are the poles of the system. When y(s) = 0, u(s) satisfies: These dynamics are the zero dynamics of the system. The roots of the coefficient polynomial are the zeros of the system.

  16. Frequency Response of CMOS Inverters

  17. Poles of CMOS Inverters Let vin = 0, x = 0, VDD = 0, VSS = 0. CGS1, CGS2, CBS1, CBS2 are all short y CGD1, CGD2, CBD1, CBD2, CL in parallel C’L = Ctotal = CGD1+ CGD2+ CBD1+ CBD2+ CL

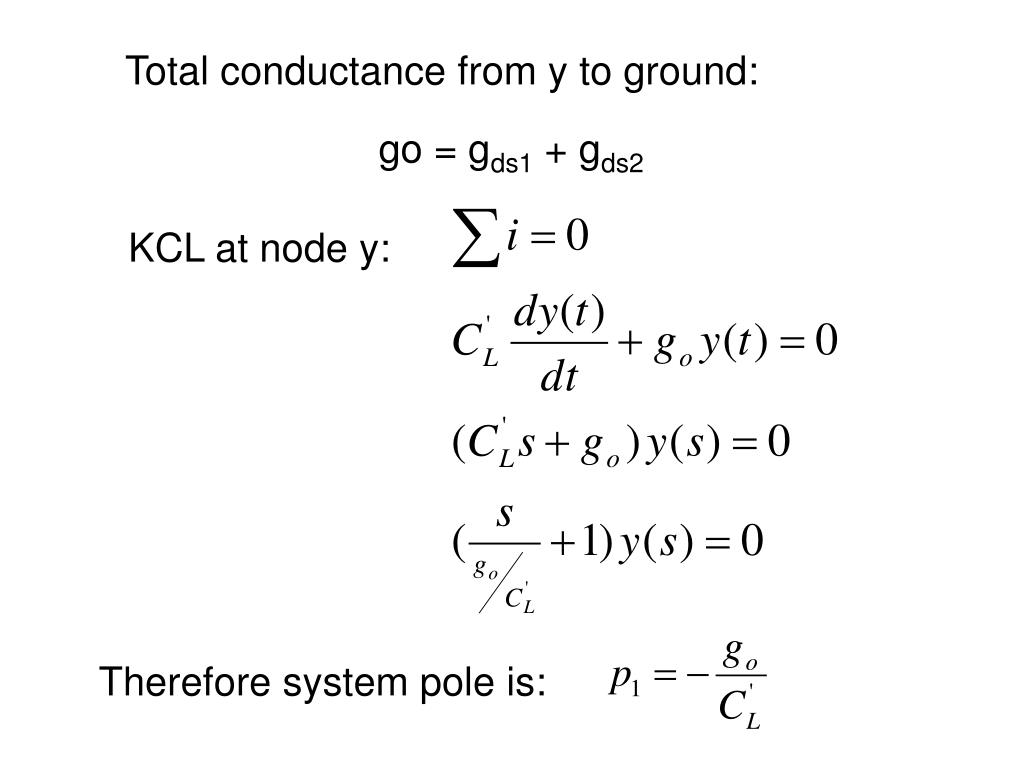

  18. Total conductance from y to ground: go = gds1 + gds2 KCL at node y: Therefore system pole is:

  19. Zeros of CMOS Inverters Let vin = x = u, VDD = 0, VSS = 0. CGD1, CGD2, are in parallel, CBD1, CBD2, CL are all short gds1, gds2 also short No current in them KCL: Zero is:

  20. Input output transfer function When s=jw0, A(0)  When w∞, A(s)

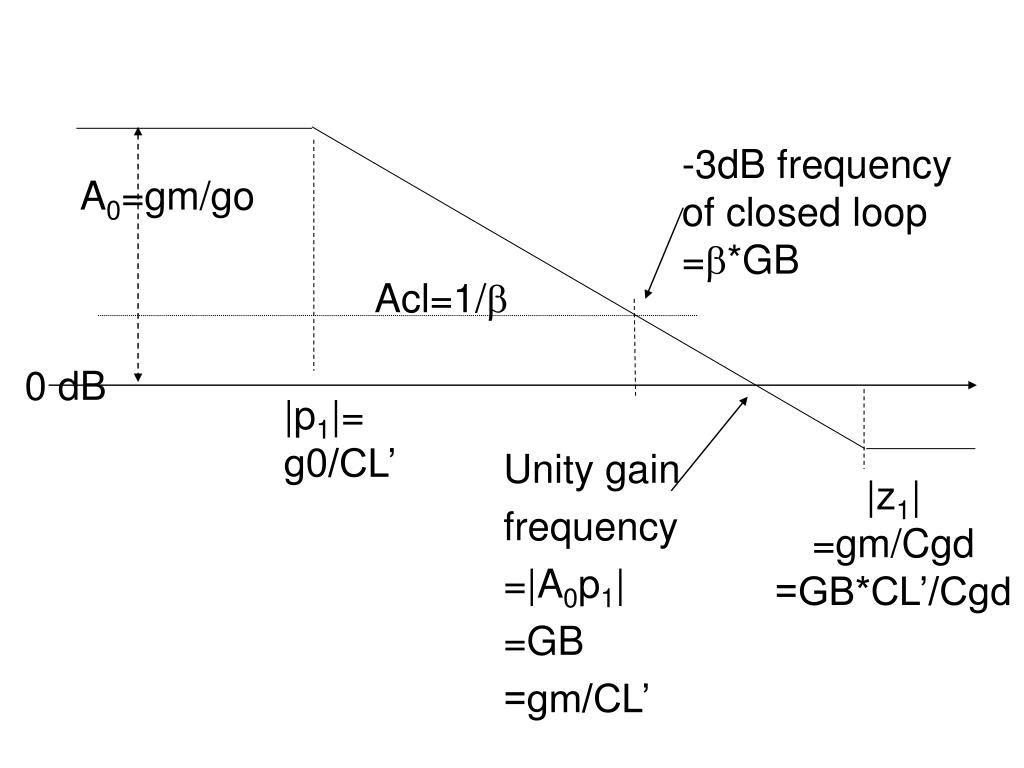

  21. -3dB frequency of closed loop =b*GB A0=gm/go Acl=1/b 0 dB |p1|= g0/CL’ Unity gain frequency =|A0p1| =GB =gm/CL’ |z1| =gm/Cgd =GB*CL’/Cgd

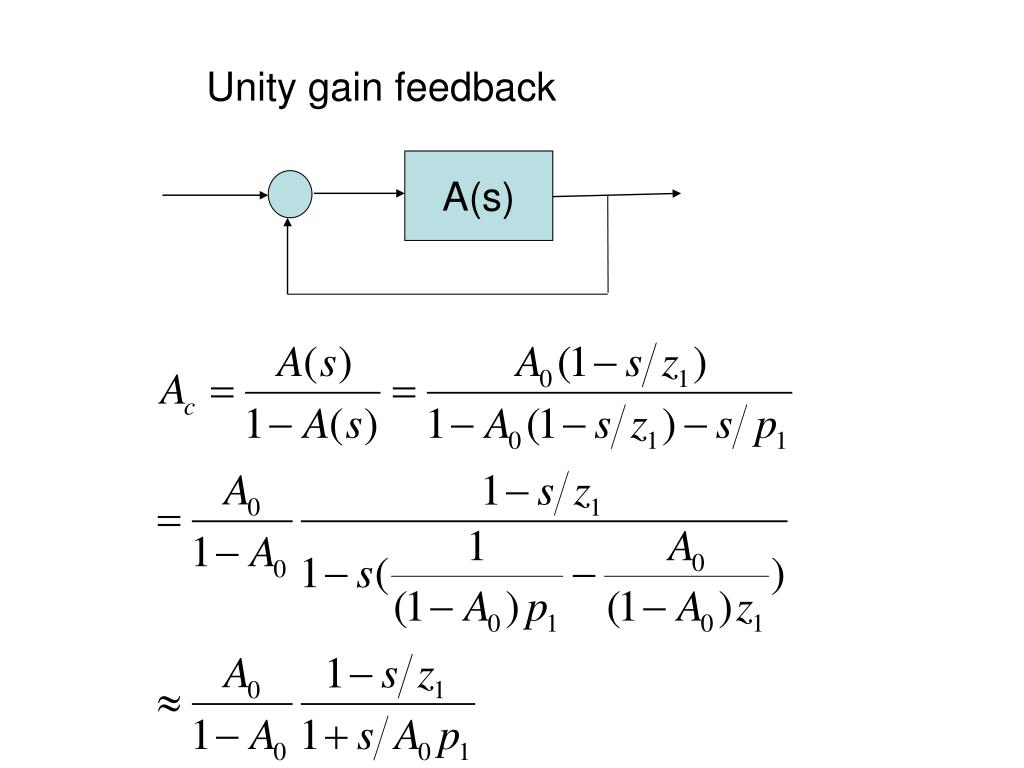

  22. Unity gain feedback A(s)

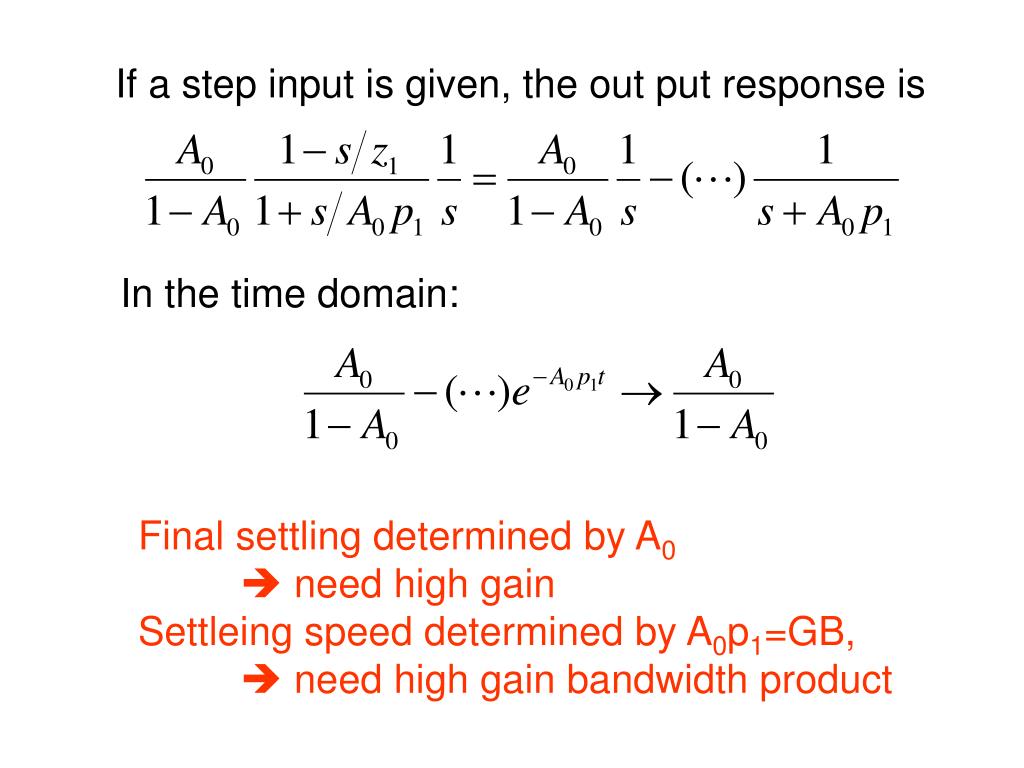

  23. If a step input is given, the out put response is In the time domain: Final settling determined by A0  need high gain Settleing speed determined by A0p1=GB,  need high gain bandwidth product

  24. Gain bandwidth product C’L = Ctotal = CGD1+ CGD2+ CBD1+ CBD2+ CL When CL ≈ C’L, W↑GB↑, but it saturates, when

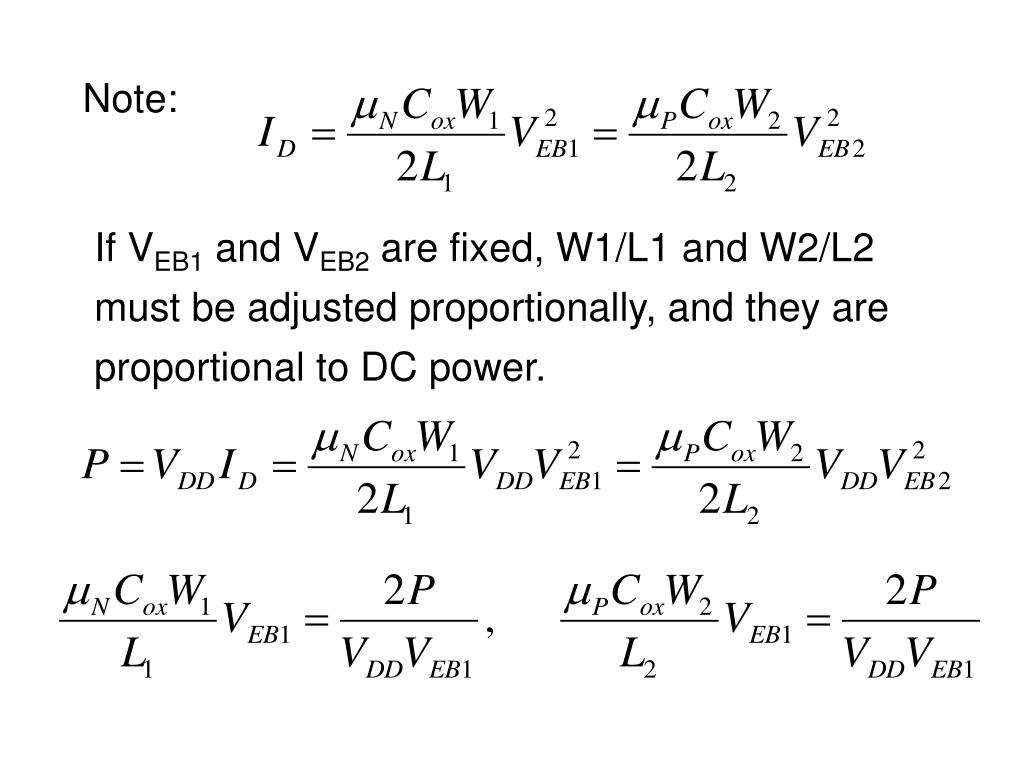

  25. Note: If VEB1 and VEB2 are fixed, W1/L1 and W2/L2 must be adjusted proportionally, and they are proportional to DC power.

  26. Therefore: CL constant, but C(W1,W2) proportional to P

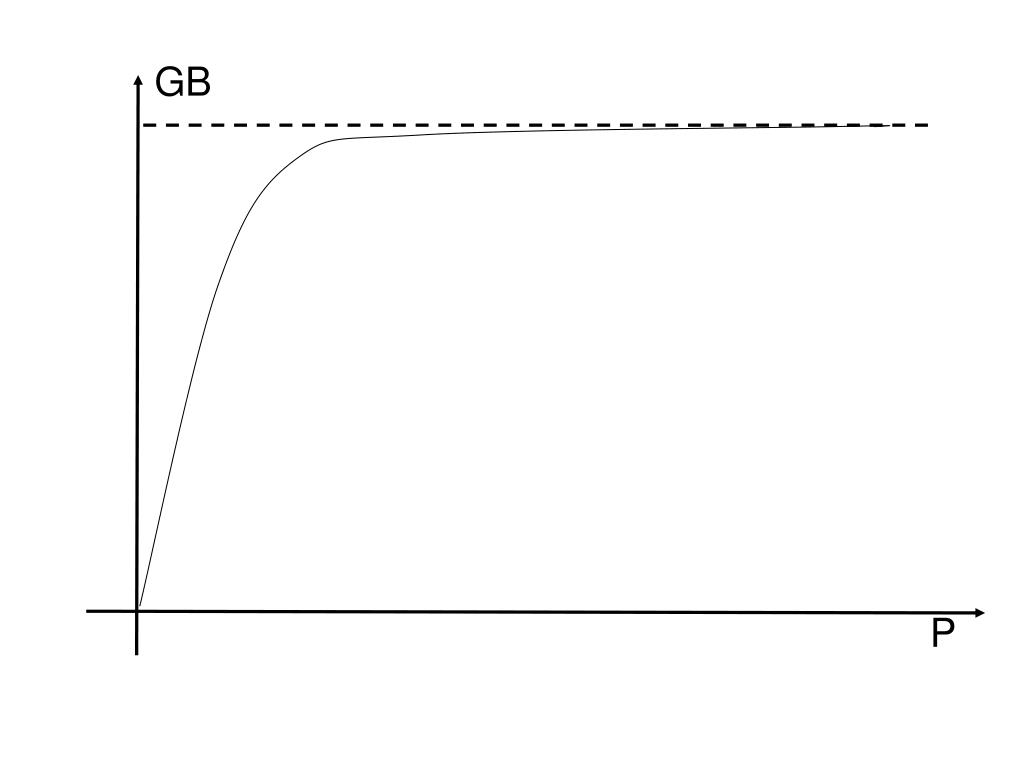

  27. GB P

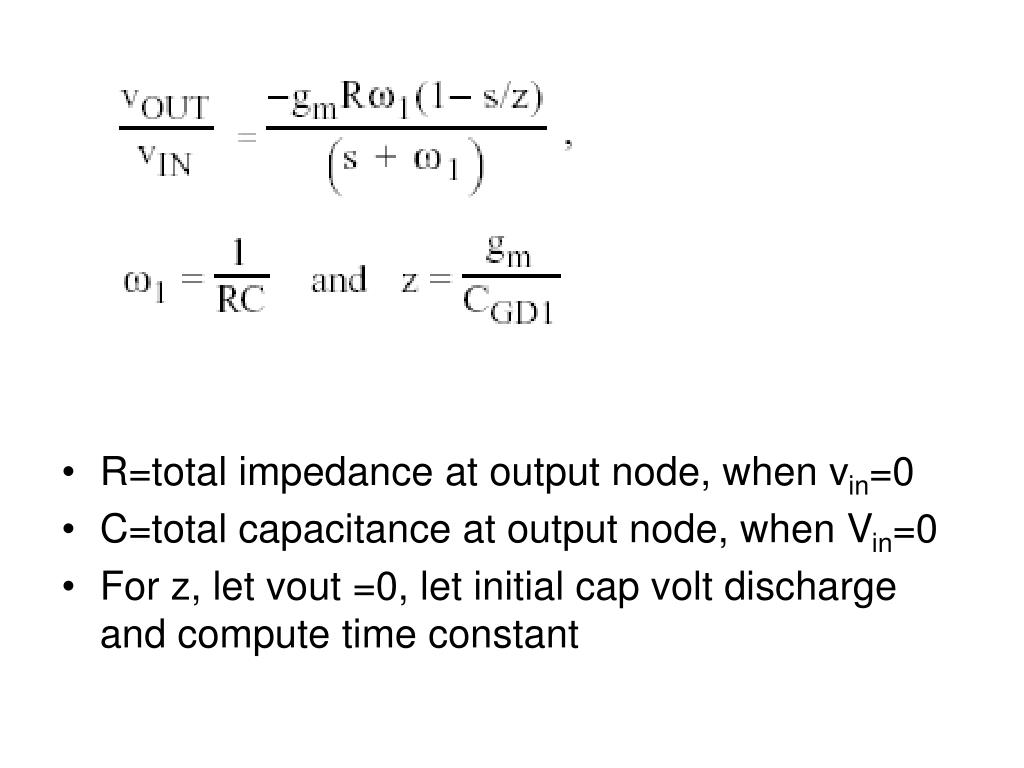

  28. R=total impedance at output node, when vin=0 • C=total capacitance at output node, when Vin=0 • For z, let vout =0, let initial cap volt discharge and compute time constant

  29. NOISE IN MOS INVERTERS

  30. For 1/f noise:

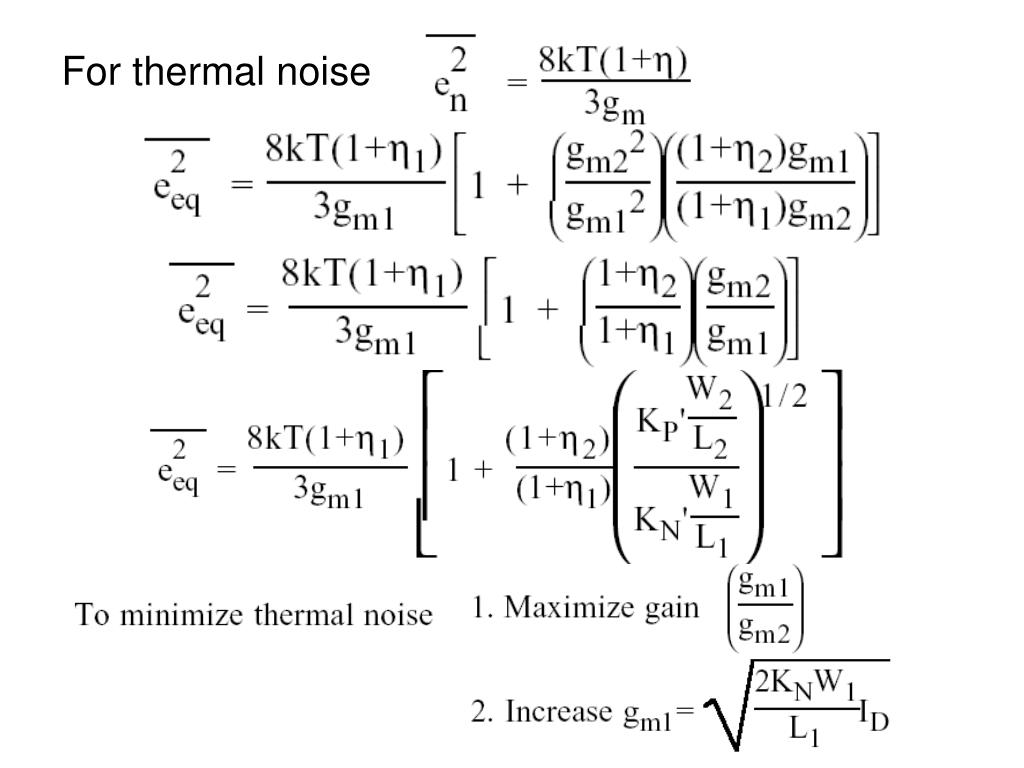

  31. For thermal noise

  32. Noise in Push-Pull Inverter

  33. Differential Input, single-ended output single stage Amplifier N-Channel vin- vin+

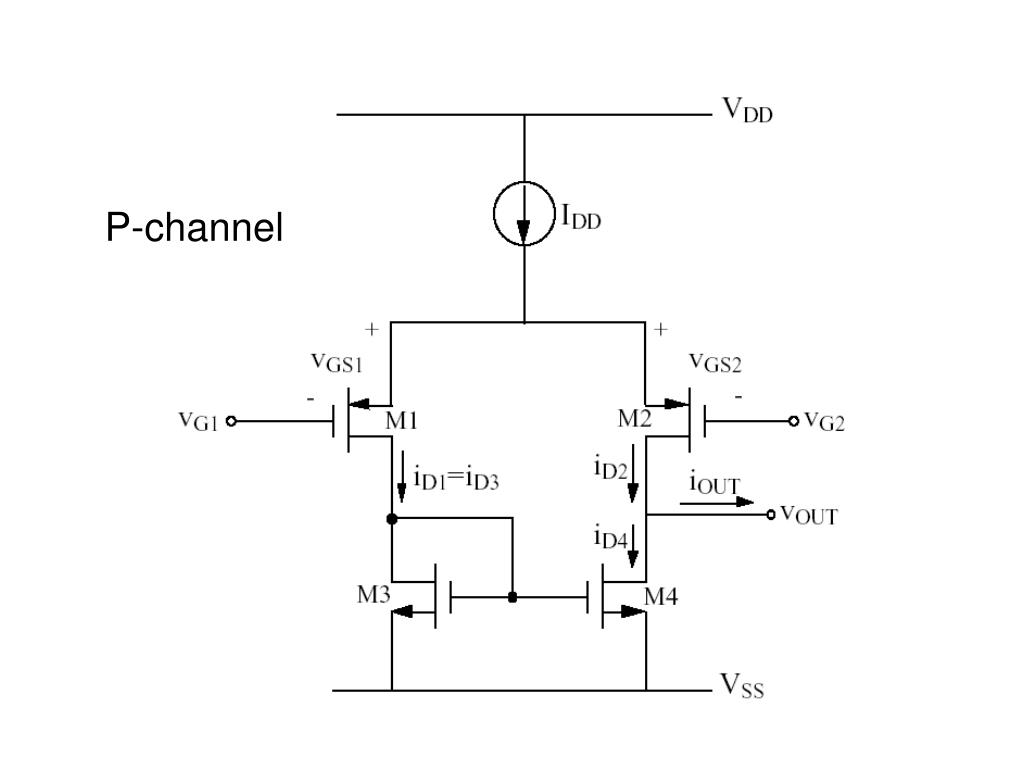

  34. P-channel

  35. Large Signal Eq. in a N-channel Differential pair =0.5b1(VGS1-VT)2 =(2ID1/b1)0.5 iD1=0, when iD2=ISS and VGS2=VT+(2ISS/b)0.5

  36. Solving for iD1 and iD2 ID1=ID2=ISS/2 VON1=VON2=(ISS/b)0.5

  37. N-Channel Input Pair Differential Amplifier C.M. Load Simple current reference C.M. Bias

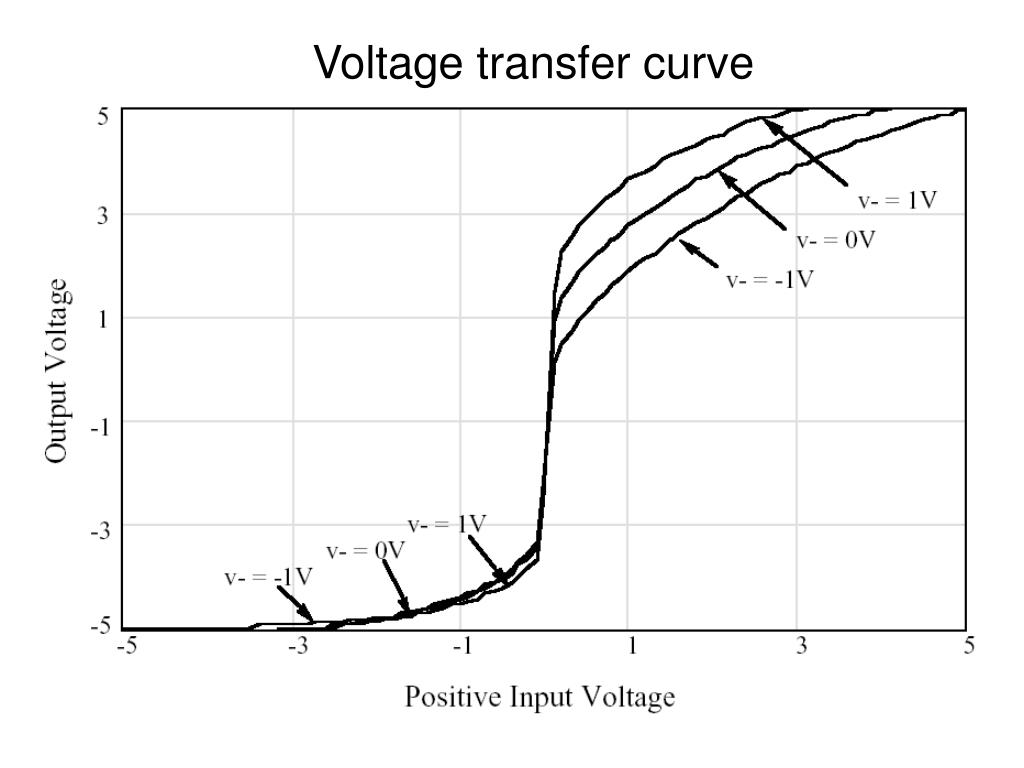

  38. Voltage transfer curve

  39. P-Channel Input Pair Differential Amplifier

  40. Voltage transfer curve

  41. INPUT COMMON MODE RANGE VG1=VG2=ViCM VSDSAT1=VSDSAT2 =VON VD1=VD3= VSS+VT3+VON VG1min=VD1-|VT1| VG1max=VDD- VSD5SAT-|VT1|-VON

  42. SMALL SIGNAL ANALYSIS AV

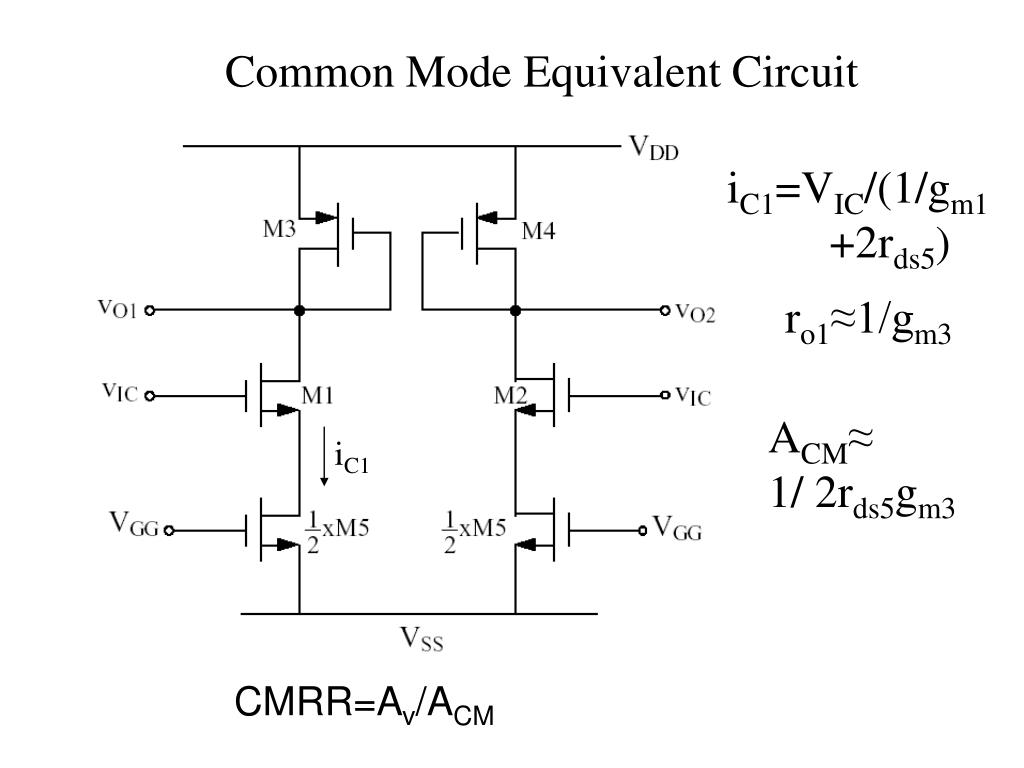

  43. Common Mode Equivalent Circuit iC1=VIC/(1/gm1 +2rds5) ro1≈1/gm3 ACM≈ 1/ 2rds5gm3 iC1 CMRR=Av/ACM

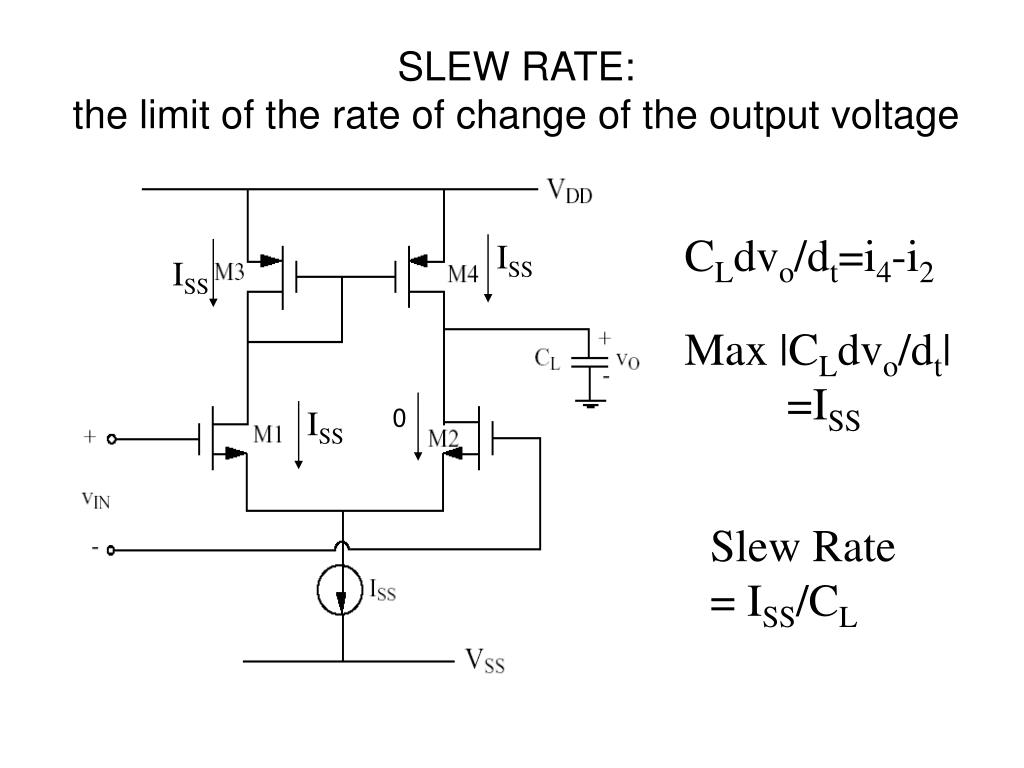

  44. SLEW RATE: the limit of the rate of change of the output voltage CLdvo/dt=i4-i2 ISS ISS Max |CLdvo/dt| =ISS 0 ISS Slew Rate = ISS/CL

  45. Parasitic Capacitances CT: common mode only CM: mirror cap = Cdg1 + Cdb1 + Cgs3 + Cgs4 + Cdb3 COUT = output cap = Cbd4 + Cbd2 + Cgd2 + CL

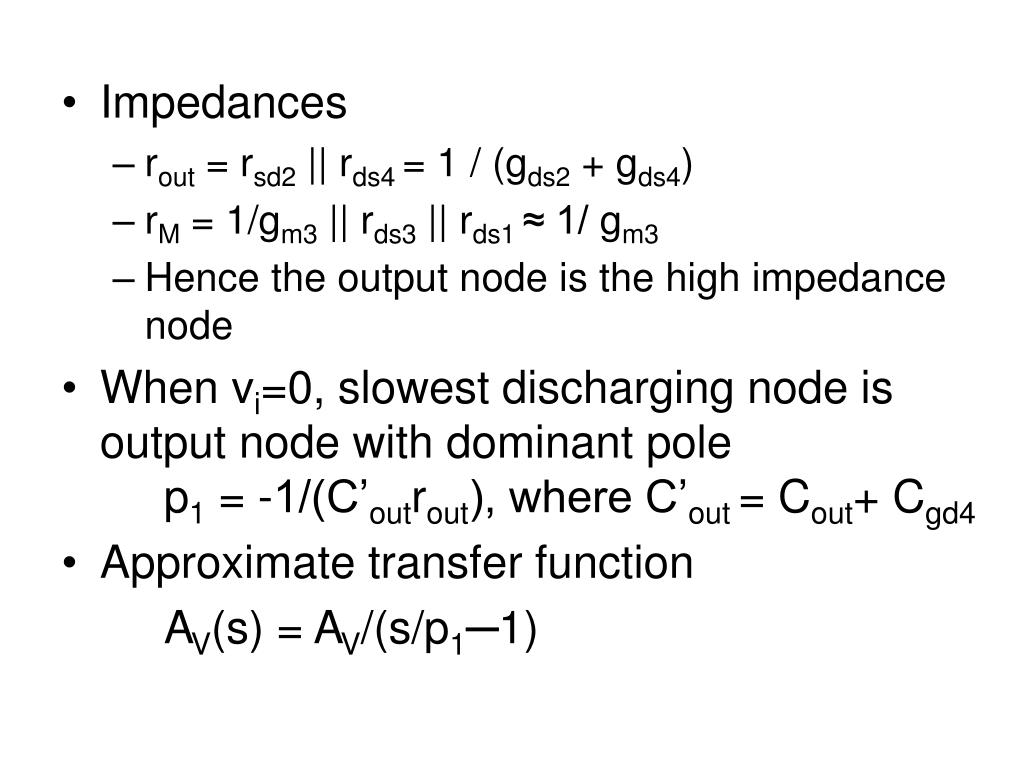

  46. Impedances • rout = rsd2 || rds4 = 1 / (gds2 + gds4) • rM = 1/gm3 || rds3 || rds1 ≈ 1/ gm3 • Hence the output node is the high impedance node • When vi=0, slowest discharging node is output node with dominant pole p1 = -1/(C’outrout), where C’out = Cout+ Cgd4 • Approximate transfer function AV(s) = AV/(s/p1─1)

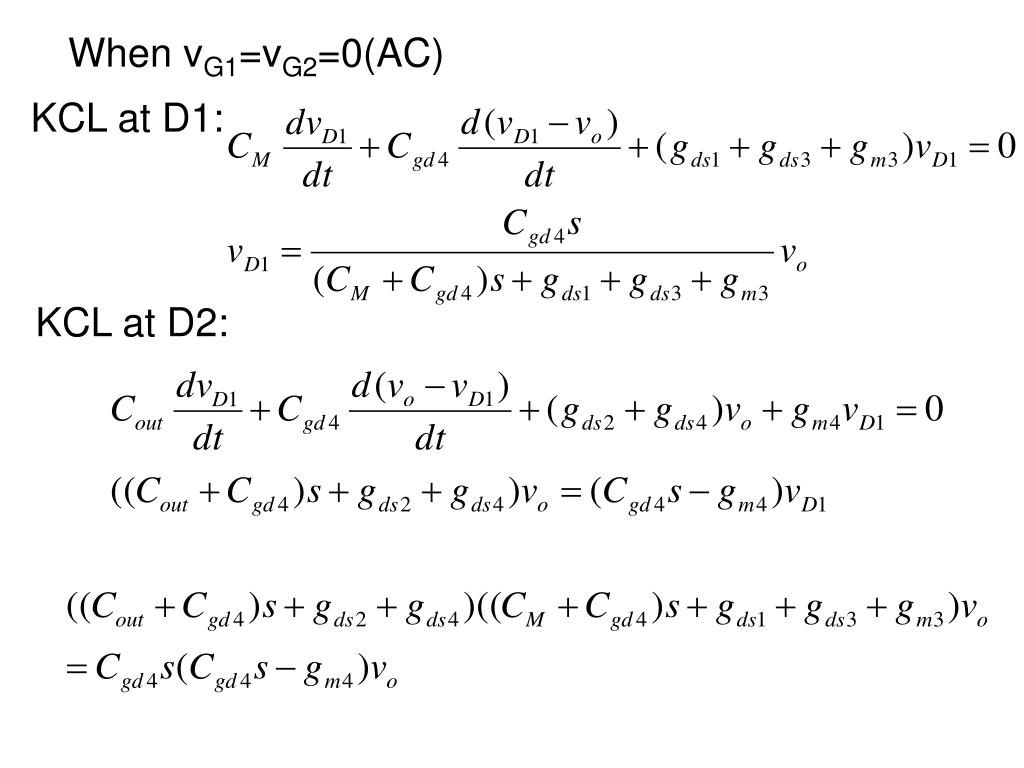

  47. When vG1=vG2=0(AC) KCL at D1: KCL at D2:
