Alpha beta and gamma

Alpha beta and gamma. What is radioactive decay?. What is alpha ( α ) radiation?. 2 neutrons, 2 protons. Description . Note: – An alpha particle is the same as a helium nucleus. +2. Electric charge. 4. Relative atomic mass. Stopped by paper or a few centimetres of air. Penetrating power.

mason-weber
Télécharger la présentation

Alpha beta and gamma

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Alpha beta and gamma

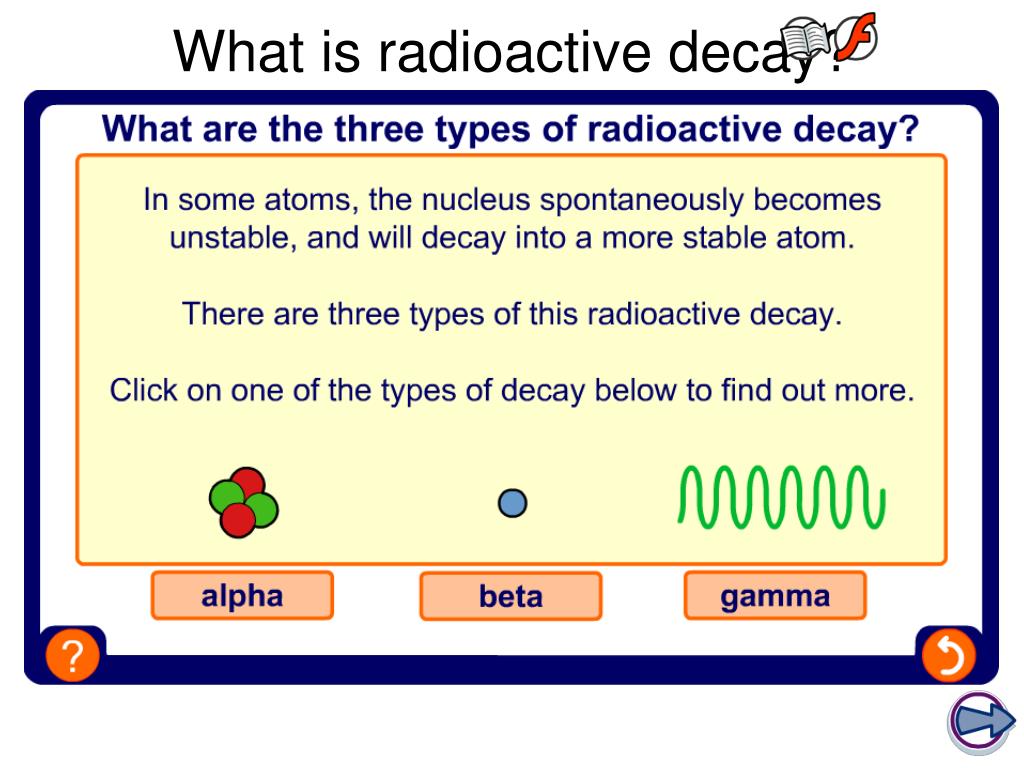

  2. What is radioactive decay?

  3. What is alpha (α) radiation? 2 neutrons, 2 protons Description Note:– An alpha particle is the same as a helium nucleus +2 Electric charge 4 Relative atomic mass Stopped by paper or a few centimetres of air Penetrating power Strongly ionizing Ionizing effect Effect of magnetic/ electric field Weakly deflected

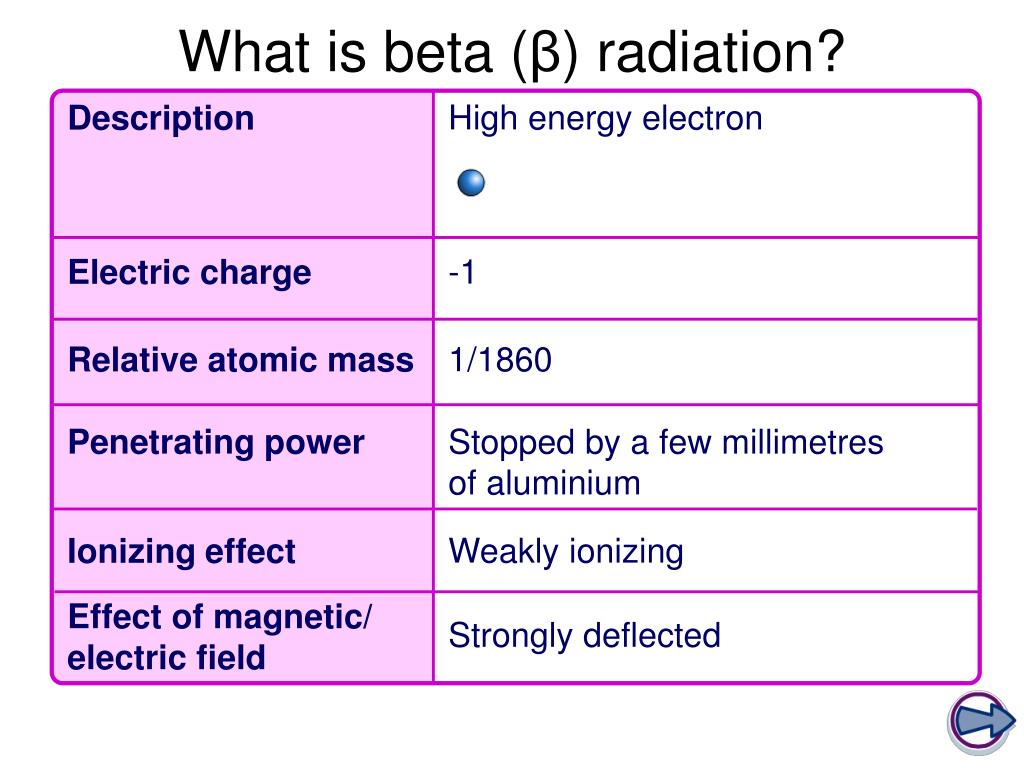

  4. What is beta (β) radiation? High energy electron Description -1 Electric charge 1/1860 Relative atomic mass Stopped by a few millimetres of aluminium Penetrating power Weakly ionizing Ionizing effect Effect of magnetic/ electric field Strongly deflected

  5. Gamma () radiation High energy electromagnetic radiation Description 0 Electric charge 0 Relative atomic mass Stopped by several centimetres of lead or several metres of concrete Penetrating power Very weakly ionizing Ionizing effect Effect of magnetic/ electric field Not deflected

  6. Types of radiation and penetrating power
