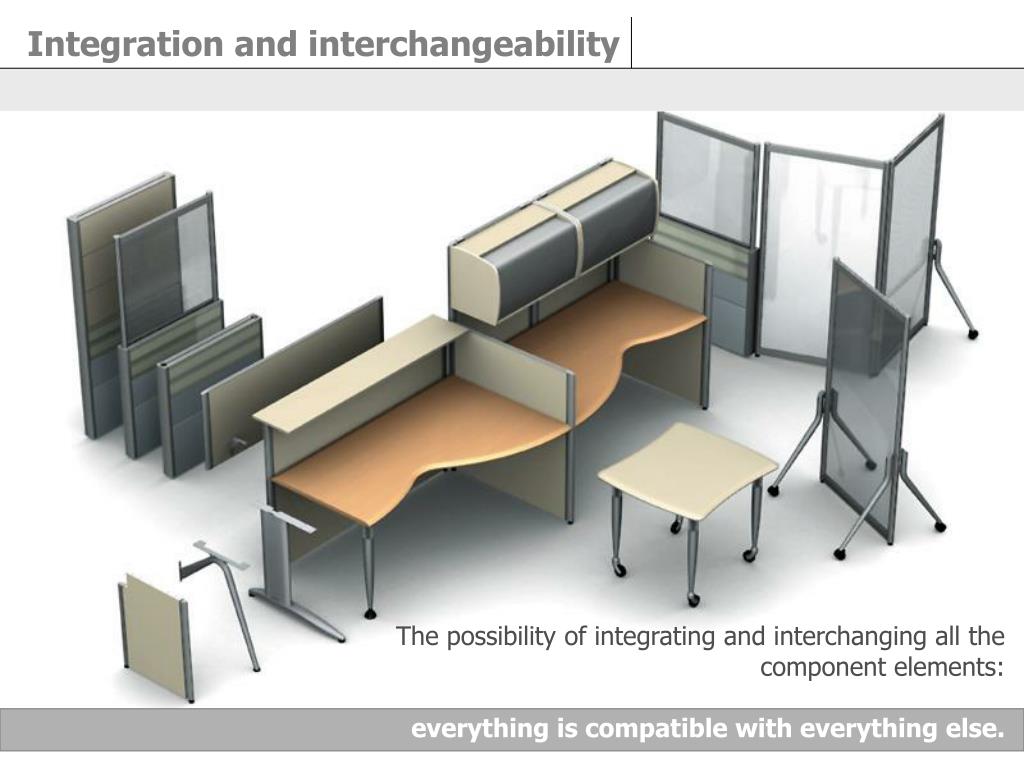

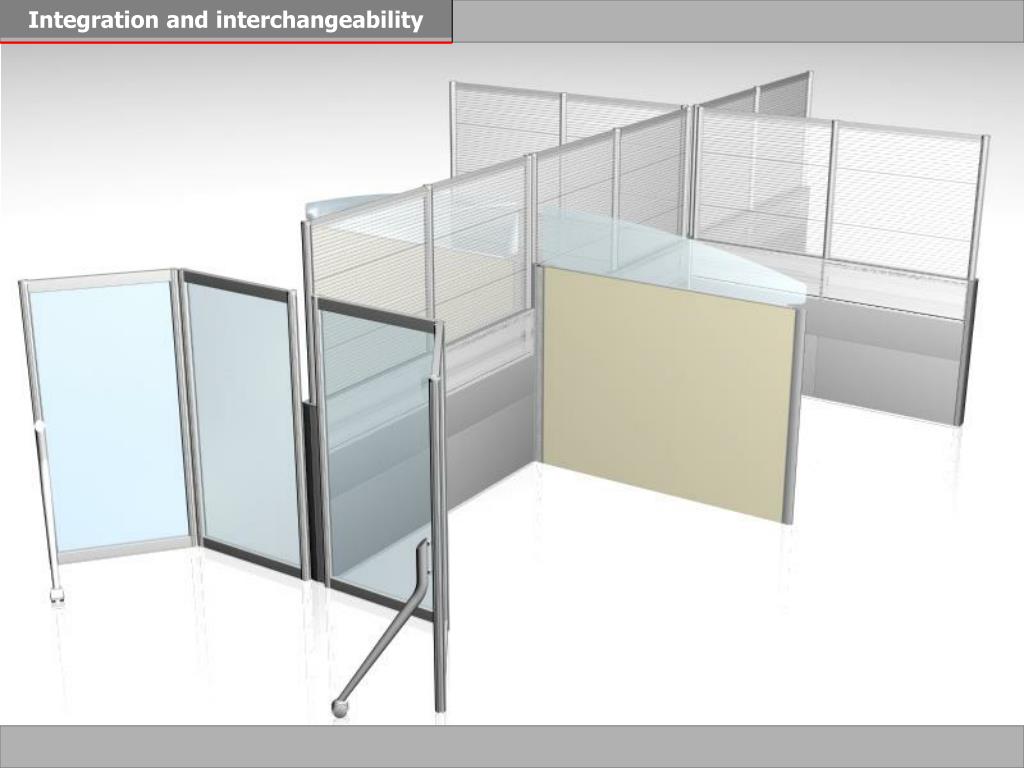

3. Integration and interchangeability The possibility of integrating and interchanging all the component elements:everything is compatible with everything else.

4. Integration and interchangeability

5. Integration and interchangeability

6. Integration and interchangeability

7. Structures Partition panels Duplex system Accessories

8. Reconfigurations These structures may comprise: • metal T or tapered legs • wooden sides • below-desk drawers • small, single panel partition walls • Duplex modules Format Structures Structures The support structures for the work tops comprise a series of modular and interchangeable elements, following the design logic of the Format system. Structures – Partition panels – Duplex system

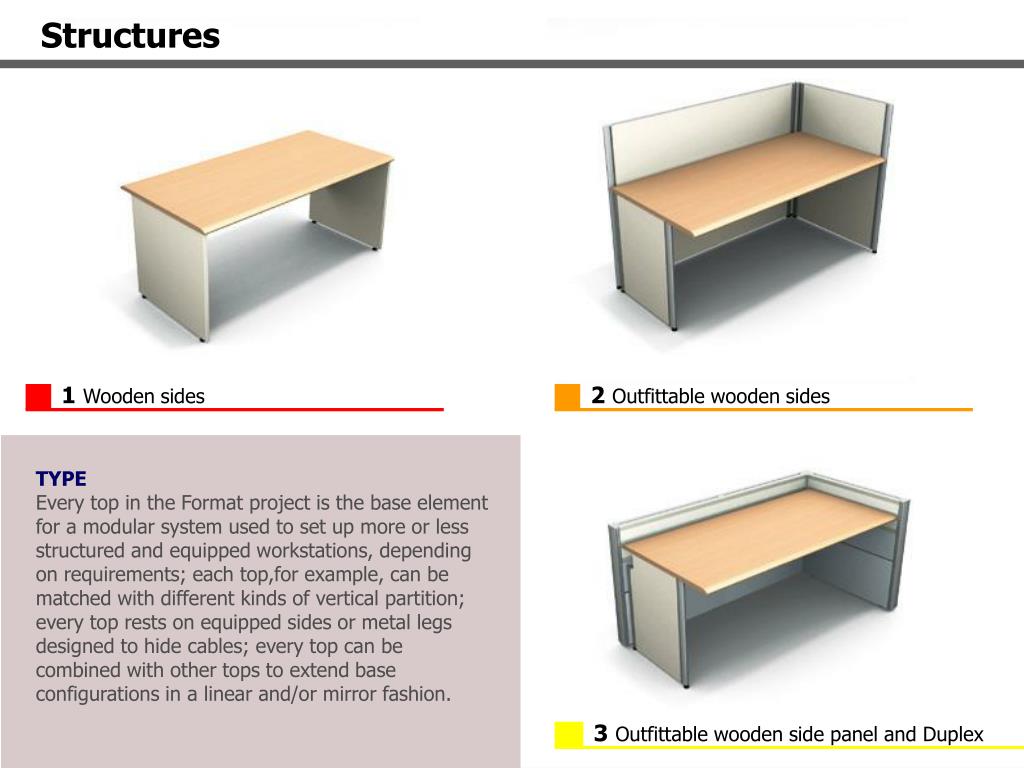

9. 1Wooden sides 2Outfittable wooden sides 3Outfittable wooden side panel and Duplex Structures TYPEEvery top in the Format project is the base element for a modular system used to set up more or less structured and equipped workstations, depending on requirements; each top,for example, can be matched with different kinds of vertical partition; every top rests on equipped sides or metal legs designed to hide cables; every top can be combined with other tops to extend base configurations in a linear and/or mirror fashion.

10. Le structures 1Wooden sides 2Outfittable wooden sides 3Metal legs with telescopic beam 4Metal legs with wooden crosspiece 5Base drawer unit with metal legs 6Base drawer unit with tapered legs 7Outfittable wooden side panel and partition panel 8Metal leg partition panel 9Tapered leg and partition panel 10Shaped leg and partition panel 11Partition panels 12Shaped legs and partition panel 13Undertop unit and partition panel 14Outfittable wooden side and Duplex 15Metal leg and Duplex 16Tapared leg and Duplex 17Shaped leg and Duplex 18Duplex 19Shaped legs and Duplex Simple or structured, lightweight or important, indipendent or integrated – The Format system is designed to meet all the needs of the workplace both today and tomorrow.

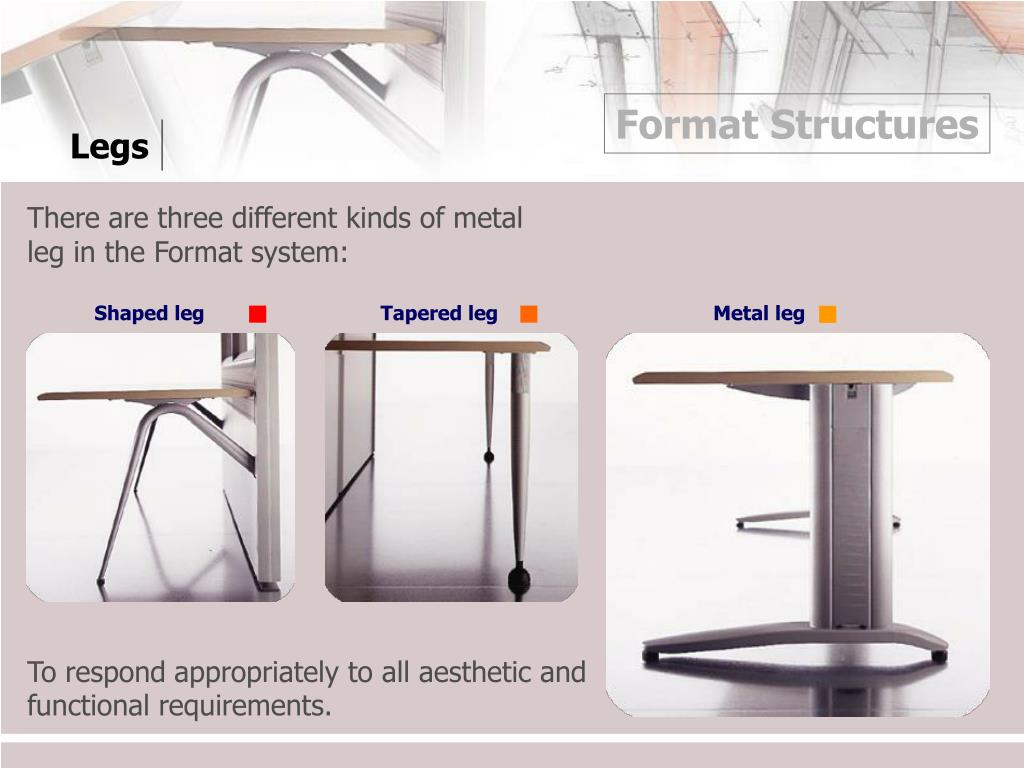

11. Metal leg Shaped leg Tapered leg Format Structures Legs There are three different kinds of metal leg in the Format system: To respond appropriately to all aesthetic and functional requirements.

12. Format Structures Partition panels Modular vertical elements with totale thickness of mm 25 which can be combined at variable heights, the small partition walls separate workplaces at the same time as bringing toghether structural components and supporting work tops ensuring infinite furnishing combinations. They are single-panels in wood particles with melamine or fabric finishing complete with vertical aluminium profiles which can be equipped.

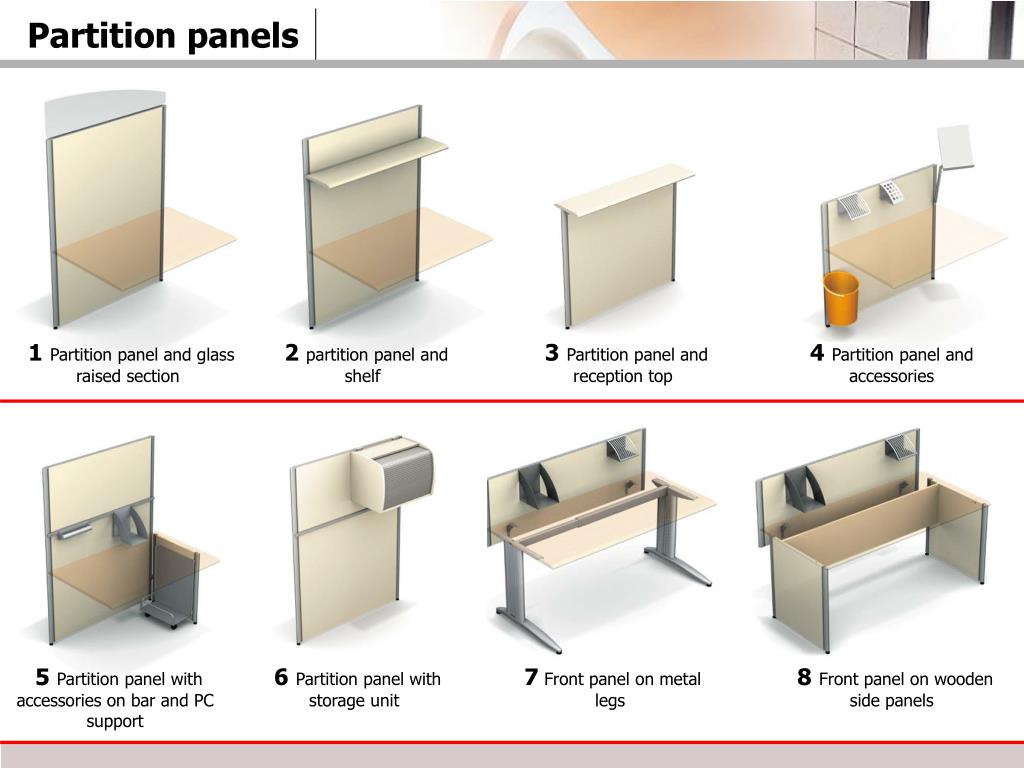

13. 1Partition panel and glass raised section 2partition panel and shelf 3Partition panel and reception top 4Partition panel and accessories 5Partition panel with accessories on bar and PC support 6Partition panel with storage unit 7 Front panel on metal legs 8Front panel on wooden side panels Partition panels

14. 1Base modulewith cable conduit on one or two sides. 2 Duplex lightwith ice screen. 3Duplex Blind module Duplex System Format Structures Accessories

15. Duplex System

16. Duplex System

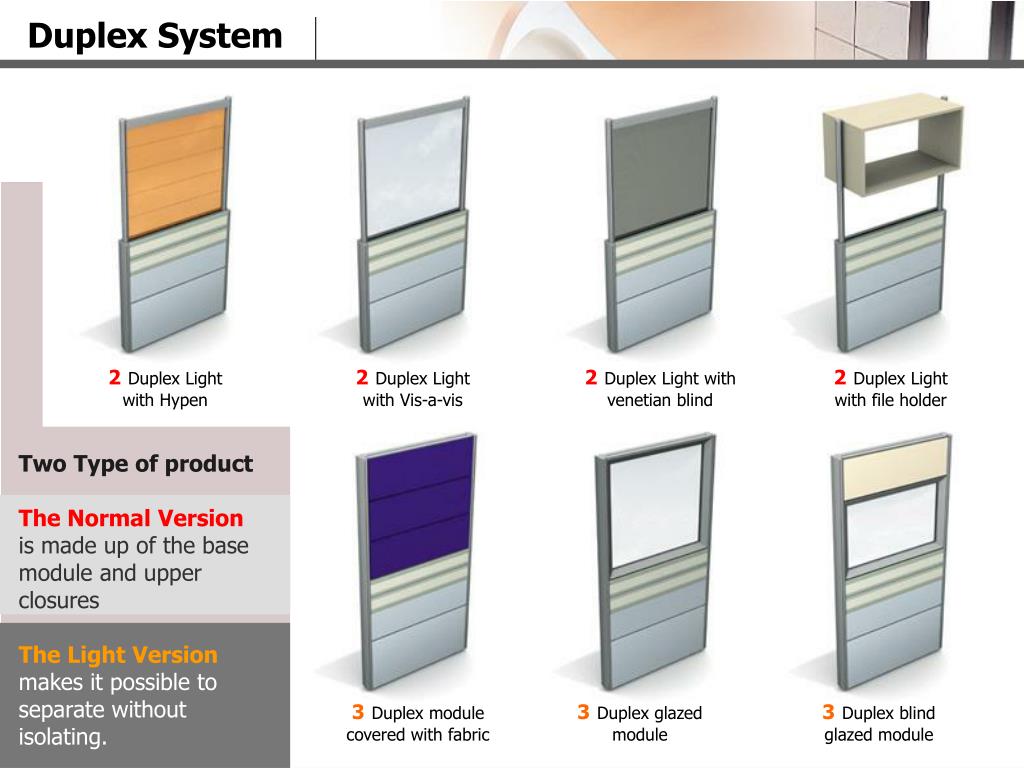

17. 2Duplex Lightwith Hypen 2Duplex Lightwith Vis-a-vis 2Duplex Light withvenetian blind 2Duplex Lightwith file holder 3Duplex modulecovered with fabric 3Duplex glazedmodule 3Duplex blindglazed module Duplex System Two Type of product The Normal Versionis made up of the base module and upper closuresThe Light Versionmakes it possible to separate without isolating.

18. 1Shelf 2Wall units with sliding shutter 3Whiteboard 4Swing-type lamp/Lamp to wall 5Trays Accessories AccessoriesBoth the small partition walls and the walls in the duplex system can be equipped with practical and functional accessories so that everything is always colse at hand: shelves, hanging cabinets with roller covers, black-board, flag-type lamp, folder holder, reading stand, pen holder, telephone stand and reception tops.

19. Duplex System - Accessories

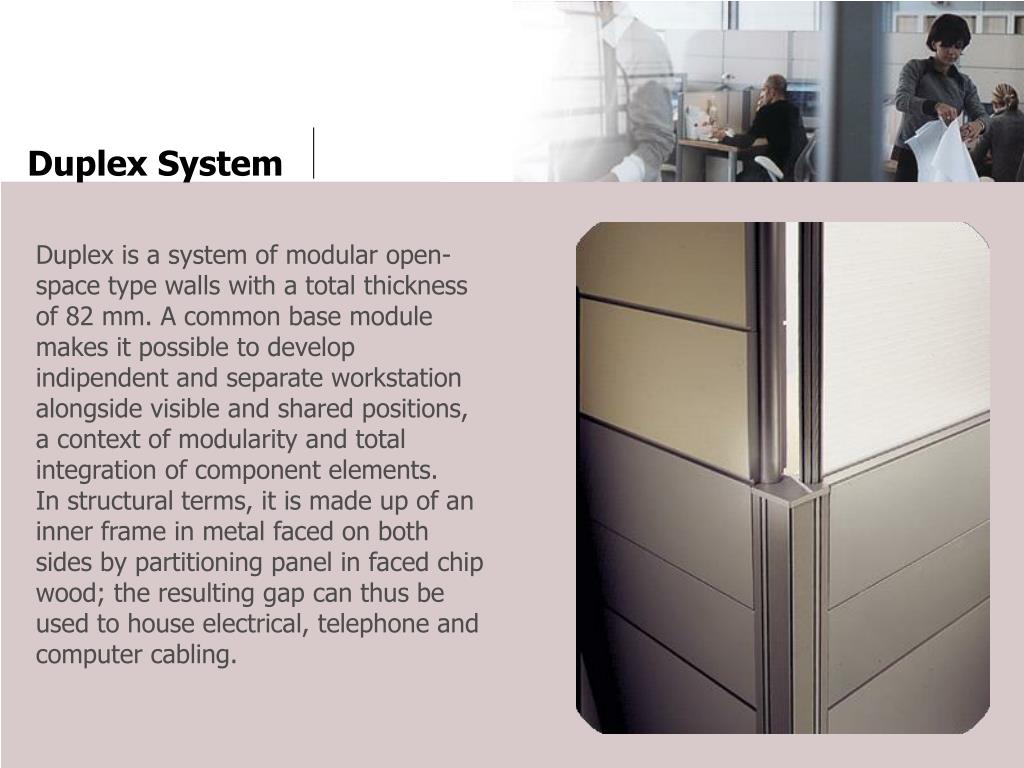

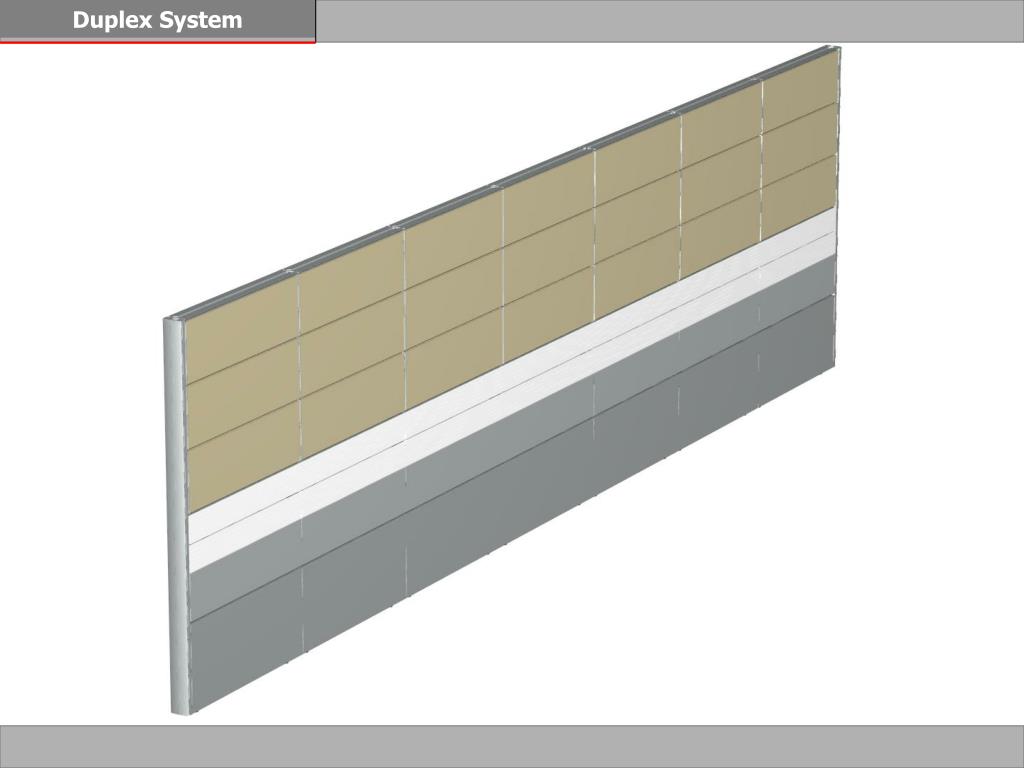

20. Duplex System Duplex is a system of modular open-space type walls with a total thickness of 82 mm. A common base module makes it possible to develop indipendent and separate workstation alongside visible and shared positions, a context of modularity and total integration of component elements.In structural terms, it is made up of an inner frame in metal faced on both sides by partitioning panel in faced chip wood; the resulting gap can thus be used to house electrical, telephone and computer cabling.

21. Duplex System Type aluminium upright For Duplex Light modules Type M metal upright For Duplex modules Duplex System 90° connection Base module with cableconduit on one side

22. Format Structures Integration between partition panels and Duplex system Duplex system and small partition walls are different from a structural, aesthetic and functional point of view. They were designed around a logic of total integration to maximise modularity.

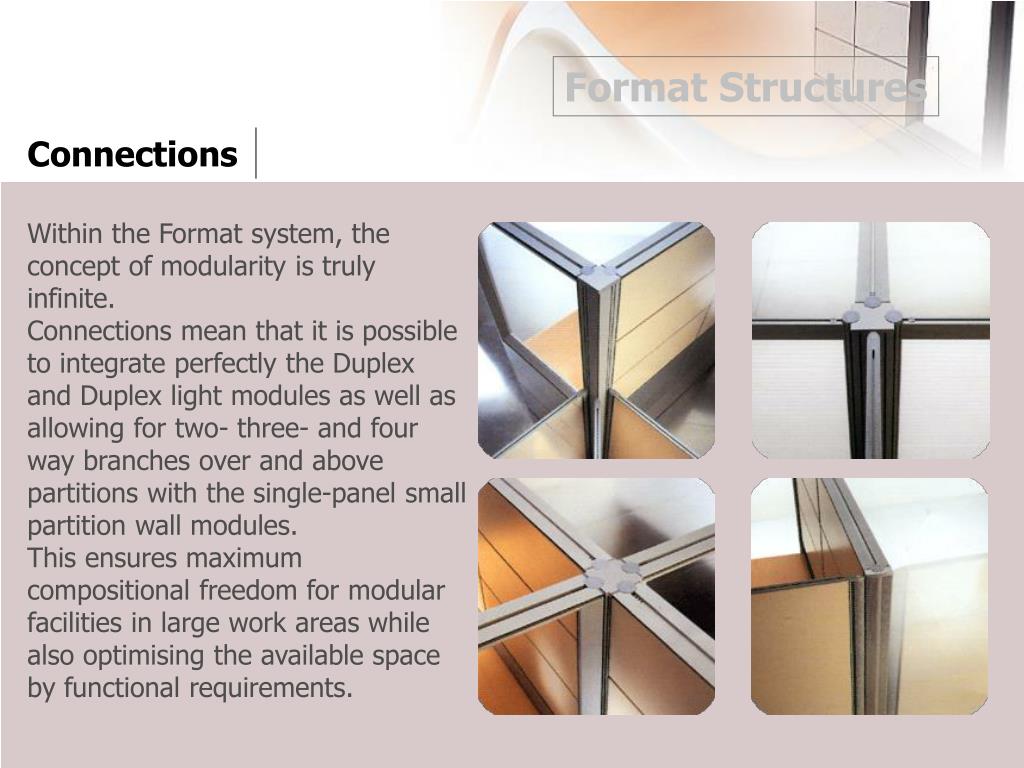

23. Format Structures Connections Within the Format system, the concept of modularity is truly infinite.Connections mean that it is possible to integrate perfectly the Duplex and Duplex light modules as well as allowing for two- three- and four way branches over and above partitions with the single-panel small partition wall modules. This ensures maximum compositional freedom for modular facilities in large work areas while also optimising the available space by functional requirements.

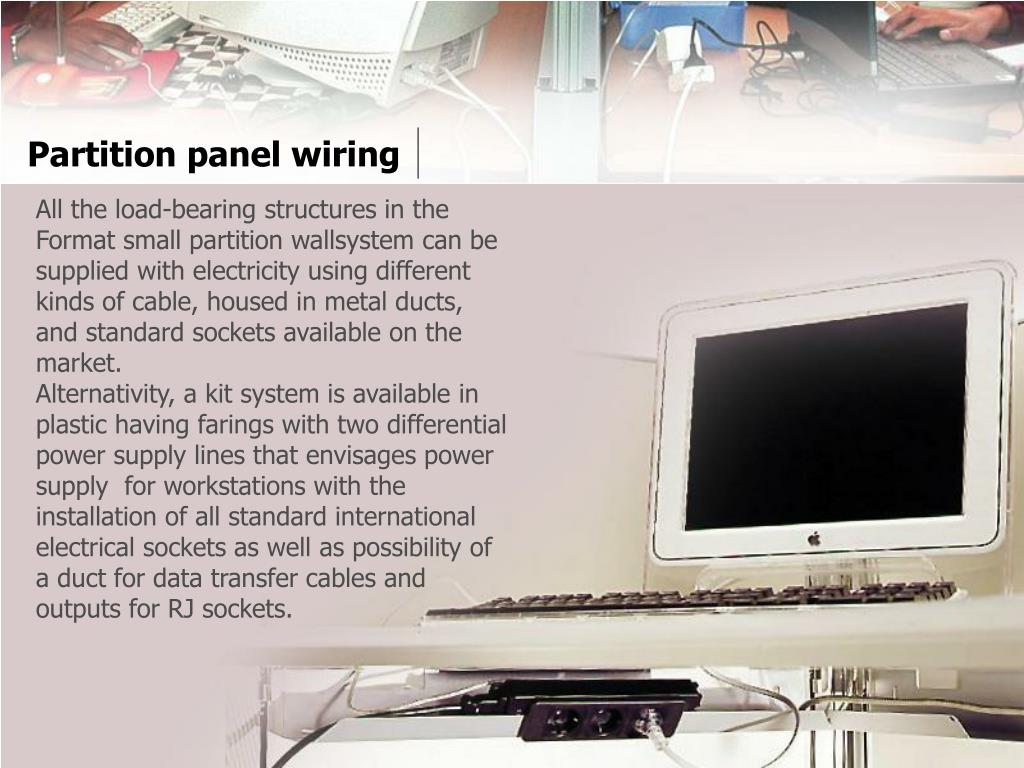

24. Partition panel wiring All the load-bearing structures in the Format small partition wallsystem can be supplied with electricity using different kinds of cable, housed in metal ducts, and standard sockets available on the market.Alternativity, a kit system is available in plastic having farings with two differential power supply lines that envisages power supply for workstations with the installation of all standard international electrical sockets as well as possibility of a duct for data transfer cables and outputs for RJ sockets.

25. Duplex System wiring

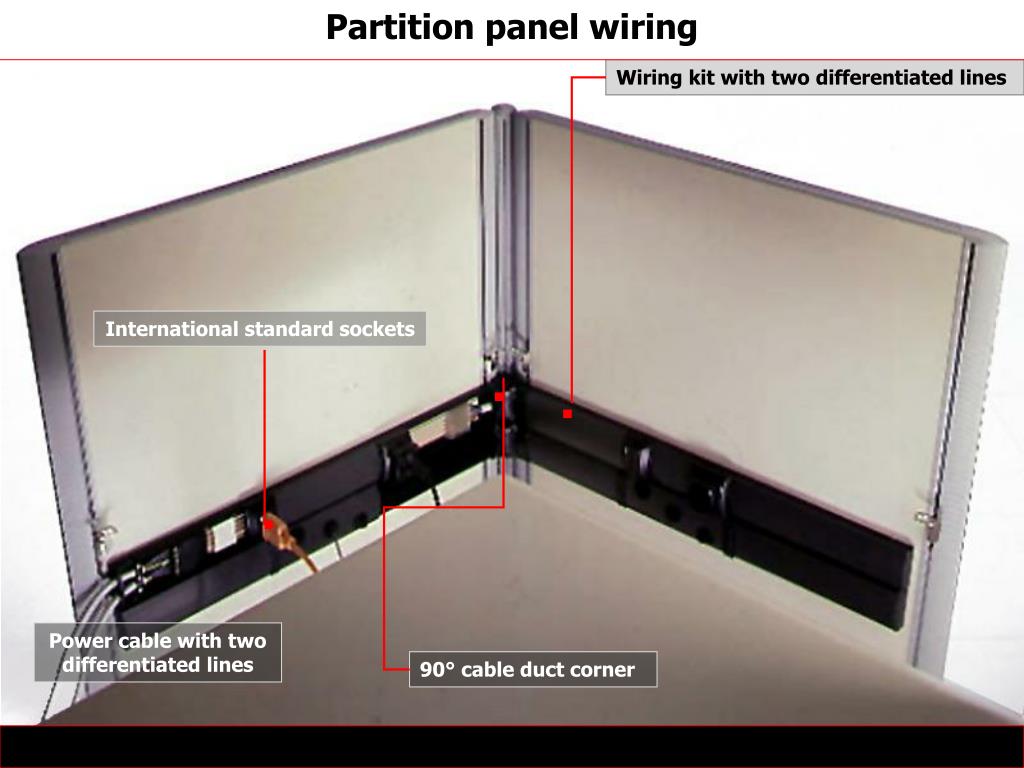

26. Partition panel wiring Wiring kit with two differentiated lines International standard sockets Power cable with two differentiated lines 90° cable duct corner

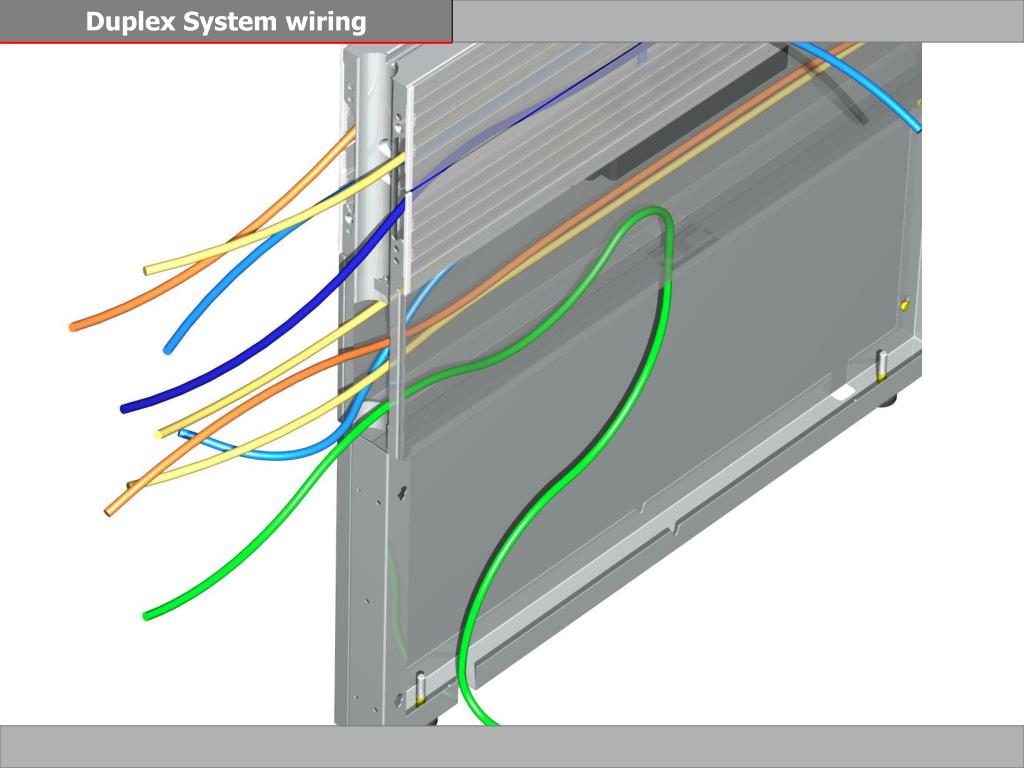

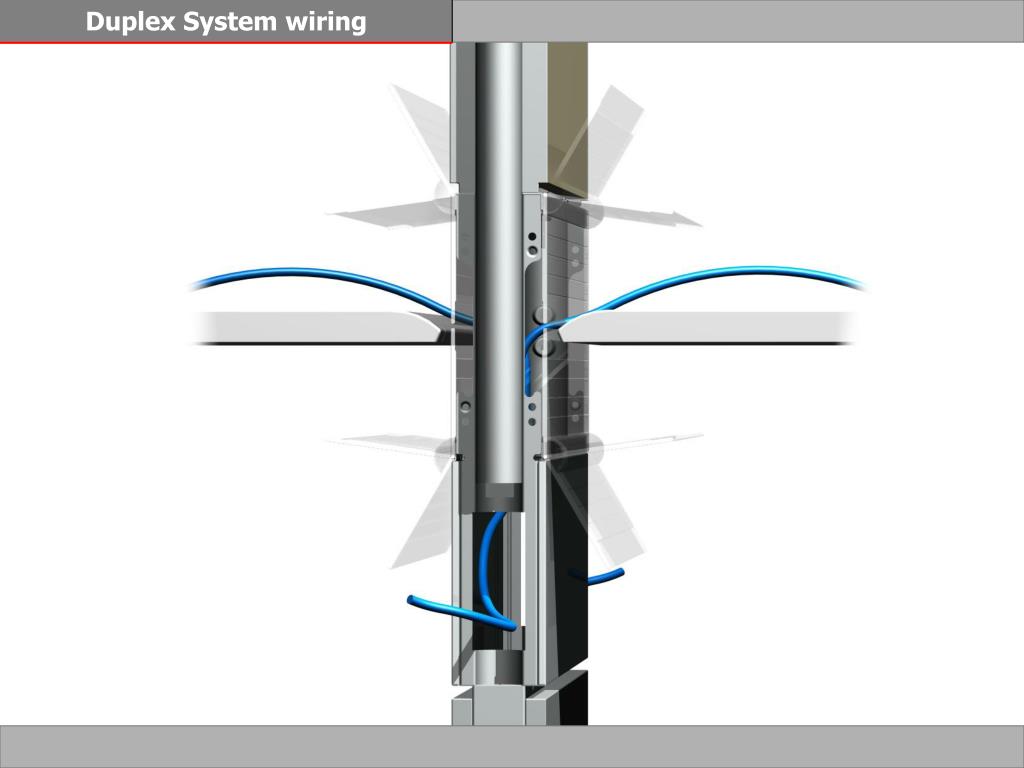

27. Duplex System wiring The Duplex system can be cabled in modular fashion. The base module of the wall has a book-type opening on top and undernearth the work top so that the module can be inspected from or both sides for accsess to the inside gap where the cables and sockets are housed. In this way, electrical cabling is an integral part of the structure and can be inspect and accessed if necessary, or set into the overall harmony of the forms and proportions.

28. Duplex System wiring

29. Duplex System wiring

30. Duplex System wiring

31. Duplex System wiring

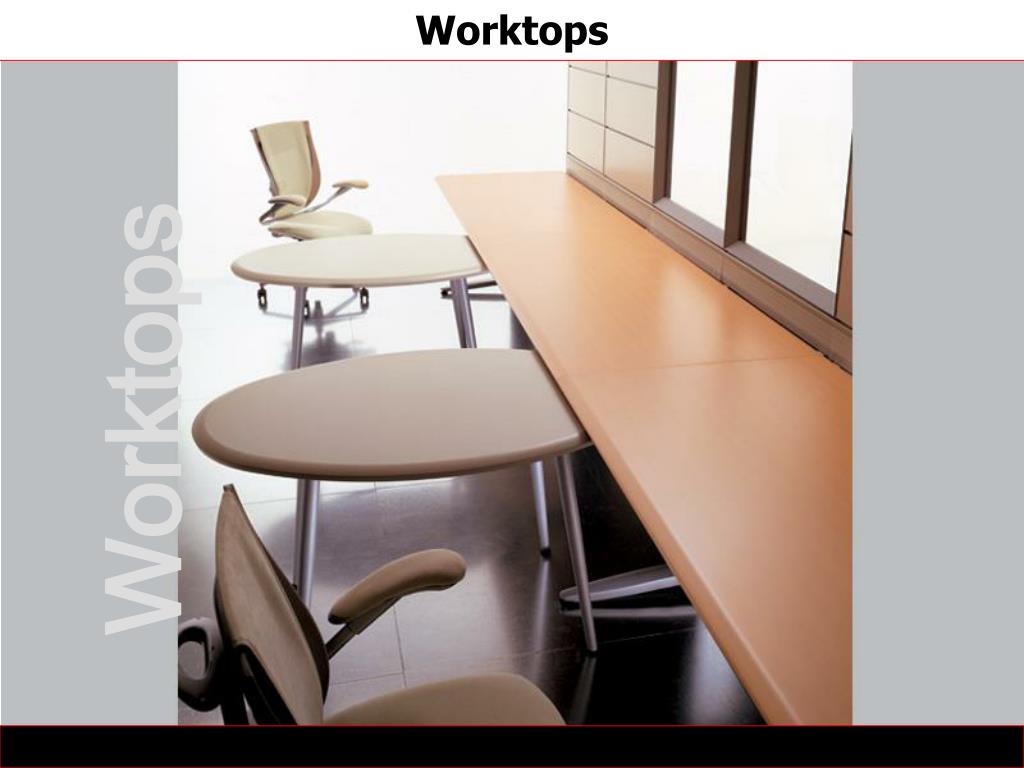

32. Linear worktops - Workstation tops Managerial desks End sections - Single peninsulas Shaped extensions - Connections Worktops Desks, operative management systems and meeting tables: even the worktops are an expression of the concept of absolutemodularity that inspired Las Mobili to design and develop the entire furniture system. Welcome, work, space-sharing and meetings: each of these occasions is matched by a Format worktop for a perfect response to the needs of modern workplaces and work methods

33. Worktops Worktops

34. Worktops Worktops EDGES Every version of these tops is produced with a shaped, post-forming perimeter profile or a flat, edged profile in ABS

35. 1 Linear worktops 2 Workstation tops Linear worktops Workstation tops The worktops in the Format system are available as a linear version (depth 60 and 80 cm) or a symmetrical or non-symmetrical workstations. The Linear tops are made of wood chip panels faced with laminated post-forming HPL or wood chip panels faced with melamine. The Workstation tops are in MDF faced with PVC or wood chip panels faced with melamine.

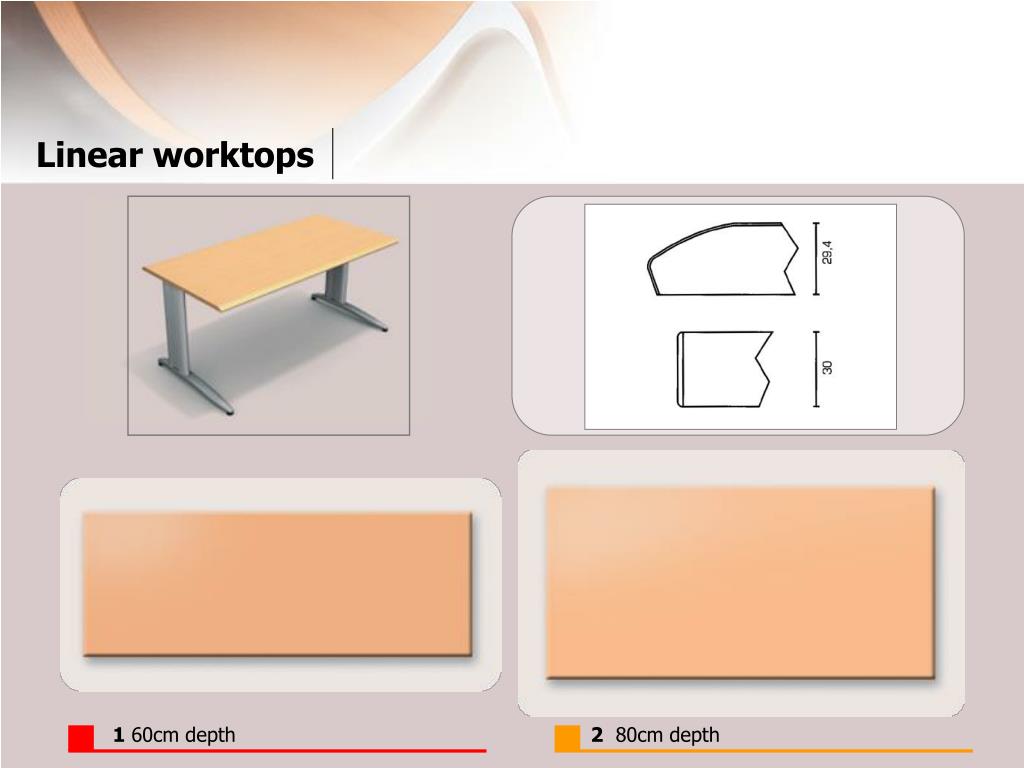

36. 160cm depth 2 80cm depth Linear worktops

37. Workstation tops

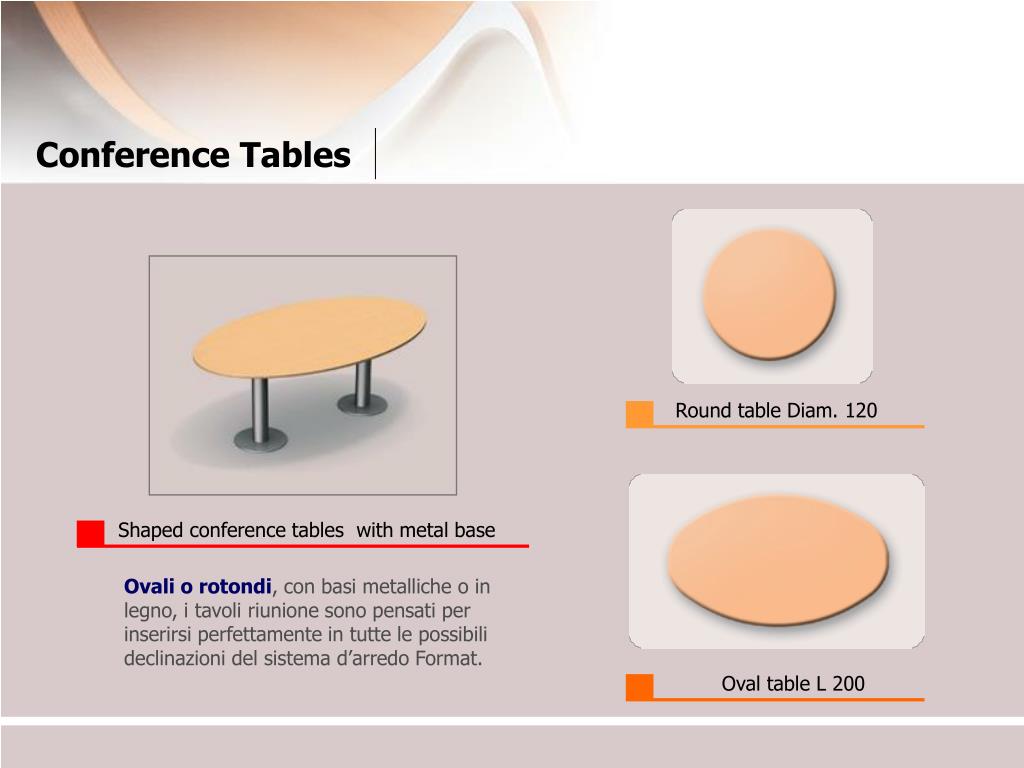

38. Round table Diam. 120 Shaped conference tables with metal base Oval table L 200 Conference Tables Ovali o rotondi, con basi metalliche o in legno, i tavoli riunione sono pensati per inserirsi perfettamente in tutte le possibili declinazioni del sistema d’arredo Format.

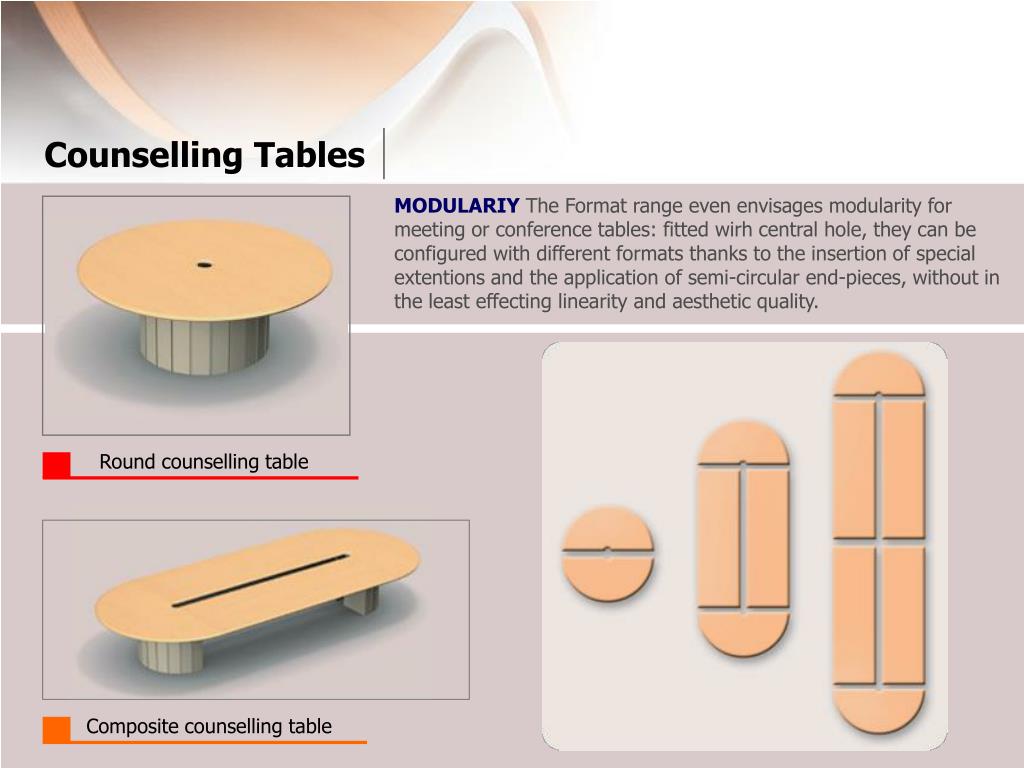

39. Round counselling table Composite counselling table Counselling Tables MODULARIY The Format range even envisages modularity for meeting or conference tables: fitted wirh central hole, they can be configured with different formats thanks to the insertion of special extentions and the application of semi-circular end-pieces, without in the least effecting linearity and aesthetic quality.

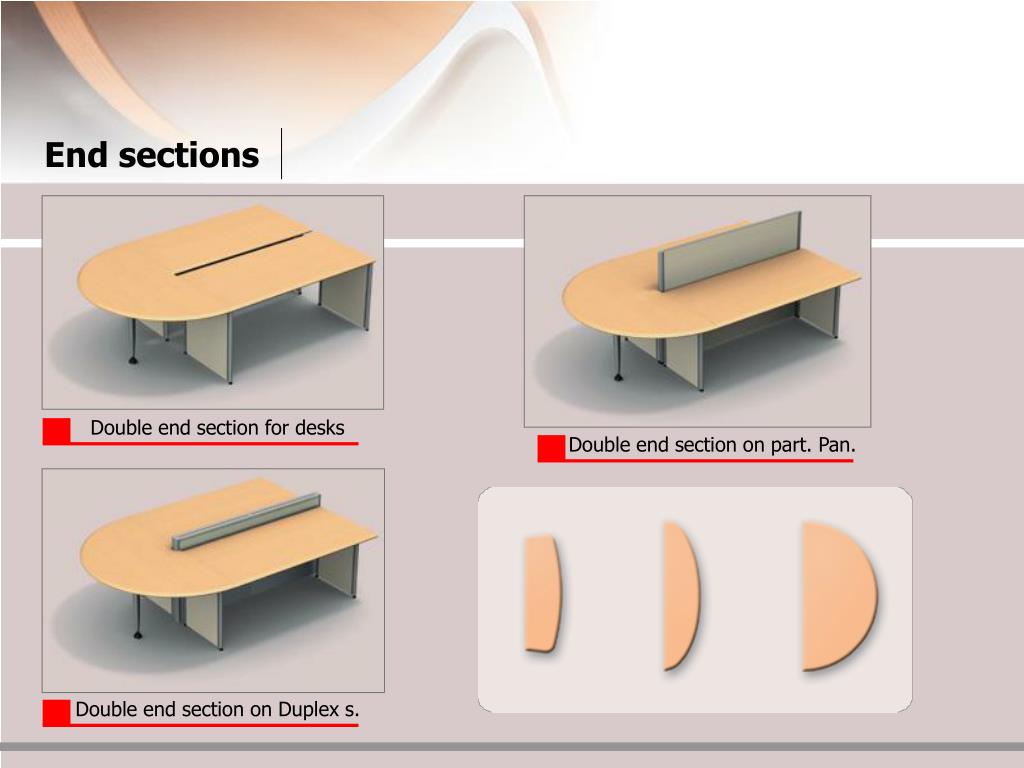

40. Double end section for desks Double end section on part. Pan. Double end section on Duplex s. End sections

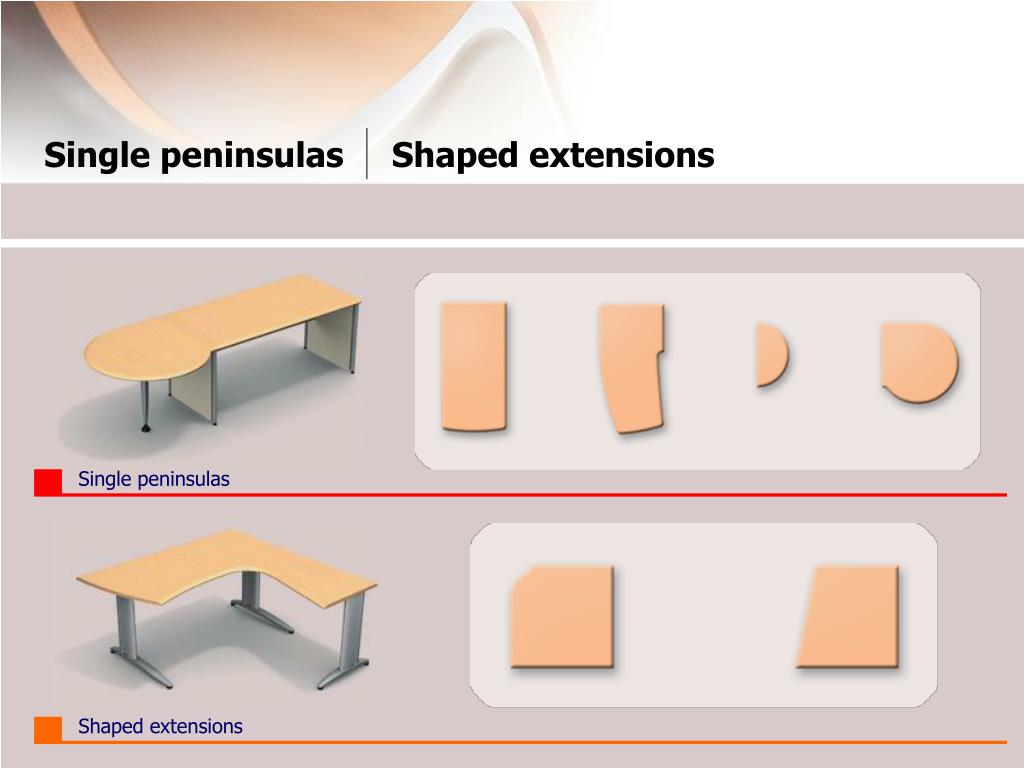

41. Single peninsulas Shaped extensions Single peninsulas Shaped extensions

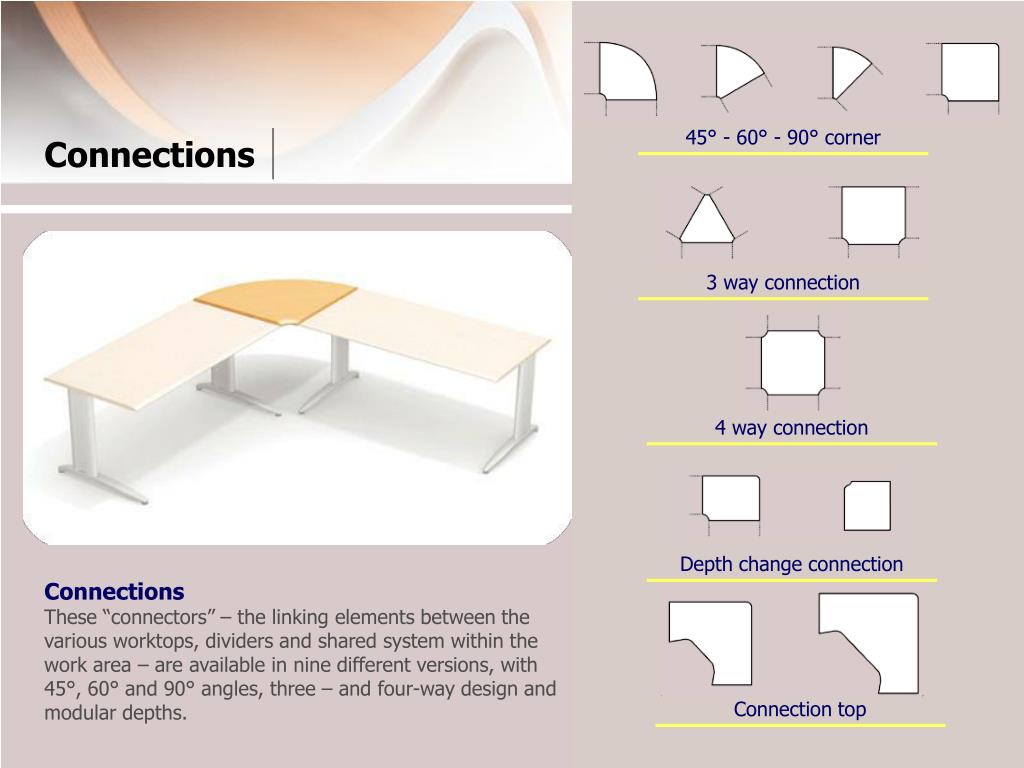

42. 45° - 60° - 90° corner 3 way connection 4 way connection Depth change connection Connection top Connections ConnectionsThese “connectors” – the linking elements between the various worktops, dividers and shared system within the work area – are available in nine different versions, with 45°, 60° and 90° angles, three – and four-way design and modular depths.

43. Managerial desks Worktops

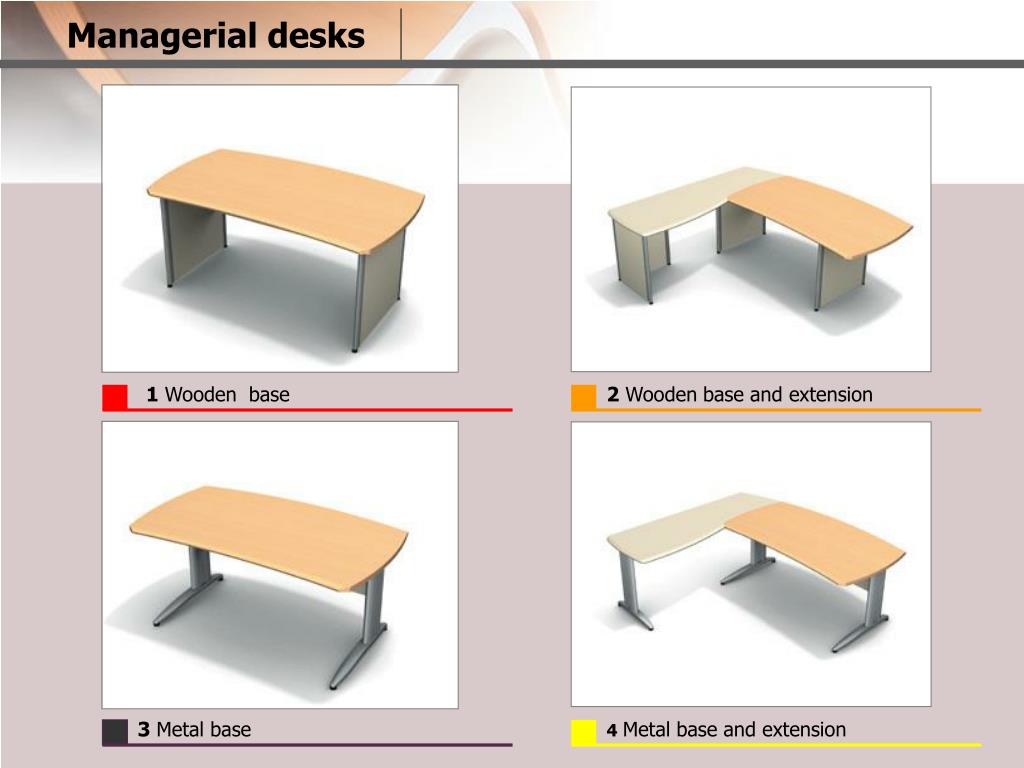

44. 1 Wooden base 2 Wooden base and extension 3 Metal base 4Metal base and extension Managerial desks

45. Cabinets

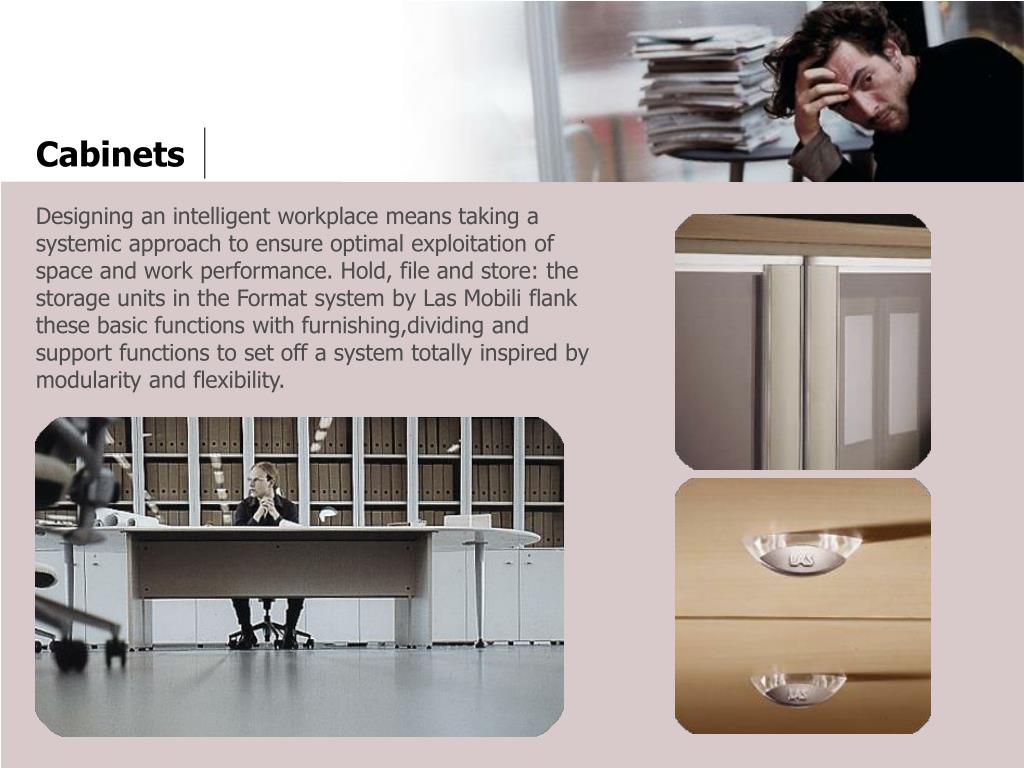

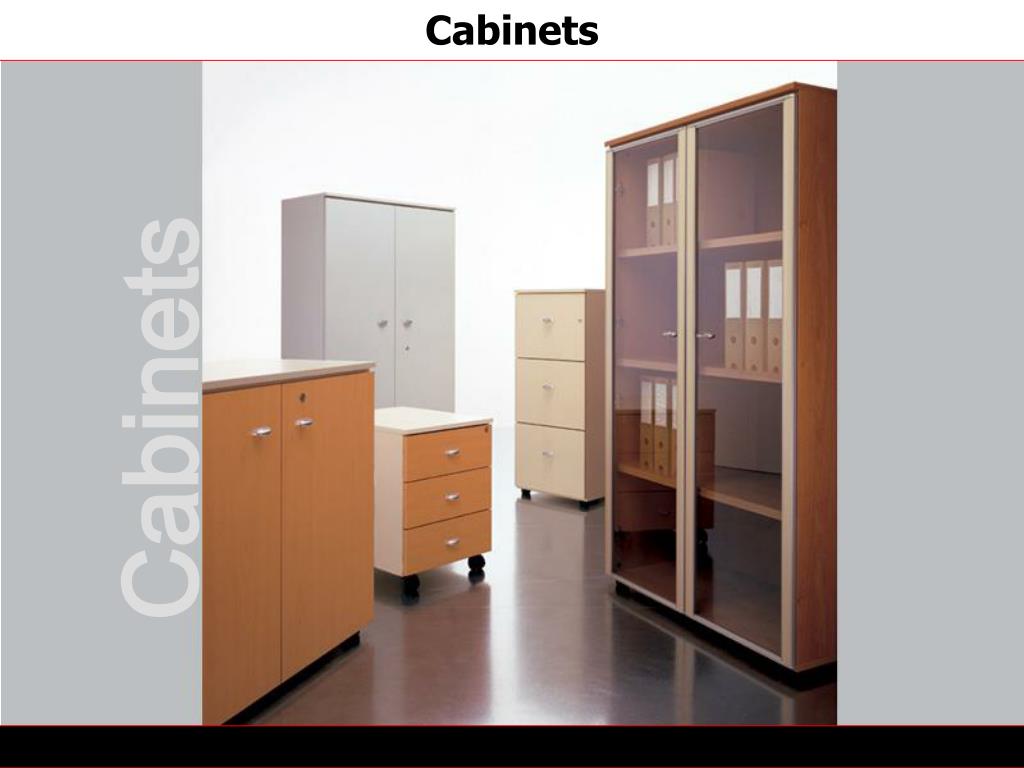

46. Cabinets Designing an intelligent workplace means taking a systemic approach to ensure optimal exploitation of space and work performance. Hold, file and store: the storage units in the Format system by Las Mobili flank these basic functions with furnishing,dividing and support functions to set off a system totally inspired by modularity and flexibility.

47. Cabinets Cabinets

48. 1 Open storage unit 2 Storage unit with blind doors 4 Storage unit with glass doors 3Storage unit with blind/glass doors 5 Cabinet with shutter 6 Filing cabinet Cabinets Open shelves, cabinets with wooden, glass or combined wood-glass doors, storage units with roller covers: the Format range is designed to equip all modern workplaces in the most suitable manner.

49. 1Drawer unit on castors 2Side storage unit for worktops 3Side drawer unit for worktops Cabinets They can be mounted in three dimensions undernearth the desk and worktops to complement workstations or they can become structural support elements for the various compositions in the Format project.
