Understanding Nuclear Reactor Functions: Fission, Control, and Energy Production

This comprehensive overview explains how nuclear reactors operate, focusing on the process of nuclear fission. It covers the essential steps, including the bombardment of Uranium-235 with neutrons to initiate fission, followed by a description of how control rods regulate the reaction rate. Additionally, it highlights the importance of moderators to slow down neutrons and the concept of critical mass. Also briefly addressed are nuclear fusion processes that power stars, detailing the energy release and the challenges associated with achieving these reactions.

mauli
Télécharger la présentation

Understanding Nuclear Reactor Functions: Fission, Control, and Energy Production

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. How does nuclear reactor work. 7:30 min http://www.youtube.com/watch?v=LTnfXLws40Q Fukushima 3 min http://www.youtube.com/watch?v=BdbitRlbLDc Fukushima Now 14 min http://www.youtube.com/watch?v=f2aXsZDWRUA

  2. Energy from Fission & Fusion

  3. Binding E per Nucleon.

  4. Fission – liberates E. Can use particles (no) to induce fission. Typical 235U + 1n 236 U 90Sr + 144Xe +2 1n +E. 92 0 92 38 54 0. The ejected neutrons can split more U-235.

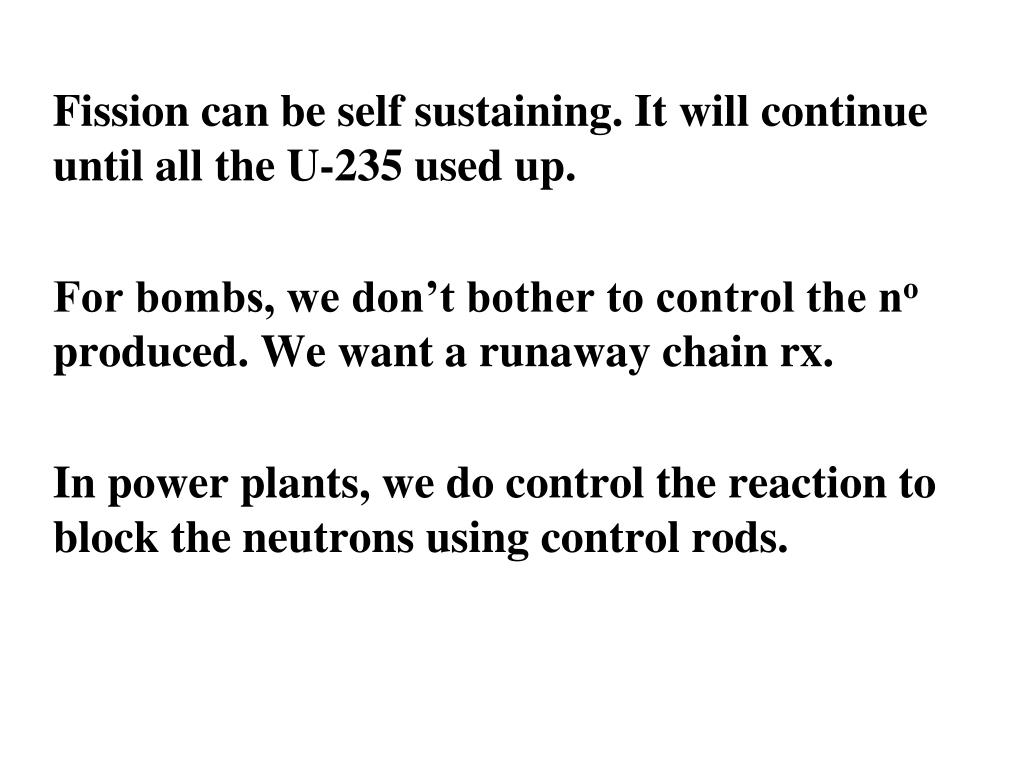

  5. Fission can be self sustaining. It will continue until all the U-235 used up. For bombs, we don’t bother to control the no produced. We want a runaway chain rx. In power plants, we do control the reaction to block the neutrons using control rods.

  6. Control Rods control rx rate by blocking or absorbing some of no formed in rx.

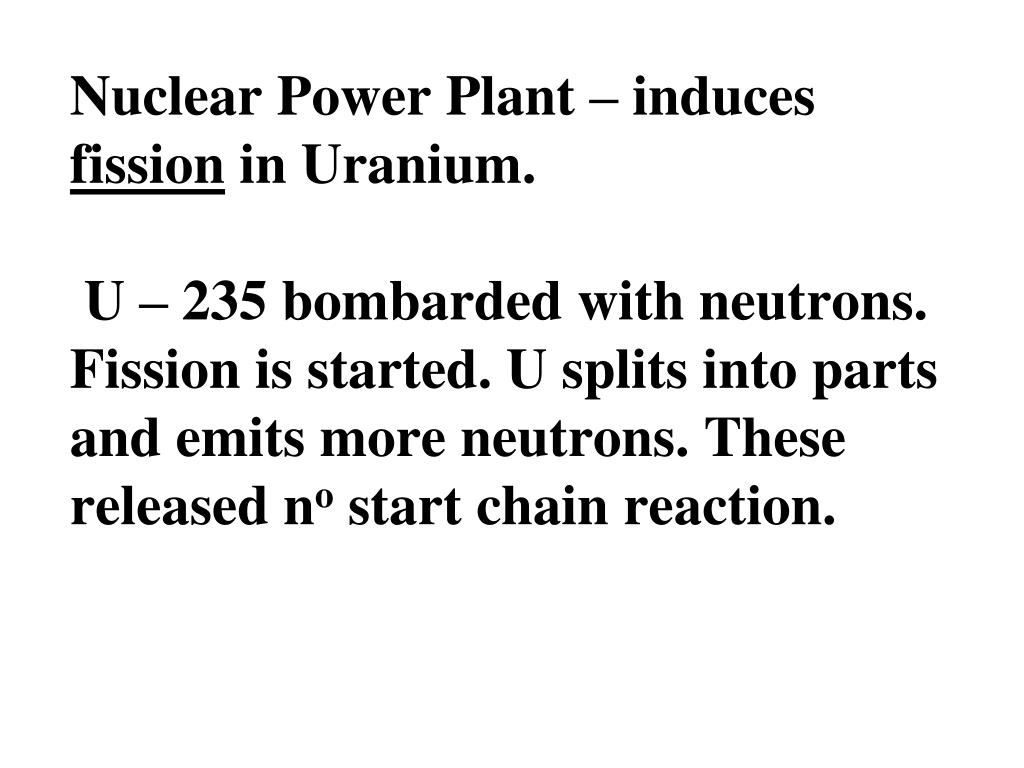

  7. Nuclear Power Plant – induces fission in Uranium. U – 235 bombarded with neutrons. Fission is started. U splits into parts and emits more neutrons. These released no start chain reaction.

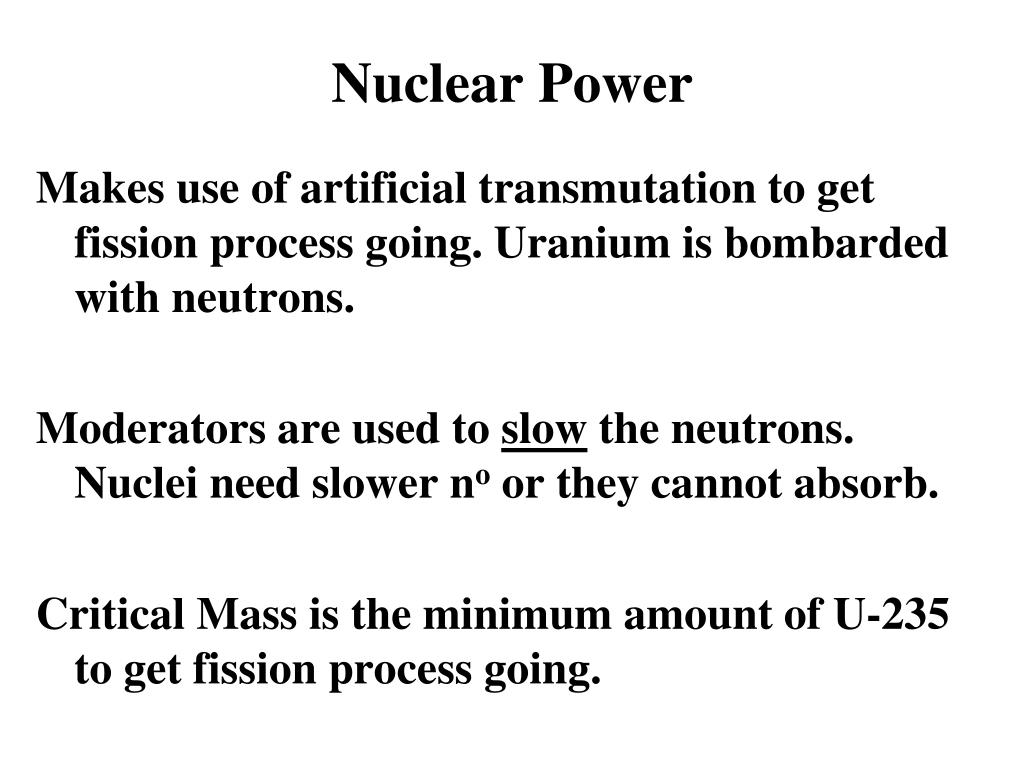

  8. Nuclear Power Makes use of artificial transmutation to get fission process going. Uranium is bombarded with neutrons. Moderators are used to slow the neutrons. Nuclei need slower no or they cannot absorb. Critical Mass is the minimum amount of U-235 to get fission process going.

  9. Nuclear Fusion • 2 light nuclei combine forming heavier ones. • H combines to form He. • Process that fuels the sun and other stars.

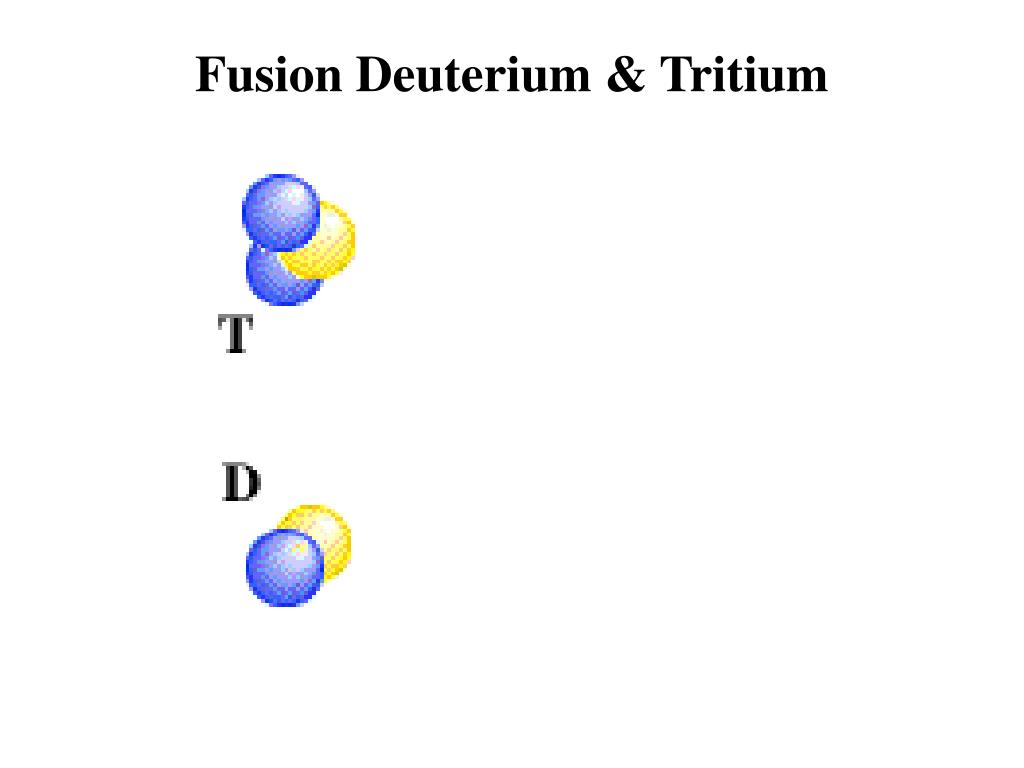

  10. Fusion Deuterium & Tritium

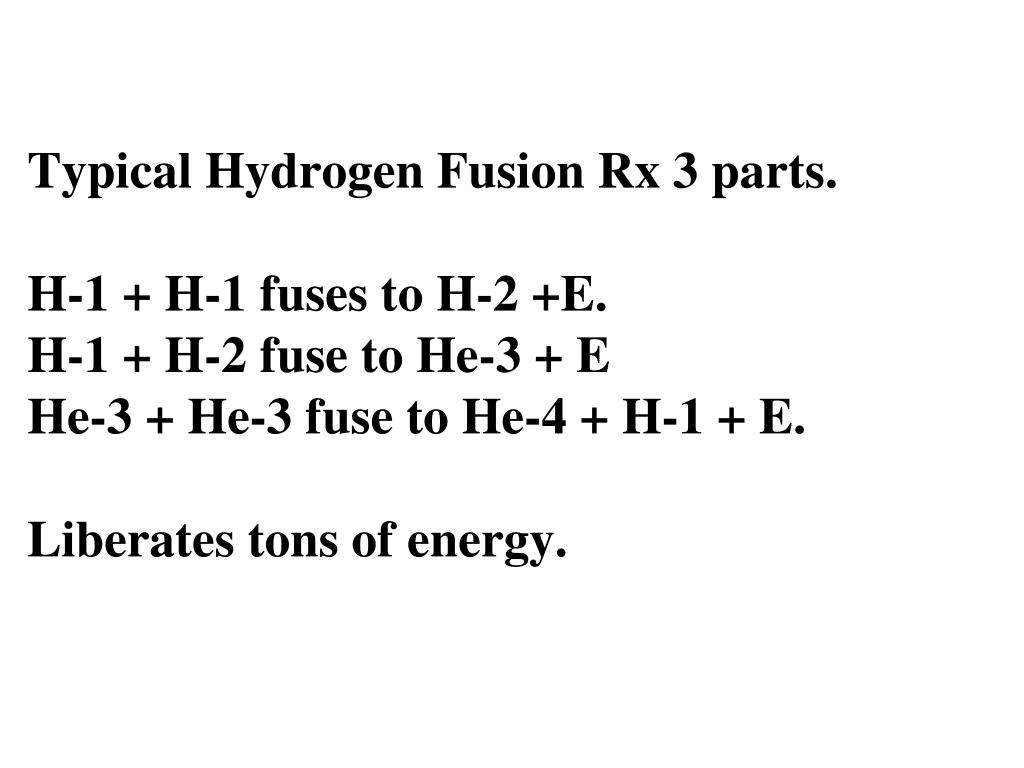

  11. Typical Hydrogen Fusion Rx 3 parts.H-1 + H-1 fuses to H-2 +E.H-1 + H-2 fuse to He-3 + EHe-3 + He-3 fuse to He-4 + H-1 + E.Liberates tons of energy.

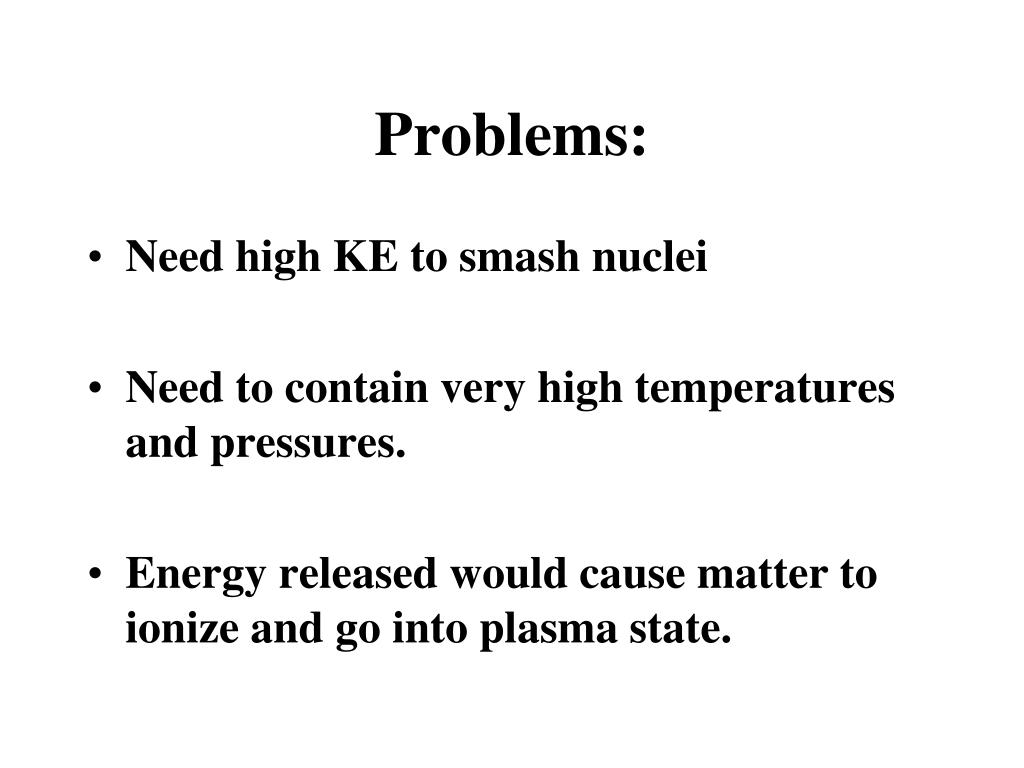

  12. Problems: • Need high KE to smash nuclei • Need to contain very high temperatures and pressures. • Energy released would cause matter to ionize and go into plasma state.

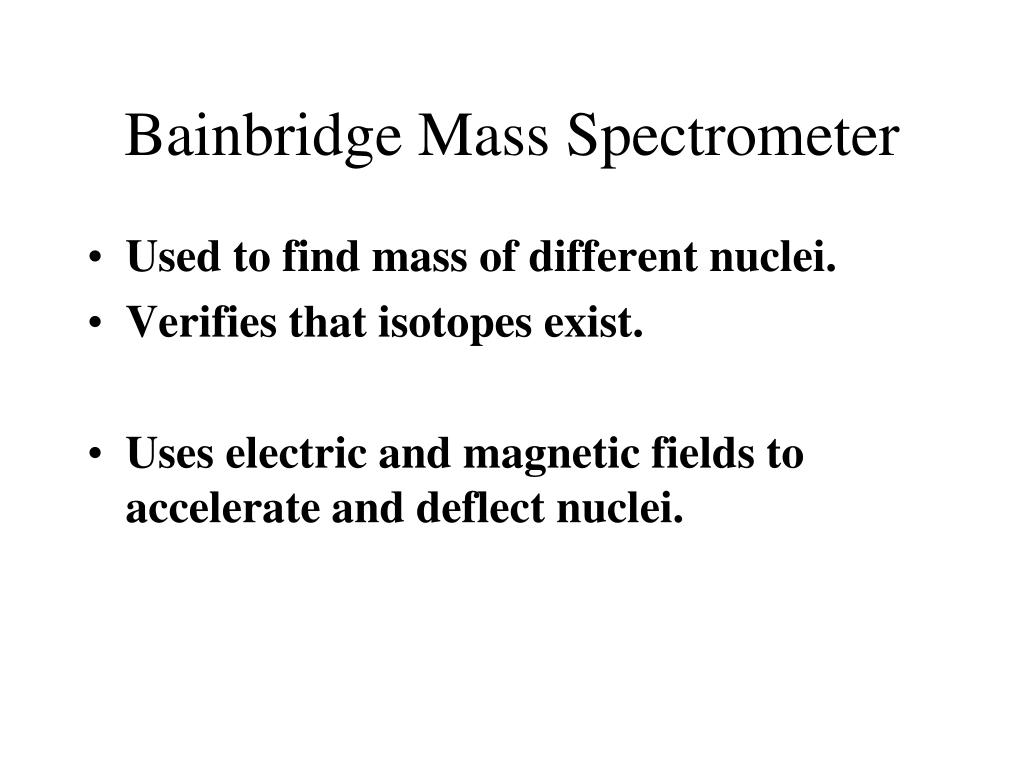

  13. Bainbridge Mass Spectrometer • Used to find mass of different nuclei. • Verifies that isotopes exist. • Uses electric and magnetic fields to accelerate and deflect nuclei.

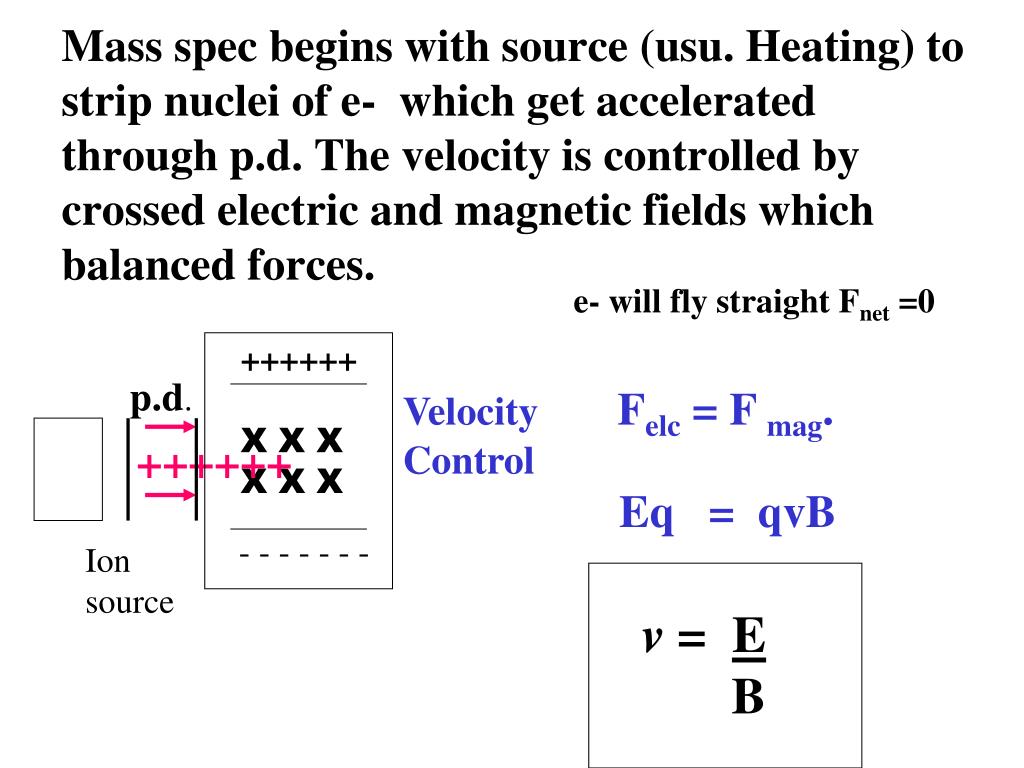

  14. v = E B Mass spec begins with source (usu. Heating) to strip nuclei of e- which get accelerated through p.d. The velocity is controlled by crossed electric and magnetic fields which balanced forces. e- will fly straight Fnet =0 ++++++ p.d. Velocity Felc = F mag. Control Eq = qvB X X X X X X ++++++ - - - - - - - Ion source

  15. The beam enters a vacuum with a magnetic field & is deflected into a curved path. ++++++ Fc = Fmag.mv2 = qvB rmv= qBr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X X X X X X - - - - - - - detectors. Radius of curvature is proportional to mass. Large masses don’t curve as much.
