P-N Junction Effects and Other Detectors

P-N Junction Effects and Other Detectors. S W McKnight and C A DiMarzio. P-N Junction. -. +. E. electrons. “holes”. E f. N a =density of acceptors (m -3 ). N d =density of donors (m -3 ). x. P-N Junction. E. +. -. electrons. E f. “holes”. x. Depletion Region. Abrupt Junction.

minerva-crane
Télécharger la présentation

P-N Junction Effects and Other Detectors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. P-N Junction Effects and Other Detectors S W McKnight and C A DiMarzio

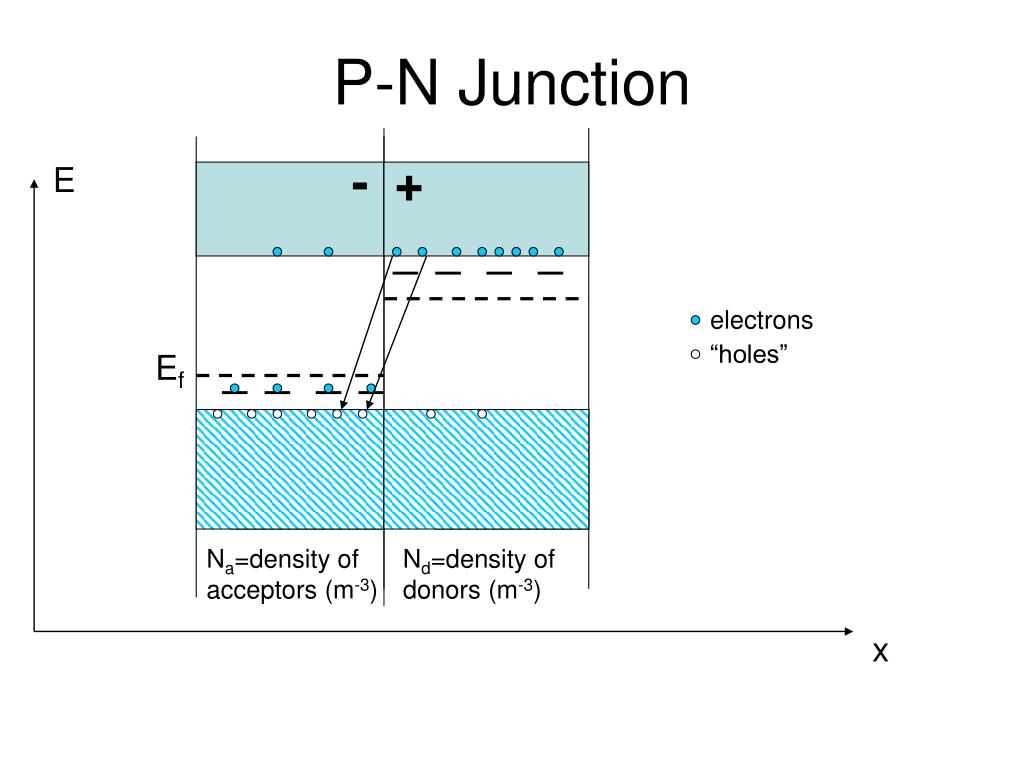

  2. P-N Junction - + E electrons “holes” Ef Na=density of acceptors (m-3) Nd=density of donors (m-3) x

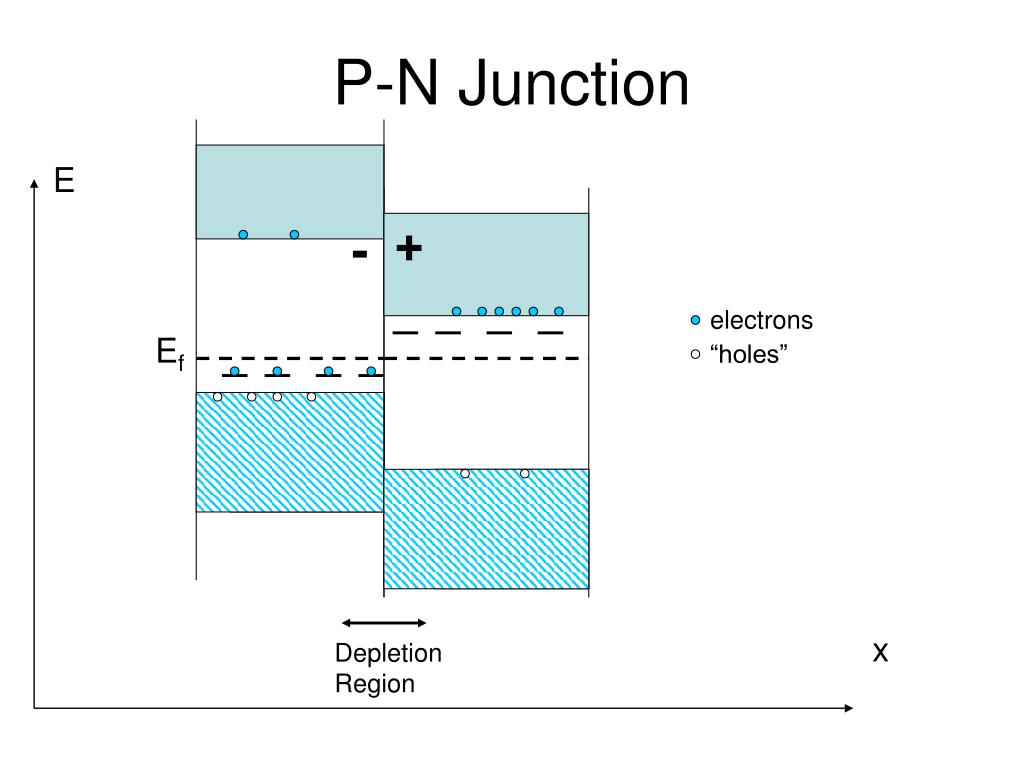

  3. P-N Junction E + - electrons Ef “holes” x Depletion Region

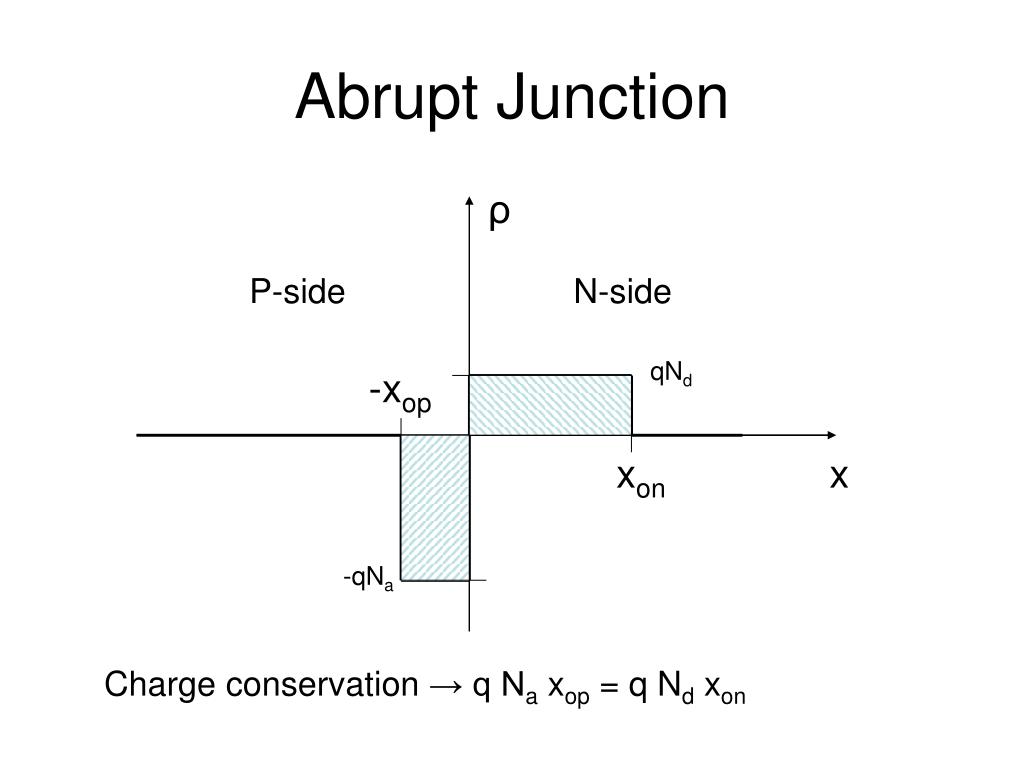

  4. Abrupt Junction ρ P-side N-side qNd -xop xon x -qNa Charge conservation → q Na xop = q Nd xon

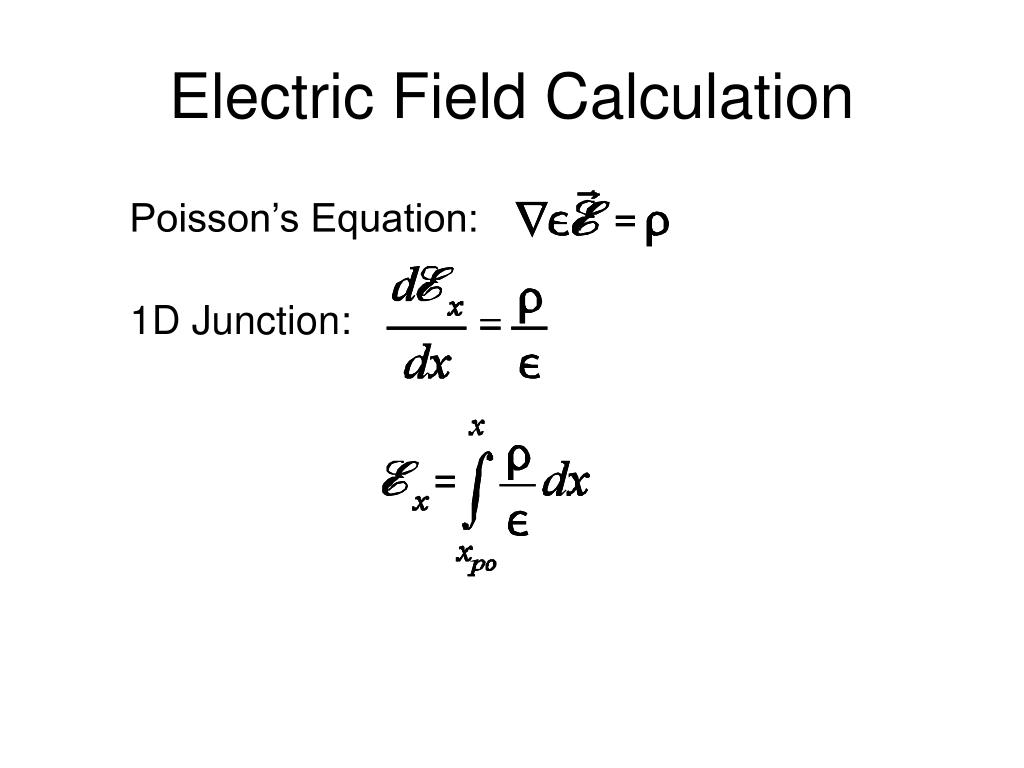

  5. Electric Field Calculation Poisson’s Equation: 1D Junction:

  6. Abrupt Junction P-side N-side -xop xon x

  7. P-N Junction E Junction “built-in” voltage Vo Ec Ef Ev w -xpo xno 0 x

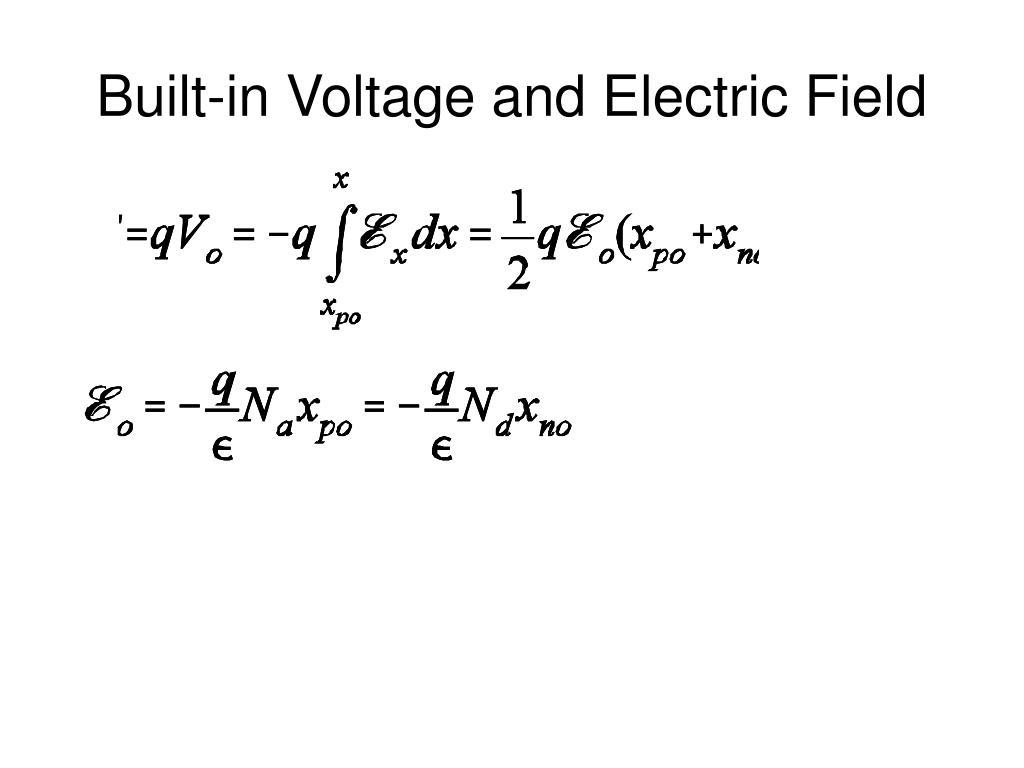

  8. Built-in Voltage and Electric Field

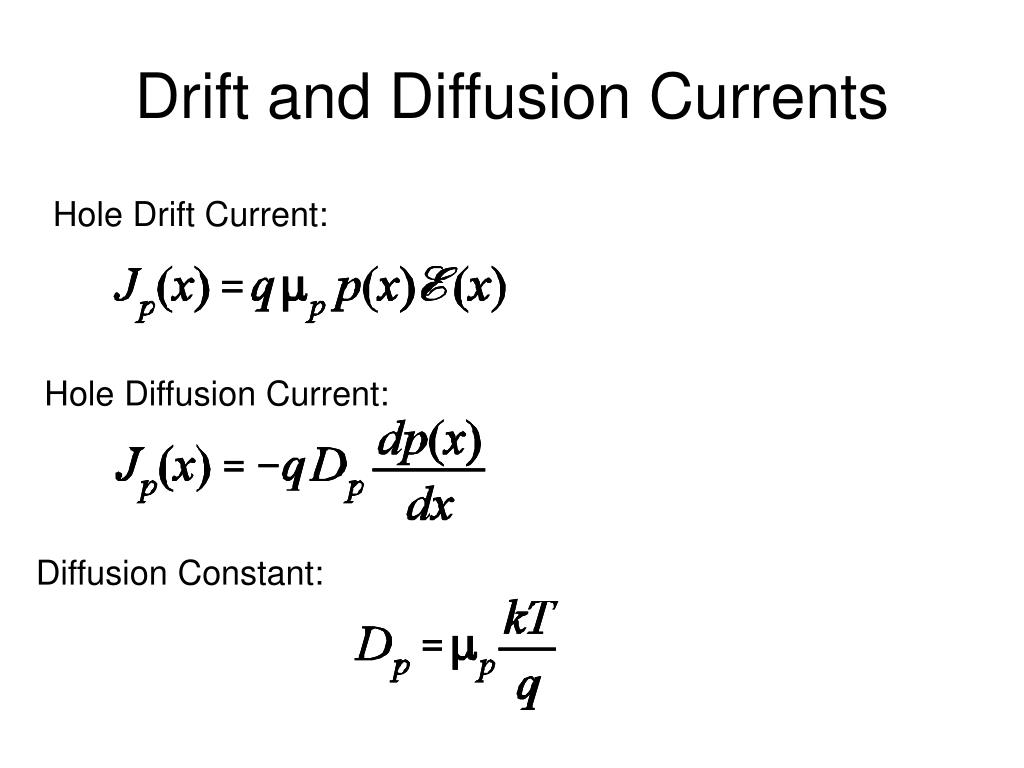

  9. Drift and Diffusion Currents Hole Drift Current: Hole Diffusion Current: Diffusion Constant:

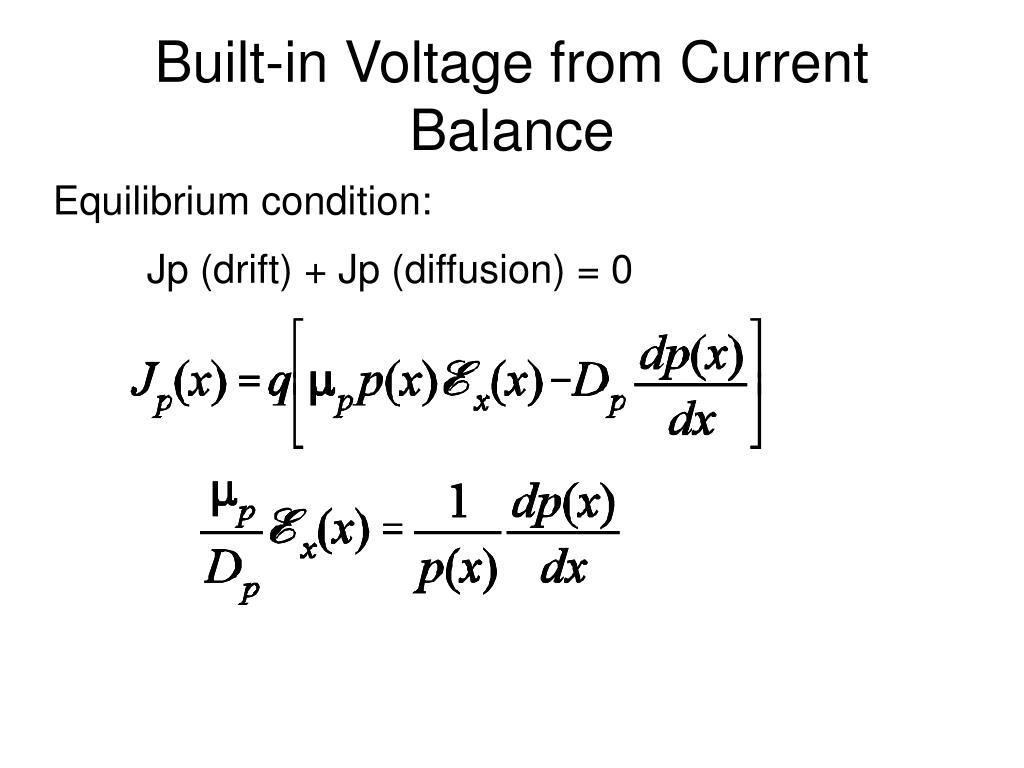

  10. Built-in Voltage from Current Balance Equilibrium condition: Jp (drift) + Jp (diffusion) = 0

  11. Built-in Voltage from Current Balance Electric field and Voltage:

  12. Built-in Voltage from Current Balance Since: pp≈ Na; nn ≈ Nd

  13. Depletion Region Width

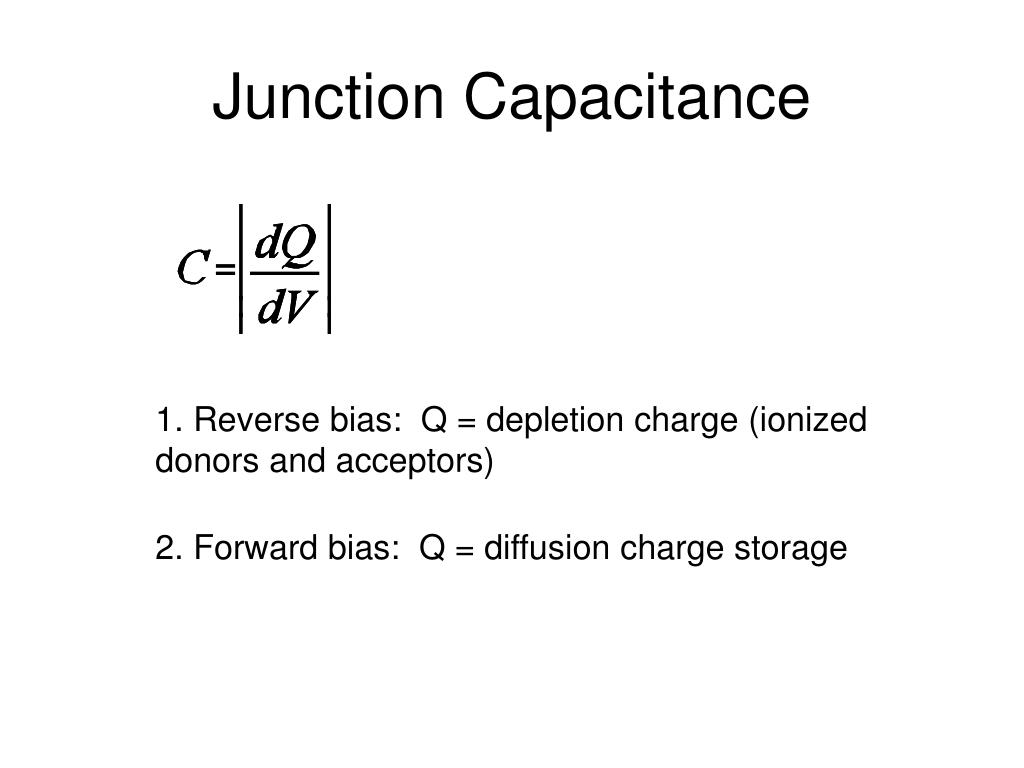

  14. Junction Capacitance 1. Reverse bias: Q = depletion charge (ionized donors and acceptors) 2. Forward bias: Q = diffusion charge storage

  15. Reverse Bias Junction Capacitance A=junction cross-section area

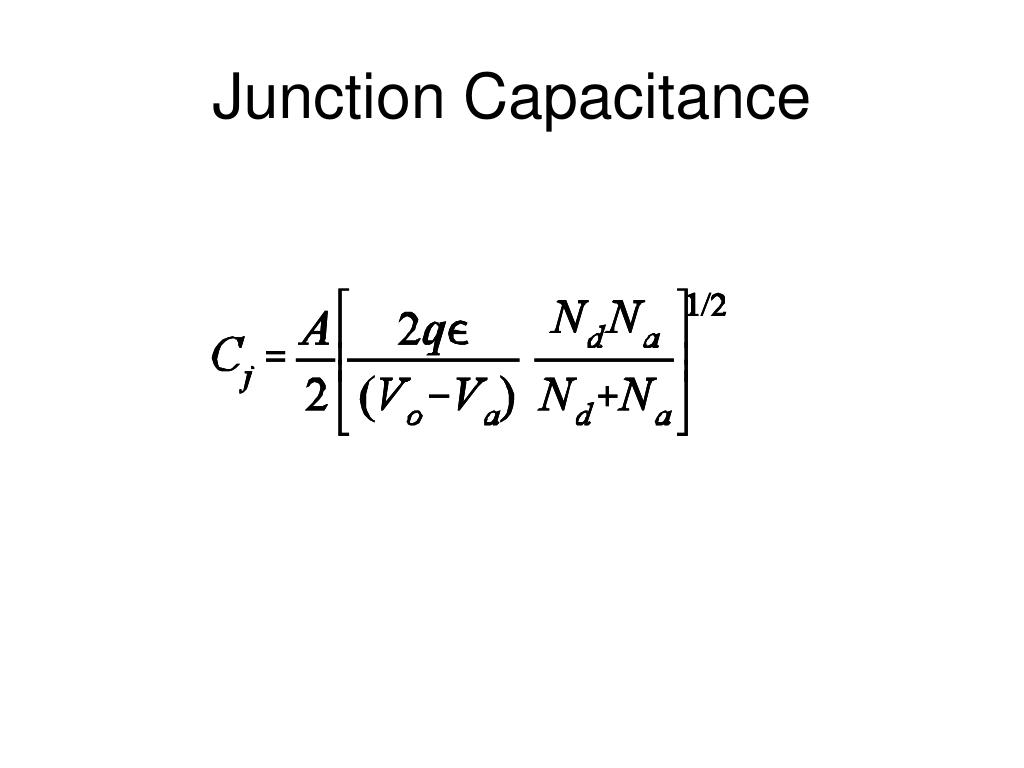

  16. Junction Capacitance

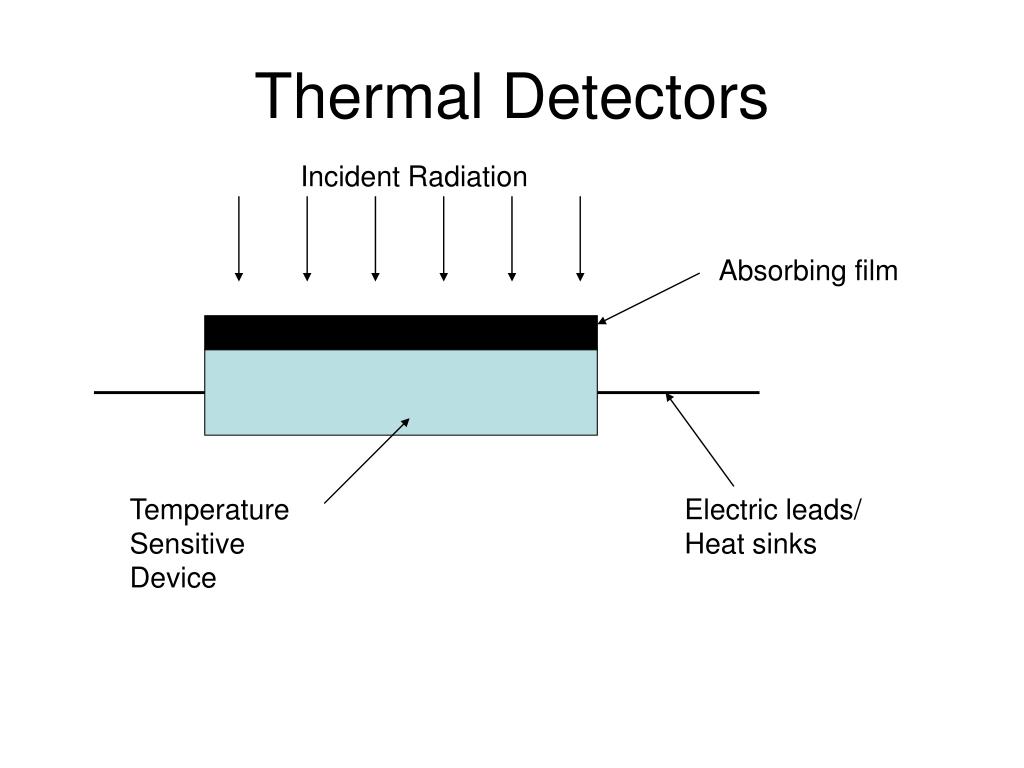

  17. Thermal Detectors Incident Radiation Absorbing film Temperature Sensitive Device Electric leads/ Heat sinks

  18. Thermal Detectors • Thermocouple/Thermopile Detectors • Semiconductor Bolometers • Golay Cells • Pyroelectric detectors

  19. Thermopile Detectors Incident Radiation Absorbing film Electric leads/ Heat sinks Bi Sb (Thermocouples in series)

  20. Golay Cell Deformable membrane Detector Incident radiation Gas Light Source Mirror Absorber

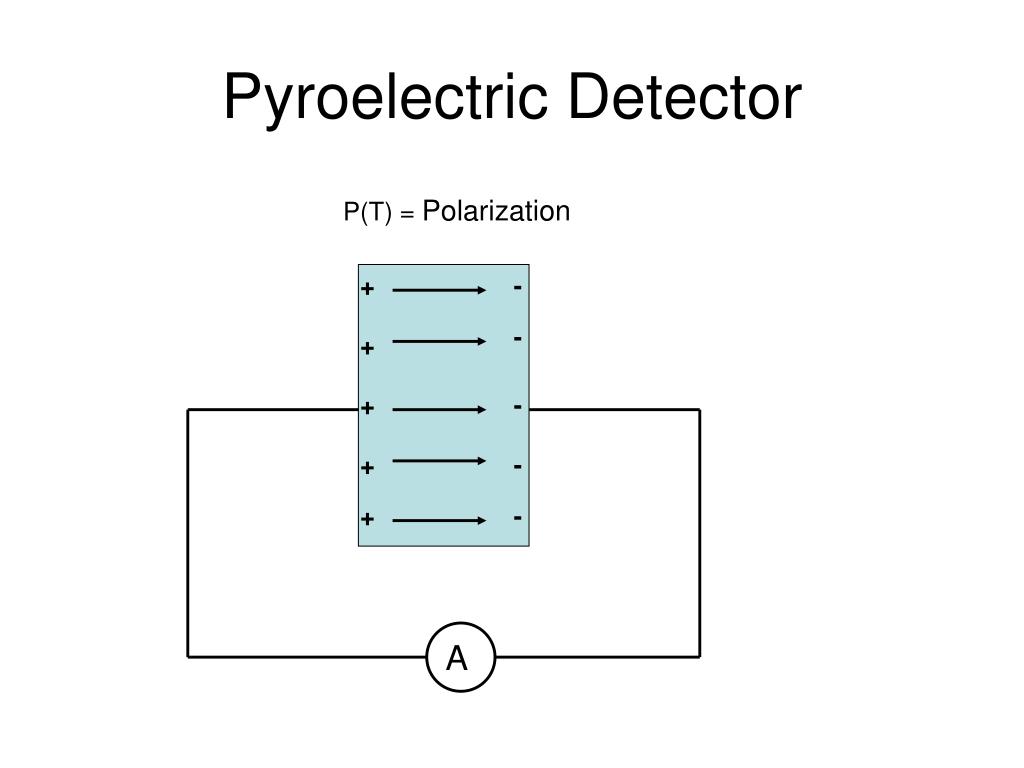

  21. Pyroelectric Detector P(T) = Polarization + - - + + - + - + - A

  22. Ferroelectric Materials P Pr Ea

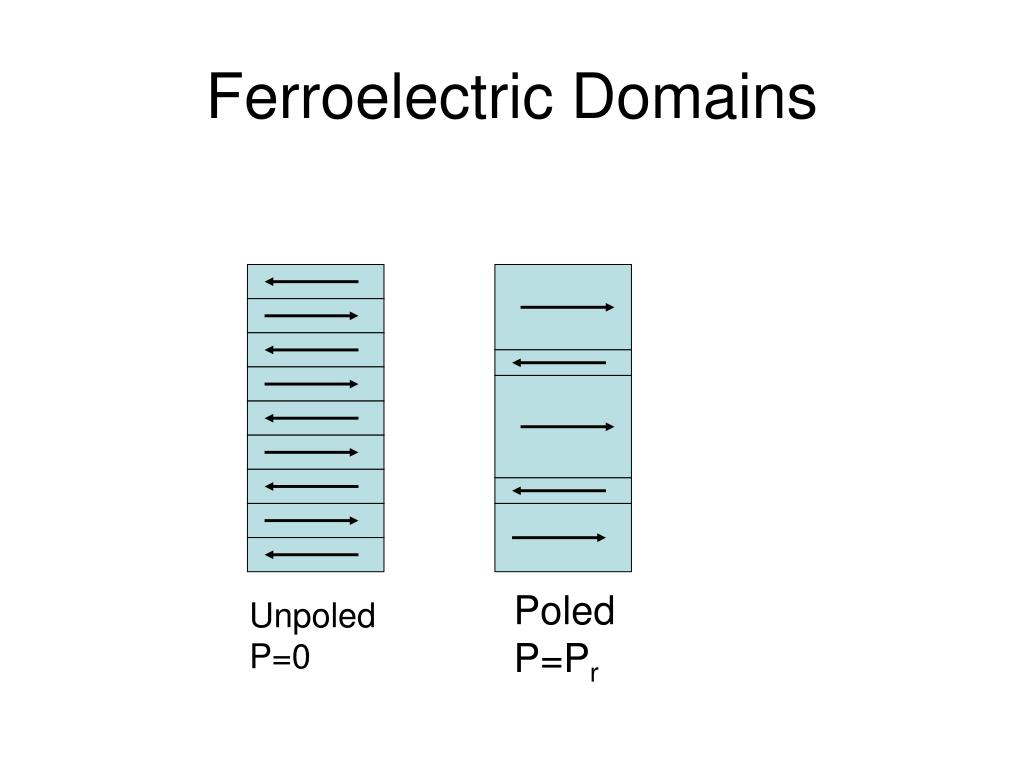

  23. Ferroelectric Domains Poled P=Pr Unpoled P=0

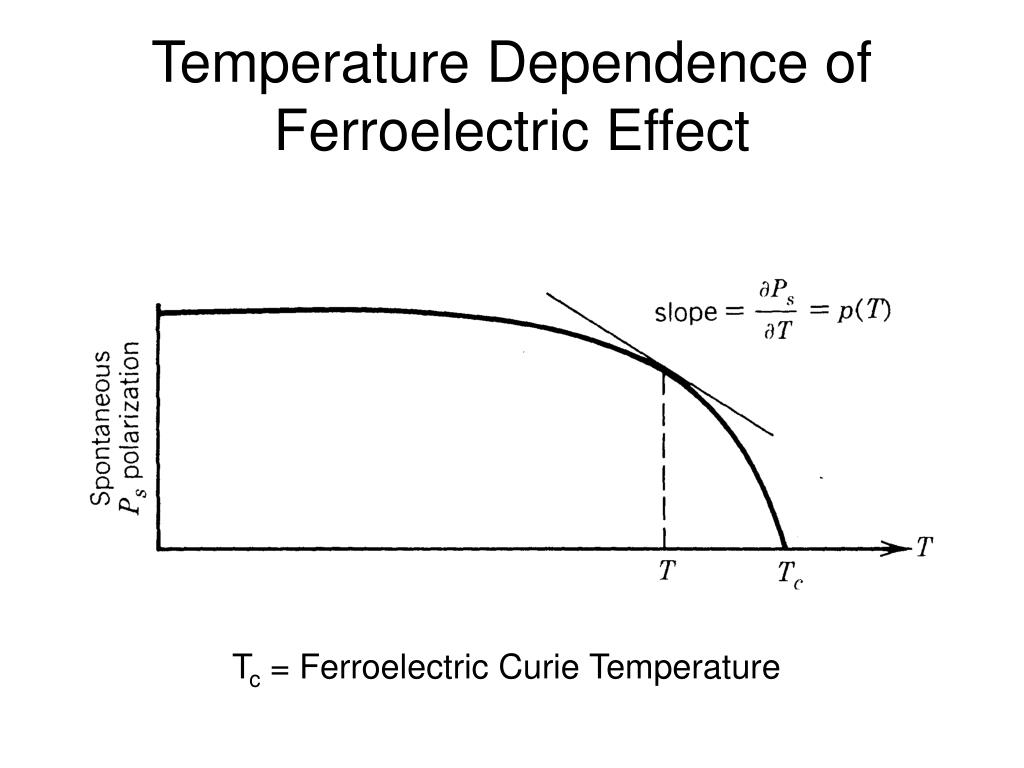

  24. Temperature Dependence of Ferroelectric Effect Tc = Ferroelectric Curie Temperature

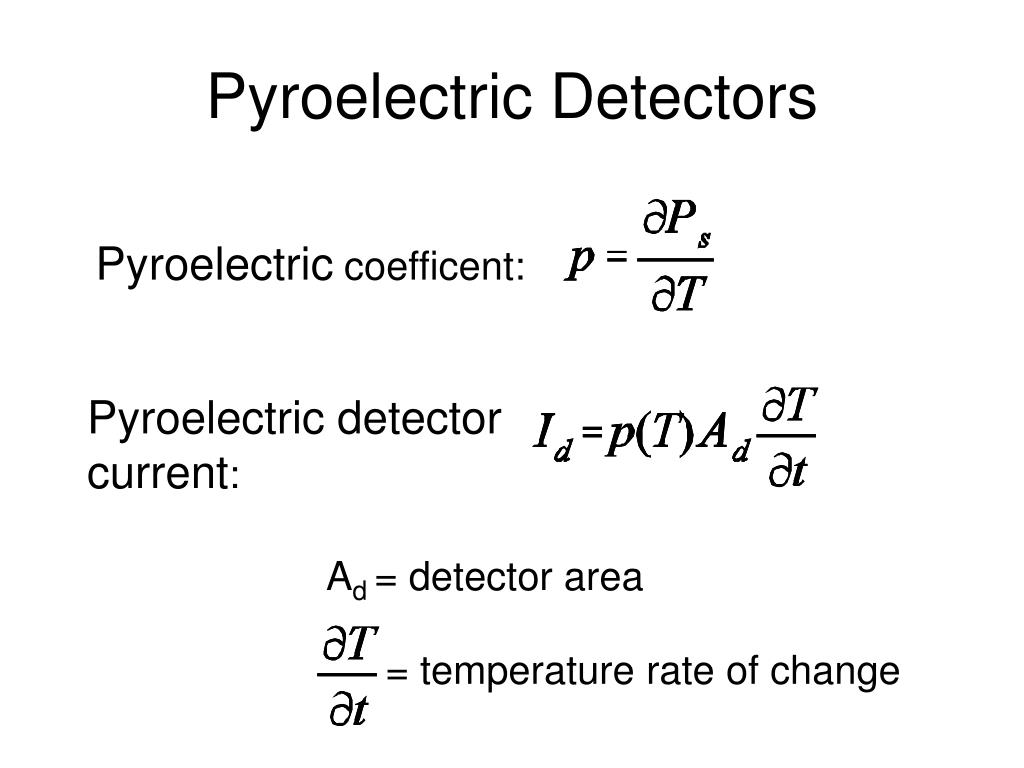

  25. Pyroelectric Detectors Pyroelectric coefficent: Pyroelectric detector current: Ad = detector area = temperature rate of change

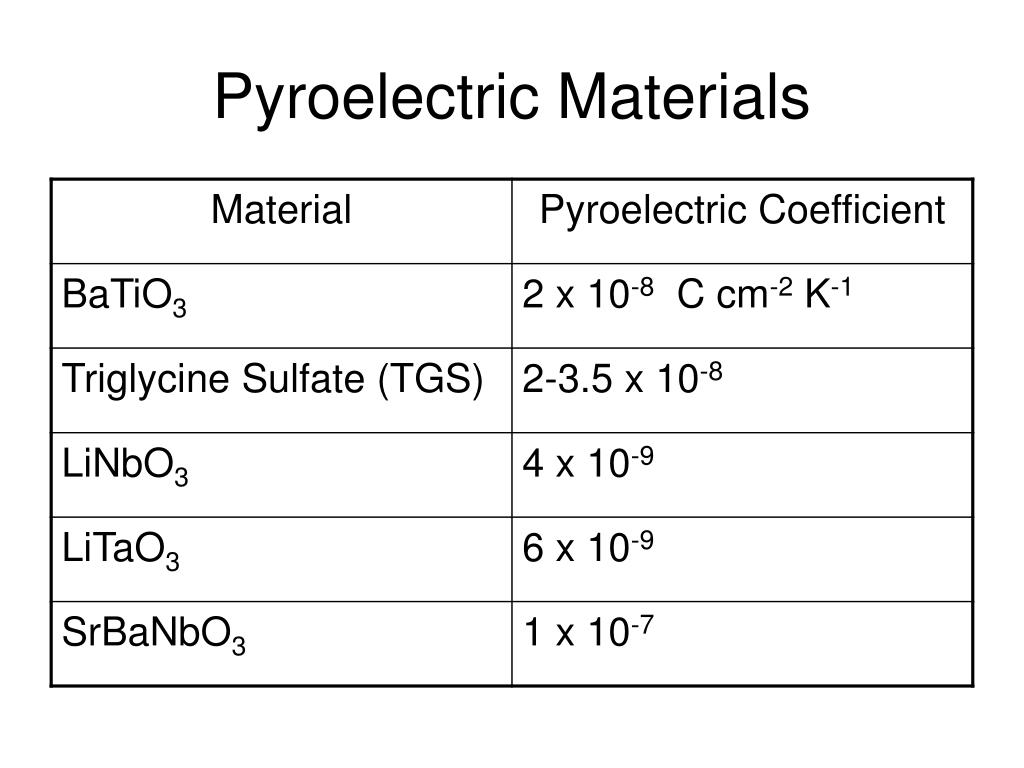

  26. Pyroelectric Materials

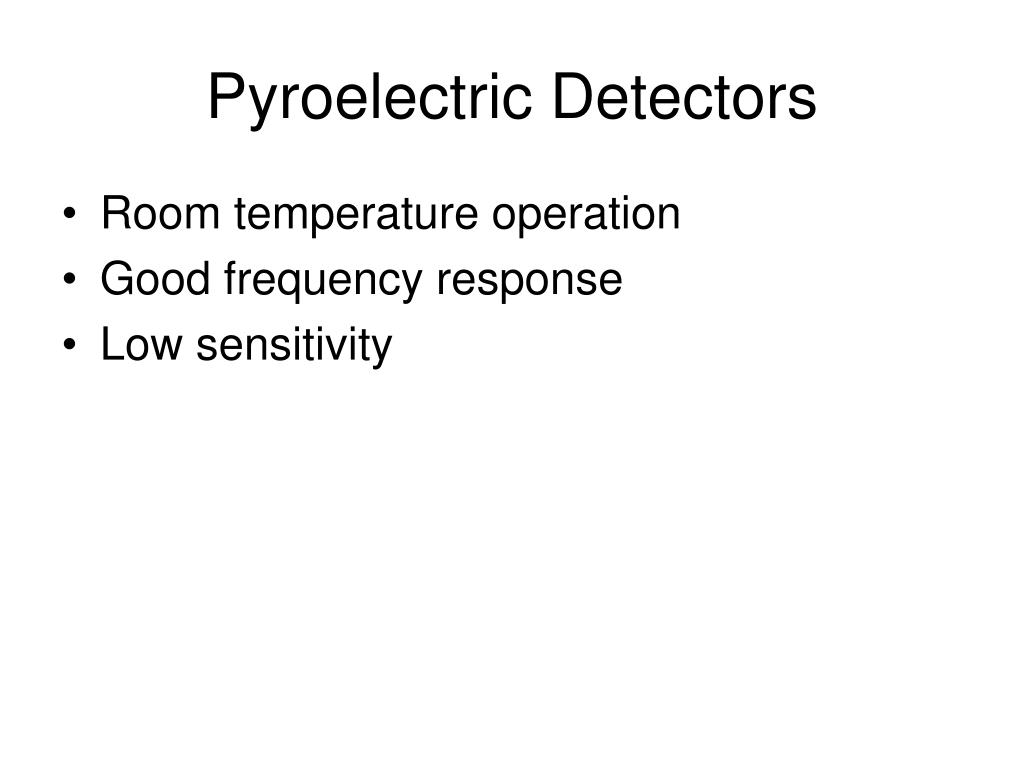

  27. Pyroelectric Detectors • Room temperature operation • Good frequency response • Low sensitivity
