  1. and A total law enforcement mapping solution!

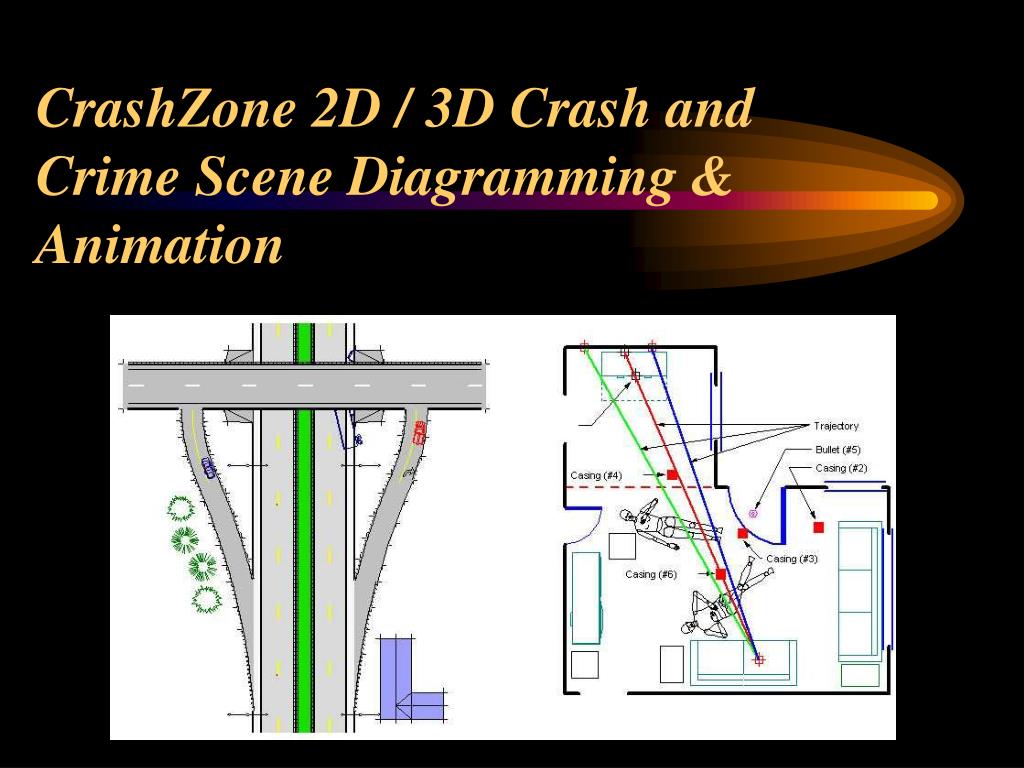

  2. CrashZone 2D / 3D Crash and Crime Scene Diagramming & Animation

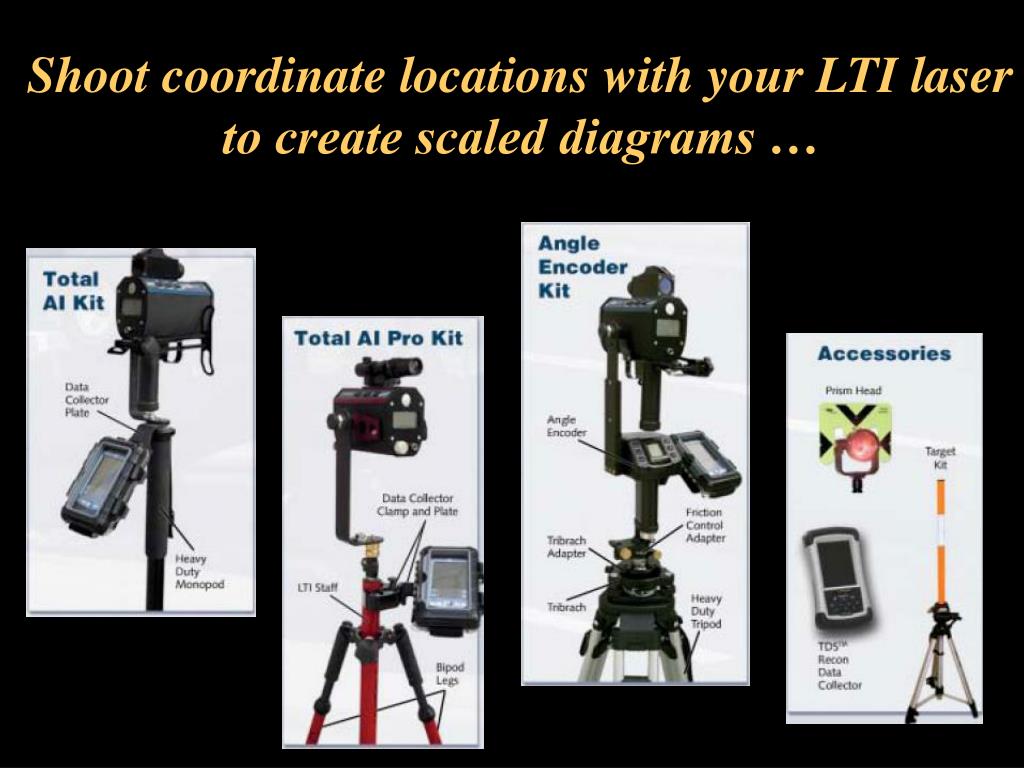

  3. Shoot coordinate locations with your LTI laser to create scaled diagrams …

  4. Pocket Zone: Data Collection Option Allows you to “see” your data live as you shoot it TDS RECON (rugged) iPAQ

  5. PocketZone data collection with Angle Encoder…. • Real-time display reduces errors & omissions • Automated lines, curves and arcs • Easy station moves and instrument repositioning • Customizable description library with predefined layers, line types and symbols automates drawing • Save common intersections to use as templates • Files open directly into CrashZone in one step as a true 3D coordinate drawing file • Coordinate and raw data list print outs

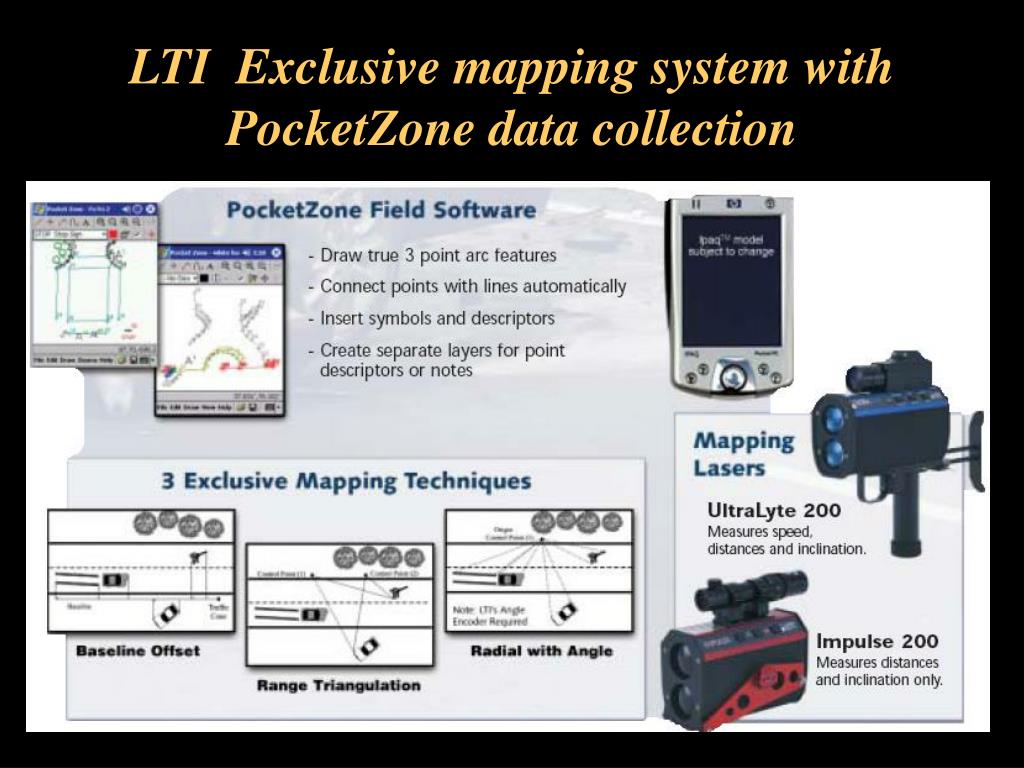

  6. LTI Exclusive mapping system with PocketZone data collection

  7. PocketZone LTI excusive features used without an Angle Encoder…. • Use easy Baseline and Triangulation input • Tap on screen to add lines and curves • Compact enough even for motorcycle officers • Customizable description library • Files open directly into CrashZone • Use the “Impulse” or the “UL 200” both with Tilt Sensors to generate 3D data points

  8. CrashZone software to create accurate collision reconstruction diagrams: records x,y,z coordinates and imports directly

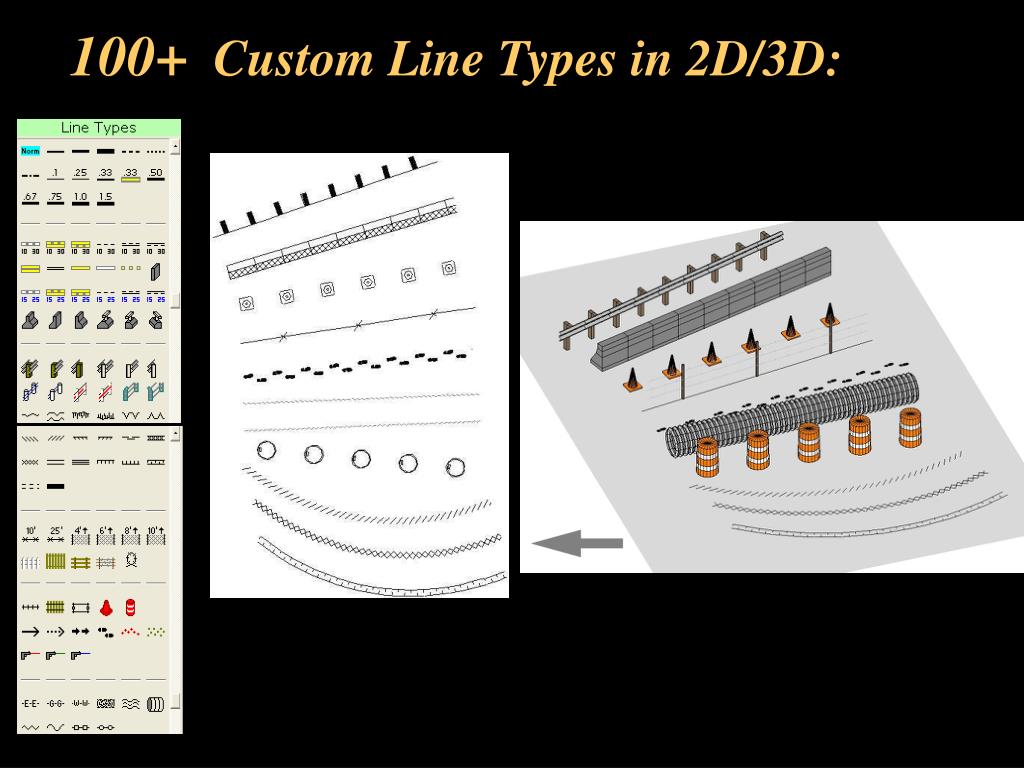

  9. 100+ Custom Line Types in 2D/3D:

  10. Includes hundreds of unique 2D/3D symbols!

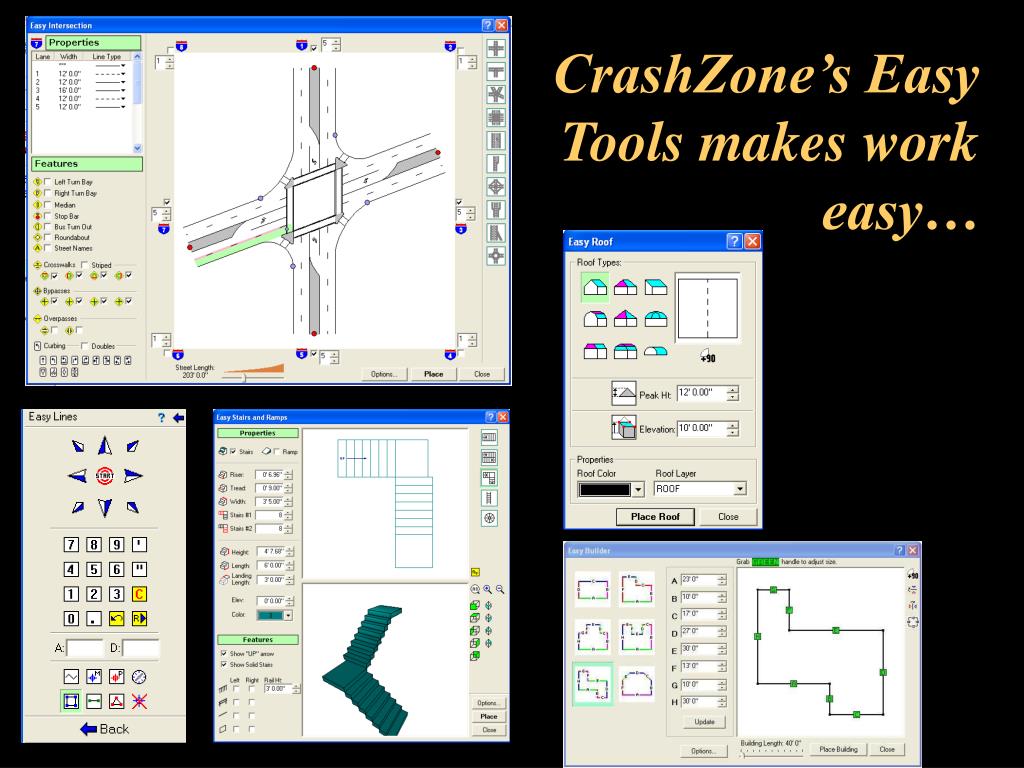

  11. CrashZone’s Easy Tools makes work easy…

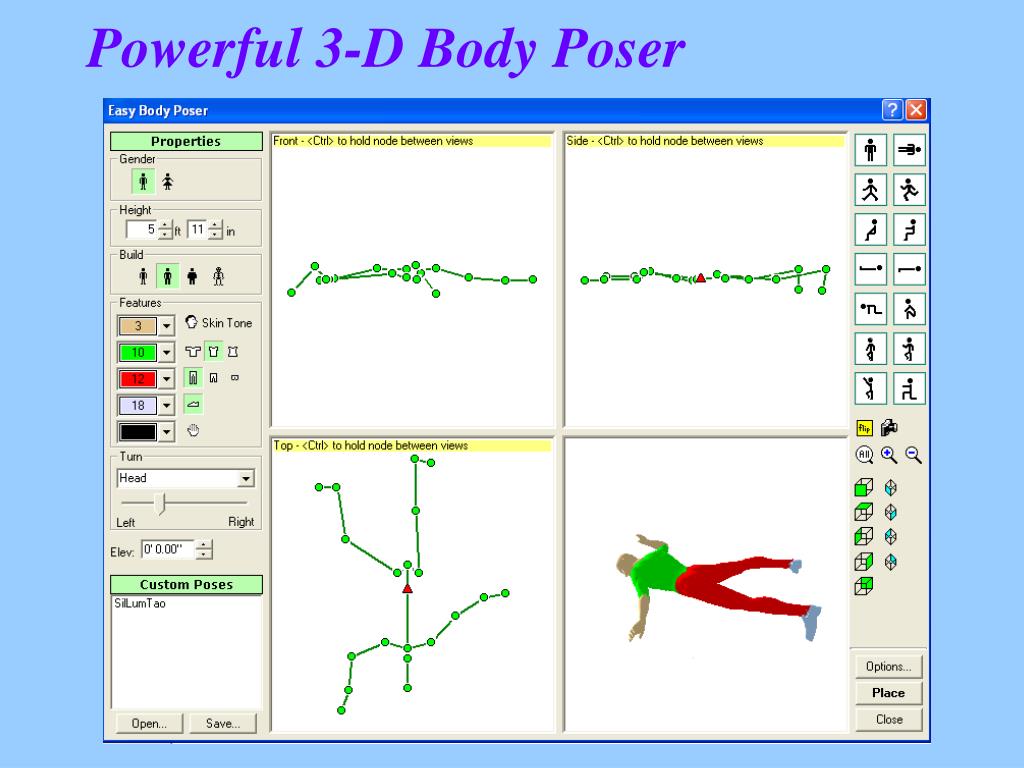

  12. Powerful 3-D Body Poser

  13. Vehicle Specs database … • Includes: • data printout • displays center of gravity, wheel base & wheel centers • - online updates

  14. Skid Analysis & Momentum calculation tools:

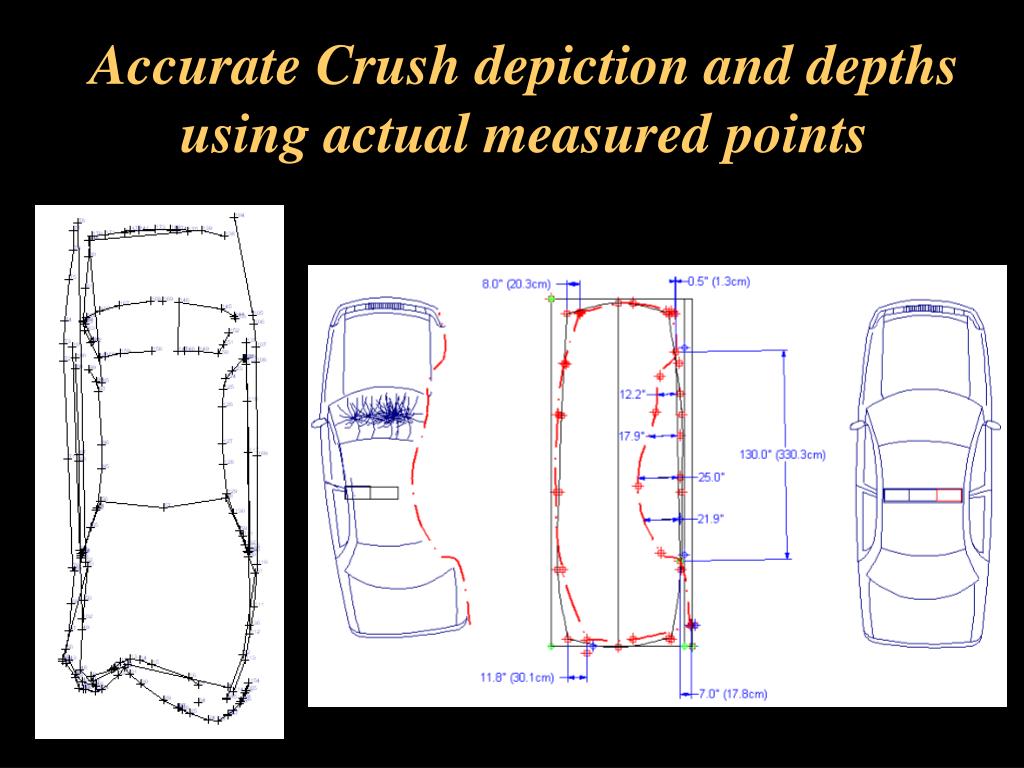

  15. Accurate Crush depiction and depths using actual measured points

  16. Easy Profile: creates an instant profile view in seconds for sight lines …

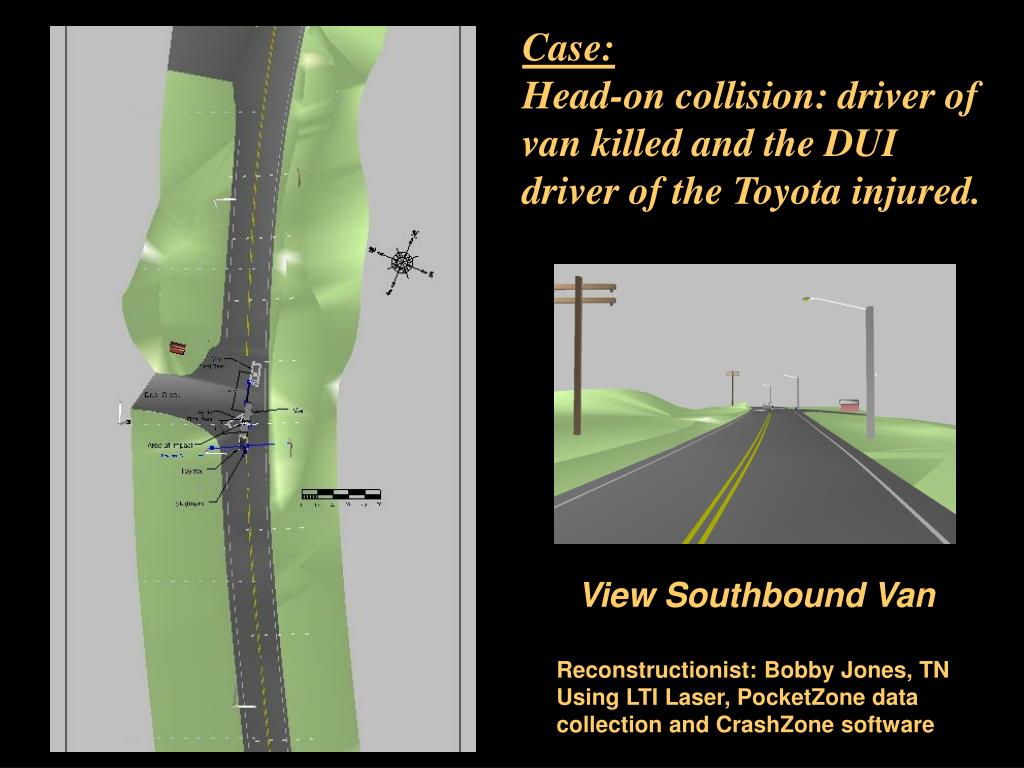

  17. Case:Head-on collision: driver of van killed and the DUI driver of the Toyota injured. Reconstructionist: Bobby Jones, TNUsing LTI Laser, PocketZone data collection and CrashZone software View Southbound Van

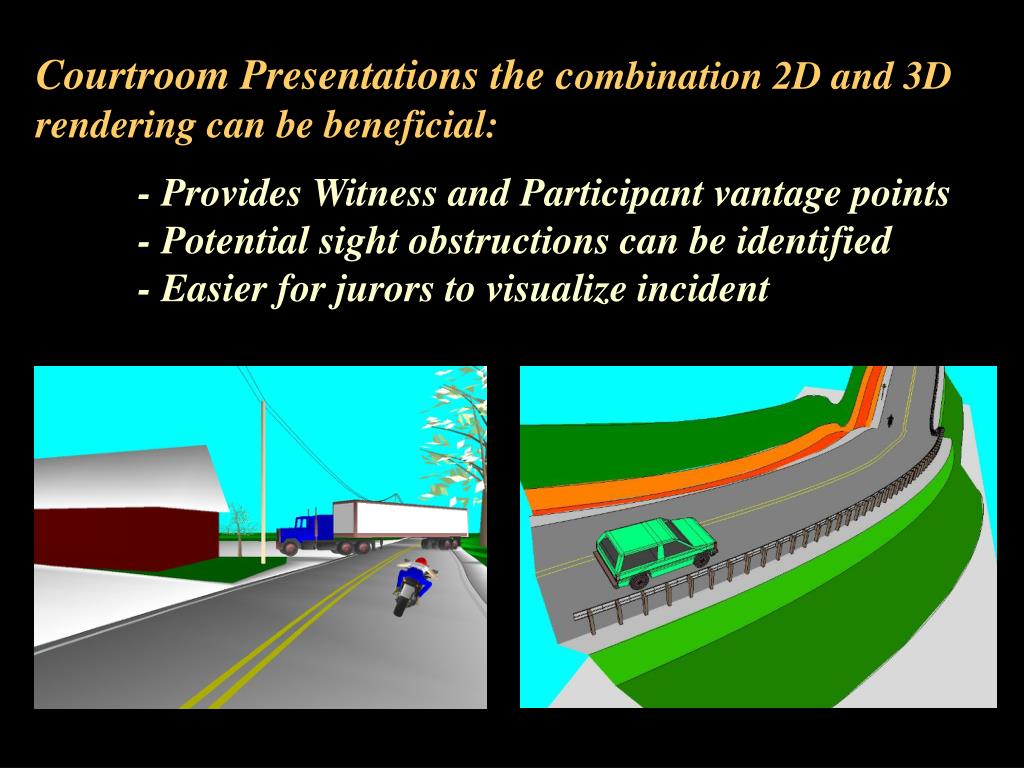

  18. Courtroom Presentations the combination 2D and 3D rendering can be beneficial: • - Provides Witness and Participant vantage points • - Potential sight obstructions can be identified • - Easier for jurors to visualize incident

  19. Crash, crime, fire and marine applications all in one …

  20. Vertical Wall Evidence tool: draw and accurately map on vertical surfaces!

  21. Incorporate digital images in diagrams and also work on air and satellite photos

  22. Save & Print functions: • Opens/save dxf & dwg drawing files • Built in PDF driver saves direct to pdf file • Easy print functions: print to scale, fit to paper, tile mode, etc. all in one simple dialog box • Export 3D surfaces and symbols to animation programs or AutoCAD direct

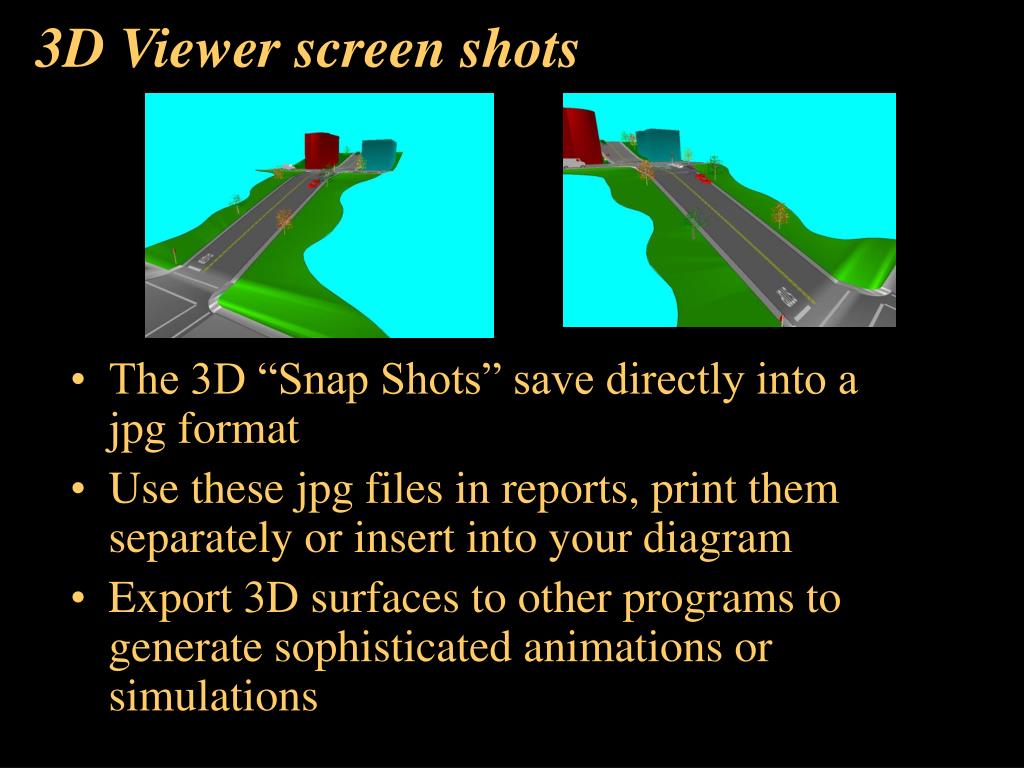

  23. 3D Viewer screen shots • The 3D “Snap Shots” save directly into a jpg format • Use these jpg files in reports, print them separately or insert into your diagram • Export 3D surfaces to other programs to generate sophisticated animations or simulations

  24. B A A B

  25. New 2D and 3D “Animations” provide fast and easy key frame animations with coordinate print out and frame options. Movies play with Windows Movie Maker:

  26. LTI & CAD ZONE complete, affordable and easy to use forensic mapping system
