  1. Chapter 7 Installing and Using Windows XP Professional

  2. You Will Learn… • About the features and architecture of Windows XP • How to install Windows XP • How to use Windows XP • How to install hardware and applications with Windows XP A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

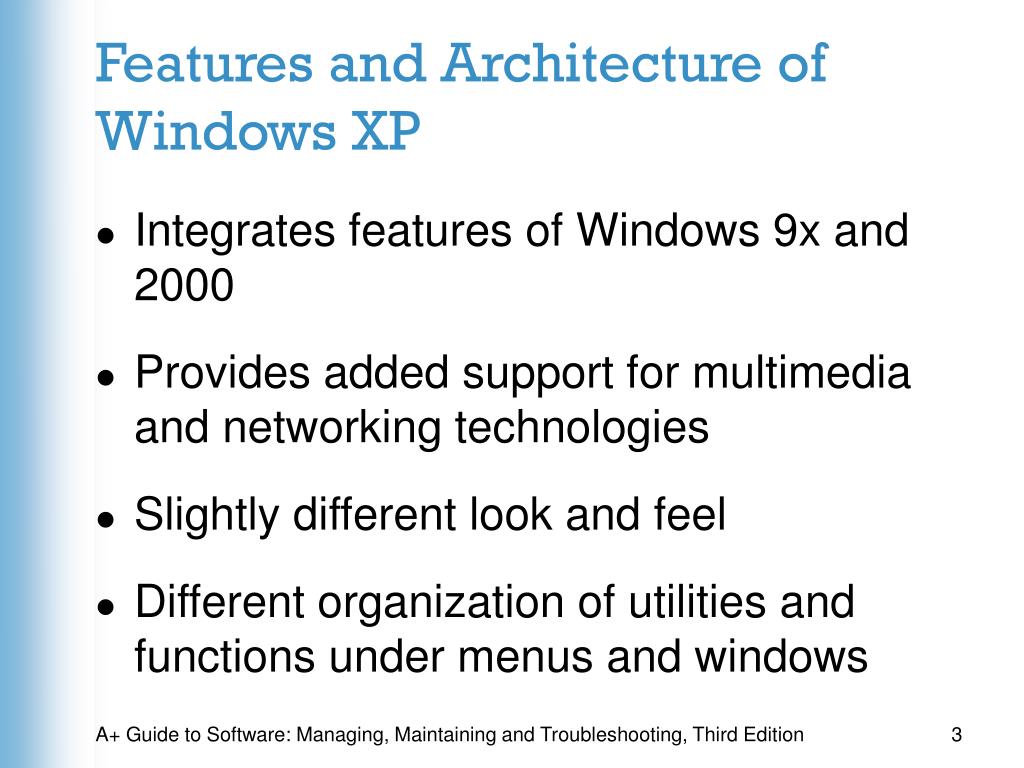

  3. Features and Architecture of Windows XP • Integrates features of Windows 9x and 2000 • Provides added support for multimedia and networking technologies • Slightly different look and feel • Different organization of utilities and functions under menus and windows A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  4. Features of Windows XP Home/Professional • New user interface • Ability for two users to be logged on simultaneously • Windows Media Player for Windows XP • Windows Messenger for Windows XP • Ability to burn a CD with drag and drop • Expanded Help feature • Advanced security features A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  5. New User Interface A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

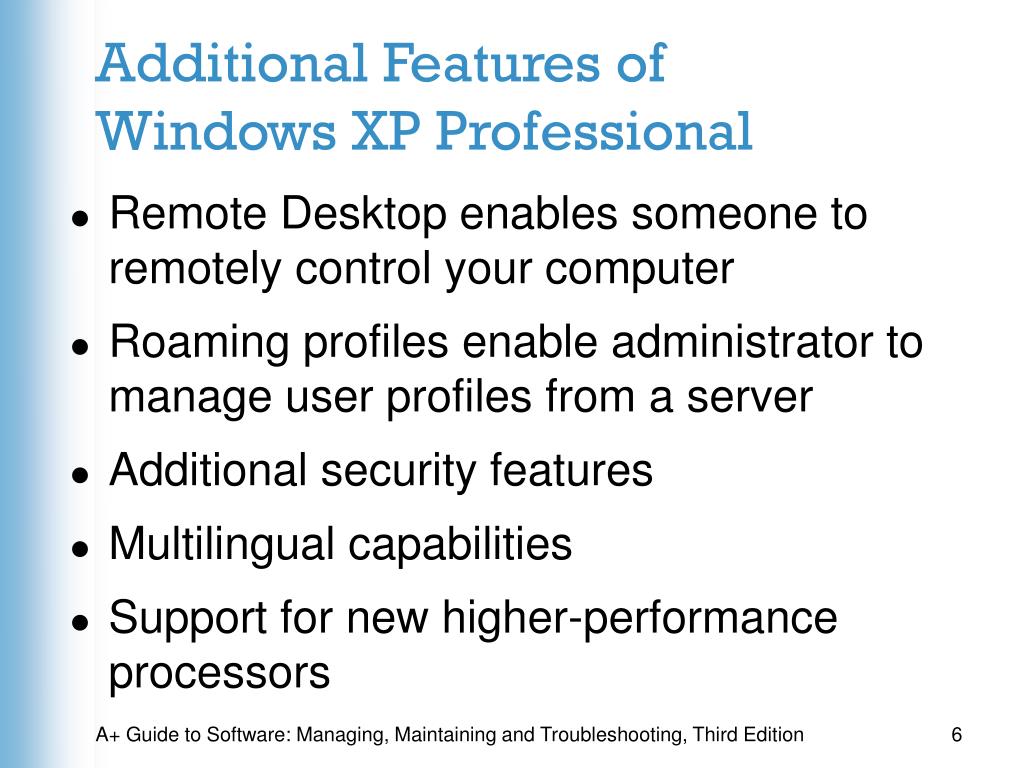

  6. Additional Features of Windows XP Professional • Remote Desktop enables someone to remotely control your computer • Roaming profiles enable administrator to manage user profiles from a server • Additional security features • Multilingual capabilities • Support for new higher-performance processors A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

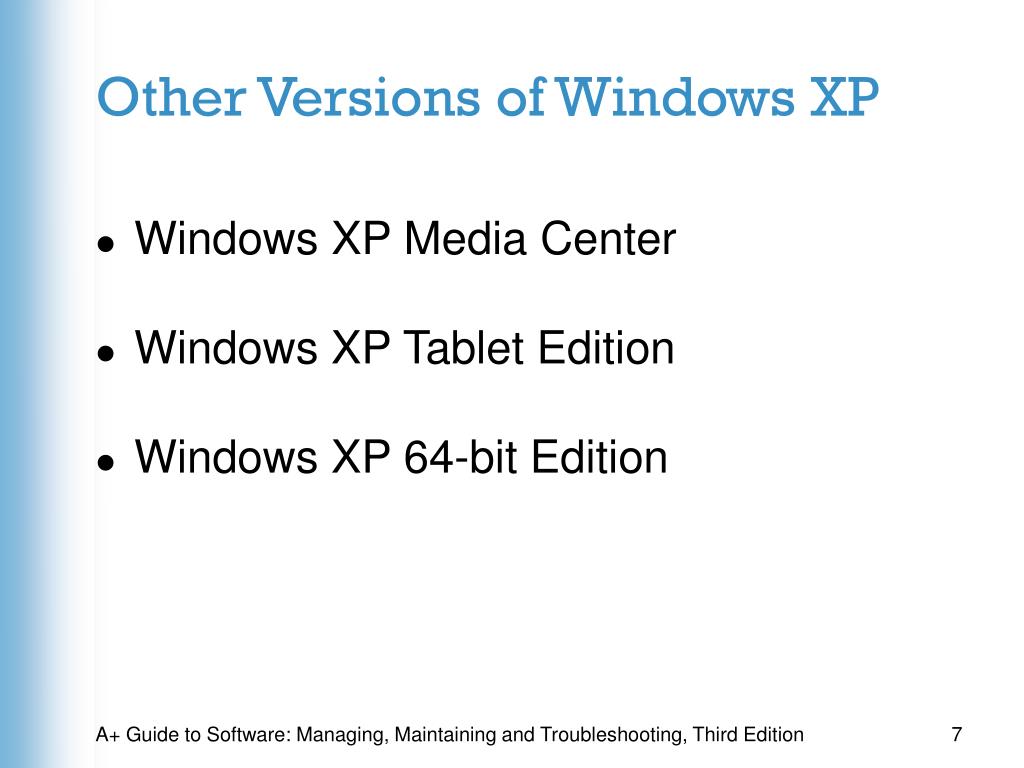

  7. Other Versions of Windows XP • Windows XP Media Center • Windows XP Tablet Edition • Windows XP 64-bit Edition A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

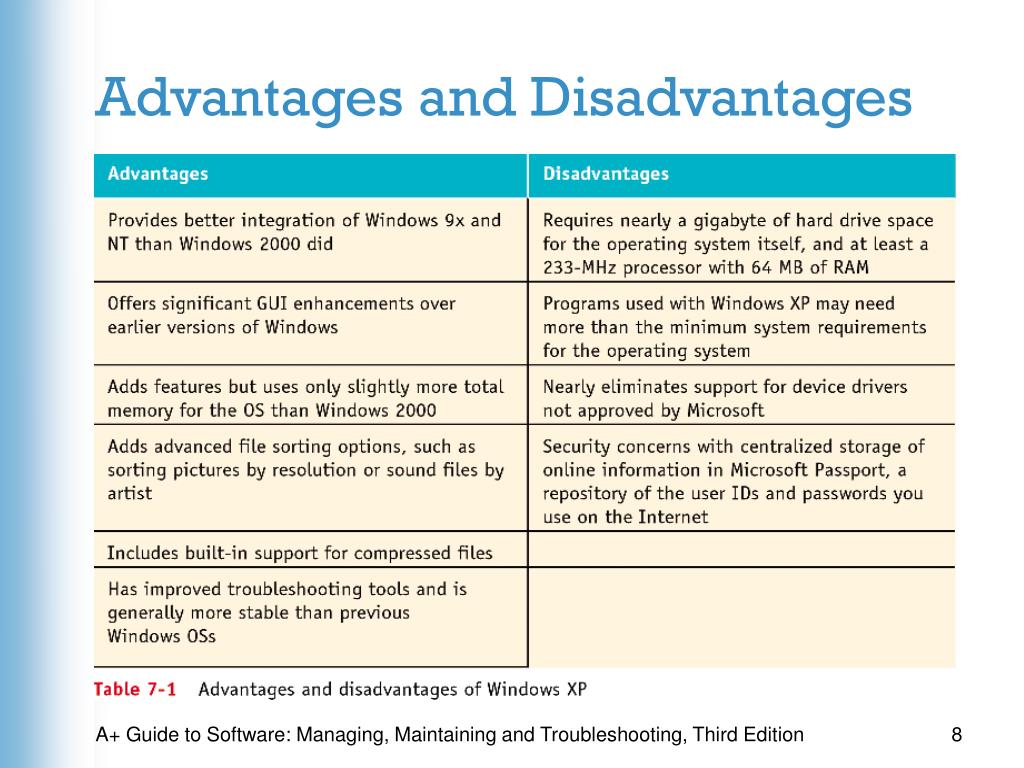

  8. Advantages and Disadvantages A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  9. Windows XP Architecture • Compared to Windows NT/2000: • Uses same kernel architecture with components operating in either user mode or kernel mode • Boot process and files needed for a successful boot are the same • Generally more stable • Easier installation • Increased security A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  10. Windows XP Architecture(continued) A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  11. Installing Windows XP • Clean install • As an upgrade • Setting up a dual boot A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

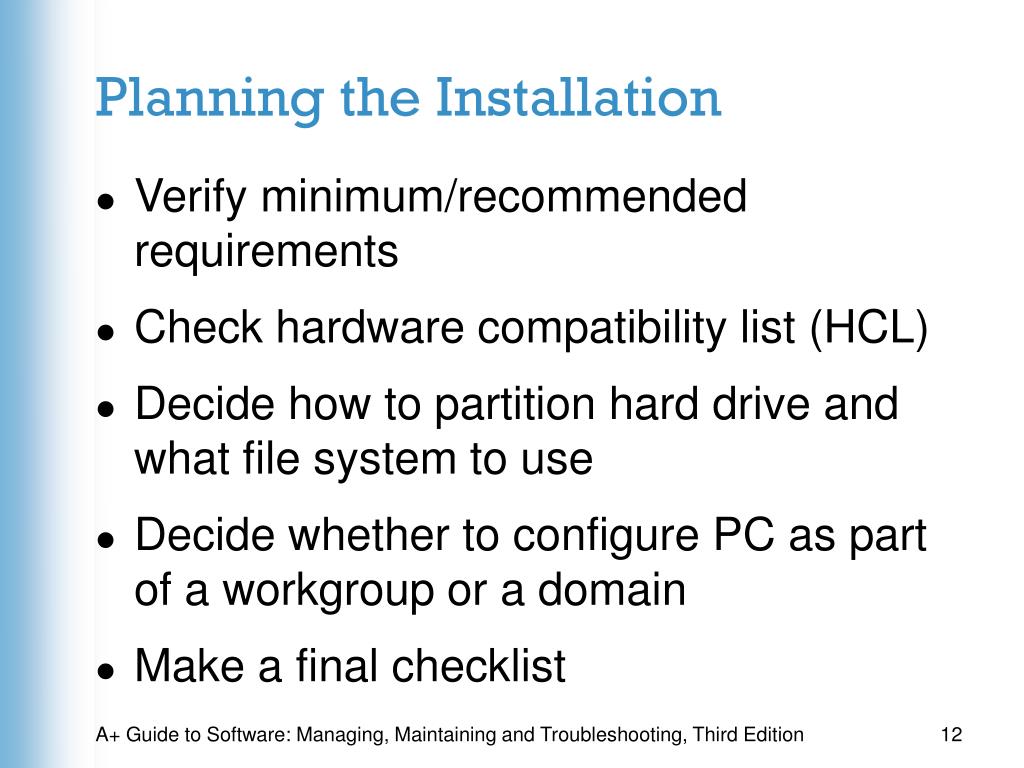

  12. Planning the Installation • Verify minimum/recommended requirements • Check hardware compatibility list (HCL) • Decide how to partition hard drive and what file system to use • Decide whether to configure PC as part of a workgroup or a domain • Make a final checklist A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

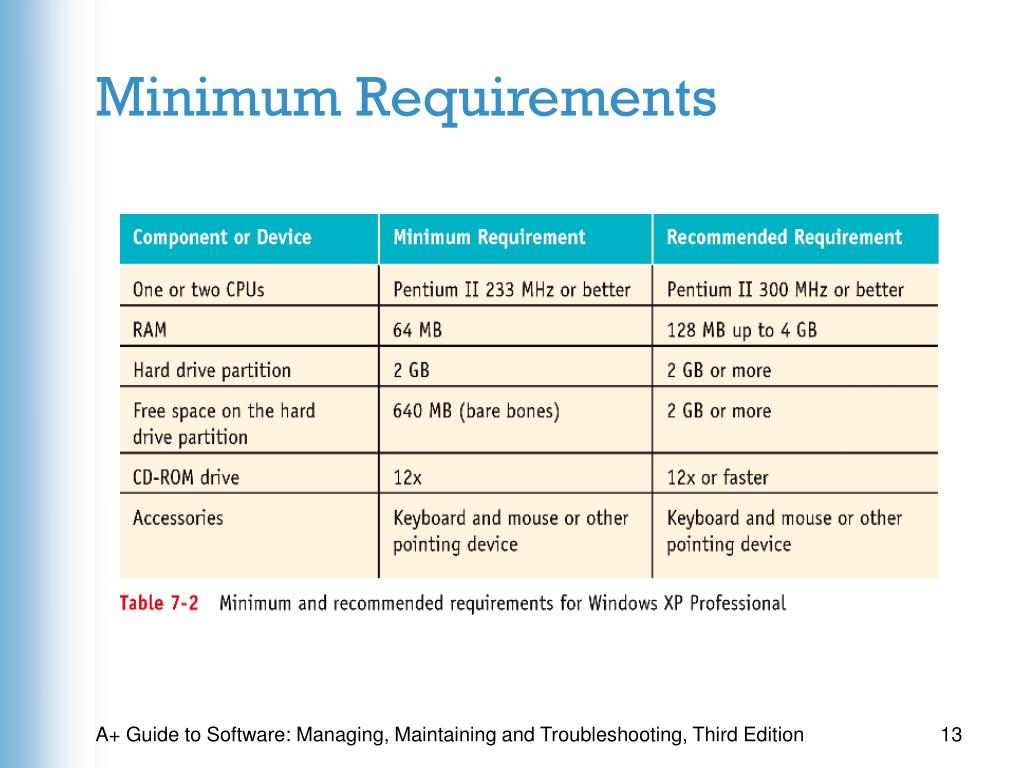

  13. Minimum Requirements A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  14. Hardware Compatibility • Verify that software and hardware qualify for Windows XP • Run Readiness Analyzer • Go to the HCL on the Microsoft Web site (http://www.microsoft.com/hwdq/hcl) and search on each hardware device by type • If hardware does not qualify, download upgraded drivers A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  15. Hardware Compatibility(continued) A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  16. Hard Drive Partitionsand File Systems • Ensure that partitions on hard drive are adequate to install Windows XP • At least a 2-GB partition is required for installation, with 1.5 GB of free space • Supported file systems (same as Windows 2000) • FAT16 • FAT32 • NTFS A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  17. General Guidelines for Selecting a File System • Use NTFS if the following are important: • File and folder security • File compression • Control over how much disk space allowed • File encryption A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  18. General Guidelines for Selecting a File System (continued) • Use FAT32 if dual booting with Windows 9x and each OS must access all partitions • Use FAT16 if dual booting with MS-DOS or Windows NT and each OS must access all partitions A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  19. Joining a Workgroup or Domain • Workgroup • Fewer than 10 computers networked together • Each computer controls own resources • No centralized control of resources A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  20. Joining a Workgroup or Domain (continued) • Domain • More than 10 computers • Resources controlled by a domain controller running on network operating system • Used to administer and secure network from centralized location or if several centralized resources are shared by many users A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  21. Upgrade or Clean Install? • If you plan to set up a dual boot • Choose clean install • If you have another OS installed and do not plan a dual boot • Choose between an upgrade and clean install A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

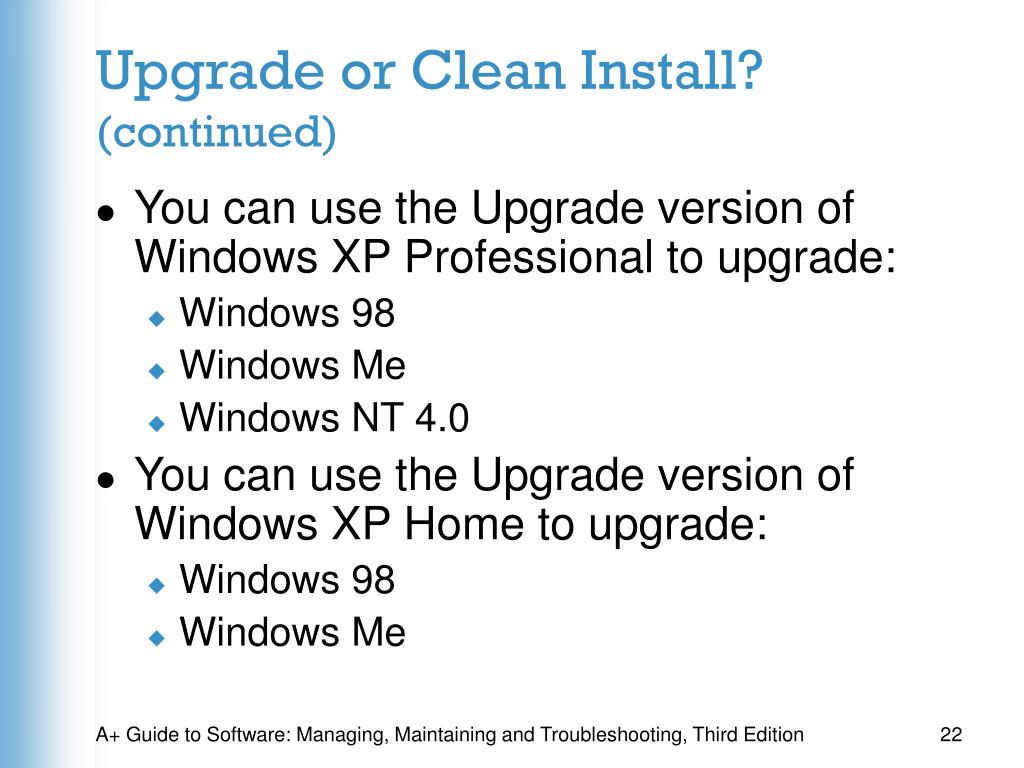

  22. Upgrade or Clean Install?(continued) • You can use the Upgrade version of Windows XP Professional to upgrade: • Windows 98 • Windows Me • Windows NT 4.0 • You can use the Upgrade version of Windows XP Home to upgrade: • Windows 98 • Windows Me A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  23. Upgrade or Clean Install?(continued) • If you currently have Windows 95, you must use the “For a New PC” version of Windows XP and do a clean install • You can still choose a clean install regardless of whether there is an OS currently installed A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  24. Final Checklist A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  25. Installation Process • Boot from the Windows XP CD • Create and delete partitions • Select the partition for Windows XP • Select a file system for the partition • Select geographical region and keyboard layout A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  26. Installation Process(continued) • Enter name, organization, product key • Enter computer name and password for Administrator account • Select date, time, and time zone • Configure network settings • Enter a workgroup or domain name A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  27. Windows XP Setup A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  28. Windows XP Setup(continued) A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

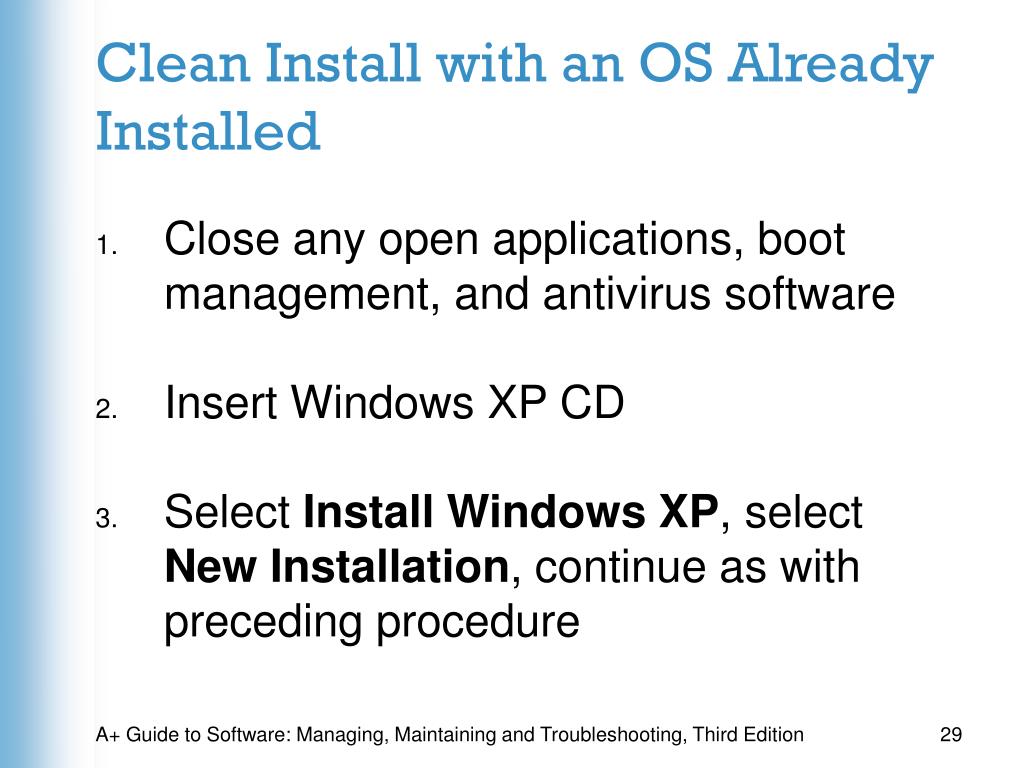

  29. Clean Install with an OS Already Installed • Close any open applications, boot management, and antivirus software • Insert Windows XP CD • Select Install Windows XP, select New Installation, continue as with preceding procedure A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  30. Installation Process A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  31. Performing an Upgrade • Before the installation • Clean up the hard drive • Perform hardware and software upgrades • Flash BIOS to the latest version • Back up important files • Scan hard drive for viruses • Uncompress hard drive (if compressed) • Uninstall incompatible hardware and software A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  32. Performing an Upgrade(continued) • Insert Windows XP CD, select Install Windows XP • If Setup menu does not appear, use the Run dialog box to start Setup • Select Upgrade installation type • Express Upgrade • Custom Upgrade A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  33. Performing an Upgrade(continued) • Select upgrade type, accept the license • Select installation partition • Stop installation if compatibility problems are detected • Setup converts information into the Windows XP registry, then offers the opportunity to join a domain A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

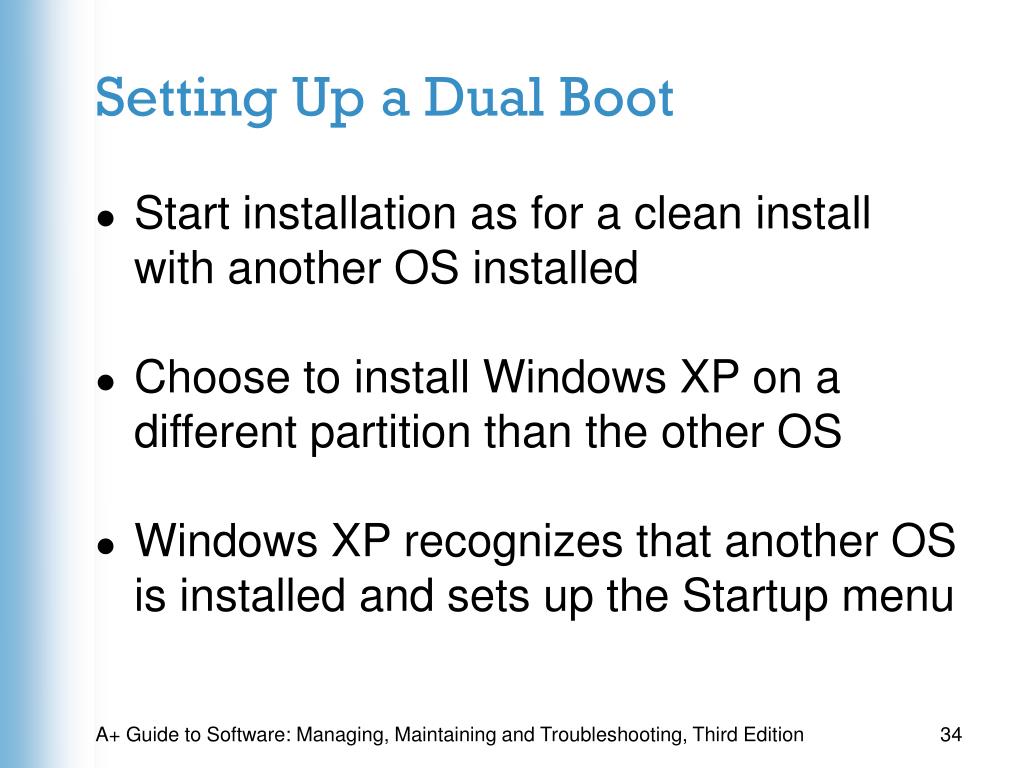

  34. Setting Up a Dual Boot • Start installation as for a clean install with another OS installed • Choose to install Windows XP on a different partition than the other OS • Windows XP recognizes that another OS is installed and sets up the Startup menu A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  35. Dual Boot Startup Menu A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  36. After the Installation • Activate the OS • Prepare the OS for use • Back up hard drive in preparation for a disaster A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  37. Product Activation Prevents unlicensed use of Microsoft software products on more than one computer A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  38. Transferring User Files and Preferences to a New PC • User State Migration Tool (USMT) • Transfers user files and folders, display properties, taskbar options, and browser and e-mail settings from a Windows 9x or Windows NT/2000/XP computer • Can help make a smooth transition A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  39. Transferring User Files and Preferences to a New PC (continued) • Use Windows XP to create a disk containing the File and Settings Transfer Wizard • Use the wizard to copy user state from source computer • Use the wizard to transfer user state to destination computer A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  40. Using the Files and Settings Transfer Wizard A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  41. Preparing for Later Problems Create backup of hard drive with the Automated System Recovery (ASR) utility • Allows user to backup and restore an entire volume or logical drive • Creates the backup and an ASR floppy disk used in the restore process A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

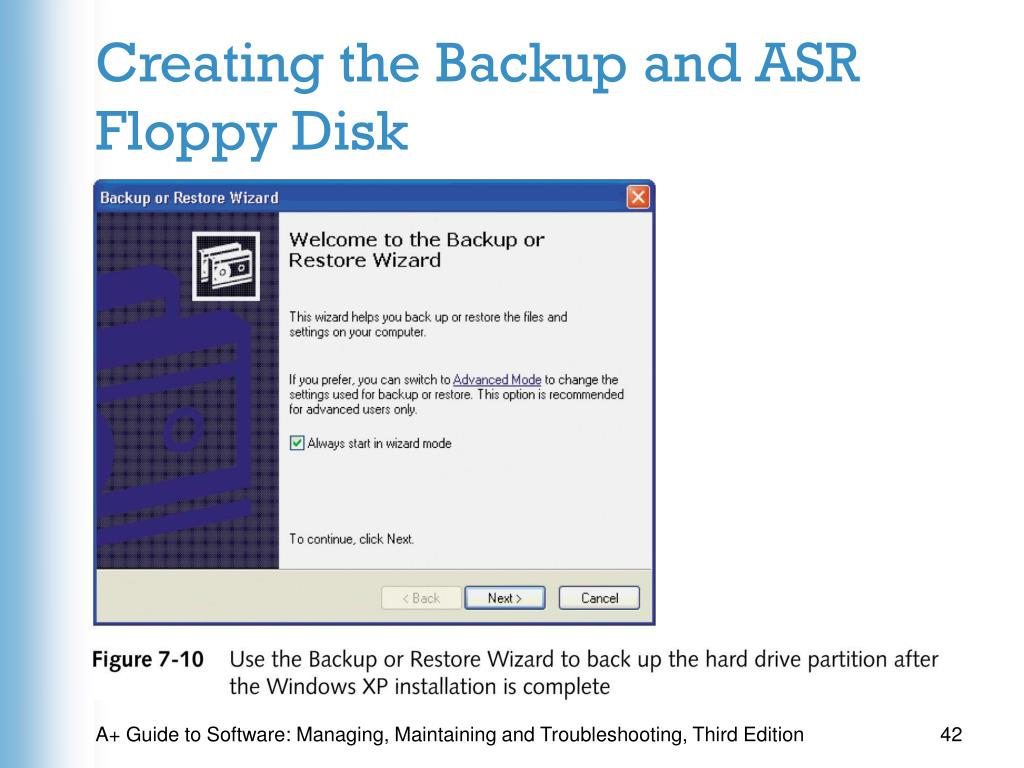

  42. Creating the Backup and ASR Floppy Disk A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

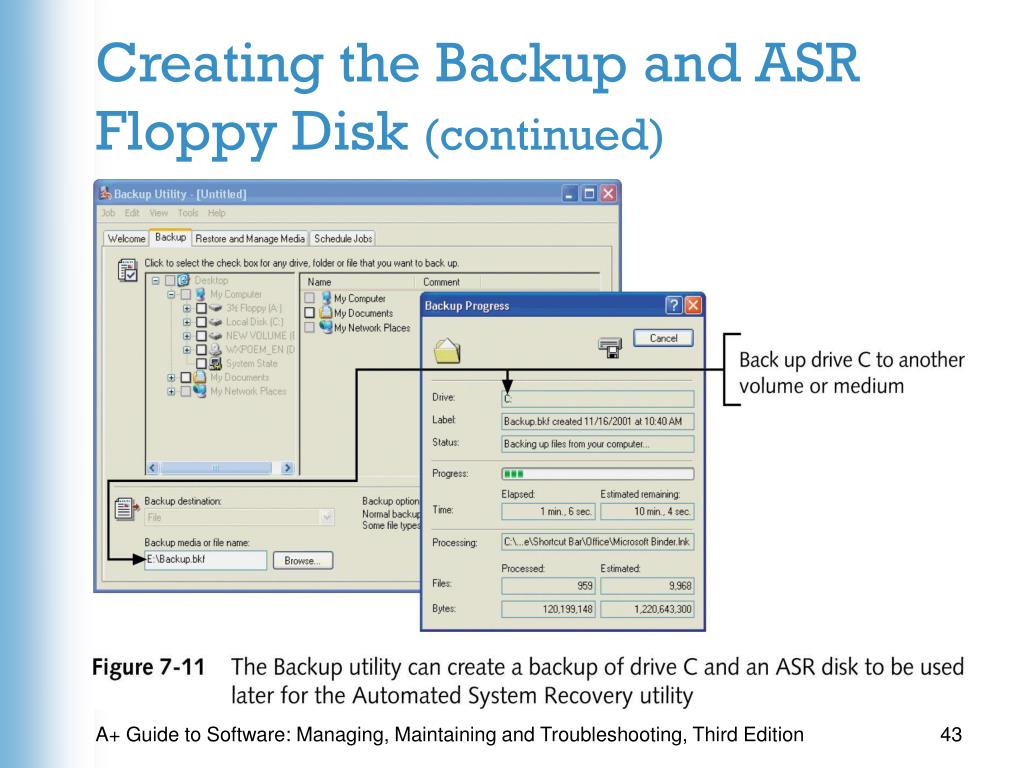

  43. Creating the Backup and ASR Floppy Disk (continued) A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  44. Using Windows XP • Desktop is different • When Windows XP is first installed, Recycle Bin is only shortcut on desktop • Start menu is organized with a more graphic look A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  45. Using Windows XP(continued) A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  46. Using Windows XP(continued) A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

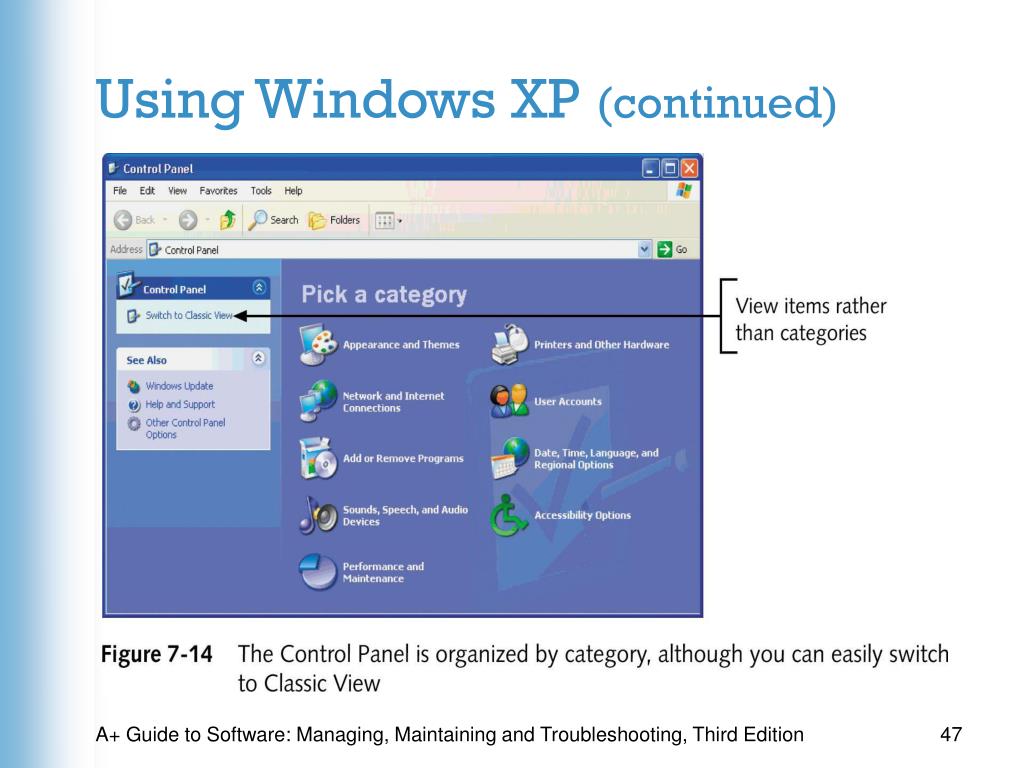

  47. Using Windows XP(continued) A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  48. Customizing the Windows XP Desktop • Change background (wallpaper) • Create shortcuts • Control what goes in the system tray A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  49. Managing Shortcuts • Right-click on the desktop, select Properties, click on Desktop tab • Click Start, click All Programs, right-click any program and select Copy, then paste it on the desktop • Right-click any application in Windows Explorer, select Create Shortcut, then drag the new shortcut to the desktop A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition

  50. Managing Desktop Shortcuts A+ Guide to Software: Managing, Maintaining and Troubleshooting, Third Edition
